Model Image
Manufacturer

Whirlpool

Model Number

80288564

Description

80288564 Nutid Sl-in Cook W Gas Cktp Stainless Ste

Interactive Exploded View

Parts List

Part Number Description
W10423113RP W10423113RP ACCESSORIES, CLEANER, OVEN (AQUALIFT TECH)
W10655449 W10655449 ACCESSORY PARTS, ASSEMBLY, BACKSPLASH (BLACK)
W10655450 W10655450 ACCESSORY PARTS, ASSEMBLY, BACKSPLASH (STAINLESS)
W10655448 W10655448 ACCESSORY PARTS, ASSEMBLY, BACKSPLASH (WHITE)
W10731886 W10731886 ACCESSORY PARTS, ASSEMBLY, TRIM (1 1/8") (BLACK)
W10731887 W10731887 ACCESSORY PARTS, ASSEMBLY, TRIM (1 1/8") (STAINLESS)
W10731885 W10731885 ACCESSORY PARTS, ASSEMBLY, TRIM (1 1/8") (WHITE)
W10675026 W10675026 ACCESSORY PARTS, ASSEMBLY, TRIM (5/8") (BLACK)
WPW10675028 WPW10675028 ACCESSORY PARTS, ASSEMBLY, TRIM (5/8") (STAINLESS)
W10675027 W10675027 ACCESSORY PARTS, ASSEMBLY, TRIM (5/8") (WHITE)
W10355051 W10355051 ACCESSORY PARTS, CLEANER, COOKTOP
W10275756 W10275756 ACCESSORY PARTS, CLEANER, GRANITE
31617A 31617A ACCESSORY PARTS, CLEANER, GRATE & DRIP PAN
W10355016 W10355016 ACCESSORY PARTS, CLEANER, STAINLESS STEEL
4396923 4396923 ACCESSORY PARTS, GRID, BROILER PAN AND
W10432545 W10432545 ACCESSORY PARTS, KIT, GRILL
W10391473 W10391473 ACCESSORY PARTS, PAD, COOKTOP CLEANING
31463A 31463A ACCESSORY PARTS, PROTECTANT, COOKTOP
W10123240 W10123240 ACCESSORY PARTS, RACK, BROILER PAN & ROASTING
WA906B WA906B ACCESSORY PARTS, SCRAPER, COOKTOP
W10355049 W10355049 ACCESSORY PARTS, WIPES, STAINLESS STEEL CLEANING
WP7101P485-60 WP7101P485-60 ANCHOR-TIP
W11502257 W11502257 ANCHOR-TIP
W10612580 W10612580 ASSEMBLY, ACTIVE OVERLAY (STAINLESS)
W10614920 W10614920 ASSEMBLY, FLUE

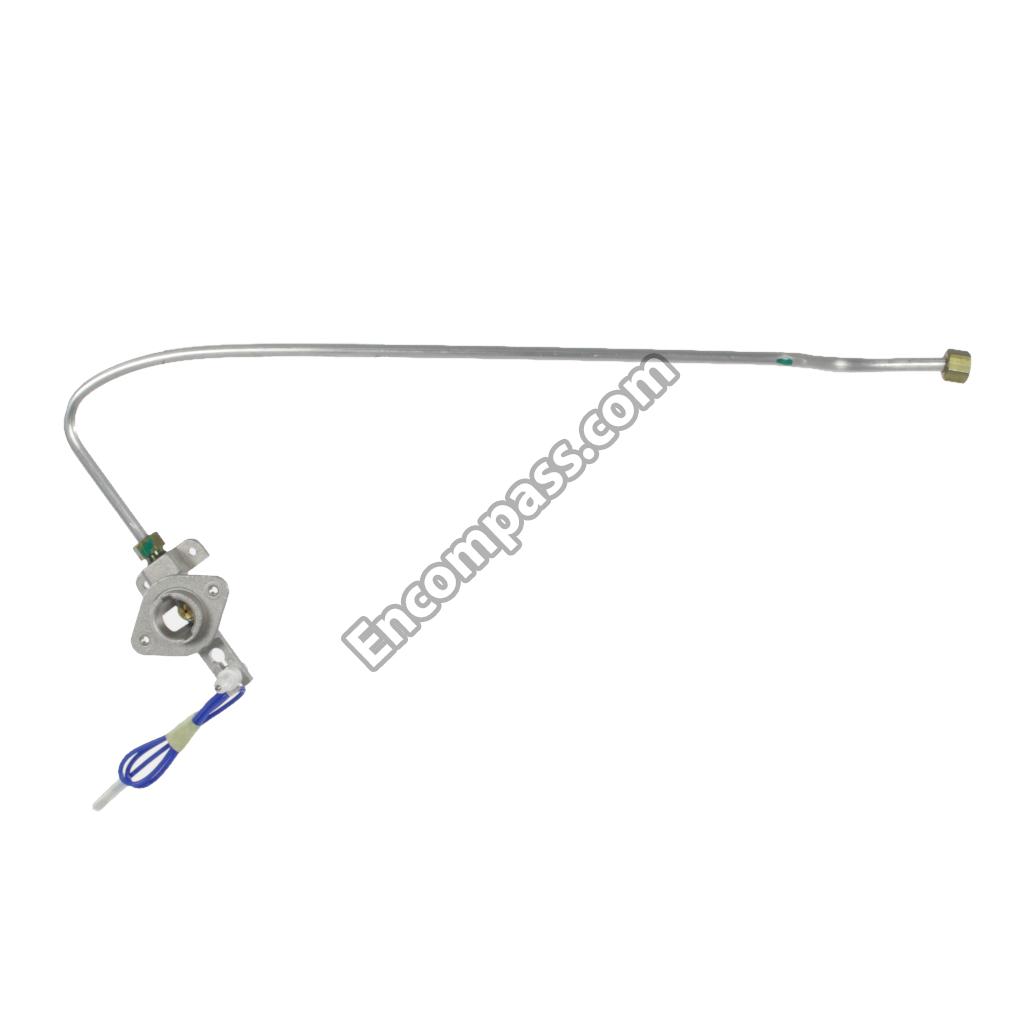

W10552129 W10552129 ASSEMBLY, ORIFICE (CENTER)

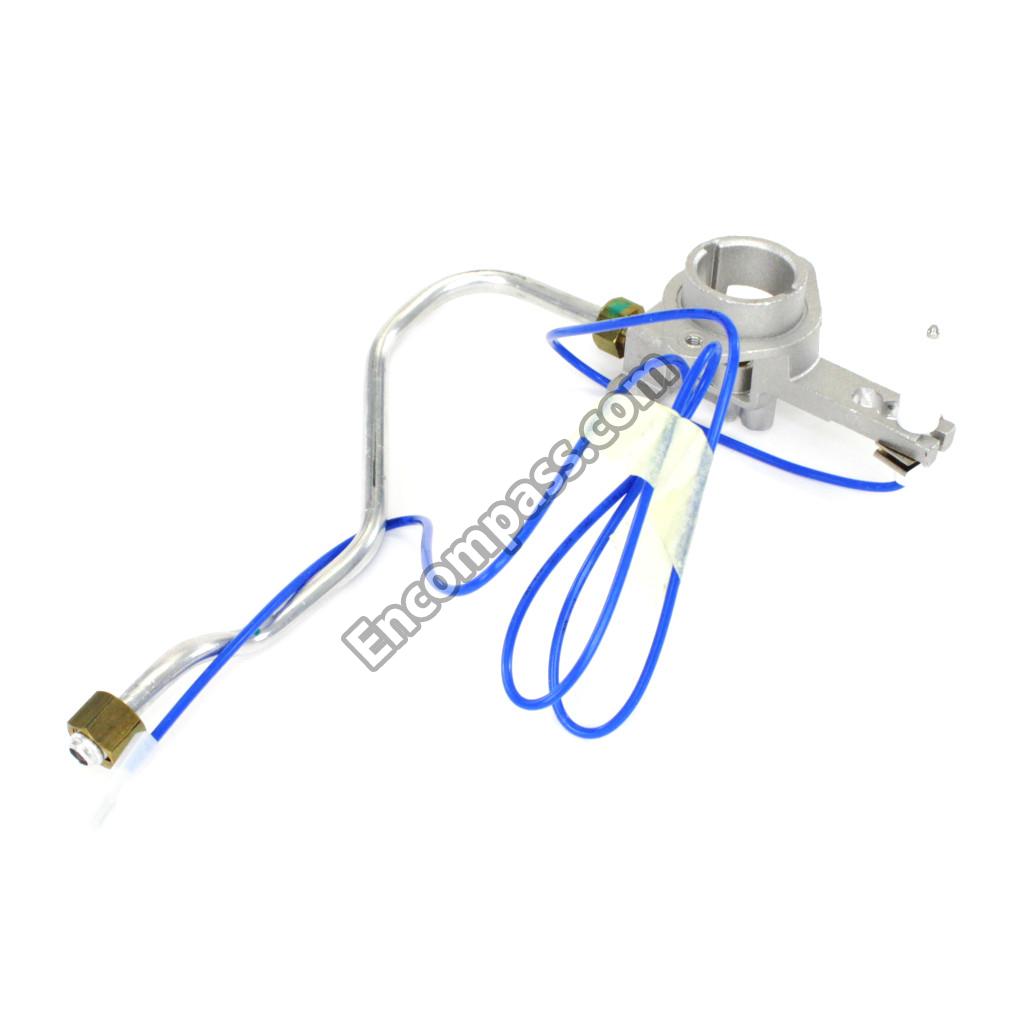

W10552128 W10552128 ASSEMBLY, ORIFICE (LEFT FRONT)

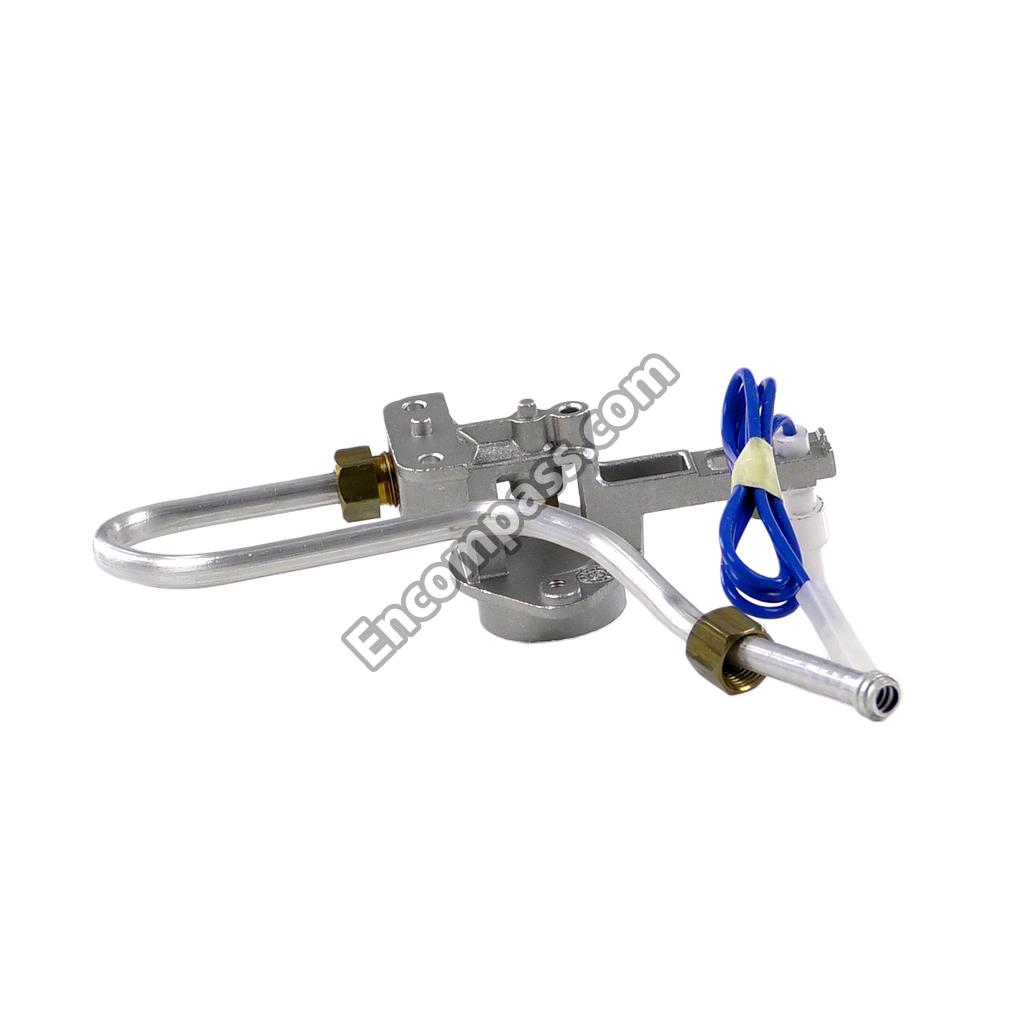

W10552127 W10552127 ASSEMBLY, ORIFICE (LEFT REAR)

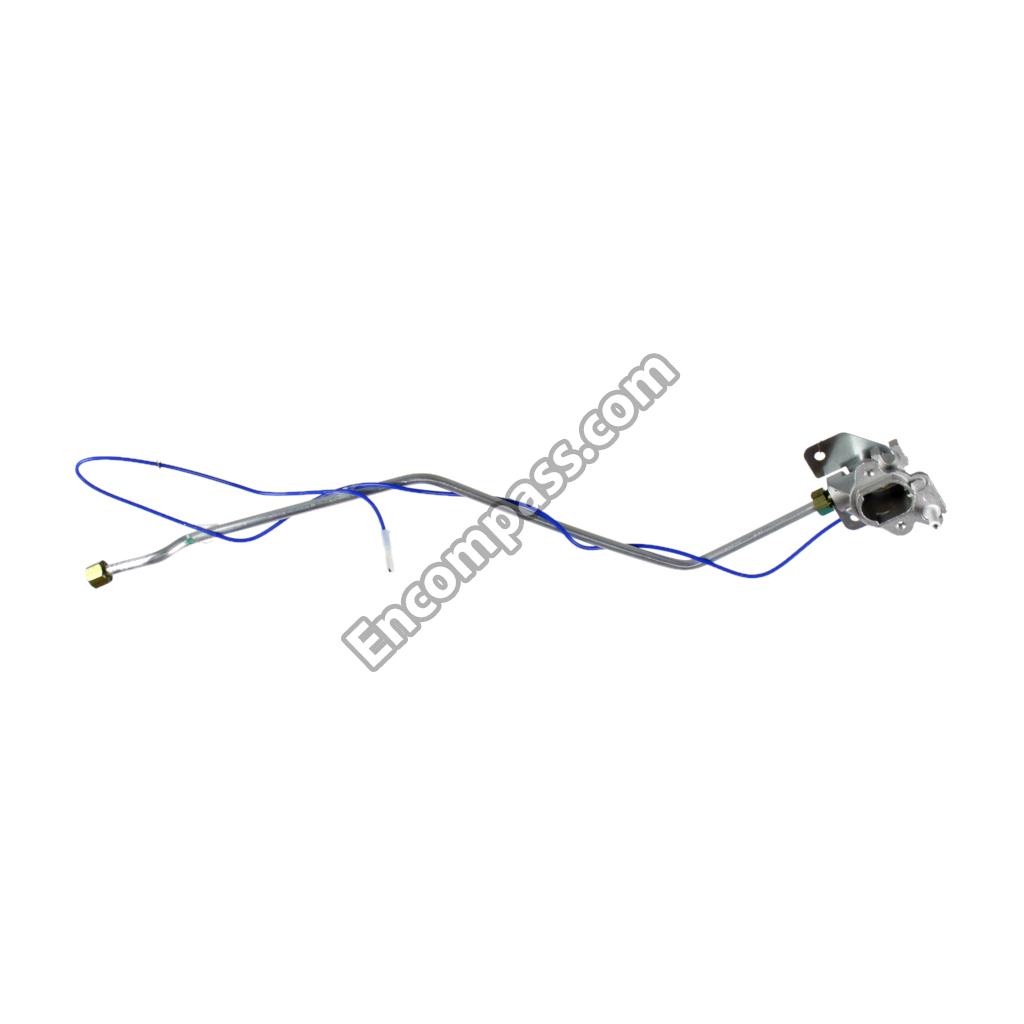

W10552126 W10552126 ASSEMBLY, ORIFICE (RIGHT FRONT)
W10552125 W10552125 ASSEMBLY, ORIFICE (RIGHT REAR)
3601P356-45 3601P356-45 BAFFLE, BAKE BURNER
3601P336-45 3601P336-45 BAFFLE, BROIL BURNER
WPW10211368 WPW10211368 BOTTM-OVEN
W10289168 W10289168 BOX, BURNER SI
W10162253 W10162253 BRACE, CORNER (LEFT)
W10162252 W10162252 BRACE, CORNER (RIGHT)
W10224921 W10224921 BRACKET, AEGIS
W10598048 W10598048 BRACKET, CONSOLE (CENTER)
W10547960 W10547960 BRACKET, CONSOLE (LEFT)
W10547961 W10547961 BRACKET, CONSOLE (RIGHT)
W10558372 W10558372 BRACKET, CONTROL
W10294853 W10294853 BRACKET, GLASS LINER
W10273002 W10273002 BRACKET, OVEN SUPPORT
W10949105 W10949105 BRACKET, SADDLE VALVE
WPW10318026 WPW10318026 BRKT-MNTG
W11218703 W11218703 BRKT-MNTG
W11116956 W11116956 BRKT-SUPRT
W11104127 W11104127 BUMPER
W10558276 W10558276 BURNER, BOX GAS
W11676566 W11676566 BURNR-BRLR
WPW10256028 WPW10256028 BURNR-HEAD
WPW10256025 WPW10256025 BURNR-HEAD
W10836467 W10836467 BURNR-HEAD
W10764654 W10764654 BURNR-OVEN
W11131701 W11131701 BUSHING

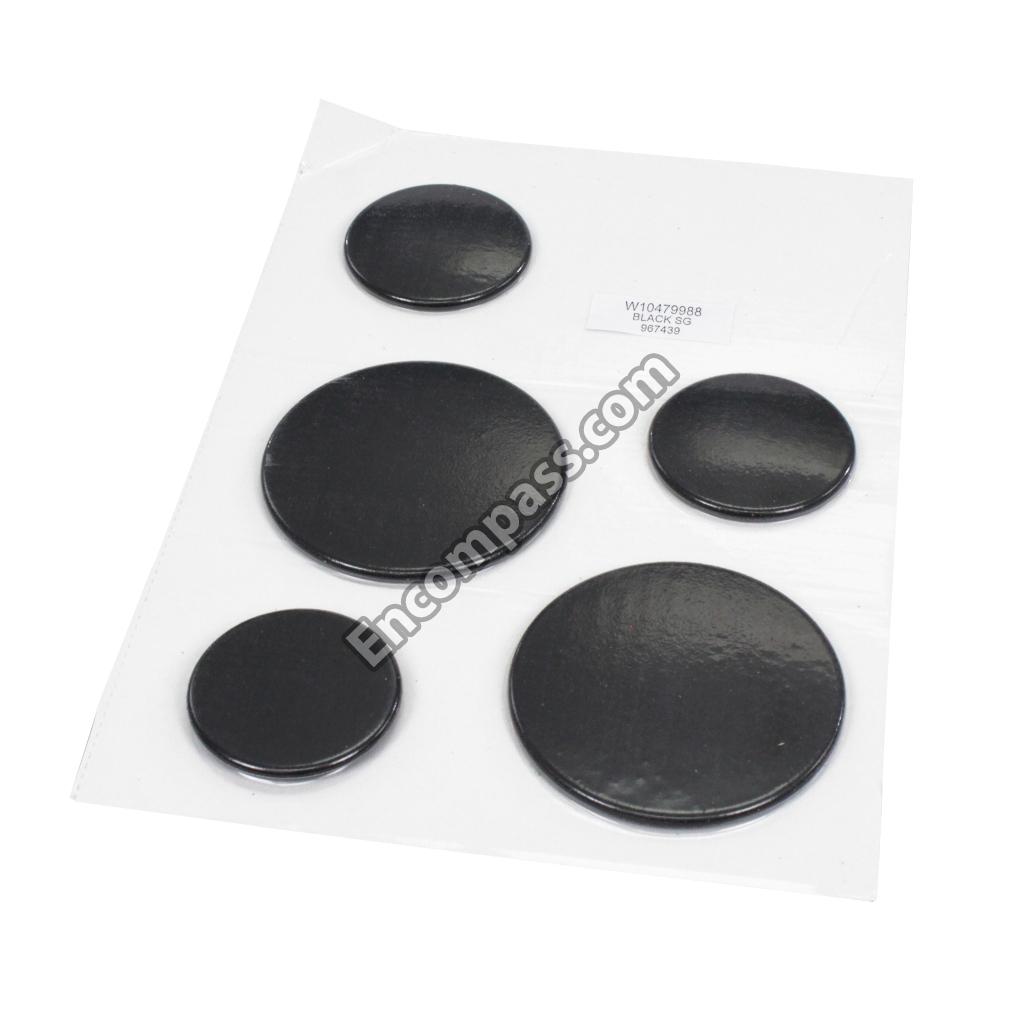

WPW10479988 WPW10479988 CAP-BURNER
W10162241 W10162241 CHANNEL, REAR
W10336909 W10336909 CLEANER
W11190173 W11190173 CLIP
16515 16515 CLIP, HARNESS
W10137382 W10137382 CLIP, PANEL
W11105615 W11105615 CNTRL-ELEC
W11050553 W11050553 CNTRL-ELEC
W10660995 W10660995 CONSOLE (STAINLESS)
W10712112 W10712112 COOKTOP
W10889764 W10889764 CORD, POWER
W11379354 W11379354 COVER, BACK
W10346152 W10346152 COVER, CONVECTION
W10162249 W10162249 COVER, WIRE
W10323077 W10323077 DIFFUSER, FLAME
W10813962 W10813962 DRAWR-UTIL
W10162257 W10162257 DUCT, COOKTOP
W10162254 W10162254 DUCT, COOLING
W10162255 W10162255 DUCT, COVER
W11107275 W11107275 FAN-BLWR
W10583216 W10583216 FITTING, BROIL BURNER
W11243157 W11243157 FLUE-OVEN
WPW10341186 WPW10341186 FOOT-LEVEL
WPW10058460 WPW10058460 FOOT-LEVEL
W11744482 W11744482 GASKET
W10802457 W10802457 GASKET
W10802441 W10802441 GASKET
W11562931 W11562931 GASKT-DOOR
WPW10709015 WPW10709015 GLASS-DOOR
WPW10300487 WPW10300487 GLASS-DOOR
W11189172 W11189172 GLIDE-DRWR
W11175813 W11175813 GRATE-KIT
W10655451 W10655451 GUARD, SPLASH
W10550997 W10550997 HANDLE, DOOR (STAINLESS)
W10911845 W10911845 HARNESS, MAIN
W11677625 W11677625 HARNS-WIRE
W11198972 W11198972 HARNS-WIRE
W11176109 W11176109 HARNS-WIRE
W11025616 W11025616 HARNS-WIRE
WPW10440013 WPW10440013 HINGE-DOOR
W10647259 W10647259 HINGE-RECV
WPW10333842 WPW10333842 IGNTR-OVEN
WPW10324262 WPW10324262 IGNTR-OVEN
W11611678 W11611678 IGNTR-SURF
W11447374 W11447374 IGNTR-SURF
W11220383 W11220383 IGNTR-SURF
W11050467 W11050467 IGNTR-SURF
W11025100 W11025100 INSERT
W11124000 W11124000 INSTALLATION INSTRUCTIONS
WPW10208653 WPW10208653 INSULATION
W11688567 W11688567 INSULATION
W11688363 W11688363 INSULATION
4820F015-59 4820F015-59 INSULATION, STRAP
W11676623 W11676623 KNOB
W11208247 W11208247 KNOB
8009 8009 LIGHT BULB
WPW10297318 WPW10297318 LINER-DOOR
W10873132 W10873132 MANIFOLD
WPW10475149 WPW10475149 MODULE-SPK
W10860916 W10860916 MODULE-SPK
W10821182 W10821182 ORIFICE
W10657947 W10657947 ORIFICE (8K) (CENTER)
799344 799344 PAINT, BULK (1 QT. WHITE (UNCUT))
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
350942 350942 PAINT, PRESSURIZED SPRAY (12OZ. WHITE PRIMER)
350930 350930 PAINT, SPRAY (WHITE)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
511873 511873 PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ.))
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
W11379356 W11379356 PAN, BAKE
W10859916 W10859916 PANEL-DRWR
W11730303 W11730303 PANEL-SIDE
WPW10531060 WPW10531060 RACK-OVEN
WPW10289145 WPW10289145 RACK-OVEN
WPW10306546 WPW10306546 RAIL-BASE
8212471 8212471 REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 PT))
W10861656 W10861656 REGULATOR
W10273192 W10273192 ROD, DOOR SWITCH
WPW10317886 WPW10317886 SCREW
WPW10031790 WPW10031790 SCREW
WP8533988 WP8533988 SCREW
WP3400016 WP3400016 SCREW
WP3196557 WP3196557 SCREW
W11684507 W11684507 SCREW
W11666001 W11666001 SCREW
W11241230 W11241230 SCREW
W11233072 W11233072 SCREW
W10777162 W10777162 SCREW
W10140571 W10140571 SEAL, SWITCH SHAFT
W10833885 W10833885 SENSOR
W10844271 W10844271 SHEET, TECH
W10541959 W10541959 SHIELD, BAKE
W11117035 W11117035 SHIELD, WIRE
WPW10441805 WPW10441805 SLIDE-DRWR
WPW10441804 WPW10441804 SLIDE-DRWR
W11594027 W11594027 SOCKT-LITE
W11190816 W11190816 SPACER
W10877054 W10877054 SPACER
W11752198 W11752198 SPUD-ORFCE
W11690133 W11690133 SPUD-ORFCE
W11126047 W11126047 SPUD-ORFCE
W11087486 W11087486 SPUD-ORFCE
W10756981 W10756981 SPUD-ORFCE
W10289170 W10289170 SUPPORT, COOKTOP (LEFT)
W10289169 W10289169 SUPPORT, COOKTOP (RIGHT)
W10035900 W10035900 SUPPORT, OVEN BOTTOM
WP9757262 WP9757262 SWTCH-LITE
W10334031 W10334031 TRIM, DOOR BOTTOM (BLACK)
W10334004 W10334004 TRIM, DOOR SIDE (BLACK)
W10294855 W10294855 TRIM, VENT (BLACK)
W11256338 W11256338 TRIM-VENT
W10306050 W10306050 TUBE, BROIL SUPPLY (BROILER FITTING TO VALVE)
W10552140 W10552140 TUBE, SUPPLY
W11123983 W11123983 USE AND CARE GUIDE
W10831589 W10831589 VALVE, GAS (LEFT REAR)
W11223016 W11223016 VALVE-BRNR
W11163975 W11163975 VALVE-BRNR
W10580229 W10580229 WIRE, GROUND
W10844277 W10844277 WIRING DIAGRAM
