Manufacturer
Electrolux
Model Number
80462167
Description
80462167 Lagan B-in Dishwasher 24 -inch White Na
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
BASE,SOILDIRECTOR |
|
|
BASKET, SILVERWARE |
|
|
BEARING, HINGE PIN |
|
|
BRACE, FRONT FRAME |
|
|
BRACKET KIT, COUNTERTOP MTG, W/SCRWS &INSTR |
|
|
BRACKET, HEATER, (2) |
|
|
BRACKET, MOTOR |
|
|
CAP,RACK SLIDE |
|
|
CHECK BALL |
|
|
CLAMP, DRIPLOOP, WIRE |
|
|
CLAMP, HOSE, 15-INCH OPEN, WORM GEAR, (5) |
|
|
CLAMP, HOSE,129-INCH OPEN,WORM GEAR, (2) |
|
|
CLAMP, TUBING,(2) |
|
|
CONSOLE ASSEMBLY, W/OVERLAY,WHITE, & COVER GASKET |
|
|
CONTROL ASSEMBLY,USER INTERFACE |
|
|
COUNTERBALANCE ARM,KIT,LH & RH, W/SCREWS-NUTS |
|
|
COVER, CONTROL |
|
|
COVER, JUNCTIONBOX, W/LABEL |
|
|
COVER, VOLUTE |
|
|
DISPENSER, DET/RINSE AID, W/LEVEL IND. |
|
|
DOOR, OUTER, WHITE, W/BARRIER |
|
|
DRAIN PUMP ASSY |
|
|
FILTER,POLYPRO |
|
|
FLAPPER, VALVE |
|
|
FLOAT |
|
|
GASKET, CONTROL COVER |
|
|
GASKET, DOOR,BOTTOM |
|
|
GASKET, TUB |
|
|
GASKET,DELIVERY TUBE |
|
|
GASKET,SUMP |
|
|
GROMMET, DELIVERYTUBE |
|
|

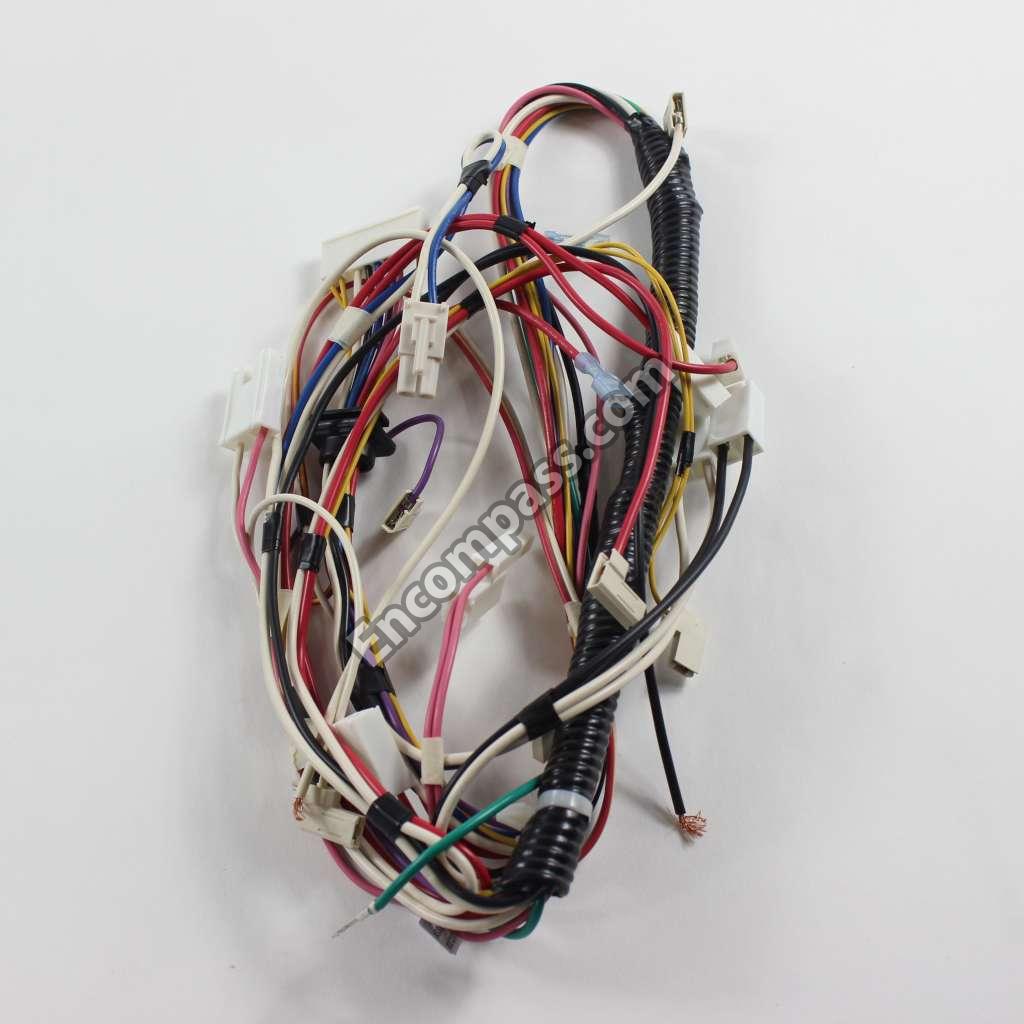

HARNESS, WIRING, MAIN |
|
|
HEATER, ROUND |
|
|
HINGEPIN, ARM ASSY |
|
|
HOSE, DRAIN |
|
|
INSULATION,BLANKET |
|
|
KICKPLATE ASSY, PVC, WHITE,W/LABEL |
|
|
LATCH ASSEMBLY,DOOR |
|
|
LEG, LEVELING,1/4-20 |
|
|
LINER ASSEMBLY, DOOR, W/WIPER, & REINFORCEMENT |
|
|
LINKAGE, DOOR SPRING, (2) |
|
|
MOTOR& PUMP ASSY,LEILI, W/O-RINGS |
|
|
NAMEPLATE, UPPER RACK, CROSLEY |
|
|
NOZZLE,SHOWER,ASSEMBLY |
|
|
NUT, ARM ASSY, AND HANDLEMTG. |
|
|
NUT,HEATER, (2) |
|
|
PC BOARD, CONTROL, K42G |
|
|
PLATE, PUMP INLET |
|
|
RACK ASSEMBLY,LOWER, GREY |
|
|
RACK ASSEMBLY,UPPER, GREY |
|
|
RETAINER, SUMP |
|
|
RETAINER, THERMOSTAT |
|
|
ROLLER ASSEMBLY, TUB, (8), W/SCREW-WASHER |
|
|
SCREW, #10-32X 3/8 |
|
|
SCREW, #7PLAS 375,(6), DISP ASSY |
|
|
SCREW, ARM ASSY,(4) |
|
|
SCREW, DRAIN MOTOR MTG, (3) |
|
|
SCREW, TRUSSHD, 8-18 TYPE AB |
|
|
SCREW, W/WASHER, (8) |
|
|
SCREW,(2), COUNTERTOPMTG. |
|
|
SCREW,DELIVERY TUBE |
|
|
SCREW,HEX HD. 8-18X .4. W/WASHER |
|
|
SCREW,HEX HEAD, 8-18X .400, (2) |
|
|
SCREW,LATCHMTG,(2) |
|
|
SCREW,PH, 8-10,(2) |
|
|
SCREW,PHILLIPSHEAD,WHITE |
|
|
SCREW,PLASK #1,10-10 X 9/16 |
|
|
SCREW,PLASK1,#10-10X 9/16, (2) |
|
|
SCREW,PLT, 8-10 |
|
|
SCREW,RETAINER-THERMO |
|
|
SCREW,SUMP MTG, 8-16,(4) |
|
|
SHIELD, DISPENSER ASSY |
|
|
SHIELD,HEATER TERMINAL |
|
|
SLEEVE,BRAKE, LH, C-ARM |
|
|
SLEEVE,BRAKE, RH, C-ARM |
|
|
SLIDE, RACK,UPPER,(2) |
|
|
SPRAY ARM, CENTER |
|
|
SPRAY ARM,BLUE,LOWER, WLHEAT SHIELD |
|
|
SPRING, DOOR, (2) |
|
|
STRIKE,DOOR LATCH |
|
|
SUMP ASSEMBLY |
|
|
SUPPORT, SPRAY ARM,LOWER |
|
|
SWITCHASSY, FLOAT |
|
|
THERMISTOR |
|
|
THERMOSTAT,HI LIMIT |
|
|
TOEPLATE,ADJUSTABLE, WHITE |
|
|
TRAP,GLASS |
|
|
TUBE, DELIVERY |
|
|
TUBING, INLET WATER |
|
|
VALVE, WATER INLET |
|
|
WASHER |
|
|
WHEEL &BUSHING ASSY, GRAY, UPPER RACK |
|
|
WHEEL &BUSHING ASSY,LOWERRACK,(8) |
