Manufacturer
Electrolux
Model Number
90540546
Description
90540546 Forshallan Gas Cooktop 30 -inch Stainless
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
BOX,BURNER |
|
|
BRACKET, VALVE FIXING |
|
|
BRACKET,COOKTOP SUPPORT |
|
|
BUSHING,STRAINRELIEF |
|
|

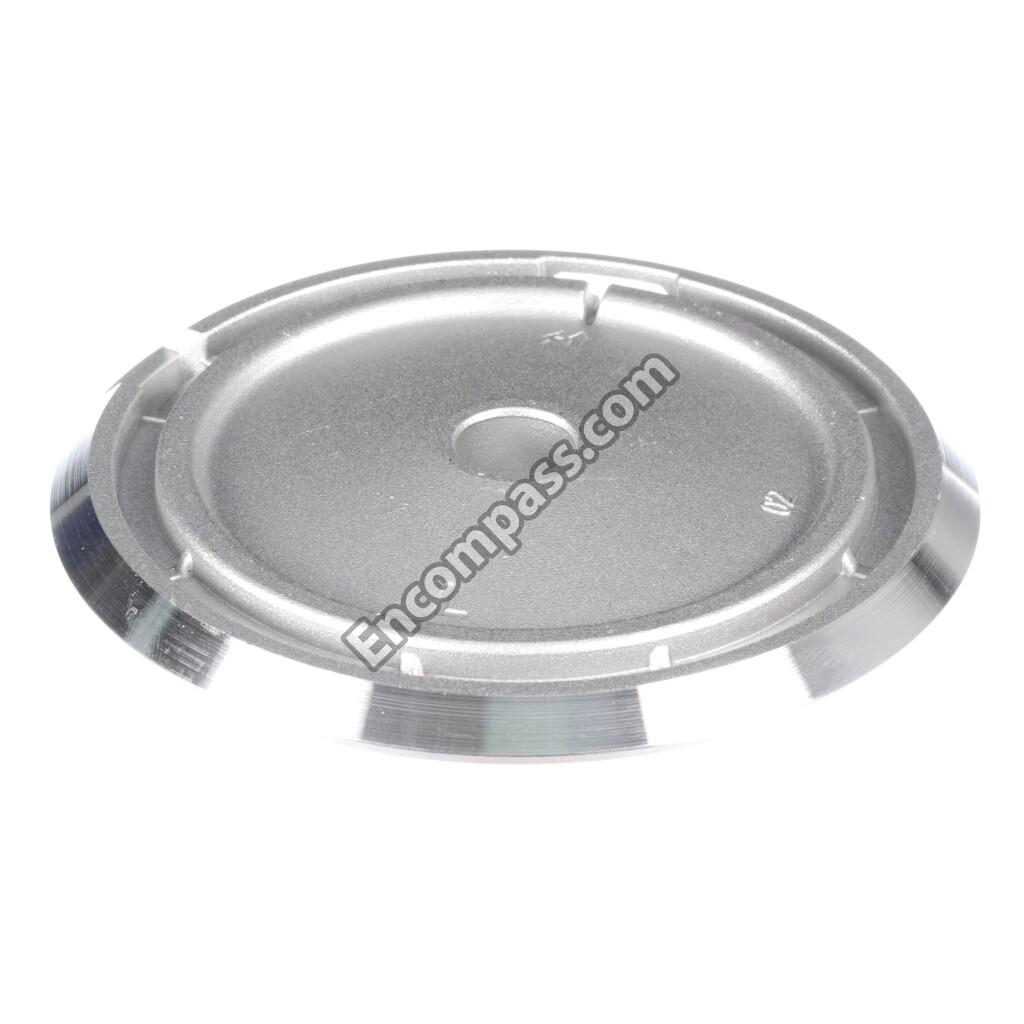

CAP, BURNER, XTRALARGE |
|
|
CAP, BURNER,LARGE |
|
|
CAP, BURNER,MEDIUM |
|
|
CAP, BURNER,SMALL |
|
|
CAP, REGULATOR,RED |
|
|
COVER, LED |
|
|
COVER, SPARK MODULE |
|
|
COVER,SMPS BOARD |
|
|
CROWN, BURNER, LARGE |
|
|
CROWN, BURNER, MEDIUM |
|
|
CROWN, BURNER, SMALL |
|
|
CROWN, BURNER, XTRA LARGE |
|
|
GASKET, VALVE STEM |
|
|
GASKET,BACKLIT KNOB |
|
|
GRATE,BURNER, LEFT SIDE |
|
|
GRATE,BURNER, RIGHT SIDE |
|
|
GRATE,BURNER,CENTER |
|
|
KNOB, TOPVALVE, STAINLESS, BACKLIT |
|
|

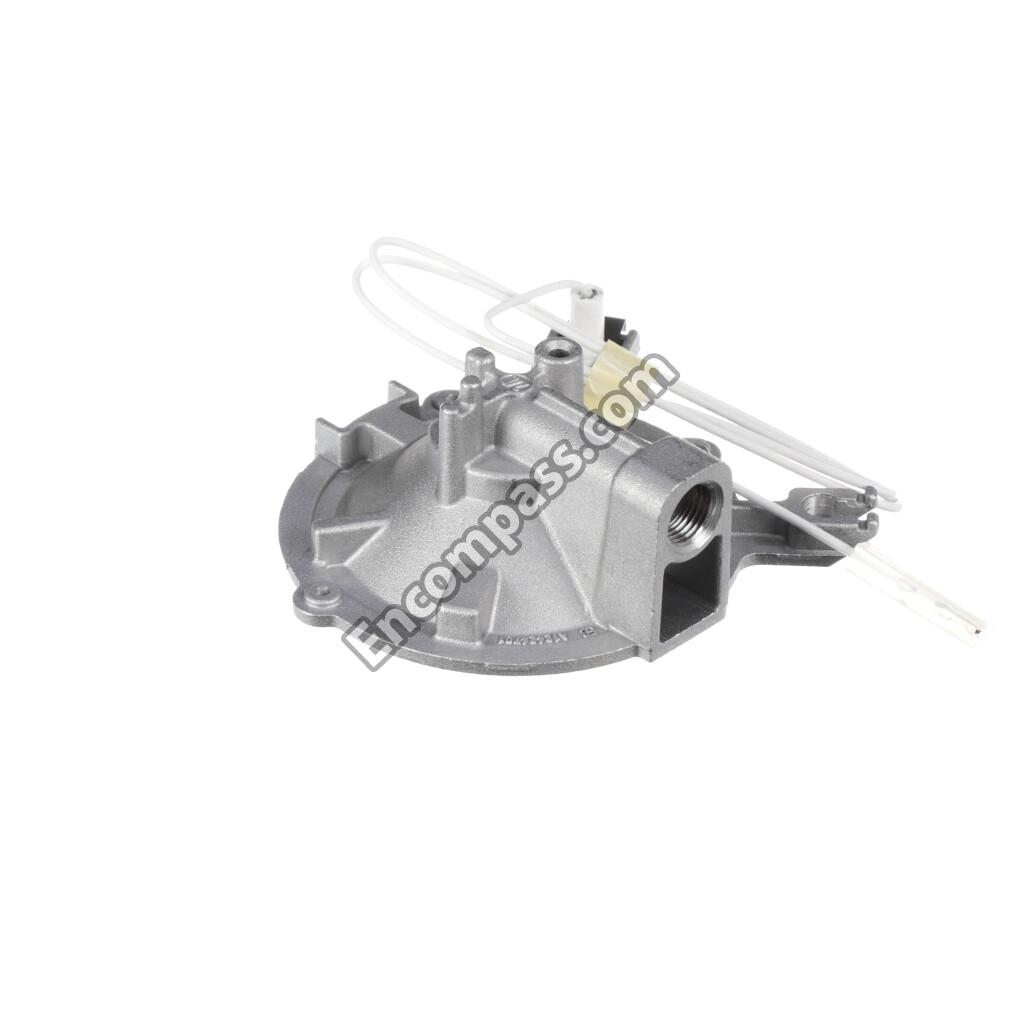

LGNITOR/ORIFICE ASSEMBLY, 75K, ASSEMBLY |
|
|
LGNITOR/ORIFICE ASSEMBLY,18K, ASSEMBLY |
|
|
LGNITOR/ORIFICE, ASSEMBLY, 5K BTU,RH REAR |
|
|
LGNITOR/ORIFICE, ASSEMBLY, 9 5K BTU,LH REAR |
|
|
LGNITOR/ORIFICEASSEMBLY,12K, RHFRONT, ASSEMBLY |
|
|
LPCONVERSION,KIT |
|
|
MAINTOP,ASSEMBLY,STAINLESS |
|
|
MANIFOLD TUBE,ASSEMBLY |
|
|
MODULE, SPARK, 6 OUTPUTS |
|
|
PC BOARD, SMPS,BACKLIT KNOBS |
|
|
POWER CORD,ELECTRICAL,SUPPLY |
|
|
REGULATOR, GAS CONTROL |
|
|
SCREW |
|
|
SCREW, SADDLEVALVE,M4 |
|
|
SCREW,6-32 X 1/4-INCH ,BACK |
|
|
SCREW,BRACKET PHILHD, 127MM |
|
|
SCREW,BURNER, STAINLESS |
|
|
SCREW,GROUND |
|
|
SCREW,LOCK BRACKET, (2) |
|
|
SCREW,M4 |
|
|
SHIELD,HEAT,SMPS BOARD |
|
|
SHIELD,MAINHEAT |
|
|
SPACER |
|
|
SPACER,POWER BOARD |
|
|
SUPPORT,BOX, (2) |
|
|

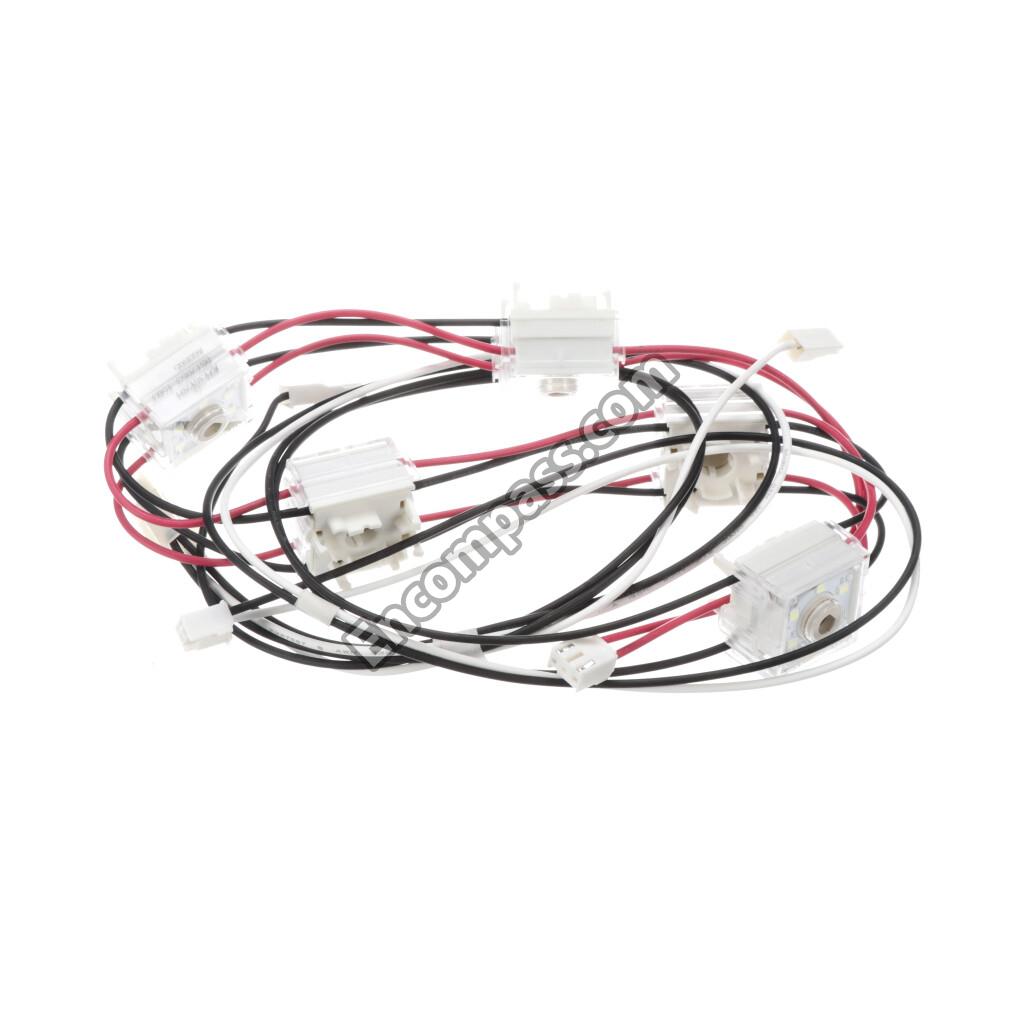

SWITCHHARNESS, ASSEMBLY, IGNITOR |
|
|
TUBE ASSEMBLY,BURNER, CENTER |
|
|
TUBE ASSEMBLY,BURNER, LHFRONT |
|
|
TUBE ASSEMBLY,BURNER, LHREAR |
|
|
TUBE ASSEMBLY,BURNER, RH FRONT |
|
|
TUBE ASSEMBLY,BURNER, RH REAR |
|
|
VALVE, SADDLE,1125/1250 BTU,BLUE STEM |
|
|

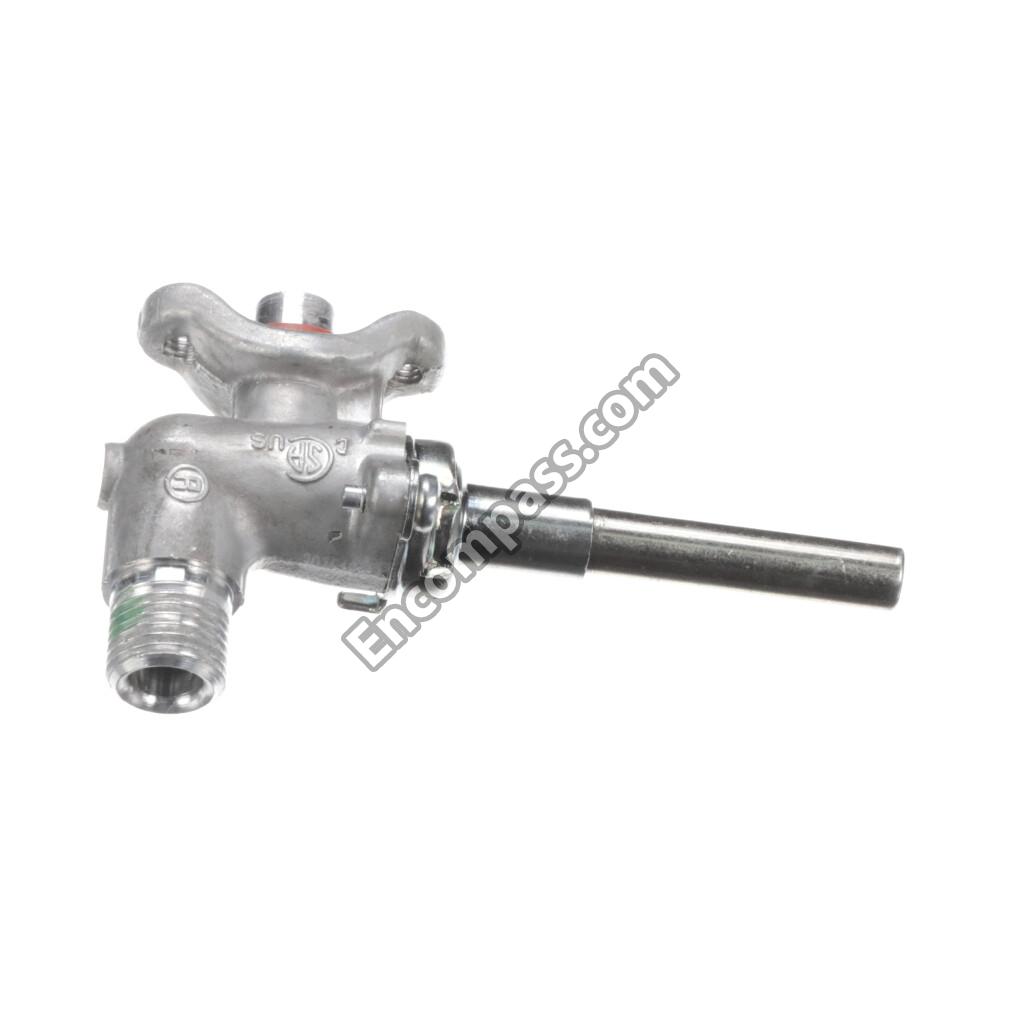

VALVE, TOPBURNER, 2000BTU |
|
|
VALVE,TOPBURNER, 1500 BTU |
|
|
VALVE,TOPBURNER, 750 BTU |
|
|
WIRE,GROUNDING |
