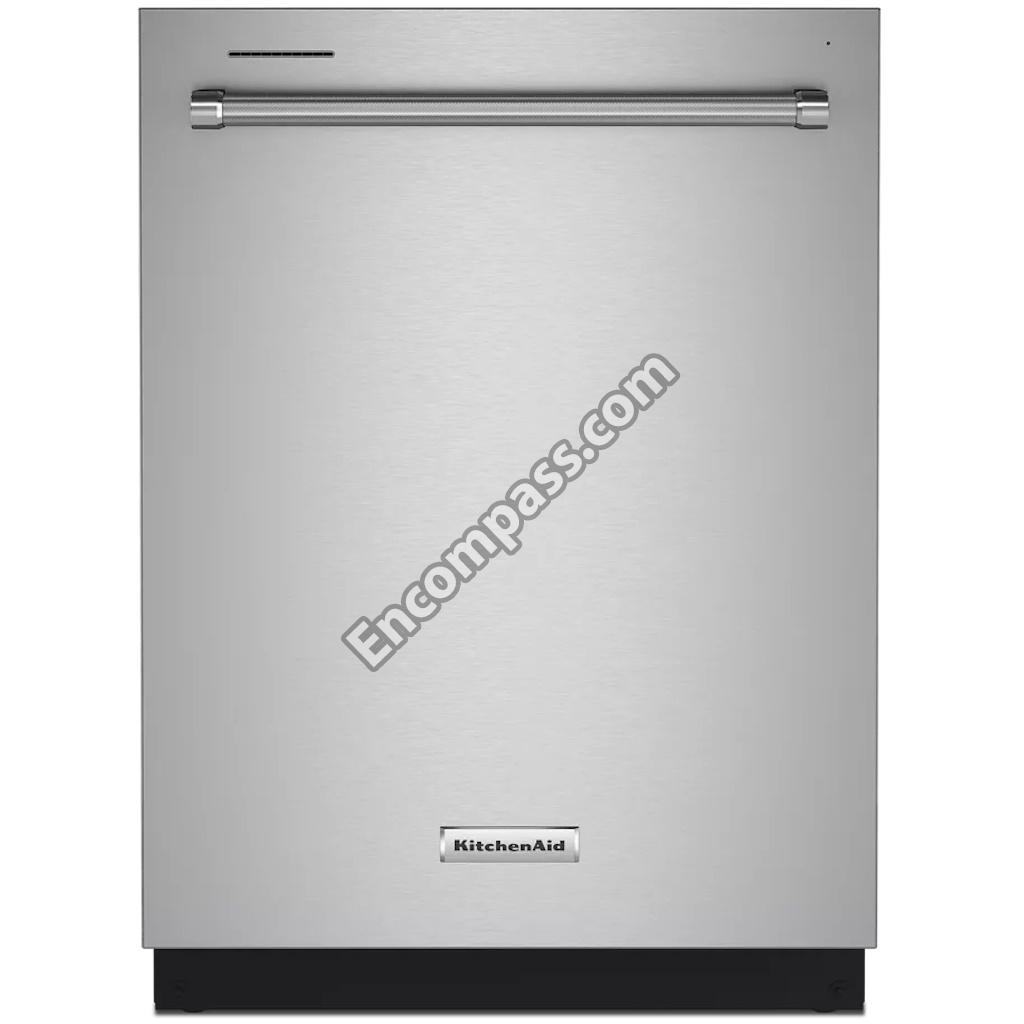

Model Image
Manufacturer

Whirlpool

Model Number

KDTE204KPS2

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
W11108979 W11108979 ACCESS PANEL (BLACK)
W11268090 W11268090 ADJUSTMENT ASSEMBLY (LEFT HAND)
W11268086 W11268086 ADJUSTMENT ASSEMBLY (RIGHT HAND)
W10920232 W10920232 ARM, HINGE (LEFT HAND)
W10920230 W10920230 ARM, HINGE (RIGHT HAND)
W10692757 W10692757 BARREL NUT, FRONT PANEL
4396277 4396277 BARRIER KIT
W11226744 W11226744 BASE, TERMINAL BOX
W11025634 W11025634 BEZEL, VENT
W11497568 W11497568 BRACKET, REAR MOTOR
W11163419 W11163419 BRACKET, THERMOSTAT
WP8269145 WP8269145 BRACKET, UNDERCOUNTER
W11267699 W11267699 BUTTON, ADJUSTER ARM
W10891547 W10891547 CHECK VALVE, DRAIN
W11236576 W11236576 CLAMP, HOSE
W11122851 W11122851 CLAMP, HOSE
W10466656 W10466656 CLAMP, HOSE
371505 371505 CLAMP, HOSE
370445 370445 CLAMP, HOSE
W11180605 W11180605 CLIP, ADJUSTER ARM
W11036143 W11036143 CLIP, HOSE
W10685193 W10685193 COMPRESSION HOSE FITTING, WATER LINE
W11500340 W11500340 CONSOLE ASSEMBLY (BLACK)
W11500341 W11500341 CONSOLE ASSEMBLY (WHITE)
W11591754 W11591754 CONTROL, ELECTRONIC
W11128231 W11128231 COVER, DIVERTER
W11226746 W11226746 COVER, TERMINAL BOX
W11165093 W11165093 COVER, TUB CORNER
W11377160 W11377160 CROSS BRACE, DOOR
W10891543 W10891543 DIFFUSER, INLET
W11175571 W11175571 DISC, DIVERTER
W10525641 W10525641 DISHRACK, LOWER
W10847875 W10847875 DISHRACK, UPPER
W11092649 W11092649 DISPENSER ASSEMBLY
W11050773 W11050773 DRAIN VENT ASSEMBLY
W11025993 W11025993 DRIP TRAY
W11650509 W11650509 ENERGY GUIDE
W11381654 W11381654 EXTERNAL DRAIN HOSE, 12 FT
W11418271 W11418271 FASTENER
W11507999 W11507999 FEED TUBE ASSEMBLY
W10278635RP W10278635RP FILL HOSE KIT
W11025970 W11025970 FILL VALVE ASSEMBLY
W10891533 W10891533 FILTER
W11255994 W11255994 FLOAT SWITCH
W11025988 W11025988 FUNNEL EXTENSION
W11025986 W11025986 FUNNEL, OVERFILL PROTECTION
W11397505 W11397505 FUSE, IN-LINE
W11035860 W11035860 GASKET, TUB
W11184028 W11184028 GASKET, VENT
W11417401 W11417401 HANDLE ASSEMBLY (STAINLESS)
W11268682 W11268682 HANDLE, DISHRACK FRONT
W11268681 W11268681 HANDLE, DISHRACK REAR
W11088985 W11088985 HANGER, CONTROL
W11536143 W11536143 HEATER ELEMENT ASSEMBLY
W11036159 W11036159 HOSE
W11131184 W11131184 HOSE, DRAIN
W11036287 W11036287 HOSE, INLET
W11250985 W11250985 HOSE, PRESSURE
W10900389 W10900389 HOSE, SUCTION
W11126174 W11126174 INDICATOR, OPTICAL WASH
W11098822 W11098822 INNER DOOR ASSEMBLY
W10919859 W10919859 INSULATION, FRONT PANEL
W10919858 W10919858 INSULATION, MULTI-LAYER
W11038694 W11038694 INSULATION, SINGLE LAYER
W10919865 W10919865 INSULATION, U-WRAP
W11036660 W11036660 ISOLATOR, REAR MOTOR
W11336943 W11336943 JUMPER, DOOR
W11091934 W11091934 LATCH ASSEMBLY (INCLUDES SWITCH)
W11455395 W11455395 LEG, LEVELING
W11180178 W11180178 LEVELER, ADJUSTER ARM
W11267718 W11267718 LID, SILVERWARE BASKET
W11102920 W11102920 LIGHT PIPE
W11362500 W11362500 MISCELLANEOUS PARTS BAG (CONTAINS 2 SCREWS, 2 CLAMPS, &2 BRACKETS)
W11243648 W11243648 MOTOR & SUMP ASSEMBLY
W11193157 W11193157 MOTOR, DRAIN
W10518673 W10518673 NAMEPLATE
W10920244 W10920244 NUT, TUB
W11429974 W11429974 NUT, WATER INLET
W11323304 W11323304 OWNERS MANUAL
W11233284 W11233284 PANEL, FRONT (INCLUDES 4, 11 &14) (BLACK STAINLESS)
W11233280 W11233280 PANEL, FRONT (INCLUDES 4, 11 &14) (BLACK)
W11233283 W11233283 PANEL, FRONT (INCLUDES 4, 11 &14) (STAINLESS)
W11233281 W11233281 PANEL, FRONT (INCLUDES 4, 11 &14) (WHITE)
W11184083 W11184083 PLUG, TUB
W11365014 W11365014 POWER CORD KIT (RIGHT ANGLE)
W11365011 W11365011 POWER CORD KIT (STRAIGHT)
W11048807 W11048807 PUMP ASSEMBLY
W11540175 W11540175 RACK, THIRD LEVEL
W11039888 W11039888 RETAINER
W10892836 W10892836 RETAINER, DOCKING (2ND LEVEL)
W10891539 W10891539 SCREEN
W11376395 W11376395 SCREW
W11364953 W11364953 SCREW
W11296374 W11296374 SCREW
W11258418 W11258418 SCREW
WPW10348409 WPW10348409 SCREW
WPW10348408 WPW10348408 SCREW
W10316572 W10316572 SCREW
WPW10277003 WPW10277003 SCREW
WP9741232 WP9741232 SCREW
WP3400892 WP3400892 SCREW
WP3400071 WP3400071 SCREW
3400000 3400000 SCREW
W10711884 W10711884 SCREW (LONG)
W11438978 W11438978 SCREW, BLACK
WP3400014 WP3400014 SCREW, GROUNDING
W11438977 W11438977 SCREW, WHITE
W11165091 W11165091 SEAL, CABINET
W11265187 W11265187 SEAL, CONSOLE/DOOR
W11563231 W11563231 SEAL, DOOR BOTTOM
W10687133 W10687133 SET SCREW
W11221921 W11221921 SHIELD, TUB SOUND
W10920122 W10920122 SIDE SUPPORT, TUB (LEFT HAND)
W10920120 W10920120 SIDE SUPPORT, TUB (RIGHT HAND)
W11291798 W11291798 SILVERWARE BASKET ASSEMBLY
W11393126 W11393126 SOUND INSULATION, BOTTOM
W11039869 W11039869 SPRAYARM, THIRD LEVEL
4396672 4396672 STRAIN RELIEF, POWER CORD (METALLIC)
W11090487 W11090487 STRIKE, LATCH
W11049903 W11049903 STUD, MOUNTING
W11034554 W11034554 SUMP WITH SEAL (INCLUDES 3, 4,5, 6 & 9)
W11366144 W11366144 TECH SHEET
W11132441 W11132441 TERMINAL BLOCK
W11193089 W11193089 THERMOSTAT (INCLUDED WITH MAIN WIRING HARNESS)
W11467733 W11467733 TOE PANEL (BLACK)
W11467726 W11467726 TOE PANEL (WHITE)
W11084874 W11084874 TRACK STOP, FRONT
W11084872 W11084872 TRACK STOP, REAR
W11441109 W11441109 TRACK, DISHRACK
W11120458 W11120458 TUB ASSEMBLY (INCLUDES GASKET)
W11094449 W11094449 TUB MOUNT, THIRD LEVEL RACK (LEFT HAND)
W11256437 W11256437 TUB MOUNT, THIRD LEVEL RACK (RIGHT HAND)
W11086088 W11086088 TUB MOUNT, UPPER RACK
W11174340 W11174340 UPPER SPRAYARM ASSEMBLY
W11527847 W11527847 VENT ASSEMBLY
W11048456 W11048456 WASH ARM ASSEMBLY
WP3378128 WP3378128 WASHER, PRONGED CUP
W11429970 W11429970 WATER INLET ASSEMBLY
W11048221 W11048221 WHEEL
W11048219 W11048219 WHEEL
W11133747 W11133747 WHEEL & TRANSPORT ASSEMBLY
W11630926 W11630926 WIRING HARNESS, INNER DOOR
W11391581 W11391581 WIRING HARNESS, MAIN (INCLUDES THERMOSTAT & FUSE)
