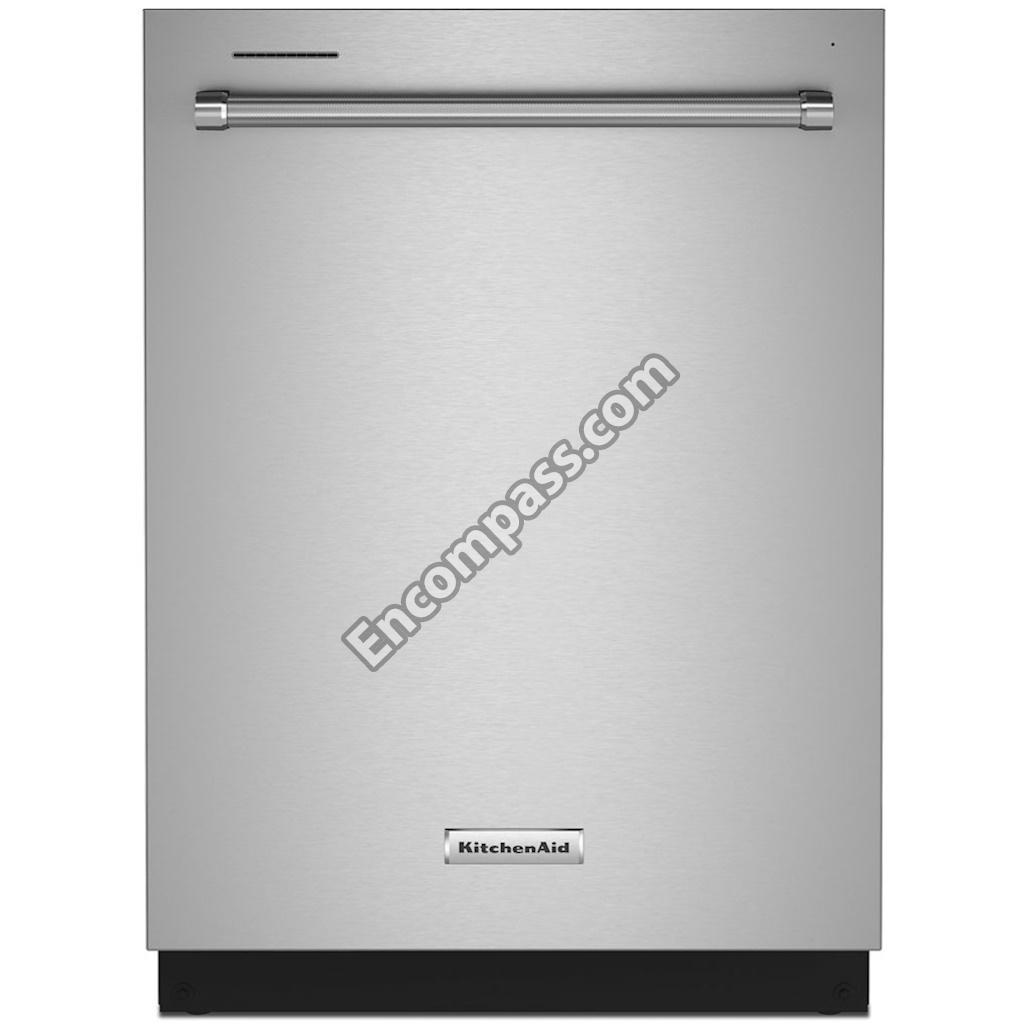

Model Image
Manufacturer

Whirlpool

Model Number

KDTM404KPS1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W11108979 W11108979 ACCESS PANEL (BLACK)
4396277 4396277 ACCESSORIES, MOISTURE BARRIER KIT
W10920232 W10920232 ARM, HINGE (LEFT HAND)
W10920230 W10920230 ARM, HINGE (RIGHT HAND)
W10692757 W10692757 BARREL NUT, FRONT PANEL
W11226744 W11226744 BASE, TERMINAL BOX
W11025634 W11025634 BEZEL, VENT
W10830577 W10830577 BRACKET, FRONT HANGER
W11025963 W11025963 BRACKET, REAR MOTOR
W11163419 W11163419 BRACKET, THERMOSTAT
WP8269145 WP8269145 BRACKET, UNDERCOUNTER
W11267699 W11267699 BUTTON, ADJUSTER ARM

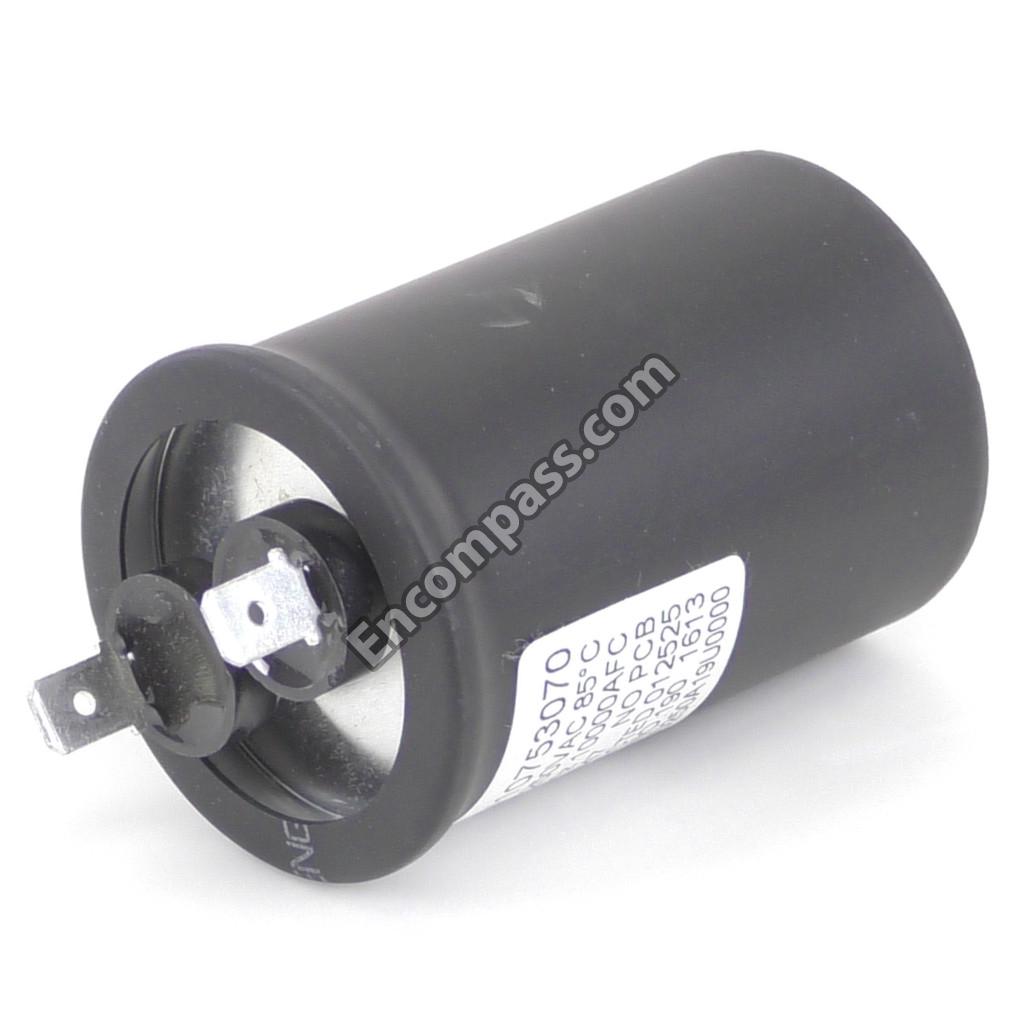

W10753070 W10753070 CAPACITOR
W10891547 W10891547 CHECK VALVE, DRAIN
371505 371505 CLAMP, HOSE
W11236576 W11236576 CLAMP, HOSE
W10466656 W10466656 CLAMP, HOSE
W11122851 W11122851 CLAMP, HOSE
370445 370445 CLAMP, HOSE
W11180605 W11180605 CLIP, ADJUSTER ARM
W11036143 W11036143 CLIP, HOSE
W11179753 W11179753 CLIP, PIVOT
W11310287 W11310287 CLIP, STEMWARE
W10685193 W10685193 COMPRESSION HOSE FITTING, WATER LINE
W11496608 W11496608 CONSOLE ASSEMBLY (INCLUDES INSERT) (BLACK)
W11524471 W11524471 CONTROL, ELECTRONIC
W10903465 W10903465 COVER, DIVERTER
W11226746 W11226746 COVER, TERMINAL BOX
W11165093 W11165093 COVER, TUB CORNER
W11101860 W11101860 COVER, WASH TUBE
W11377160 W11377160 CROSS BRACE, DOOR
W11202101 W11202101 CUP GUARD
W10891545 W10891545 DIFFUSER, INLET
W10903468 W10903468 DISC, DIVERTER
W10525646 W10525646 DISHRACK, LOWER
W10847876 W10847876 DISHRACK, UPPER
W11092649 W11092649 DISPENSER ASSEMBLY
W11025993 W11025993 DRIP TRAY
W10830523 W10830523 DRIVE BOX ASSEMBLY, MANIFOLD
W11404476 W11404476 ENERGY GUIDE
W11381654 W11381654 EXTERNAL DRAIN HOSE, 12 FT
W11418271 W11418271 FASTENER
W10872558 W10872558 FEED TUBE ASSEMBLY
W10278635RP W10278635RP FILL HOSE KIT
W11025970 W11025970 FILL VALVE ASSEMBLY
W11108699 W11108699 FILTER ASSEMBLY
W11036170 W11036170 FLOAT SWITCH
W11233284 W11233284 FRONT PANEL (INCLUDES 4, 7 & 11) (BLACK STAINLESS)
W11233283 W11233283 FRONT PANEL (INCLUDES 4, 7 & 11) (STAINLESS)
W11025988 W11025988 FUNNEL EXTENSION
W11025986 W11025986 FUNNEL, OVERFILL PROTECTION
W11397505 W11397505 FUSE, IN-LINE
W11035860 W11035860 GASKET, TUB
W11184028 W11184028 GASKET, VENT
W11039864 W11039864 GRATE
W11417401 W11417401 HANDLE (STAINLESS)
W11392620 W11392620 HANDLE, DISHRACK FRONT
W11268682 W11268682 HANDLE, DISHRACK FRONT
W11268681 W11268681 HANDLE, DISHRACK REAR
W11088985 W11088985 HANGER, CONTROL
W11294350 W11294350 HANGER, FRONT MOTOR
W11184071 W11184071 HANGER, TUBE
W11536143 W11536143 HEATER ELEMENT ASSEMBLY
W11036161 W11036161 HOSE
W11131184 W11131184 HOSE, DRAIN
W11036287 W11036287 HOSE, INLET
W11250985 W11250985 HOSE, PRESSURE
W10900387 W10900387 HOSE, SUCTION
W11126174 W11126174 INDICATOR, OPTICAL WASH
W11098822 W11098822 INNER DOOR ASSEMBLY
W10919859 W10919859 INSULATION, FRONT PANEL
W10919858 W10919858 INSULATION, MULTI-LAYER
W11038694 W11038694 INSULATION, SINGLE LAYER
W11294352 W11294352 ISOLATOR, FRONT MOTOR
W11036663 W11036663 ISOLATOR, REAR MOTOR
W11336943 W11336943 JUMPER, DOOR
W11091934 W11091934 LATCH ASSEMBLY (INCLUDES SWITCH)
W11455395 W11455395 LEG, LEVELING
W11180178 W11180178 LEVELER, ADJUSTER ARM
W11267718 W11267718 LID, SILVERWARE BASKET
W11102920 W11102920 LIGHT PIPE
W11362500 W11362500 MISCELLANEOUS PARTS BAG (CONTAINS 2 SCREWS, 2 CLAMPS, & 2 BRACKETS)
W11345228 W11345228 MOTOR & SUMP ASSEMBLY
W11035709 W11035709 MOTOR, DRAIN
W10518673 W10518673 NAMEPLATE
W10920244 W10920244 NUT, TUB
W11429974 W11429974 NUT, WATER INLET
W11323304 W11323304 OWNERS MANUAL
W11184083 W11184083 PLUG, TUB
W11179755 W11179755 POSITIONER
W11365014 W11365014 POWER CORD KIT (RIGHT ANGLE)
W11365011 W11365011 POWER CORD KIT (STRAIGHT)
W11122133 W11122133 PUMP ASSEMBLY
W11268090 W11268090 RACK ADJUSTER (LEFT HAND)
W11268086 W11268086 RACK ADJUSTER (RIGHT HAND)
W11127727 W11127727 RACK, THIRD LEVEL
W11039888 W11039888 RETAINER
W10892836 W10892836 RETAINER, DOCKING (2ND LEVEL)
W10892835 W10892835 RETAINER, DOCKING (3RD LEVEL)
W11268658 W11268658 RETAINER, FLEX ROW
W10380239 W10380239 RING, VOLUTE
W11376395 W11376395 SCREW
W10467002 W10467002 SCREW
WP9741232 WP9741232 SCREW
WPW10277003 WPW10277003 SCREW
W11296374 W11296374 SCREW
WPW10348409 WPW10348409 SCREW
W10711884 W10711884 SCREW
W11258418 W11258418 SCREW
W10316572 W10316572 SCREW
3400000 3400000 SCREW
W11364953 W11364953 SCREW
W11438978 W11438978 SCREW, BLACK
WP3400014 WP3400014 SCREW, GROUNDING
W11165091 W11165091 SEAL, CABINET
W11265187 W11265187 SEAL, CONSOLE/DOOR
W11484890 W11484890 SEAL, DOOR BOTTOM
W10687133 W10687133 SET SCREW
W11221921 W11221921 SHIELD, TUB SOUND
W10920122 W10920122 SIDE SUPPORT, TUB (LEFT HAND)
W10920120 W10920120 SIDE SUPPORT, TUB (RIGHT HAND)
W11291798 W11291798 SILVERWARE BASKET ASSEMBLY
W11087823 W11087823 SILVERWARE TRAY
W11039869 W11039869 SPRAYARM, THIRD LEVEL
4396672 4396672 STRAIN RELIEF, POWER CORD (METALLIC)
W11090487 W11090487 STRIKE, LATCH
W11049903 W11049903 STUD, MOUNTING
W11034556 W11034556 SUMP (INCLUDES SEAL AND DIVERTER) (INCLUDES 3, 5 & 32)
W11366142 W11366142 TECH SHEET
W11132441 W11132441 TERMINAL BLOCK
W11193089 W11193089 THERMOSTAT (INCLUDED WITH MAIN WIRING HARNESS)
W10056272 W10056272 TINE ROW, FOLD DOWN
W11186528 W11186528 TINE ROW, FOLD DOWN
W11467733 W11467733 TOE PANEL (BLACK)
W11231345 W11231345 TRACK MOUNT (LEFT HAND)
W11231348 W11231348 TRACK MOUNT (RIGHT HAND)
W11084874 W11084874 TRACK STOP, FRONT
W11084872 W11084872 TRACK STOP, REAR
W11441109 W11441109 TRACK, DISHRACK
W11120458 W11120458 TUB ASSEMBLY (INCLUDES GASKET)
W11101573 W11101573 TUB MOUNT, THIRD LEVEL RACK (LEFT HAND)
W11256439 W11256439 TUB MOUNT, THIRD LEVEL RACK (RIGHT HAND)
W11086088 W11086088 TUB MOUNT, UPPER RACK
W10831864 W10831864 TUBE, WASH
W11174340 W11174340 UPPER SPRAYARM ASSEMBLY
W11025593 W11025593 VENT ASSEMBLY (ALSO ORDER GASKET)
W11048456 W11048456 WASH ARM ASSEMBLY
WP3378128 WP3378128 WASHER, PRONGED CUP
W11429970 W11429970 WATER INLET ASSEMBLY
W11048221 W11048221 WHEEL
W11133747 W11133747 WHEEL & TRANSPORT ASSEMBLY
W11084845 W11084845 WIRING HARNESS, INNER DOOR
W11084863 W11084863 WIRING HARNESS, MAIN (INCLUDES THERMOSTAT & FUSE)
