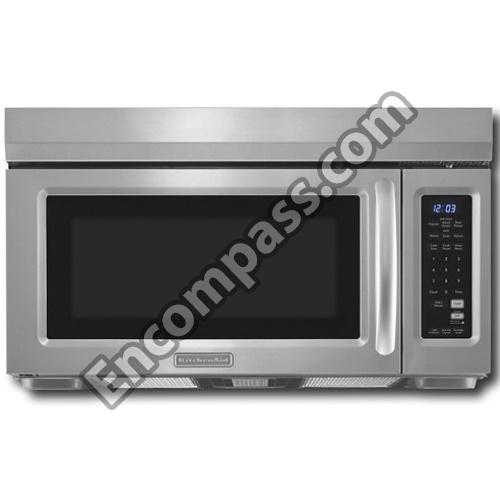

Model Image
Manufacturer

Whirlpool

Model Number

KHMS1850SSS0

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
8205354 8205354 AIR GUIDE
8205367 8205367 AIR GUIDE
8205352 8205352 AIR GUIDE
8205350 8205350 AIR GUIDE
8205351 8205351 AIR GUIDE
8205357 8205357 BRACKET SUPPORT
W10117927 W10117927 BRACKET SUPPORT
8206455 8206455 BRACKET SUPPORT
W10117910 W10117910 CAM PLATE
W10117913 W10117913 CAPACITOR
8206457 8206457 CAPACITOR BRACKET
W10112514A W10112514A CHARCOAL FILTER
W10117923 W10117923 CONTROL PANEL
W10117925 W10117925 CONTROL PANEL
W10117924 W10117924 CONTROL PANEL
8204676 8204676 COVER
W10117922 W10117922 DOOR
W10117920 W10117920 DOOR (WHITE)
W10117921 W10117921 DOOR ASSEMBLY
8206501 8206501 DOOR HANDLE
W10110267 W10110267 DOOR HANDLE (BLACK)
W10239614 W10239614 DOOR HANDLE (STAINLESS)
8184922 8184922 DOOR HINGE PIN
W10114254 W10114254 DOOR HINGE, LOWER
W10114255 W10114255 DOOR HINGE, UPPER
8169438 8169438 DOOR INTERLOCK SPRING
W10211972 W10211972 DOOR INTERLOCK SWITCH
W10211974 W10211974 DOOR INTERLOCK SWITCH
W10269458 W10269458 DOOR INTERLOCK SWITCH
8183824 8183824 DOOR INTERLOCK SWITCH CAM PLATE
W10117928 W10117928 ELECTRONIC CONTROL
8206452 8206452 FAN COVER
8205362 8205362 FAN MOTOR
W10117942 W10117942 FAN MOTOR
W10117908 W10117908 FUSE HOLDER
W10113040A W10113040A GREASE FILTER
W10117934 W10117934 GROUNDING WIRE
8205366 8205366 GUIDE PLATE
W10270797 W10270797 HOUSING
8205368 8205368 HOUSING
8206446 8206446 HUMIDITY SENSOR
8184476 8184476 INLET COVER
8205948 8205948 INSTALLATION KIT
W10117909 W10117909 INTERLOCK
8184889 8184889 LIGHT COVER
W10117848 W10117848 LIGHT COVER
8169539 8169539 LIGHT SOCKET
WP8533914 WP8533914 LOCK WASHER
8205363 8205363 MAGNETRON
8205549 8205549 MEAT RACK
W10315274 W10315274 METAL RACK
8205364 8205364 MOUNTING BRACKET
W10117912 W10117912 PISTON
W10117914 W10117914 PLATE
W10708076 W10708076 POWER CORD
8206624 8206624 POWER FILTER
8205096 8205096 REFLECTOR
8185190 8185190 RELEASE ROD
8205152 8205152 RESISTOR
4393838 4393838 SCREW
8184199 8184199 SCREW
8184200 8184200 SCREW
8169480 8169480 SCREW
WP8169704 WP8169704 SCREW
W11380570 W11380570 SCREW
8169474 8169474 SCREW
4393836 4393836 SCREW
8169479 8169479 SCREW
W10117929 W10117929 SHELF BUSHING
W10117906 W10117906 SHIELD
W10117915 W10117915 SHIELD
8206460 8206460 SHIELD
W10117916 W10117916 SHIELD
W10117911 W10117911 SPRING
8205202 8205202 STIRRER BLADE
8205044 8205044 STIRRER MOTOR
W10117846 W10117846 STRAIN-RLF
W10155348 W10155348 SUPPORT
W10709921 W10709921 SURFACE LIGHT BULB
8206232A 8206232A SURFACE LIGHT BULB, 40-WATT
8184141 8184141 SURFACE LIGHT LENS
8184731 8184731 TEMPLATE
8184202 8184202 TERMINAL COVER
W10110598 W10110598 TERMINAL COVER
W10479659 W10479659 THERMAL CUT-OFF
4393308 4393308 THERMAL FUSE
8184951 8184951 THERMOSTAT
8206454 8206454 THERMOSTAT
8183999 8183999 THERMOSTAT
8205578 8205578 THERMOSTAT
W10117933 W10117933 THERMOSTAT WIRE HARNESS
WP8206456 WP8206456 TRANSFORMER
W10117907 W10117907 TUBE

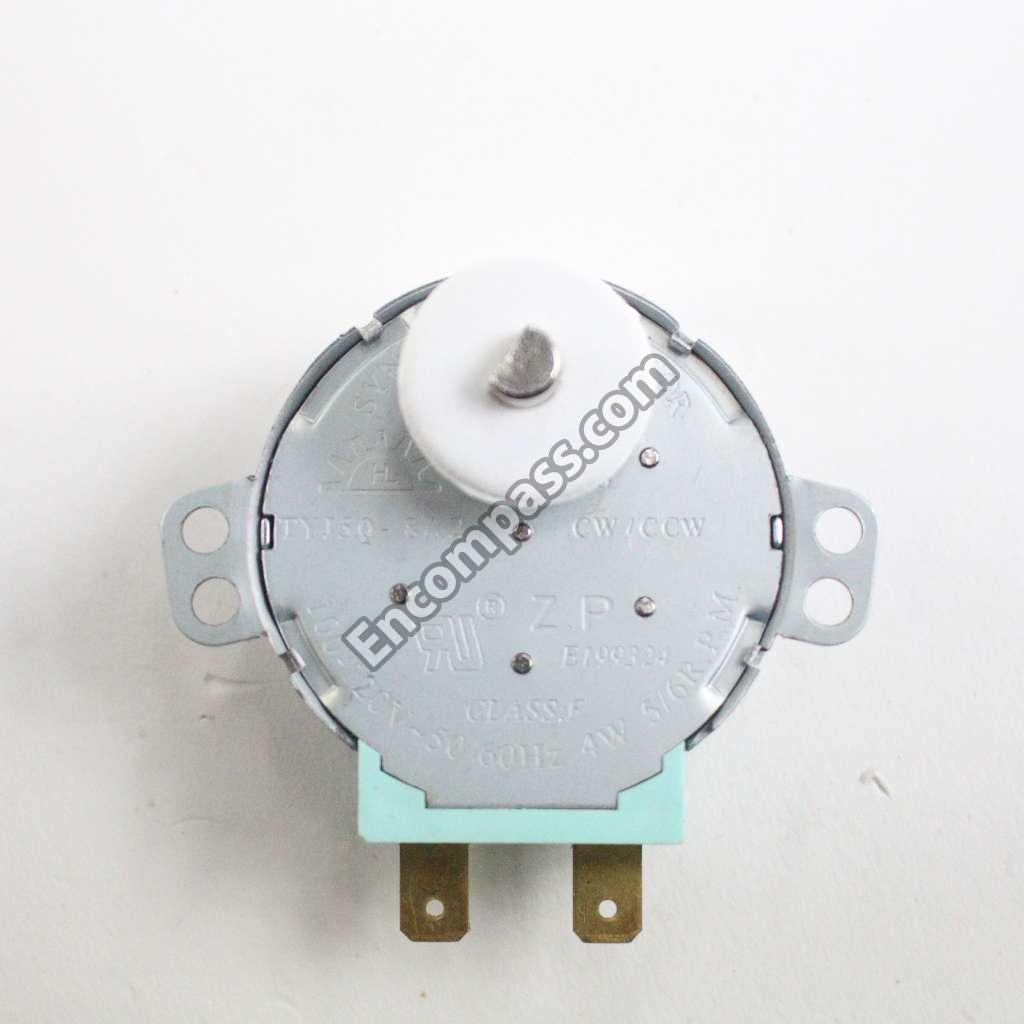

8183954 8183954 TURNTABLE MOTOR
4393832 4393832 TURNTABLE MOTOR SCREW
4393799 4393799 TURNTABLE TRAY
W10843943 W10843943 VENT DAMPER
W10117917 W10117917 VENT GRILLE
W10250593 W10250593 VENT GRILLE
W10117918 W10117918 VENT GRILLE (BLACK)
8184091 8184091 VENT MOTOR CAPACITOR
WPW10269225 WPW10269225 WALL MOUNTING PLATE
8184549 8184549 WAVEGUIDE COVER RIVET
W10117930 W10117930 WIRE HARNESS
W10117932 W10117932 WIRE HARNESS
W10117931 W10117931 WIRE HARNESS
8205696 8205696 WIRE HARNESS
W10117845 W10117845 WRAPPER CABINET
W10117844 W10117844 WRAPPER CABINET
