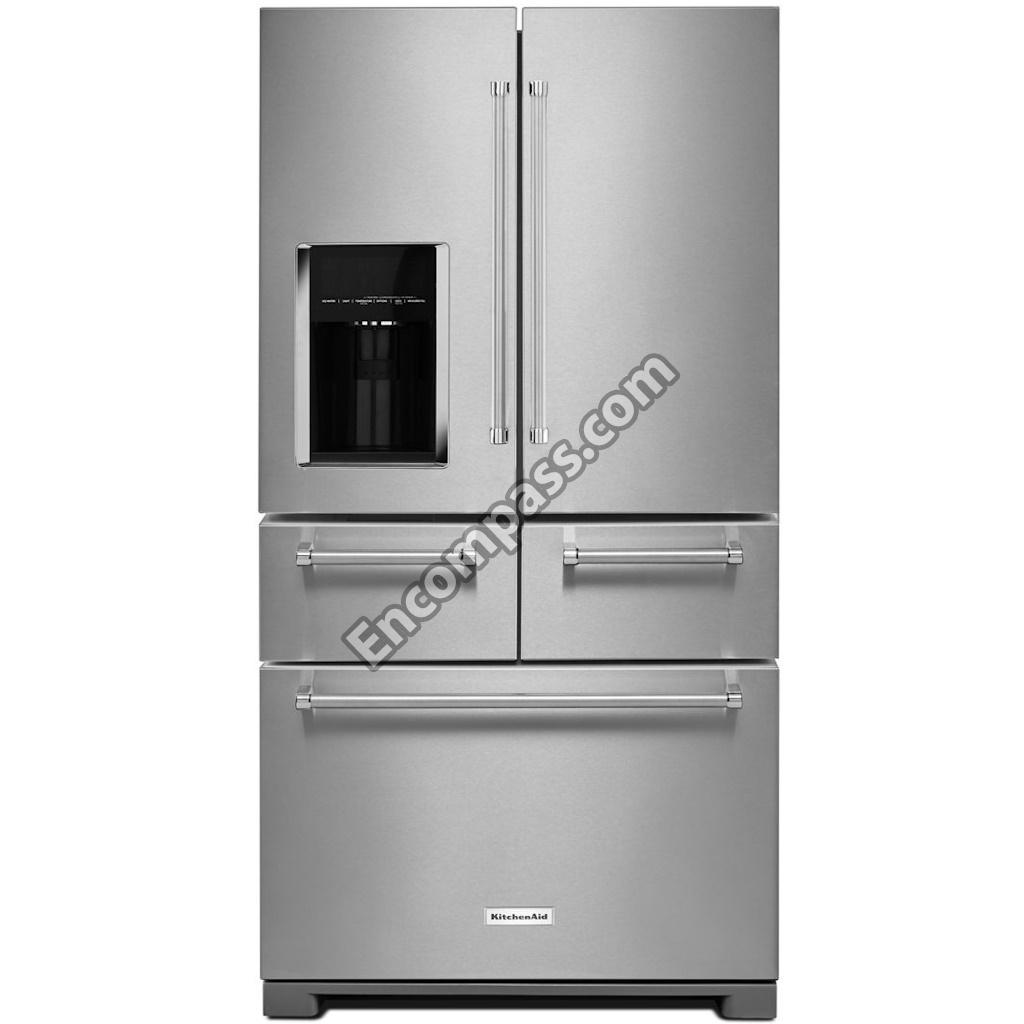

Model Image
Manufacturer

Whirlpool

Model Number

KRMF706ESS01

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
W11294509 W11294509 ADAPTER, PANTRY (LEFT HAND)

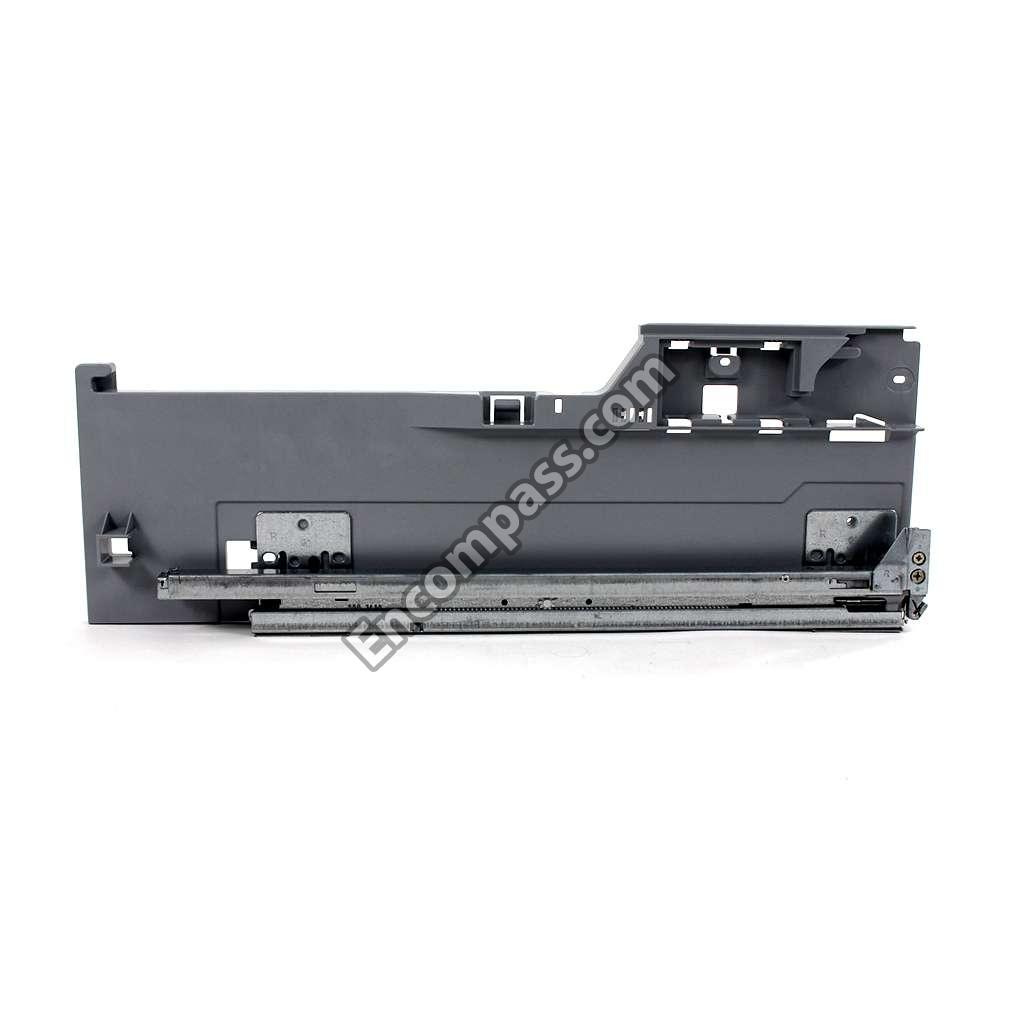

W11294512 W11294512 ADAPTER, PANTRY (RIGHT HAND)
W10619221 W10619221 ADAPTER, UPPER PAN (LEFT HAND)
W10619220 W10619220 ADAPTER, UPPER PAN (RIGHT HAND)
W10634642 W10634642 ASSEMBLY, 3 WAY VALVE
W10749499 W10749499 ASSEMBLY, AIR TOWER
W10795771 W10795771 ASSEMBLY, BRACKET (LEFT HAND)
W10795769 W10795769 ASSEMBLY, BRACKET (RIGHT HAND)
W11238188 W11238188 ASSEMBLY, CENTER PAN (FREEZER)
W10801137 W10801137 ASSEMBLY, CRISPER
W10847515 W10847515 ASSEMBLY, CRISPER COVER
W10503218 W10503218 ASSEMBLY, DRAIN FUNNEL
W10821278 W10821278 ASSEMBLY, DUAL VALVE BOX WIRE
W10248589 W10248589 ASSEMBLY, EVAPORATOR
W11035765 W11035765 ASSEMBLY, EVAPORATOR
W10738349 W10738349 ASSEMBLY, EVAPORATOR COVER
W11215631 W11215631 ASSEMBLY, FLOOR
W11244792 W11244792 ASSEMBLY, ICE CHUTE PLATE
W10564750 W10564750 ASSEMBLY, ICE CONTAINER
W10811681 W10811681 ASSEMBLY, ICEBOX (FOAMED)

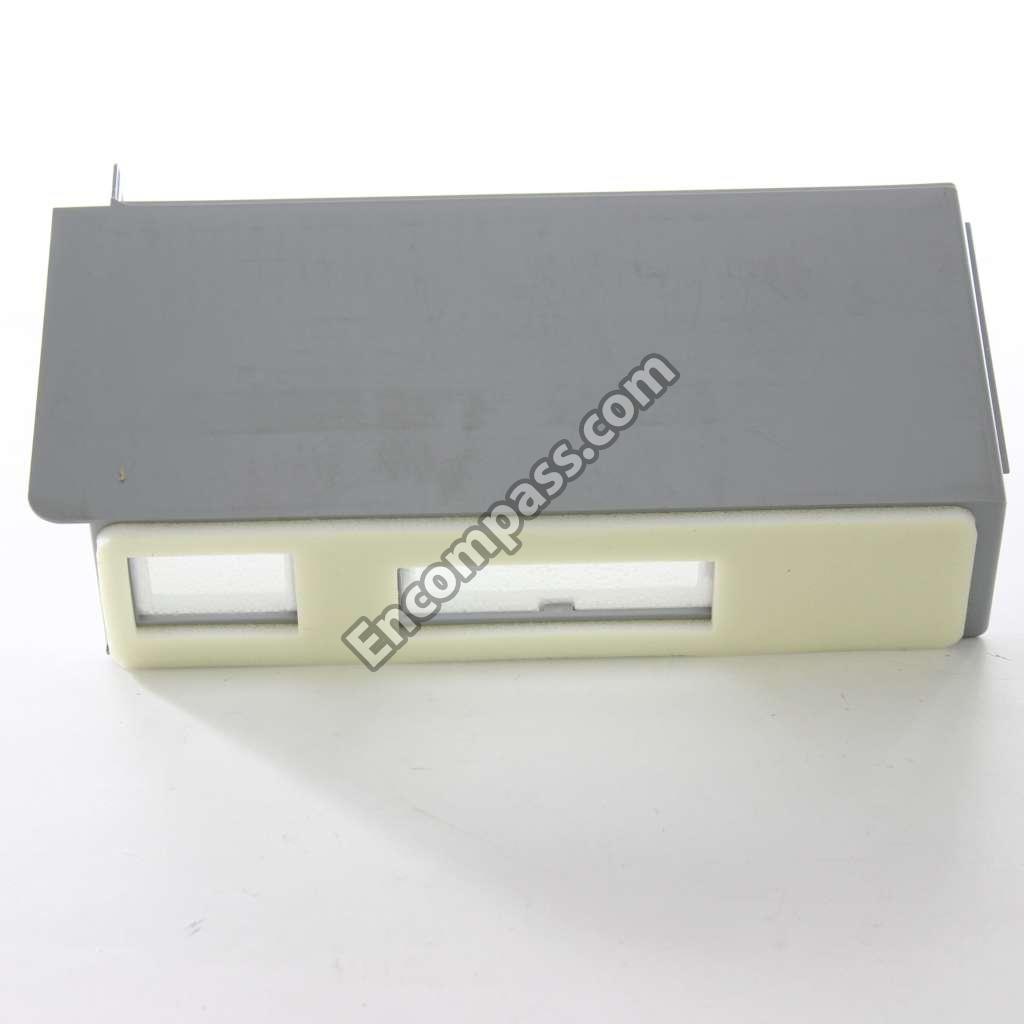

W10749701 W10749701 ASSEMBLY, ICEBOX ADAPTER
W10754348 W10754348 ASSEMBLY, ICEBOX FASCIA (INCLUDES HEATER)
W11232541 W11232541 ASSEMBLY, ICEMAKER
W10710090 W10710090 ASSEMBLY, INVERTER BOX
W10470750 W10470750 ASSEMBLY, LED
W10843353 W10843353 ASSEMBLY, LED LIGHT MODULE
W10843339 W10843339 ASSEMBLY, LED MODULE
W11088993 W11088993 ASSEMBLY, LIGHTED SHELF
W10634640 W10634640 ASSEMBLY, LOWER PAN (FREEZER)
W10733545 W10733545 ASSEMBLY, MULLION COVER (BLACK)
W10733546 W10733546 ASSEMBLY, MULLION COVER (GREY)
W10663646 W10663646 ASSEMBLY, PAD (BLACK)
W10564680 W10564680 ASSEMBLY, PAN FRONT
W11294548 W11294548 ASSEMBLY, PANTRY CENTER ADAPTER
W10826105 W10826105 ASSEMBLY, PRODUCE PRESERVER
WPW10515763 WPW10515763 ASSEMBLY, ROLLER (LEFT HAND)
WPW10515762 WPW10515762 ASSEMBLY, ROLLER (RIGHT HAND)
W10849115 W10849115 ASSEMBLY, SECONDARY MULLION (BLACK)
W10849118 W10849118 ASSEMBLY, SECONDARY MULLION (GREY)
W10634635 W10634635 ASSEMBLY, SECONDARY MULLION BIN
W10654548 W10654548 ASSEMBLY, SEPERATOR
W10756314 W10756314 ASSEMBLY, SHELF
WPW10626970 WPW10626970 ASSEMBLY, SUCTION TUBE
W10712476 W10712476 ASSEMBLY, SWITCH JUMPER WIRE
WPW10737428 WPW10737428 ASSEMBLY, TUCK SHELF

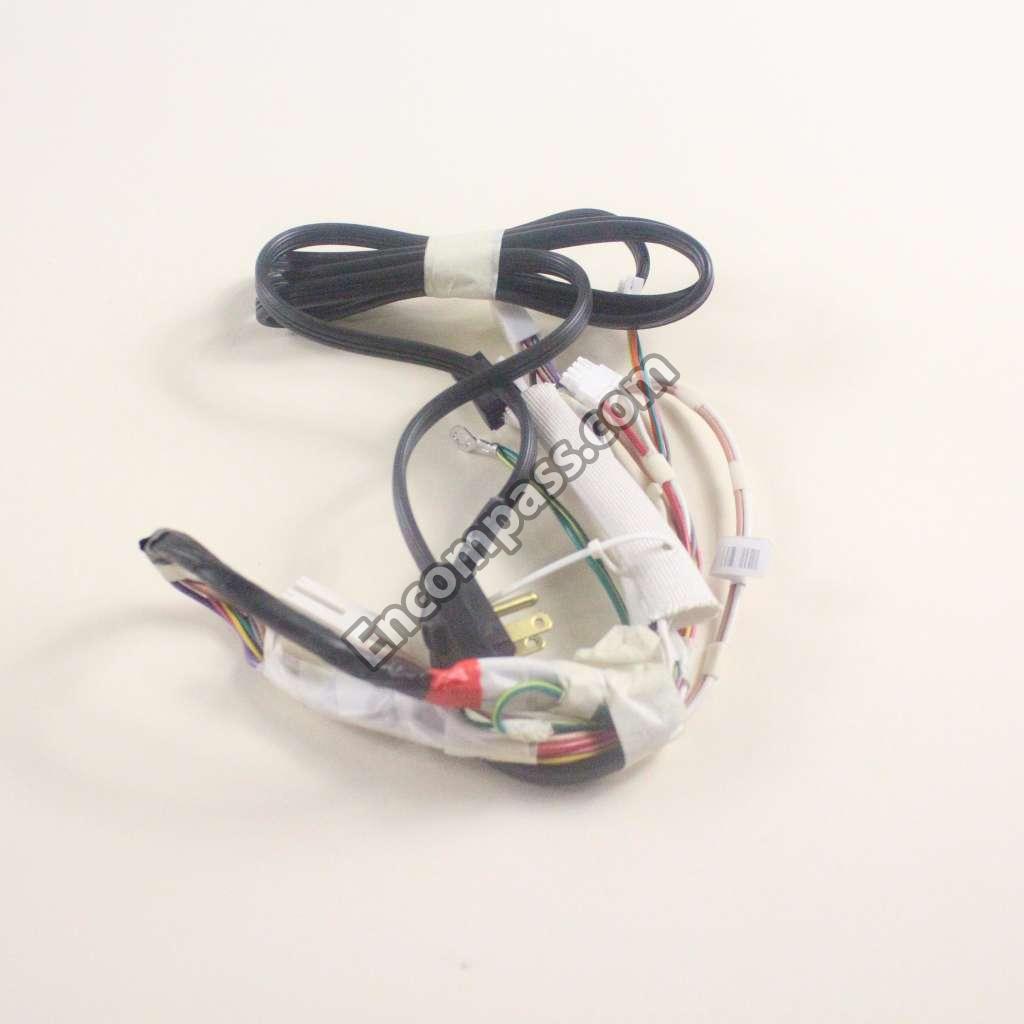

W10672162 W10672162 ASSEMBLY, UNIT WIRE (INCLUDES POWER CORD)
W11238210 W11238210 ASSEMBLY, UPPER PAN (FREEZER)
W11106553 W11106553 ASSEMBLY, USER INTERFACE (BLACK)
12477202 12477202 AXLE, ROLLER
W10643690 W10643690 AXLE, ROLLER
W10518672 W10518672 BADGE
W10570074 W10570074 BASEPLATE
WP2188935 WP2188935 BLADE, FAN
12986101 12986101 BLADE, FAN
W10734555 W10734555 BLOCK, PIVOT
W10811365 W10811365 BOARD, CONTROL
W10832970 W10832970 BOARD, EMITTER CIRCUIT

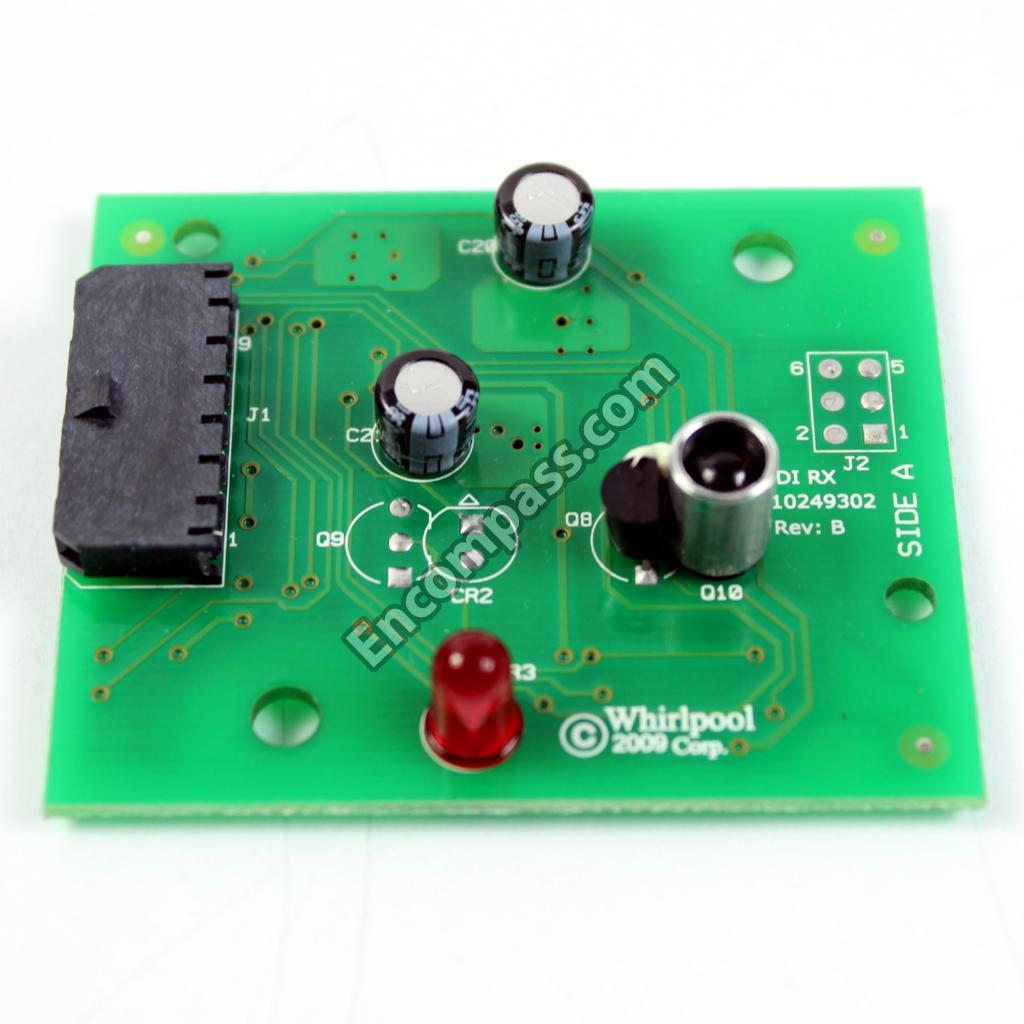

WPW10518658 WPW10518658 BOARD, RECEIVER CIRCUIT
W10713934 W10713934 BRACKET, CONNECTOR
W10708583 W10708583 BRACKET, STOPPING (BLACK)
W10391376 W10391376 BRACKET, VALVE
WPW10141622 WPW10141622 BRAKE, ROLLER
W10737416 W10737416 BUCKET, GALLON
W10407187 W10407187 BUMPER, DOOR (BLACK)
W10407188 W10407188 BUMPER, DOOR (GREY)
W10831587 W10831587 BUSHING
549193 549193 CLAMP, POWER CORD
M0108107 M0108107 CLAMP, TUBE
W10815861 W10815861 CLIP, BOTTOM COVER
W10248621 W10248621 CLIP, CONDENSER
W10704335 W10704335 CLIP, DRAWER BODY
12956601 12956601 CLIP, FAN MOTOR
W10732765 W10732765 CLIP, GLIDE DOOR
10428101 10428101 CLIP, HEATER
W10347120 W10347120 CLIP, RETAINER
W10709748 W10709748 CLIP, SHAFT
W11315303 W11315303 CLIP, TUBE
W10714907 W10714907 CLOSER, DOOR (LEFT HAND)
W10714908 W10714908 CLOSER, DOOR (RIGHT HAND)
W10709318 W10709318 COIL, 3 WAY VALVE
W10756020 W10756020 COMPRESSOR
W10758093 W10758093 CONDENSER
W10722983 W10722983 CONNECTOR, WATER TUBE
W10278140 W10278140 COVER, CONDENSER (BOTTOM)
W10711821 W10711821 COVER, CONNECTOR
12587703B 12587703B COVER, CORNER (BLACK)
WP12587703AP WP12587703AP COVER, CORNER (GREY)
W10563309 W10563309 COVER, EMITTER

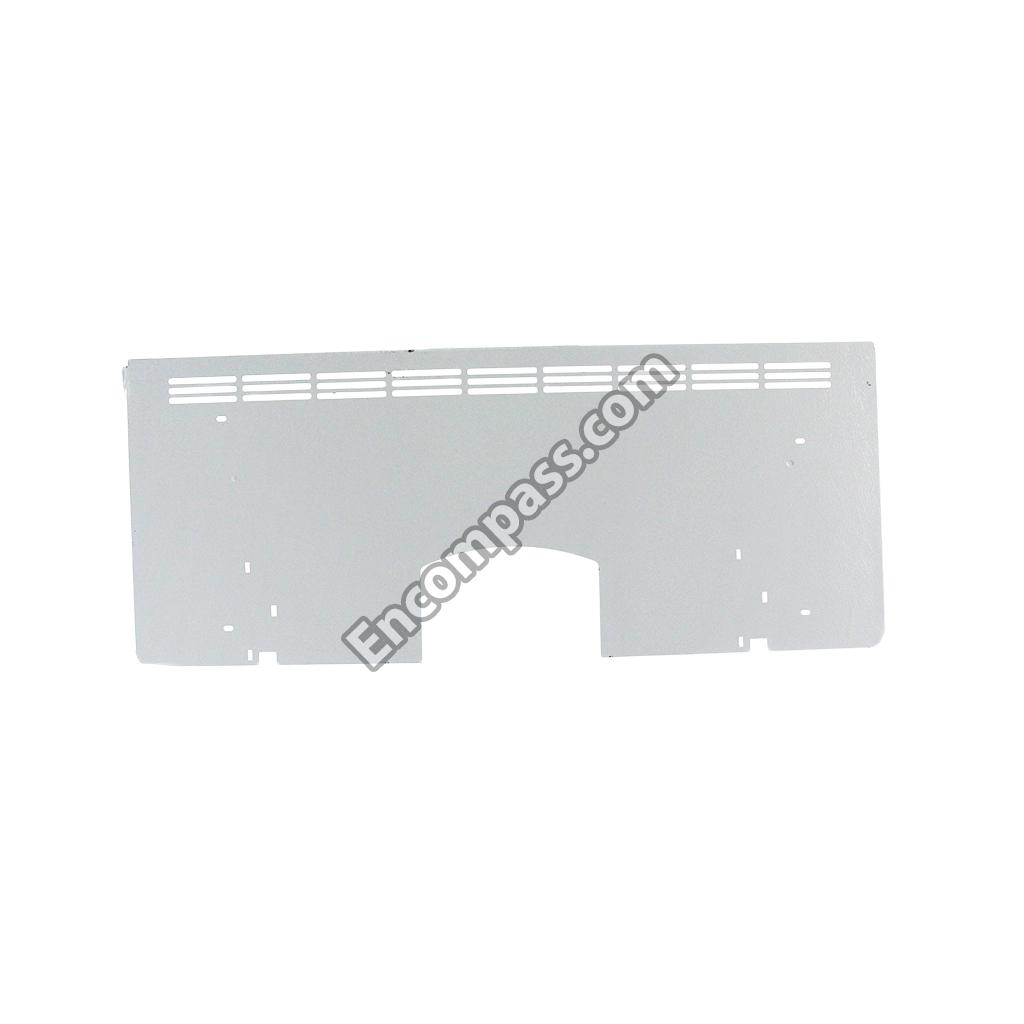

W11282987 W11282987 COVER, EVAPORATOR (FREEZER)
W10754591 W10754591 COVER, HV CONTROL BOX
WPW10598013 WPW10598013 COVER, ICEBOX
W10563326 W10563326 COVER, RECEIVER
W10336736 W10336736 COVER, ROLLER
W10731491 W10731491 COVER, SIDE ADAPTER
WPW10405166 WPW10405166 COVER, THERMISTOR
W10438957 W10438957 COVER, THERMISTOR
W10781438 W10781438 COVER, TOP HINGE LEFT HAND (BLACK)
W10781436 W10781436 COVER, TOP HINGE LEFT HAND (GREY)
W10709867 W10709867 COVER, TOP HINGE RIGHT HAND (BLACK)
W10709866 W10709866 COVER, TOP HINGE RIGHT HAND (GREY)
WPW10577369 WPW10577369 COVER, UNIT
W10754145 W10754145 COVER, WATERBOX
WPW10248595 WPW10248595 DAMPER, ELECTRONIC CONTROL
W10562492 W10562492 DIVIDER, LOWER
W10709891 W10709891 DIVIDER, PANTRY PAN
W10563323 W10563323 DOOR, EMITTER
W10754143 W10754143 DOOR, FILTER ACCESS
W10634625 W10634625 DOOR, FREEZER (INCLUDES ITEM 17) (BLACK STAINLESS)
W10634624 W10634624 DOOR, FREEZER (INCLUDES ITEM 17) (STAINLESS)
W11261138 W11261138 DOOR, ICE
W10738905 W10738905 DOOR, PANTRY (INCLUDES ITEM 8) (BLACK STAINLESS)

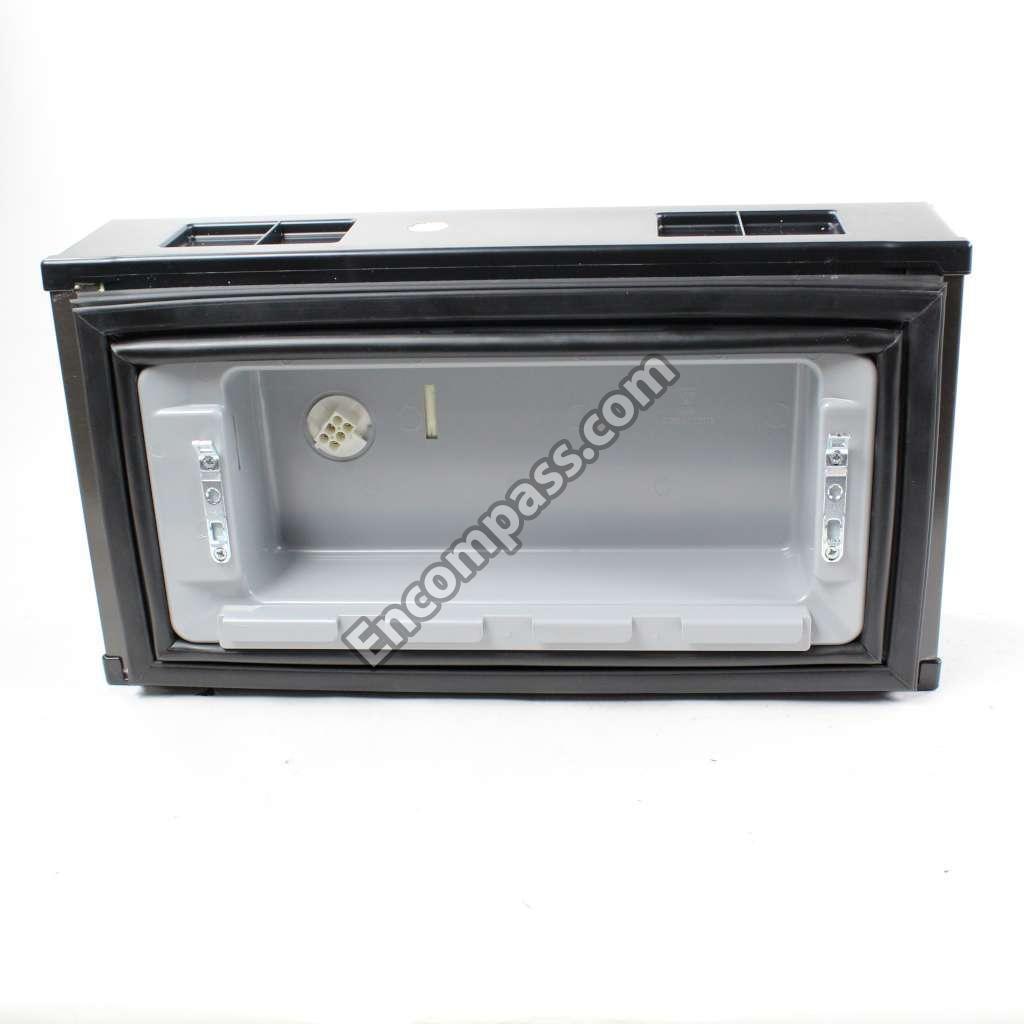

W10733264 W10733264 DOOR, PANTRY (INCLUDES ITEM 8) (BLACK STAINLESS)
W10738904 W10738904 DOOR, PANTRY (INCLUDES ITEM 8) (STAINLESS)
W10733263 W10733263 DOOR, PANTRY (INCLUDES ITEM 8) (STAINLESS)
W10634613 W10634613 DOOR, REFRIGERATOR (INCLUDES ITEM 2) LEFT HAND (BLACK STAINLESS)
W10634612 W10634612 DOOR, REFRIGERATOR (INCLUDES ITEM 2) LEFT HAND (STAINLESS)
W10634619 W10634619 DOOR, REFRIGERATOR (INCLUDES ITEM 2) RIGHT HAND (BLACK STAINLESS)
W10634618 W10634618 DOOR, REFRIGERATOR (INCLUDES ITEM 2) RIGHT HAND (STAINLESS)
W10730610 W10730610 DRAWER, PANTRY
W10286069 W10286069 DRIER
W10503486 W10503486 ENCLOSURE, EVAPORATOR
W10811115 W10811115 ENCLOSURE, WATER VALVE
W11112988 W11112988 ENERGY GUIDE
W10776916 W10776916 EXTENSION, DRAIN
W10833801 W10833801 FAN, ICEBOX
W10315189 W10315189 FILTER, AIR
W10680605 W10680605 FILTER, WATER
W10737415 W10737415 FRAME, BIN
WPW10291905 WPW10291905 GASKET
W10505487 W10505487 GASKET
W10491355 W10491355 GASKET, AIRDAM
W10470981 W10470981 GASKET, DAMPER
W10248748 W10248748 GASKET, DOOR (BLACK)
W10873946 W10873946 GASKET, DOOR (BLACK)
W10248749 W10248749 GASKET, DOOR (GREY)
W10873944 W10873944 GASKET, DOOR (GREY)
WPB8381501 WPB8381501 GASKET, DRAIN
W10510863 W10510863 GASKET, DRAIN TUBE
W10531268 W10531268 GASKET, DUAL EVAPORATOR
W10465948 W10465948 GASKET, EVAPORATOR ENCLOSURE
WPW10392172 WPW10392172 GASKET, FAN
A3189392 A3189392 GASKET, FOAM
W10415341 W10415341 GASKET, HV BOX
W11261135 W11261135 GASKET, ICE CHUTE

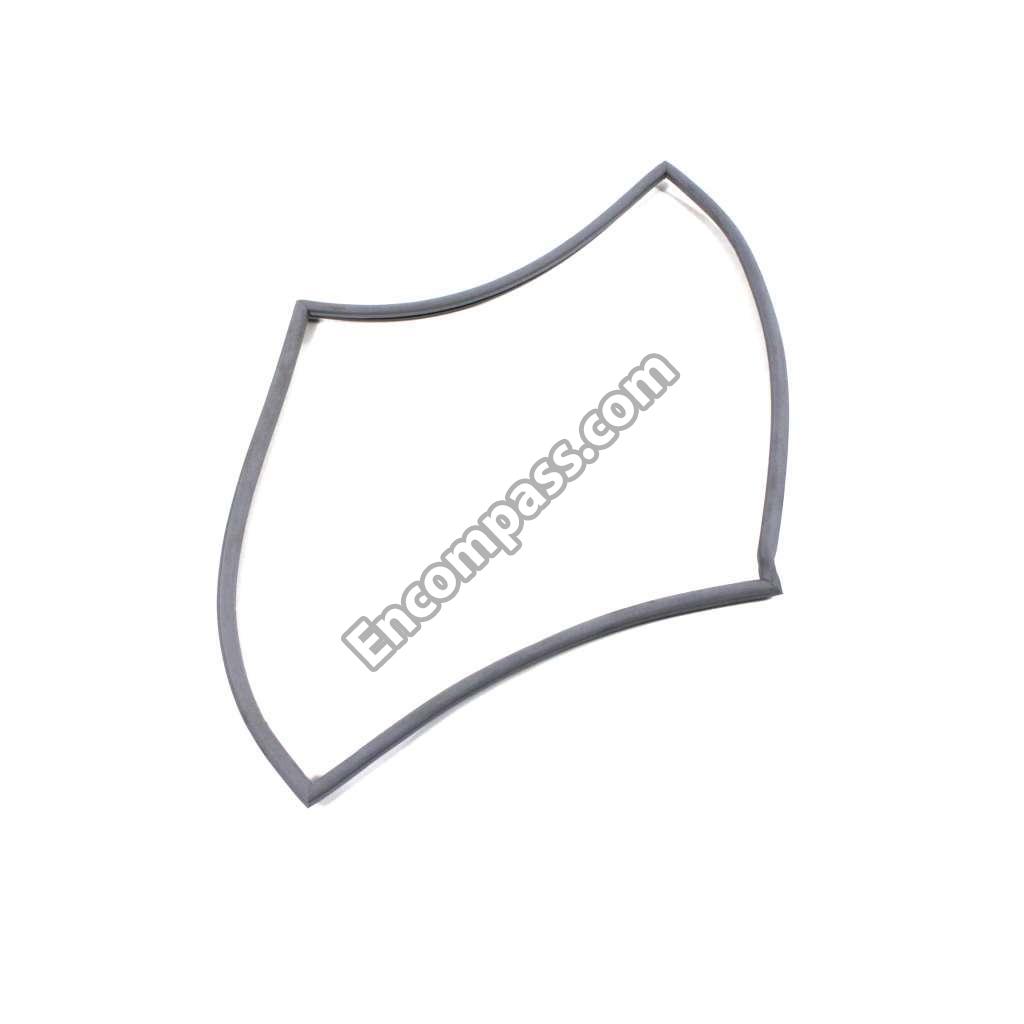

W10567561 W10567561 GASKET, ICE DOOR
W10712392 W10712392 GASKET, PANTRY (BLACK)
W10685868 W10685868 GASKET, PANTRY (GREY)
WPW10320706 WPW10320706 GASKET, REAR RETURN
WPW10280988 WPW10280988 GASKET, REAR SUPPLY
W10893770 W10893770 GLASS, CRISPER
W11242545 W11242545 GLIDE, COMPACT (ALSO ORDER ITEMS 27 AND 35) (LEFT HAND)
W11242572 W11242572 GLIDE, COMPACT (ALSO ORDER ITEMS 27 AND 35) (RIGHT HAND)
W10496613 W10496613 GRILLE, AIR (FREEZER)
W10707422 W10707422 GRILLE, TOE (BLACK)
W10707958 W10707958 GRILLE, TOE (GREY)
10835903 10835903 GROMMET
W10905511 W10905511 GROMMET, FAN MOTOR
W10638123 W10638123 GUIDE, CRISPER
WPW10435760 WPW10435760 GUIDE, ICE
W10680045 W10680045 HANDLE, DOOR (STAINLESS)
W10687115 W10687115 HANDLE, DOOR (STAINLESS)
W10680044 W10680044 HANDLE, DOOR (STAINLESS)
W10843828 W10843828 HARNESS, LED WIRE (INCLUDES LED LIGHTS)
W10512203 W10512203 HARNESS, SIDE ADAPTER
WP12729128 WP12729128 HEATER, DEFROST

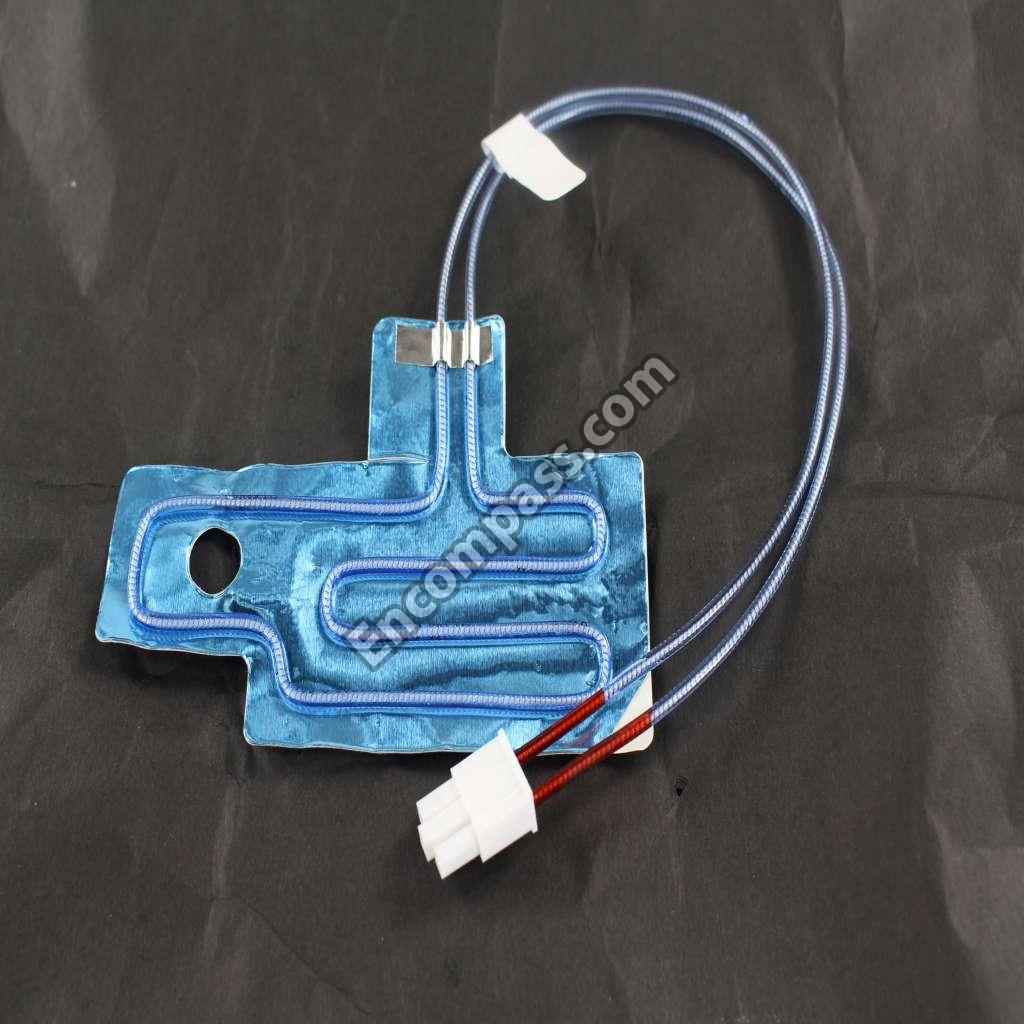

W10820065 W10820065 HEATER, FILL TUBE
W10691674 W10691674 HINGE, CENTER LEFT HAND (BLACK)
W10691675 W10691675 HINGE, CENTER LEFT HAND (GREY)
W10691700 W10691700 HINGE, CENTER RIGHT HAND (BLACK)
W10691701 W10691701 HINGE, CENTER RIGHT HAND (GREY)
W11027247 W11027247 HINGE, TOP (LEFT HAND)
W11027248 W11027248 HINGE, TOP (RIGHT HAND)
W11165806 W11165806 HOUSING, WATER FILTER (ALSO ORDER 2300868 - 5/16-INCH WATER CONNECTOR)
W10826118 W10826118 HOUSING, WATER SYSTEM
WPW10280983 WPW10280983 INSULATION
WP2169104 WP2169104 INSULATION, SOUND DEADENING

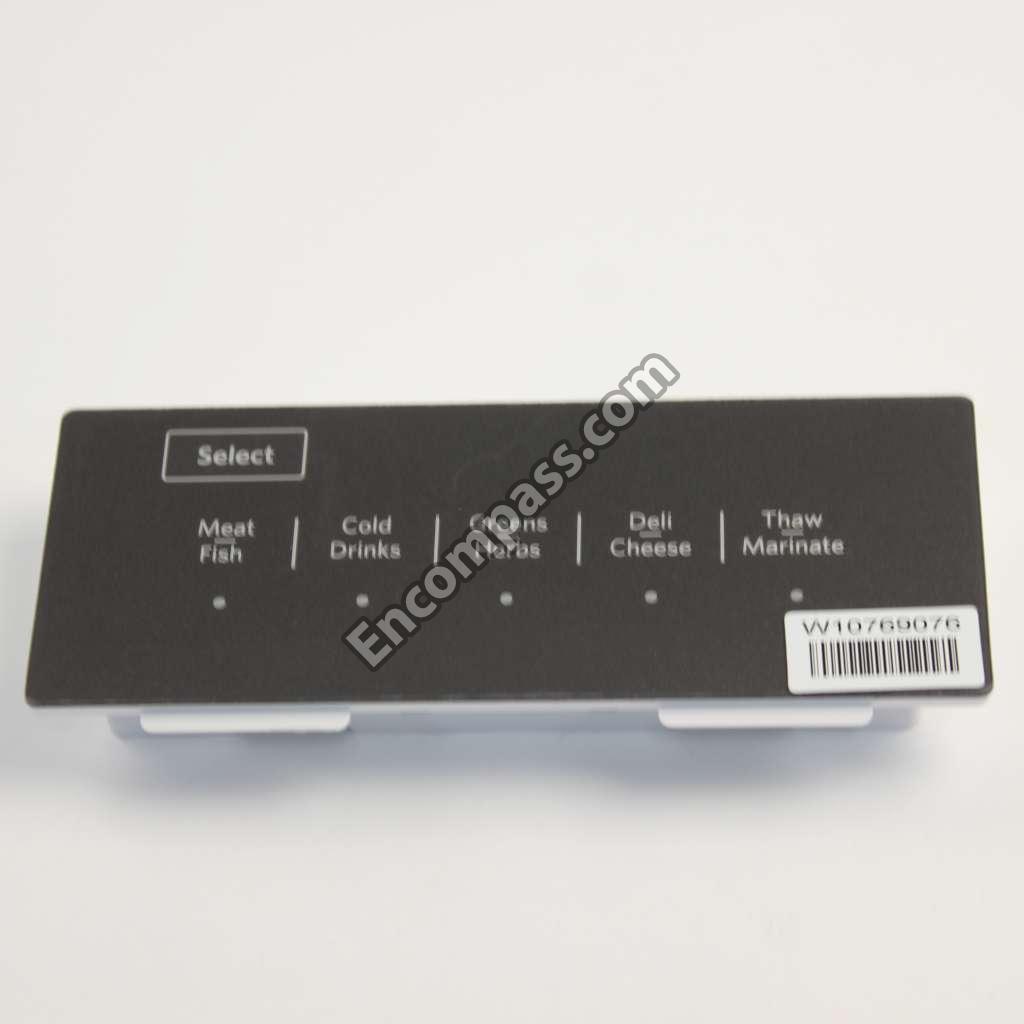

WPW10769076 WPW10769076 INTERFACE, USER (STAINLESS)
W10673048 W10673048 JUMPER, FASCIA HEATER
W10719661 W10719661 LADDER, CENTER
W10719660 W10719660 LADDER, SIDE
WP2223877 WP2223877 LATCH, PUSH
W10277839 W10277839 LID, HV
542639 542639 MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ.)
20000008 20000008 MISCELLANEOUS, CLEANER, STAINLESS STEEL
WP503695 WP503695 MISCELLANEOUS, CORK, SEALER
WP542638 WP542638 MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.)
876370 876370 MISCELLANEOUS, INSULATION (2 PIECES, 3-INCH X 24-INCH X 48-INCH)
876305 876305 MISCELLANEOUS, INSULATION KIT (14 PIECES, 3-INCH X 24-INCH X 48-INCH)
978941 978941 MISCELLANEOUS, INSULATION, FIBERGLASS (63 1/2-INCH X 35 1/2-INCH X 2 5/8-INCH)
876029 876029 MISCELLANEOUS, KIT, FOAM SLAB (30-INCH X 32 1/2-INCH X 1 1/2-INCH)
833938 833938 MISCELLANEOUS, KIT, TERMINAL CONNECTOR
8003RP 8003RP MISCELLANEOUS, KIT, WATER INLET
212643 212643 MISCELLANEOUS, SEALER, GUM (4 FEET)
WP505587 WP505587 MISCELLANEOUS, SEALER, MASTIC (1 QT)
479502 479502 MISCELLANEOUS, TAPE, VINYL (3/4 X 108-INCH)
W10909387 W10909387 MOTOR, CONDENSER FAN
W11185741 W11185741 MOTOR, DISPENSER
W11039078 W11039078 MOTOR, EVAPORATOR (INCLUDES HARNESS THERMISTOR, AND DEFROST THERMOSTAT)
W10799016 W10799016 MOTOR, EVAPORATOR FAN (INCLUDES WIRE HARNESS)

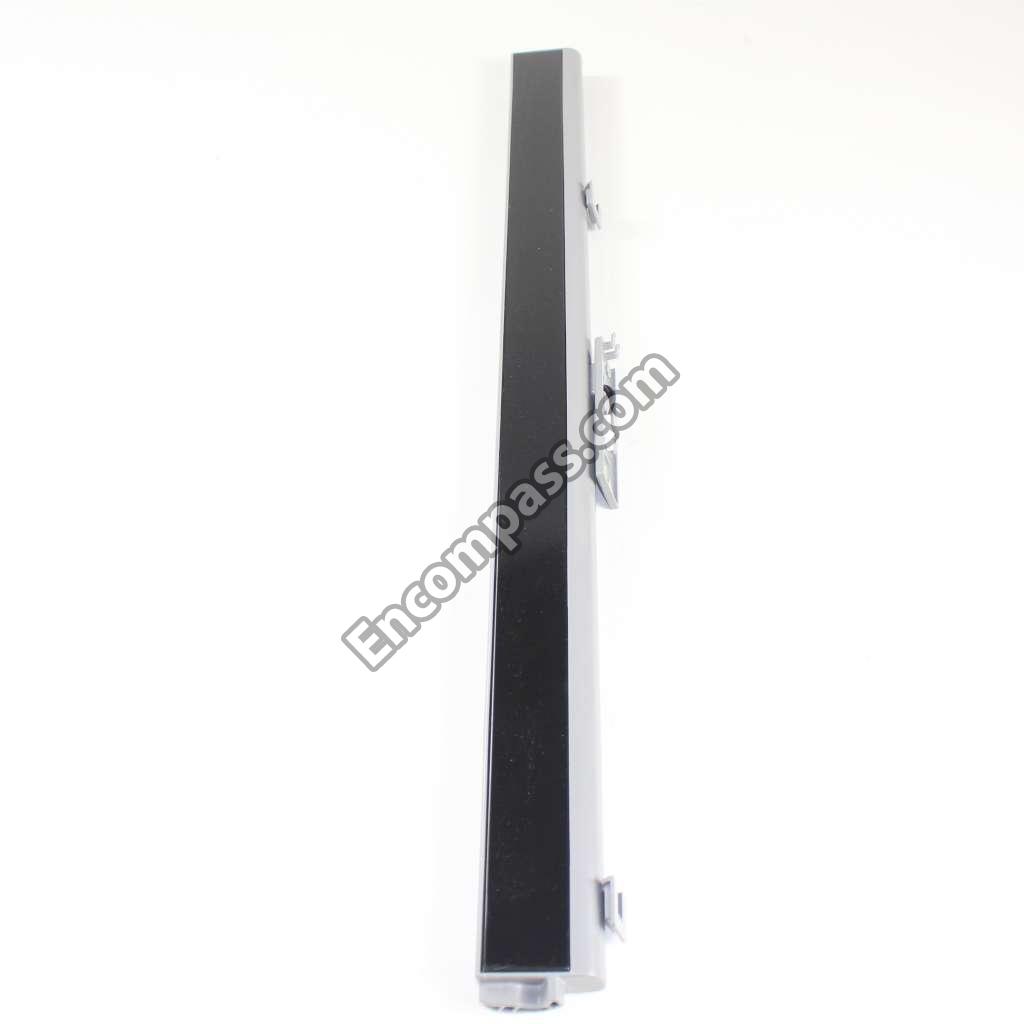

W10752977 W10752977 MULLION, DOOR (BLACK)
W10752974 W10752974 MULLION, DOOR (GREY)
W10737730 W10737730 NUT, RIVET
W10730912 W10730912 OWNERS MANUAL
12702901 12702901 PAD, GLIDE
799344 799344 PAINT, BULK (1 QT. WHITE (UNCUT))
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT AND BISQUE)
285006 285006 PAINT, PRESSURIZED SPRAY (12 OZ. BLACK)
350939 350939 PAINT, PRESSURIZED SPRAY (12 OZ. ENAMEL, BLACK)
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE)
511873 511873 PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ.))
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
W10525237 W10525237 PAN, DRAIN
W10331749 W10331749 PIN, DOOR
WPA3076901 WPA3076901 PLUG, BUTTON
W10913191 W10913191 RESERVOIR, WATER (ALSO ORDER WIRE TIE PART 8567668)
W10503491 W10503491 RETAINER, DAMPER
W10705239 W10705239 RETAINER, DOOR
W10562839 W10562839 RETAINER, ICE CHUTE
W10654551 W10654551 RING, TRIM (CHROME)
W10788795 W10788795 ROLLER
12477102 12477102 ROLLER
W10248555 W10248555 ROLLER, PAN
WPW10272364 WPW10272364 SCREW
W10737605 W10737605 SCREW
WPW10666373 WPW10666373 SCREW
12991401 12991401 SCREW
W10664603 W10664603 SCREW
WP98006631 WP98006631 SCREW
W10325002 W10325002 SCREW
W10142294 W10142294 SCREW
W10141518 W10141518 SCREW
W10142255 W10142255 SCREW
12992101 12992101 SCREW
W10622701 W10622701 SCREW
WPW10141625 WPW10141625 SCREW
WPW10238319 WPW10238319 SCREW
12993001 12993001 SCREW
W11328753 W11328753 SCREW
12990204 12990204 SCREW
12990504 12990504 SCREW
12990518 12990518 SCREW
12990302 12990302 SCREW
12990511 12990511 SCREW
WPW10141645 WPW10141645 SCREW
12990702 12990702 SCREW
12992601 12992601 SCREW
W10709365 W10709365 SCREW
W10731474 W10731474 SCREW
12992602 12992602 SCREW
WP8281163 WP8281163 SCREW (STAINLESS)
WP489443 WP489443 SCREW (STAINLESS)
W10673840 W10673840 SCREW (STAINLESS)
WP2198628 WP2198628 SEAL
WPM0500703 WPM0500703 SEAL
WPW10503522 WPW10503522 SHAFT

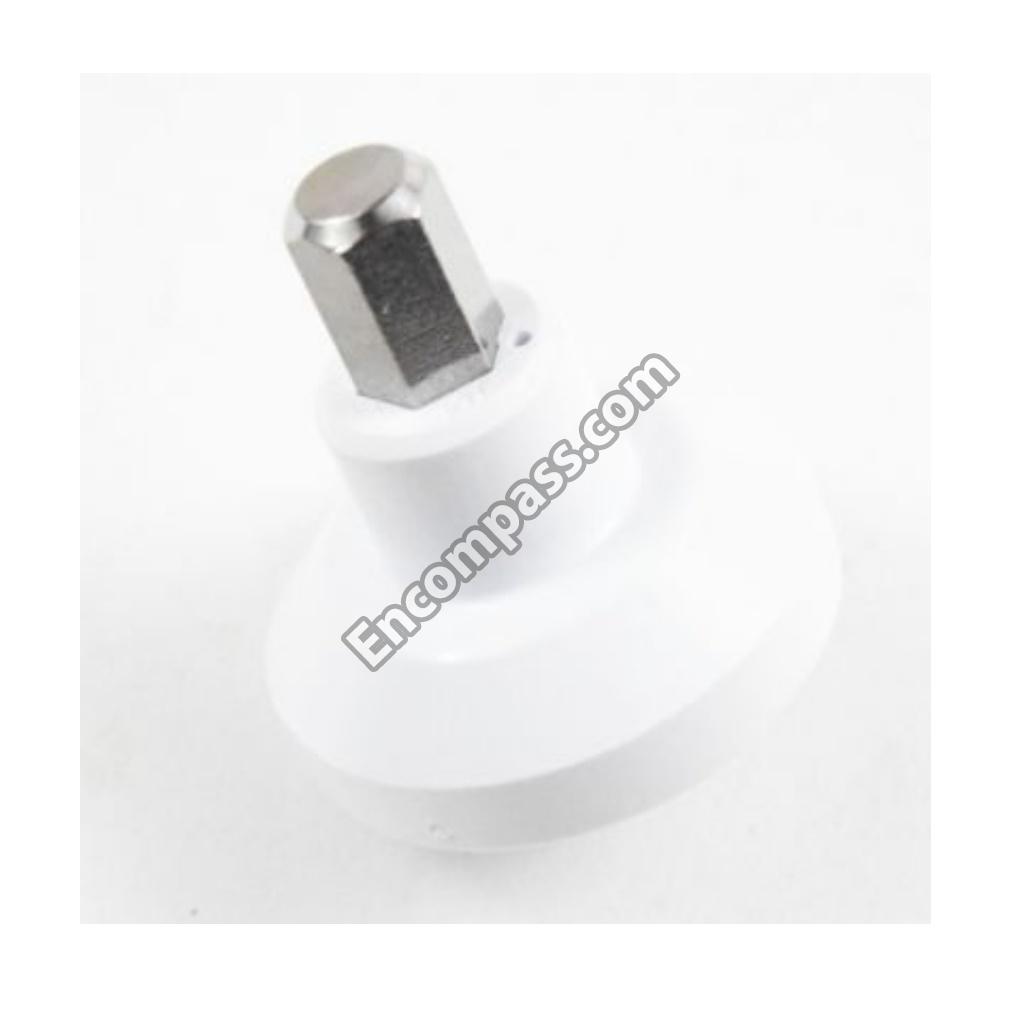

WPW10347114 WPW10347114 SHAFT, MOTOR
WPW10406719 WPW10406719 SHROUD
WPW10363507 WPW10363507 SHROUD, EVAPORATOR FAN
W10303521 W10303521 SLEEVE
W10563328 W10563328 SLIDE, ICEMAKER SHUT OFF
WP2198635 WP2198635 SPRING, DOOR
W10663682 W10663682 SPRING, TORSION
W10585151 W10585151 STOP, PAN (LEFT HAND)
W10585150 W10585150 STOP, PAN (RIGHT HAND)
W10236396 W10236396 STRAP, COMPRESSOR
W10788814 W10788814 SUPPLY, LED POWER
WPW10624574 WPW10624574 SUPPLY, POWER
W10493547 W10493547 SUPPORT, CRISPER REAR
W10503492 W10503492 SUPPORT, DAMPER
WPW10389152 WPW10389152 SUPPORT, FAN
W10847369 W10847369 SUPPORT, FRONT
W10469177 W10469177 SUPPORT, PAN
W10847855 W10847855 SWITCH, LIGHT
W10847853 W10847853 SWITCH, LIGHT
W10847850 W10847850 SWITCH, LIGHT
W10403752 W10403752 SWITCH, LIMIT
W10847852 W10847852 SWITCH, ROCKER
W10844356 W10844356 TECH SHEET (ENGLISH)
W10844357 W10844357 TECH SHEET (FRENCH)
W10549991 W10549991 THERMISTOR
W10280385 W10280385 THERMISTOR
WP1117510 WP1117510 TORX SCREW WRENCH, TORX KEY
W10134625 W10134625 TOUCH-UP PAINT (APOLLO GREY)
72032 72032 TOUCH-UP PAINT (BLACK)
W10917540 W10917540 TOUCH-UP PAINT (MIDNIGHT GREY)
W10342573 W10342573 TRAY, DRIP
W10654552 W10654552 TRAY, DRIP (BLACK)
W10660727 W10660727 TRAY, EVAPORATOR
W10785113 W10785113 TRIM, ICEBOX
W10737419 W10737419 TRIVET, 2 LITER
W10736144 W10736144 TUBE, FILL
W10663692 W10663692 TUBE, WATER
W10913008 W10913008 TUBE, WATER
WP978025 WP978025 VALVE, ACCESS (1/4-INCH)
876764 876764 VALVE, ACCESS (3/16-INCH)
978030 978030 VALVE, ACCESS (3/4-INCH)
978027 978027 VALVE, ACCESS (3/8-INCH)
978026 978026 VALVE, ACCESS (5/16-INCH)
978029 978029 VALVE, ACCESS (5/8-INCH)
WPW10341329 WPW10341329 VALVE, DUAL WATER
W10833705 W10833705 VALVE, WATER
W10646867 W10646867 VENT, THERMISTOR
W10654549 W10654549 WALL, DISPENSER FALSE (BLACK)
W10723352 W10723352 WATERLINE

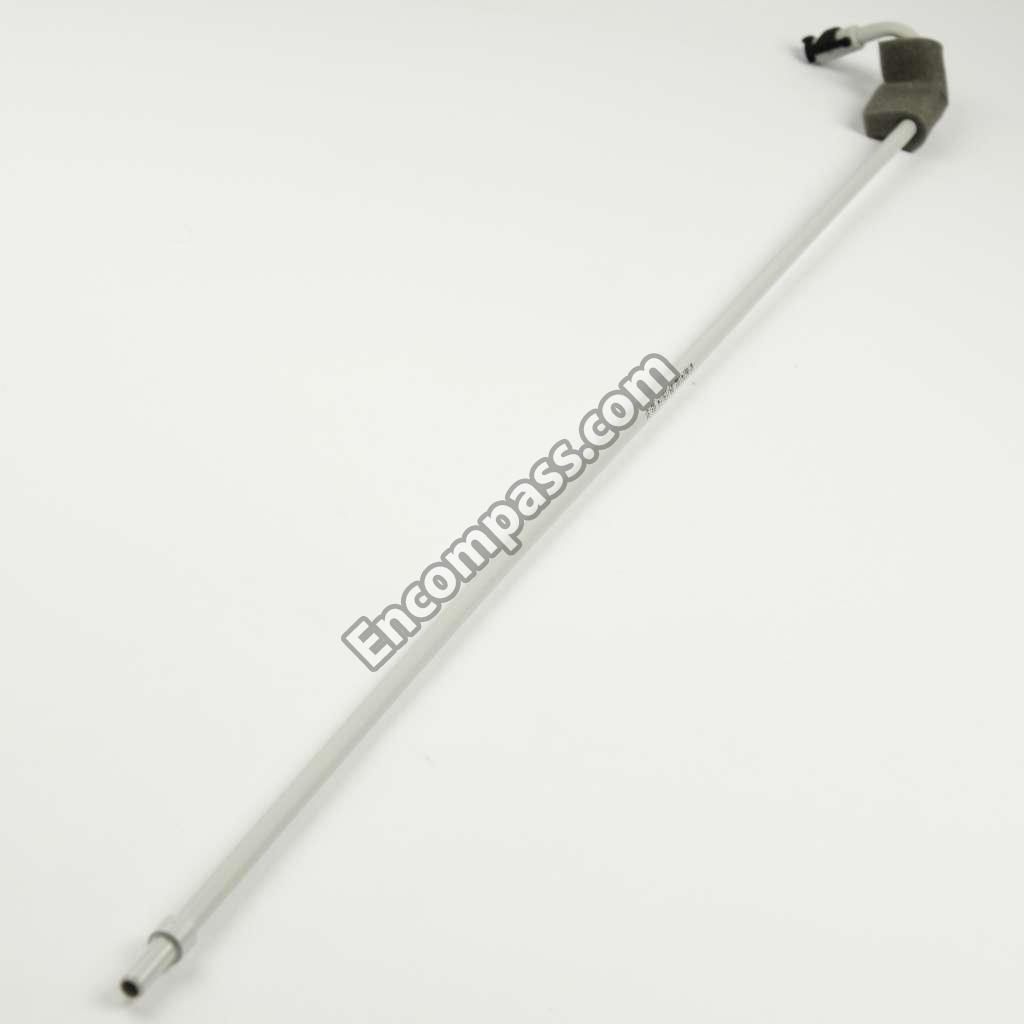

WPW10674102 WPW10674102 WATERLINE, VALVE TO HINGE
W10710113 W10710113 WIRE ASSEMBLY, ICE BOX
8558100 8558100 WRENCH, 3/32-INCH HEX
Main Menu x
