Model Image
Manufacturer

Whirlpool

Model Number

KUDS30IXWHA

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
W10526116 W10526116 ACCESS PANEL BISCUIT/BISQUE
WPW10526114 WPW10526114 ACCESS PANEL BLACK
WPW10526115 WPW10526115 ACCESS PANEL WHITE
8212489 8212489 ACCESSORIES, CUSTOM PANEL & TRIM KIT BLACK
3385556 3385556 ACCESSORIES, DRAIN HOSE 12 FT.
4396277 4396277 ACCESSORIES, MOISTURE BARRIER KIT
8171658 8171658 ACCESSORIES, SIDE PANEL KITS BISCUIT/BISQUE
8171657 8171657 ACCESSORIES, SIDE PANEL KITS BLACK
8171659 8171659 ACCESSORIES, SIDE PANEL KITS STAINLESS STEEL
8171656 8171656 ACCESSORIES, SIDE PANEL KITS WHITE
WP676455 WP676455 ACCESSORIES, VINYL TOUCH-UP 4OZ GREY
4396853 4396853 ACCESSORIES, VINYL TOUCH-UP 4OZ SILVER ATLANTIS
WP676453 WP676453 ACCESSORIES, VINYL TOUCH-UP 4OZ WHITE
8534952 8534952 ACCUMULATOR ASSEMBLY
WPW10412945 WPW10412945 ACTUATOR, ASSEMBLY
WPW10350376 WPW10350376 ADJUSTER, ARM & WHEEL ASSEMBLY
8171477 8171477 ANTI-TIP KIT, FLOOR MOUNT KIT
8212560 8212560 ANTI-TIP KIT, SIDE MOUNT KIT
WP8534854 WP8534854 ARM, HINGE LEFT HAND
WP8534853 WP8534853 ARM, HINGE RIGHT HAND
W10321449 W10321449 BARRIER, VAPOR ASSEMBLY
W10195723 W10195723 BASKET, SILVERWARE
WPW10482109 WPW10482109 BASKET, UTENSIL
WP8268340 WP8268340 BEARING, LOWER SPRAYARM
W10354790 W10354790 BLOCK, FOAM
W10401190 W10401190 BOX, CONNECTOR
WPW10194937 WPW10194937 BRACE, CONNECTOR
WPW10194911 WPW10194911 BRACKET, CONTROL PANEL
WPW10462232 WPW10462232 BRACKET, DISPENSER
W10300703 W10300703 BRACKET, THERMOSTAT
WP8269145 WP8269145 BRACKET, UNDERCOUNTER
W10158291 W10158291 CABLE, DOOR
WPW10077899 WPW10077899 CAP, INTERNAL REAR FEED
WPW10524920 WPW10524920 CAP, RINSE AID
WPW10334457 WPW10334457 CAPACITOR
WP8268375 WP8268375 CHECK VALVE, SUMP ASSEMBLY
W10083957 W10083957 CHOPPER ASSEMBLY
371505 371505 CLAMP, HOSE
370445 370445 CLAMP, HOSE
8269146 8269146 CLAMP, HOSE
WPW10250160 WPW10250160 CLIP ADJUSTER
WPW10267076 WPW10267076 CLIP, DISPENSER GUARD
WPW10077844 WPW10077844 CLIP, NO FLIP
WPW10082853 WPW10082853 CLIP, PIVOT
WPW10195237 WPW10195237 CLIP. CONTROL
W10500109 W10500109 CONSOLE ASSEMBLY BISCUIT/BISQUE
W10500111 W10500111 CONSOLE ASSEMBLY BLACK
W10500108 W10500108 CONSOLE ASSEMBLY STAINLESS
W10500110 W10500110 CONSOLE ASSEMBLY WHITE
W10542068 W10542068 CONTROL, ELECTRONIC
WPW10250162 WPW10250162 COVER, ADJUSTER
W10609495 W10609495 COVER, FILL VALVE
WP8268991 WP8268991 COVER, TERMINAL BOX
4396840 4396840 DISHRACK REPAIR GREY
4396854 4396854 DISHRACK REPAIR SILVER ATLANTIS
4396838 4396838 DISHRACK REPAIR WHITE
W10056271 W10056271 DISHRACK, LOWER
W10312791 W10312791 DISHRACK, UPPER
WPW10304408 WPW10304408 DISPENSER, ASSEMBLY
WPW10084086 WPW10084086 DOOR BALANCE ASSEMBLY
W10481093 W10481093 DRAIN LOOP WITH CHECK VALVE ASSEMBLY
WPW10503550 WPW10503550 FASTENER BISCUIT/BISQUE
WPW10503548 WPW10503548 FASTENER BLACK
WPW10503549 WPW10503549 FASTENER WHITE
WPW10118464 WPW10118464 FASTENER. PUSH-IN
WPW10077859 WPW10077859 FEED TUBE ASSEMBLY INCLUDES ITEM 3
WPW10327249 WPW10327249 FILL VALVE ASSEMBLY
W10316376 W10316376 FLAPPER
WPW10195036 WPW10195036 FLOAT & RETAINER ASSEMBLY
WP8531323 WP8531323 GASKET
WP8531743 WP8531743 GASKET, FLAT
W10300924 W10300924 GASKET, TUB
W10195834 W10195834 HANDLE BISCUIT/BISQUE
WPW10195718 WPW10195718 HANDLE BLACK
WPW10195835 WPW10195835 HANDLE GREY
WPW10195833 WPW10195833 HANDLE WHITE
W10282826 W10282826 HANDLE, DISHRACK
WPW10082832 WPW10082832 HANGER
W10473250 W10473250 HEATER ELEMENT ASSEMBLY INCLUDES ITEM 2
WP8531412 WP8531412 HOSE
8269144 8269144 HOSE, DRAIN
WPW10320664 WPW10320664 HOUSING, ADJUSTER LEFT HAND
WPW10320665 WPW10320665 HOUSING, ADJUSTER RIGHT HAND
WPW10195035 WPW10195035 HOUSING, OVERFILL ALSO ORDER ITEM 11
WPW10077898 WPW10077898 HUB, LOWER SPRAYARM
8531017 8531017 IMPELLER KIT
W10134017 W10134017 INDICATOR, OPTICAL WASH
WPW10316375 WPW10316375 INLET, WATER ALSO ORDER ITEMS 4 & 17
WPW10480715 WPW10480715 INNER DOOR
W10518815 W10518815 INSULATION, FOUR LAYER
W10315897 W10315897 INSULATION, FRONT PANEL
W10528492 W10528492 JUMPER, 4 WIRE
W10574864 W10574864 LATCH ASSEMBLY INCLUDES SWITCH
W10304228 W10304228 LEVELER, LEG
WPW10195037 WPW10195037 LEVER, OVERFILL SWITCH
WPW10323424 WPW10323424 MANIFOLD
WPW10077600 WPW10077600 MANIFOLD TURBOZONE
WPW10292152 WPW10292152 MISCELLANEOUS PARTS BAG CONTAINS 2 SCREWS, 2 CLAMPS, & 2 BRACKETS
WPW10239401 WPW10239401 MOTOR
W10239404 W10239404 MOTOR ASSEMBLY
W10082769 W10082769 MOTOR, WAX
WPW10082867 WPW10082867 MOUNT
W10243394 W10243394 NAMEPLATE BISCUIT/BISQUE
WPW10243392 WPW10243392 NAMEPLATE BLACK
WPW10243391 WPW10243391 NAMEPLATE STAINLESS
WPW10243393 WPW10243393 NAMEPLATE WHITE
8533949 8533949 NUT
WPW10477552 WPW10477552 NUT, HEATER ELEMENT
WPW10195038 WPW10195038 NUT, STANDPIPE
WPW10213825 WPW10213825 NUT, WATER INLET ALSO ORDER ITEM 4
4392900 4392900 PAINT, BULK 1 QT. BISCUIT/BISQUE
799344 799344 PAINT, BULK 1 QT. WHITE
285006 285006 PAINT, PRESSURIZED SPRAY 12 OZ. BLACK
350930 350930 PAINT, PRESSURIZED SPRAY 12 OZ. WHITE
4392901 4392901 PAINT, PRESSURIZED SPRAY 12OZ. BISCUIT/BISQUE
4392899 4392899 PAINT, TOUCH-UP 1/2OZ. BISCUIT/BISQUE
72032 72032 PAINT, TOUCH-UP 1/2OZ. BLACK
4396603 4396603 PAINT, TOUCH-UP 1/2OZ. METEORITE
72017 72017 PAINT, TOUCH-UP 1/2OZ. WHITE
WPW10195534 WPW10195534 PANEL, FULL FRONT INCLUDES ITEMS 8 & 9 BISCUIT/BISQUE
WPW10195532 WPW10195532 PANEL, FULL FRONT INCLUDES ITEMS 8 & 9 BLACK
WPW10195531 WPW10195531 PANEL, FULL FRONT INCLUDES ITEMS 8 & 9 STAINLESS
WPW10195533 WPW10195533 PANEL, FULL FRONT INCLUDES ITEMS 8 & 9 WHITE
WPW10078227 WPW10078227 PIVOT, FOLD DOWN
WPW10082838 WPW10082838 PLUG, TUB
W10195655 W10195655 POCKET ASSEMBLY BISCUIT/BISQUE
W10195653 W10195653 POCKET ASSEMBLY BLACK
W10563099 W10563099 POCKET ASSEMBLY STAINLESS
W10195654 W10195654 POCKET ASSEMBLY WHITE
WPW10195840 WPW10195840 POSITIONER, ADJUSTER
WP8539102 WP8539102 POSITIONER, DUAL DISHRACK
4317824 4317824 POWER CORD KIT INCLUDED CORD & MISC. HARDWARE
WPW10082831 WPW10082831 PROBE, MANIFOLD
WP8531857 WP8531857 PROTECTOR, INLET
WPW10348269 WPW10348269 PUMP, DRAIN
WP304666 WP304666 RETAINER
WP3400924 WP3400924 RETAINER, PUSH IN
WPW10175279 WPW10175279 RETAINER, TINE ROW
WPW10078215 WPW10078215 RETAINER, TINE ROW COMBO
W10084567 W10084567 SCREEN, SEPARATION
WP3400071 WP3400071 SCREW
304392 304392 SCREW
WPW10348408 WPW10348408 SCREW
WPW10348409 WPW10348409 SCREW
WP8281217 WP8281217 SCREW
WPW10177098 WPW10177098 SCREW
3367670 3367670 SCREW
WP3400074 WP3400074 SCREW
WPW10348411 WPW10348411 SCREW
WP3400892 WP3400892 SCREW
WPW10309090 WPW10309090 SCREW
W10348405 W10348405 SCREW
WP9741232 WP9741232 SCREW
3400217 3400217 SCREW
WPW10349488 WPW10349488 SCREW
WP3400014 WP3400014 SCREW, GROUNDING
WPW10179427 WPW10179427 SEAL, CABINET
WPW10195007 WPW10195007 SEAL, CONSOLE/DOOR
WPW10497235 WPW10497235 SEAL, DOOR BOTTOM
WP8268433 WP8268433 SEAL, SPRAYARM
8283527 8283527 SHIELD, MOTOR
WPW10275523 WPW10275523 SHIELD, SIDE TUB
W10292870 W10292870 SHIELD, THERMOSTAT
8573239 8573239 SHIELD, TUB SOUND
W10195367 W10195367 SOUND INSULATION, BOTTOM
W10463662 W10463662 SPACER, CONTROL BRACKET PANEL
W10195630 W10195630 SPACER, TUB/BRACE LEFT HAND
W10195631 W10195631 SPACER, TUB/BRACE RIGHT HAND
WPW10320510 WPW10320510 SPRAYARM, LOWER
8557720 8557720 SPRAYARM, THIRD LEVEL
WPW10082841 WPW10082841 SPRAYARM, UPPER
WP8270020 WP8270020 SPRING, DOOR BALANCE
WPW10195622 WPW10195622 STOP, TRACK NON-REMOVABLE
WPW10195839 WPW10195839 STRAP, TETHER ADJUSTER
WPW10544004 WPW10544004 STRIKE, LATCH
WPW10237169 WPW10237169 SUMP & MOTOR ASSEMBLY
WP8572618 WP8572618 SUMP WITH SEAL
WPW10398392 WPW10398392 SUPPORT ASSEMBLY, REAR
WPW10195039 WPW10195039 SWITCH, OVERFILL CONTROL
WPW10300599 WPW10300599 TAB, SUMP
WPW10195091 WPW10195091 THERMOSTAT
8539404 8539404 TIE, WIRE
8562030 8562030 TINE ROW, FOLD DOWN
W10056272 W10056272 TINE ROW, FOLD DOWN
WPW10195623 WPW10195623 TRACK ASSEMBLY
W10511187 W10511187 TUB ASSEMBLY ALSO INCLUDES HEATER ASSEMBLY
WPW10077903 WPW10077903 VALVE ASSEMBLY, MANIFOLD
WPW10142656 WPW10142656 VOLUTE, BACK ALSO ORDER ITEM 20
WP3378128 WP3378128 WASHER, PRONGED CUP
W10446558 W10446558 WASHER, RUBBER
W10195416 W10195416 WHEEL & TRANSPORT ASSEMBLY
WPW10505748 WPW10505748 WHEEL ASSEMBLY
WP8268977 WP8268977 WHEEL LEG

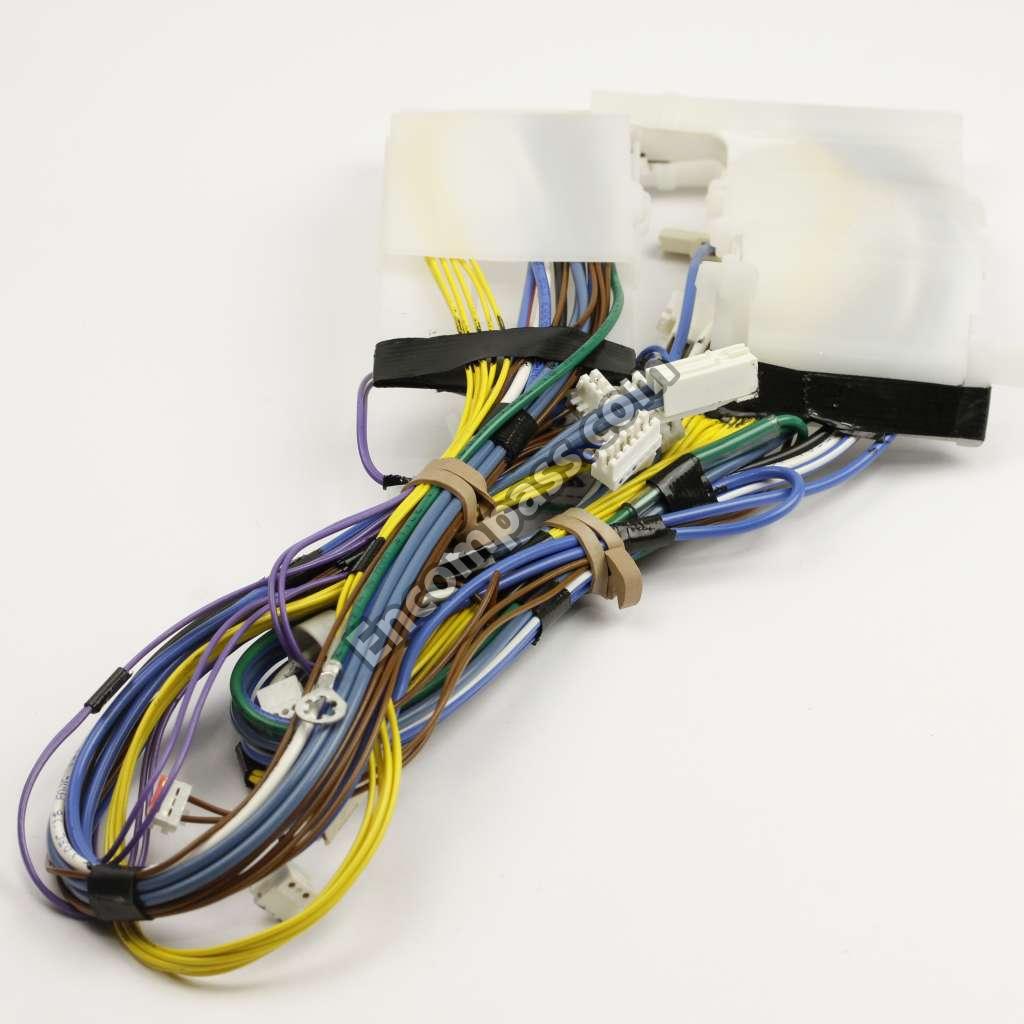

WPW10496097 WPW10496097 WIRING HARNESS
