Model Image
Manufacturer

Whirlpool

Model Number

10651753710

Description

Side-by-side Refrigerator

Interactive Exploded View
Exploded View

Parts List

Part Number Description
4392900 4392900 APPLIANCE PAINT, 1-QT (BISQUE)
799344 799344 APPLIANCE PORCELAIN TOUCH-UP PAINT (WHITE)
542638 542638 APPLIANCE SILICONE LUBRICANT
542638 542638 APPLIANCE SILICONE LUBRICANT
4392901 4392901 APPLIANCE SPRAY PAINT (BISCUIT)
350939 350939 APPLIANCE SPRAY PAINT (BLACK)
350942 350942 APPLIANCE SPRAY PAINT (WHITE PRIMER)
350930 350930 APPLIANCE SPRAY PAINT (WHITE)
4392899 4392899 APPLIANCE TOUCH-UP PAINT, 0.6-OZ (BISCUIT)
72032 72032 APPLIANCE TOUCH-UP PAINT, 0.6-OZ (BLACK)
72017 72017 APPLIANCE TOUCH-UP PAINT, 0.6-OZ (WHITE)
W11097327 W11097327 ASSEMBLY, BOTTOM HINGE (REFRIGERATOR)
W11082352 W11082352 ASSEMBLY, ICE DISPENSER WIRING
W11189542 W11189542 ASSEMBLY, PRECOOLER FORMED
W10905940 W10905940 ASSEMBLY, UNIT COVER (BOTTOM)
W10922071 W10922071 ASSEMBLY, USER INTERFACE (BISCUIT)
W10922068 W10922068 ASSEMBLY, USER INTERFACE (BLACK)
W10922073 W10922073 ASSEMBLY, USER INTERFACE (STAINLESS)
W10922072 W10922072 ASSEMBLY, USER INTERFACE (WHITE)
W10189708 W10189708 BLOCK ASSY-C
W10900463 W10900463 BRACKET, DOOR STOP (BLACK)
W10407175 W10407175 BUMPER-DOR
549193 549193 CLAMP
2311725 2311725 CLIP CONDENSER
W11087168 W11087168 CLIP, ROLLER
W11095731 W11095731 CLOSER, DOOR (FREEZER)
W10522629 W10522629 CONDENSER MOTOR
W11026020 W11026020 CONTROL BOX
W10898351 W10898351 COVER UNIT
W10903996 W10903996 DIFFUSER
489100 489100 DISHWASHER SCREW
W11034659 W11034659 DIVIDER, BIN
W10905504 W10905504 DOOR CLOSER, LOWER CAM
W11026331 W11026331 DOOR KIT
W11026330 W11026330 DOOR KIT
W11110588 W11110588 DOOR KIT
W10905595 W10905595 DOOR KIT
W10912374 W10912374 DOOR KIT
W10912383 W10912383 DOOR KIT
W10912313 W10912313 DOOR KIT
W11110588 W11110588 DOOR, FREEZER (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (BISCUIT)
W10912374 W10912374 DOOR, REFRIGERATOR (INCLUDES ITEM 4) (BLACK)
W11024789 W11024789 DOOR-ICE
W10922072 W10922072 ELECTRONIC CONTROL BOARD
W10922068 W10922068 ELECTRONIC CONTROL BOARD
W10922071 W10922071 ELECTRONIC CONTROL BOARD
2225834 2225834 FAN BLADE
W10905880 W10905880 FRAME, UNIT MOUNTING
W10905880 W10905880 FRAME, UNIT MOUNTING
W11099844 W11099844 FREEZER AIR DUCT
W11099844 W11099844 FREEZER AIR DUCT
W10905595 W10905595 FREEZER DOOR ASSEMBLY (STAINLESS)
W11026331 W11026331 FREEZER DOOR ASSEMBLY (WHITE)
W10743248 W10743248 GENUINE KENMORE REFRIGERATOR WATER FILTER
W10918663 W10918663 GLASS SHELF
W10918664 W10918664 GLASS SHELF
W10918662 W10918662 GLASS SHELF
W11031871 W11031871 HANDLE (STAINLESS)
W10911770 W10911770 HARNESS, EVAPORATOR FAN (INCLUDES THERMAL FUSE)

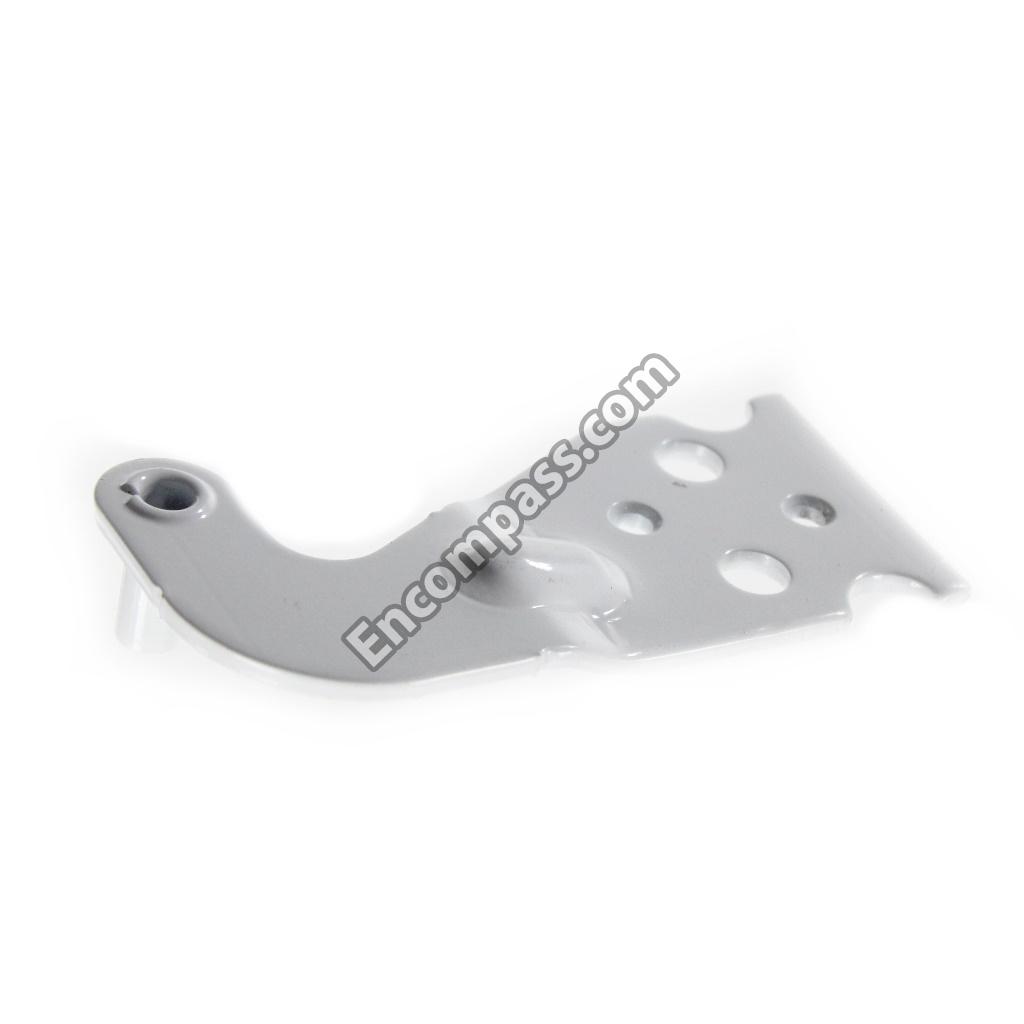

W10922219 W10922219 HINGE, TOP (BISCUIT (FREEZER))
W10922218 W10922218 HINGE, TOP (BISCUIT (REFRIGERATOR))
W10922217 W10922217 HINGE, TOP (BLACK (FREEZER))
W10922216 W10922216 HINGE, TOP (BLACK (REFRIGERATOR))
W10900869 W10900869 HINGE, TOP (GREY (FREEZER))
W10900868 W10900868 HINGE, TOP (GREY (REFRIGERATOR))
W10922201 W10922201 HINGE, TOP (WHITE (FREEZER))
W10922200 W10922200 HINGE, TOP (WHITE (REFRIGERATOR))
W10357069 W10357069 ICE MAKER WATER TUBING
W10782423 W10782423 LOCKING RING (1/4)
W10782424 W10782424 LOCKING RING (5/16)
W10905882 W10905882 RAIL, UNIT MOUNTING
W10308487 W10308487 RANGE SCREW
W10897567 W10897567 REFRIGERATOR AIR BAFFLE
2315163 2315163 REFRIGERATOR AIR DAMPER CONTROL CLIP
542639 542639 REFRIGERATOR ALUMILASTIC ADHESIVE
W10698642 W10698642 REFRIGERATOR AUGER DRUM
W10317991 W10317991 REFRIGERATOR AUGER MOTOR
W10169511 W10169511 REFRIGERATOR AUGER MOTOR COUPLER
1119021 1119021 REFRIGERATOR AUGER ROD CLIP
W10403781 W10403781 REFRIGERATOR AUGER SHAFT BAFFLE
W10698668 W10698668 REFRIGERATOR AUGER SHAFT COUPLING
W10181990 W10181990 REFRIGERATOR BLADE
W11036715 W11036715 REFRIGERATOR BOTTOM HINGE
W10904380 W10904380 REFRIGERATOR BOTTOM HINGE
W10284487 W10284487 REFRIGERATOR BRACKET
W10897565 W10897565 REFRIGERATOR BRACKET ASSEMBLY
W10407203 W10407203 REFRIGERATOR BUMPER ASSEMBLY
489396 489396 REFRIGERATOR CLIP
W10253005 W10253005 REFRIGERATOR COMPRESSOR
489473 489473 REFRIGERATOR COMPRESSOR GROMMET
W10836504 W10836504 REFRIGERATOR COMPRESSOR GROMMET
2325479 2325479 REFRIGERATOR COMPRESSOR PROCESS TUBE
489340 489340 REFRIGERATOR COMPRESSOR RAIL BRACKET SCREW
W10197428 W10197428 REFRIGERATOR COMPRESSOR START RELAY
833938 833938 REFRIGERATOR COMPRESSOR WIRE TERMINAL KIT
W10904626 W10904626 REFRIGERATOR CONDENSER
2181929 2181929 REFRIGERATOR CONDENSER FAN MOTOR BRACKET
W10838981 W10838981 REFRIGERATOR CONTROL ARM
W10283959 W10283959 REFRIGERATOR CORNER TRIM
W10283960 W10283960 REFRIGERATOR CORNER TRIM (BLACK)
W10189274 W10189274 REFRIGERATOR COVER
W10898366 W10898366 REFRIGERATOR CRISPER DRAWER
W10904001 W10904001 REFRIGERATOR CRISPER DRAWER COVER FRAME
W10898363 W10898363 REFRIGERATOR CRISPER DRAWER COVER INSERT
2196208 2196208 REFRIGERATOR CRISPER DRAWER COVER SUPPORT POST
W10898366 W10898366 REFRIGERATOR CRISPER PAN
2256101 2256101 REFRIGERATOR DAIRY BIN COVER
W10495967 W10495967 REFRIGERATOR DEFROST HEATER
2161324 2161324 REFRIGERATOR DEFROST HEATER BRACKET
W10898371 W10898371 REFRIGERATOR DELI DRAWER
W10295082 W10295082 REFRIGERATOR DISPENSER AUGER
W10922073 W10922073 REFRIGERATOR DISPENSER USER INTERFACE CONTROL
W10912366 W10912366 REFRIGERATOR DOOR ASSEMBLY (WHITE)
W11034658 W11034658 REFRIGERATOR DOOR BIN
W10407187 W10407187 REFRIGERATOR DOOR BUMPER
W10407188 W10407188 REFRIGERATOR DOOR BUMPER
W10912372 W10912372 REFRIGERATOR DOOR GASKET
W10912379 W10912379 REFRIGERATOR DOOR GASKET (BLACK)
W10912318 W10912318 REFRIGERATOR DOOR GASKET (GRAY)
W11084370 W11084370 REFRIGERATOR DOOR HANDLE
W11084369 W11084369 REFRIGERATOR DOOR HANDLE (BLACK)
W11031871 W11031871 REFRIGERATOR DOOR HANDLE (STAINLESS)
W10460893 W10460893 REFRIGERATOR DOOR HANDLE MOUNTING SCREW
2200087 2200087 REFRIGERATOR DOOR HINGE BUSHING
2176759 2176759 REFRIGERATOR DOOR HINGE BUSHING
3400103 3400103 REFRIGERATOR DOOR HINGE SCREW
W10308751 W10308751 REFRIGERATOR DOOR HINGE SCREW (BLACK)
W10308750 W10308750 REFRIGERATOR DOOR HINGE SCREW (WHITE)
W10307492 W10307492 REFRIGERATOR DOOR SHELF RAIL
2309941 2309941 REFRIGERATOR DOOR SHELF RAIL
489500 489500 REFRIGERATOR DOOR TRIM SCREW
W10153550 W10153550 REFRIGERATOR DRAIN TUBE
2304888 2304888 REFRIGERATOR DRAIN TUBE GROMMET
W10771114 W10771114 REFRIGERATOR DRIER ASSEMBLY
W11026020 W11026020 REFRIGERATOR ELECTRONIC CONTROL
W11090516 W11090516 REFRIGERATOR ENERGY GUIDE
2188822 2188822 REFRIGERATOR EVAPORATOR
W10463012 W10463012 REFRIGERATOR EVAPORATOR COVER
2169142 2169142 REFRIGERATOR EVAPORATOR FAN BLADE
2169142 2169142 REFRIGERATOR EVAPORATOR FAN BLADE
2315549 2315549 REFRIGERATOR EVAPORATOR FAN MOTOR
2182119 2182119 REFRIGERATOR EVAPORATOR FAN MOTOR BRACKET
489290 489290 REFRIGERATOR EVAPORATOR FAN MOTOR BRACKET SCREW
2304241 2304241 REFRIGERATOR EVAPORATOR FAN MOTOR COVER SEAL
2155788 2155788 REFRIGERATOR FAN SHROUD SEAL
W11030559 W11030559 REFRIGERATOR FILLER
W10283961 W10283961 REFRIGERATOR FILLER
W10898317 W10898317 REFRIGERATOR FITTING
W10252476 W10252476 REFRIGERATOR FREEZER AIR DUCT GASKET
W11026330 W11026330 REFRIGERATOR FREEZER DOOR ASSEMBLY (BLACK)
W10911494 W10911494 REFRIGERATOR FREEZER DOOR GASKET
W10911504 W10911504 REFRIGERATOR FREEZER DOOR GASKET (BLACK)
W10911461 W10911461 REFRIGERATOR FREEZER DOOR GASKET (GRAY)
2309717 2309717 REFRIGERATOR FREEZER DOOR SHELF RAIL
2309758 2309758 REFRIGERATOR FREEZER DRAWER
W10898382 W10898382 REFRIGERATOR GLASS SHELF
W10898383 W10898383 REFRIGERATOR GLASS SHELF
W10920731 W10920731 REFRIGERATOR GRILLE
W10920725 W10920725 REFRIGERATOR GRILLE
W10920730 W10920730 REFRIGERATOR GRILLE
W10905888 W10905888 REFRIGERATOR GRILLE
W11031874 W11031874 REFRIGERATOR HANDLE
W11093938 W11093938 REFRIGERATOR HINGE ASSEMBLY
W11036340 W11036340 REFRIGERATOR HOUSING
W11036341 W11036341 REFRIGERATOR HOUSING
W11036339 W11036339 REFRIGERATOR HOUSING
W11036338 W11036338 REFRIGERATOR HOUSING
W10670844 W10670844 REFRIGERATOR ICE CONTAINER
W10558424 W10558424 REFRIGERATOR ICE CONTAINER
1119017 1119017 REFRIGERATOR ICE CONTAINER ICE DEFLECTOR
W10845583 W10845583 REFRIGERATOR ICE CONTAINER SLIDE RAIL
W10845585 W10845585 REFRIGERATOR ICE CONTAINER SLIDE RAIL, LEFT
1119018 1119018 REFRIGERATOR ICE CRUSHER BEARING NUT
W10278731 W10278731 REFRIGERATOR ICE CRUSHER BLADE
489229 489229 REFRIGERATOR ICE CRUSHER BLADE BLOCK ROLL PIN
W10185018 W10185018 REFRIGERATOR ICE CRUSHER HOUSING
489236 489236 REFRIGERATOR ICE CRUSHER HOUSING RETAINER RING
W10278732 W10278732 REFRIGERATOR ICE CRUSHER ROTARY BLADE
W10278733 W10278733 REFRIGERATOR ICE CRUSHER ROTARY BLADE
1119020 1119020 REFRIGERATOR ICE DISPENSER ACTUATOR SPRING
2152713 2152713 REFRIGERATOR ICE DISPENSER SOLENOID
W11087965 W11087965 REFRIGERATOR ICE DOOR
W10300022 W10300022 REFRIGERATOR ICE MAKER ASSEMBLY
489234 489234 REFRIGERATOR ICE MAKER CRUSHER HOUSING WASHER
8003RP 8003RP REFRIGERATOR ICE MAKER INSTALLATION KIT
W10289690 W10289690 REFRIGERATOR ICE MAKER MODULE COVER
W10512602 W10512602 REFRIGERATOR ICE MAKER SHUT-OFF ARM
1117510 1117510 REFRIGERATOR ICE MAKER TORX KEY WRENCH
W10805744 W10805744 REFRIGERATOR LED LIGHT BULB
W10166130 W10166130 REFRIGERATOR LIGHT COVER
W10900030 W10900030 REFRIGERATOR LIGHT COVER
2171706 2171706 REFRIGERATOR LIGHT COVER
1118894 1118894 REFRIGERATOR LIGHT SWITCH
1118894 1118894 REFRIGERATOR LIGHT SWITCH
1115373 1115373 REFRIGERATOR LIGHT SWITCH
505587 505587 REFRIGERATOR MASTIC SEALER
505587 505587 REFRIGERATOR MASTIC SEALER
W10898371 W10898371 REFRIGERATOR MEAT PAN
W10337740 W10337740 REFRIGERATOR NAMEPLATE
W10337741 W10337741 REFRIGERATOR NAMEPLATE
W10337742 W10337742 REFRIGERATOR NAMEPLATE
503695 503695 REFRIGERATOR PERMAGUM SEALER
212643 212643 REFRIGERATOR PERMAGUM SEALER
503695 503695 REFRIGERATOR PERMAGUM SEALER
W11107443 W11107443 REFRIGERATOR RESERVOIR
2212996 2212996 REFRIGERATOR RETAINER
W10304660 W10304660 REFRIGERATOR ROLLER
2150304 2150304 REFRIGERATOR ROLLER
W10304659 W10304659 REFRIGERATOR ROLLER
2262072 2262072 REFRIGERATOR ROLLER WHEEL AXLE PIN
W10350564 W10350564 REFRIGERATOR RUN CAPACITOR
W10350564 W10350564 REFRIGERATOR RUN CAPACITOR
489478 489478 REFRIGERATOR SCREW
2152958 2152958 REFRIGERATOR SCREW
488500 488500 REFRIGERATOR SCREW
3400113 3400113 REFRIGERATOR SCREW
489464 489464 REFRIGERATOR SCREW
W10141645 W10141645 REFRIGERATOR SCREW
W10142234 W10142234 REFRIGERATOR SCREW
W10191954 W10191954 REFRIGERATOR SCREW
3400893 3400893 REFRIGERATOR SCREW
W10296816 W10296816 REFRIGERATOR SCREW
W10296804 W10296804 REFRIGERATOR SCREW
489399 489399 REFRIGERATOR SCREW
W10142283 W10142283 REFRIGERATOR SCREW
W10308489 W10308489 REFRIGERATOR SCREW
489478 489478 REFRIGERATOR SCREW
8533993 8533993 REFRIGERATOR SCREW
489427 489427 REFRIGERATOR SCREW
8281232 8281232 REFRIGERATOR SCREW
978029 978029 REFRIGERATOR SERVICE VALVE
978026 978026 REFRIGERATOR SERVICE VALVE
876764 876764 REFRIGERATOR SERVICE VALVE
978030 978030 REFRIGERATOR SERVICE VALVE, 3/4-IN
2196206 2196206 REFRIGERATOR SHELF SUPPORT
W10130299 W10130299 REFRIGERATOR SHELF SUPPORT
W10194474 W10194474 REFRIGERATOR SHIELD
2161302 2161302 REFRIGERATOR SLEEVE
W10898365 W10898365 REFRIGERATOR SNACK DRAWER
W10912335 W10912335 REFRIGERATOR SNACK DRAWER COVER FRAME
W10898365 W10898365 REFRIGERATOR SNACK PAN
W10352518 W10352518 REFRIGERATOR SOCKET
W10138206 W10138206 REFRIGERATOR SPACER
W11032812 W11032812 REFRIGERATOR STEP SPACER
W10745338 W10745338 REFRIGERATOR SUCTION TUBE
W10568358 W10568358 REFRIGERATOR TECHNICAL SHEET
W10384183 W10384183 REFRIGERATOR TEMPERATURE SENSOR
W10384183 W10384183 REFRIGERATOR THERMISTOR
2155013 2155013 REFRIGERATOR TOE GRILLE CLIP
1117510 1117510 REFRIGERATOR TORX KEY WRENCH
W11105303 W11105303 REFRIGERATOR USE AND CARE GUIDE
479502 479502 REFRIGERATOR VINYL TAPE
W10179146 W10179146 REFRIGERATOR WATER INLET VALVE
488280 488280 REFRIGERATOR WATER RESERVOIR MOUNTING SCREW
W10271541 W10271541 REFRIGERATOR WATER TUBE FITTING
W10508644 W10508644 REFRIGERATOR WIRE HARNESS
W10188846 W10188846 RETAINER-FAN MOTOR
W10918664 W10918664 SHELF, GLASS (BOTTOM)
W10918663 W10918663 SHELF, GLASS (MIDDLE)
W10918662 W10918662 SHELF, GLASS (TOP)
W11032808 W11032808 SPACER, FLAT
W10173126 W10173126 STUD-SHELF
2203596 2203596 SUPPORT SCROLL
2203595 2203595 SUPPORT SCROLL
W10900532 W10900532 THIMBLE, CAM
W10900464 W10900464 THIMBLE, CAM
488886 488886 THREAD-FORMING SCREW, 8-PACK
W10897557 W10897557 TRAY EVAP
2263990 2263990 WASHER CABLE TIE
W10142292 W10142292 WASHER SCREW
W10900447 W10900447 WATER TUBE
W10900449 W10900449 WATER TUBE
Main Menu x
