Model Image
Manufacturer

Whirlpool

Model Number

10651789410

Description

Side-by-side Refrigerator

Interactive Exploded View

Parts List

Part Number Description
542639 542639 ADHESIVE
W10666897 W10666897 ADJUSTMENT HINGE ASSEMBLY
W10666895 W10666895 ADJUSTMENT HINGE ASSEMBLY
W10488360 W10488360 AIR DIFFUSER COVER
799344 799344 APPLIANCE PORCELAIN TOUCH-UP PAINT, 1-QT (WHITE)
542638 542638 APPLIANCE SILICONE LUBRICANT
4392899 4392899 APPLIANCE TOUCH-UP PAINT, 0.6-OZ (BISCUIT)
72032 72032 APPLIANCE TOUCH-UP PAINT, 0.6-OZ (BLACK)
72017 72017 APPLIANCE TOUCH-UP PAINT, 0.6-OZ (WHITE)
W10750143 W10750143 ASSY-DUCT, S
12477202 12477202 AXLE- ROLL
4392901 4392901 BISQ PAINT
W10900758 W10900758 BRACKET - LE
W10141622 W10141622 BRAKE LOWER FOOT
W10888898 W10888898 BRKT-DOOR ST
2150304 2150304 CABINET ROLLER
W10770896 W10770896 CAM CLOSER
W10770895 W10770895 CAM CLOSER
549193 549193 CLAMP
W10815861 W10815861 CLIP
12587703B 12587703B CORNER COVER
W10425254 W10425254 COVER THERMISTOR
W10669583 W10669583 DOOR ASSEMBLY
W10644353 W10644353 DOOR ASSEMBLY
W10669582 W10669582 DOOR ASSY-FI
W10669581 W10669581 DOOR ASSY-FI
W10789147 W10789147 DOOR STOP COVER (GRAY)
2155547 2155547 EXCHANGE CLIP
W10344637 W10344637 FALSE WALL
W10490264 W10490264 FALSE WALL-2
2225834 2225834 FAN BLADE
2194712 2194712 ICE MAKER HOUSING
W10747731 W10747731 ICE STRIPPER
W10820003 W10820003 LED - LAMP 1
2162085 2162085 LIGHT SOCKET
W10647266 W10647266 LIT SERVICE
626691 626691 MOTOR MOLD
W10673330 W10673330 P HINGE ASSEMBLY
W10628713 W10628713 PAN ROLLER
W10260378 W10260378 REFRIGERATOR AIR DUCT
W10331728 W10331728 REFRIGERATOR AIR DUCT CLIP
W10260380 W10260380 REFRIGERATOR AIR DUCT, UPPER
W10671655 W10671655 REFRIGERATOR AIR FILTER COVER
W10237915 W10237915 REFRIGERATOR BRACKET
W10747726 W10747726 REFRIGERATOR BRACKET ICE MAKER
W10770893 W10770893 REFRIGERATOR CAM CLOSURE
W10369602 W10369602 REFRIGERATOR CLIP
2304287 2304287 REFRIGERATOR CLIP
2223388 2223388 REFRIGERATOR CLIP
W10738913 W10738913 REFRIGERATOR CLOSURE
W10391109 W10391109 REFRIGERATOR COMPRESSOR
833938 833938 REFRIGERATOR COMPRESSOR WIRE TERMINAL KIT
W10240365 W10240365 REFRIGERATOR CONDENSER COIL
W10527155 W10527155 REFRIGERATOR CONDENSER FAN
12587703W 12587703W REFRIGERATOR CORNER TRIM
W10458591 W10458591 REFRIGERATOR COVER
W10251088 W10251088 REFRIGERATOR COVER
W10284726 W10284726 REFRIGERATOR COVER UNIT
W10260437 W10260437 REFRIGERATOR DEFROST BI-METAL
W10256846 W10256846 REFRIGERATOR DELI DRAWER
W10460951 W10460951 REFRIGERATOR DISPENSER ACTUATOR PAD
W10460952 W10460952 REFRIGERATOR DISPENSER ACTUATOR PAD (GRAY)
W10468079 W10468079 REFRIGERATOR DISPENSER COVER
W10322836 W10322836 REFRIGERATOR DISPENSER DRIP TRAY
W10322835 W10322835 REFRIGERATOR DISPENSER DRIP TRAY
W10469404 W10469404 REFRIGERATOR DISPENSER DRIP TRAY (BLACK)
W10469401 W10469401 REFRIGERATOR DISPENSER DRIP TRAY (WHITE)
W10738914 W10738914 REFRIGERATOR DOOR CLOSURE
W10738911 W10738911 REFRIGERATOR DOOR CLOSURE
W10632059 W10632059 REFRIGERATOR DOOR COVER
W10632060 W10632060 REFRIGERATOR DOOR STOP COVER (BLACK)
W10379525 W10379525 REFRIGERATOR DRAIN TUBE
W10370680 W10370680 REFRIGERATOR DRAIN TUBE GROMMET
W10771114 W10771114 REFRIGERATOR DRIER ASSEMBLY
2169142 2169142 REFRIGERATOR EVAPORATOR FAN BLADE
W10251462 W10251462 REFRIGERATOR EVAPORATOR FAN MOTOR BRACKET
W10260986 W10260986 REFRIGERATOR FREEZER BASKET TRIM
W10260382 W10260382 REFRIGERATOR FREEZER LIGHT COVER
W10335147A W10335147A REFRIGERATOR FRESHFLOW AIR FILTER
W10249917 W10249917 REFRIGERATOR GASKET PANEL
W10249916 W10249916 REFRIGERATOR GASKET PANEL
10835903 10835903 REFRIGERATOR GROMMET
W10793662 W10793662 REFRIGERATOR HANDLE ASSEMBLY
W10793648 W10793648 REFRIGERATOR HANDLE ASSEMBLY
W10274575 W10274575 REFRIGERATOR HEAT SHIELD
W10358184 W10358184 REFRIGERATOR ICE BIN RELEASE BUTTON
W10693544 W10693544 REFRIGERATOR ICE CONTAINER ASSEMBLY

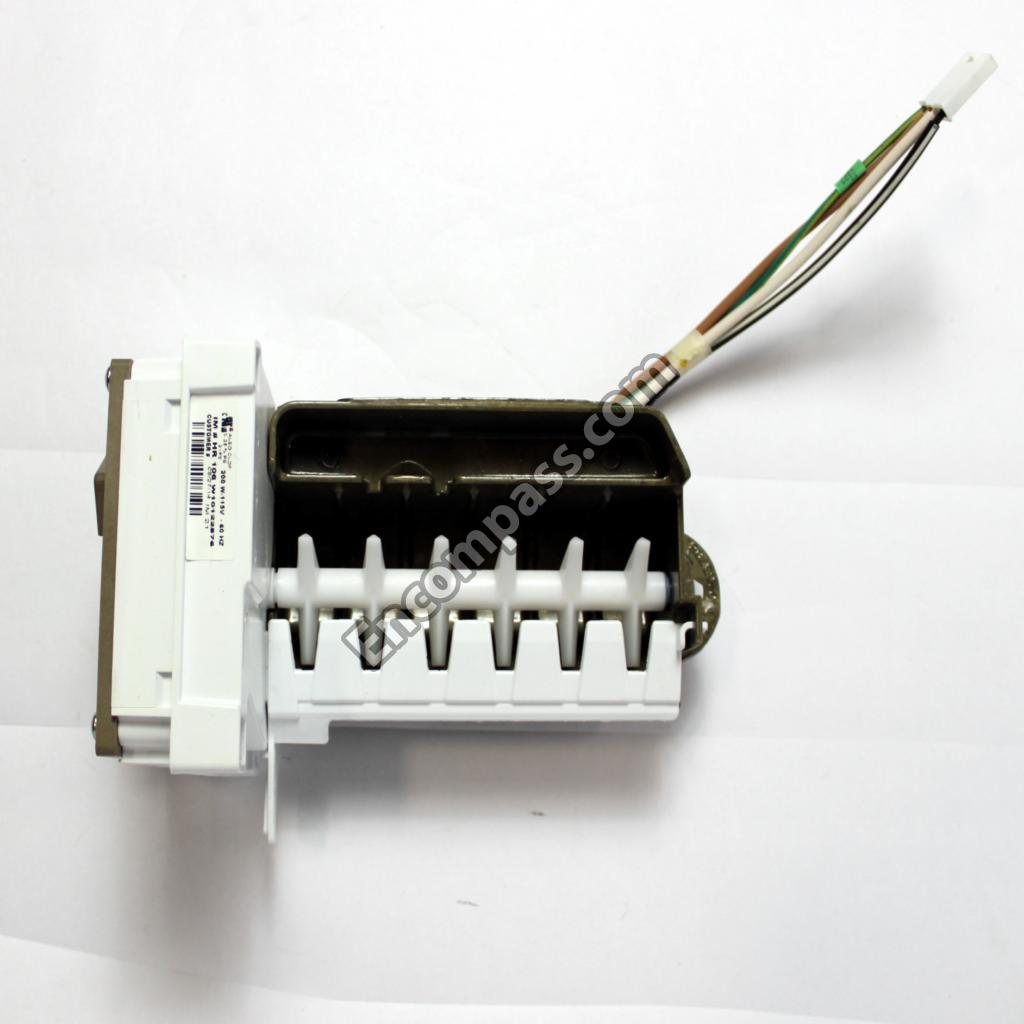

W10122576 W10122576 REFRIGERATOR ICE MAKER ASSEMBLY
W10318644 W10318644 REFRIGERATOR ICE MAKER CUBE EJECTOR
W10251081 W10251081 REFRIGERATOR ICE MAKER ICE MOLD
8003RP 8003RP REFRIGERATOR ICE MAKER INSTALLATION KIT
W10498992 W10498992 REFRIGERATOR INLET VALVE
W10280420 W10280420 REFRIGERATOR LIGHT LENS
2223680 2223680 REFRIGERATOR LIGHT REFLECTOR
W10440814 W10440814 REFRIGERATOR LIGHT SOCKET
W10352518 W10352518 REFRIGERATOR LIGHT SOCKET
2155597 2155597 REFRIGERATOR LIGHT SOCKET
505587 505587 REFRIGERATOR MASTIC SEALER
W10337742 W10337742 REFRIGERATOR NAMEPLATE
W10337741 W10337741 REFRIGERATOR NAMEPLATE
W10337740 W10337740 REFRIGERATOR NAMEPLATE
W10460950 W10460950 REFRIGERATOR PAD
4318168 4318168 REFRIGERATOR PERMAGUM SEALER
212643 212643 REFRIGERATOR PERMAGUM SEALER
2325479 2325479 REFRIGERATOR REFRIGERANT PROCESS TUBE
12477102 12477102 REFRIGERATOR ROLLER
981125 981125 REFRIGERATOR ROLLER WHEEL AXLE
W10350564 W10350564 REFRIGERATOR RUN CAPACITOR
W10308487 W10308487 REFRIGERATOR SCREW
W10142292 W10142292 REFRIGERATOR SCREW
W10142255 W10142255 REFRIGERATOR SCREW
W10142234 W10142234 REFRIGERATOR SCREW
W10141632 W10141632 REFRIGERATOR SCREW
W10001280 W10001280 REFRIGERATOR SCREW
W10001260 W10001260 REFRIGERATOR SCREW
W10001250 W10001250 REFRIGERATOR SCREW
W10001240 W10001240 REFRIGERATOR SCREW
489478 489478 REFRIGERATOR SCREW
978029 978029 REFRIGERATOR SERVICE VALVE
978028 978028 REFRIGERATOR SERVICE VALVE
978027 978027 REFRIGERATOR SERVICE VALVE
978026 978026 REFRIGERATOR SERVICE VALVE
876764 876764 REFRIGERATOR SERVICE VALVE
978030 978030 REFRIGERATOR SERVICE VALVE, 3/4-IN
W10303521 W10303521 REFRIGERATOR SLEEVE
W10754509 W10754509 REFRIGERATOR SPRING
W10236396 W10236396 REFRIGERATOR STRAP
W10219381 W10219381 REFRIGERATOR SUCTION LINE
W10277704 W10277704 REFRIGERATOR SUPPORT
W10280386 W10280386 REFRIGERATOR THERMISTOR
W10280385 W10280385 REFRIGERATOR THERMISTOR
W10425255 W10425255 REFRIGERATOR THERMISTOR COVER
2200086 2200086 REFRIGERATOR THIMBLE
W10300482 W10300482 REFRIGERATOR WATER FILTER COVER
W10323148 W10323148 REFRIGERATOR WIRE COVER
W10670174 W10670174 REFRIGERATOR WIRE HARNESS
W10411699 W10411699 REFRIGERATOR WIRE HARNESS
W10242409 W10242409 REFRIGERATOR WIRE HARNESS
W10253300 W10253300 REFRIGERATOR WIRE JUMPER
2171931 2171931 RELEASE
W10628712 W10628712 ROLLER AXLE
W10460893 W10460893 SCREW
W10781995 W10781995 SEPARATOR ASSEMBLY
W10773884 W10773884 SHELF ASSEMBLY
W10773879 W10773879 SHELF ASSEMBLY
8171357 8171357 SPRAY
350942 350942 SPRAY PAINT
350939 350939 SPRAY PAINT (WHITE)
350930 350930 SPRAY PAINT (WHITE)
W10673329 W10673329 TOP HINGE
W10673327 W10673327 TOP HINGE
W10611068 W10611068 TOP HINGE
W10611067 W10611067 TOP HINGE
W10611065 W10611065 TOP HINGE
80051 80051 TOUCH-UP
W10714793 W10714793 TRAY EVAPORATOR ASSEMBLY
