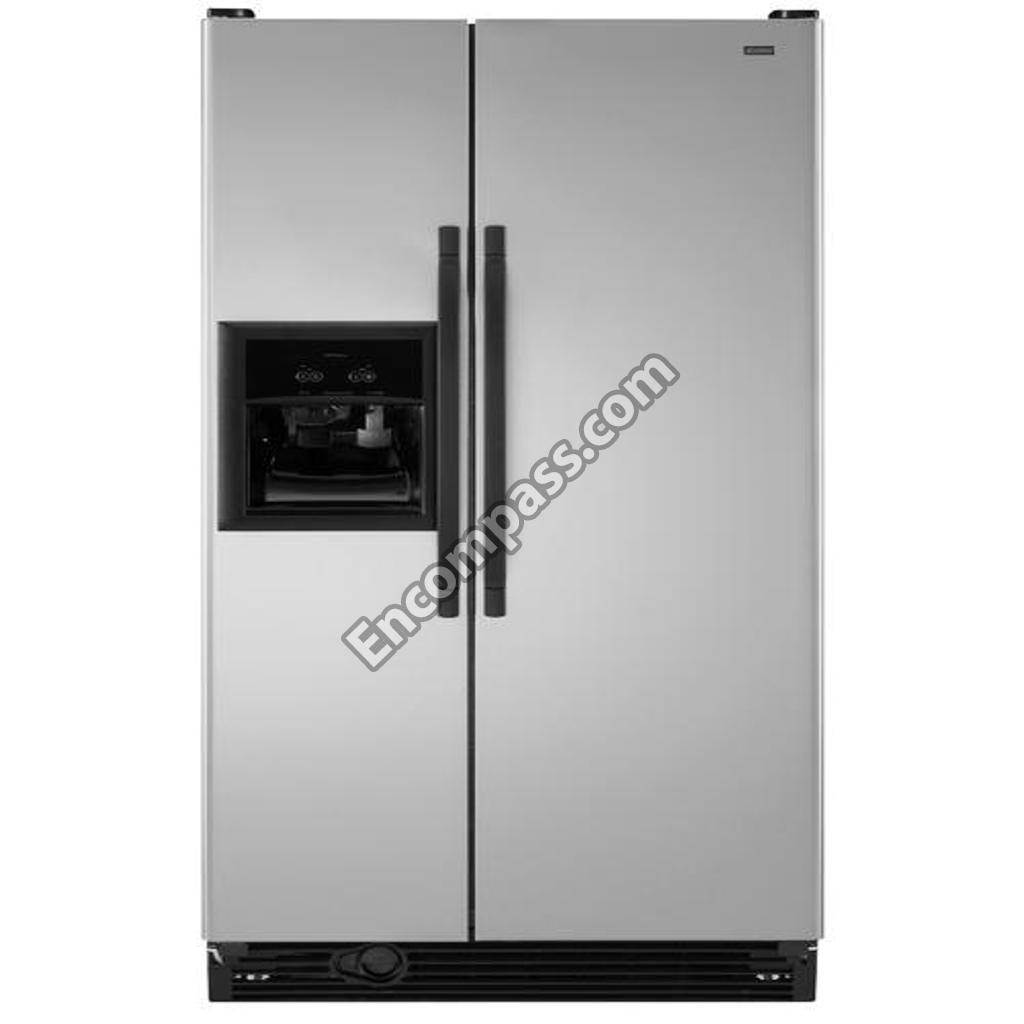

Model Image
Manufacturer

Whirlpool

Model Number

10657378702

Description

Side-by-side Refrigerator

Interactive Exploded View

Parts List

Part Number Description
542639 542639 ADHESIVE
2161229 2161229 AIR SCOOP
542638 542638 APPLIANCE SILICONE LUBRICANT
4392899 4392899 APPLIANCE TOUCH-UP PAINT, 0.6-OZ (BISCUIT)
72032 72032 APPLIANCE TOUCH-UP PAINT, 0.6-OZ (BLACK)
72017 72017 APPLIANCE TOUCH-UP PAINT, 0.6-OZ (WHITE)
4392901 4392901 BISQ PAINT
549193 549193 CLAMP
2208136 2208136 CLIP
W10130108 W10130108 CONDENSER MOTOR
3406124 3406124 DISPENSER BULB
W10177049 W10177049 DRIER TUBE
799833 799833 EPOXY
W10131845 W10131845 EVAPORATOR MOTOR
2155547 2155547 EXCHANGE CLIP
2225834 2225834 FAN BLADE
2260517 2260517 FAN GUARD
2201014 2201014 FILLER WH
2201017 2201017 FILLER-BL
W10127999 W10127999 FREEZER DOOR ASSEMBLY
2309949W 2309949W FREEZER DOOR ASSEMBLY (WHITE)
9030 9030 GENUINE KENMORE REFRIGERATOR WATER FILTER
2194712 2194712 ICE MAKER HOUSING
527949 527949 LIGHT BULB
2162085 2162085 LIGHT SOCKET
626691 626691 MOTOR MOLD
1110560 1110560 REFRIGERATOR AIR DAMPER CONTROL CLIP
2152019 2152019 REFRIGERATOR AIR DAMPER COVER
842534 842534 REFRIGERATOR AIR DUCT CLIP
2195090B 2195090B REFRIGERATOR ARM DISPENSER (BLACK)
2195089B 2195089B REFRIGERATOR ARM DISPENSER (BLACK)
2195090W 2195090W REFRIGERATOR ARM DISPENSER (WHITE)
2195089W 2195089W REFRIGERATOR ARM DISPENSER (WHITE)
1119021 1119021 REFRIGERATOR AUGER ROD CLIP
2321799 2321799 REFRIGERATOR BI-METAL THERMOSTAT
2257022 2257022 REFRIGERATOR BLADE
2311611 2311611 REFRIGERATOR BRACKET
2183771 2183771 REFRIGERATOR BRACKET
2174748 2174748 REFRIGERATOR CABINET ROLLER
W10174383 W10174383 REFRIGERATOR CLIP
489396 489396 REFRIGERATOR CLIP
2311725 2311725 REFRIGERATOR CLIP
2311612 2311612 REFRIGERATOR CLIP
W10183577 W10183577 REFRIGERATOR COMPRESSOR
489340 489340 REFRIGERATOR COMPRESSOR RAIL BRACKET SCREW
833938 833938 REFRIGERATOR COMPRESSOR WIRE TERMINAL KIT
W10196260 W10196260 REFRIGERATOR CONDENSER
2311621 2311621 REFRIGERATOR CONTROL BOX
2209698 2209698 REFRIGERATOR COVER
2174155 2174155 REFRIGERATOR COVER
2311704B 2311704B REFRIGERATOR COVER (BLACK)
2188735 2188735 REFRIGERATOR COVER UNIT
W10153773 W10153773 REFRIGERATOR CRISPER DRAWER HUMIDITY CONTROL BODY
2188652 2188652 REFRIGERATOR CRISPER PAN
2188375 2188375 REFRIGERATOR DEFROST TIMER
W10127995 W10127995 REFRIGERATOR DOOR ASSEMBLY
2309525W 2309525W REFRIGERATOR DOOR ASSEMBLY (WHITE)
2182178 2182178 REFRIGERATOR DOOR CAM (BLACK)
2155311 2155311 REFRIGERATOR DOOR CLOSER CAM
2309529 2309529 REFRIGERATOR DOOR GASKET
2217075 2217075 REFRIGERATOR DOOR HINGE
2206629 2206629 REFRIGERATOR DOOR STOP BRACKET
2209681 2209681 REFRIGERATOR DOOR TRIM
1105523 1105523 REFRIGERATOR DRAIN PAN
2305377 2305377 REFRIGERATOR DRUM
2169142 2169142 REFRIGERATOR EVAPORATOR FAN BLADE
W10194475 W10194475 REFRIGERATOR EVAPORATOR SHIELD
W10122561 W10122561 REFRIGERATOR FILL CUP
2320322 2320322 REFRIGERATOR FITTING
2304317 2304317 REFRIGERATOR FITTING
W10196321 W10196321 REFRIGERATOR FRAME
1115373 1115373 REFRIGERATOR FREEER DOOR SWITCH
2309757 2309757 REFRIGERATOR FREEZER BIN
2203876 2203876 REFRIGERATOR GASKET
2309532 2309532 REFRIGERATOR GASKET PANEL
2309533 2309533 REFRIGERATOR GASKET PANEL (BLACK)
2309528 2309528 REFRIGERATOR GASKET PANEL (WHITE)
2216108 2216108 REFRIGERATOR GLASS SHELF
2179259 2179259 REFRIGERATOR GLASS SHELF
2260500W 2260500W REFRIGERATOR GRILLE
2260500B 2260500B REFRIGERATOR GRILLE
2304413B 2304413B REFRIGERATOR HANDLE (BLACK)
2304413W 2304413W REFRIGERATOR HANDLE ASSEMBLY
2325303 2325303 REFRIGERATOR HARNESS DISPENSER
2188175 2188175 REFRIGERATOR HEATER
2180348 2180348 REFRIGERATOR HOUSING
2196295 2196295 REFRIGERATOR ICE AUGER
2196091 2196091 REFRIGERATOR ICE BIN
1119293 1119293 REFRIGERATOR ICE CONTAINER SLIDE RAIL
2157405 2157405 REFRIGERATOR ICE CRUSHER BLADE BLOCK
489229 489229 REFRIGERATOR ICE CRUSHER BLADE BLOCK ROLL PIN
2257023 2257023 REFRIGERATOR ICE CRUSHER ROTARY BLADE
1119020 1119020 REFRIGERATOR ICE DISPENSER ACTUATOR SPRING
2254587 2254587 REFRIGERATOR ICE DISPENSER MOTOR BRACKET
W10190966 W10190966 REFRIGERATOR ICE MAKER
2171682 2171682 REFRIGERATOR ICE MAKER FLOATING BAFFLE
628320 628320 REFRIGERATOR ICE MAKER LEVELING BRACKET
8533917 8533917 REFRIGERATOR ICE MAKER SUPPORT SCREW
1117510 1117510 REFRIGERATOR ICE MAKER TORX KEY WRENCH
W10122527 W10122527 REFRIGERATOR ICE MOLD
2315534 2315534 REFRIGERATOR INLET VALVE
2194955W 2194955W REFRIGERATOR INSERT
2304845 2304845 REFRIGERATOR INSTALLATION INSTRUCTIONS
2261037 2261037 REFRIGERATOR INSTALLATION INSTRUCTIONS
2260519 2260519 REFRIGERATOR INSULATION
W10166019 W10166019 REFRIGERATOR LIGHT LENS
2171705 2171705 REFRIGERATOR LIGHT LENS
2180200 2180200 REFRIGERATOR LIGHT SOCKET
2257741 2257741 REFRIGERATOR LOUVER
505587 505587 REFRIGERATOR MASTIC SEALER
2304355 2304355 REFRIGERATOR MECHANISM
2205686 2205686 REFRIGERATOR MECHANISM
W10181208 W10181208 REFRIGERATOR MOTOR
2309568 2309568 REFRIGERATOR OWNER'S MANUAL
212643 212643 REFRIGERATOR PERMAGUM SEALER
503695 503695 REFRIGERATOR PERMAGUM SEALER
1115375 1115375 REFRIGERATOR RETAINER CLIP
2311631 2311631 REFRIGERATOR ROD
2264017 2264017 REFRIGERATOR RUN CAPACITOR
8281232 8281232 REFRIGERATOR SCREW
8281158 8281158 REFRIGERATOR SCREW
627068 627068 REFRIGERATOR SCREW
489398 489398 REFRIGERATOR SCREW
489290 489290 REFRIGERATOR SCREW
489100 489100 REFRIGERATOR SCREW
489000 489000 REFRIGERATOR SCREW
3400858 3400858 REFRIGERATOR SCREW
3400517 3400517 REFRIGERATOR SCREW
3196537 3196537 REFRIGERATOR SCREW
489491 489491 REFRIGERATOR SCREW
489478 489478 REFRIGERATOR SCREW
489355 489355 REFRIGERATOR SCREW
628370 628370 REFRIGERATOR SERVICE MANUAL
978028 978028 REFRIGERATOR SERVICE VALVE
978027 978027 REFRIGERATOR SERVICE VALVE
978026 978026 REFRIGERATOR SERVICE VALVE
876764 876764 REFRIGERATOR SERVICE VALVE
978030 978030 REFRIGERATOR SERVICE VALVE, 3/4-IN
2312014 2312014 REFRIGERATOR SHELF
2309596 2309596 REFRIGERATOR SHELF
2171714 2171714 REFRIGERATOR SHELF
2196206 2196206 REFRIGERATOR SHELF STUD
2309597 2309597 REFRIGERATOR SHELF WIRE
2309522 2309522 REFRIGERATOR SHELF WIRE
2161302 2161302 REFRIGERATOR SLEEVE
1119237 1119237 REFRIGERATOR SLIDE
2219875 2219875 REFRIGERATOR SWITCH
628397 628397 REFRIGERATOR THERMOSTAT
2311614 2311614 REFRIGERATOR THERMOSTAT KNOB
W10210786 W10210786 REFRIGERATOR TUBE
W10171238 W10171238 REFRIGERATOR TUBE
W10143759 W10143759 REFRIGERATOR UV FILTER DRYER
479502 479502 REFRIGERATOR VINYL TAPE
2260502B 2260502B REFRIGERATOR WATER FILTER CAP (BLACK)
2260502W 2260502W REFRIGERATOR WATER FILTER CAP (WHITE)
2260503W 2260503W REFRIGERATOR WATER FILTER RELEASE BUTTON (WHITE)
W10204356 W10204356 REFRIGERATOR WATER RESERVOIR
2319867 2319867 REFRIGERATOR WATER TUBE
2255012 2255012 REFRIGERATOR WATER TUBE
2223137 2223137 REFRIGERATOR WATER TUBE
2311357 2311357 REFRIGERATOR WINE RACK
2311641 2311641 REFRIGERATOR WIRE HARNESS
2311636 2311636 REFRIGERATOR WIRE HARNESS
2187510 2187510 REFRIGERATOR WIRE HARNESS
2150331 2150331 REFRIGERATOR WIRE HARNESS COVER
2263990 2263990 REFRIGERATOR WIRE TIE
8281159 8281159 SCREW
489420 489420 SCREW
489373 489373 SCREW
489276 489276 SCREW
489084 489084 SCREW
488886 488886 SCREW
488500 488500 SCREW
488280 488280 SCREW
488208 488208 SCREW
487869 487869 SCREW
486298 486298 SCREW
3400113 3400113 SCREW
1100826 1100826 SCREW
350942 350942 SPRAY PAINT
350939 350939 SPRAY PAINT (WHITE)
350930 350930 SPRAY PAINT (WHITE)
W10197427 W10197427 START DEVICE
2203596 2203596 SUPPORT SCROLL
489203 489203 WASHER
