Model Image
Manufacturer

Whirlpool

Model Number

10667802120

Description

Top-mount Refrigerator

Interactive Exploded View

Parts List

Part Number Description

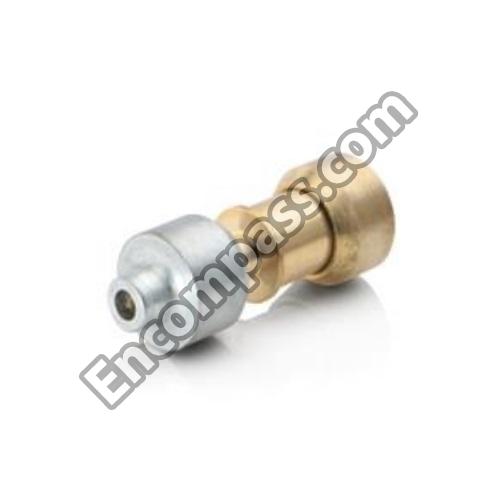

W10896710 W10896710 .188" OR 3/1
W11400737 W11400737 4MM OR 5/32"
W11400723 W11400723 5MM OR 3/16"
W11400725 W11400725 8MM OR 5/16"
W11400726 W11400726 8MM OR 5/16"
799344 799344 APPLIANCE PORCELAIN TOUCH-UP PAINT, 1-QT (WHITE)
285006 285006 APPLIANCE SPRAY PAINT (BLACK)
W10134625 W10134625 APPLIANCE TOUCH-UP PAINT, 0.6-OZ (APOLLO GRAY)
W11247887 W11247887 BIN, BOTTLE
W11183254 W11183254 BOTTOM HINGE
W11217747 W11217747 BOTTOM HINGE
W10919908 W10919908 BOTTOM HINGE SHIM
W11254962 W11254962 BUTTON
W11358319 W11358319 CAPACITOR
W11173998 W11173998 CENTER HINGE
W11242280 W11242280 CLAMP, POWER CORD
W11255016 W11255016 COIL, DISCHARGE
W11225065 W11225065 COMPRESSOR
W11264207 W11264207 CONDENSER B
W11377937 W11377937 CONDENSER SI
W11377938 W11377938 CONDENSER SI
W11264206 W11264206 CONDENSER TO
W11246374 W11246374 CONDENSER-
W11235950 W11235950 COVER ASSEMBLY, BACK
W11246849 W11246849 COVER-ENDCAP
W11246818 W11246818 COVER-ENDCAP
W11246852 W11246852 COVER-ENDCAP
W11246845 W11246845 COVER-ENDCAP
W11247924 W11247924 DOOR BIN,BAL
2189202 2189202 DOOR BRACKET
W11309075 W11309075 DOOR, FREEZER (WHITE)
W11383830 W11383830 EM3 SUCTION
W11488945 W11488945 EXTENSION, DRAIN TUBE
W11391364 W11391364 FC GLASS SHE
W11262026 W11262026 FREEZER DAMP
W11179121 W11179121 FRONT, ASSEMBLY
W11250314 W11250314 GASKET FC TM
W11235127 W11235127 GASKET FC TM
W11250318 W11250318 GASKET RC TM
W11179127 W11179127 HEAT SHIELD
W11467696 W11467696 HINGE COVER (GREY)
W11467695 W11467695 HINGE COVER (WHITE)
W11249471 W11249471 KNOB FREEZER
W11391354 W11391354 MONARCA BOTT
W11390538 W11390538 ODIN ENH MON
W11255553 W11255553 PLUG, HOLE (GREY)
W11248029 W11248029 POWER_CORD_A
W11391363 W11391363 RC GLASS SHE

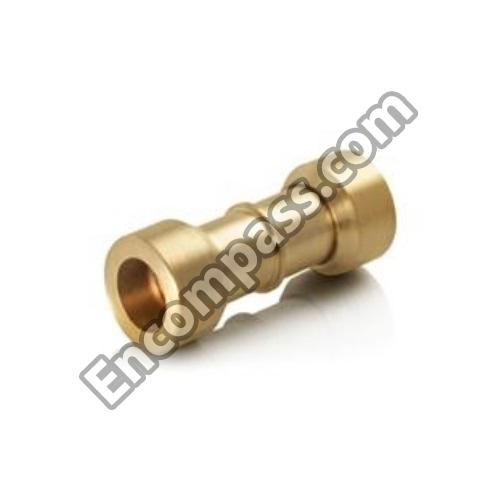

W10895723 W10895723 REFRIGERATION APPLIANCE LOKRING CONNECTOR, 5/16-IN
W10435530 W10435530 REFRIGERATOR BODY CONTROL
W10520304 W10520304 REFRIGERATOR CENTER HINGE HOLE PLUG
W11424126 W11424126 REFRIGERATOR COMPLETE ICE MAKER KIT
W11387715 W11387715 REFRIGERATOR COMPRESSOR START RELAY
W10431229 W10431229 REFRIGERATOR COVER
W11247889 W11247889 REFRIGERATOR DOOR BIN, LOWER
W11235133 W11235133 REFRIGERATOR DOOR GASKET
W10492018 W10492018 REFRIGERATOR DOOR HINGE BUSHING (WHITE)
2212648 2212648 REFRIGERATOR DOOR HINGE HOLE PLUG
10835903 10835903 REFRIGERATOR GROMMET
W10399311 W10399311 REFRIGERATOR HINGE SHIM, UPPER
W11403893 W11403893 REFRIGERATOR ICE BIN
W11416492 W11416492 REFRIGERATOR ICE MAKER KIT
W11403892 W11403892 REFRIGERATOR ICE MAKER KIT WIRE SHELF
1117510 1117510 REFRIGERATOR ICE MAKER TORX KEY WRENCH
2215468 2215468 REFRIGERATOR INSULATION
W11176400 W11176400 REFRIGERATOR LEVELING LEG
W10337740 W10337740 REFRIGERATOR NAMEPLATE
2174739 2174739 REFRIGERATOR PROCESS TUBE
W10475495 W10475495 REFRIGERATOR ROLLER
2179826 2179826 REFRIGERATOR ROLLER WHEEL AXLE PIN
W10378704 W10378704 REFRIGERATOR SUPPORT
W10261299 W10261299 REFRIGERATOR SUPPORT EVAPORATOR
72017 72017 REFRIGERATOR TOUCH-UP PAINT (WHITE)
2263990 2263990 REFRIGERATOR WIRE TIE
489276 489276 SCREW
W11187707 W11187707 SERVICE KIT_
W11175787 W11175787 SHIM, CENTER HINGE
W10520965 W10520965 SPRING
W11342284 W11342284 TERMINAL BOA
W11289190 W11289190 THIMBLE, TOP (GRAY)
W11191773 W11191773 TOP HINGE AS
72032 72032 TOUCH UP KIT
489468 489468 WASHER
489341 489341 WASHER
W11236030 W11236030 WEDGE, FRONT
W11466252 W11466252 WIRE ASSEMBY (INCLUDES THERMAL FUSE)
