Model Image
Manufacturer

Whirlpool

Model Number

10673239300

Description

Top-mount Refrigerator

Interactive Exploded View

Parts List

Part Number Description
WP486692 WP486692 APPLIANCE NUT
4392900 4392900 APPLIANCE PAINT, 1-QT (BISQUE)
799344 799344 APPLIANCE PORCELAIN TOUCH-UP PAINT (WHITE)
WP542638 WP542638 APPLIANCE SILICONE LUBRICANT
4392901 4392901 APPLIANCE SPRAY PAINT (BISCUIT)
285006 285006 APPLIANCE SPRAY PAINT (BLACK)
8171357 8171357 APPLIANCE SPRAY PAINT (GRAPHITE)
350942 350942 APPLIANCE SPRAY PAINT (WHITE PRIMER)
350930 350930 APPLIANCE SPRAY PAINT (WHITE)
4392899 4392899 APPLIANCE TOUCH-UP PAINT, 0.6-OZ (BISCUIT)
72032 72032 APPLIANCE TOUCH-UP PAINT, 0.6-OZ (BLACK)
72017 72017 APPLIANCE TOUCH-UP PAINT, 0.6-OZ (WHITE)
511873 511873 APPLIANCE TOUCH-UP PAINT, 2-OZ (WHITE)
2204835 2204835 BUTTON PLUG
WP3196256 WP3196256 CLAMP
2255199 2255199 CLIP
2213388 2213388 COVER (SILVER)
L2204867 L2204867 DOOR ASSEMBLY BL
L2204854 L2204854 DOOR ASSEMBLY BT
L2204865 L2204865 DOOR ASSEMBLY BT
L2204855 L2204855 DOOR ASSEMBLY GP
L2225258 L2225258 DOOR ASSEMBLY SS
L2202519 L2202519 DOOR ASSEMBLY WH
WP98129 WP98129 DRYER SCREW, #6-20 X 1.25-IN
799832 799832 EPOXY
799833 799833 EPOXY
2204843 2204843 FILLER
876029 876029 FOAM SLAB
8281197 8281197 FREEZER CONDENSER MOTOR SCREW
2163762 2163762 FREEZER SHELF SUPPORT
2187601 2187601 FREEZER WIRE HARNESS
9915 9915 GENUINE KENMORE REFRIGERATOR WATER FILTER
2221607 2221607 HANDLE
2221611 2221611 HANDLE
2210309 2210309 HANDLE
2300418 2300418 HOUSING
2193491 2193491 INSULATION
2204647 2204647 MEAT DRAWER TEMPERATURE ADJUSTMENT SLIDE
2218696 2218696 ORIFICE
2320187 2320187 PLATE
2204840 2204840 PLUG-HNDLE
2204839 2204839 PLUG-HNDLE
W10777924 W10777924 RACK-WINE
2212413 2212413 REFRIGERATOR AIR DAMPER
WP2189452 WP2189452 REFRIGERATOR AIR DAMPER
WP2254354 WP2254354 REFRIGERATOR AIR DUCT
WP4317852 WP4317852 REFRIGERATOR ALUMILASTIC ADHESIVE
WPW10662129 WPW10662129 REFRIGERATOR AND FREEZER COMPRESSOR RUN CAPACITOR
2212485 2212485 REFRIGERATOR BARRIER
2187254 2187254 REFRIGERATOR BEVERAGE RACK
WP2210509 WP2210509 REFRIGERATOR BREATHER VALVE
2159302 2159302 REFRIGERATOR BUTTER STORAGE TRAY
2204837 2204837 REFRIGERATOR CABINET HOLE PLUG
WP2151652 WP2151652 REFRIGERATOR CABINET HOLE PLUG
2301624 2301624 REFRIGERATOR CLAMP
2200831 2200831 REFRIGERATOR COLD CONTROL SENSOR THERMAL WEIGHT
W10309989 W10309989 REFRIGERATOR COMPRESSOR
WP2198740 WP2198740 REFRIGERATOR COMPRESSOR ACCESS COVER
WP2302358 WP2302358 REFRIGERATOR COMPRESSOR ACCESS COVER
WP4387558 WP4387558 REFRIGERATOR COMPRESSOR GROMMET
4388295 4388295 REFRIGERATOR COMPRESSOR GROMMET
4387913 4387913 REFRIGERATOR COMPRESSOR OVERLOAD AND PTC START ...
WP2162358 WP2162358 REFRIGERATOR COMPRESSOR OVERLOAD AND START RELA...
W11285096 W11285096 REFRIGERATOR COMPRESSOR START RELAY
833938 833938 REFRIGERATOR COMPRESSOR WIRE TERMINAL KIT
WP2214960 WP2214960 REFRIGERATOR CONDENSER COIL
WP2190685 WP2190685 REFRIGERATOR CONDENSER FAN
W10181323 W10181323 REFRIGERATOR CONDENSER FAN
WP2198921 WP2198921 REFRIGERATOR CONDENSER FAN MOTOR HOUSING
2301979 2301979 REFRIGERATOR CONDENSER FAN MOTOR MOUNTING PLATE
2300638 2300638 REFRIGERATOR CONDENSER FAN SHROUD
2218689 2218689 REFRIGERATOR CONTROL BOX
940014 940014 REFRIGERATOR CONTROL PANEL HOLE PLUG
WPW10283959 WPW10283959 REFRIGERATOR CORNER TRIM
W10283958 W10283958 REFRIGERATOR CORNER TRIM (BISQUE)
2225531 2225531 REFRIGERATOR COVER
W10854037 W10854037 REFRIGERATOR CRISPER DRAWER
WP2172748 WP2172748 REFRIGERATOR CRISPER DRAWER COVER SUPPORT POST
WP2212446 WP2212446 REFRIGERATOR CRISPER DRAWER HUMIDITY CONTROL BODY
WP2176222 WP2176222 REFRIGERATOR CRISPER DRAWER HUMIDITY CONTROL BODY
WP2210566 WP2210566 REFRIGERATOR DAIRY BIN
WP2218109 WP2218109 REFRIGERATOR DAIRY BIN COVER
WP4387503 WP4387503 REFRIGERATOR DEFROST BI-METAL THERMOSTAT
8201826 8201826 REFRIGERATOR DEFROST DRAIN PAN
WP2315530 WP2315530 REFRIGERATOR DEFROST HEATER
2182338 2182338 REFRIGERATOR DEFROST HEATER BRACKET
2176301 2176301 REFRIGERATOR DEFROST HEATER BRACKET
WP2218132K WP2218132K REFRIGERATOR DELI DRAWER
WP2205162 WP2205162 REFRIGERATOR DELI DRAWER SHELF FRAME
2205533 2205533 REFRIGERATOR DISCHARGE TUBING
WP2162361 WP2162361 REFRIGERATOR DISPENSER SWITCH
2225136 2225136 REFRIGERATOR DIVIDER
L2204856 L2204856 REFRIGERATOR DOOR ASSEMBLY (BLACK)
L2202520 L2202520 REFRIGERATOR DOOR ASSEMBLY (WHITE)
606755 606755 REFRIGERATOR DOOR BAG INSULATION
WP2204813 WP2204813 REFRIGERATOR DOOR BIN
2204838 2204838 REFRIGERATOR DOOR END CAP HOLE PLUG (BISQUE)
2159061 2159061 REFRIGERATOR DOOR GASKET
2177311 2177311 REFRIGERATOR DOOR GASKET (BLACK)
WP2254473 WP2254473 REFRIGERATOR DOOR HINGE
WP2261963 WP2261963 REFRIGERATOR DOOR HINGE
WP2183854 WP2183854 REFRIGERATOR DOOR HINGE SPACER, CENTER
WP2254618 WP2254618 REFRIGERATOR DOOR HINGE, CENTER
WP2183003 WP2183003 REFRIGERATOR DOOR HOLE PLUG
WP2212651 WP2212651 REFRIGERATOR DOOR HOLE PLUG
WP2212648 WP2212648 REFRIGERATOR DOOR HOLE PLUG
WP2183998 WP2183998 REFRIGERATOR DOOR HOLE PLUG
WP2200924 WP2200924 REFRIGERATOR DOOR HOLE PLUG (BISCUIT)
WP2212649 WP2212649 REFRIGERATOR DOOR HOLE PLUG (BISQUE)
876370 876370 REFRIGERATOR DOOR INSULATION, 2-PIECE
WP2195916K WP2195916K REFRIGERATOR DOOR SHELF RAIL
WP2156006 WP2156006 REFRIGERATOR DOOR SHELF RAIL
WP2159306 WP2159306 REFRIGERATOR DOOR SHELF RAIL
WPW10421486 WPW10421486 REFRIGERATOR DOOR SHELF RAIL
WP2183805 WP2183805 REFRIGERATOR DOOR STOP
WP2177340 WP2177340 REFRIGERATOR DOOR TRIM CLIP
WP2314549 WP2314549 REFRIGERATOR DRAWER COVER
W10136387A W10136387A REFRIGERATOR EGG BIN
WP2304093 WP2304093 REFRIGERATOR ELECTRONIC CONTROL BOARD
2320193 2320193 REFRIGERATOR EVAPORATOR COVER
WP941839 WP941839 REFRIGERATOR EVAPORATOR COVER HOLE PLUG
WP2254360 WP2254360 REFRIGERATOR EVAPORATOR COVER SEAL
WP2163777 WP2163777 REFRIGERATOR EVAPORATOR FAN BLADE
WP2315539 WP2315539 REFRIGERATOR EVAPORATOR FAN MOTOR
WP2214979 WP2214979 REFRIGERATOR EVAPORATOR FAN MOTOR BRACKET, FRONT
WP2214976 WP2214976 REFRIGERATOR EVAPORATOR FAN MOTOR BRACKET, REAR
WP2264462 WP2264462 REFRIGERATOR EVAPORATOR FAN MOTOR GROMMET
2201185 2201185 REFRIGERATOR EVAPORATOR SUPPORT BLOCK
2198768 2198768 REFRIGERATOR FENCE
2186494J 2186494J REFRIGERATOR FILTER CAP
W10843121 W10843121 REFRIGERATOR FILTER DRYER
2225476 2225476 REFRIGERATOR FLOOR
2204991 2204991 REFRIGERATOR FREEZER CONTROL THERMOSTAT
2159060 2159060 REFRIGERATOR FREEZER DOOR GASKET
2177310 2177310 REFRIGERATOR FREEZER DOOR GASKET (BLACK)
WP2213363 WP2213363 REFRIGERATOR FREEZER DOOR HINGE COVER
WP2213360 WP2213360 REFRIGERATOR FREEZER DOOR HINGE COVER
2213364 2213364 REFRIGERATOR FREEZER DOOR HINGE COVER (BISCUIT)
WP2195947 WP2195947 REFRIGERATOR FREEZER DOOR SHELF RAIL
2166284 2166284 REFRIGERATOR FREEZER DOOR SWITCH HOUSING SEAL, ...
WP628379 WP628379 REFRIGERATOR FUSE CLIP
2204992 2204992 REFRIGERATOR GEAR WHEEL
WP2184574 WP2184574 REFRIGERATOR GEAR WHEEL
2184667 2184667 REFRIGERATOR GLASS SHELF
WP999520 WP999520 REFRIGERATOR GLASS SHELF
WP2176225 WP2176225 REFRIGERATOR GLASS SHELF
2301618T 2301618T REFRIGERATOR GRILLE
2301618J 2301618J REFRIGERATOR GRILLE
WP2301618B WP2301618B REFRIGERATOR GRILLE
WP531933 WP531933 REFRIGERATOR GROMMET
2221608 2221608 REFRIGERATOR HANDLE
2221612 2221612 REFRIGERATOR HANDLE
2210500 2210500 REFRIGERATOR HOUSING
2254352A 2254352A REFRIGERATOR ICE CONTAINER
4317943 4317943 REFRIGERATOR ICE MAKER
WP2182124 WP2182124 REFRIGERATOR ICE MAKER CUBE EJECTOR
WP627843 WP627843 REFRIGERATOR ICE MAKER CUBE EJECTOR
WP2255794 WP2255794 REFRIGERATOR ICE MAKER EVAPORATOR FAN
WP628356 WP628356 REFRIGERATOR ICE MAKER FILL CUP
WPW10190929 WPW10190929 REFRIGERATOR ICE MAKER ICE MOLD
WPW10715708 WPW10715708 REFRIGERATOR ICE MAKER KIT
628320 628320 REFRIGERATOR ICE MAKER LEVELING BRACKET
W10190935 W10190935 REFRIGERATOR ICE MAKER MODULE
WP2195914 WP2195914 REFRIGERATOR ICE MAKER MODULE HOUSING
2204881 2204881 REFRIGERATOR ICE MAKER MODULE SUPPORT CLIP
489136 489136 REFRIGERATOR ICE MAKER MOTOR SCREW
WP627792 WP627792 REFRIGERATOR ICE MAKER SHUT-OFF ARM
8533917 8533917 REFRIGERATOR ICE MAKER SUPPORT SCREW
WP627985 WP627985 REFRIGERATOR ICE MAKER THERMOSTAT
WP2315522 WP2315522 REFRIGERATOR ICE MAKER THERMOSTAT RETAINER
W10853646 W10853646 REFRIGERATOR INDICATOR LIGHT WIRE HARNESS
2301622 2301622 REFRIGERATOR INSULATION
WP2193400 WP2193400 REFRIGERATOR KNOB
2300520 2300520 REFRIGERATOR LADDER
WP2210522 WP2210522 REFRIGERATOR LADDER
4396822 4396822 REFRIGERATOR LIGHT BULB
2213495 2213495 REFRIGERATOR LIGHT LENS
4387478 4387478 REFRIGERATOR LIGHT SOCKET
WP1118894 WP1118894 REFRIGERATOR LIGHT SWITCH
2187756 2187756 REFRIGERATOR MAIN WIRE HARNESS
WP505587 WP505587 REFRIGERATOR MASTIC SEALER
2205104 2205104 REFRIGERATOR MEDALLION
2205103 2205103 REFRIGERATOR MEDALLION
WP9744397 WP9744397 REFRIGERATOR NAMEPLATE (BLACK AND GRAPHITE)
2212443 2212443 REFRIGERATOR PAN TRIM
2212441 2212441 REFRIGERATOR PAN TRIM
WP503695 WP503695 REFRIGERATOR PERMAGUM SEALER
212643 212643 REFRIGERATOR PERMAGUM SEALER
2210502 2210502 REFRIGERATOR PUSH BUTTON
2154109 2154109 REFRIGERATOR REFRIGERANT PROCESS TUBE
2225473 2225473 REFRIGERATOR RETAINER
WPW10475495 WPW10475495 REFRIGERATOR ROLLER
WP2166108 WP2166108 REFRIGERATOR ROLLER ASSEMBLY
WP2179826 WP2179826 REFRIGERATOR ROLLER WHEEL AXLE PIN
W10651374 W10651374 REFRIGERATOR SCREW
WP488163 WP488163 REFRIGERATOR SCREW
WP489442 WP489442 REFRIGERATOR SCREW
WP489128 WP489128 REFRIGERATOR SCREW
WP8281196 WP8281196 REFRIGERATOR SCREW
WP681249 WP681249 REFRIGERATOR SCREW
WP489478 WP489478 REFRIGERATOR SCREW
WP489464 WP489464 REFRIGERATOR SCREW
WP489497 WP489497 REFRIGERATOR SCREW
WP3400504 WP3400504 REFRIGERATOR SCREW
876764 876764 REFRIGERATOR SERVICE VALVE
978029 978029 REFRIGERATOR SERVICE VALVE
978028 978028 REFRIGERATOR SERVICE VALVE
978027 978027 REFRIGERATOR SERVICE VALVE
978026 978026 REFRIGERATOR SERVICE VALVE
978030 978030 REFRIGERATOR SERVICE VALVE, 3/4-IN
2204776 2204776 REFRIGERATOR SHELF WIRE
2210547 2210547 REFRIGERATOR SHIELD
2200816 2200816 REFRIGERATOR SHROUD
2214924 2214924 REFRIGERATOR SUCTION LINE

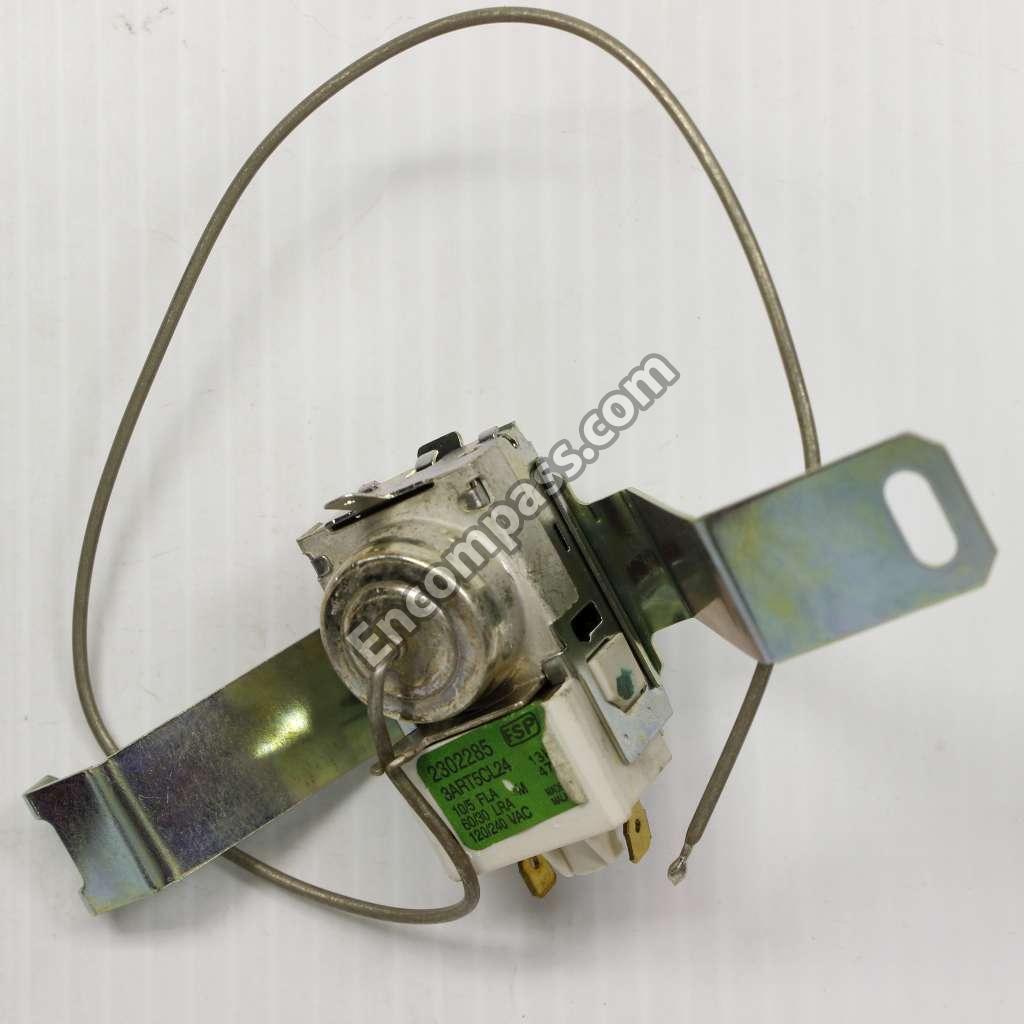

WP2302286 WP2302286 REFRIGERATOR TEMPERATURE CONTROL THERMOSTAT
WP2205079 WP2205079 REFRIGERATOR THERMAL WEIGHT SENSOR SEAL
WP2196003 WP2196003 REFRIGERATOR THERMOSTAT SENSOR BARRIER
2301618W 2301618W REFRIGERATOR TOE GRILLE
WP2189356 WP2189356 REFRIGERATOR TOE GRILLE CLIP
WP1117510 WP1117510 REFRIGERATOR TORX KEY WRENCH
W11238399 W11238399 REFRIGERATOR VINYL TAPE
WP487576 WP487576 REFRIGERATOR WASHER
WP489467 WP489467 REFRIGERATOR WASHER
WP2186494T WP2186494T REFRIGERATOR WATER FILTER CAP (BISQUE)
WP2186494B WP2186494B REFRIGERATOR WATER FILTER CAP (BLACK)
WP2186494W WP2186494W REFRIGERATOR WATER FILTER CAP (WHITE)
WP2225521 WP2225521 REFRIGERATOR WATER FILTER HOUSING
WP2188808 WP2188808 REFRIGERATOR WATER INLET VALVE
2166251 2166251 REFRIGERATOR WATER INLET VALVE COVER
WP2320316 WP2320316 REFRIGERATOR WATER RESERVOIR
W10823511 W10823511 REFRIGERATOR WATER TUBING
8201597 8201597 REFRIGERATOR WATER TUBING
WP2301621 WP2301621 REFRIGERATOR WATER TUBING
WP488878 WP488878 REFRIGERATOR WATER TUBING CLAMP
2210523 2210523 REFRIGERATOR WATER TUBING CLIP
4387491 4387491 REFRIGERATOR WATER TUBING INSERT
2187291 2187291 REFRIGERATOR WIRE HARNESS
WP2187464 WP2187464 REFRIGERATOR WIRE HARNESS
2187448 2187448 REFRIGERATOR WIRE HARNESS
2187608 2187608 REFRIGERATOR WIRE HARNESS
WP489355 WP489355 SCREW
2204639 2204639 SHIELD
2172743 2172743 SHIM
WPW10339879 WPW10339879 WASHER CABLE TIE
2210305 2210305 WHT FF HANDL
Main Menu x
