Manufacturer

Whirlpool

Model Number

11044836301

Description

Residential Washers

Interactive Exploded View

Parts List

Part Number Description
WP3367052 WP3367052 APPLIANCE HOSE CLAMP
4392900 4392900 APPLIANCE PAINT, 1-QT (BISQUE)
799344 799344 APPLIANCE PORCELAIN TOUCH-UP PAINT (WHITE)
WP488729 WP488729 APPLIANCE SCREW
4392901 4392901 APPLIANCE SPRAY PAINT (BISCUIT)
8171357 8171357 APPLIANCE SPRAY PAINT (GRAPHITE)
350938 350938 APPLIANCE SPRAY PAINT (GRAY PRIMER)
350930 350930 APPLIANCE SPRAY PAINT (WHITE)
4392899 4392899 APPLIANCE TOUCH-UP PAINT, 0.6-OZ (BISCUIT)
WP80051 WP80051 APPLIANCE TOUCH-UP PAINT, 0.6-OZ (GRAPHITE)
72017 72017 APPLIANCE TOUCH-UP PAINT, 0.6-OZ (WHITE)
8182116 8182116 BRACE
8181634 8181634 BRACE
8181639 8181639 BRACKET
8181806 8181806 CABINET
8181805 8181805 CABINET
8181735 8181735 CAP
8182123 8182123 CAP
8540010 8540010 CLAMP
W10128586 W10128586 CLAMP
8181650 8181650 CLAMP, GLASS
W10756692 W10756692 CONTROL BOARD
8181804 8181804 CONTROL PANEL
8181803 8181803 CONTROL PANEL
8181802 8181802 CONTROL PANEL
W10008870 W10008870 COUNTERWGT
8181766 8181766 COVER
8182665 8182665 DISPENSER
8182131 8182131 DIVIDER
8181813 8181813 ESCUTCHEON
8181812 8181812 ESCUTCHEON
8181658 8181658 FRAME
8537871 8537871 FRONT
8538014 8538014 FRONT
8538017 8538017 FRONT
8537872 8537872 FRONT (GRAPHITE)
8181786 8181786 GROMMET
8181824 8181824 HANDLE (SILVER)
8181675 8181675 HANDLE (WHITE)
8181708 8181708 HOSE
WP489503 WP489503 ICE MAKER DRAIN HOSE CLAMP
8181704 8181704 INDICATOR LIGHT
8181826 8181826 INDICATOR LIGHT
8181702 8181702 INDICATOR LIGHT
8181701 8181701 INDICATOR LIGHT
WP8563585 WP8563585 LAUNDRY APPLIANCE LEVELING LEG
WP8537863 WP8537863 LAUNDRY APPLIANCE PEDESTAL CUSHION
WP8537883 WP8537883 LAUNDRY APPLIANCE PEDESTAL DRAWER
280123 280123 LAUNDRY APPLIANCE PEDESTAL DRAWER DIVIDER
WP8578394 WP8578394 LAUNDRY APPLIANCE PEDESTAL DRAWER SLIDE RAIL
WP8540725 WP8540725 LAUNDRY APPLIANCE SCREW
3400618 3400618 LAUNDRY APPLIANCE SCREW, #6-32 X 3/8-IN
8182121 8182121 NOZZLE
WPW10283361 WPW10283361 NUT WASHER
8181897 8181897 OUTER DOOR
8181896 8181896 OUTER DOOR
8171358 8171358 PAINT (GRAPHITE)
8537853 8537853 PAN
8181810 8181810 PANEL
8181809 8181809 PANEL
8181643 8181643 PANEL
8181808 8181808 PANEL
8181807 8181807 PANEL
8181637 8181637 PANEL
WPW10242507 WPW10242507 PANEL
8181821 8181821 PUSH BUTTON
8181819 8181819 PUSH BUTTON
8181822 8181822 PUSH BUTTON
8181678 8181678 PUSH BUTTON
8181820 8181820 PUSH BUTTON
8181818 8181818 PUSH BUTTON
8181817 8181817 PUSH BUTTON
8181814 8181814 PUSH BUTTON
WP7101P346-60 WP7101P346-60 RANGE SCREW
WP3400805 WP3400805 RANGE SCREW
WP9744397 WP9744397 REFRIGERATOR NAMEPLATE (BLACK AND GRAPHITE)
8182109 8182109 RETAINER
280196 280196 RING-O
WP1163283 WP1163283 SCREW
WP3388228 WP3388228 SCREW
WPW10346892 WPW10346892 SCREW
W10128585 W10128585 SCREW
WP8181780 WP8181780 SCREW
W11230114 W11230114 SCREW
W10193105 W10193105 SCREW
8181727 8181727 SPRING
8181800 8181800 TOP
8181799 8181799 TOP
8181744 8181744 VENT PIPE
WPW10250553 WPW10250553 WASHER AIR TRAP SEAL
285976 285976 WASHER BAFFLE
8181635 8181635 WASHER BOTTOM PANEL
WPW10003040 WPW10003040 WASHER CABINET REINFORCEMENT BRACKET, LOWER
8181681 8181681 WASHER CANCEL PUSH BUTTON SET
WPW10008880 WPW10008880 WASHER COUNTERWEIGHT
W10182109 W10182109 WASHER COUNTERWEIGHT BOLT KIT
8181898 8181898 WASHER COVER
WP8181726 WP8181726 WASHER DISPENSER ACTUATOR CAM
WPW10665207 WPW10665207 WASHER DISPENSER ACTUATOR MOTOR
WP8181720 WP8181720 WASHER DISPENSER DRAWER
WP8182704 WP8182704 WASHER DISPENSER DRAWER ASSEMBLY
WP8181722 WP8181722 WASHER DISPENSER DRAWER INSERT
WP8181721 WP8181721 WASHER DISPENSER DRAWER LATCH
WP8181712 WP8181712 WASHER DISPENSER DRAWER NOZZLE
WP8181794 WP8181794 WASHER DISPENSER HOSE
WPW10005300 WPW10005300 WASHER DISPENSER HOSE
WP8181710 WP8181710 WASHER DISPENSER INLET HOSE
WP8181747 WP8181747 WASHER DISPENSER SEAL
WP8182246 WP8182246 WASHER DOOR ASSEMBLY
WP8182119 WP8182119 WASHER DOOR BOOT
W10902779 W10902779 WASHER DOOR BOOT SPRING CLAMP
WP8182210 WP8182210 WASHER DOOR BOOT SPRING CLAMP
WPW10135912 WPW10135912 WASHER DOOR GLASS
8181649 8181649 WASHER DOOR HANDLE
WP8181642 WP8181642 WASHER DOOR HINGE
WP8182634 WP8182634 WASHER DOOR LOCK ASSEMBLY

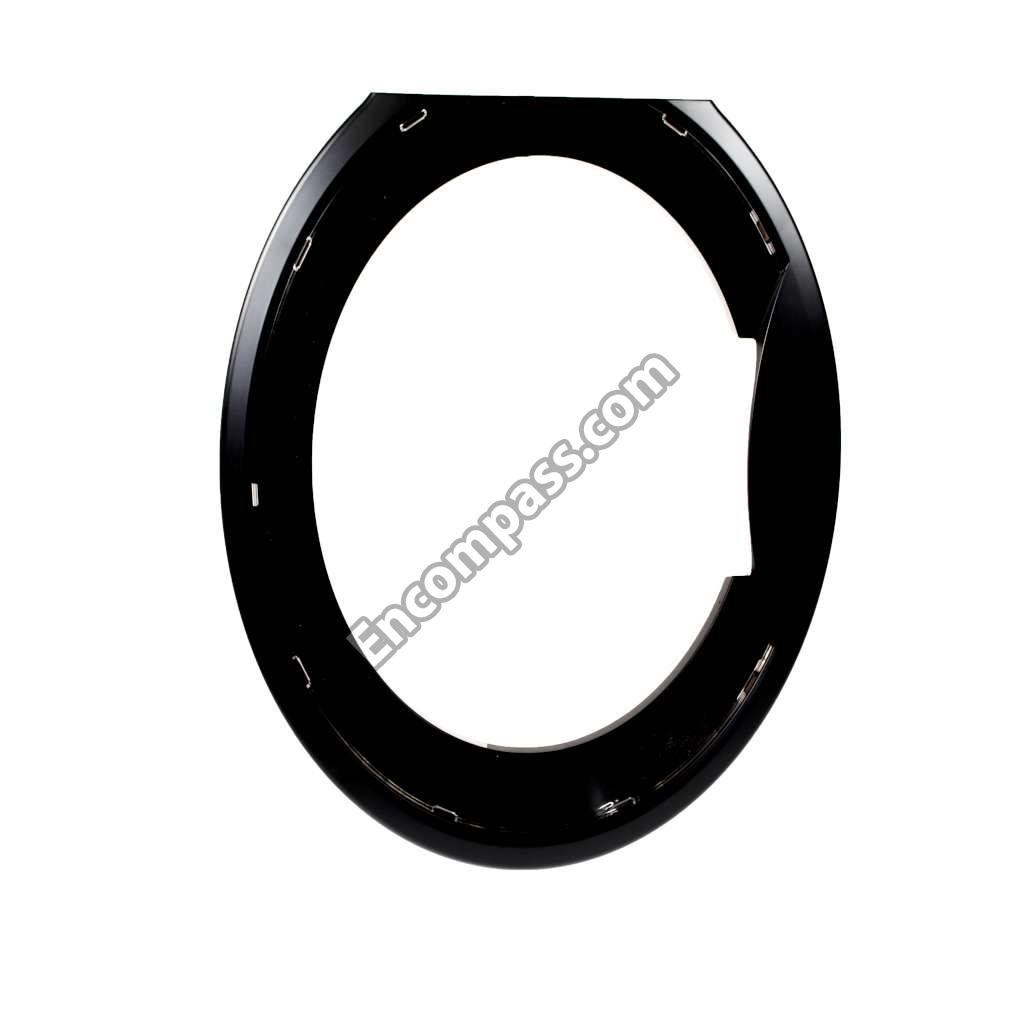

WP8182231 WP8182231 WASHER DOOR OUTER FRAME (BLACK)
WP8181651 WP8181651 WASHER DOOR STRIKE
285863 285863 WASHER DRAIN HOSE
WPW10003250 WPW10003250 WASHER DRAIN HOSE
WP8181737 WP8181737 WASHER DRAIN HOSE
WPW10280024 WPW10280024 WASHER DRAIN HOSE U-BEND BRACKET
280187 280187 WASHER DRAIN PUMP ASSEMBLY
WP8181736 WP8181736 WASHER DRAIN PUMP FILTER CAP SEAL
WPW10388414 WPW10388414 WASHER DRIVE BELT
WP8182793 WP8182793 WASHER DRIVE MOTOR
WP8182650 WP8182650 WASHER DRIVE PULLEY

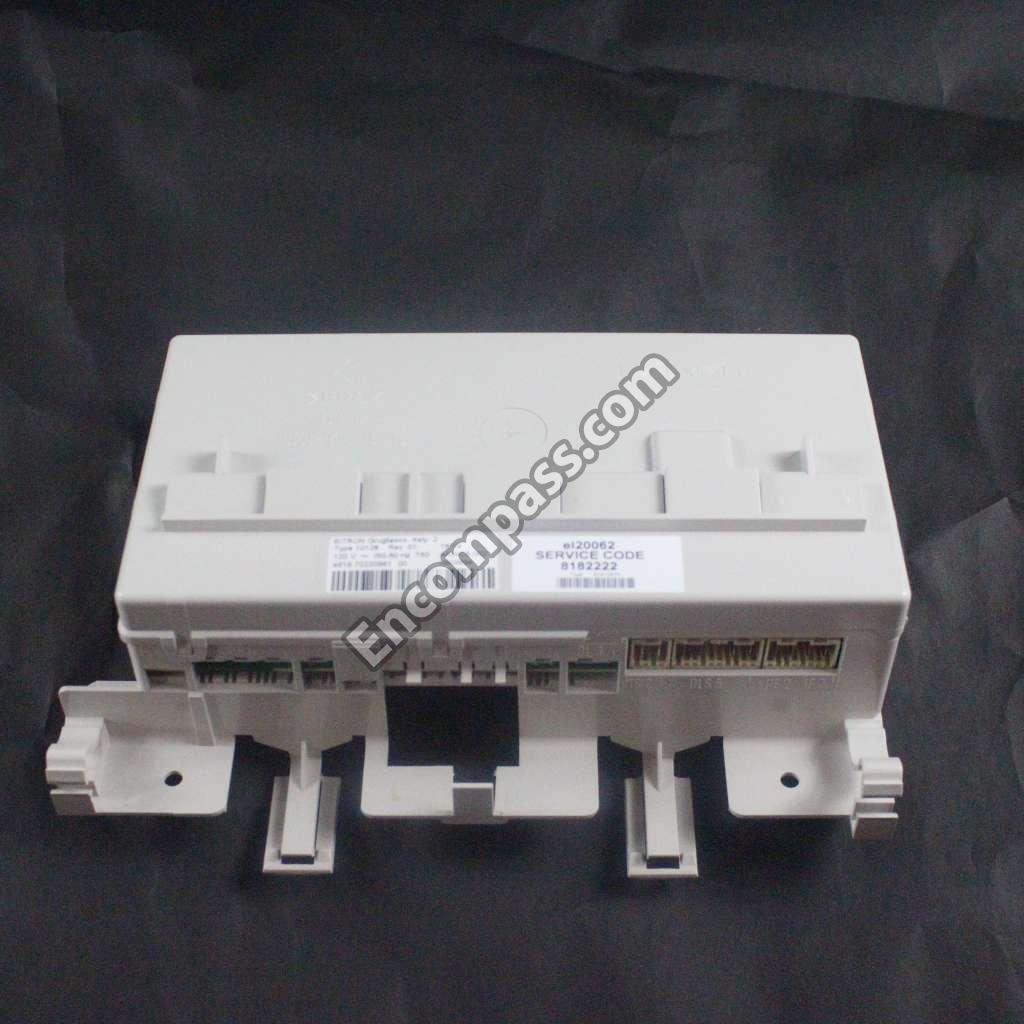

WP8182222 WP8182222 WASHER ELECTRONIC CONTROL BOARD
WP8181738 WP8181738 WASHER EXTERNAL DRAIN HOSE CONNECTOR
WP76314 WP76314 WASHER FILL HOSE
WPW10085220 WPW10085220 WASHER GROUNDING SWITCH
WP285655 WP285655 WASHER HOSE CLAMP
WP696392 WP696392 WASHER HOSE CLAMP
WPW10110225 WPW10110225 WASHER INLET FLOW METER
WP8181636 WP8181636 WASHER LEVELING LEG
WPW10367632 WPW10367632 WASHER NOISE FILTER
W10772612 W10772612 WASHER OUTER FRONT TUB
W10772617 W10772617 WASHER OUTER REAR TUB
WP8540092 WP8540092 WASHER OUTER TUB CLIP
WP8183009 WP8183009 WASHER POWER CORD
WP8540268 WP8540268 WASHER POWER CORD COVER
8182635 8182635 WASHER POWER CORD STRAIN RELIEF
8181816 8181816 WASHER PROGRAM PUSH BUTTON SET (GRAPHITE)
280182 280182 WASHER PUMP GROMMET
8181679 8181679 WASHER PUSH BUTTON SET
WP8182512 WP8182512 WASHER PUSH NUT
WP8540282 WP8540282 WASHER SCREW
WP8181660 WP8181660 WASHER SCREW
8181785 8181785 WASHER SCREW
W10289554A W10289554A WASHER SHIPPING BOLT KIT
WP8182703 WP8182703 WASHER SHOCK ABSORBER
WPW10250573 WPW10250573 WASHER SPIN BASKET
8181815 8181815 WASHER START BUTTON
WP8181763 WP8181763 WASHER SUSPENSION SPRING BRACKET
W10135004 W10135004 WASHER SUSPENSION SPRING SET, 2-PACK
8181831 8181831 WASHER TOP PANEL
WP8181673 WP8181673 WASHER TUB GASKET
WPW10467168 WPW10467168 WASHER TUB-TO-PUMP HOSE
W10121657 W10121657 WASHER TUB-TO-PUMP HOSE CHECK BALL
WP8181827 WP8181827 WASHER USER INTERFACE ASSEMBLY
WP8181743 WP8181743 WASHER VENT BELLOWS
8181745 8181745 WASHER VENT BELLOWS SCREEN
WP8181725 WP8181725 WASHER WATER DISTRIBUTION LEVER
WP8181694 WP8181694 WASHER WATER INLET VALVE
WPW10467289 WPW10467289 WASHER WATER TEMPERATURE SENSOR
8181829 8181829 WASHER WATER TEMPERATURE SENSOR SEAL
WPW10514214 WPW10514214 WASHER WATER-LEVEL PRESSURE SWITCH
WP8181731 WP8181731 WASHER WATER-LEVEL PRESSURE SWITCH AIR TRAP
WPW10004260 WPW10004260 WASHER WATER-LEVEL PRESSURE SWITCH HOSE
WPW10137867 WPW10137867 WASHER WIRE HARNESS
8181781 8181781 WASHER WIRE HARNESS
WP8181783 WP8181783 WASHER WIRE HARNESS
8182209 8182209 WASHER WIRE HARNESS RETAINER
