Manufacturer

Electrolux

Model Number

41771723511

Description

Laundry Centers/combos

Interactive Exploded View

Parts List

Part Number Description
5304500439 5304500439 BASE
137511300 137511300 BLOCK
5304500487 5304500487 BRACKET
809161501 809161501 BRACKET
131091300 131091300 BRACKET
134075501 134075501 BUMPER
131453000 131453000 BUSHING-DRAI
131964400 131964400 CABLE TIE
137087507 137087507 CLAMP
137087511 137087511 CLAMP
131209800 131209800 CLAMP-SW.PRE
134714401 134714401 COLLAR
5304500837 5304500837 CONSOLE
5304500440 5304500440 COVER
5304488478 5304488478 COVER
131729302 131729302 COVER
5304506372 5304506372 COVER PLATE
134122545 134122545 DRUM
137261000 137261000 DRYER 2-POSITION CYCLE SELECTOR SWITCH
137551800 137551800 DRYER BLOWER HOUSING, REAR
131476300 131476300 DRYER BLOWER WHEEL
3204326 3204326 DRYER BULKHEAD REINFORCEMENT BRACKET
134197700 134197700 DRYER BURNER
134264800 134264800 DRYER BURNER BRACKET
5303207410 5303207410 DRYER BURNER ORIFICE
131712401 131712401 DRYER BURNER TUBE
131063700 131063700 DRYER CLIP
131658820 131658820 DRYER DOOR CATCH

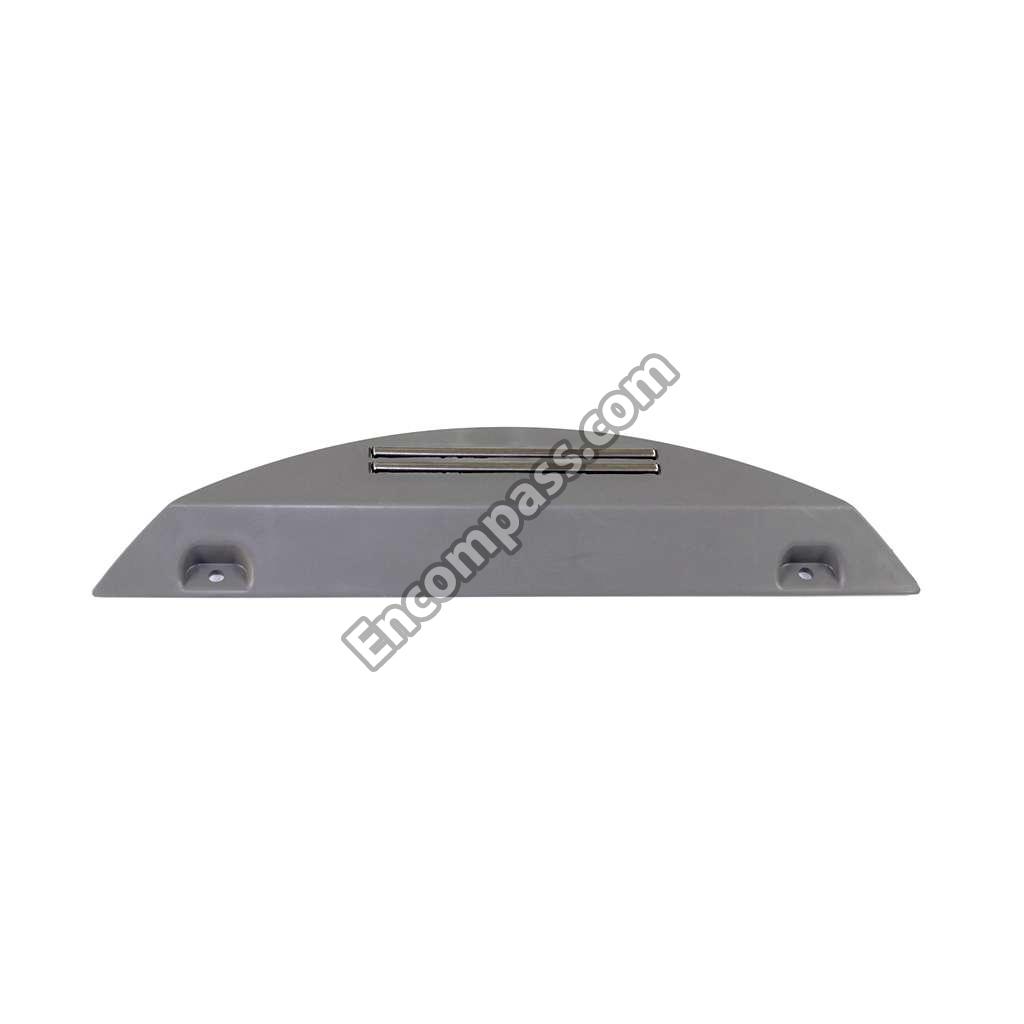

131789404 131789404 DRYER DOOR HANDLE (TITANIUM)
134222900 134222900 DRYER DOOR HINGE
134813660 134813660 DRYER DOOR SWITCH
131382300 131382300 DRYER DRUM BAFFLE SCREW
131825900 131825900 DRYER DRUM BEARING
131724301 131724301 DRYER DRUM BEARING BRACKET
137292700 137292700 DRYER DRUM BELT
5303937183 5303937183 DRYER DRUM FELT SEAL, LOWER
137513300 137513300 DRYER DRUM FRONT GLIDE
137076300 137076300 DRYER GAS SUPPLY PIPE
5303207409 5303207409 DRYER GAS VALVE ASSEMBLY
5303281019 5303281019 DRYER GROUNDING BALL
131863100 131863100 DRYER IDLER ASSEMBLY
137032600 137032600 DRYER INLET THERMAL LIMITER
134086301 134086301 DRYER LINT DUCT
134242400 134242400 DRYER MOTOR CLAMP
5303281135 5303281135 DRYER RADIANT SENSOR
5303281020 5303281020 DRYER REAR BEARING CLIP
134154100 134154100 DRYER SCREW
134587700 134587700 DRYER THERMISTOR
5304500508 5304500508 ELBOW
5304500834 5304500834 ENERGY GUIDE
808702602 808702602 EPS PLUG
5304517325 5304517325 GAS DRYER IGNITOR ASSEMBLY
137551901 137551901 GASKET
5304488483 5304488483 GROMMET
137303800 137303800 HARNESS
5304500522 5304500522 HARNESS
5304500474 5304500474 HARNESS
137329400 137329400 HARNESS
137352600 137352600 HARNESS
137470800 137470800 HEATER
137470900 137470900 HINGE BAR
137469900 137469900 HINGE BAR
5304516370 5304516370 HOSE
5304500517 5304500517 HOSE
5304500416 5304500416 HOSE
137551600 137551600 HOUSING
5304500426 5304500426 HUB
5304500830 5304500830 INSTALLATION
5304500814 5304500814 KNOB
5304500815 5304500815 KNOB
137362600 137362600 LAUNDRY APPLIANCE CABINET PIN

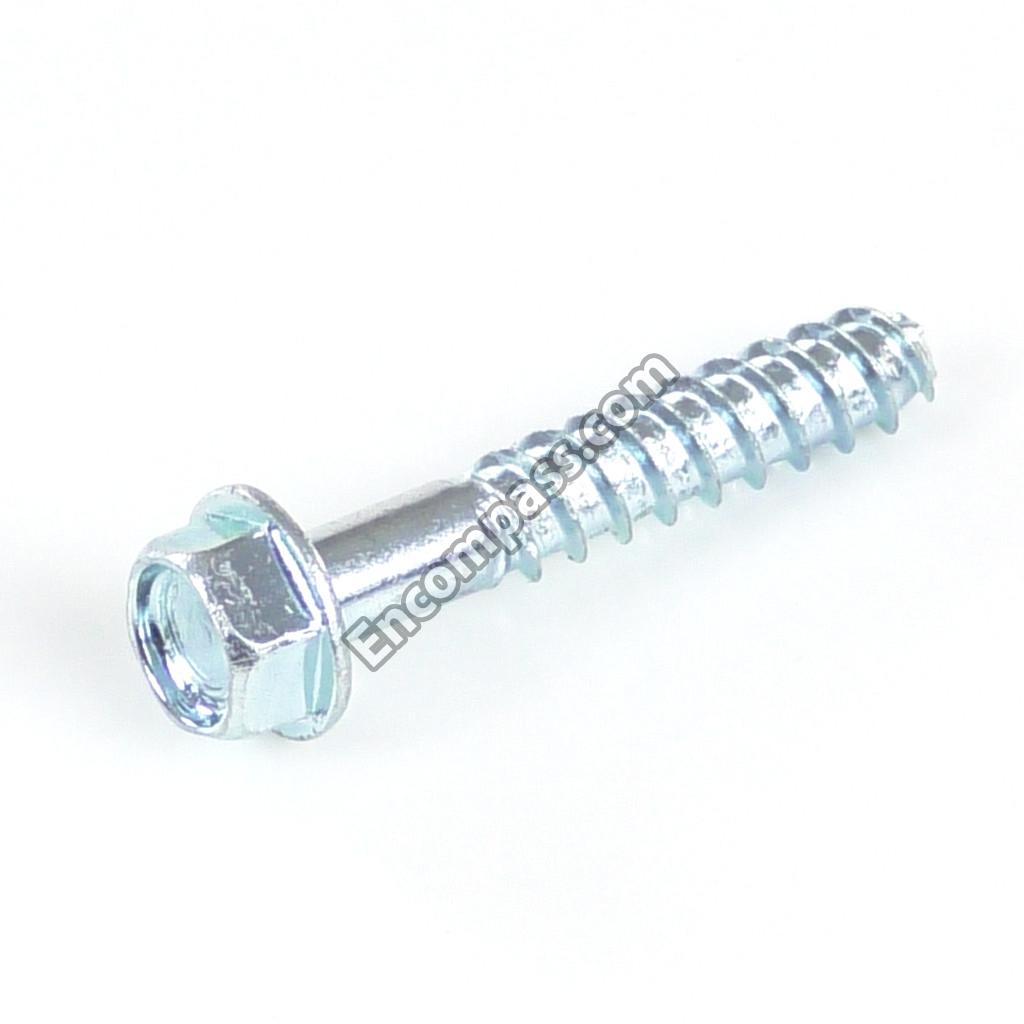

131202300 131202300 LAUNDRY APPLIANCE SCREW, #10-16 X 5/8-IN
134402900 134402900 LAUNDRY APPLIANCE SCREW, #6-19 X 13/20-IN
134156200 134156200 LAUNDRY APPLIANCE SCREW, #8-18 X 11/25-IN
131168200 131168200 LAUNDRY APPLIANCE SCREW, #8-18 X 31/100-IN
131346401 131346401 LAUNDRY CENTER CABINET PANEL GUIDE PIN
5304488479 5304488479 LAUNDRY CENTER CLAMP
137493400 137493400 LAUNDRY CENTER CYCLE SELECTOR SWITCH
131295200 131295200 LAUNDRY CENTER DRYER AIR DUCT SEAL
134535300 134535300 LAUNDRY CENTER DRYER DOOR INSULATION
137552902 137552902 LAUNDRY CENTER DRYER DRUM BAFFLE
5304511971 5304511971 LAUNDRY CENTER DRYER ELECTRONIC CONTROL BOARD
5303309493 5303309493 LAUNDRY CENTER DRYER GAS VALVE BRACKET
3205241 3205241 LAUNDRY CENTER DRYER IDLER SPRING
137576600 137576600 LAUNDRY CENTER DRYER LIGHT HOLE PLUG (WHITE)
PCK3100 PCK3100 LAUNDRY CENTER DRYER LP CONVERSION KIT
5304406099 5304406099 LAUNDRY CENTER DRYER SAFETY THERMOSTAT
5304500455 5304500455 LAUNDRY CENTER ELECTRONIC CONTROL BOARD
134500500 134500500 LAUNDRY CENTER POWER CORD
131422200 131422200 LAUNDRY CENTER RUBBER FOOT PAD, REAR
5304502598 5304502598 LAUNDRY CENTER SCREW, #10-32 X 3/4-IN
3204368 3204368 LAUNDRY CENTER SCREW, #6-20 X 3/8-IN
808726001 808726001 LAUNDRY CENTER WASHER AGITATOR
5304515673 5304515673 LAUNDRY CENTER WASHER DRAIN PUMP
134890500 134890500 LAUNDRY CENTER WASHER LID SPRING
5304492254 5304492254 LAUNDRY CENTER WASHER MODE ACTUATOR
5304501142 5304501142 LAUNDRY CENTER WASHER MOTOR AND GEAR CASE
5304500464 5304500464 LAUNDRY CENTER WASHER SUSPENSION ROD
5304500580 5304500580 LAUNDRY CENTER WASHER SUSPENSION ROD CAP
809090501 809090501 LAUNDRY CENTER WASHER TUB RING
5304504885 5304504885 LAUNDRY CENTER WASHER WATER-LEVEL SENSOR
5304500823 5304500823 LAUNDRY CENTER WASHER WIRE HARNESS
5304500476 5304500476 LAUNDRY CENTER WIRE HARNESS
5304500848 5304500848 LID
5304516871 5304516871 LINT TRAP,GRAY
137455500 137455500 LOWER PAN ASSEMBLY
131367110 131367110 MOTOR CRADLE
134196602 134196602 MOTOR,DRYER DRIVE,WITH PULLEY
137490900 137490900 PAN
137190811 137190811 PANEL
5304501345 5304501345 PANEL
137408404 137408404 PANEL
137365112 137365112 PANEL
137546911 137546911 PANEL
137510511 137510511 PANEL
137511817 137511817 PANEL
5304488480 5304488480 PANEL
5304500431 5304500431 PANEL
131883301 131883301 PANEL
137510411 137510411 PANEL
8015112 8015112 PIPE
5304500463 5304500463 PLATE
137360821 137360821 PROTECTOR
131731500 131731500 RATCH FASTNR
215822000 215822000 REFRIGERATION APPLIANCE SCREW
5304464772 5304464772 REFRIGERATOR WIRE TIE
5995679767 5995679767 REPAIR PARTS
809088904 809088904 RING,BALANCE ASMY

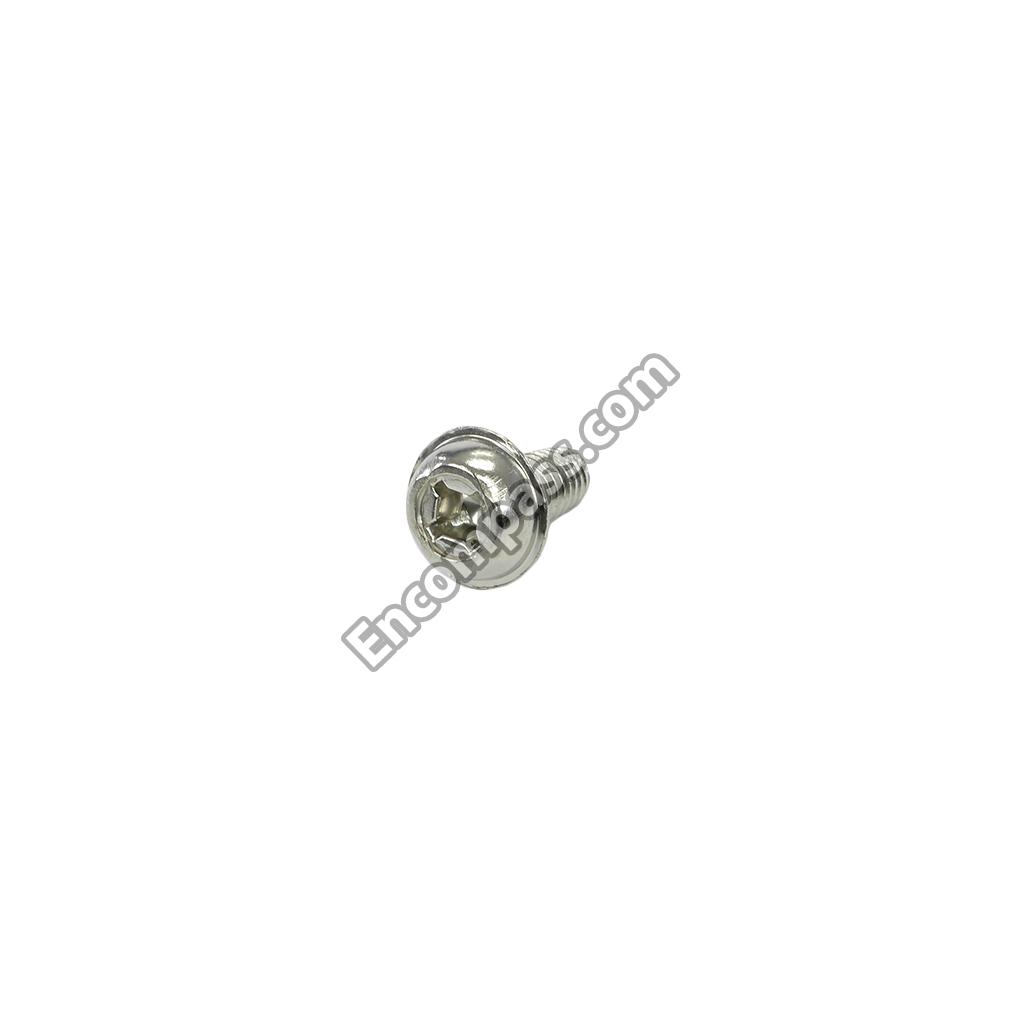

5304500475 5304500475 SCREW
5304500554 5304500554 SCREW
5304500571 5304500571 SCREW
5304500556 5304500556 SCREW
5304500575 5304500575 SCREW
5304501446 5304501446 SCREW
5304504896 5304504896 SCREW
5304500432 5304500432 SCREW
5304500572 5304500572 SCREW
134203900 134203900 SCREW
131302800 131302800 SCREW
137329800 137329800 SCREW 12-24
137390900 137390900 SEAL
137604900 137604900 SEAL
5303937182 5303937182 SEAL
5303281153 5303281153 SHAFT,DRUM SUPPORT,BALLHITCH
134287301 134287301 SHIELD
137539100 137539100 SHIELD
131731401 131731401 SHIELD-ACCESS
137385100 137385100 SIPHON ANTI
137513711 137513711 STRIKER
137052700 137052700 SWITCH
137205200 137205200 SWITCH
134040803 134040803 SWITCH
5304502597 5304502597 TECH DATA
5304520189 5304520189 TUB,OUTER ASMY
5304500829 5304500829 USE AND CARE GUIDE
137205500 137205500 WASHER BLEACH DISPENSER BEZEL
5304500534 5304500534 WASHER DETERGENT DISPENSER BEZEL
5303207102 5303207102 WASHER DOOR STRIKE
5303309503 5303309503 WASHER DRAIN HOSE SUPPORT CLIP
808653801 808653801 WASHER ELECTRONIC CONTROL BOARD
134548800 134548800 WASHER LEVELING LEG
137353303 137353303 WASHER LID LOCK
131205500 131205500 WASHER SCREW
131205100 131205100 WASHER SCREW
131205400 131205400 WASHER SCREW
5304500585 5304500585 WASHER SEAL
5304500427 5304500427 WASHER SPIN BASKET ASSEMBLY
3204374 3204374 WASHER TOP PANEL BRACKET
5304508358 5304508358 WASHER TUB FILL HOSE
5304500456 5304500456 WASHER USER INTERFACE
808676601 808676601 WASHER WASHPLATE CAP
137465101 137465101 WASHER WATER INLET VALVE
