Model Image
Manufacturer

Whirlpool

Model Number

59679147991

Description

Bottom-mount Refrigerator

Interactive Exploded View

Parts List

Part Number Description
WP489069 WP489069 APPLIANCE SCREW
10354001 10354001 BRAKE FOOT
WP67004975 WP67004975 BUSHING- D
W10833902 W10833902 CLAMP
M0102303 M0102303 CLAMP
10493302 10493302 COVER-FZ L
WPW10348409 WPW10348409 DISHWASHER SCREW
10427716 10427716 EVAPORATOR SHIELD
M0753001 M0753001 FITTING
WPB8381501 WPB8381501 GASKET DRAIN TUBE
12027201 12027201 GLIDE (R.H
12027101 12027101 GLIDE, LEFT
WP10474806 WP10474806 GRILLE- TO
B5733302 B5733302 GROUND CLIP
R0183120 R0183120 ICE STRIPPER
10462502 10462502 INTERIOR PANEL
D7795826 D7795826 KNOB, WHITE
R0170059 R0170059 LOW-SIDE
10481210 10481210 PAN CONDENSER
10450901 10450901 REFRIGERATOR AXLE
10514002 10514002 REFRIGERATOR BAND
10423129 10423129 REFRIGERATOR BIN
10855401 10855401 REFRIGERATOR BLADE
12271401 12271401 REFRIGERATOR BRACKET
10582501 10582501 REFRIGERATOR BRACKET
10503201 10503201 REFRIGERATOR BRACKET
C8964401 C8964401 REFRIGERATOR BUSHING
67004412A 67004412A REFRIGERATOR BUTTER STORAGE TRAY
M0310729 M0310729 REFRIGERATOR BUTTON PLUG
M0310330 M0310330 REFRIGERATOR BUTTON PLUG
M0310308 M0310308 REFRIGERATOR BUTTON PLUG
12285501 12285501 REFRIGERATOR CAP
C8931608 C8931608 REFRIGERATOR CAPACITOR
M0108105 M0108105 REFRIGERATOR CLAMP
10319801 10319801 REFRIGERATOR CLIP
10623002 10623002 REFRIGERATOR CLIP
B5720303 B5720303 REFRIGERATOR CLIP
B5667304 B5667304 REFRIGERATOR CLIP
10547001 10547001 REFRIGERATOR CLIP
10202001 10202001 REFRIGERATOR CLIP
12049710 12049710 REFRIGERATOR COMPRESSOR
W10309990 W10309990 REFRIGERATOR COMPRESSOR
M0221523 M0221523 REFRIGERATOR COMPRESSOR MOUNTING SCREW
WPW10189190 WPW10189190 REFRIGERATOR COMPRESSOR OVERLOAD AND START RELAY

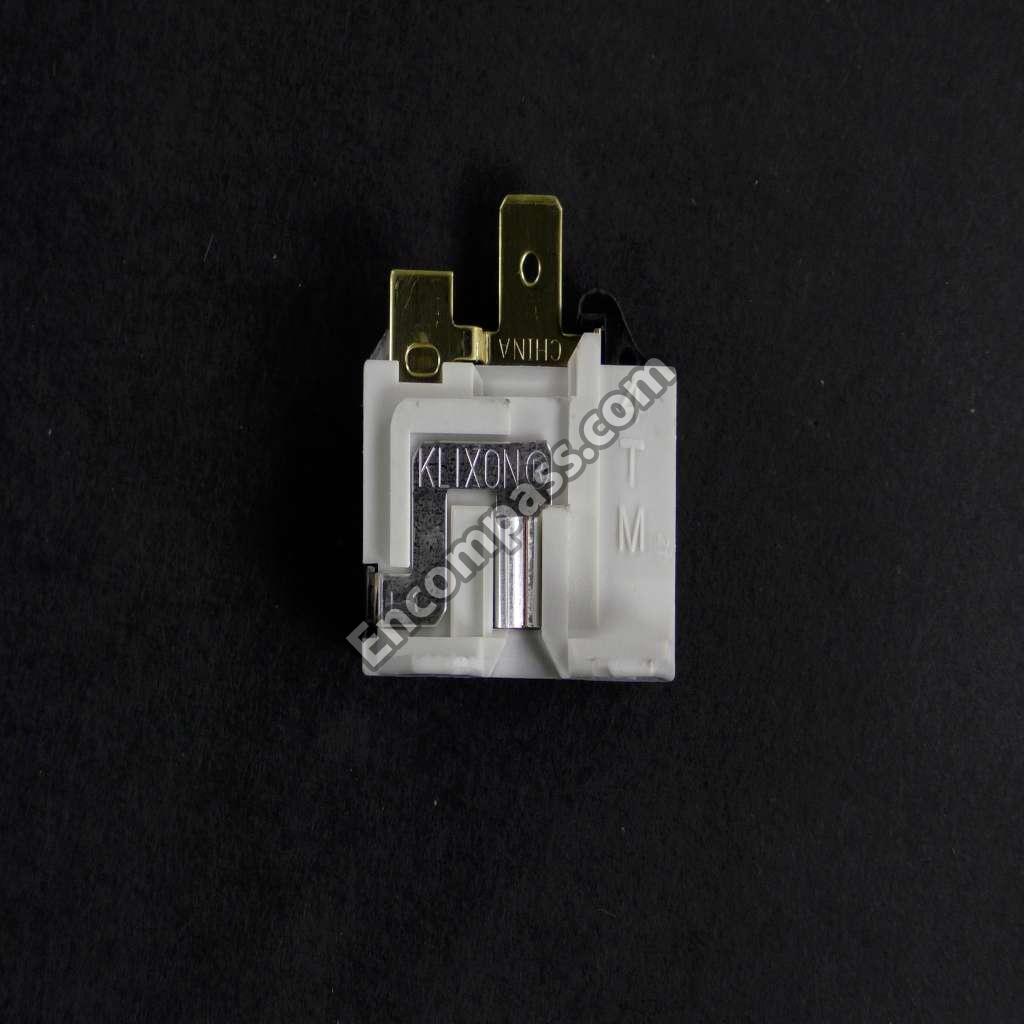

WP4344040 WP4344040 REFRIGERATOR COMPRESSOR OVERLOAD PROTECTOR
833697 833697 REFRIGERATOR CONDENSER FAN MOTOR
10244904 10244904 REFRIGERATOR COUPLING
10444709 10444709 REFRIGERATOR COVER
D7687535 D7687535 REFRIGERATOR COVER
12056301 12056301 REFRIGERATOR COVER
10485406 10485406 REFRIGERATOR COVER
10503102 10503102 REFRIGERATOR COVER
10584805 10584805 REFRIGERATOR COVER
D7297604 D7297604 REFRIGERATOR COVER
WP10432015 WP10432015 REFRIGERATOR CRISPER DRAWER
WP10370035 WP10370035 REFRIGERATOR CRISPER DRAWER COVER INSERT
10461901 10461901 REFRIGERATOR CRISPER DRAWER COVER SUPPORT POST
WP10530204 WP10530204 REFRIGERATOR CRISPER SHELF SEAL
R0156839 R0156839 REFRIGERATOR CUP
10423414 10423414 REFRIGERATOR DAIRY DOOR
R0161050 R0161050 REFRIGERATOR DAMPER CONTROL
WP10442411 WP10442411 REFRIGERATOR DEFROST BI-METAL THERMOSTAT
WP10428409 WP10428409 REFRIGERATOR DEFROST HEATER

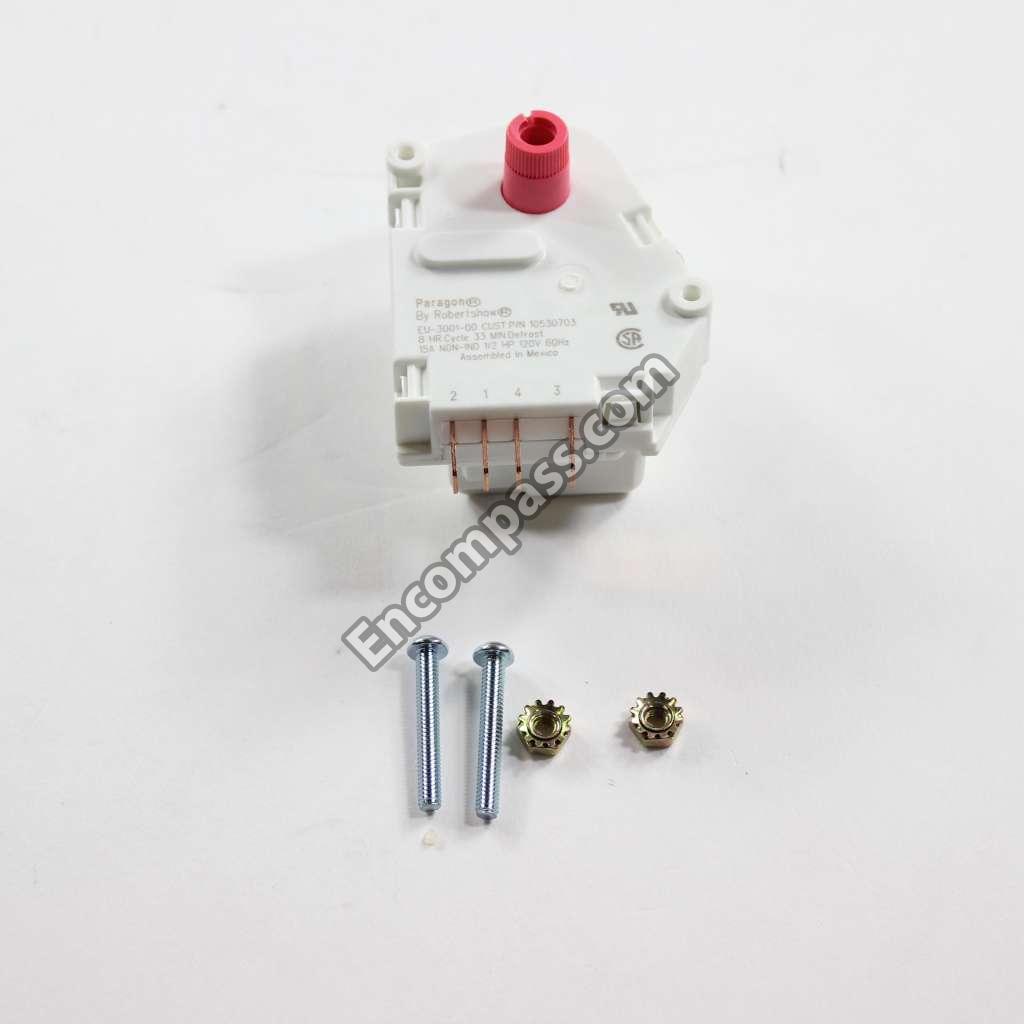

10530703 10530703 REFRIGERATOR DEFROST TIMER
R0131577 R0131577 REFRIGERATOR DEFROST TIMER
10961001 10961001 REFRIGERATOR DOOR BUSHING
WP12248201 WP12248201 REFRIGERATOR DOOR HANDLE MOUNTING SCREW
WP67004977 WP67004977 REFRIGERATOR DOOR HINGE BUSHING
WPM0274057 WPM0274057 REFRIGERATOR DOOR HINGE NYLON WASHER
WP67006744 WP67006744 REFRIGERATOR DOOR HINGE PIN
67007018 67007018 REFRIGERATOR DOOR HINGE PIN, LOWER
WP67006380 WP67006380 REFRIGERATOR DOOR HINGE SCREW
WP67001130 WP67001130 REFRIGERATOR DOOR HOLE PLUG
WPM0219730 WPM0219730 REFRIGERATOR DOOR INNER LINER SCREW
876370 876370 REFRIGERATOR DOOR INSULATION, 2-PIECE

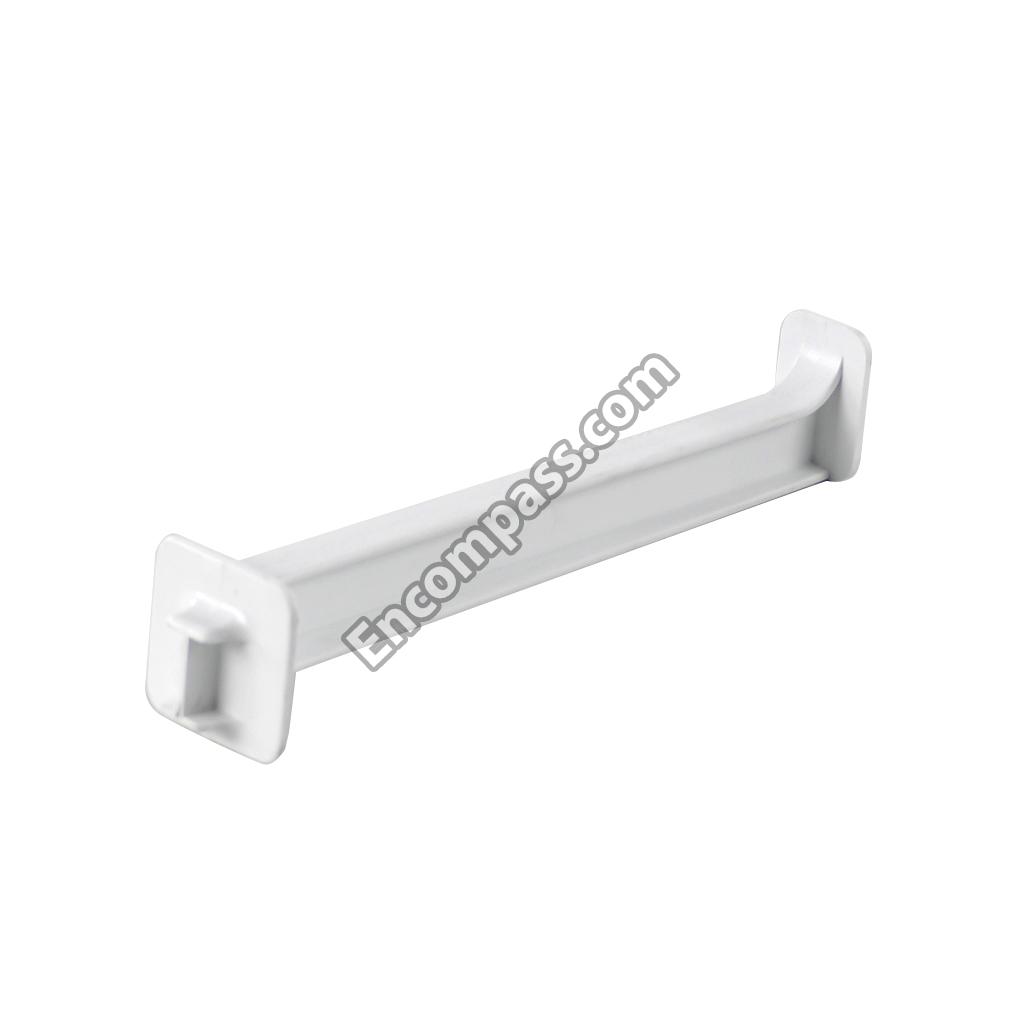

WP10183120 WP10183120 REFRIGERATOR DOOR SHELF RAIL
WP67003779 WP67003779 REFRIGERATOR DOOR STOP (WHITE)
W10815413 W10815413 REFRIGERATOR DRAIN FUNNEL
10427405 10427405 REFRIGERATOR DRAIN PAN
10513302 10513302 REFRIGERATOR DRAIN TUBE
10486104 10486104 REFRIGERATOR DRIP TRAY
10638601 10638601 REFRIGERATOR DUCT
10436404 10436404 REFRIGERATOR EGG BIN COVER
R0183119 R0183119 REFRIGERATOR EJECTOR
10463201 10463201 REFRIGERATOR ELBOW
R0170047 R0170047 REFRIGERATOR EVAPORATOR
W10116797 W10116797 REFRIGERATOR EVAPORATOR FAN BLADE

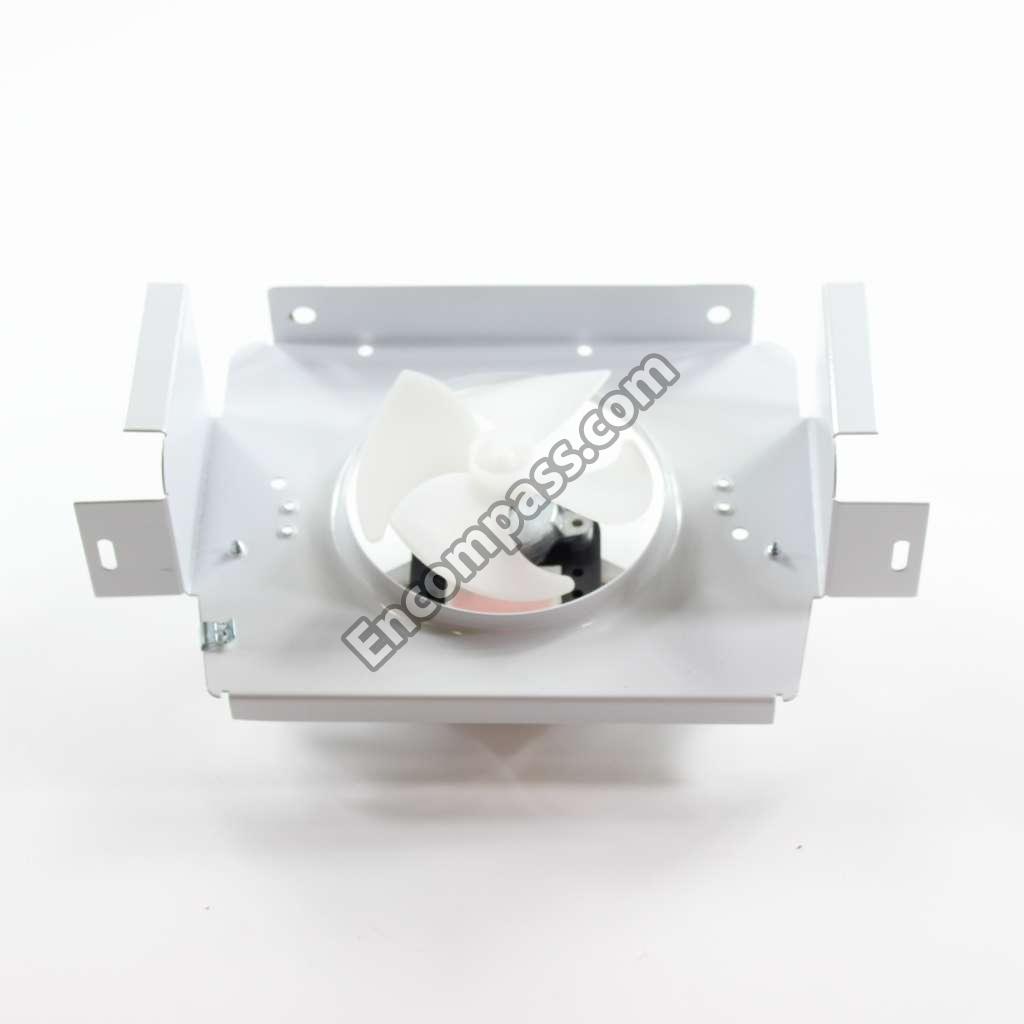

WP12013209Q WP12013209Q REFRIGERATOR EVAPORATOR FAN MOTOR
10428101 10428101 REFRIGERATOR EVAPORATOR HEATER CLIP
10459806 10459806 REFRIGERATOR EXTRUSION
10946008 10946008 REFRIGERATOR EXTRUSION
10459928 10459928 REFRIGERATOR EXTRUSION
10304111 10304111 REFRIGERATOR EXTRUSION
B5742604 B5742604 REFRIGERATOR FAN BLADE
WPB2150504 WPB2150504 REFRIGERATOR FILTER DRYER
12258307W 12258307W REFRIGERATOR FOAM
12258307L 12258307L REFRIGERATOR FOAM
10485901 10485901 REFRIGERATOR FRAME
10485902 10485902 REFRIGERATOR FRAME
10460107 10460107 REFRIGERATOR FRAME
10460108 10460108 REFRIGERATOR FRAME
10537402W 10537402W REFRIGERATOR FREEZER DOOR
10537404L 10537404L REFRIGERATOR FREEZER DOOR

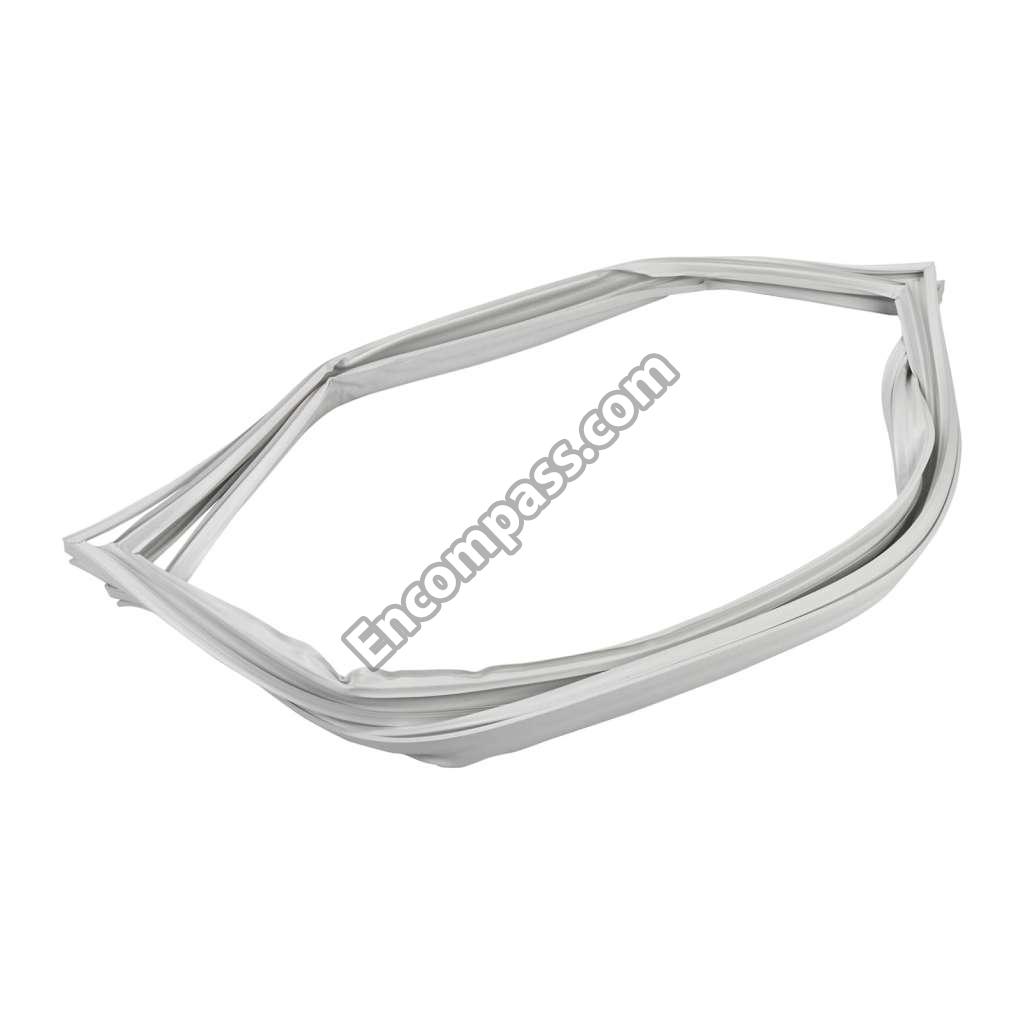

WP12550116Q WP12550116Q REFRIGERATOR FREEZER DOOR GASKET

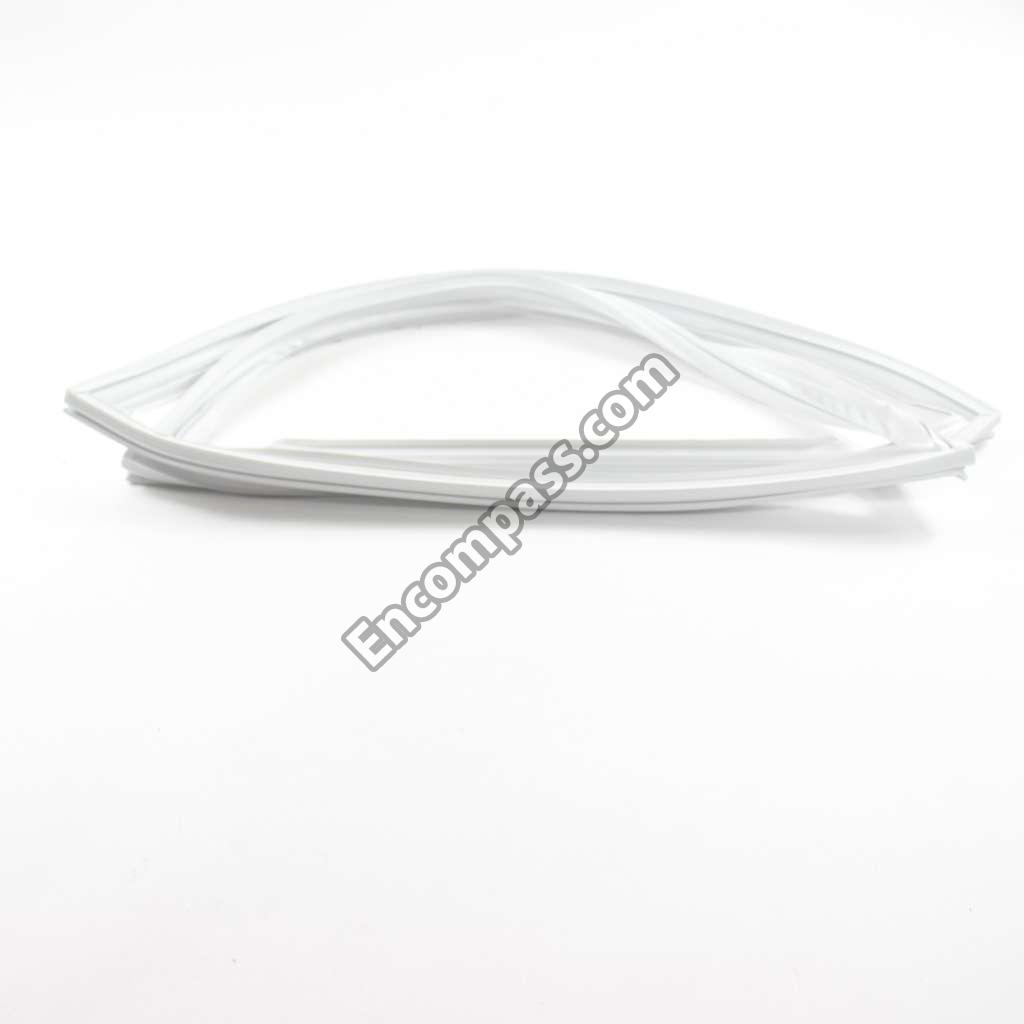

WP12550115Q WP12550115Q REFRIGERATOR FREEZER DOOR GASKET (WHITE)
WP67005140 WP67005140 REFRIGERATOR FREEZER DOOR HANDLE (WHITE)
12285404 12285404 REFRIGERATOR FREEZER HANDLE
12285405 12285405 REFRIGERATOR FREEZER HANDLE
D7753903 D7753903 REFRIGERATOR FUNNEL
WP628379 WP628379 REFRIGERATOR FUSE CLIP
A3189320 A3189320 REFRIGERATOR GASKET
10456838 10456838 REFRIGERATOR GASKET
10456837 10456837 REFRIGERATOR GASKET
B5759611 B5759611 REFRIGERATOR GASKET
A3030353 A3030353 REFRIGERATOR GASKET
10442702 10442702 REFRIGERATOR GASKET
12216720 12216720 REFRIGERATOR GLASS
10474805 10474805 REFRIGERATOR GRILLE
10502401 10502401 REFRIGERATOR GRILLE
10835901 10835901 REFRIGERATOR GROMMET
12442501 12442501 REFRIGERATOR GROMMET
10699301 10699301 REFRIGERATOR GROMMET
67003493 67003493 REFRIGERATOR GROMMET
M0581001 M0581001 REFRIGERATOR GROMMET SCREW
10508511 10508511 REFRIGERATOR HANDLE
12458201 12458201 REFRIGERATOR HARNESS
12077303 12077303 REFRIGERATOR HINGE
10585505 10585505 REFRIGERATOR HINGE
12446501 12446501 REFRIGERATOR HINGE
10585508 10585508 REFRIGERATOR HINGE
10584802 10584802 REFRIGERATOR HINGE COVER
WP627843 WP627843 REFRIGERATOR ICE MAKER CUBE EJECTOR
WP2182124 WP2182124 REFRIGERATOR ICE MAKER CUBE EJECTOR
WP628356 WP628356 REFRIGERATOR ICE MAKER FILL CUP

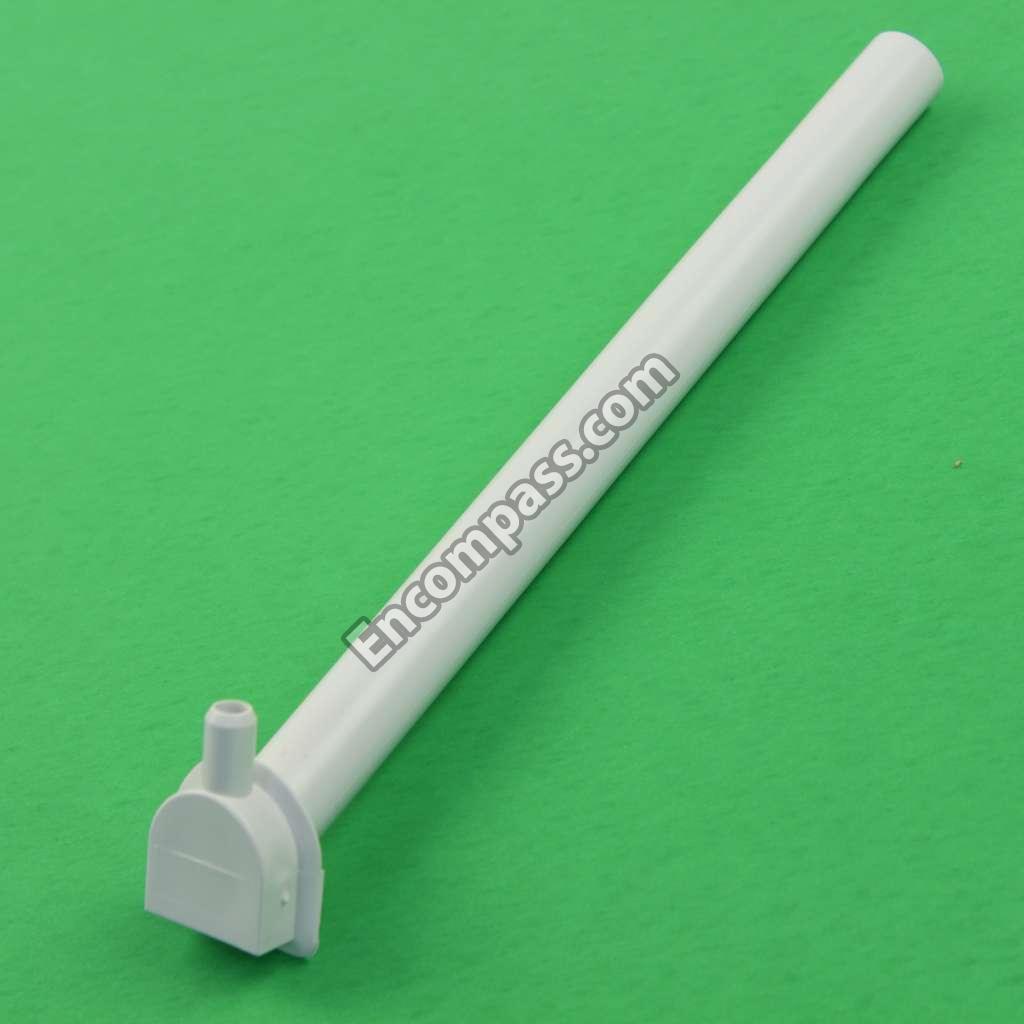

WPW10137519 WPW10137519 REFRIGERATOR ICE MAKER FILL TUBE
WP2195914 WP2195914 REFRIGERATOR ICE MAKER MODULE HOUSING
WP2315522 WP2315522 REFRIGERATOR ICE MAKER THERMOSTAT RETAINER
12328501 12328501 REFRIGERATOR INSERT
C8902601 C8902601 REFRIGERATOR INSERT CONTROL
B0523588 B0523588 REFRIGERATOR INSULATION
10663001 10663001 REFRIGERATOR INSULATION
12435701 12435701 REFRIGERATOR LADDER
12435801 12435801 REFRIGERATOR LADDER
A0282803 A0282803 REFRIGERATOR LAMP, 40-WATT, 115 TO 125-VOLT
W11177593 W11177593 REFRIGERATOR LEVELING LEG
D7714408 D7714408 REFRIGERATOR LIGHT SOCKET

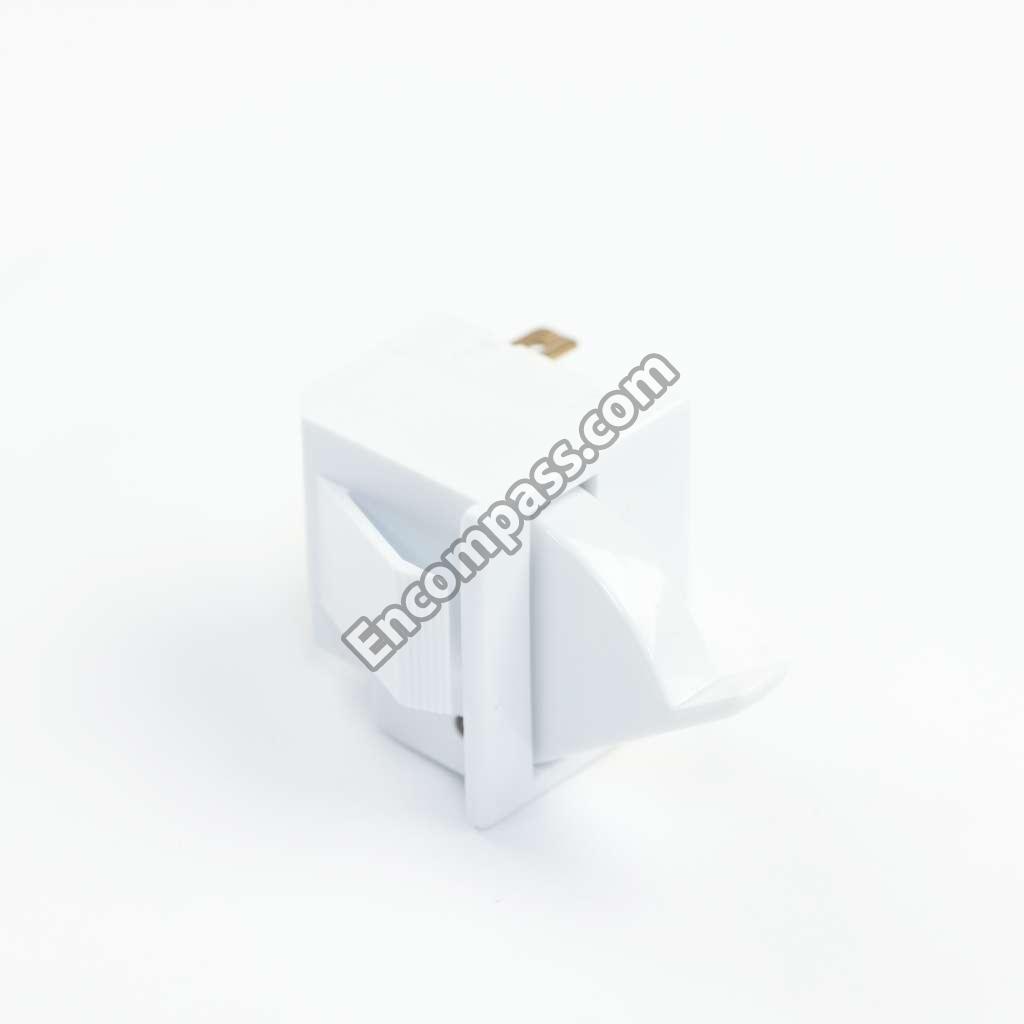

WPC3680310 WPC3680310 REFRIGERATOR LIGHT SWITCH
12324801 12324801 REFRIGERATOR LINER
10417013 10417013 REFRIGERATOR MEAT PAN
12442201 12442201 REFRIGERATOR MOTOR
10884504 10884504 REFRIGERATOR MOTOR
WPM0500703 WPM0500703 REFRIGERATOR O-RING SEAL
10377015 10377015 REFRIGERATOR OVERLOAD
10937024 10937024 REFRIGERATOR OWNER'S MANUAL
10075035 10075035 REFRIGERATOR PARTS LIST
10351001 10351001 REFRIGERATOR PIN
10200801 10200801 REFRIGERATOR PIN
M0310305 M0310305 REFRIGERATOR PLUG
10686402 10686402 REFRIGERATOR PLUG
M0310730 M0310730 REFRIGERATOR PLUG
10428001 10428001 REFRIGERATOR PLUG
M0310338 M0310338 REFRIGERATOR PLUG
10686401 10686401 REFRIGERATOR PLUG
12442401 12442401 REFRIGERATOR POST
10916502 10916502 REFRIGERATOR POWER CORD
R0191094 R0191094 REFRIGERATOR RETAINER
10183117 10183117 REFRIGERATOR RETAINER
10450701 10450701 REFRIGERATOR ROLLER
WP65889-4 WP65889-4 REFRIGERATOR RUN CAPACITOR
M0239229 M0239229 REFRIGERATOR SCREW
M0239216 M0239216 REFRIGERATOR SCREW
M0238731 M0238731 REFRIGERATOR SCREW
M0238642 M0238642 REFRIGERATOR SCREW
M0238616 M0238616 REFRIGERATOR SCREW
M0233847 M0233847 REFRIGERATOR SCREW
M0226233 M0226233 REFRIGERATOR SCREW
M0224416 M0224416 REFRIGERATOR SCREW
M0220617 M0220617 REFRIGERATOR SCREW
M0219704 M0219704 REFRIGERATOR SCREW
M0216716 M0216716 REFRIGERATOR SCREW
M0214931 M0214931 REFRIGERATOR SCREW
M0211533 M0211533 REFRIGERATOR SCREW
67006425 67006425 REFRIGERATOR SCREW
M0238846 M0238846 REFRIGERATOR SCREW
M0219711 M0219711 REFRIGERATOR SCREW
M0216531 M0216531 REFRIGERATOR SCREW
WP489355 WP489355 REFRIGERATOR SCREW
W10709801 W10709801 REFRIGERATOR SCREW
WP489464 WP489464 REFRIGERATOR SCREW
WP489399 WP489399 REFRIGERATOR SCREW
WP67006715 WP67006715 REFRIGERATOR SCREW
M0260242 M0260242 REFRIGERATOR SCREW
M0204339 M0204339 REFRIGERATOR SCREW BOLT
M0204339 M0204339 REFRIGERATOR SCREW BOLT
R9800670 R9800670 REFRIGERATOR SCREW KIT, 2-PIECE
12459401 12459401 REFRIGERATOR SHELF
10459927 10459927 REFRIGERATOR SHELF
12056201 12056201 REFRIGERATOR SHIELD
10266402 10266402 REFRIGERATOR SHIELD
10562205 10562205 REFRIGERATOR SHIM
10447904 10447904 REFRIGERATOR SHIM
10447903 10447903 REFRIGERATOR SHIM
10562206 10562206 REFRIGERATOR SHIM
10448501 10448501 REFRIGERATOR SHIM
10448502 10448502 REFRIGERATOR SHIM
10448503 10448503 REFRIGERATOR SHIM
10426911 10426911 REFRIGERATOR SHROUD
10797501 10797501 REFRIGERATOR SLIDE
WPA1055105 WPA1055105 REFRIGERATOR SPRING
10447108 10447108 REFRIGERATOR STOP
10447107 10447107 REFRIGERATOR STOP
R0183121 R0183121 REFRIGERATOR SUPPORT
10391302 10391302 REFRIGERATOR SUPPORT
12329502 12329502 REFRIGERATOR TAG
C8946703 C8946703 REFRIGERATOR TEMPERATURE CONTROL

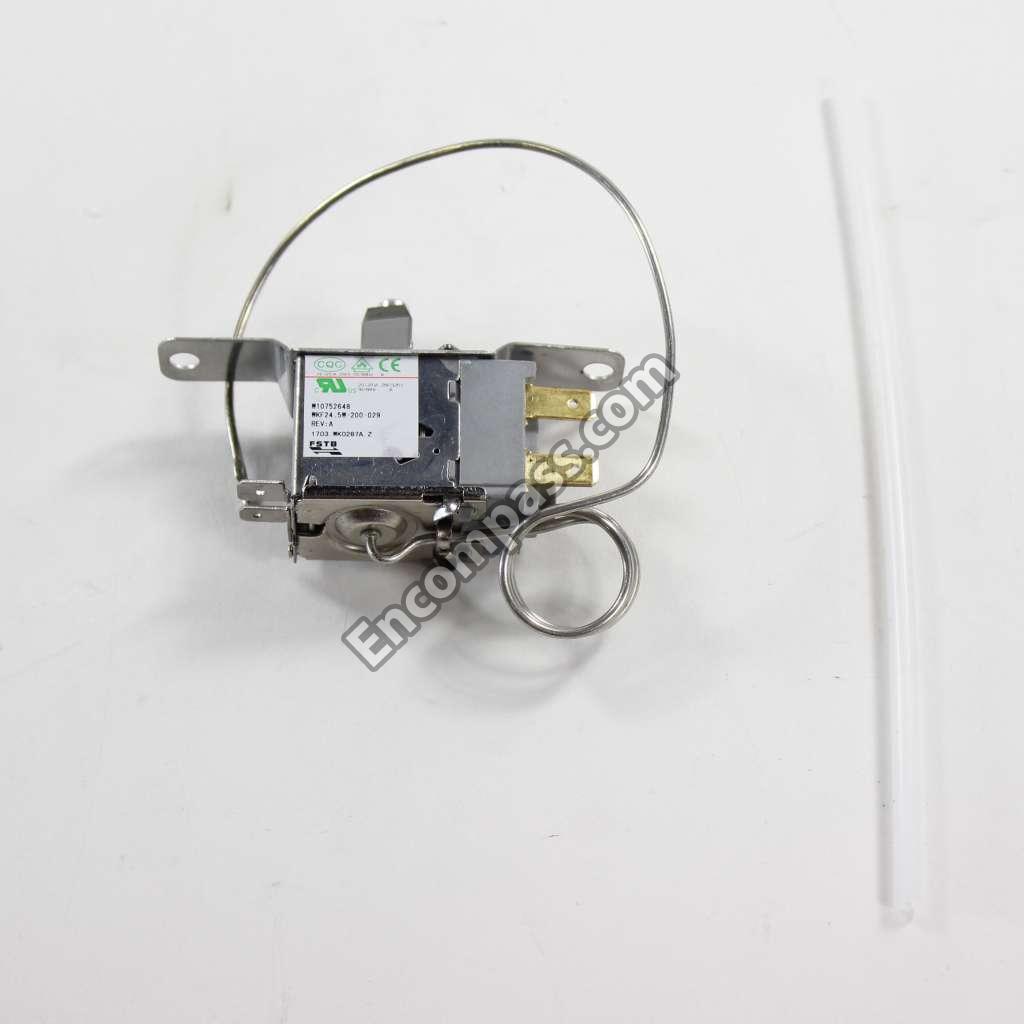

W10752646 W10752646 REFRIGERATOR TEMPERATURE CONTROL THERMOSTAT
10757301 10757301 REFRIGERATOR TERMINAL COVER
10442407 10442407 REFRIGERATOR THERMOSTAT
WP10551502 WP10551502 REFRIGERATOR TOE GRILLE CLIP
10436506 10436506 REFRIGERATOR TRAY
12273402 12273402 REFRIGERATOR TRIM
12273513 12273513 REFRIGERATOR TRIM
12443302 12443302 REFRIGERATOR TRIM
12443301 12443301 REFRIGERATOR TRIM
B5705323 B5705323 REFRIGERATOR TUBE

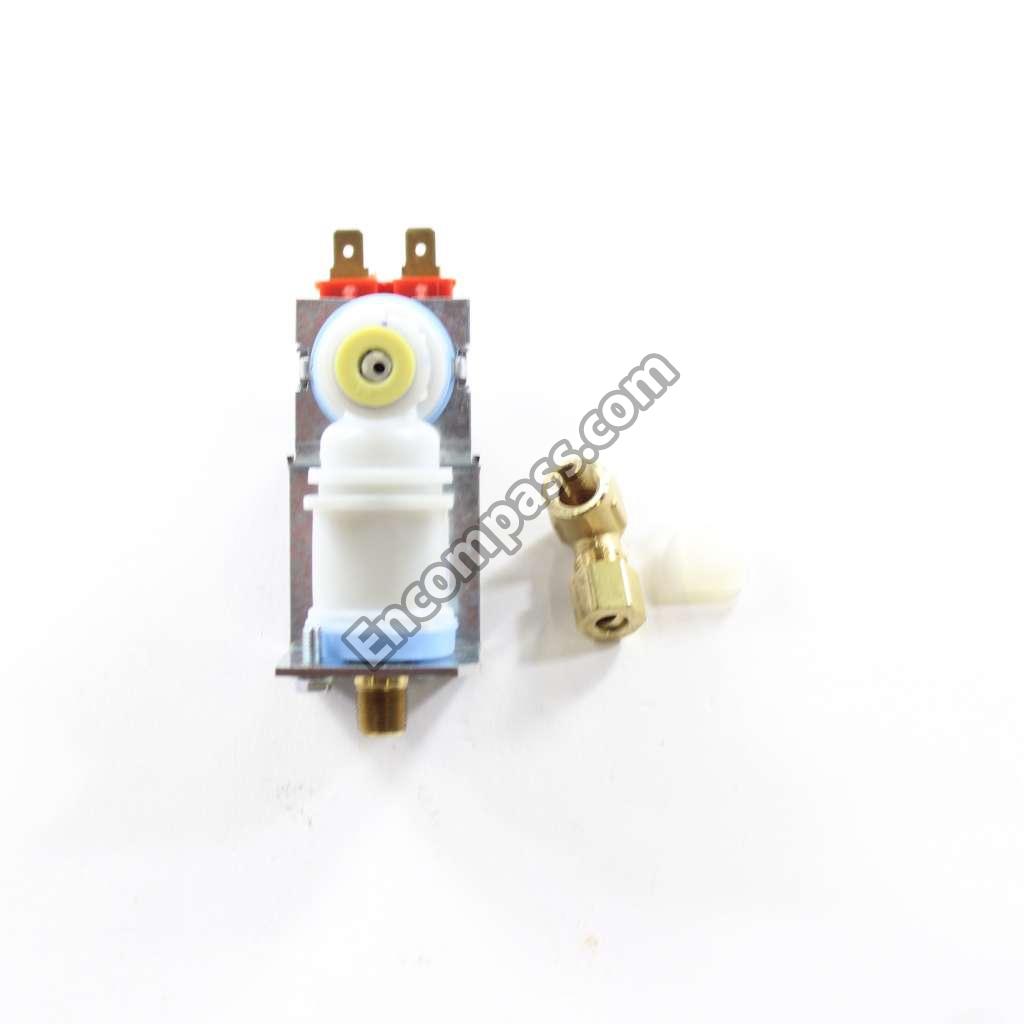

W10833899 W10833899 REFRIGERATOR WATER INLET VALVE
W11033771 W11033771 REFRIGERATOR WATER TUBE FITTING
WP627018 WP627018 REFRIGERATOR WATER TUBE FITTING
W10823511 W10823511 REFRIGERATOR WATER TUBING
WPM0114003 WPM0114003 REFRIGERATOR WATER TUBING CLIP
WPA3223101 WPA3223101 REFRIGERATOR WATER TUBING INSERT
10524606 10524606 REFRIGERATOR WATER VALVE
10525901 10525901 REFRIGERATOR WIRE HARNESS
WPM0104106 WPM0104106 REFRIGERATOR WIRE RETAINER
M0232903 M0232903 SCREW
M0211018 M0211018 SCREW
WP98165 WP98165 SCREW
M0253916 M0253916 SCREW
M0216705 M0216705 SCREW
M0211031 M0211031 SCREW-SM
10416912 10416912 SHELF- REF
M0103904 M0103904 SPEED CLAMP
A1055101 A1055101 SPRING
M0321202 M0321202 TIE
M0270538 M0270538 WASHER
10542701 10542701 WASHER
WP8182296 WP8182296 WASHER AGITATOR SCREW
