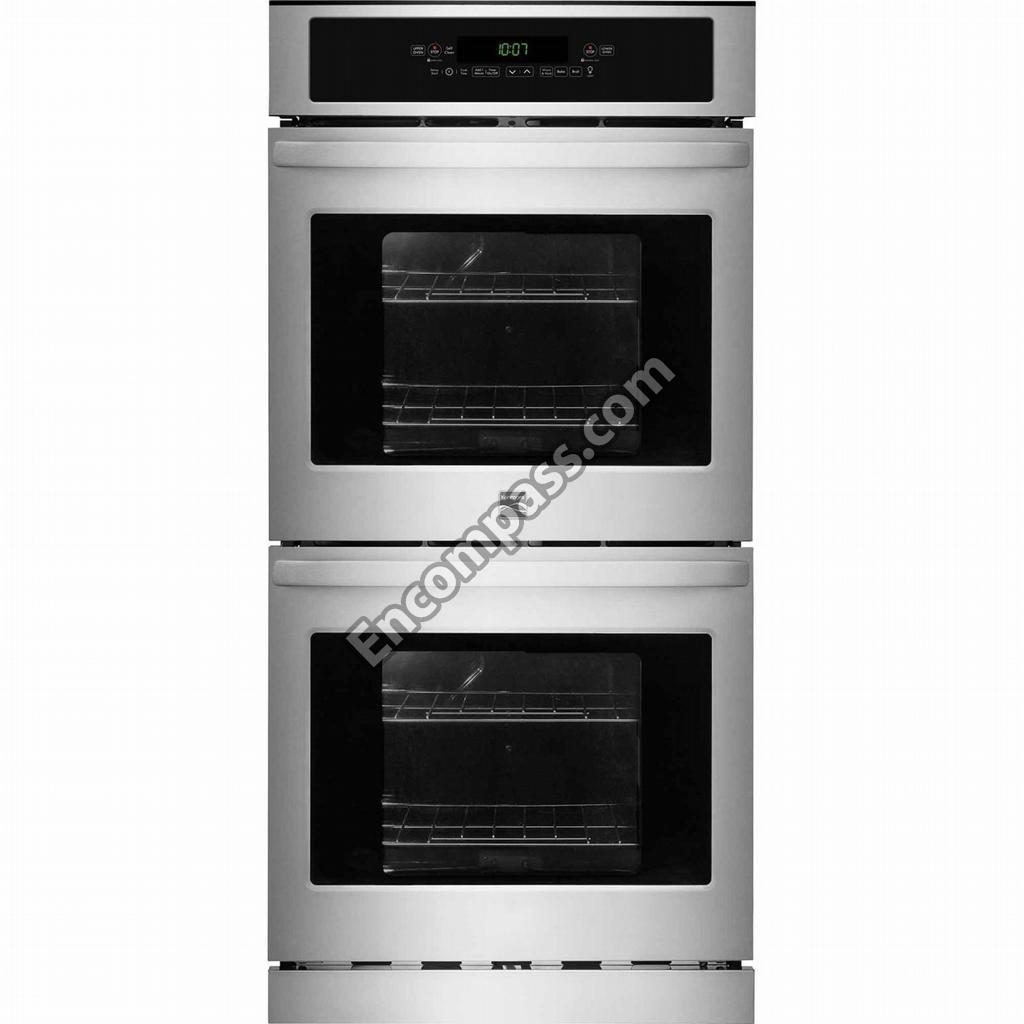

Model Image
Manufacturer

Electrolux

Model Number

79040253412

Description

Built-in Oven, Electric

Interactive Exploded View

Parts List

Part Number Description
139087100 139087100 ADAPTER
139087001 139087001 ADAPTER
316136900 316136900 APPLIANCE STAINLESS STEEL CLEANER, 1-OZ
5304506955 5304506955 BOX & WIRES ASSY
139032901 139032901 BRACKET
139074000 139074000 BRACKET
808130701 808130701 BRACKET
318579001 318579001 BRACKET
139085400 139085400 BRACKET
139021101 139021101 BRACKET
139028000 139028000 BRACKET
318382302 318382302 BRACKET,GLASS RETAINER ,(4)
316247900 316247900 COOKING APPLIANCE CONTROL BOARD SPACER
807192602 807192602 COVER
139030901 139030901 COVER
139029901 139029901 COVER
5304506964 5304506964 COVER,LATCH MOTOR
5304514711 5304514711 DOOR ASSEMBLY
5304514692 5304514692 DOOR ASSEMBLY
139027700 139027700 DUCT
139027600 139027600 DUCT
139086600 139086600 ELEMENT
139203500 139203500 ELEMENT
139085900 139085900 GLASS
139085800 139085800 GLASS
5304504213 5304504213 HARNESS
5304504214 5304504214 HARNESS
5304517285 5304517285 HARNESS ASSEMBLY,FILTER,ELECTR
5304514913 5304514913 HARNESS,WIRING,DOOR SWITCH
5304518993 5304518993 HARNESS,WIRING,SPEED SENSOR
809017802 809017802 INSTRUCTIONS
807193501 807193501 INSULATION
807193502 807193502 INSULATION
139028500 139028500 INSULATION
139028600 139028600 INSULATION
139013600 139013600 INSULATION
5304504226 5304504226 INSULATOR
139014509 139014509 LINER
5304504242 5304504242 OVEN OWNER'S MANUAL
139079602 139079602 OVEN TRIM
139029600 139029600 PANEL
5304494997 5304494997 RANGE BROIL PAN AND INSERT
316517600 316517600 RANGE DOOR BUMPER
316205500 316205500 RANGE HEX FLANGE NUT, #10-32 X 3/8-IN
318578506 318578506 RANGE HIGH-LIMIT THERMOSTAT
318370602 318370602 RANGE OVEN DOOR GLASS BRACKET
318242702 318242702 RANGE OVEN DOOR GLASS RETAINER BRACKET
318165800 318165800 RANGE OVEN DOOR SPACER
808136601 808136601 RANGE OVEN DOOR SWITCH
318946500 318946500 RANGE OVEN LIGHT BULB
139009000 139009000 RANGE OVEN LIGHT BULB
5304504897 5304504897 RANGE OVEN TEMPERATURE SENSOR
318317006 318317006 RANGE OVEN VENT TUBE ADAPTER
316114100 316114100 RANGE POWER CONTROL BOARD SUPPORT
5304414648 5304414648 RANGE SCREW
316001003 316001003 RANGE SCREW
316418900 316418900 RANGE SCREW
5303289910 5303289910 RANGE SCREW, #8 X 1-IN
318531800 318531800 RANGE SPACER
318370374 318370374 RANGE WIRE HARNESS
318561101 318561101 RECEPTACLE,HINGE,(2)
5995694162 5995694162 REPAIR PARTS CATALOG
809136201 809136201 SCREW
5304470882 5304470882 SCREW
807597603 807597603 SCREW
5304504225 5304504225 SCREW
5304401490 5304401490 SCREW
316021109 316021109 SCREW,8-18 X 0.5,BLACK
316021110 316021110 SCREW,HEX HEAD CUP PT,8-18 X 0
807108501 807108501 SEAL
807436802 807436802 SERVICE DATA SHEET
139083101 139083101 SHIELD
139029001 139029001 SHIELD
139029700 139029700 SHIELD
139033200 139033200 SHIELD
139028800 139028800 SHIELD
139000601 139000601 SHIELD,INSULATION,SIDES,(2)
139085701 139085701 SPACER,DOOR GLASS ,(2)
318172904 318172904 STIFFENER
5304409888 5304409888 TERMINAL BLOCK KIT
139014401 139014401 TRIM
139086401 139086401 TRIM
139086101 139086101 TRIM
139089000 139089000 TUBE
139086200 139086200 TUBE
139042600 139042600 TUBE ASSEMBLY
5304403015 5304403015 WALL OVEN BROIL ELEMENT SUPPORT HANGER
5304504215 5304504215 WALL OVEN CONTROL BOARD

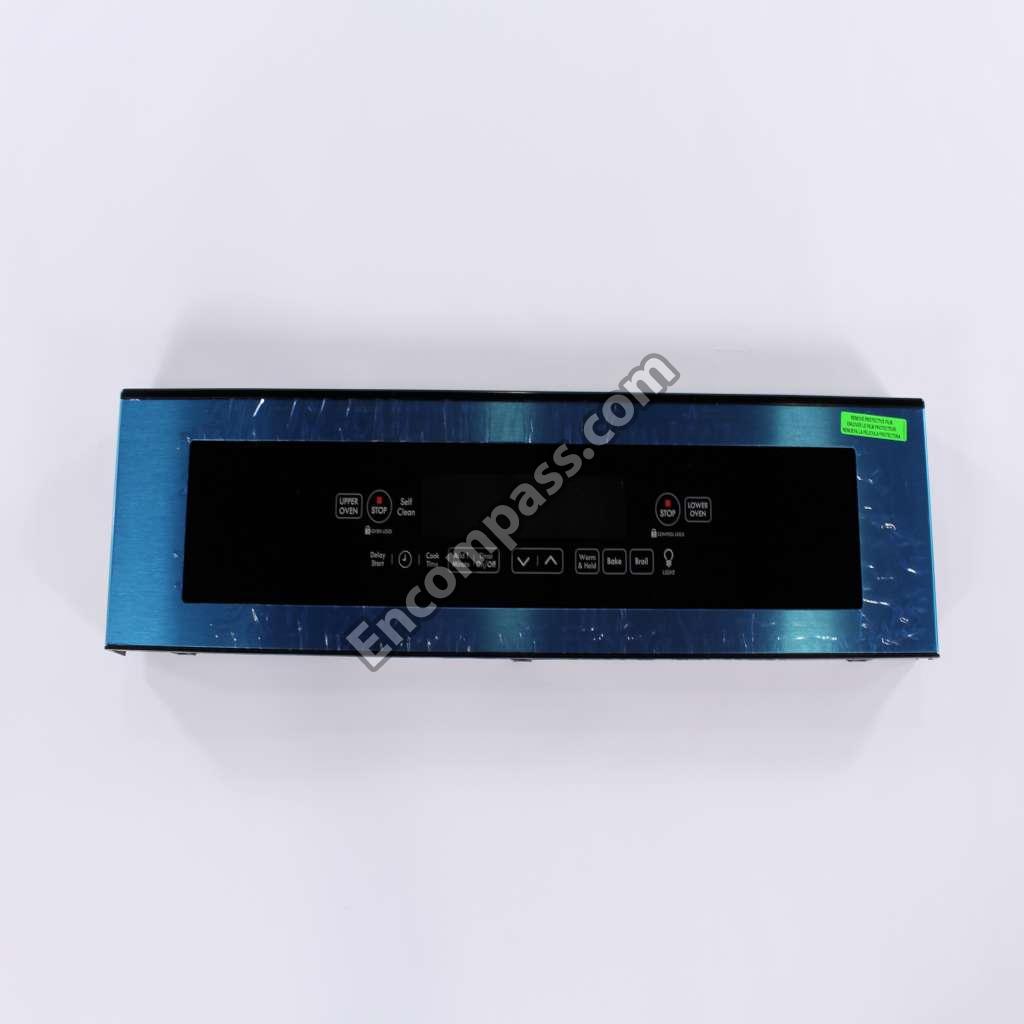

5304504316 5304504316 WALL OVEN CONTROL PANEL (BLACK AND STAINLESS)

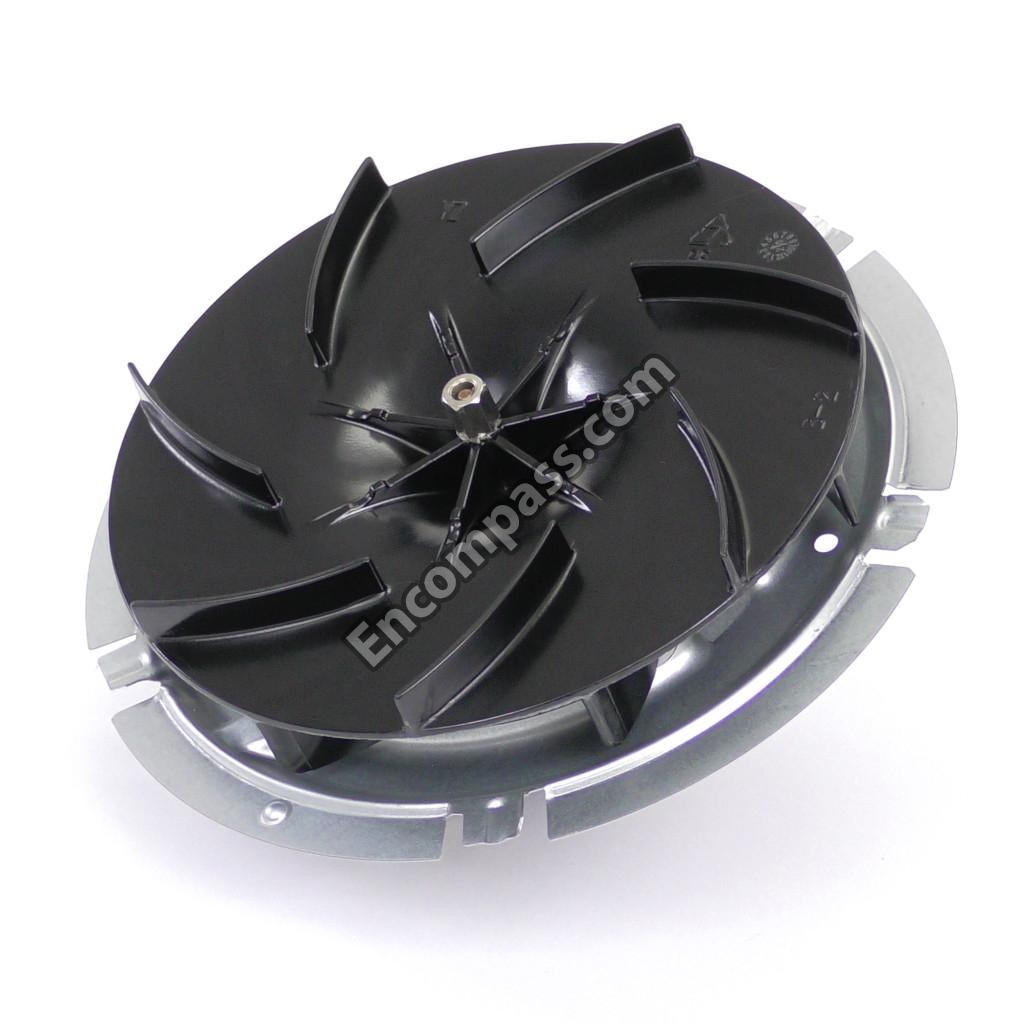

807123001 807123001 WALL OVEN COOLING FAN ASSEMBLY
5304498070 5304498070 WALL OVEN DOOR HANDLE

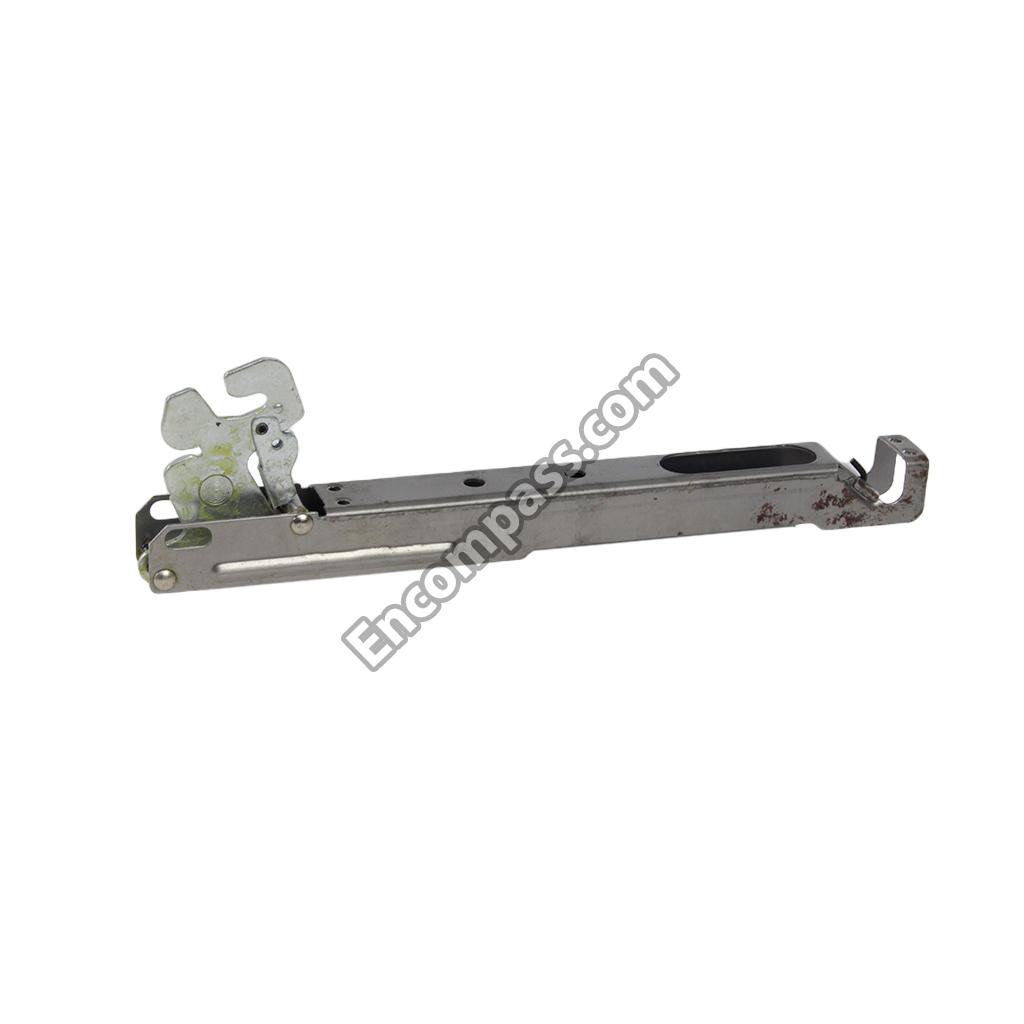

316575947 316575947 WALL OVEN DOOR HINGE (WHITE)
139021302 139021302 WALL OVEN DOOR LOCK ASSEMBLY
139012000 139012000 WALL OVEN RACK
316443913 316443913 WALL OVEN RELAY CONTROL BOARD
139079702 139079702 WALL OVEN TRIM, LEFT (BLACK)
139086501 139086501 WALL OVEN TRIM, LOWER (STAINLESS)
