Model Image
Manufacturer

Electrolux

Model Number

79049112410

Description

Built-in Oven, Electric With Microwave

Interactive Exploded View

Parts List

Part Number Description
5304480658 5304480658 ANGLE
5304480657 5304480657 ANGLE
5304451459 5304451459 ANGLE
5304461178 5304461178 ANGLE
5304480647 5304480647 BEARING ASSEMBLY
5304461177 5304461177 BELT
139009100 139009100 BLADE
5304461173 5304461173 BLADE
5304502987 5304502987 BLOWER ASSEMBLY
318576901 318576901 BOX
808816302 808816302 BOX
5304506955 5304506955 BOX & WIRES ASSY
808109202 808109202 BRACKET
5304503008 5304503008 BRACKET
318933901 318933901 BRACKET
318407603 318407603 BRACKET
318406714 318406714 BRACKET
808652001 808652001 BRACKET
139021101 139021101 BRACKET
5304470564 5304470564 BRACKET
5304470542 5304470542 CABINET
5304461159 5304461159 CAM
5304480640 5304480640 CAM
5304502977 5304502977 CONTROL PANEL
139096500 139096500 CONTROL PANEL
316247900 316247900 COOKING APPLIANCE CONTROL BOARD SPACER
5304502995 5304502995 COVER
139001503 139001503 COVER
808985101 808985101 COVER
5304480655 5304480655 CUSHION
5304461179 5304461179 CUSHION
5304461163 5304461163 CUSHION
5304461156 5304461156 CUSHION
5304461157 5304461157 CUSHION
318577001 318577001 DEFLECTOR
5304503612 5304503612 DOOR ASSEMBLY
808651702 808651702 DUCT
808651604 808651604 DUCT
5304461162 5304461162 DUCT
5304461174 5304461174 DUCT
5304480648 5304480648 DUCT ASSEMBLY
5304461158 5304461158 DUCT ASSEMBLY
139006600 139006600 ELEMENT
5304501015 5304501015 ELEMENT
139000900 139000900 ELEMENT
5304461151 5304461151 FAN BLADE
5304498734 5304498734 FILTER
5304480654 5304480654 GUIDE
5304461181 5304461181 GUIDE
5304511173 5304511173 HANDLE,DOOR/DRAWER,WHITE,W/SPA
5304461196 5304461196 HARNESS
5304517285 5304517285 HARNESS ASSEMBLY,FILTER,ELECTR
5304514831 5304514831 HARNESS,GROUNDING WIRE
5304520315 5304520315 HARNESS,TCO MOTOR
5304514913 5304514913 HARNESS,WIRING,DOOR SWITCH
5304520320 5304520320 HARNESS,WIRING,MAIN
5304520319 5304520319 HARNESS,WIRING,MAIN,LOW VOLTAG
808930401 808930401 HINGE
5304470735 5304470735 HOLDER
5304461149 5304461149 HOLDER
5304498739 5304498739 HOLDER
316082001 316082001 INSERT,BROILER PAN
807611003 807611003 INSTRUCTIONS
807887501 807887501 INSULATION
807887502 807887502 INSULATION
807887503 807887503 INSULATION
808905101 808905101 INSULATION
808905501 808905501 INSULATION
808816501 808816501 INSULATION
5304470576 5304470576 INSULATOR
5304483933 5304483933 LABEL
5304502976 5304502976 LABEL
5304440333 5304440333 LABEL
5304451534 5304451534 LABEL
5304465314 5304465314 LABEL
5304483935 5304483935 LABEL
5304463785 5304463785 LAMP HOLDER
808474604 808474604 LINER
5304474695 5304474695 MICROWAVE CONVECTION ELEMENT
5304471508 5304471508 MICROWAVE CONVECTION FAN PULLEY
5304480641 5304480641 MICROWAVE DOOR HINGE CAM
5304493153 5304493153 MICROWAVE DOOR INTERLOCK SWITCH
5304470591 5304470591 MICROWAVE DOOR INTERLOCK SWITCH ACTUATOR, LEFT
5304468224 5304468224 MICROWAVE DOOR INTERLOCK SWITCH AND FUSE
5304470592 5304470592 MICROWAVE DOOR INTERLOCK SWITCH LEVER, RIGHT
5304470582 5304470582 MICROWAVE DOOR LATCH HEAD SPRING
5304470547 5304470547 MICROWAVE DOOR LATCH HOOK
5304480656 5304480656 MICROWAVE ELECTRONIC CONTROL BOARD
5304480634 5304480634 MICROWAVE FUSE
5304470539 5304470539 MICROWAVE HIGH-VOLTAGE CAPACITOR
5304470538 5304470538 MICROWAVE HIGH-VOLTAGE TRANSFORMER
5304461125 5304461125 MICROWAVE HUMIDITY SENSOR
5303319641 5303319641 MICROWAVE HUMIDITY SENSOR DUCT SCREW
5304470548 5304470548 MICROWAVE LATCH BODY
5304464198 5304464198 MICROWAVE LIGHT BULB
5304501808 5304501808 MICROWAVE MAGNETRON
5304480635 5304480635 MICROWAVE RECTIFIER
5304451561 5304451561 MICROWAVE SCREW, 4 X 8-MM
5304461114 5304461114 MICROWAVE THERMAL CUT-OFF
5304480644 5304480644 MICROWAVE TURNTABLE MOTOR COUPLER
5304451470 5304451470 MICROWAVE TURNTABLE MOTOR SHAFT SEAL
5304498731 5304498731 MICROWAVE TURNTABLE TRAY
5304461161 5304461161 MICROWAVE VENT DAMPER DOOR
139008502 139008502 MOTOR
5304485889 5304485889 MOTOR
808721802 808721802 MOTOR ASSEMBLY
5304451547 5304451547 NUT
5304470590 5304470590 NUT
5304502988 5304502988 OUTLET
5304470734 5304470734 OVEN BASE
318167300 318167300 OVEN CLIP
5304461183 5304461183 OVEN COVER
139037903 139037903 OVEN DOOR ASSEMBLY
5304461127 5304461127 OVEN FOOT
5304461155 5304461155 OVEN FRAME
5304461167 5304461167 OVEN LENS
5304471782 5304471782 OVEN MOTOR
5304461119 5304461119 OVEN MOTOR
808109102 808109102 OVEN TRIM
139036601 139036601 OVEN TRIM
5304503010 5304503010 OVEN TRIM
5304503004 5304503004 OVEN TRIM
316081901 316081901 PAN,BROILER,COBALT BLUE
5304502990 5304502990 PANEL
5304503006 5304503006 PANEL
807119201 807119201 PANEL
809138401 809138401 PANEL
139035302 139035302 PANEL
5304498738 5304498738 PANEL
5304502994 5304502994 PLATE
5304461172 5304461172 PLATE
5304461150 5304461150 PLATE
5304461148 5304461148 PLATE
5304461147 5304461147 PLATE
5304514885 5304514885 PROBE

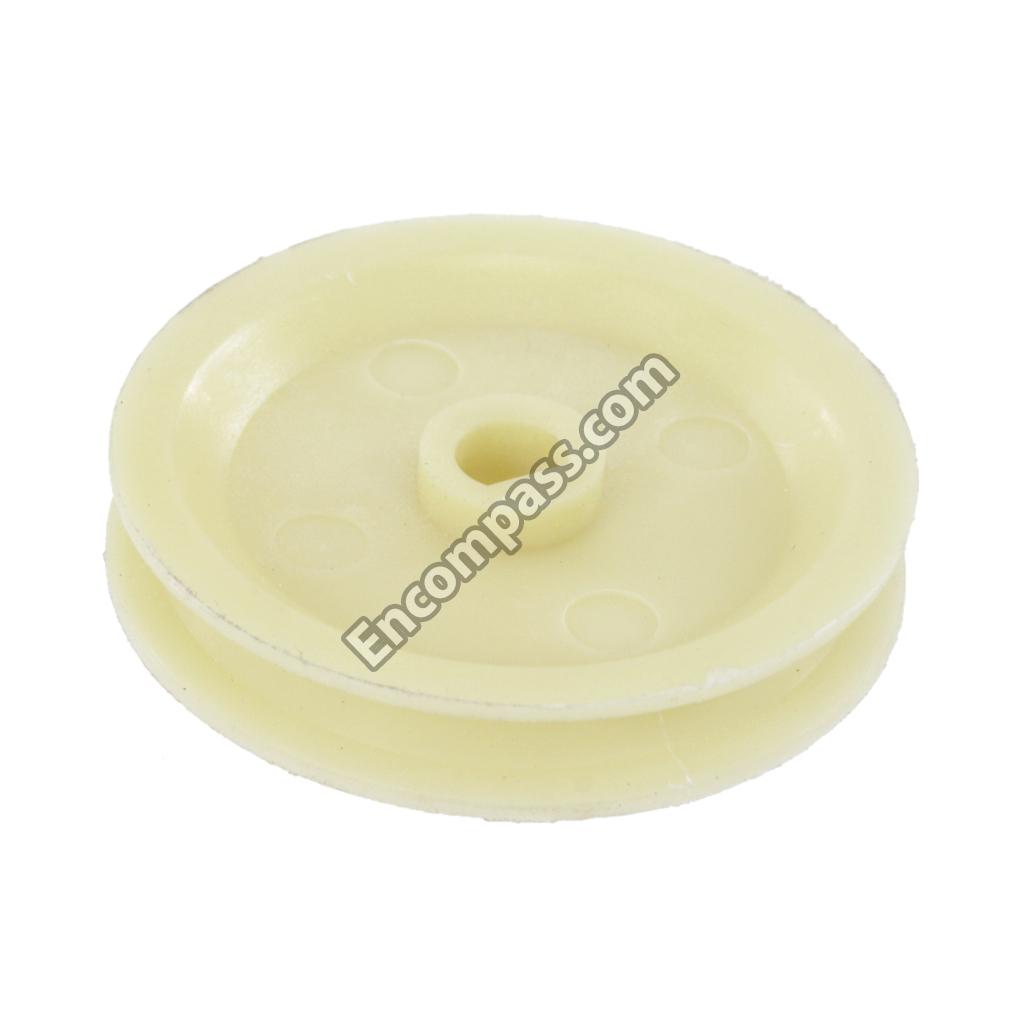

5304461152 5304461152 PULLEY
808595620 808595620 QUICK START
5304498742 5304498742 RACK ASSEMBLY
5304498741 5304498741 RACK ASSEMBLY
316136600 316136600 RANGE CONVECTION FAN BLADE NUT
316517600 316517600 RANGE DOOR BUMPER
316205500 316205500 RANGE HEX FLANGE NUT, #10-32 X 3/8-IN
318578506 318578506 RANGE HIGH-LIMIT THERMOSTAT
316502601 316502601 RANGE OVEN DOOR MIDDLE GLASS
318165800 318165800 RANGE OVEN DOOR SPACER
808136601 808136601 RANGE OVEN DOOR SWITCH
318946500 318946500 RANGE OVEN LIGHT BULB
139009000 139009000 RANGE OVEN LIGHT BULB
139011603 139011603 RANGE OVEN RACK
807574402 807574402 RANGE OWNER'S MANUAL
316114100 316114100 RANGE POWER CONTROL BOARD SUPPORT
5304470583 5304470583 RANGE SCREW
316001003 316001003 RANGE SCREW
5303324184 5303324184 RANGE SCREW
316418900 316418900 RANGE SCREW
5304453707 5304453707 RANGE SCREW
316439501 316439501 RANGE SCREW, #10-24 X 1.9-IN
5303289910 5303289910 RANGE SCREW, #8 X 1-IN
808296701 808296701 RANGE SPACER
318531800 318531800 RANGE SPACER
5303311164 5303311164 RANGE SURFACE BURNER IGNITER SPRING
808930501 808930501 RECEPTACLE
5304514886 5304514886 RECEPTACLE ASSY,MEAT PROBE
5995667234 5995667234 REPAIR PARTS LIST
808721601 808721601 ROD
809136201 809136201 SCREW
807597603 807597603 SCREW
5304471184 5304471184 SCREW
5304461216 5304461216 SCREW
5304471515 5304471515 SCREW
5304461208 5304461208 SCREW
5304461204 5304461204 SCREW
5304461210 5304461210 SCREW
5304450253 5304450253 SCREW
5304470589 5304470589 SCREW
5304461221 5304461221 SCREW
5304470588 5304470588 SCREW
5304461215 5304461215 SCREW
5304470587 5304470587 SCREW
5304461209 5304461209 SCREW
5304461203 5304461203 SCREW
5304451552 5304451552 SCREW
5304451550 5304451550 SCREW
5304461379 5304461379 SCREW
5304502989 5304502989 SCREW
316021109 316021109 SCREW,8-18 X 0.5,BLACK
316021110 316021110 SCREW,HEX HEAD CUP PT,8-18 X 0
139036700 139036700 SEAL
5304504897 5304504897 SENSOR
807574903 807574903 SERVICE DATA SHEET
5304461160 5304461160 SHAFT
5304461154 5304461154 SHEET
5304461182 5304461182 SHEET
808474502 808474502 SHIELD
318381740 318381740 SHIELD
808652101 808652101 SHIELD
808816401 808816401 SHIELD
808108901 808108901 SHIELD
808650301 808650301 SHIELD
808109502 808109502 SHIELD
808651301 808651301 SHIELD
807119301 807119301 SHIELD
139000601 139000601 SHIELD,INSULATION,SIDES,(2)
5304503172 5304503172 SPACER
5304503732 5304503732 SPRING
5304503731 5304503731 SPRING
318172904 318172904 STIFFENER
5304500644 5304500644 SUPPORT
808108601 808108601 SUPPORT
5304461175 5304461175 SUPPORT
5304498730 5304498730 SUPPORT
5304409888 5304409888 TERMINAL BLOCK KIT
5304470541 5304470541 TRANSFORMER
808984603 808984603 TRIM
5304502999 5304502999 TRIM
5304502998 5304502998 TRIM
808984505 808984505 TRIM
139021700 139021700 TUBE
808931402 808931402 VENT BOX ASSEMBLY
316582500 316582500 WALL OVEN CONTROL BOARD
807123002 807123002 WALL OVEN COOLING FAN
808930502 808930502 WALL OVEN DOOR HINGE RECEIVER
5304480639 5304480639 WALL OVEN DOOR HINGE, RIGHT
316502502 316502502 WALL OVEN DOOR INNER GLASS
139013317 139013317 WALL OVEN EXTENSION RACK
5304480638 5304480638 WALL OVEN MICROWAVE DOOR HINGE, LEFT
5304471512 5304471512 WALL OVEN MICROWAVE DOOR INNER PANEL
5304491054 5304491054 WALL OVEN MICROWAVE DOOR LATCH
5304490142 5304490142 WALL OVEN MICROWAVE DOOR LATCH, LEFT
318647300 318647300 WALL OVEN MICROWAVE FUSE AND HOLDER
5304470579 5304470579 WALL OVEN MICROWAVE INNER DOOR FRAME
5304470537 5304470537 WALL OVEN MICROWAVE POWER CORD
5304483929 5304483929 WALL OVEN MICROWAVE TEMPERATURE SENSOR
5304498736 5304498736 WALL OVEN MICROWAVE TURNTABLE MOTOR
5304461165 5304461165 WALL OVEN MICROWAVE WAVEGUIDE COVER
316570503 316570503 WALL OVEN RELAY CONTROL BOARD
318578509 318578509 WALL OVEN SAFETY THERMOSTAT
5304451553 5304451553 WALL OVEN SCREW, M4 X 12
808109403 808109403 WALL OVEN VENT TRIM, LOWER (WHITE)
5304480653 5304480653 WALL OVEN WIRE HARNESS
5304480652 5304480652 WALL OVEN WIRE HARNESS
5304461214 5304461214 WASHER
5304440331 5304440331 WIRE
5304461199 5304461199 WIRING
