Manufacturer
Electrolux
Model Number
79049537711
Description
Built-in Oven, Electric
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
BLADE,FAN ,CONVECTION |
|
|
BLOWER ASSEMBLY,COOLING ,CROSS FLOW ,W/BAFFLE |
|
|
BOARD,RELAY ,DUAL OVEN |
|
|
BOX,BAKE ELEMENT |
|
|
BOX,FAN SERVICE |
|
|
BRACKET,CABLE MTG. |
|
|
BRACKET,FAN MTG. ,CROSS FLOW |
|
|
BRACKET,GLASS HOLDER ,DOOR ,(2) |
|
|
BRACKET,GLASS PANEL ,(2) |
|
|
BRACKET,GLASS RETAINER ,(4) |
|
|
BRACKET,MOUNTING |
|
|
BRACKET,SIDE ,BOTTOM ,(2) |
|
|
BRACKET,SUPPORT ,CHASSIS/FAN |
|
|
BRACKET,SUPPORT ,SIDE ,(2) |
|
|
BRACKET,WIRE |
|
|
BULB,HALOGEN ,G9 ,25W ,120V |
|
|
BUMPER,FRONT ,MAIN |
|
|
CONTROL PANEL ASSEMBLY,STEEL/GLASS ,DARK STAINL... |
|
|
CONTROLLER,ELECTRONIC ,ES615W16 |
|
|
CONVECTION FAN COVER |
|
|
COOLING FAN MOTOR ASSEMBLY |
|
|
COVER,CENTER REAR ,CROSSFLOW |
|
|
COVER,CONTROL ACCESS |
|
|
COVER,LATCH MOTOR |
|
|
COVER,LATCH MOTOR ,LOWER OVEN |
|
|
COVER,OVEN TOP |
|
|
COVER,REAR DOOR ,BLACK ,(2) |
|
|
DOOR ASSEMBLY,OUTER ,DARK STAINLESS ,W/BADGE |
|
|
DOOR ASSEMBLY,OUTER ,STEEL/GLASS ,DARK STAINLES... |
|
|
DOOR BAFFLE |
|
|
DOOR INSULATION |
|
|
DOOR INSULATION |
|
|
DUCT,COOLING ,LOWER OVEN |
|
|
DUCT,COOLING FAN ,LOWER |
|
|
DUCT,COOLING FAN ,UPPER |
|
|
ELEMENT,BROIL ,6 PASS ,3400W |
|
|
ELEMENT,CONVECTION ,2500W |
|
|
ELEMENT,HIDDEN BAKE ,2500W |
|
|
GLASS |
|
|
GLASS,OVEN DOOR ,INNER |
|
|
GROUND WIRE SCREW |
|
|
HANDLE,DARK STAINLESS |
|
|
HARNESS ASSEMBLY,CONDUIT ,ELBOW CONNECTOR,& WIRING |
|
|
HARNESS ASSEMBLY,FILTER,ELECTR |
|
|
HARNESS,WIRING ,CONTROL PANEL |
|
|
HARNESS,WIRING ,MAIN |
|
|
HARNESS,WIRING ,UPPER OVEN ,MDL ADS |
|
|
HARNESS,WIRING,LOWER OVEN,MDL |
|
|
HINGE,OVEN DOOR ,LIME |
|
|
HINGE,OVEN DOOR ,LIME GREEN |
|
|
HOUSING,FAN ,AIR DIVERTER |
|
|
INSERT,BROILER PAN |
|
|
INSTRUCTIONS,INSTALLATION |
|
|
INSUALTION,NOISE DAMPENING |
|
|
INSULATION,BAKE ELEMENT ,FRONT |
|
|
INSULATION,BAKE ELEMENT ,LOWER |
|
|
INSULATION,BAKE ELEMENT ,SIDE |
|
|
INSULATION,OVEN BACK |
|
|
INSULATION,OVEN WRAPPER ,TOP & SIDES |
|
|
LAMP ASSEMBLY,ROUND ,HALOGEN ,W/LENS ,W/BULB |
|
|
LINER,OVEN DOOR |
|
|
MOTOR,CONVECTION FAN |
|
|

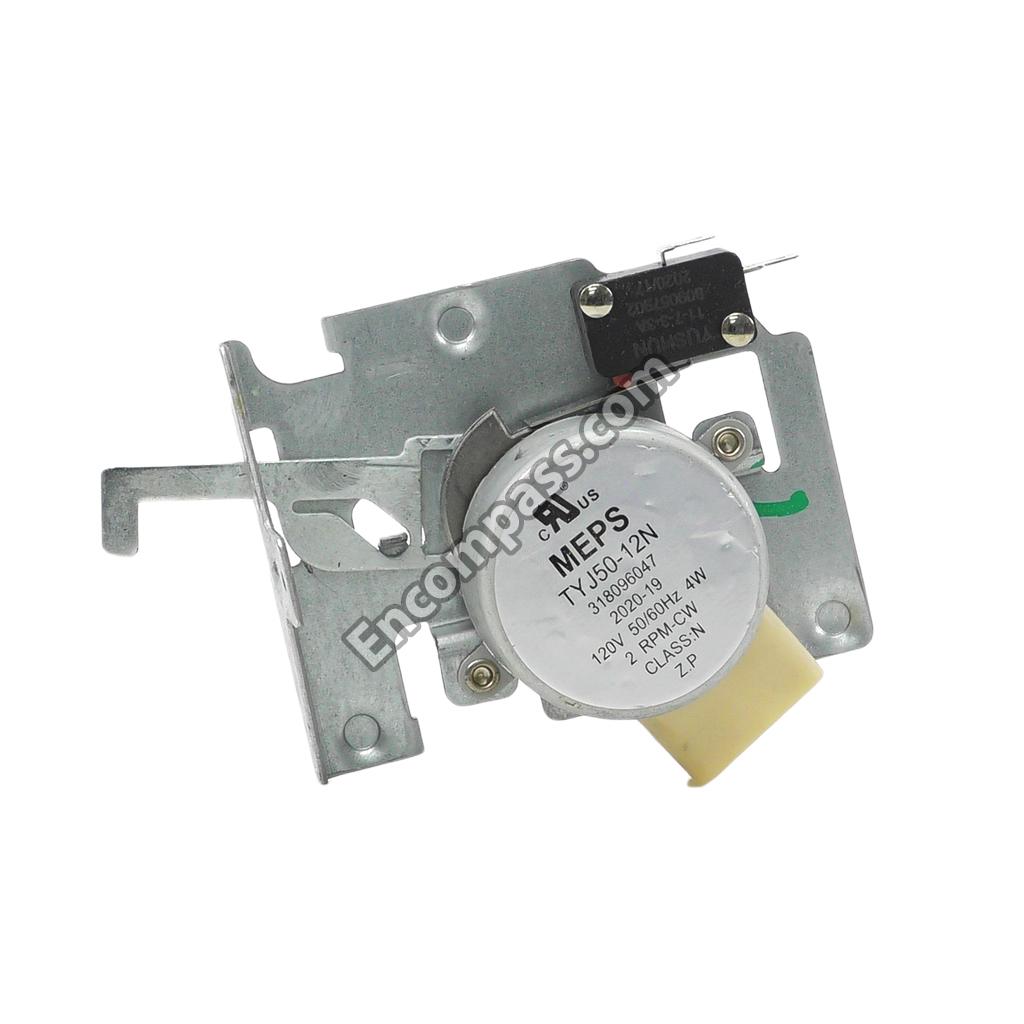

MOTOR,LATCH ASSY. ,2 TERMINALS |
|
|
NUT,FAN RETAINER |
|
|
NUT,HEX FLANGE ,3/8 10-32 |
|
|
OWNERS MANUAL,ENG/SPN |
|
|
PAN,BROILER,COBALT BLUE |
|
|
PANEL,MAIN BACK |
|
|
PANEL,MAIN BACK ,UPPER OVEN |
|
|
PANEL,SERVICE ,MAIN BACK |
|
|
POWER BOARD SPACER |
|
|
RACK,OVEN ,W/HANDLE |
|
|
RECEPTACLE,HINGE,(2) |
|
|
REPAIR PARTS CATALOG |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW,6-18 X 1 ,(2) |
|
|
SCREW,8-18 X 0.5,BLACK |
|
|
SCREW,8-18 X 1/2 |
|
|
SCREW,AB NICKEL ,8-18 X 11/16 |
|
|
SCREW,ANTI-TIP ,8 - 5/8 ,BLACK ,(2) |
|
|
SCREW,HANDLE MTG. |
|
|
SCREW,HEX HEAD CUP PT,8-18 X 0 |
|
|
SCREW,SELF TAPPING ,8-18 X 11/32 ,(4) |
|
|
SCREW,SIMS LP ,#8-32 X 5/16" ,BLACK |
|
|
SCREW,TRUSS SQDR ,8A X 1" |
|
|
SEAL,OVEN DOOR ,GRAY |
|
|
SENSOR,OVEN TEMP PROBE |
|
|
SHIELD,AIR DEFLECTOR ,BACK |
|
|
SHIELD,BAKE ELEMENT ,REAR |
|
|
SHIELD,DOOR SWITCH |
|
|
SHIELD,FAN ,CROSS FLOW |
|
|
SHIELD,INSULATION ,LOWER ,OVEN |
|
|
SHIELD,INSULATION ,LOWER ,UPPER OVEN |
|
|
SHIELD,INSULATION ,TOP |
|
|
SHIELD,INSULATION ,TOP ,LOWER OVEN |
|
|
SHIELD,INSULATION,SIDES,(2) |
|
|
SHIELD,REAR WIRE ,MAIN BACK |
|
|
SPACER |
|
|
SPACER,GLASS ,(2) |
|
|
SPACER,GLASS ,FOAM |
|
|
SPACER,OVEN SHIELD ,(2) |
|
|
SUPPORT,WIRE |
|
|
SWITCH |
|
|
TERMINAL BLOCK |
|
|
THERMOSTAT,SAFETY ,105C |
|
|
THERMOSTAT,SAFETY ,125C |
|
|
TRIM,CENTER VENT ,BLACK |
|
|
TRIM,LOWER VENT ,BLACK STAINLESS |
|
|
TRIM,OVEN DOOR ,BLACK ,SIDE ,(2) ,VENTED |
|
|
TRIM,SIDE FILLER ,BLACK ,LH |
|
|
TRIM,SIDE FILLER ,BLACK ,RH |
|
|
TRIM,VENT ,BLACK ,FRONT |
|
|
TUBE ASSEMBLY,VENT ,W/CATALYST |
|
|
TUBE,CONVECTION FAN |
