Model Image
Manufacturer

Electrolux

Model Number

79099913804

Description

Free Standing, Electric

Interactive Exploded View

Parts List

Part Number Description
316459400 316459400 APPLIANCE CLEANING PAD
316136900 316136900 APPLIANCE STAINLESS STEEL CLEANER, 1-OZ
316502006 316502006 BACK
316530800 316530800 BRACKET
316214201 316214201 BRACKET
316279205 316279205 BRACKET
316279204 316279204 BRACKET
316302000 316302000 BRACKET
316301900 316301900 BRACKET
316543700 316543700 BRACKET BODY
316304000 316304000 CABLE
316267505 316267505 CHANNEL
316267504 316267504 CHANNEL
316112100 316112100 CLEANER-COOK
316303400 316303400 CLIP
316301200 316301200 CLIP
316095800 316095800 CLIP-HOLD DO
316247900 316247900 COOKING APPLIANCE CONTROL BOARD SPACER
316304200 316304200 CORE
316302700 316302700 COVER
316492300 316492300 DAMPER
316408905 316408905 DRAWER,WARMER
316300900 316300900 ELEMENT ASSEMBLY
316300800 316300800 ELEMENT ASSEMBLY
316300600 316300600 ELEMENT ASSEMBLY
5303935296 5303935296 FAN ASSEMBLY
5303935297 5303935297 FAN ASSEMBLY
316303100 316303100 FASTENER
316466312 316466312 FOLDER
316525616 316525616 HARNESS
316525626 316525626 HARNESS
316525625 316525625 HARNESS
316525627 316525627 HARNESS
316303800 316303800 HARNESS ASSEMBLY
316303500 316303500 HARNESS ASSEMBLY
316301400 316301400 INSULATION
316509600 316509600 INSULATION
316301500 316301500 INSULATION
316509500 316509500 INSULATION
316301700 316301700 INSULATION
316302400 316302400 INSULATION
316302300 316302300 INSULATION
316466100 316466100 LABEL
316510701 316510701 LAMP
5304509869 5304509869 LEVELLING LEG ASSEMBLY
316503611 316503611 LINER
316463801 316463801 LINER
318251100 318251100 OVEN HANDLE
316513000 316513000 OVEN INSULATION
316268205 316268205 OVEN TRIM
316545200 316545200 OWNER'S MANUAL
316301001 316301001 PANEL
316533801 316533801 PLATE
316304101 316304101 POWER CABLE
316304100 316304100 POWER CABLE
5304458140 5304458140 POWER CABLE
5304514885 5304514885 PROBE
316457801 316457801 RANGE ACCESS PANEL
316112005 316112005 RANGE ANTI-TIP BRACKET KIT
316301800 316301800 RANGE BAKE ELEMENT
316505701 316505701 RANGE BAKE ELEMENT BASE
316408000 316408000 RANGE BODY SIDE PANEL CLIP
316279600 316279600 RANGE BRACKET STIFFENER SCREW
316203301 316203301 RANGE BROIL ELEMENT
316404000 316404000 RANGE BROIL ELEMENT SUPPORT
5304494997 5304494997 RANGE BROIL PAN AND INSERT
5303935289 5303935289 RANGE CONTROL PANEL ASSEMBLY
316211603 316211603 RANGE CONVECTION ELEMENT
318398302 318398302 RANGE CONVECTION FAN BLADE
316136600 316136600 RANGE CONVECTION FAN BLADE NUT
316026701 316026701 RANGE CONVECTION FAN COVER
5304467898 5304467898 RANGE CONVECTION FAN MOTOR
316404100 316404100 RANGE CONVECTION FAN MOTOR MOUNTING BRACKET
316517600 316517600 RANGE DOOR BUMPER
316205500 316205500 RANGE HEX FLANGE NUT, #10-32 X 3/8-IN
316505801 316505801 RANGE HIDDEN BAKE ELEMENT BRACKET

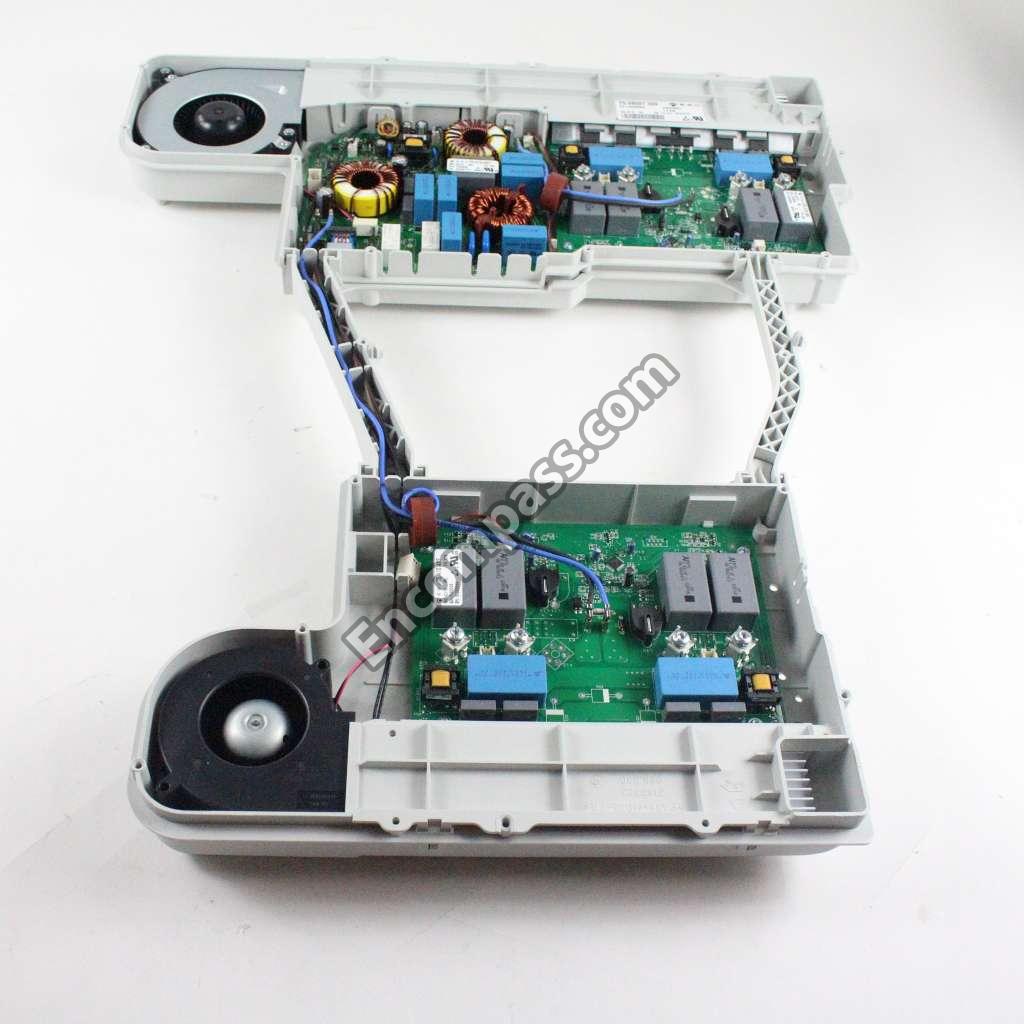

318347101 318347101 RANGE INDUCTION POWER CONTROL BOARD
316303600 316303600 RANGE INDUCTION POWER FILTER BOARD
316454920 316454920 RANGE INSTALLATION
316272900 316272900 RANGE LEVELING LEG
316470640 316470640 RANGE MAIN TOP ASSEMBLY
316247700 316247700 RANGE NUT
316302600 316302600 RANGE OVEN AIR INLET COVER
316505601 316505601 RANGE OVEN BOTTOM PANEL
316506000 316506000 RANGE OVEN BOTTOM PANEL BRACKET
316300500 316300500 RANGE OVEN CONTROL BOARD
316577079 316577079 RANGE OVEN CONTROL BOARD AND CLOCK
316530403 316530403 RANGE OVEN DOOR GLASS BRACKET
316553302 316553302 RANGE OVEN DOOR HANDLE
316408600 316408600 RANGE OVEN DOOR HANDLE SPACER
5304485195 5304485195 RANGE OVEN DOOR HINGE
316441300 316441300 RANGE OVEN DOOR HINGE RECEIVER
316436600 316436600 RANGE OVEN DOOR HINGE SUPPORT BRACKET
316502500 316502500 RANGE OVEN DOOR INNER GLASS
316408201 316408201 RANGE OVEN DOOR INSULATION RETAINER
316405800 316405800 RANGE OVEN DOOR LATCH
316203500 316203500 RANGE OVEN DOOR LOCK LATCH ROD
316464300 316464300 RANGE OVEN DOOR LOCK MOTOR AND SWITCH ASSEMBLY
316502601 316502601 RANGE OVEN DOOR MIDDLE GLASS
316452717 316452717 RANGE OVEN DOOR OUTER PANEL AND FOIL TAPE (BLACK)
316405000 316405000 RANGE OVEN DOOR SEAL
316445500 316445500 RANGE OVEN DOOR SWITCH
316407700 316407700 RANGE OVEN HEAT SHIELD, LOWER
316509700 316509700 RANGE OVEN INSULATION
316406601 316406601 RANGE OVEN INSULATION
316496209 316496209 RANGE OVEN RACK
316498005 316498005 RANGE OVEN RACK
316490003 316490003 RANGE OVEN TEMPERATURE SENSOR
316553003 316553003 RANGE PANEL
316448903 316448903 RANGE POWER CONTROL BOARD ASSEMBLY
316114100 316114100 RANGE POWER CONTROL BOARD SUPPORT
316081200 316081200 RANGE POWER CORD MOUNTING BRACKET
316021104 316021104 RANGE PRESSURE REGULATOR BRACKET SCREW
5304414648 5304414648 RANGE SCREW
316116000 316116000 RANGE SCREW
316418900 316418900 RANGE SCREW
316519700 316519700 RANGE SCREW
316001003 316001003 RANGE SCREW
5303285179 5303285179 RANGE SCREW
316089500 316089500 RANGE SCREW
316021109 316021109 RANGE SCREW
8002868 8002868 RANGE SCREW, #10-24 X 1/2-IN
316418901 316418901 RANGE SCREW, #10-32 X 5/16-IN
5303289910 5303289910 RANGE SCREW, #8 X 1-IN
5303271648 5303271648 RANGE SCREW, #8-18 X 1/2-IN
316400119S 316400119S RANGE SIDE PANEL (BLACK)
316404601 316404601 RANGE SIDE PANEL SUPPORT BRACKET
316400118S 316400118S RANGE SIDE PANEL, RIGHT (BLACK)
316442016 316442016 RANGE SURFACE ELEMENT CONTROL BOARD

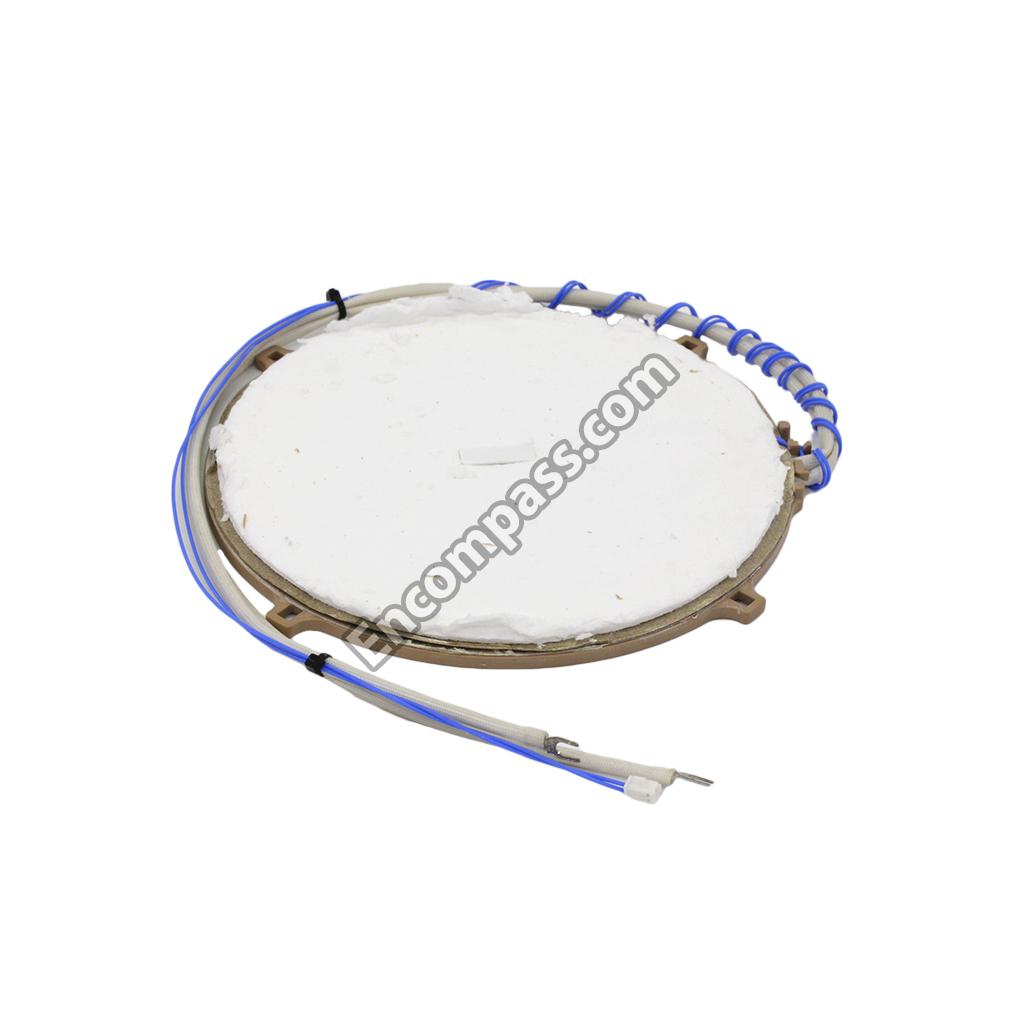

316300700 316300700 RANGE SURFACE INDUCTION ELEMENT, 7-IN
5303935271 5303935271 RANGE TERMINAL BLOCK
316542600 316542600 RANGE TERMINAL BLOCK GROUNDING STRAP PLATE
316542200 316542200 RANGE TERMINAL BLOCK INSULATOR
316498200 316498200 RANGE UPPER FRAME SUPPORT BRACKET
316435702 316435702 RANGE USER INTERFACE POWER CONTROL BOARD
316525614 316525614 RANGE USER INTERFACE WIRE HARNESS
316525606 316525606 RANGE USER INTERFACE WIRE HARNESS
316437300 316437300 RANGE WARMING DRAWER ELEMENT
316093200 316093200 RANGE WARMING DRAWER ELEMENT MOUNTING BRACKET
316409419 316409419 RANGE WARMING DRAWER FRONT PANEL
316456700 316456700 RANGE WARMING DRAWER GLIDE
316415001 316415001 RANGE WARMING DRAWER INNER SLIDE RAIL, LEFT
316415002 316415002 RANGE WARMING DRAWER INNER SLIDE RAIL, RIGHT
807328301 807328301 RANGE WARMING DRAWER RACK
316093502 316093502 RANGE WARMING DRAWER SAFETY THERMOSTAT
316008401 316008401 RANGE WASHER
316506274 316506274 RANGE WIRE HARNESS
316525623 316525623 RANGE WIRE HARNESS
316525633 316525633 RANGE WIRE HARNESS
316234100 316234100 RANGE WIRE HARNESS SHIELD
316536900 316536900 RECEPTACLE
5995549879 5995549879 REPAIR PARTS LIST
5304436030 5304436030 RIVET
316301100 316301100 SCREW
316533900 316533900 SCREW
316021132 316021132 SCREW (BLACK)
316021110 316021110 SCREW,HEX HEAD CUP PT,8-18 X 0
316463900 316463900 SEAL
316302202 316302202 SEAL
5304483785 5304483785 SENSOR ASSEMBLY
316904408 316904408 SERVICE TECH
316503800 316503800 SHIELD
316301300 316301300 SHIELD
316404600 316404600 SHIELD
316302501 316302501 SHIELD
316301600 316301600 SHIELD
316402100 316402100 SHIELD
316409000 316409000 SHIELD
316505900 316505900 SHIELD
316302900 316302900 SHIELD
316302800 316302800 SHIELD
316267701 316267701 SHIELD
316267909 316267909 SHIELD
316239902 316239902 SHIELD
5304503172 5304503172 SPACER
316302100 316302100 STANDOFF
316093300 316093300 TERMINAL SHIELD
316497801 316497801 TUBE
316514300 316514300 VENT TUBE
316091900 316091900 WARMER BASE
316534100 316534100 WASHER
316563100 316563100 WRAPPER
