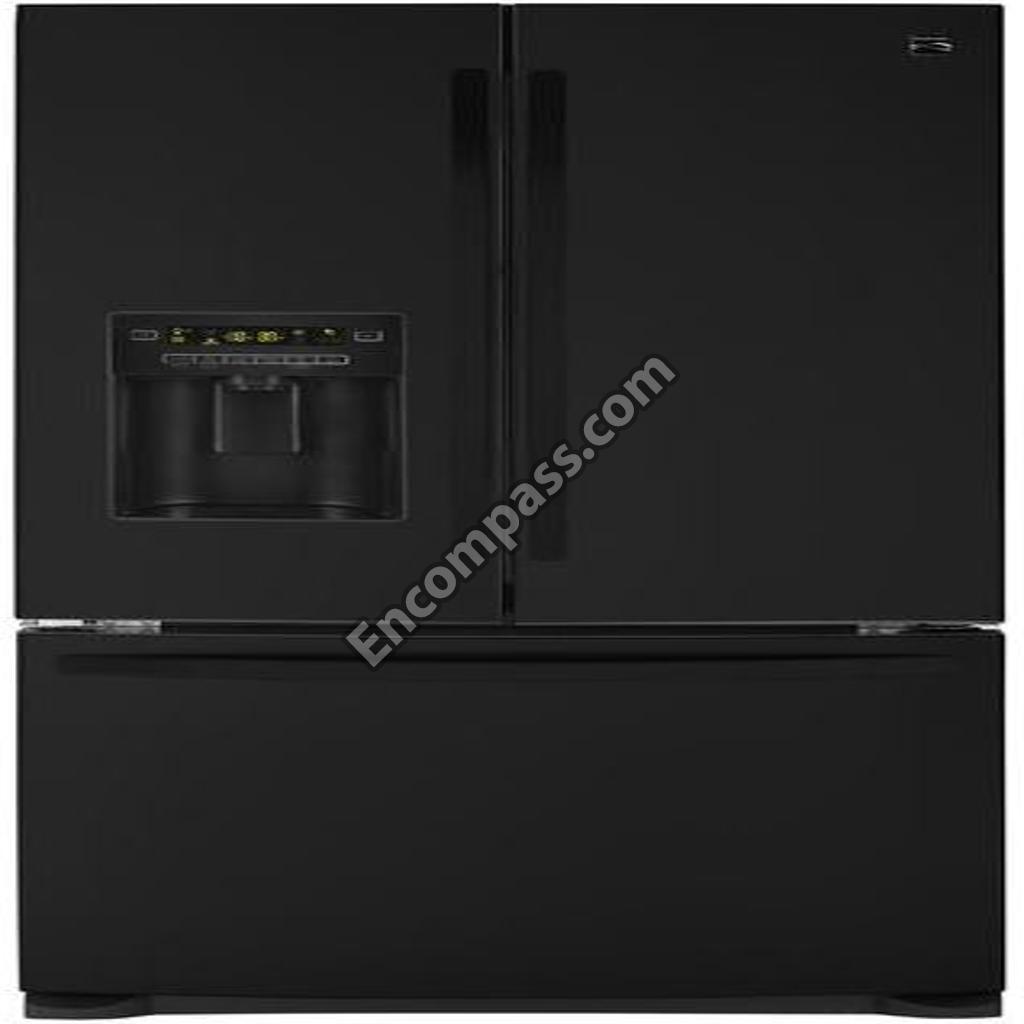

Model Image
Manufacturer

LG

Model Number

79573059410

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
MCZ62872001 MCZ62872001 CONNECTOR DUCT
EAU60659507 EAU60659507 DC MOTOR
ACW73717314 ACW73717314 DECOR ASSEMBLY
MCR64788603 MCR64788603 DECOR,CONTROL
4930JQ3020F 4930JQ3020F DRIER HOLDER
MDQ62016702 MDQ62016702 FRAME
ADQ36006102 ADQ36006102 GENUINE KENMORE REFRIGERATOR WATER FILTER 9690
MEB62915402 MEB62915402 HANDLE BAR
AEH74156201 AEH74156201 HINGE ASSEMBLY, LOWER
ACQ86664721 ACQ86664721 HINGE COVER ASSEMBLY
4931JA3005A 4931JA3005A HOLDER ASSEMBLY,BRACKET
MEG63342201 MEG63342201 HOLDER PIPE
MEG63263001 MEG63263001 HOLDER PIPE
4930JQ3043A 4930JQ3043A HOLDER, LEVER
ACQ85930607 ACQ85930607 LAMP COVER ASSEMBLY
MCK67584401 MCK67584401 LEVER COVER
1PZZJQ3018D 1PZZJQ3018D PIN
5200JQ3002E 5200JQ3002E PIPE JOINT
ADJ74132101 ADJ74132101 REFRIGERATOR AIR DUCT COVER AND FAN ASSEMBLY
ADQ73214404 ADQ73214404 REFRIGERATOR AIR FILTER
EAU61843006 EAU61843006 REFRIGERATOR AUGER MOTOR
EAU61083514 EAU61083514 REFRIGERATOR AUGER MOTOR
AEH71135371 AEH71135371 REFRIGERATOR CENTER HINGE ASSEMBLY
TCA35533601 TCA35533601 REFRIGERATOR COMPRESSOR
MCQ67247501 MCQ67247501 REFRIGERATOR COMPRESSOR GROMMET
4620JA3015A 4620JA3015A REFRIGERATOR COMPRESSOR MOUNT RETAINER CLIP
EBG60663213 EBG60663213 REFRIGERATOR COMPRESSOR START RELAY
3550JA2110B 3550JA2110B REFRIGERATOR COMPRESSOR START RELAY COVER
ACG73784701 ACG73784701 REFRIGERATOR CONDENSER COIL
ADP36665701 ADP36665701 REFRIGERATOR CONDENSER FAN BLADE
4681JB1029D 4681JB1029D REFRIGERATOR CONDENSER FAN MOTOR ASSEMBLY
MCQ65884301 MCQ65884301 REFRIGERATOR CONDENSER FAN MOTOR DAMPER
MCK67480101 MCK67480101 REFRIGERATOR CONVENIENCE DOOR HINGE COVER
AEC73637401 AEC73637401 REFRIGERATOR CRISPER DRAWER CENTER RAIL
ACQ85891603 ACQ85891603 REFRIGERATOR CRISPER DRAWER COVER FRAME
MJH62755901 MJH62755901 REFRIGERATOR CRISPER DRAWER COVER SUPPORT
MCD62287601 MCD62287601 REFRIGERATOR CRISPER DRAWER RAIL SUPPORT
AEC73637501 AEC73637501 REFRIGERATOR CRISPER DRAWER TRACK, LEFT
AJP73694502 AJP73694502 REFRIGERATOR CRISPER DRAWER, LEFT
AJP73694501 AJP73694501 REFRIGERATOR CRISPER DRAWER, RIGHT
MJS62591901 MJS62591901 REFRIGERATOR DEFROST DRAIN PAN
5300JK1005Z 5300JK1005Z REFRIGERATOR DEFROST HEATER
ACQ85891501 ACQ85891501 REFRIGERATOR DELI DRAWER COVER
MCR62346902 MCR62346902 REFRIGERATOR DISPENSER DRIP TRAY
ABN73678305 ABN73678305 REFRIGERATOR DISPENSER ICE CHUTE DOOR
EAU59551204 EAU59551204 REFRIGERATOR DISPENSER ICE CHUTE DOOR MOTOR
MDR61922402 MDR61922402 REFRIGERATOR DISPENSER ICE CHUTE FUNNEL
ADW73149907 ADW73149907 REFRIGERATOR DISPENSER ICE CHUTE FUNNEL ASSEMBLY
MFC62829801 MFC62829801 REFRIGERATOR DISPENSER LEVER
6600JB3001C 6600JB3001C REFRIGERATOR DISPENSER SWITCH
ACQ76217928 ACQ76217928 REFRIGERATOR DISPENSER USER INTERFACE CONTROL
EBR60221911 EBR60221911 REFRIGERATOR DISPLAY PCB ASSEMBLY
6871JB2074Q 6871JB2074Q REFRIGERATOR DISPLAY PCB ASSEMBLY
ADD73656035 ADD73656035 REFRIGERATOR DOOR ASSEMBLY, RIGHT
MAN62608201 MAN62608201 REFRIGERATOR DOOR BASKET
AAP73631807 AAP73631807 REFRIGERATOR DOOR BIN
AAP73631702 AAP73631702 REFRIGERATOR DOOR BIN
AAP73631602 AAP73631602 REFRIGERATOR DOOR BIN
AAP73631502 AAP73631502 REFRIGERATOR DOOR BIN
AAP73631301 AAP73631301 REFRIGERATOR DOOR BIN
MAN62608301 MAN62608301 REFRIGERATOR DOOR BIN COVER
MEG61899901 MEG61899901 REFRIGERATOR DOOR CLOSER
ADD73876326 ADD73876326 REFRIGERATOR DOOR FOAM ASSEMBLY
MDS64239201 MDS64239201 REFRIGERATOR DOOR GASKET
ADX73550621 ADX73550621 REFRIGERATOR DOOR GASKET, LEFT
ADX73550626 ADX73550626 REFRIGERATOR DOOR GASKET, RIGHT
AED37133215 AED37133215 REFRIGERATOR DOOR HANDLE
AED37083011 AED37083011 REFRIGERATOR DOOR HANDLE ASSEMBLY
MJB63190001 MJB63190001 REFRIGERATOR DOOR HANDLE MOUNTING BOLT
AEH36821910 AEH36821910 REFRIGERATOR DOOR HINGE, CENTER
AEH36821908 AEH36821908 REFRIGERATOR DOOR HINGE, CENTER
AEH71135372 AEH71135372 REFRIGERATOR DOOR HINGE, LEFT CENTER
AEH74216501 AEH74216501 REFRIGERATOR DOOR HINGE, LEFT UPPER
AEH74216502 AEH74216502 REFRIGERATOR DOOR HINGE, UPPER
6600JB1010K 6600JB1010K REFRIGERATOR DOOR SWITCH
AJR74125001 AJR74125001 REFRIGERATOR DRAIN TUBE
AHJ73329901 AHJ73329901 REFRIGERATOR DRAWER ROLLER
AEC73637502 AEC73637502 REFRIGERATOR DRAWER SLIDE RAIL
AEC73597504 AEC73597504 REFRIGERATOR DRAWER SLIDE RAIL
AEC73597502 AEC73597502 REFRIGERATOR DRAWER SLIDE RAIL
MBL61865401 MBL61865401 REFRIGERATOR DUCT CAP
MBL61865301 MBL61865301 REFRIGERATOR DUCT CAP
ADL73762004 ADL73762004 REFRIGERATOR EVAPORATOR

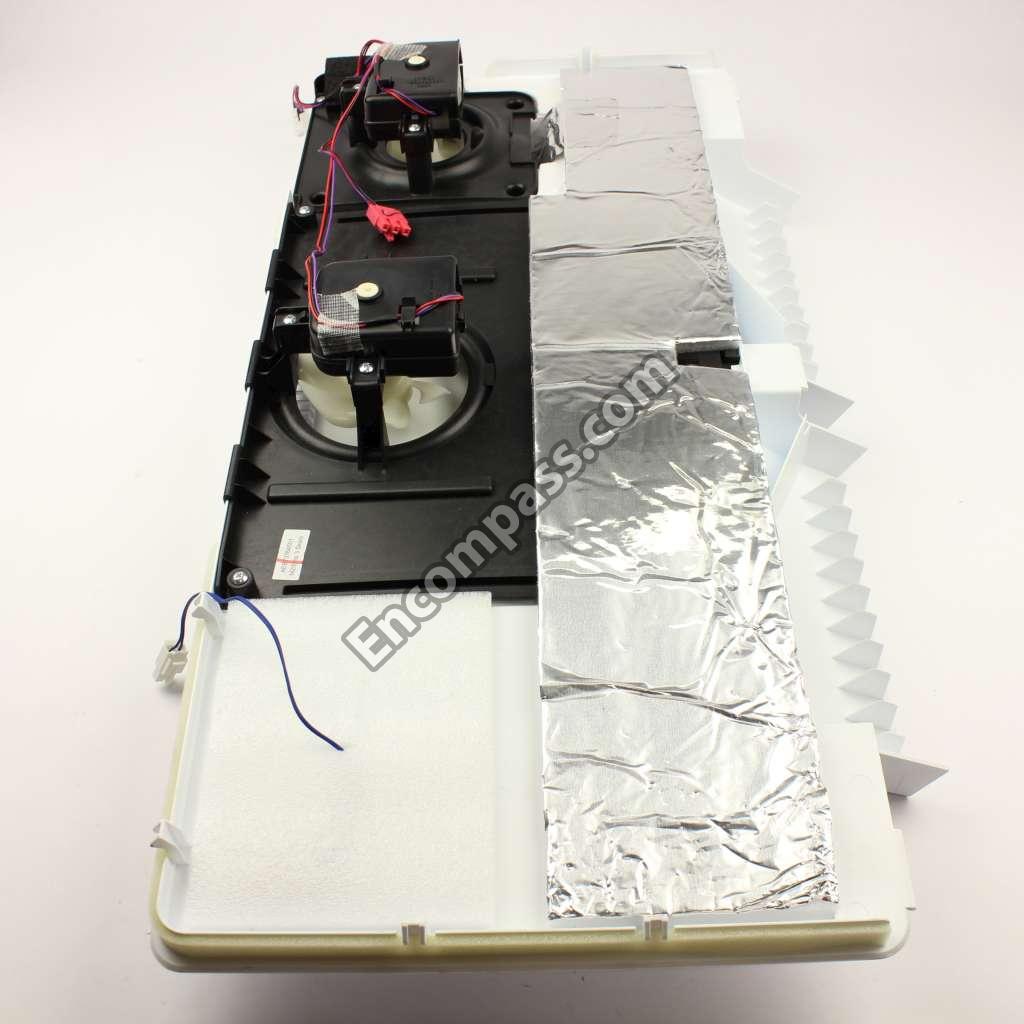

AEB73764501 AEB73764501 REFRIGERATOR EVAPORATOR COVER
AJP73574401 AJP73574401 REFRIGERATOR EVAPORATOR DRIP PAN
ADP73694301 ADP73694301 REFRIGERATOR EVAPORATOR FAN BLADE
4681JB1027J 4681JB1027J REFRIGERATOR EVAPORATOR FAN MOTOR
ABA74268201 ABA74268201 REFRIGERATOR EVAPORATOR FAN MOTOR AND BRACKET ASSEMBLY
3550JA2273A 3550JA2273A REFRIGERATOR EVAPORATOR FAN MOTOR COVER
5040JQ2003B 5040JQ2003B REFRIGERATOR EVAPORATOR FAN MOTOR GROMMET
5040JQ2002B 5040JQ2002B REFRIGERATOR EVAPORATOR FAN MOTOR GROMMET
ADP73773801 ADP73773801 REFRIGERATOR FAN ASSEMBLY
MEA63170401 MEA63170401 REFRIGERATOR FAN GUIDE
ADH69749103 ADH69749103 REFRIGERATOR FILTER DRYER
AGU74110903 AGU74110903 REFRIGERATOR FLIPPER ASSEMBLY
AEC73617602 AEC73617602 REFRIGERATOR FREEZER BASKET SLIDE RAIL, RIGHT
ADD73655913 ADD73655913 REFRIGERATOR FREEZER DOOR ASSEMBLY
ADC74207901 ADC74207901 REFRIGERATOR FREEZER DOOR ASSEMBLY
ADC73905514 ADC73905514 REFRIGERATOR FREEZER DOOR ASSEMBLY
MDS64172919 MDS64172919 REFRIGERATOR FREEZER DOOR GASKET
AJP73574503 AJP73574503 REFRIGERATOR FREEZER DRAWER
AJP73594505 AJP73594505 REFRIGERATOR FREEZER DRAWER ASSEMBLY
AJP73594401 AJP73594401 REFRIGERATOR FREEZER DRAWER ASSEMBLY
MJS62773301 MJS62773301 REFRIGERATOR FREEZER DRAWER BIN
MDT62627101 MDT62627101 REFRIGERATOR FREEZER DRAWER GEAR
AHJ73349901 AHJ73349901 REFRIGERATOR FREEZER DRAWER ROLLER, REAR
MGT61844004 MGT61844004 REFRIGERATOR FREEZER DRAWER SLIDE RAIL, LEFT
AEC73617601 AEC73617601 REFRIGERATOR FREEZER DRAWER SLIDE RAIL, LEFT
MGT61844003 MGT61844003 REFRIGERATOR FREEZER DRAWER SLIDE RAIL, RIGHT
MEG63342502 MEG63342502 REFRIGERATOR FREEZER DRAWER SLIDE RAIL, RIGHT
MAK62627101 MAK62627101 REFRIGERATOR FREEZER DRAWER SLIDE SHAFT
EAU61524001 EAU61524001 REFRIGERATOR FREEZER EVAPORATOR FAN MOTOR
ABA74248401 ABA74248401 REFRIGERATOR FREEZER EVAPORATOR FAN MOTOR MOUNTING PLATE
MHN62422002 MHN62422002 REFRIGERATOR FREEZER SHROUD
MHL62691504 MHL62691504 REFRIGERATOR GLASS SHELF
AEH74136301 AEH74136301 REFRIGERATOR HINGE ASSEMBLY, UPPER
ACQ86664737 ACQ86664737 REFRIGERATOR HINGE COVER ASSEMBLY
MEG63342401 MEG63342401 REFRIGERATOR HOLDER BRACKET
MEG63342501 MEG63342501 REFRIGERATOR HOLDER RAIL
ADX73571201 ADX73571201 REFRIGERATOR ICE BANK DISPENSER SEAL
AKC73249302 AKC73249302 REFRIGERATOR ICE CONTAINER ASSEMBLY
AEQ73110210 AEQ73110210 REFRIGERATOR ICE MAKER
AJR73964201 AJR73964201 REFRIGERATOR ICE MAKER FILL TUBE
ADD74016101 ADD74016101 REFRIGERATOR ICE ROOM DOOR
MHA62652801 MHA62652801 REFRIGERATOR ICE ROOM DOOR HANDLE ROLLER
MCK68069401 MCK68069401 REFRIGERATOR LAMP COVER
MCK67125501 MCK67125501 REFRIGERATOR LAMP COVER
EAV61873612 EAV61873612 REFRIGERATOR LED LIGHT
AFC73349801 AFC73349801 REFRIGERATOR LEVELING LEG
MBG62322802 MBG62322802 REFRIGERATOR LEVER BUTTON
EBR77033103 EBR77033103 REFRIGERATOR LIGHT BOARD
ACQ87128801 ACQ87128801 REFRIGERATOR LIGHT COVER
MCK66592001 MCK66592001 REFRIGERATOR LIGHT LENS
MFF62463201 MFF62463201 REFRIGERATOR LINK
ACQ85930901 ACQ85930901 REFRIGERATOR MACHINE COMPARTMENT COVER
MAZ63664701 MAZ63664701 REFRIGERATOR MOTOR BRACKET
MAZ63463501 MAZ63463501 REFRIGERATOR MOTOR BRACKET
ABA74268301 ABA74268301 REFRIGERATOR MOTOR BRACKET ASSEMBLY
MCZ63511701 MCZ63511701 REFRIGERATOR MULTI-DUCT
MFT61866216 MFT61866216 REFRIGERATOR NAMEPLATE
AJP73574802 AJP73574802 REFRIGERATOR PANTRY DRAWER
MEA61842101 MEA61842101 REFRIGERATOR PANTRY DRAWER DIVIDER
ABQ74270602 ABQ74270602 REFRIGERATOR POWER CONTROL BOARD
ACQ86388101 ACQ86388101 REFRIGERATOR POWER CONTROL BOARD COVER
EAD62108309 EAD62108309 REFRIGERATOR POWER CORD
3650JA2061T 3650JA2061T REFRIGERATOR REAR HANDLE
MGZ62766901 MGZ62766901 REFRIGERATOR RING
EAE32501010 EAE32501010 REFRIGERATOR RUN CAPACITOR
FAB30391904 FAB30391904 REFRIGERATOR SCREW
1SZZJQ3009A 1SZZJQ3009A REFRIGERATOR SCREW
1SZZJQ3002F 1SZZJQ3002F REFRIGERATOR SCREW
1SZZJQ2015B 1SZZJQ2015B REFRIGERATOR SCREW
1SZZJQ2014B 1SZZJQ2014B REFRIGERATOR SCREW
1SZZJQ2002B 1SZZJQ2002B REFRIGERATOR SCREW
MHL62551802 MHL62551802 REFRIGERATOR SHELF
AHT73454104 AHT73454104 REFRIGERATOR SHELF
AHT73554103 AHT73554103 REFRIGERATOR SHELF ASSEMBLY
AHT73454404 AHT73454404 REFRIGERATOR SHELF ASSEMBLY
AHT73454202 AHT73454202 REFRIGERATOR SHELF ASSEMBLY
MEG63060501 MEG63060501 REFRIGERATOR SHELF BRACKET
MEG64000201 MEG64000201 REFRIGERATOR SHELF HOLDER
AHV73289801 AHV73289801 REFRIGERATOR SHROUD ASSEMBLY
MHQ62041302 MHQ62041302 REFRIGERATOR SKIRT, LOWER
MHU61981201 MHU61981201 REFRIGERATOR SPANNER WRENCH
MHY62044106 MHY62044106 REFRIGERATOR SPRING
4970JQ3016J 4970JQ3016J REFRIGERATOR SPRING
0CZZJB2014P 0CZZJB2014P REFRIGERATOR START CAPACITOR
AJC73112304 AJC73112304 REFRIGERATOR STOPPER ASSEMBLY
AJC73112303 AJC73112303 REFRIGERATOR STOPPER ASSEMBLY
6500JB2001L 6500JB2001L REFRIGERATOR TEMPERATURE SENSOR
ACQ85891303 ACQ85891303 REFRIGERATOR TOE GRILLE
ACQ85839104 ACQ85839104 REFRIGERATOR TRAY COVER ASSEMBLY
ACQ85839103 ACQ85839103 REFRIGERATOR TRAY COVER ASSEMBLY
ABN73019101 ABN73019101 REFRIGERATOR WATER FILTER BYPASS
MCK67447801 MCK67447801 REFRIGERATOR WATER FILTER COVER
MDJ62165101 MDJ62165101 REFRIGERATOR WATER FILTER HEAD
4004JA3003A 4004JA3003A REFRIGERATOR WATER FILTER HOUSING CLIP, LEFT
AJU72992601 AJU72992601 REFRIGERATOR WATER INLET VALVE
5221JB2010G 5221JB2010G REFRIGERATOR WATER INLET VALVE
AJL72911502 AJL72911502 REFRIGERATOR WATER RESERVOIR
MCK67107201 MCK67107201 REFRIGERATOR WATER RESERVOIR COVER
MCK42264401 MCK42264401 REFRIGERATOR WATER TANK COVER
MCD62426801 MCD62426801 REFRIGERATOR WATER TUBE FITTING
MJU62711401 MJU62711401 REFRIGERATOR WATER TUBING
4930JA3091A 4930JA3091A REFRIGERATOR WATER TUBING CLIP
4004JA3002A 4004JA3002A REFRIGERATOR WATER TUBING CLIP
MJU62711501 MJU62711501 REFRIGERATOR WATER TUBING, 300-MM X 1/4-IN
1APF0403419 1APF0403419 SCREW,TAPTIT
AHT73633802 AHT73633802 SHELF ASSEMBLY,NET
MHL62832902 MHL62832902 SHELF,NET
MHL62832901 MHL62832901 SHELF,NET
MCK67502201 MCK67502201 TUBE COVER
EBD60664501 EBD60664501 WATER SENSOR
