Model Image
Manufacturer

LG

Model Number

79573167610

Description

Bottom-mount Refrigerator

Interactive Exploded View

Parts List

Part Number Description
AAN37031304 AAN37031304 BASE ASSEMBLY
MBL65024303 MBL65024303 CAP,DECOR RE
MBL65042006 MBL65042006 CAP,DECOR REFRIGERATOR
ACG75305802 ACG75305802 CONDENSER ASSEMBLY,WIRE
MCD63827601 MCD63827601 CONNECTOR TUBE
MCK66593601 MCK66593601 COVER
ACQ86292602 ACQ86292602 COVER ASSEMBLY
ACQ85723606 ACQ85723606 COVER ASSEMBLY
5040JA2004A 5040JA2004A DAMPER,MOTOR SUPPORT
EAU63103208 EAU63103208 DC MOTOR
MCR65687502 MCR65687502 DECOR,CONTROL
ADD73536432 ADD73536432 DOOR FOAM ASSEMBLY
3391JJ2013S 3391JJ2013S DRAIN TRAY ASSEMBLY
MDS38201425 MDS38201425 FREEZER DOOR GASKET
MDS62152412 MDS62152412 GASKET HOME
ADQ36006102 ADQ36006102 GENUINE KENMORE REFRIGERATOR WATER FILTER
MEA42772903 MEA42772903 GUIDE,FAN
AEH72976201 AEH72976201 HINGE ASSEMBLY
AEH73816803 AEH73816803 HINGE ASSEMBLY
AEH74216501 AEH74216501 HINGE ASSEMBLY,UPPER
AEJ72914501 AEJ72914501 HOLDER ASSEMBLY
MEG63262301 MEG63262301 HOLDER LEVER
4930JA3034A 4930JA3034A HOLDER,DRIER
EBR71326804 EBR71326804 PCB ASSEMBLY
EBR84457304 EBR84457304 PCB ASSEMBLY,MAIN
MCD61841203 MCD61841203 RAIL CONNECTOR
AEC73877701 AEC73877701 RAIL GUIDE ASSEMBLY
MEG63344701 MEG63344701 RAIL HOLDER
MEG63344702 MEG63344702 RAIL HOLDER
MEG63303501 MEG63303501 RAIL HOLDER
ADH73150207 ADH73150207 REFRIGERATION APPLIANCE FILTER DRYER
ADJ73252223 ADJ73252223 REFRIGERATOR AIR DUCT AND COVER ASSEMBLY
ADQ73214404 ADQ73214404 REFRIGERATOR AIR FILTER
MAK62267601 MAK62267601 REFRIGERATOR BAR
MAK62287201 MAK62287201 REFRIGERATOR BAR
MBF62704701 MBF62704701 REFRIGERATOR BUSHING
ABH75139701 ABH75139701 REFRIGERATOR BUTTON ASSEMBLY
MEG62781701 MEG62781701 REFRIGERATOR BUTTON HOLDER
MEG62999601 MEG62999601 REFRIGERATOR BUTTON HOLDER
ABN72938907 ABN72938907 REFRIGERATOR CAP ASSEMBLY DUCT
MBL64822401 MBL64822401 REFRIGERATOR CAP COVER
AEH73816908 AEH73816908 REFRIGERATOR CENTER HINGE ASSEMBLY
AEH73816906 AEH73816906 REFRIGERATOR CENTER HINGE ASSEMBLY
4930JA3054A 4930JA3054A REFRIGERATOR CLAMP
TCA36511303 TCA36511303 REFRIGERATOR COMPRESSOR
ACQ86284803 ACQ86284803 REFRIGERATOR COMPRESSOR ACCESS COVER
4620JA3015A 4620JA3015A REFRIGERATOR COMPRESSOR MOUNT RETAINER CLIP
6750CL0001D 6750CL0001D REFRIGERATOR COMPRESSOR OVERLOAD PROTECTOR
4J00977P 4J00977P REFRIGERATOR COMPRESSOR PROCESS TUBE
MCQ66921101 MCQ66921101 REFRIGERATOR COMPRESSOR SOUND DAMPER
EBG60663230 EBG60663230 REFRIGERATOR COMPRESSOR START RELAY
3550JA2110B 3550JA2110B REFRIGERATOR COMPRESSOR START RELAY COVER
EAU62863103 EAU62863103 REFRIGERATOR CONDENSER FAN MOTOR
1SZZJA3016A 1SZZJA3016A REFRIGERATOR CONDENSER FAN MOUNTING SCREW
ADD73516625 ADD73516625 REFRIGERATOR CONVENIENCE DOOR ASSEMBLY
AEJ73440301 AEJ73440301 REFRIGERATOR CONVENIENCE DOOR LATCH
ACQ85695401 ACQ85695401 REFRIGERATOR CONVENIENCE DOOR LATCH COVER
ABH74399601 ABH74399601 REFRIGERATOR CONVENIENCE DOOR PUSH BUTTON
EAD62329151 EAD62329151 REFRIGERATOR CORD
ACQ85428610 ACQ85428610 REFRIGERATOR COVER ASSEMBLY
ABQ72931402 ABQ72931402 REFRIGERATOR CRISPER CASE COVER ASSEMBLY
AJP73374602 AJP73374602 REFRIGERATOR CRISPER DRAWER
AJP73374601 AJP73374601 REFRIGERATOR CRISPER DRAWER
AJP73314402 AJP73314402 REFRIGERATOR CRISPER DRAWER
AJP73894701 AJP73894701 REFRIGERATOR CRISPER DRAWER
MBL62065801 MBL62065801 REFRIGERATOR CRISPER DRAWER BUMPER
MCD61841302 MCD61841302 REFRIGERATOR CRISPER DRAWER RAIL SUPPORT
AEC73317724 AEC73317724 REFRIGERATOR CRISPER DRAWER SLIDE RAIL, RIGHT
AEC73317601 AEC73317601 REFRIGERATOR CRISPER DRAWER TRACK, LEFT
MEB62455901 MEB62455901 REFRIGERATOR DECORATIVE HANDLE
ACQ85448408 ACQ85448408 REFRIGERATOR DELI DRAWER COVER
EBR64730408 EBR64730408 REFRIGERATOR DISPENSER CONTROL BOARD

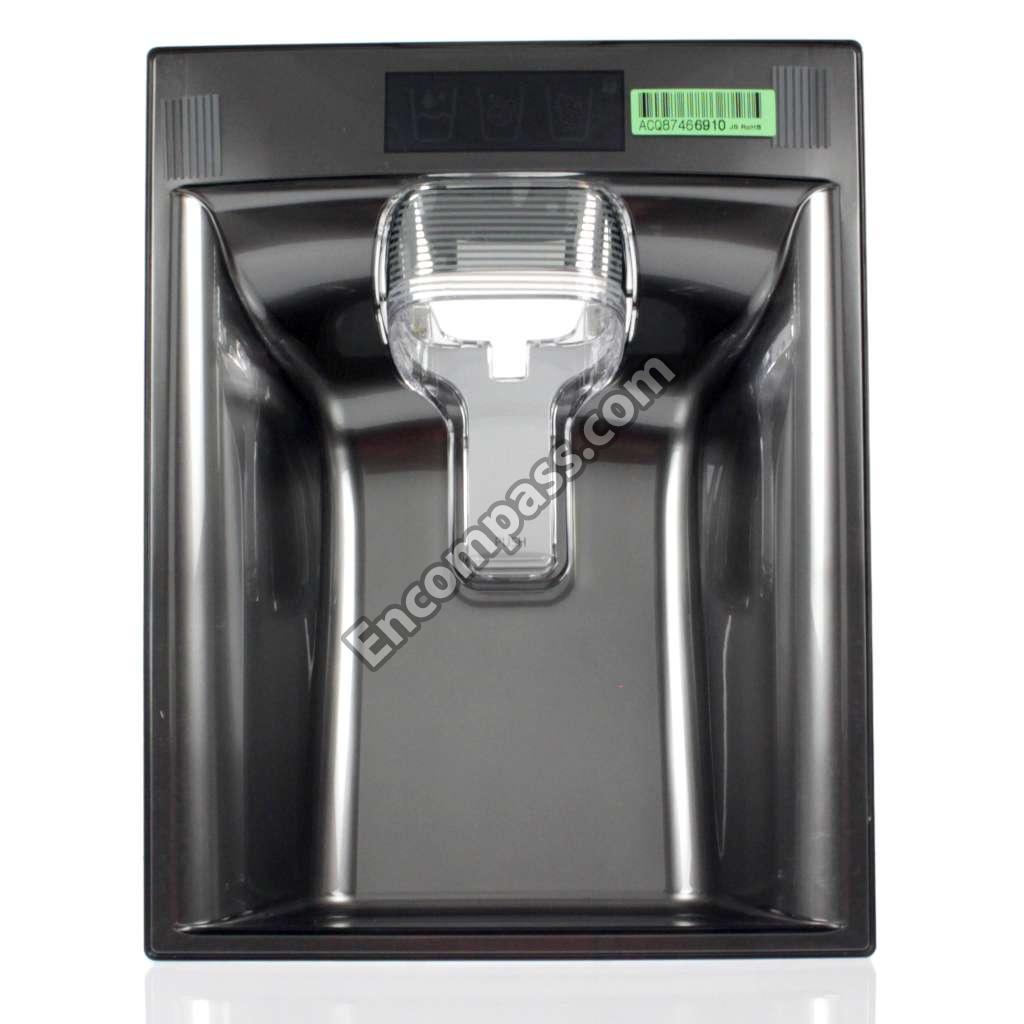

ACQ87466910 ACQ87466910 REFRIGERATOR DISPENSER CONTROL PANEL ASSEMBLY
EAU59551204 EAU59551204 REFRIGERATOR DISPENSER ICE CHUTE DOOR MOTOR
6600JB3001C 6600JB3001C REFRIGERATOR DISPENSER SWITCH
ABQ56655359 ABQ56655359 REFRIGERATOR DISPLAY CASE ASSEMBLY
EBR78988401 EBR78988401 REFRIGERATOR DISPLAY PCB ASSEMBLY
EBR78723401 EBR78723401 REFRIGERATOR DISPLAY PCB ASSEMBLY
ADD74236517 ADD74236517 REFRIGERATOR DOOR ASSEMBLY, LEFT
MAN62430001 MAN62430001 REFRIGERATOR DOOR BASKET
MAN62629801 MAN62629801 REFRIGERATOR DOOR BIN
AAP73252302 AAP73252302 REFRIGERATOR DOOR BIN
MAN62629901 MAN62629901 REFRIGERATOR DOOR BIN
MAN62429801 MAN62429801 REFRIGERATOR DOOR BIN
MAN62429901 MAN62429901 REFRIGERATOR DOOR BIN
5040JA3033B 5040JA3033B REFRIGERATOR DOOR BIN COVER BUMPER
MAK62347401 MAK62347401 REFRIGERATOR DOOR BIN FRONT COVER BAR
MAK62267501 MAK62267501 REFRIGERATOR DOOR BIN RETAINER BAR
MJB62830601 MJB62830601 REFRIGERATOR DOOR CLOSER
ADD72915911 ADD72915911 REFRIGERATOR DOOR FOAM ASSEMBLY
ADX72930458 ADX72930458 REFRIGERATOR DOOR GASKET, LEFT
ADX72930459 ADX72930459 REFRIGERATOR DOOR GASKET, RIGHT
AED72952837 AED72952837 REFRIGERATOR DOOR HANDLE
MJB63190001 MJB63190001 REFRIGERATOR DOOR HANDLE MOUNTING BOLT
4775JJ2011D 4775JJ2011D REFRIGERATOR DOOR HINGE
AEH60614106 AEH60614106 REFRIGERATOR DOOR HINGE
MBL65077501 MBL65077501 REFRIGERATOR DOOR HINGE COVER
MBL65046501 MBL65046501 REFRIGERATOR DOOR HINGE COVER
MGZ42997101 MGZ42997101 REFRIGERATOR DOOR HINGE PIN RETAINER RING
1STZJA3004Q 1STZJA3004Q REFRIGERATOR DOOR HINGE SCREW
4350JA3005B 4350JA3005B REFRIGERATOR DOOR HINGE SNAP RING
AEH36821908 AEH36821908 REFRIGERATOR DOOR HINGE, CENTER
MEG63261302 MEG63261302 REFRIGERATOR DOOR HOLDER
MCK63734902 MCK63734902 REFRIGERATOR DOOR LEVER COVER
MCK67046601 MCK67046601 REFRIGERATOR DOOR LEVER COVER
MCK66932201 MCK66932201 REFRIGERATOR DOOR PANEL COVER
MCK66932401 MCK66932401 REFRIGERATOR DOOR PANEL COVER
MBN62547401 MBN62547401 REFRIGERATOR DOOR SHELF ASSEMBLY
MJB62729802 MJB62729802 REFRIGERATOR DOOR STOPPER
EBF61314803 EBF61314803 REFRIGERATOR DOOR SWITCH
EBF61314804 EBF61314804 REFRIGERATOR DOOR SWITCH
MJS62233503 MJS62233503 REFRIGERATOR DRAIN PAN
MCK67228902 MCK67228902 REFRIGERATOR DRAWER COVER
MCK67228901 MCK67228901 REFRIGERATOR DRAWER COVER
MEA62993001 MEA62993001 REFRIGERATOR DRAWER GUIDE
AEC73317703 AEC73317703 REFRIGERATOR DRAWER SLIDE RAIL
AEC73317501 AEC73317501 REFRIGERATOR DRAWER SLIDE RAIL
MJS62816001 MJS62816001 REFRIGERATOR DRAWER TRAY
MBL65039901 MBL65039901 REFRIGERATOR DUCT CAP
3551JA2144M 3551JA2144M REFRIGERATOR ELECTRONIC CONTROL BOARD COVER
ADL73600907 ADL73600907 REFRIGERATOR EVAPORATOR
4J01425A 4J01425A REFRIGERATOR EVAPORATOR COVER SCREW
3550JA2273A 3550JA2273A REFRIGERATOR EVAPORATOR FAN MOTOR COVER
ADP73513701 ADP73513701 REFRIGERATOR FAN ASSEMBLY
ADC73448263 ADC73448263 REFRIGERATOR FREEZER DOOR ASSEMBLY
ADD73358038 ADD73358038 REFRIGERATOR FREEZER DOOR ASSEMBLY
AED72952718 AED72952718 REFRIGERATOR FREEZER DOOR HANDLE
3550JA2264A 3550JA2264A REFRIGERATOR FREEZER DOOR HINGE COVER
3550JA2267A 3550JA2267A REFRIGERATOR FREEZER DOOR HINGE COVER, LEFT
ACQ73657702 ACQ73657702 REFRIGERATOR FREEZER DOOR SLIDE RAIL CAP, LEFT
ACQ73657701 ACQ73657701 REFRIGERATOR FREEZER DOOR SLIDE RAIL CAP, RIGHT
MGT61844016 MGT61844016 REFRIGERATOR FREEZER DOOR SLIDE RAIL, LEFT
AJP73914701 AJP73914701 REFRIGERATOR FREEZER DRAWER
AJP73914601 AJP73914601 REFRIGERATOR FREEZER DRAWER ASSEMBLY
5040JA3075A 5040JA3075A REFRIGERATOR FREEZER DRAWER FRAME BUMPER
MDT62447301 MDT62447301 REFRIGERATOR FREEZER DRAWER GEAR
4980JA3100B 4980JA3100B REFRIGERATOR FREEZER DRAWER RAIL SUPPORT
4270JA3009P 4270JA3009P REFRIGERATOR FREEZER DRAWER SLIDE BAR
AEB72913943 AEB72913943 REFRIGERATOR FREEZER EVAPORATOR FAN MOTOR AND C...
EAV61916703 EAV61916703 REFRIGERATOR FREEZER LED
EAV61916704 EAV61916704 REFRIGERATOR FREEZER LIGHT BOARD
MHN62642001 MHN62642001 REFRIGERATOR FREEZER SHROUD
ACM73919214 ACM73919214 REFRIGERATOR FREEZER TEMPERATURE SENSOR
MJS42270802 MJS42270802 REFRIGERATOR FREEZER TRAY
AHJ73070401 AHJ73070401 REFRIGERATOR FREEZER TRAY ROLLER WHEEL
MDR62522201 MDR62522201 REFRIGERATOR FUNNEL
MHL42613226 MHL42613226 REFRIGERATOR GLASS SHELF
AEC73837801 AEC73837801 REFRIGERATOR GUIDE ASSEMBLY
3650JA2113N 3650JA2113N REFRIGERATOR HANDLE
3650JA2113P 3650JA2113P REFRIGERATOR HANDLE
AED72952829 AED72952829 REFRIGERATOR HANDLE ASSEMBLY
MBL37761911 MBL37761911 REFRIGERATOR HANDLE CAP
EAD54367502 EAD54367502 REFRIGERATOR HARNESS ASSEMBLY
EAD60703912 EAD60703912 REFRIGERATOR HARNESS ASSEMBLY
MEE62225127 MEE62225127 REFRIGERATOR HEATER SHEATH
AEH73577903 AEH73577903 REFRIGERATOR HINGE ASSEMBLY, LOWER
AEH73856402 AEH73856402 REFRIGERATOR HINGE ASSEMBLY, LOWER
3550JA2267B 3550JA2267B REFRIGERATOR HINGE COVER
MCK68187505 MCK68187505 REFRIGERATOR HINGE COVER
MCK68187506 MCK68187506 REFRIGERATOR HINGE COVER
4J00415H 4J00415H REFRIGERATOR HOSE CLAMP MOUNTING SCREW
ADX73250601 ADX73250601 REFRIGERATOR ICE BANK DISPENSER SEAL
MDS62111103 MDS62111103 REFRIGERATOR ICE BANK DOOR GASKET
AKC73369908 AKC73369908 REFRIGERATOR ICE CONTAINER ASSEMBLY
AEQ73130004 AEQ73130004 REFRIGERATOR ICE MAKER
EAU62563503 EAU62563503 REFRIGERATOR ICE MAKER AND AUGER MOTOR ASSEMBLY
EAU60784231 EAU60784231 REFRIGERATOR ICE MAKER FAN MOTOR
5006JJ2009A 5006JJ2009A REFRIGERATOR ICE MAKER WATER FILL TUBE GROMMET
ADC72987148 ADC72987148 REFRIGERATOR ICE ROOM DOOR ASSEMBLY
MEB61894003 MEB61894003 REFRIGERATOR ICE ROOM DOOR HANDLE
MCK67195001 MCK67195001 REFRIGERATOR LAMP COVER
MCK61881401 MCK61881401 REFRIGERATOR LAMP COVER
MCK67195101 MCK67195101 REFRIGERATOR LAMP COVER
MCK66592001 MCK66592001 REFRIGERATOR LED COVER
EAV61652805 EAV61652805 REFRIGERATOR LED LIGHT
EAV61572001 EAV61572001 REFRIGERATOR LED LIGHT
AFC72909201 AFC72909201 REFRIGERATOR LEVELING LEG
MHY62603707 MHY62603707 REFRIGERATOR LEVER SPRING
MHY62603708 MHY62603708 REFRIGERATOR LEVER SPRING
MCK66769001 MCK66769001 REFRIGERATOR LIGHT COVER
MFF62763001 MFF62763001 REFRIGERATOR LINK
MCK66908001 MCK66908001 REFRIGERATOR LOWER DOOR COVER
5070JA3002Y 5070JA3002Y REFRIGERATOR LOWER SKIRT
5070JA3002W 5070JA3002W REFRIGERATOR LOWER SKIRT
ABA72913424 ABA72913424 REFRIGERATOR MOTOR BRACKET ASSEMBLY
5040JA2009B 5040JA2009B REFRIGERATOR MOTOR SUPPORT DAMPER
MFT61866214 MFT61866214 REFRIGERATOR NAMEPLATE
ABQ72940020 ABQ72940020 REFRIGERATOR PCB CASE ASSEMBLY
MJU62070611 MJU62070611 REFRIGERATOR PLASTIC TUBE
MJU39256423 MJU39256423 REFRIGERATOR PLASTIC TUBE
AGU74268115 AGU74268115 REFRIGERATOR PLATE ASSEMBLY, FRONT
MCD61841204 MCD61841204 REFRIGERATOR RAIL CONNECTOR
AEC73877702 AEC73877702 REFRIGERATOR RAIL GUIDE ASSEMBLY
MHA62513601 MHA62513601 REFRIGERATOR ROLLER
1PZZJA3013B 1PZZJA3013B REFRIGERATOR ROLLER WHEEL AXLE PIN
EAE32501017 EAE32501017 REFRIGERATOR RUN CAPACITOR
1SBZJA3004L 1SBZJA3004L REFRIGERATOR SCREW
4J00415D 4J00415D REFRIGERATOR SCREW
4000W4A003A 4000W4A003A REFRIGERATOR SCREW
MCK67228501 MCK67228501 REFRIGERATOR SENSOR COVER
AHT73234214 AHT73234214 REFRIGERATOR SHELF ASSEMBLY
AHT73253818 AHT73253818 REFRIGERATOR SHELF ASSEMBLY
AHT73234046 AHT73234046 REFRIGERATOR SHELF ASSEMBLY
AHT73234117 AHT73234117 REFRIGERATOR SHELF ASSEMBLY
AHT73233949 AHT73233949 REFRIGERATOR SHELF ASSEMBLY
MEG62685801 MEG62685801 REFRIGERATOR SHELF HOLDER
MEG62685901 MEG62685901 REFRIGERATOR SHELF HOLDER
3J05696W 3J05696W REFRIGERATOR SHELF HOLDER SCREW
4931JA3005B 4931JA3005B REFRIGERATOR SHELF SUPPORT
MGT61844015 MGT61844015 REFRIGERATOR SLIDE RAIL
MHU38218908 MHU38218908 REFRIGERATOR SPANNER WRENCH
MHY62784403 MHY62784403 REFRIGERATOR SPRING
MHY62645401 MHY62645401 REFRIGERATOR SPRING
AJC68689635 AJC68689635 REFRIGERATOR STOPPER ASSEMBLY
MJH62833618 MJH62833618 REFRIGERATOR SUPPORTER
6500JB2001B 6500JB2001B REFRIGERATOR TEMPERATURE SENSOR
EBD60925804 EBD60925804 REFRIGERATOR TEMPERATURE SENSOR
ACQ73244001 ACQ73244001 REFRIGERATOR TEMPERATURE SENSOR AND COVER
AEC73317602 AEC73317602 REFRIGERATOR VEGETABLE TRAY GUIDE ASSEMBLY
ABN73019101 ABN73019101 REFRIGERATOR WATER FILTER BYPASS
MCK66849403 MCK66849403 REFRIGERATOR WATER FILTER COVER
MDJ62165101 MDJ62165101 REFRIGERATOR WATER FILTER HEAD
MEG42758601 MEG42758601 REFRIGERATOR WATER FILTER HOUSING WATER SUPPLY ...
MCK66584901 MCK66584901 REFRIGERATOR WATER FILTER OUTER COVER
AJU74532703 AJU74532703 REFRIGERATOR WATER INLET VALVE
AJU72992603 AJU72992603 REFRIGERATOR WATER INLET VALVE
ACQ85432701 ACQ85432701 REFRIGERATOR WATER RESERVOIR COVER
3550JA2184B 3550JA2184B REFRIGERATOR WATER SUPPLY TUBE COVER
AJR56656503 AJR56656503 REFRIGERATOR WATER TUBING
4004JA3002A 4004JA3002A REFRIGERATOR WATER TUBING CLIP
1SZZJJ3010F 1SZZJJ3010F SCREW,CUSTOMIZED
MHL62832302 MHL62832302 SHELF,NET
MHL62832301 MHL62832301 SHELF,NET
AJP73914801 AJP73914801 TRAY,DRAWER
5251JA2006B 5251JA2006B TUBE ASSEMBLY,DRAIN
Main Menu x
