Manufacturer
Lenovo
Model Number
10B80008US
Description
Thinkcentre-e93z
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
1.8M POWERCORD |
|
|
1.8M POWERCORD |
|
|
100-240 VAC,AIO SLIM,150W 85% |
|
|
21.5,ASSY AUO PANEL N_TOUCH |
|
|
21.5,ASSY LG PANEL N_TOUCH |
|
|
65W 1150 CPU WITH GREASE |
|
|
ALL SCREW LIST |
|
|
ALL SCREW LIST, CORDOBA |
|
|
ASSY BLACK WITH CD&CABLE |
|
|

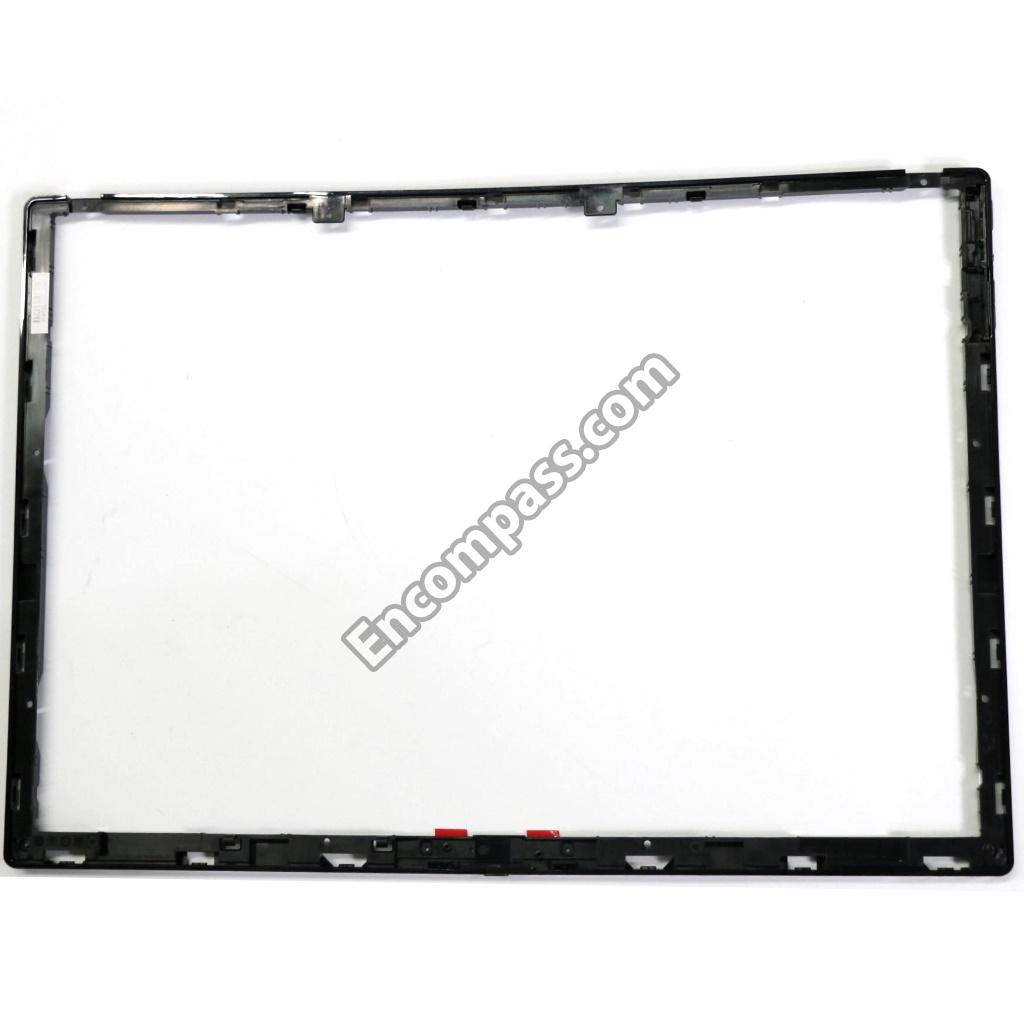

ASSY FRONTCOVER BLACK |
|
|
ASSY GLASS SUPPORT DOWN |
|
|
ASSY GLASS SUPPORT UP |
|
|
ASSY MAIN BASE AUO |
|
|
ASSY MAIN BASE LG |
|
|
ASSY REARCOVER |
|
|
CABLE, C.A. CARD READER |
|
|
CABLE,AC IN |
|
|
CABLE,C.A. ANTENNA_L&R_ |
|
|
CABLE,CONVERTER_TO MB_ |
|
|
CABLE,HDMI |
|
|
CABLE,LVDS_AUO_ |
|
|
CABLE,LVDS_LG_ |
|
|

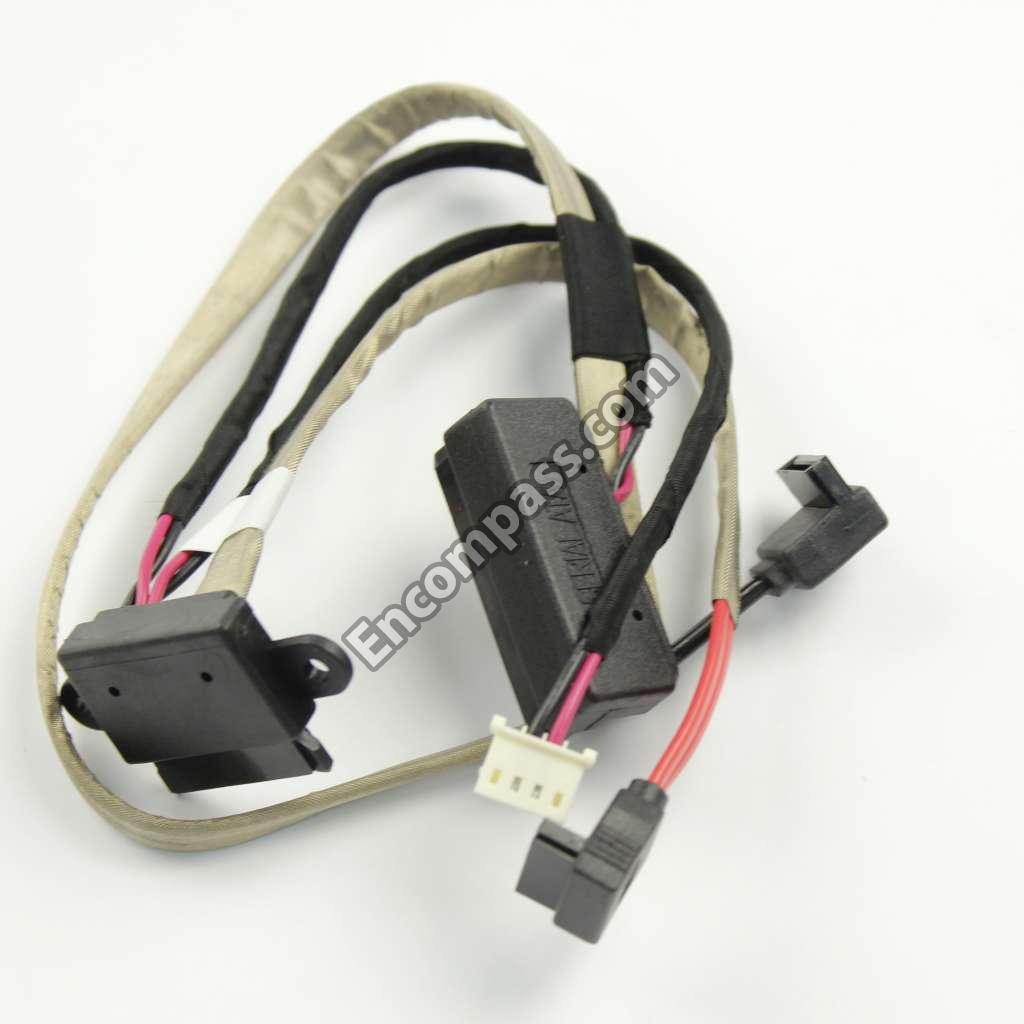

CABLE,ODD&HDD_ |
|
|
CABLE,PANEL_TO CONVERTER_AUO |
|
|
CABLE,PANEL_TO CONVERTER_LG |
|
|
CABLE,SWITCH_BOARD_ |
|
|
CABLE,USB+RJ45 |
|
|
CARDREADER,CABLE,DOOR SIDE IO |
|
|
CHASSIS,MECHANICAL KIT,NON-TOUCH |
|
|
CONVERTER BOARD TRIPOLI |
|
|
EMI_TAPE_MB SHIELDING_TOP_POLI |
|
|
FAN,CPU FAN 110X15 |
|
|
FAP,LINE CORD |
|
|
FRONT_FOOT,MONITER,BLACK,TRI |
|
|
FRU 1080P CAMERA NEW FW W8.1 |
|
|
FRU 1080P CAMERA TRIPOLI |
|
|
FRU 8GB 1600MHZ SODIMM DDR3 |
|
|

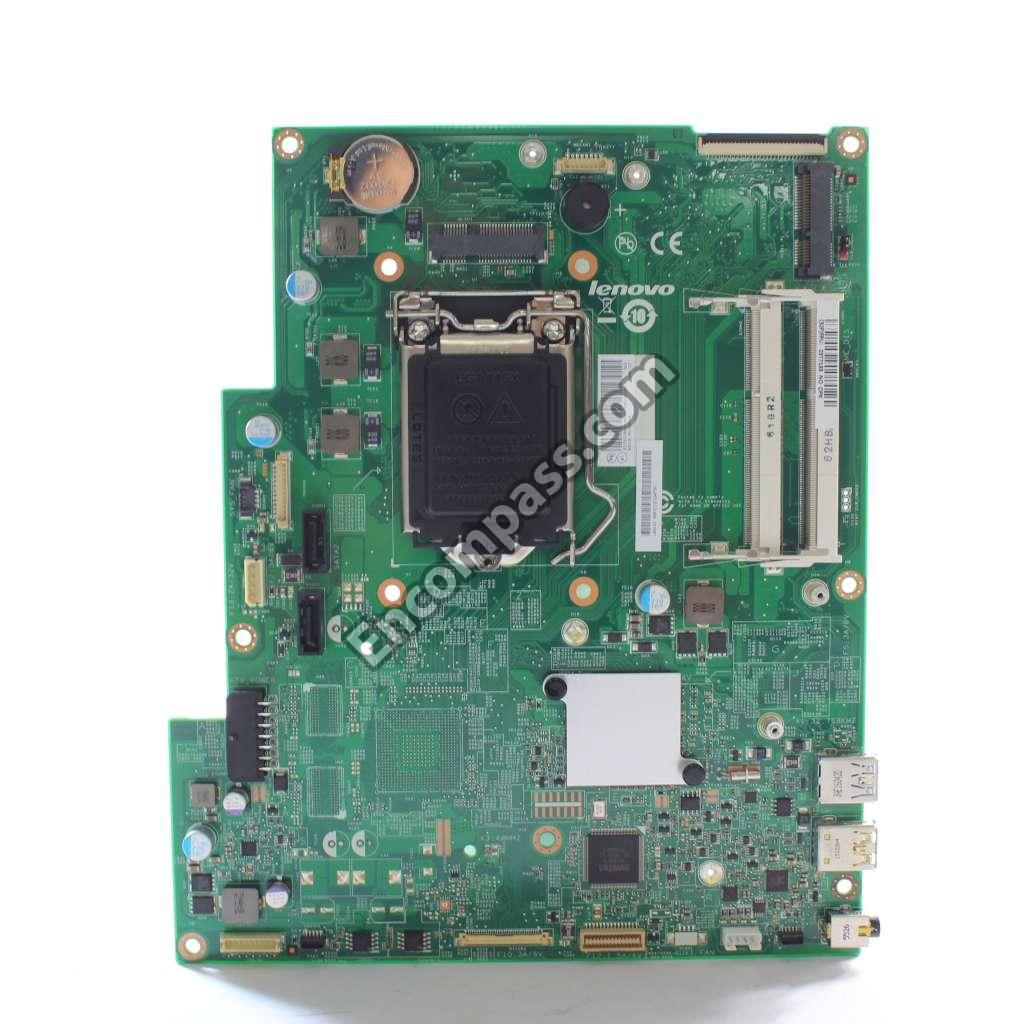

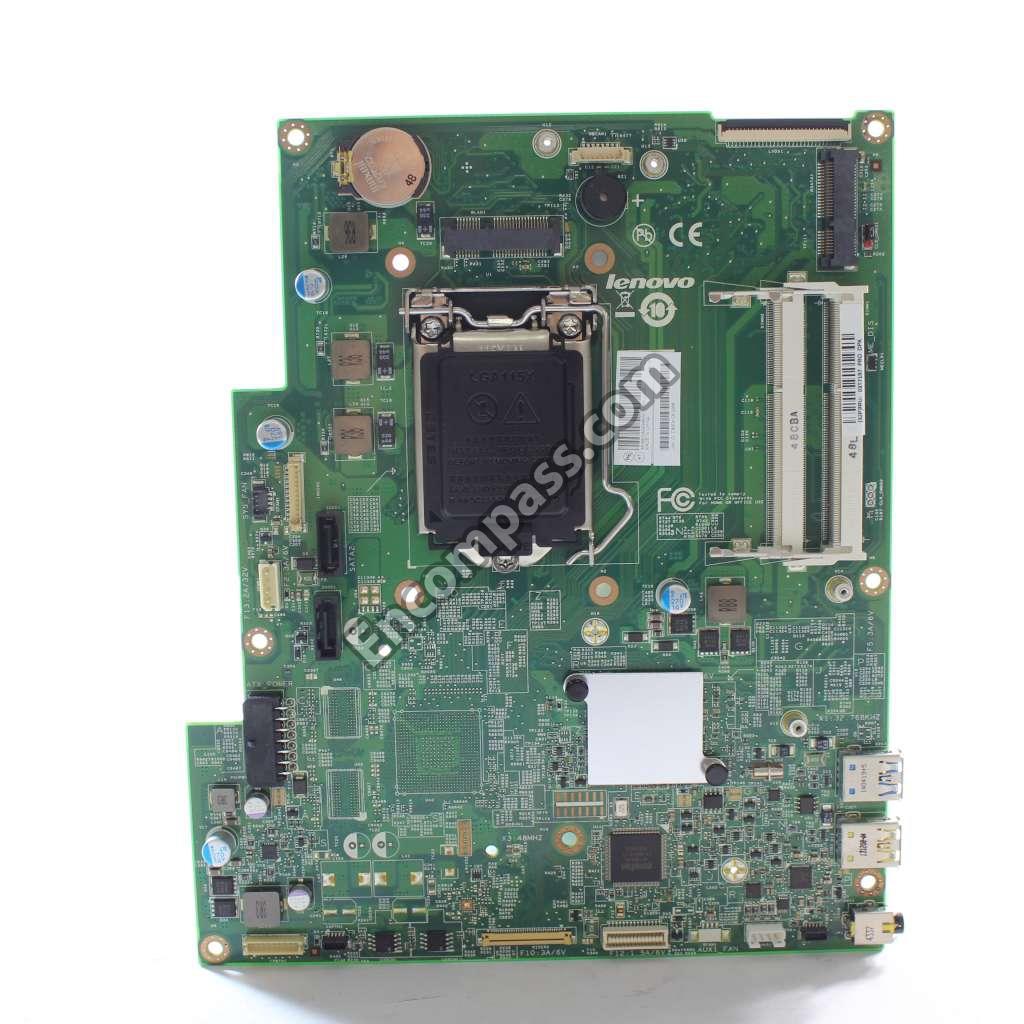

FRU Q85 ATX MB WIN8.1 |
|
|
FRU Q85 ATX MB WIN8.1 PRO |
|
|
FRU, P500 RONALDO PLANAR - W |
|
|
FRU, P500 RONALDO PLANAR - W |
|
|
FRU, P700 MESSI PLANAR - WIN |
|
|
FRU, P700 MESSI PLANAR - WIN |
|
|
FRU, P900 PELE PLANAR - WIN8 |
|
|
FRU, P900 PELE PLANAR - WIN8 |
|
|
FRU,21.5 INCH AUO PANEL |
|
|
FRU,21.5 INCH LG PANEL |
|
|
FRU,ANTENNA KITS |
|
|
FRU,ASS'Y-CAMERA-KIT_MONTEGO |
|
|
FRU,ASS'Y_NON_CAMERA_KIT_MON |
|
|
FRU,ASSY HINGE |
|
|
FRU,ASSY_REAR_IO_BRKT_MONTEG |
|
|
FRU,ASSY_REAR_IO_BRKT_TOPEKA |
|
|
FRU,CARD READER BEZEL ASS'Y |
|
|
FRU,SCREW KITS |
|
|

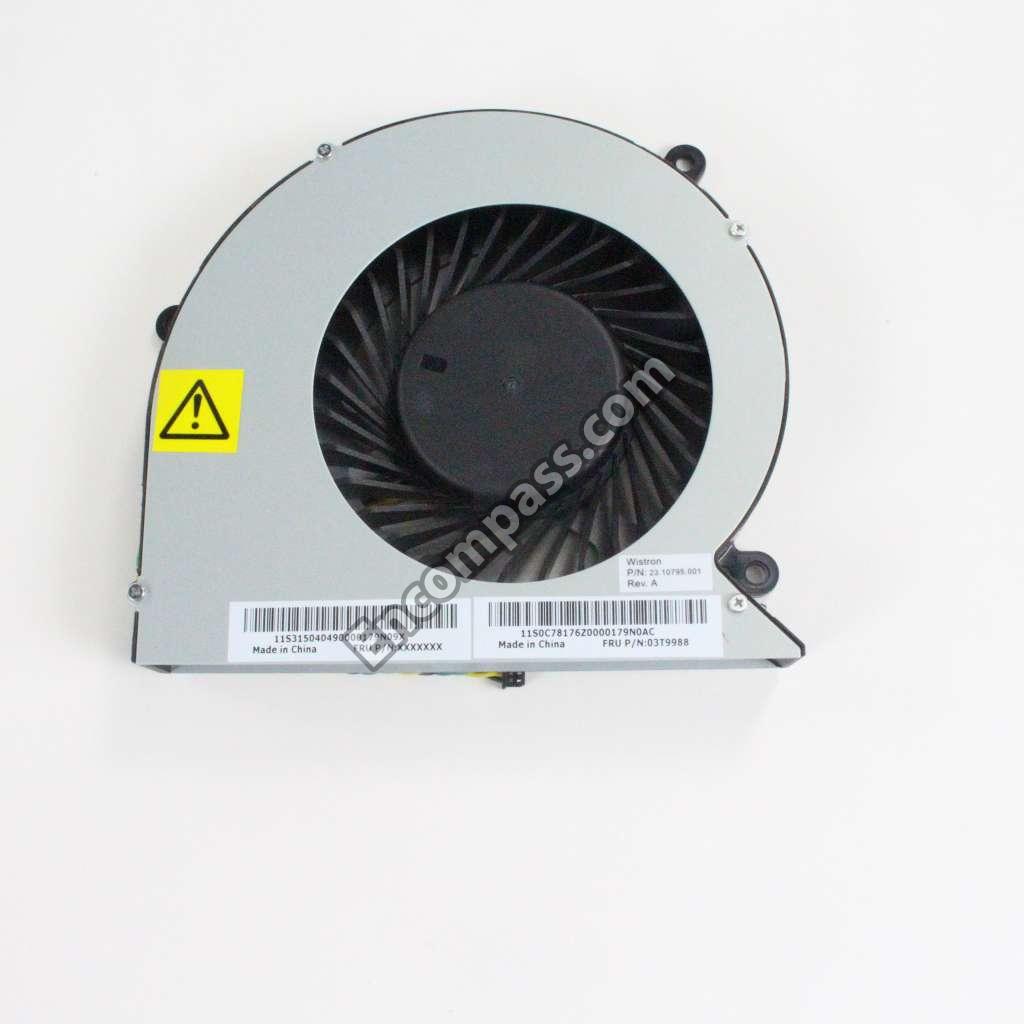

FRU,TRI MB BLOWER 70X12 |
|
|
FRU-KYB_MOUSE US ENGLISH |
|
|
HDD,500G,7200,DT2,SATA,STD |
|
|
INTEL,CORE I7-4770S |
|
|
MB SHIELDING NO CARD |
|
|
MECHANICAL,ABS,SIDE IO COVER, |
|
|
MECH_ASM,ASSY SPEAKER |
|
|
ODD,TAH |
|
|
REAR IO BOARD |
|
|
REAR IO,DB GA W/NEW,CON |
|
|
RUB HINGE,BLACK,TRI |
|
|
SCREW,SCREW LIST, |
|
|
SMD,DT,SATA,12MM,X8,W/ BEZEL |
|
|
SODIMM,8G,DDR3L,1600 |
|
|
STAND,M-STAND ,G.T. |
|
|
SWITCH, POWER SWITCH BOARD |
|
|
WEBCAM ASSY |
|
|
WIN7,WITH OUT GPU,B85 |
|
|
WIN8PRO,WITH OUT GPU,B85 |
|
|
WIRELESS,CMB,IN,JP1 HMC |
