Model Image
Manufacturer

Lenovo

Model Number

20BVZ0BVUS

Description

Thinkpad-t450

Interactive Exploded View

Parts List

Part Number Description
03X6655 03X6655 2GB DDR3L 1600 SODIMM
45N0492 45N0492 45W,20VDC,3P,WW,CHY
00HM611 00HM611 45W,20VDC,3P,WW,DEL
45N0491 45N0491 45W,20VDC,3P,WW,LTN
04X5442 04X5442 ASM
00HM081 00HM081 AUO 14.0"HD AG TN
01AW567 01AW567 BASE COVER,BLK,PLASTIC,W/DOCKING

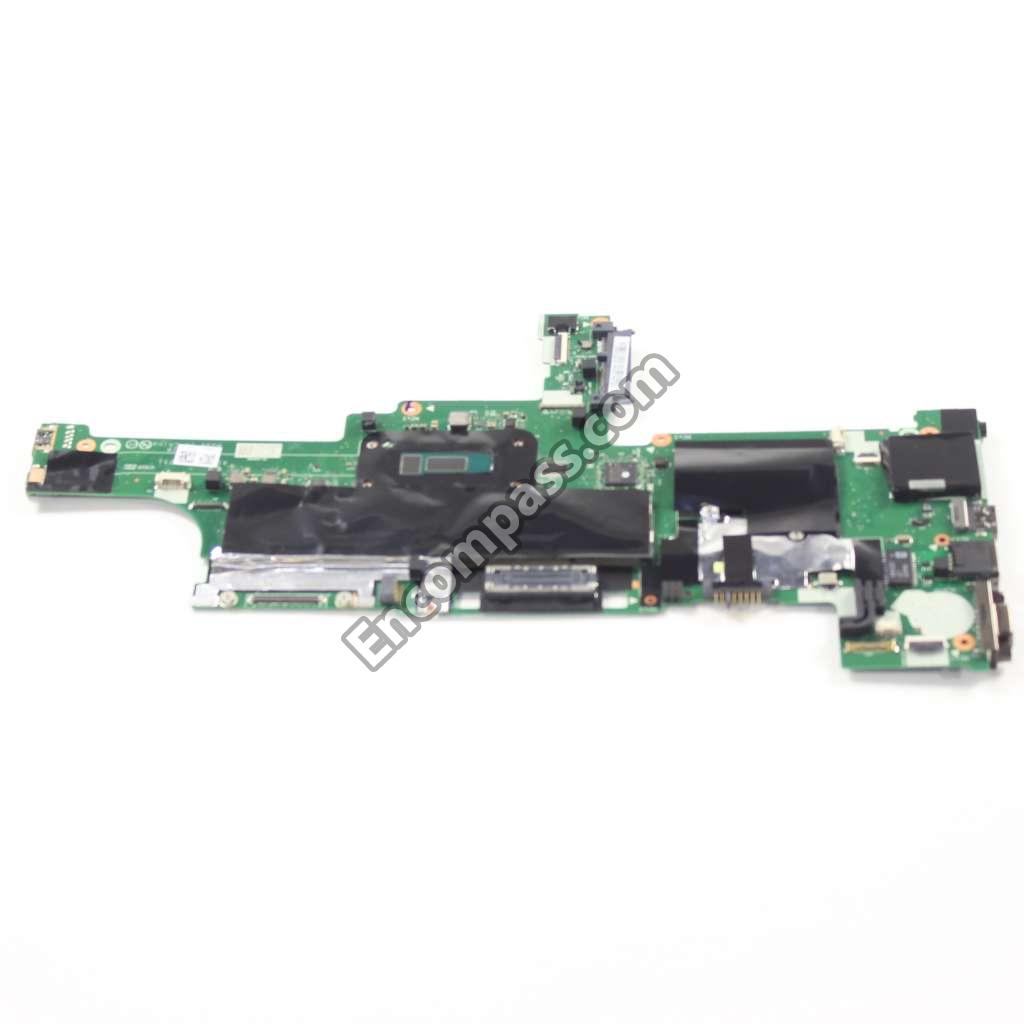

00HN489 00HN489 BDPLANAR,WIN,I3-5010U,UMA,Y-TPM
00HN692 00HN692 BEZEL,KBD, SWG W/FPR
04X5448 04X5448 BEZEL,LCD,FRONTFRAME
04X5343 04X5343 BRACKET,DC IN
04X6480 04X6480 BRACKET,RJ45 USB
00HN696 00HN696 CABLE, USB SUB CARD FOR SWG
04X5450 04X5450 CAMERA
04X1399 04X1399 CAMERA,HD,FRONT,MIC,BTW,BISON
04X1398 04X1398 CAMERA,HD,FRONT,MIC,BTW,CHICONY
04X1400 04X1400 CAMERA,HD,FRONT,MIC,BTW,LITEON
01AW599 01AW599 CB2_TAMPER_SWITCH_RUBBER,4.2MM
04Y0862 04Y0862 CS13T,US,CHY
04X0264 04X0264 CS13T,US,PRIMAX
04X3863 04X3863 DC IN
00HN539 00HN539 DC-IN,BRACKET
04X5880 04X5880 DISPLAY,14",HD, SLIM,AG,INX
04X3986 04X3986 DUMMY
45N1735 45N1735 EXTERNAL,6C,2.2AH,LIION,LGC
45N1734 45N1734 EXTERNAL,6C,2.2AH,LIION,PAN
45N1736 45N1736 EXTERNAL,6C,2.2AH,LIION,SIM
45N1767 45N1767 EXTERNAL,6C,48WH,LIION,PAN
00HN616 00HN616 FRU BASE COVER ASM FOR DOCKING
00HM047 00HM047 FRU DUMMY FRONT BATTERY
04X5942 04X5942 FRU UMA THERMAL MODULE,AVC
04X5944 04X5944 FRU UMA THERMAL MODULE,DELTA
00HN543 00HN543 FRU,EDP,CABLE,FOR,NON,TOUCH
00HN547 00HN547 FRU,KIT,WLANONLY,AMP
00HN548 00HN548 FRU,KIT,WLANONLY,YAGEO
00HN541 00HN541 FRU,LCD,,BEZEL,ASM,N/TOUCH,W/CAM
00HN540 00HN540 FRU,LCD,COVER,ASM,NON-TOUCH
00HN537 00HN537 FRU,SIM,TRAY,FOR,UMA
00HN538 00HN538 FRU,SPEAKER,KIT
00HN555 00HN555 FRU,USB,DIS,CABEL,
00HN553 00HN553 FRU,USB,SUBCARD
00HN554 00HN554 FRU,USB,UMA,CABEL,
00HT804 00HT804 GASKET KBD CABLE
00HM713 00HM713 HDD,500G,5400,7MM,HGST,SATA,STD
00HM703 00HM703 HDD,500G,5400,7MM,SEAG,SATA,STD
04X0535 04X0535 HDD,500G,5400,7MM,TOS,SATA,STD
04X3806 04X3806 HDD,500G,5400,7MM,WD,SATA,STD
00HT597 00HT597 HEATSINK,UMA,SUNON
00UP370 00UP370 INTERNAL,17X3X0.1MM,MYLAR,50PICS
00HM041 00HM041 KBD,STOPPER
00HN551 00HN551 KBD,SWG,WO/FPR,WO/NFC,WO/DOCK
00HN549 00HN549 KBD,UMA,FPR,DOCK
04X5454 04X5454 KIT,LH
04X5453 04X5453 KIT,SZS
04X5915 04X5915 LCD PANEL LGD 14"HD TN AG, SLIM
45N0129 45N0129 LUXSHARE 3PIN UL
04X5347 04X5347 MIC,CAM
04X5440 04X5440 POWERBUTTON,SUBCARD
45N5864 45N5864 RTC,1C,3V,LION,CR1632
02K7078 02K7078 RTC,1C,3V,LION,CR2032
04X0434 04X0434 SAMSUNG 14.0"HD AG
00HN488 00HN488 SCREW,KIT
00HN679 00HN679 SPEAKERINT,LEFT+RIGHT
00HN680 00HN680 SUB CARD,USB
04X6481 04X6481 SYSTEM MISC KIT
91P9642 91P9642 TRACKPOINT,RED
42T5004 42T5004 US/CA,1M,3P,NON-LH,LGW
42T5089 42T5089 US/CANADA-1.0M
04W3804 04W3804 WIRELESS,CMB,FXN,WHIPPLE M.2
04W3805 04W3805 WIRELESS,CMB,LTN,WHIPPLE M.2
