Manufacturer
Lenovo
Model Number
20C6S02X00
Description
Thinkpad-edge-e540
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
4GB DDR3L 1600 SODIMM |
|
|
65W,20VDC,2P,WW,CHY |
|
|
65W,20VDC,2P,WW,LTN |
|
|
E531/E540,US,CHY |
|
|
FRU 15W SB CARD READER&USB |
|
|

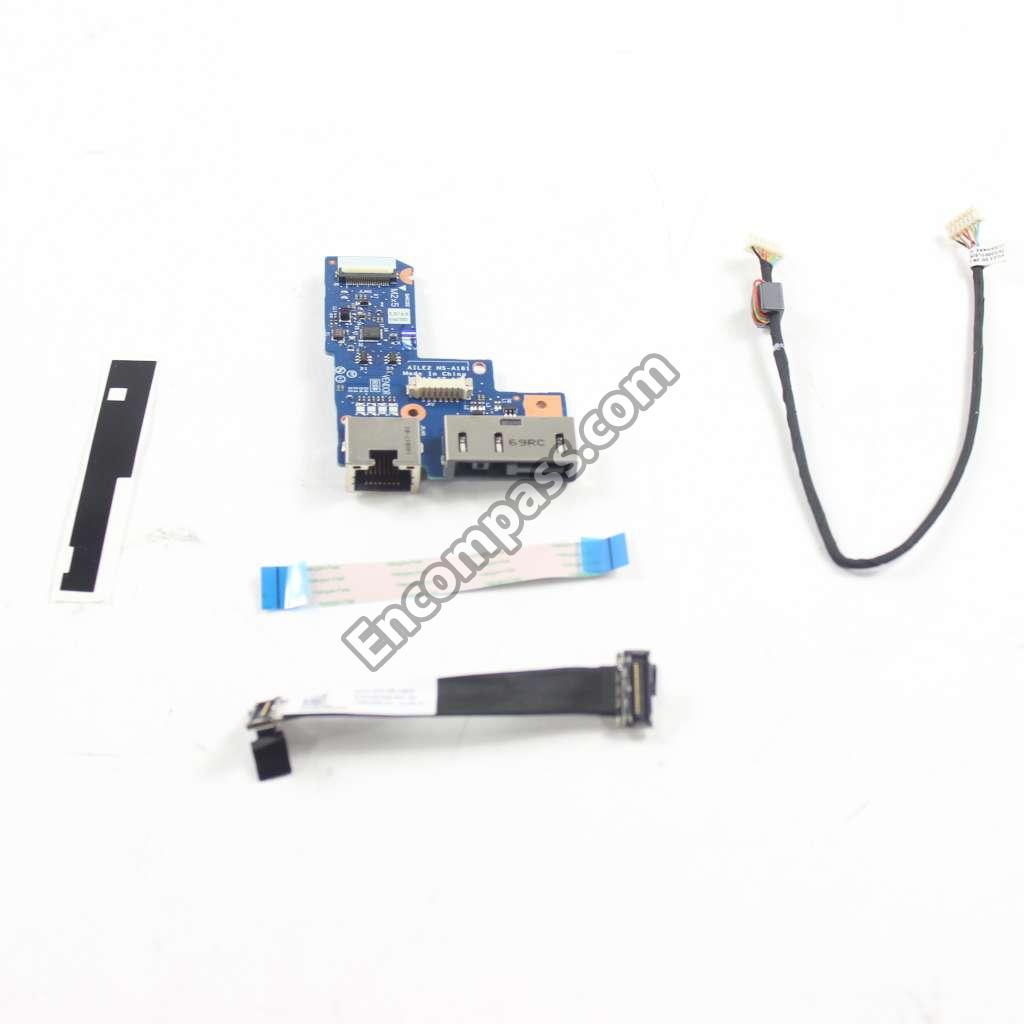

FRU 15W SB DCIN&RJ45 SUB CARD |
|
|
FRU ANTENNA WL SET-15AMP TOUCH |
|
|
FRU ANTENNA WL SET-15ICT TOUCH |
|
|
FRU BSCOVASM 15W SB ROW,NT |
|
|
FRU BSCOVASM 15W SB ROW,YT |
|
|
FRU DC-IN BRACKET 15W |
|
|
FRU GRANTSB TP HD OF ELAN AUO |
|
|
FRU GRANTSB TP HD OF ELAN LGD |
|
|
FRU GRANTSB TP HD YFO ELAN AUO |
|
|
FRU HD720P CAMERA W/MICS(BISON) |
|
|
FRU ODD SUB CARD 15W |
|
|
FRU PALM W/OFPR,N/EDGELOGO-CHY |
|
|
FRU PALMREST W/O FPR,N/EDGELOGO |
|
|
FRU PALMREST W/O FPR,N/EDGELOGO |
|
|
FRU PALMREST W/OFPR,N/EDGELOGO |
|
|
FRU PLN W8P,INTEG ,YTPM |
|
|
FRU POWER BUTTON SUB CARD15W |
|
|
FRU SCREW KIT FOR E531_E540 |
|
|
FRU,720P,HD,CAMERA,W/MIC-CCY |
|
|
FRU,720P,HD,CAMERA,W/MIC-LTN |
|
|
FRU,CONNECTER COVER |
|
|
FRU,HINGE,15W,FOR TOUCH |
|
|
FRU,INT,UMA,SB THERMAL,DELTA |
|
|
FRU,INTEL,UMA,SB THERMAL,AVC |
|
|
FRU,LCD COVER,15W,BLACK,TOUCH |
|
|
FRU,MINI DOOR,W/ SCREW,15W |
|
|
FRU,SPEAKER ASM,15W |
|
|
FRU,THERMAL DOOR,W/SCREW,15W,TOUCH |
|
|
FRU,TS_LCD,BEZEL,15W |
|
|
FRU15W,SB,LCD CABLE,FOR TS |
|
|
FRU15WSB LCD CTLBD CABLE,TS |
|
|

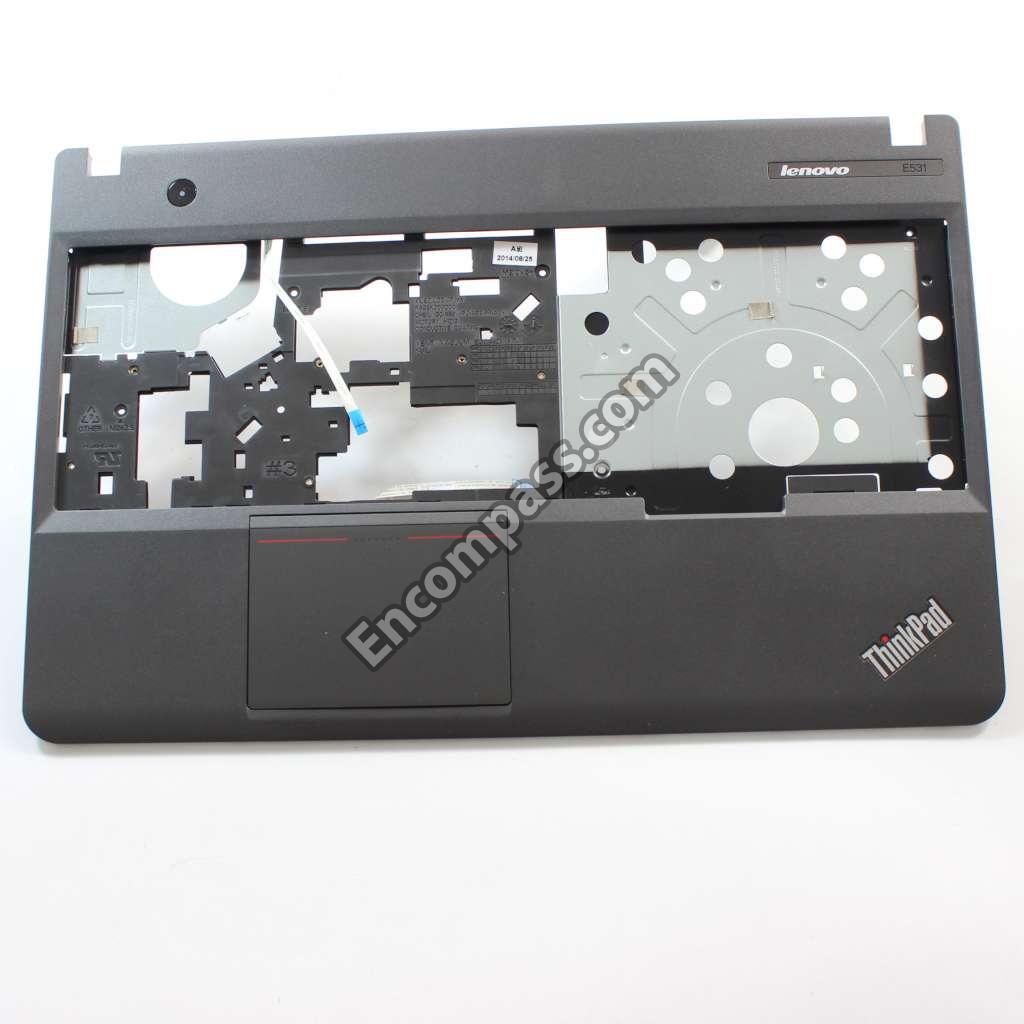

FRUPALMREST,ASM,W/OFPR,CHY,CP |
|
|
FRUPALMREST,ASM,W/OFPR,SRX,CP |
|
|
HDD,320G,7200,7MM,HGST,SATA,STD |
|
|
HDD,320G,7200,7MM,HGST,SATA,STD |
|
|

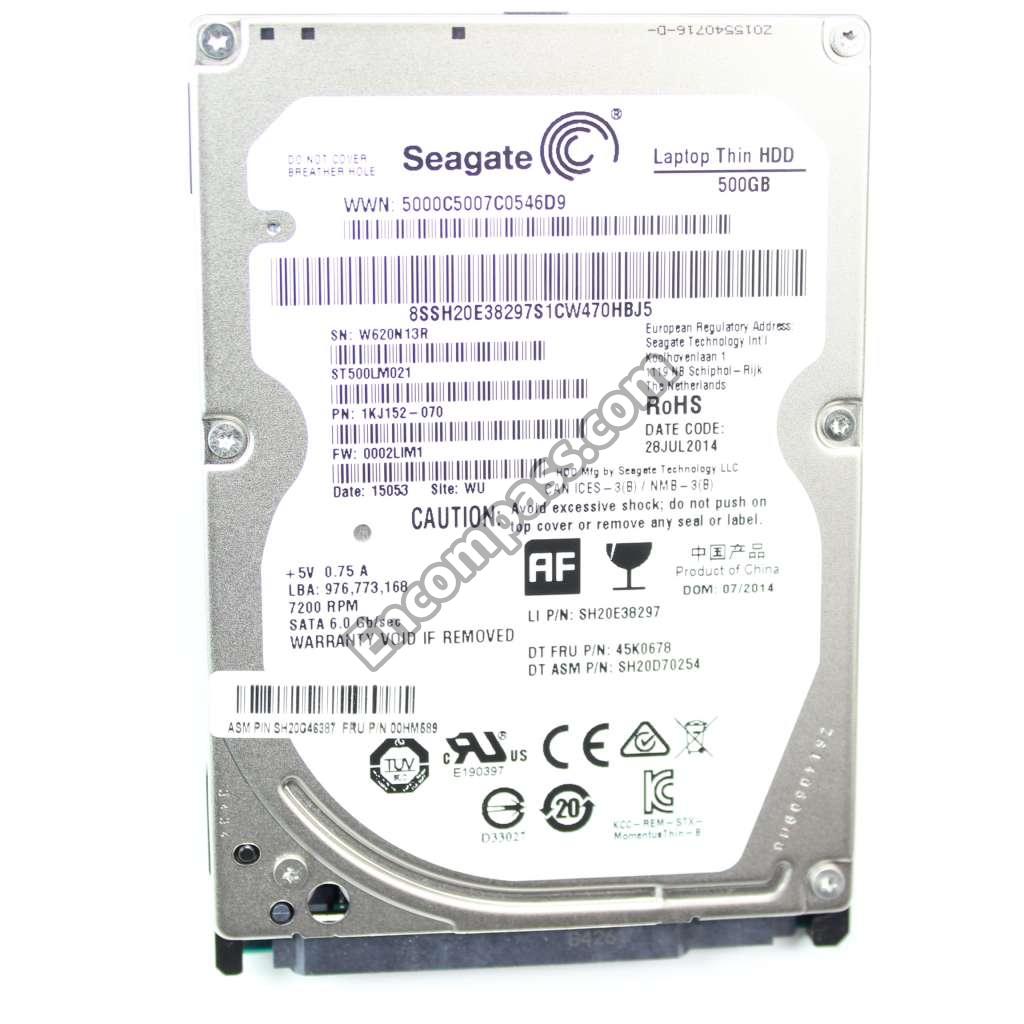

HDD,320G,7200,7MM,SEAG,SATA,STD |
|
|
HDD,320G,7200,7MM,TOS,SATA,STD |
|
|
HEATSINK,INTEL,UMA,HSW,SUNON |
|
|
INTEL,I3-4000M |
|
|
RTC BATTERY |
|
|
SCREW, SCREW KIT |
|
|
SMB C01 LGC 6CELL 2.2AH |
|
|
SMB C01 SANYO 6CELL 2.2AH |
|
|
SMB C01 SIMPLO 6CELL 2.2AH |
|
|
SMD,HLDS,SATA,9.5MM,X8,SBGNT |
|
|
SMD,PLDS,SATA,9.5MM,X8,SBGNT |
|
|
SMD,PPRD,SATA,9.5MM,X8,SBGNT |
|
|
TRACKPOINT,RED |
|
|
US/CANADA 1.0M 2PINS LINETEK |
|
|
US/CANADA 1.0M 2PINS LONGWELL |
|
|
US/CANADA 1.0M 2PINS LUXSHARE |
|
|
WIRELESS,CMB,IN,WP2AC HMC |
