Manufacturer
Lenovo
Model Number
20CJ
Description
T550 Notebook
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
128G 2.5 7MM 6GB S SATA LTON V2S |
|
|
180G 2.5 7MM 6GB S SATA INTE 2500 SERIE |
|
|
256G 2.5 7MM 6GB S SATA LTON V2S OPAL2 |
|
|
256G 2.5 7MM 6GB S SATA SAMSUNG PM851 O |
|
|
256G 2.5 7MM 6GB S SATA SAMSUNG PM871 O |
|
|
2GB DDR3 PC3L1600 SODIMM |
|
|
45W 20VDC 2P WW DEL |
|
|
500G 2.5 7MM 5400R 6GB S SATA HGST |
|
|
AC_ADAPTER 45W 20VDC 2P WW LTN |
|
|
AC_ADAPTER 45W 20VDC 3P WW DEL |
|
|
AC_ADAPTER SLIM 65W 20VDC 2P WW DEL |
|
|
AC_ADAPTER SLIM 65W 20VDC 2P WW LTN |
|
|
ANTENNA ANTENNA WLAN WLAN L R TP HT |
|
|
BATRYO RTC BATTERY |
|
|
BATTERY EXTERNAL 3C 23WH LIION LGC |
|
|
BATTERY EXTERNAL 6C 2.2AH LIION LGC |
|
|
BATTERY EXTERNAL 6C 72WH LIION PAN |
|
|
BDPLANAR WIN I5-5300U UMA TPM |
|
|
BDPLANAR WIN I7-5600U SWG AMT TPM |
|
|
BDPLANAR WIN I7-5600U UMA TPM |
|
|
CABLE EDP CABLE 30PIN |
|
|
CABLE EDP CABLE 40PIN |
|
|
COMMON DELTA 65W 2PIN FRU |
|
|
COVER COVER BASE BL PLASTIC |
|
|
DD_ASM HDD 500G 7200 7MM DT2 SATA3 STD |
|
|
DISPLAY FRU DUMMY SD10G56625 |
|
|

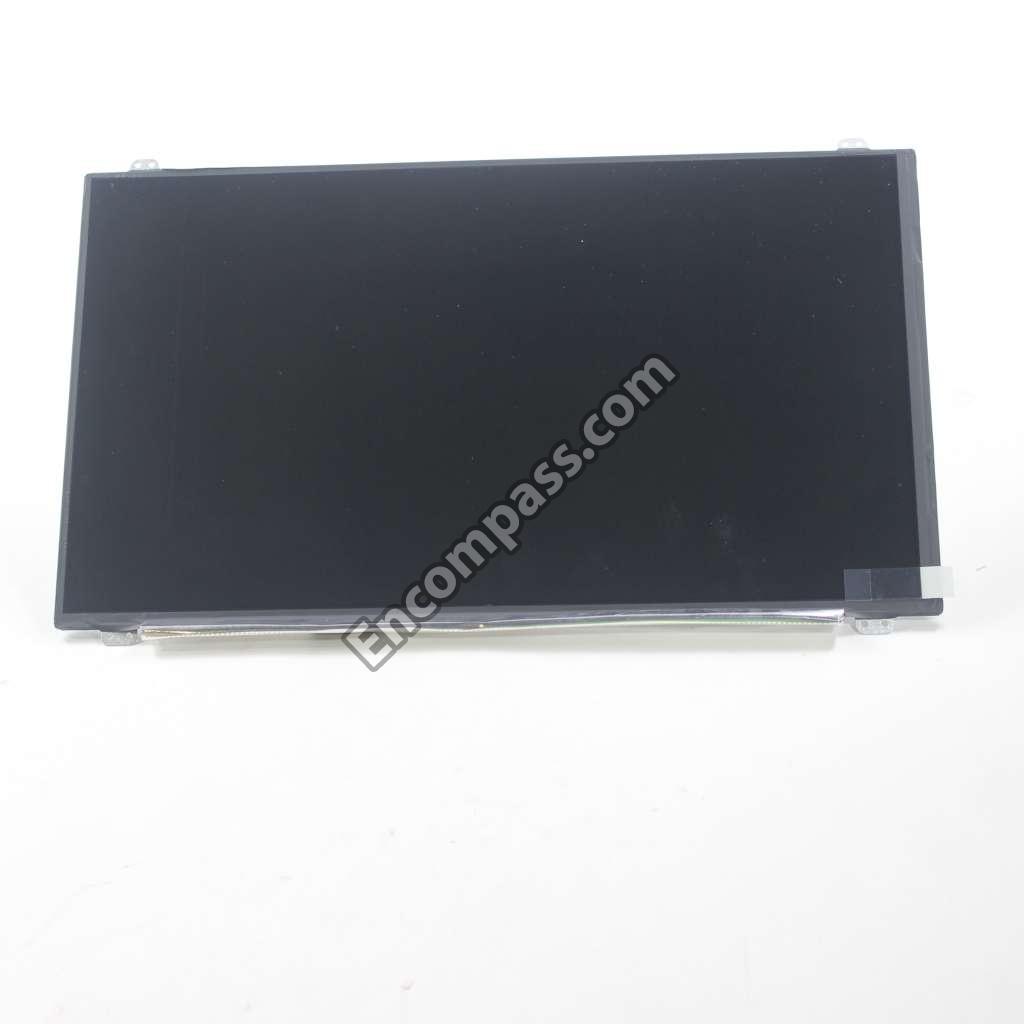

DISPLAY INX 15.6 FHD AG |
|
|
FRU ANTENNA KIT HT |
|
|
FRU BASE MISC KIT |
|
|
FRU CAMERA CABLE FOR N TOUCH |
|
|
FRU CAMERA CABLE FOR TOUCH |
|
|
FRU CAMERA SUBPARTS KIT |
|
|
FRU DAMMY BATTERY |
|
|
FRU DC-IN BRACKET |
|
|
FRU DC-IN CABLE ASM |
|
|
FRU ERICSSON N5321 HSPA 21MBPS M.2 WWAN |
|
|
FRU FAN AVC UMA 15W |
|
|
FRU FAN DELTA SWG15 8W |
|
|
FRU FAN DELTA UMA 15W |
|
|
FRU HD FRONT CAMERA W O CBL OV9728 ISP |
|
|
FRU HDD CABLE ASM |
|
|
FRU HDD HOLD BRACKET |
|
|
FRU HINGE ASM SZS |
|
|
FRU HINGE ASM TOUCH SZS |
|
|
FRU KBD BEZEL ASM W FPR |
|
|
FRU KBD BEZEL ASM W O FPR |
|
|

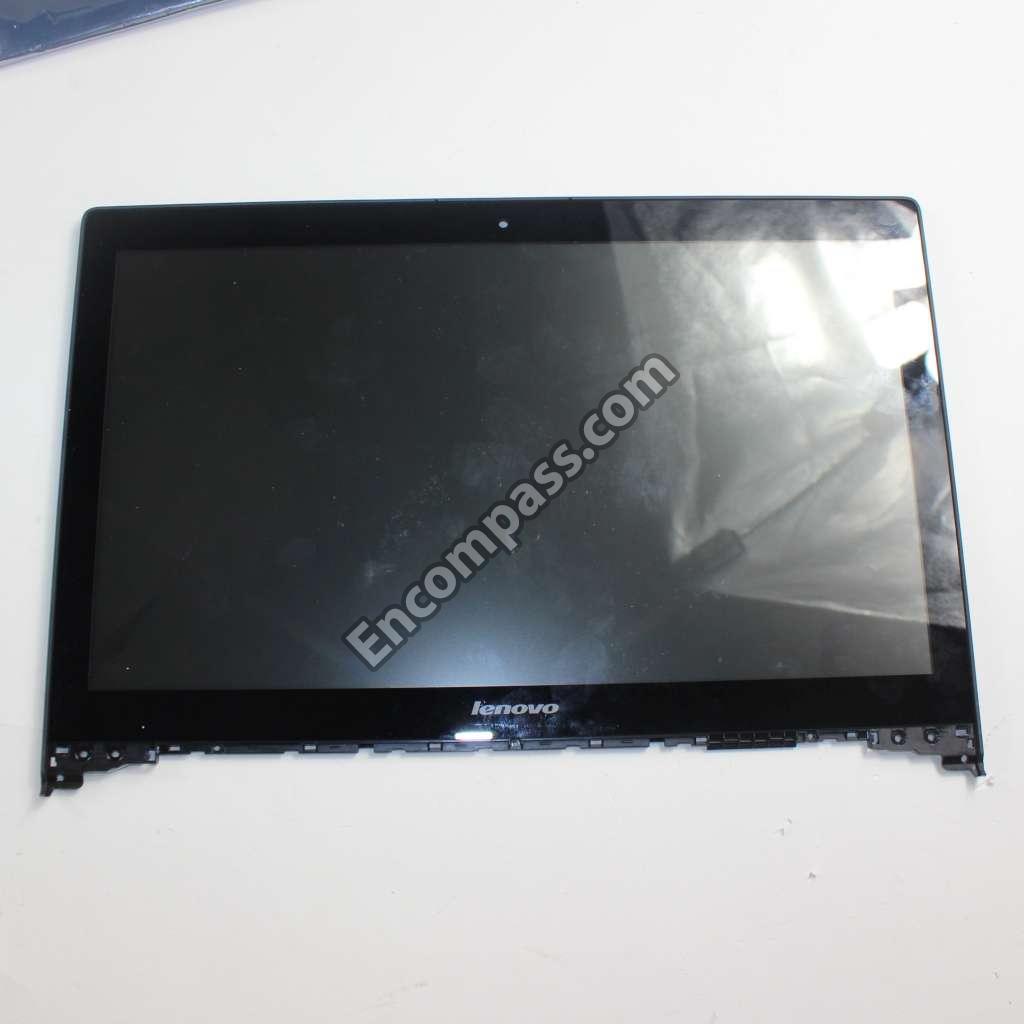

FRU LCD ASM FHD PANA O-FI |
|
|
FRU LCD BEZEL COVER BL PL |
|
|
FRU LCD FRONT BEZEL COVER |
|
|
FRU LCD SUPPORT BRAKET |
|
|
FRU LCD SUPPORT BRAKET PANA |
|
|
FRU MICROPHONE SUB CARD |
|
|
FRU POWER BOARD CABLE ASM |
|
|
FRU POWER BUTTON SUBCARD |
|
|
FRU REAR COVER BL PLASTIC |
|
|
FRU REAR COVER PANA BL PL |
|
|
FRU REAR COVER T PANA BL PL |
|
|
FRU SIERRA EM7345 LTE HSPA 42MBPS M.2 C |
|
|
FRU SMART CARD READER |
|
|
FRU SMARTCARD DUMMY COVER |
|
|
FRU SPEAKER ASM |
|
|
HDD_ASM HDD 1TB 5400 7MM HGST SATA STD |
|
|
HDD_ASM HDD 1TB 5400 7MM WD SATA STD |
|
|
HDD_ASM HDD 500G 7200 7MM HGST SATA OPAL |
|
|
HDD_ASM HDD 500G 7200 7MM HGST SATA STD |
|
|
HDD_ASM HDD 500G 7200 7MM SEAG SATA STD |
|
|
HDD_ASM HDD 500G 7200 9.5MM ST SATA OPAL |
|
|
HDD_ASM HDD 500G 7200 9.5MM ST SATA STD |
|
|
HDD_ASM HDD 500G 7200 9.5MM WD SATA3 |
|
|
HDD_ASM SSHS 500G 5400 9.5MM SEAG SATA |
|
|
INTERNAL 3C 44WH LIION PAN |
|
|
INX 15.6HD AG FOR NON-TOUCH MODEL |
|
|
KEYBD FRU CS13KM B L KBD USE CHY |
|
|
LINECORD US CA 1M 2P NON-LH LGW |
|
|
LINECORD US CA 1M 3P NON-LH LGW |
|
|
MECHANICAL EXTRA SPONGE A-COVER RIPPLE |
|
|
MEMORY 4GB DDR3L 1600 SODIMM |
|
|
MEMORY 8GB DDR3L 1600 SODIMM |
|
|
NB_KYB CS13KM LAS CHY BACKLIT |
|
|
NB_KYB CS13KM US CHY |
|
|
NOK I5-5200U UMA TPM |
|
|
NOK I5-5300U UMA AMT TPM |
|
|
NOK I7-5600U SWG AMT TPM |
|
|
NOK I7-5600U UMA AMT TPM |
|
|
PANASONIC 15.5FHD AG PANEL |
|
|
PANEL AUO 15.6HD AG SLIM FLAT |
|
|
SCREW SCREW KIT |
|
|
SSD_ASM 128G 2.5 7MM SATA6G SAMSG STD |
|
|
SSD_ASM 16G M.2 2242 SATA6G SDISK STD |
|
|
SSD_ASM 240G 2.5 7MM SATA6G INTEL OPAL |
|
|
SSD_ASM 512G 2.5 7MM SATA6G LTON STD |
|
|
SSD_ASM 512G 2.5 7MM SATA6G LTON STD |
|
|
SSD_ASM 512G 2.5 7MM SATA6G LTON STD |
|
|
SSD_ASM 512G 2.5 7MM SATA6G SAMSG STD |
|
|
SSD_ASM 512G 2.5 7MM SATA6G SAMSG STD |
|
|
SSD_ASM 512G 2.5 7MM SATA6G SAMSG STD |
|
|
SSD_ASM 512G 2.5 7MM SATA6G TOS STD |
|
|
WIN I5-5200U UMA TPM |
|
|
WIN I5-5300U UMA AMT TPM |
|
|
WIN I7-5600U UMA AMT TPM |
|
|
WIRELESS WIRELESS CMB FXN WHIPPLE M.2 |
|
|
WIRELESS WIRELESS CMB IN SP AC D |
|
|
WIRELESS WIRELESS CMB IN STP AGN D |
|
|
WIRELESS WIRELESS CMB IN STP BGN D |
