Manufacturer
Lenovo
Model Number
20DF0042LM
Description
Thinkpad-e550
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
65W,20VDC,2P,WW,DEL |
|
|
8GB DDR3L 1600 SODIMM |
|
|
ANTENNA,WLAN,NON TOUCH SPEED |
|
|
ANTENNA,WLAN,NON TOUCH YAGEO |
|
|
BDPLANAR,WIN,I7-5500U,DIS,SWG |
|
|

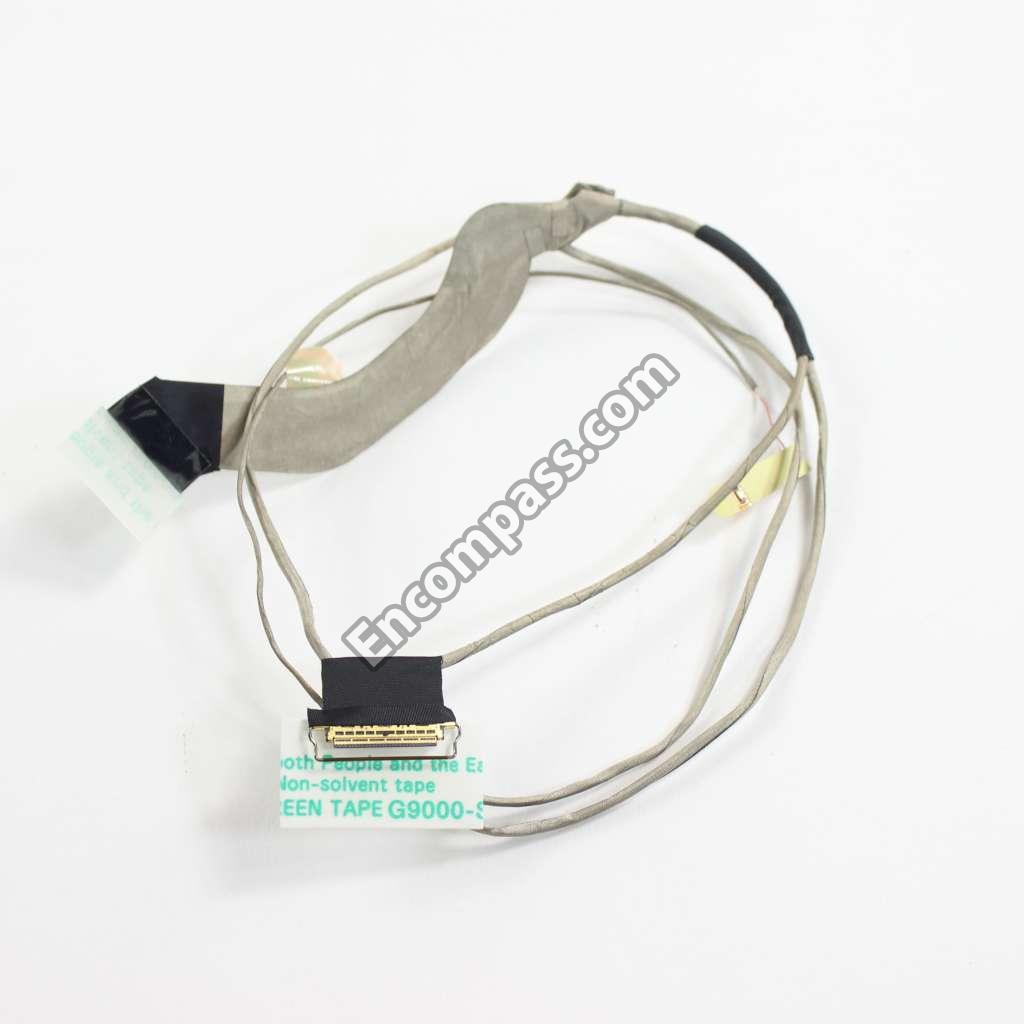

CABLE,LCD CABLE , NON TOUCH |
|
|
CAMERA,1280*720,720P,HD,MIC,CHY |
|
|
COVER,DOCKING |
|
|
DISPLAY,15.6",FHD, SLIM ,AG,AUO |
|
|
DOOR,BIG DOOR,THREE SCREW |
|
|
DOOR,MINI DOOR,ONE SCREW |
|
|
E15_2014,LAS,CHY |
|
|
EXTERNAL,6C,48WH,LIION,PAN |
|
|
FRU AUDIO SUBCARD W/FFC INTEL |
|
|
FRU DC-IN SUB CARD W/FFC INTEL |
|
|
HDD,1T,5400,7.2MM,WD,SATA,STD |
|
|
HEATSINK,DIS,INTEL,BDW,AVC |
|
|
HINGE,HINGE ,NON TOUCH |
|
|
LCD,NON TOUCH, INTEL |
|
|
MECHANICAL,MYLAR,KB FFC |
|
|
MECH_ASM,A,B COVER,N/TOUCH,2D |
|
|
MECH_ASM,B BEZEL,N/TOUCH,2D CAM |
|
|
MECH_ASM,BASE COVER,ROW |
|
|

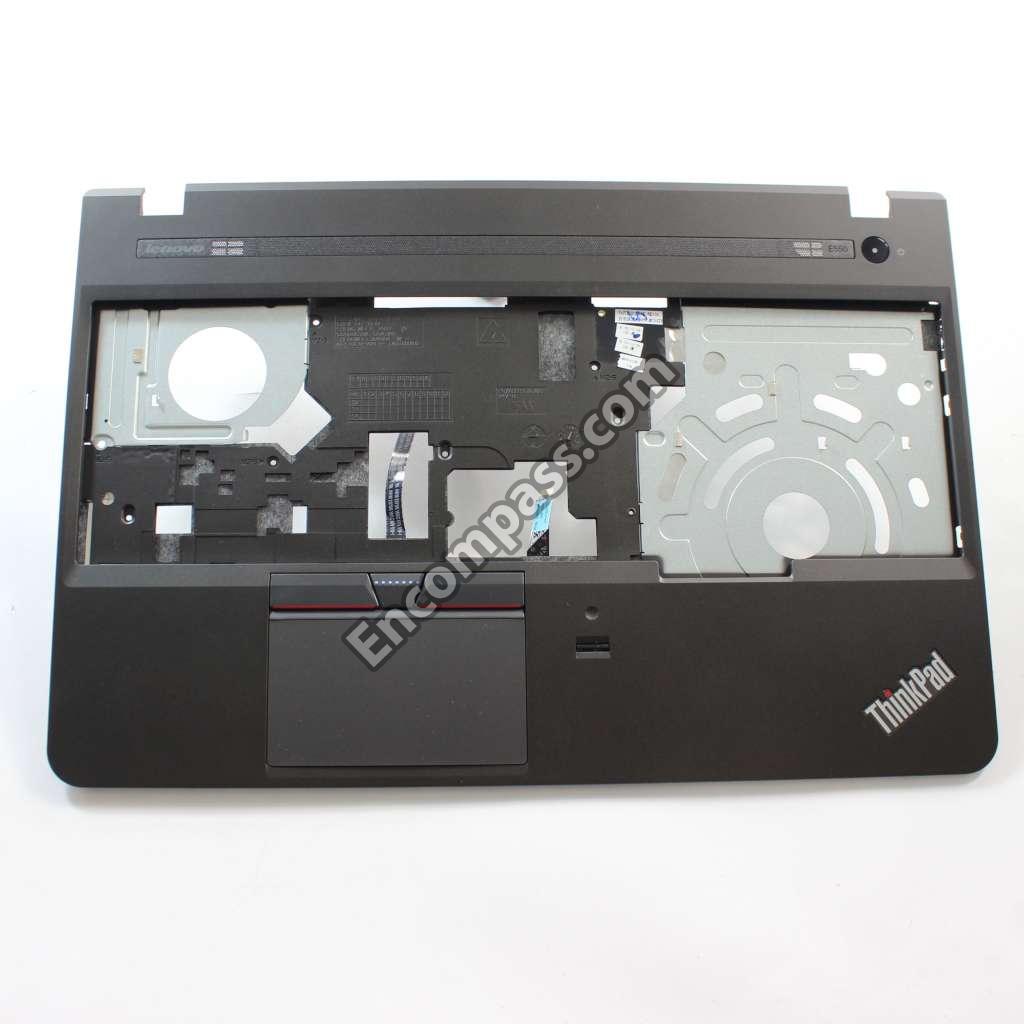

MECH_ASM,PALMREST W/FPR 3+2 |
|
|
RTC BATTERY |
|
|
SCREW, SCREW KIT |
|
|
SMD,HLDS,9.0MM,X24,SBGD |
|
|
SPEAKERINT,NONJBL,WITH RUBBER |
|
|
TRACKPOINT,RED |
|
|
US/CA,1M,2P,NON-LH,LGW |
|
|
WIRELESS,CMB,IN,SPAC M.2 |
|
|
WIRELESS,CMB,IN,STP AC NV D |
