Manufacturer
Lenovo
Model Number
20G5Z1WUUS
Description
Thinkpad-e560p
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
128G,M.2,2280,SATA6G,SAMSG,STD |
|
|
15.6,FHD,AG,N-TOUCH,IPS,LGD,SLIM |
|
|
4GB DDR4 2133 SODIMM MEMORY |
|
|
90W,20VDC,3P,WW,DEL |
|
|

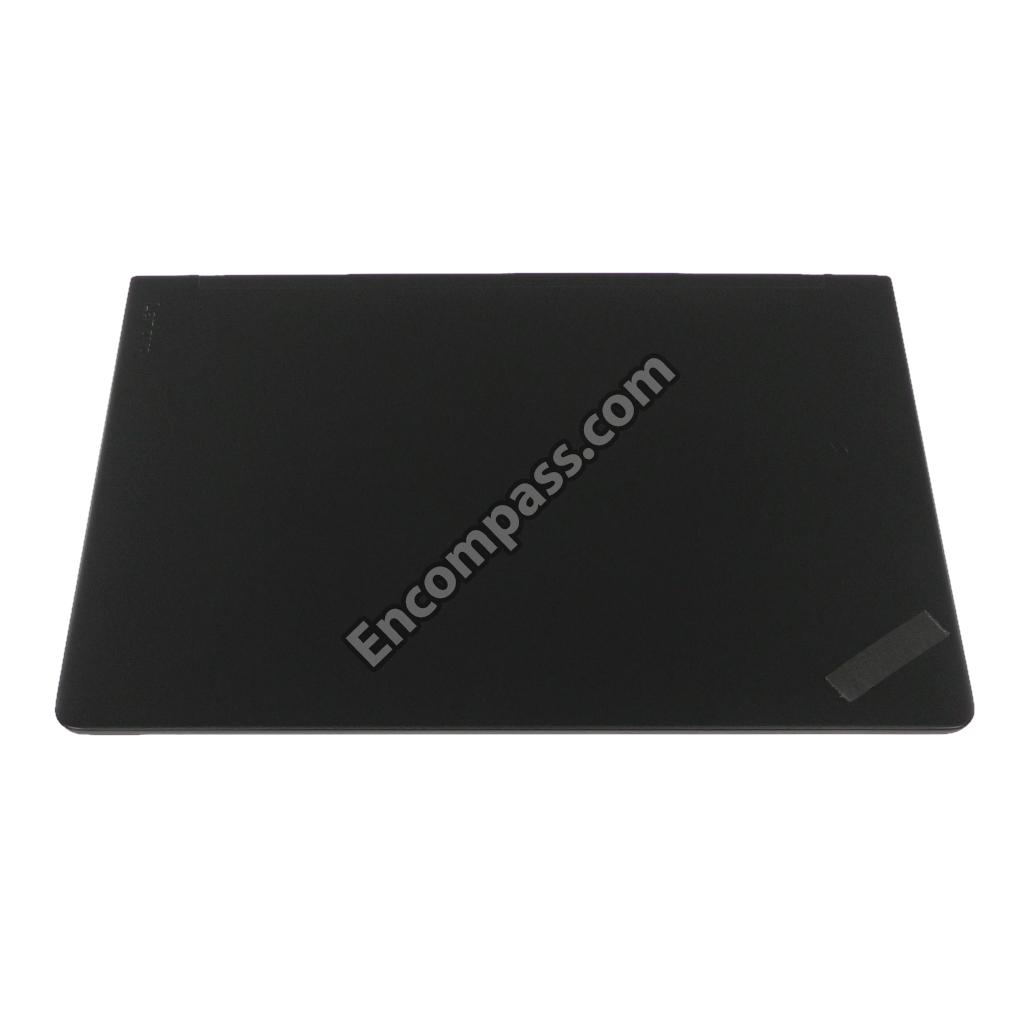

A-COVER,BLACK,AL,FOR 2D CAMERA |
|
|
B-BEZEL,FOR FHD W/2D CAMERA,BLACK |
|
|
CAMERA CABLE,FOR 2D CAMERA |
|
|
CAMERA,720P,FRONT,MIC,WTB,LTN |
|
|
CLICKPAD CABLE |
|
|
CS15W_3+2BCP,MYLR,BLK,ALPS |
|
|
D-COVER,BLACK,PLASTIC,W/SCREWS |
|
|
DC-IN JACK,WITH DC-IN CABLE |
|
|
DC-IN LED BOARD,W/BOARD CABLE |
|
|
FRU FOR HDMI TO VGA |
|
|
FRU FOR HDMI TO VGA DONGLE |
|
|
FRU-HDMI TO VGA |
|
|
HD CABLE,FOR HDD AND SSD |
|
|
HDD DOOR,W/3 SCREWS,BLACK,PLASTIC |
|
|
HDD,500G,7200,7MM,TOS,SATA3 |
|
|

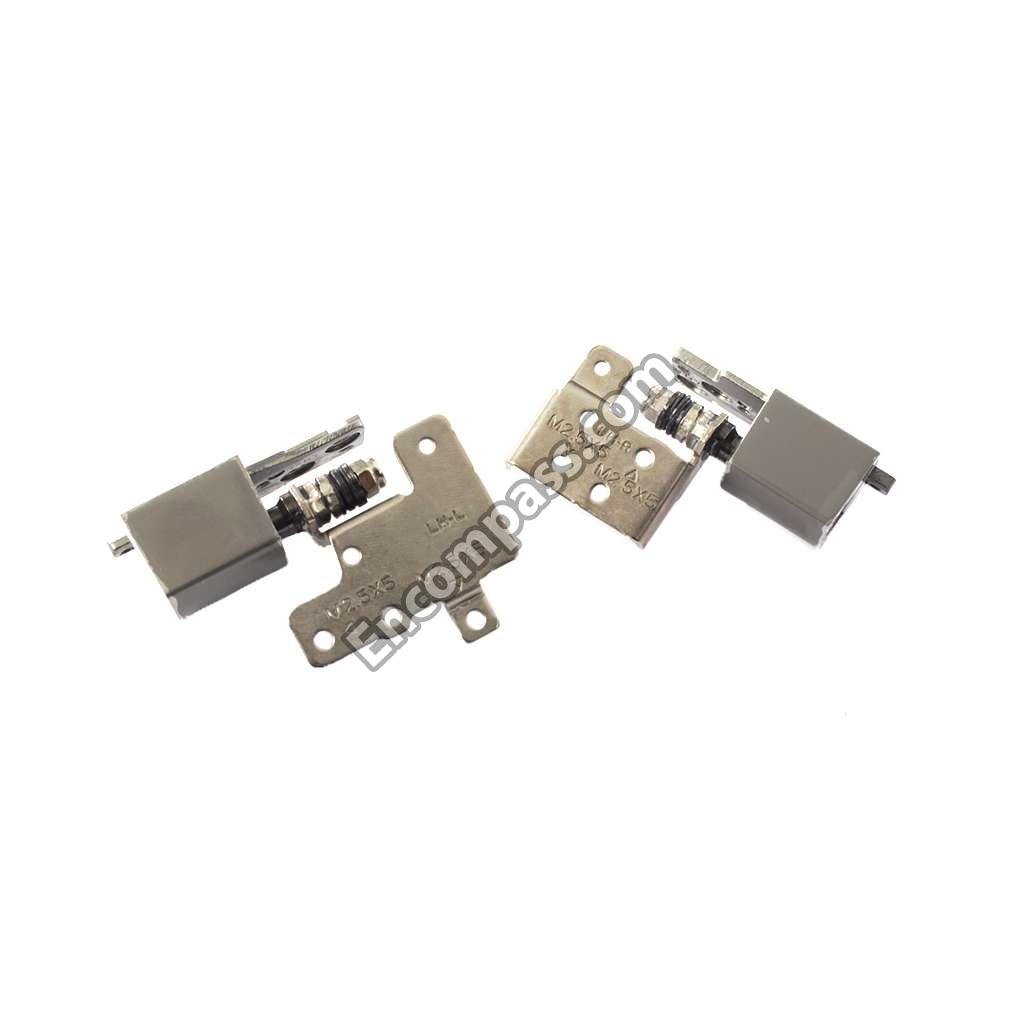

HINGE L/R,BLACK,LIAN HONG/JARLLY |
|
|
INTERNAL,6C,47WH,LIION,LGC |
|
|
KBD,W/O CP,W/O FPR,FOR E560P |
|
|
KBD,W/O CP,W/O FPR,FOR E560P |
|
|
LCD CABLE,FOR FHD PANEL |
|
|
LED FPC,WITH C-LOGO CABLE |
|
|
MERLYN KBD,US,DFN |
|
|
PCH BRACKET,W/SCREWS |
|
|
POWER BOARD,WITH POWER BOARD FFC |
|
|
RJ45 BRACKET,W/SCREWS |
|
|
RTC,1C,210MAH,LITHIUM,MITSUBISHI |
|
|
SCREW,KIT |
|
|
SD BOARD,W/SD BOARD FPC,W/CABLE |
|
|
SPEAKER L/R,IEC AND FG |
|
|
SSD THERMAL PLATE,FOR DIS/UMA |
|
|
THERMAL DUMMY COVER,BLACK,PC/ABS |
|
|
TRACKPOINT,RED |
|
|
UMA THERMAL MODULE,W/FAN,SUNON |
|
|
US/CA,1M,3P,NON-LH,LGW |
|
|
WIN,I5-6300HQ,UMA,HTPM,YSBB |
|
|
WIRELESS,CMB,IN,3165 AC |
|
|
WLAN,HIGH-TEK/TONGDA,L+R |
