Manufacturer
Lenovo
Model Number
20LA
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
500G 2.5 7MM 7200R 6GB S SATA3 SEAGATE |
|
|
AC_ADAPTER DELTA ADLX65YDC2A 20V3.25A |
|
|
AC_ADAPTER DELTA ADLX65YDC3A 20V3.25A |
|
|
AC_ADAPTER PD 45W 20 15 9 5V 2P WW LTN |
|
|

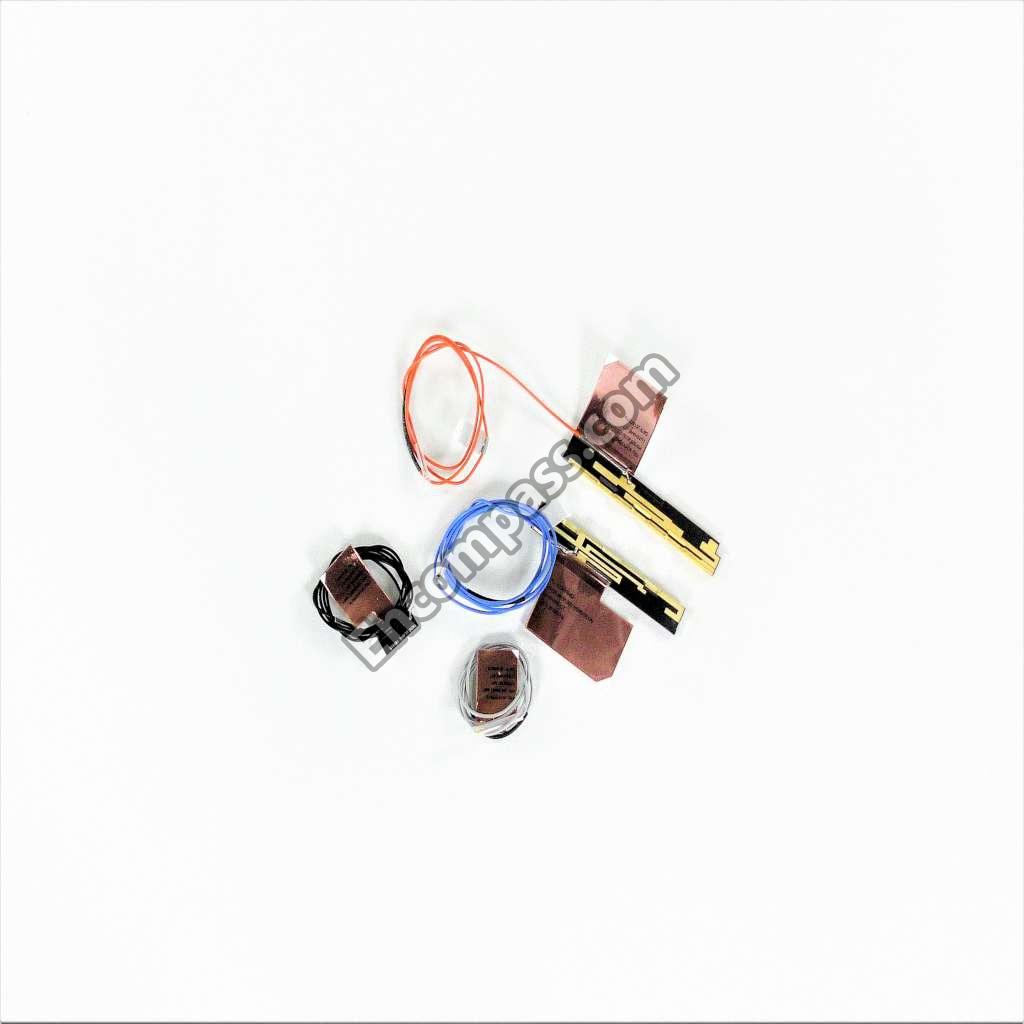

ANTENNA ANTENNA KIT FOR WLAN ICT |
|
|
ANTENNA ANTENNA KIT FOR WLAN WWAN ICT |
|
|
ANTENNA ANTENNA NFC DEX |
|
|
BATRYO FRU RTC BATTERY |
|
|
BATTERY EXTERNAL 3C 24WH LIION PAN |
|
|
BATTERY EXTERNAL 6C 48WH LIION PAN |
|
|
BATTERY EXTERNAL 6C 72WH LIION PAN |
|
|
BATTERY INTERNAL 4C 32WH LION LGC |
|
|

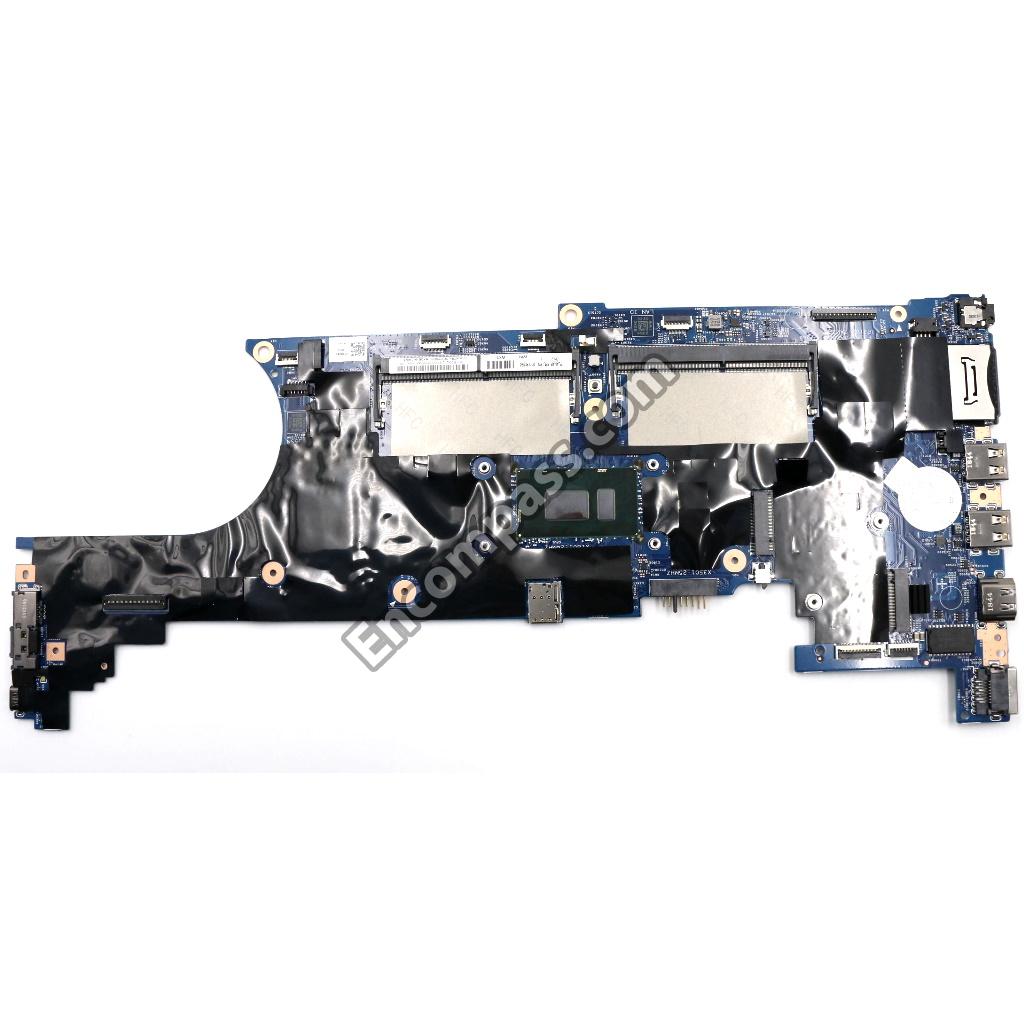

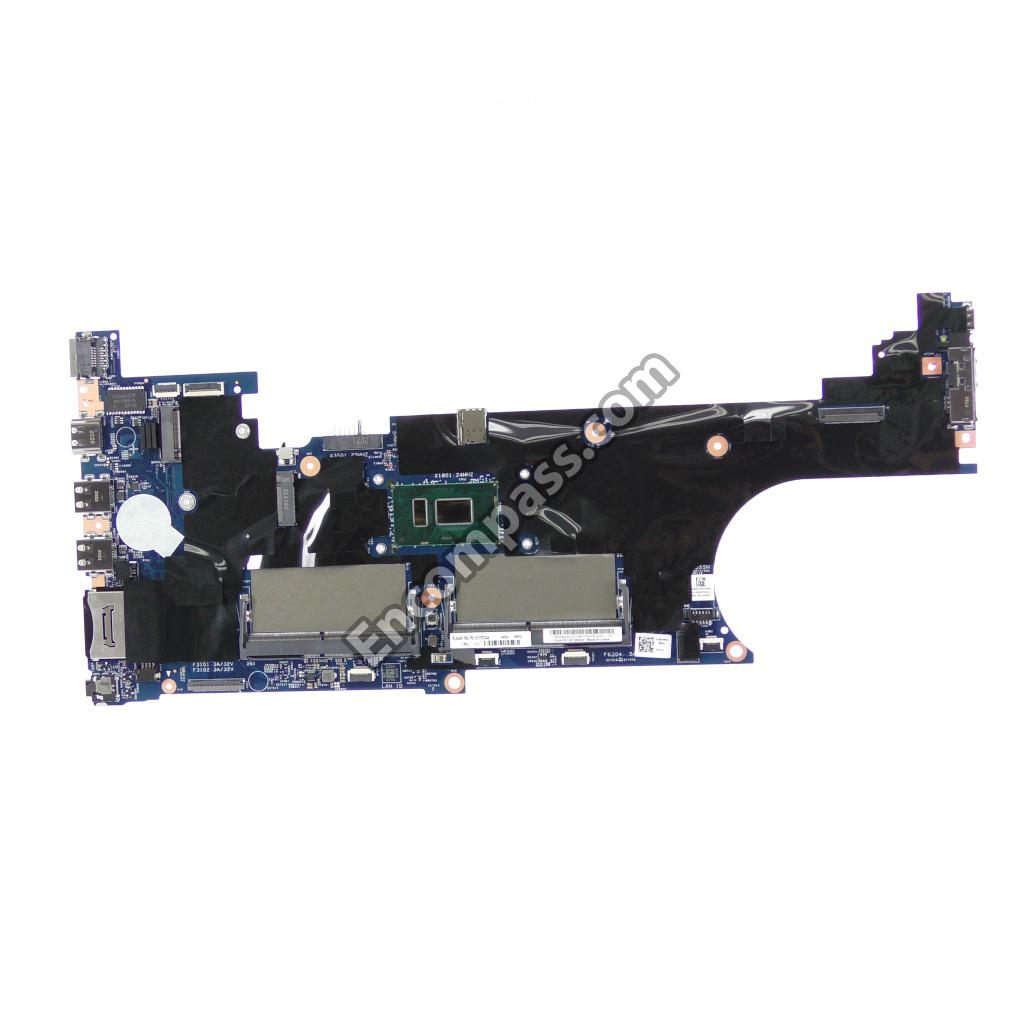

BDPLANAR WIN I5-7300U AMT TPM2 VP |
|
|
BDPLANAR WIN I5-8250U GF 2G TPM2 |
|
|
BDPLANAR WIN I5-8250U TPM2 |
|
|
BDPLANAR WIN I5-8350U AMT TPM2 VP |
|
|
BDPLANAR WIN I5-8350U GF 2G AMT TPM2 VP |
|
|
BDPLANAR WIN I7-8550U TPM2 |
|
|
BDPLANAR WIN I7-8650U AMT TPM2 VP |
|
|
BDPLANAR WIN I7-8650U GF 2G AMT TPM2 VP |
|
|
BEZEL KBD BEZEL W FPR ASM TC-2 |
|
|
BEZEL KBD BEZEL W O FPR ASM TC-2 |
|
|

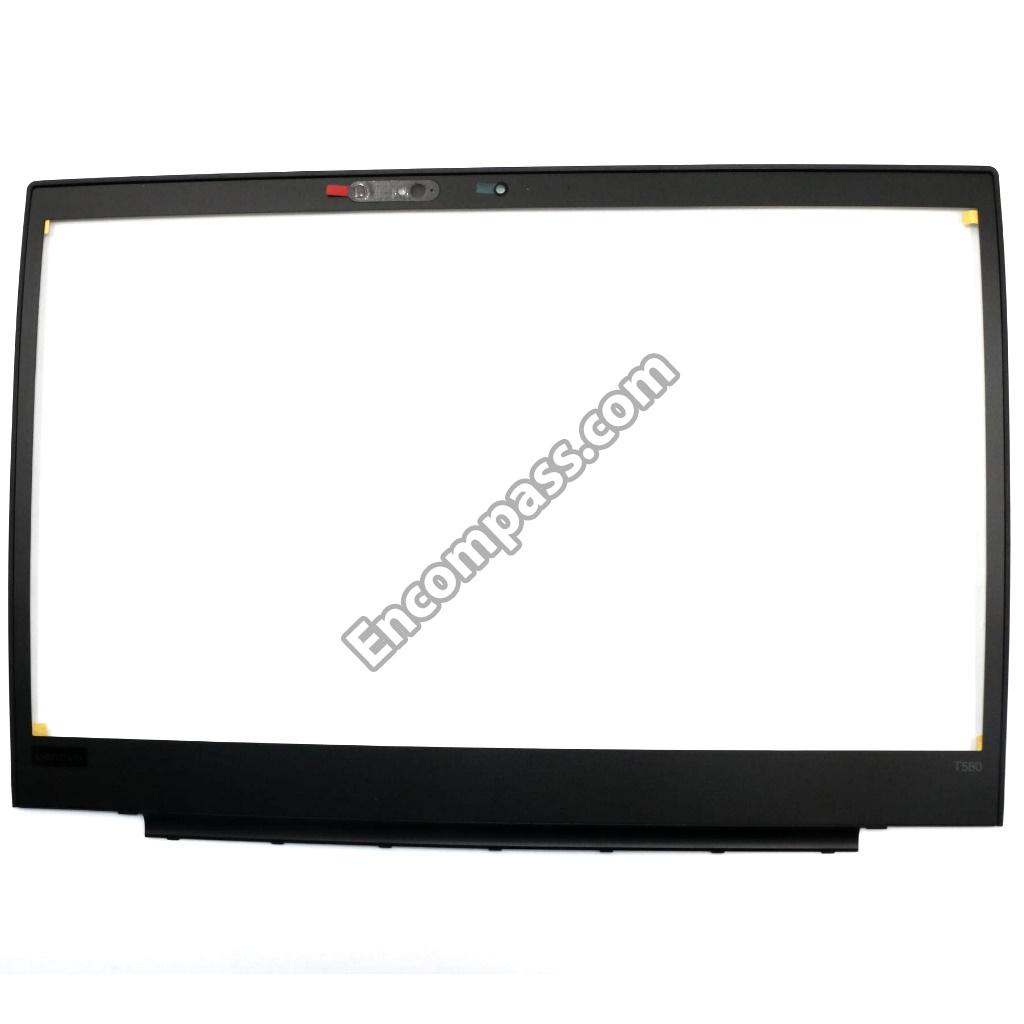

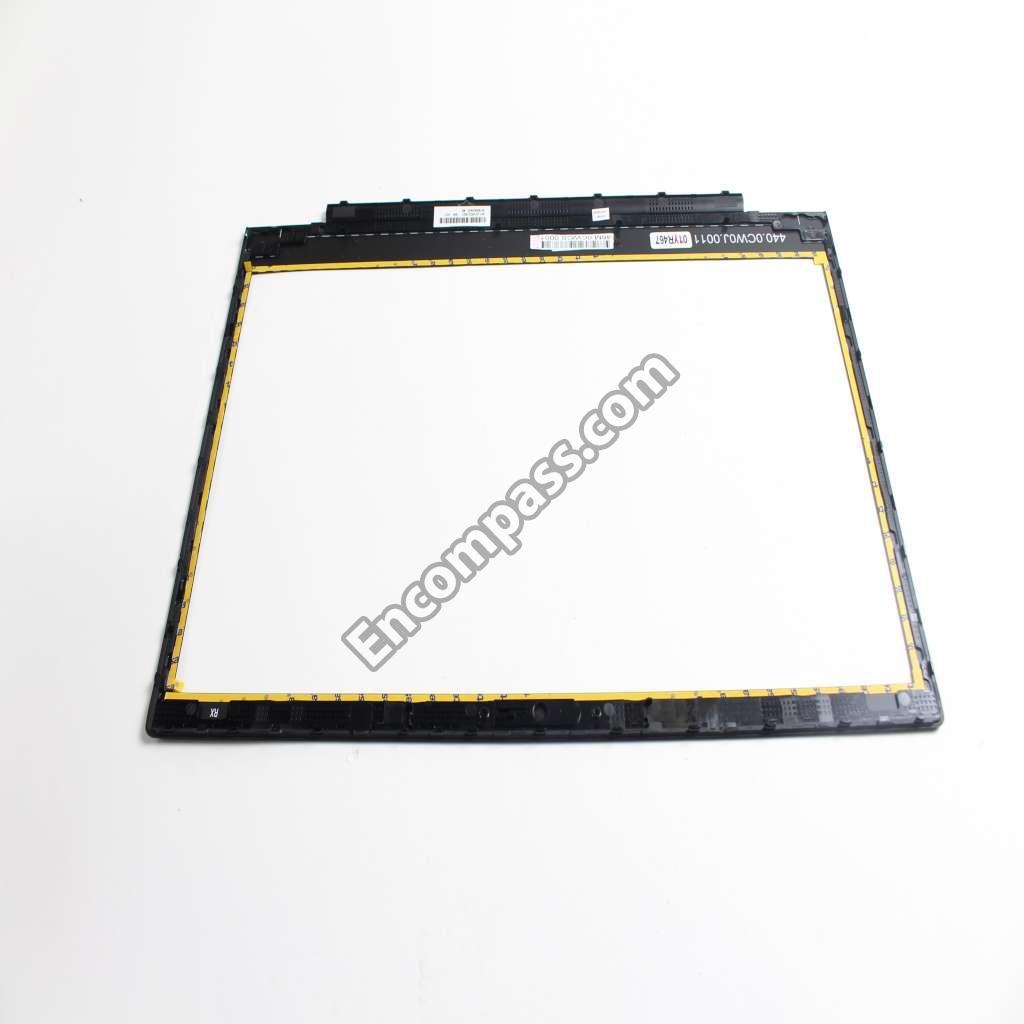

BEZEL LCD BEZEL CAM T580 |
|
|
BEZEL LCD BEZEL CAM UHD T580 |
|
|
BEZEL LCD BEZEL IR T580 |
|
|
BEZEL LCD BEZEL IR UHD T580 |
|
|
BRACKET IO BRK KIT TC-2 |
|
|
CABLE CABLE NFC |
|
|
CABLE CAMERA LED CABLE |
|
|

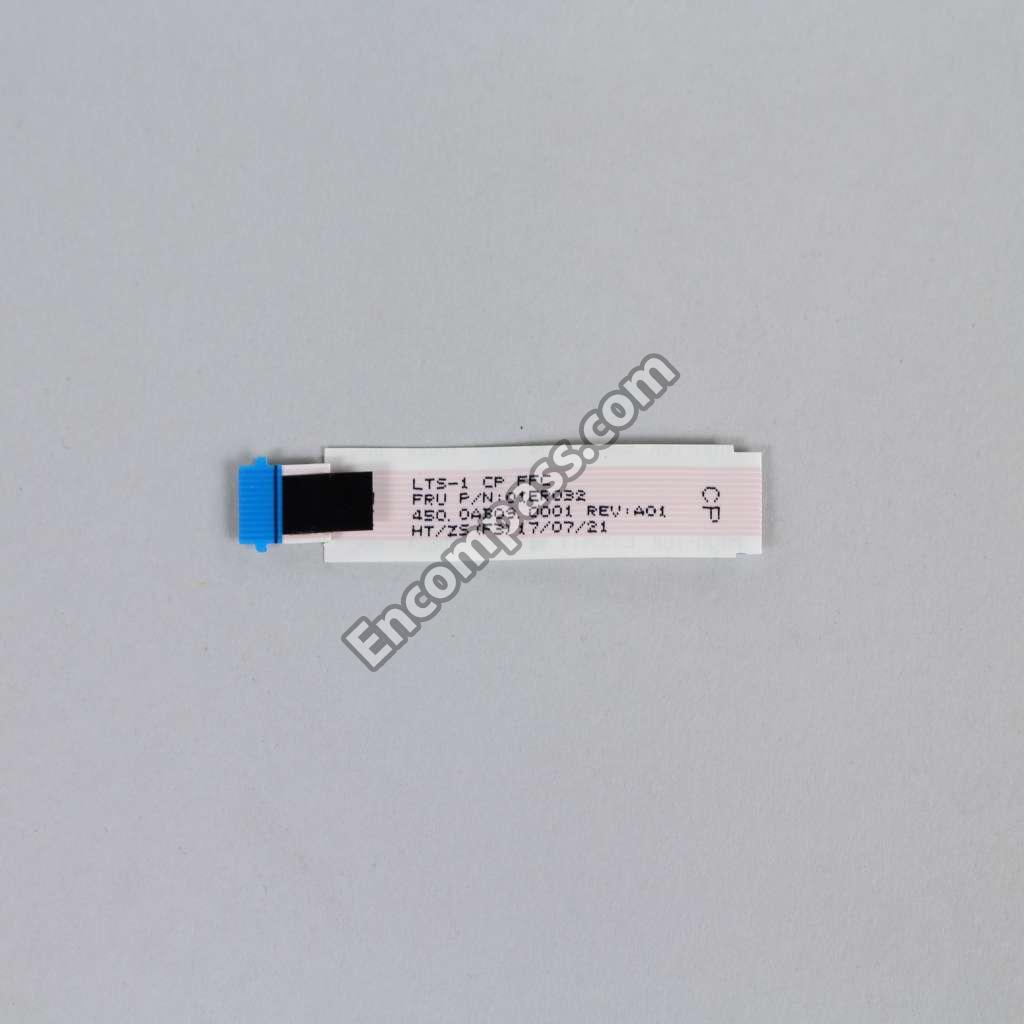

CABLE FFC CABLE CLICKPAD |
|
|
CABLE FFC CABLE FPR TC-2 |
|
|

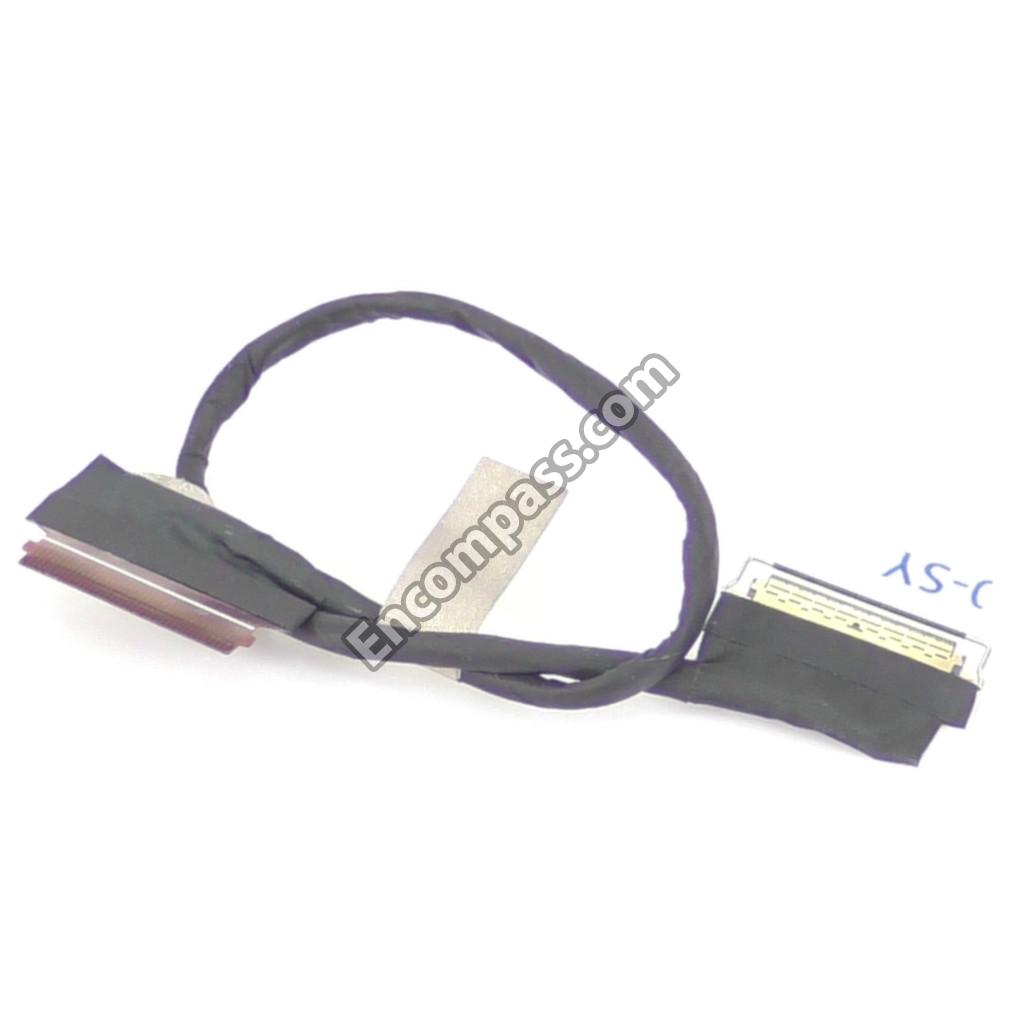

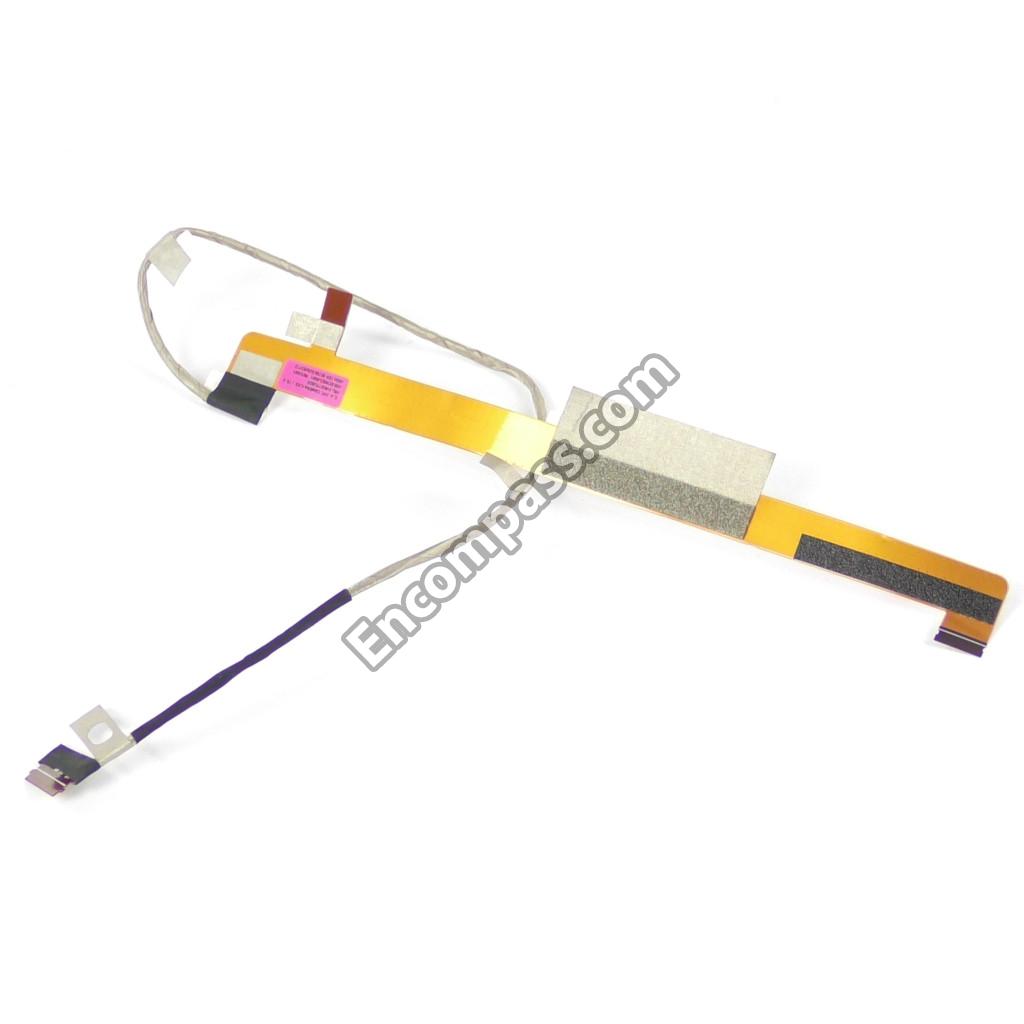

CABLE FHD EDP CABLE |
|
|
CABLE FHD TOUCH EDP CABLE |
|
|
CABLE FPC CAMERA LED TC-2 |
|
|

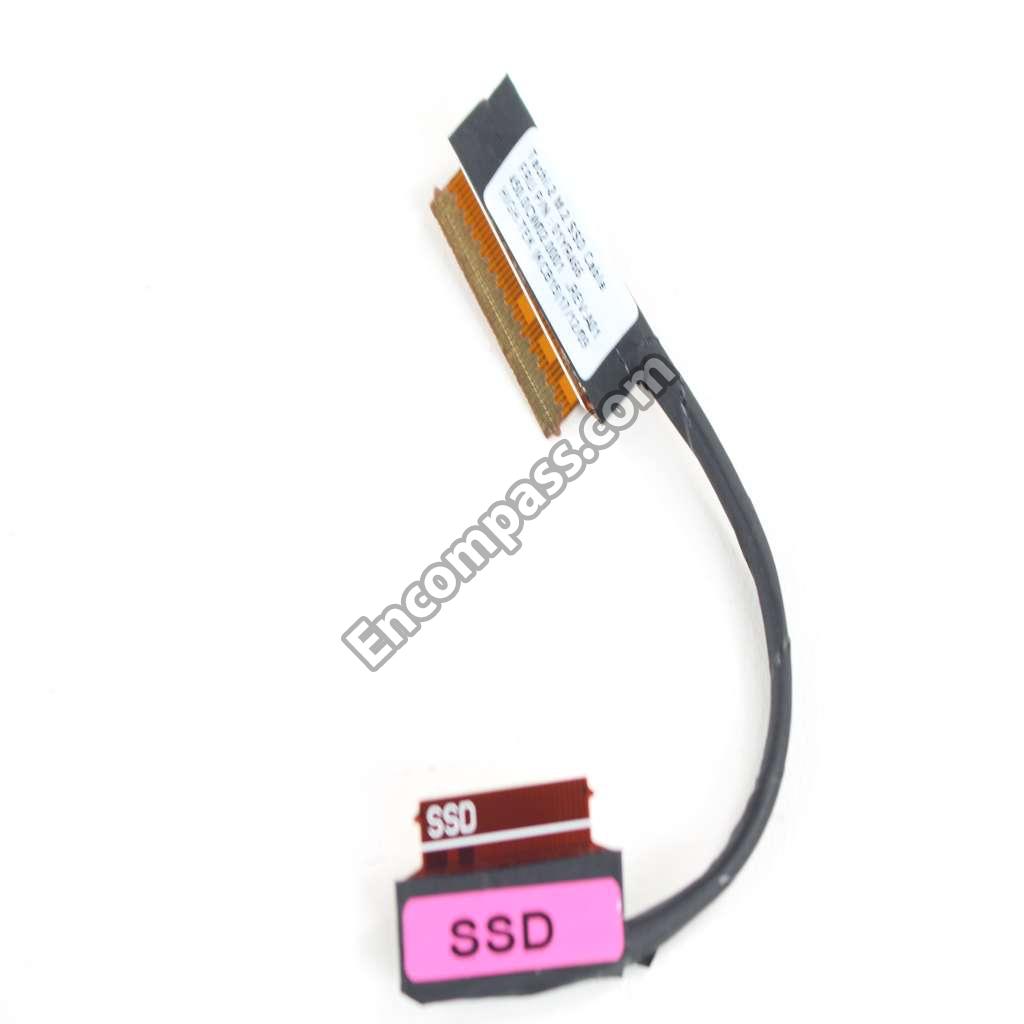

CABLE M.2 ADAPTER CABLE TC-2 |
|
|
CABLE POWER BUTTON CABLE |
|
|
CABLE SATA CABLE |
|
|
CABLE UHD EDP CABLE |
|
|
CABLE_BO FRU FOR C TO DP |
|
|
CABLE_BO FRU-HDMI TO VGA |
|
|
CABLE_BO USB-C TO VGA ADAPTER FRU |
|
|

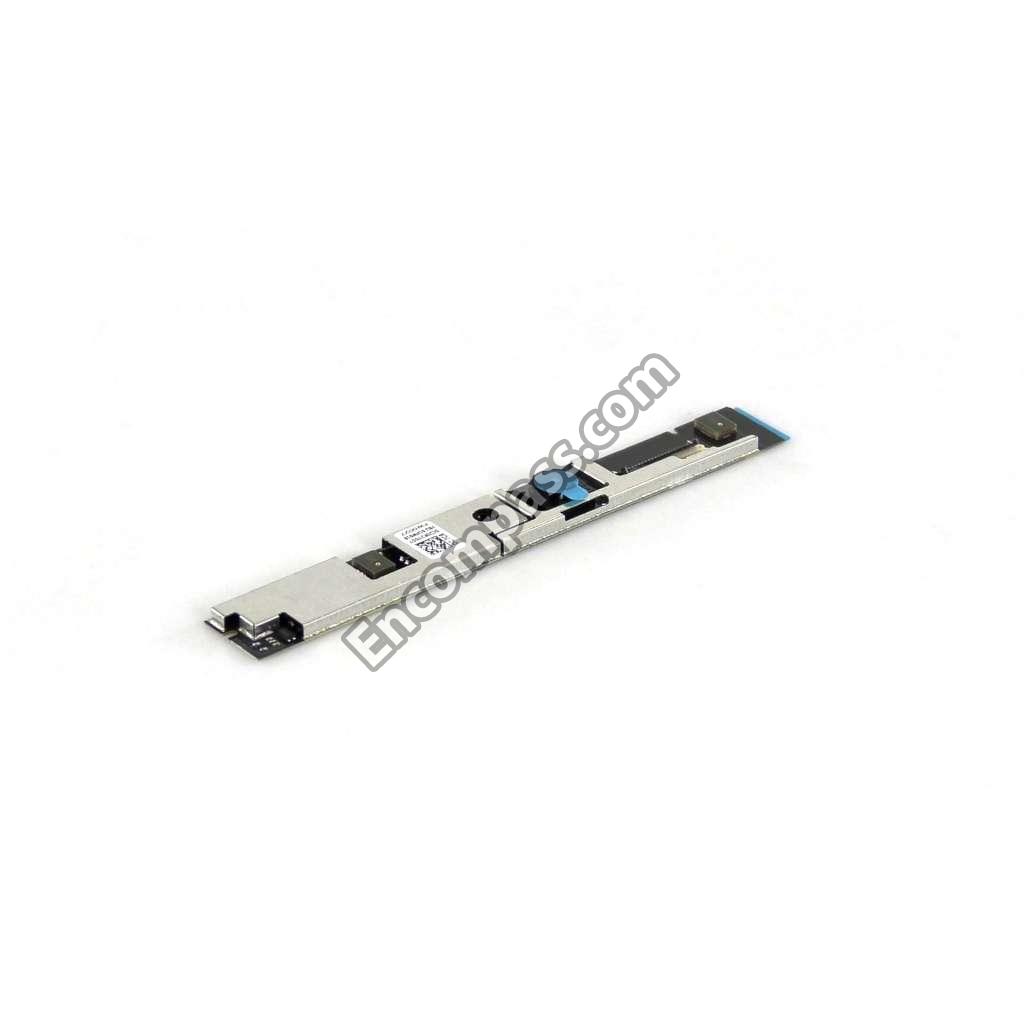

CAMERA CAMERA 720P FRONT MIC ZIF CHNY |
|
|
CAMERA CAMERA HD IR FRONT MIC ZIF CHNY |
|
|

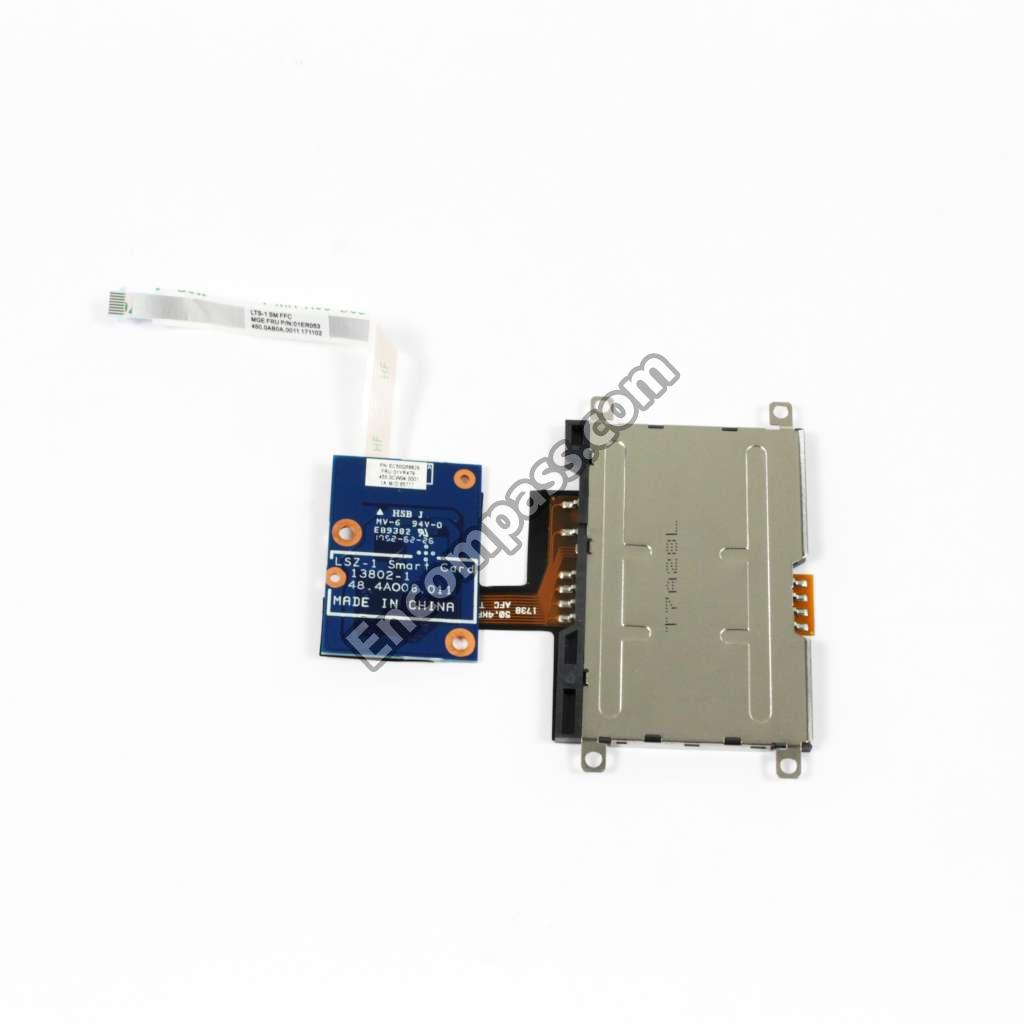

CARDPOP SMART CARD READER TC-2 |
|
|
CARDPOP SUB CARD POWER BUTTON TC-2 |
|
|
COVER BASE COVER ASM TC-2 |
|
|

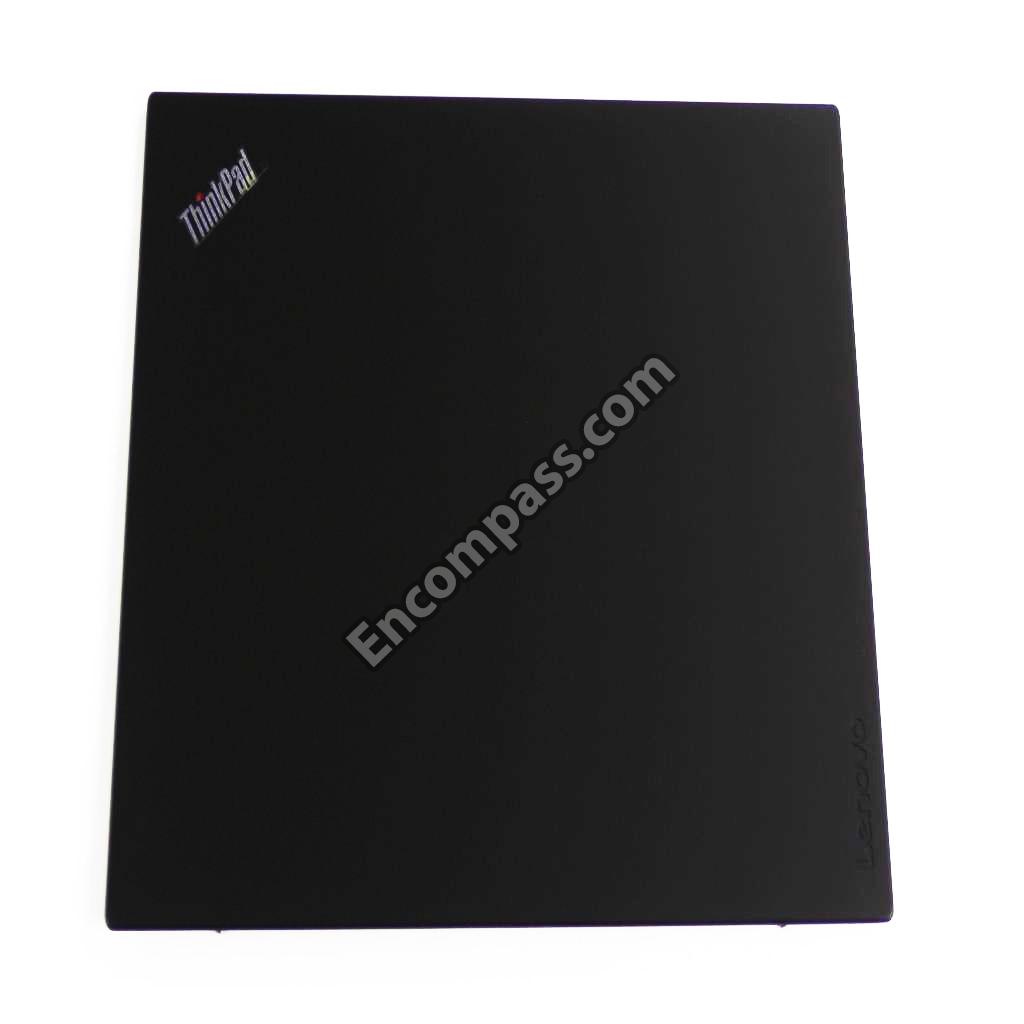

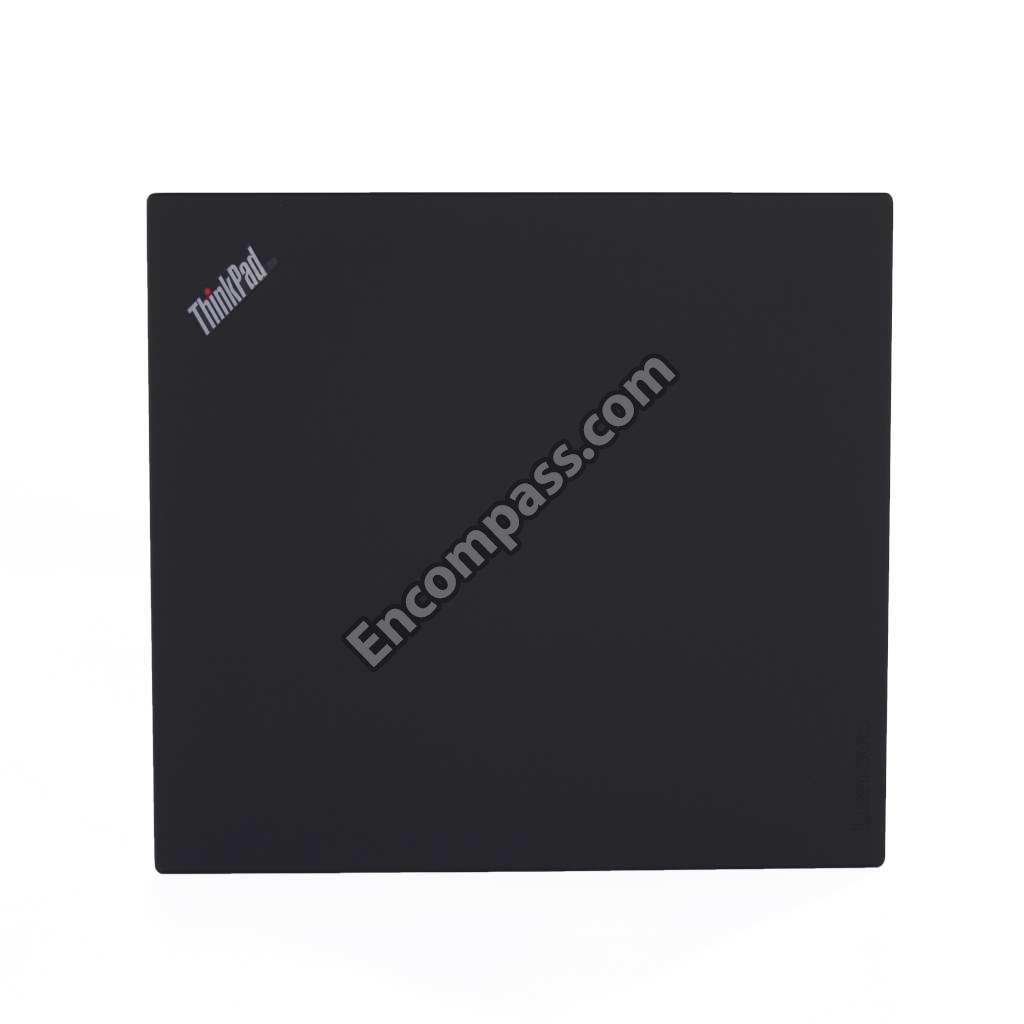

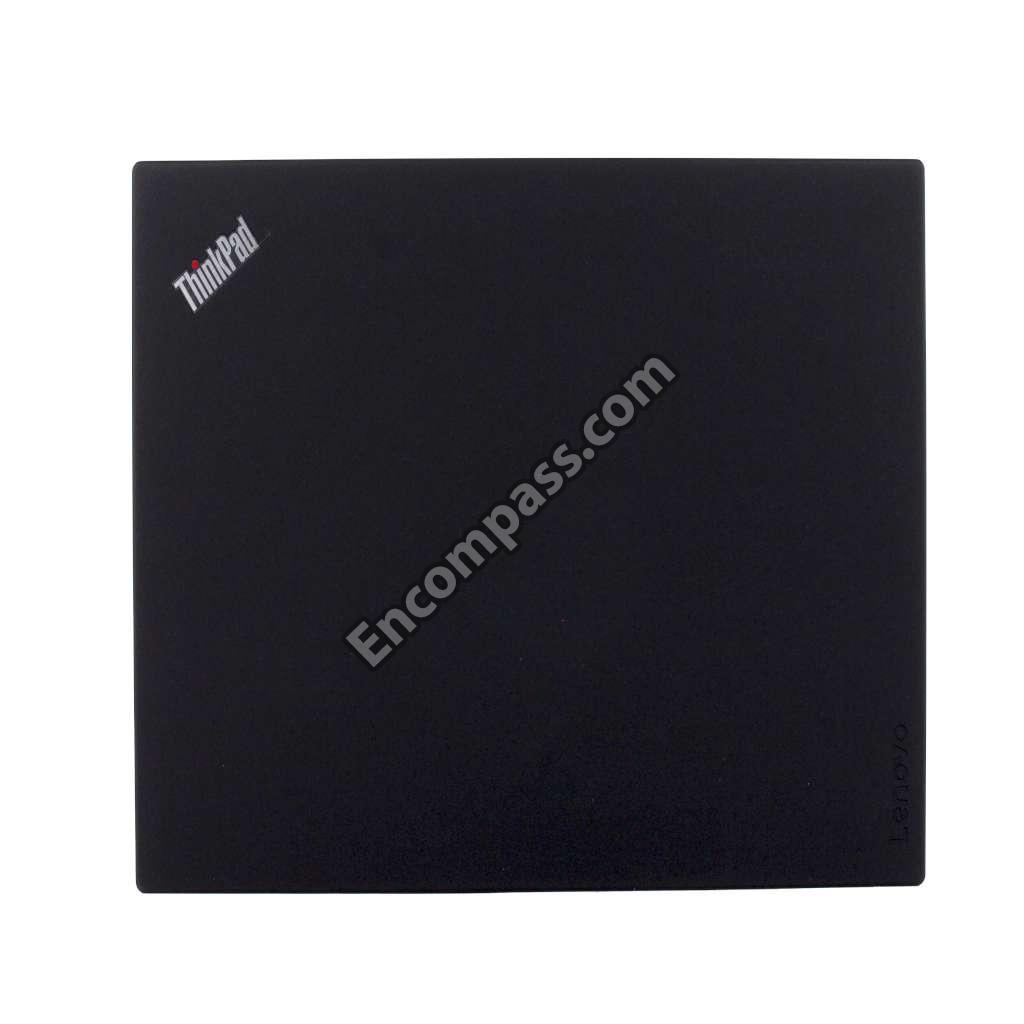

COVER FHD REAR COVER ASM |
|
|
COVER FHD REAR COVER W SPACER ASM |
|
|
COVER FHD-TP REAR COVER ASM |
|
|
COVER FHD-TP REAR COVER W SPACER ASM |
|
|
COVER UHD REAR COVER W SPACER ASM |
|
|

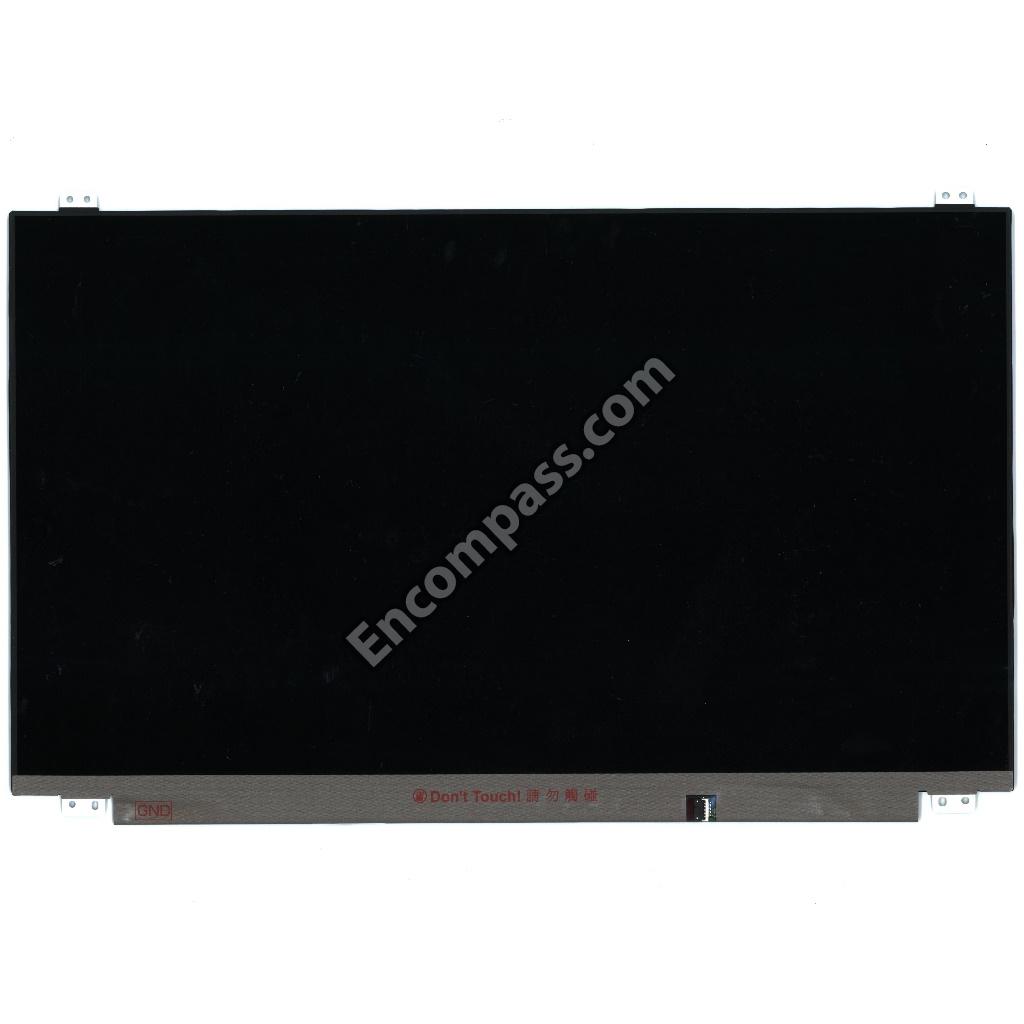

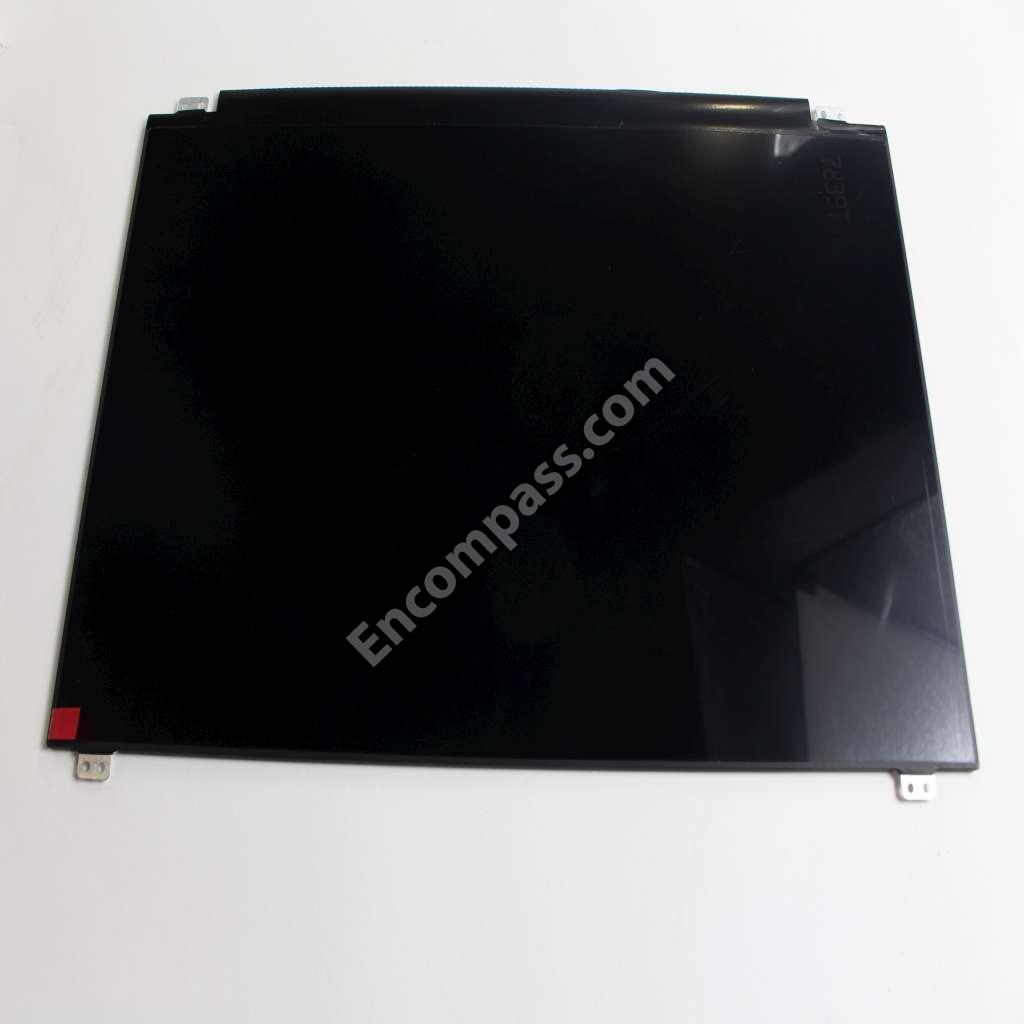

DISPLAY 15.6 FHD AG |
|
|
DISPLAY 15.6 UHD AG |
|
|
DISPLAY BOE 15.6 FHD IPS AG |
|
|
DISPLAY BOE 15.6 FHD IPS AG ON-CELL |
|
|
DISPLAY FRU DUMMY 15.6 FHD LCLW 250 AUO |
|
|
DISPLAY LGD 15FHD IPS AG 250NIT |
|
|

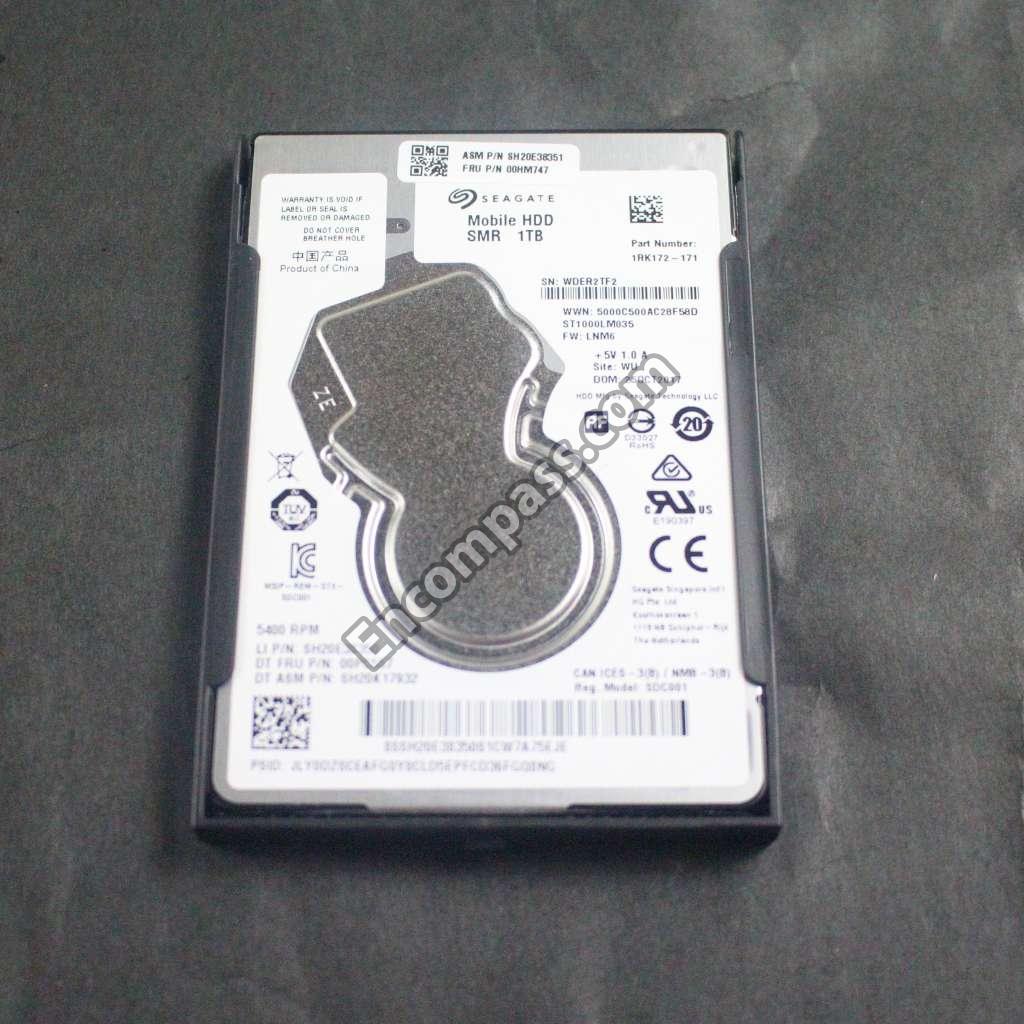

HDD_ASM HDD 1TB 5400 7MM SEAG SATA STD |
|
|

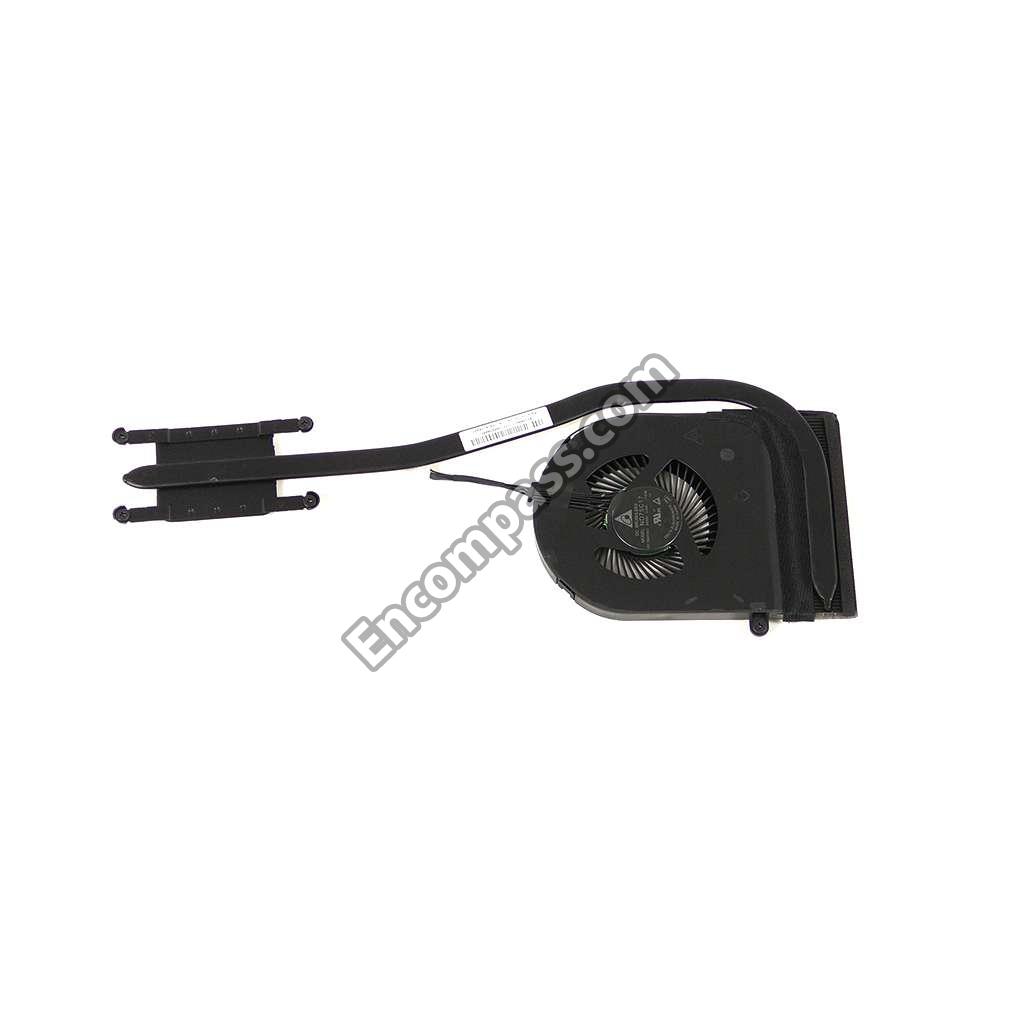

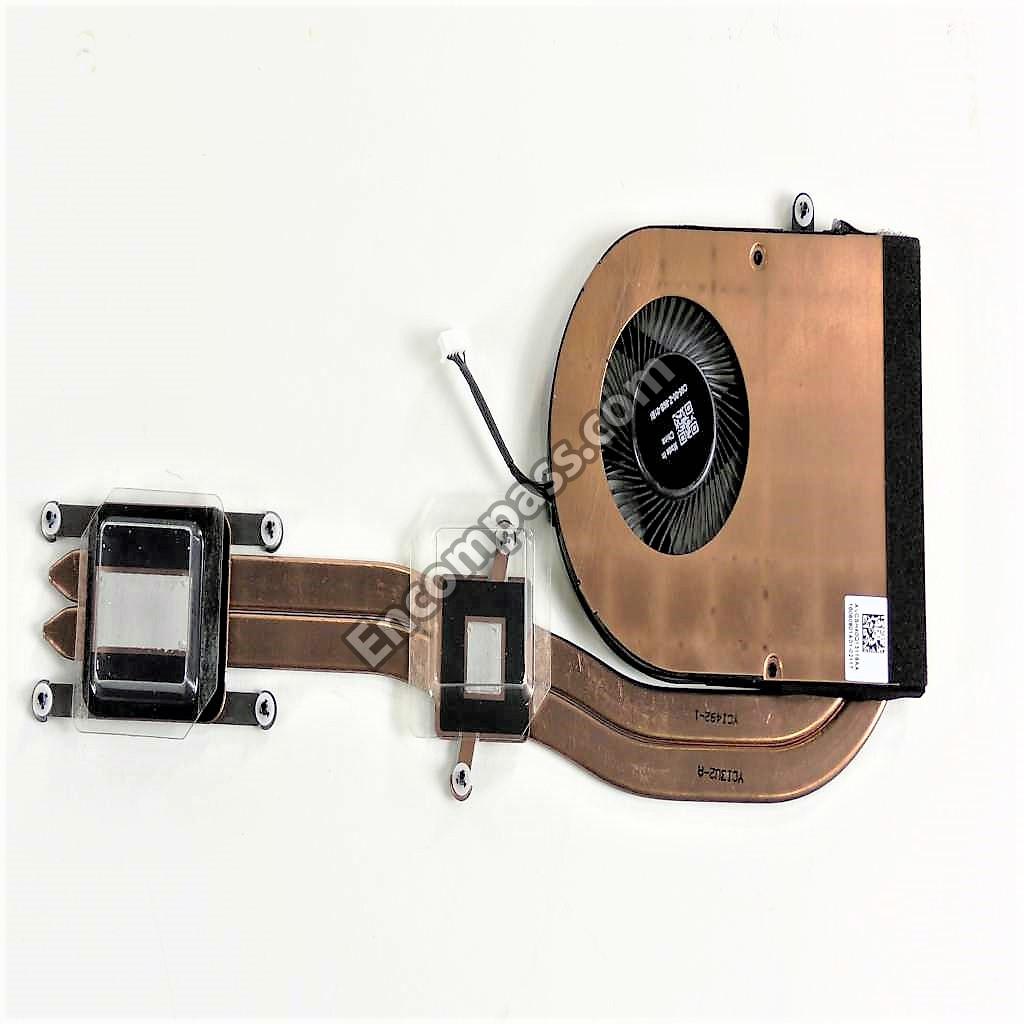

HEATSINK FAN ASM SWG DELTA TC-2 |
|
|
HEATSINK FAN ASM UMA DELTA TC-2 |
|
|

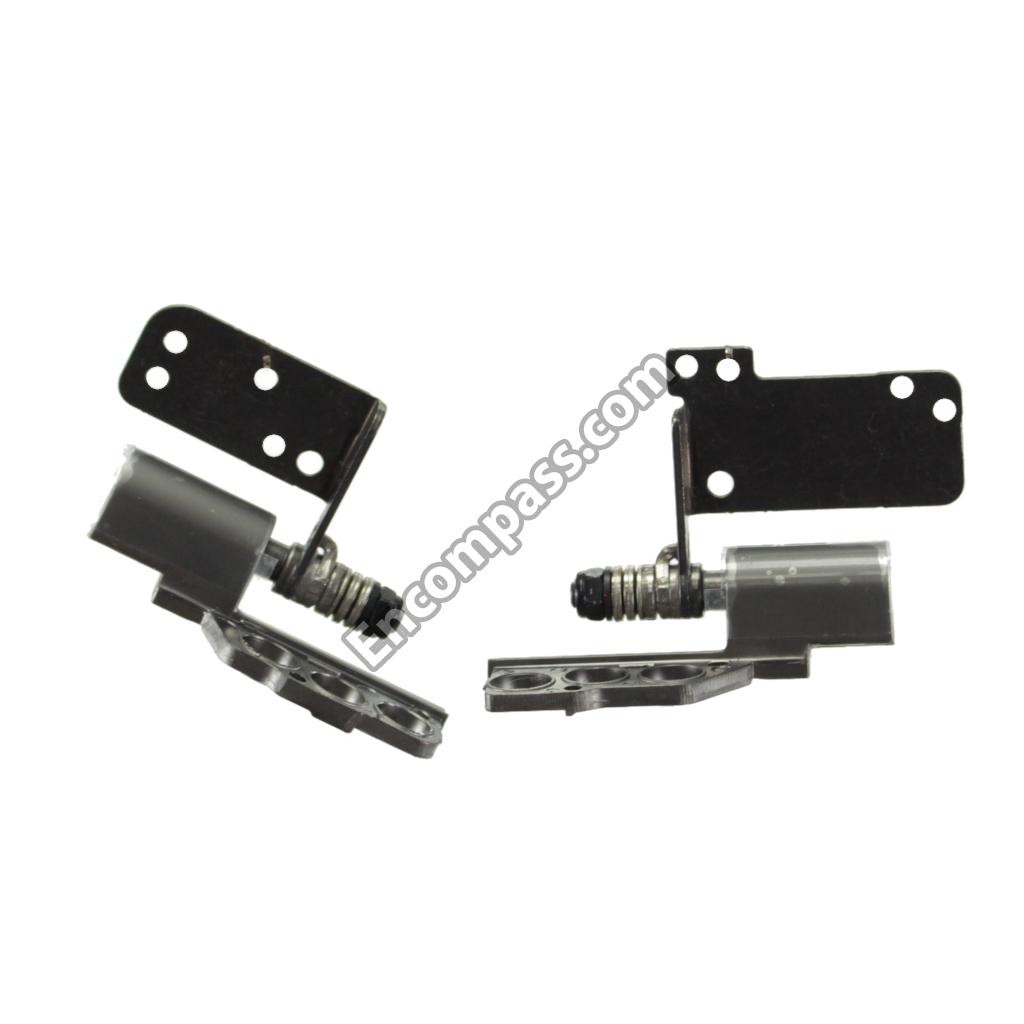

HINGE HINGE KIT JAR |
|
|
LABEL GEO LABEL KIT TC-2 |
|
|
LABEL SYSTEM LABEL KIT TC-2 |
|
|
LINECORD FRU LINECORD CN 1M 3P NON-LH |
|
|
LINECORD US CA 1M 2P NON-LH LGW |
|
|
MECHANICAL CAMERA MISC |
|
|
MECHANICAL DUMMY SMART CARD |
|
|
MECHANICAL HDD WIRELESS TAPE |
|
|
MECHANICAL KIT MECH MISC |
|
|
MECHANICAL NFC TAPE |
|
|

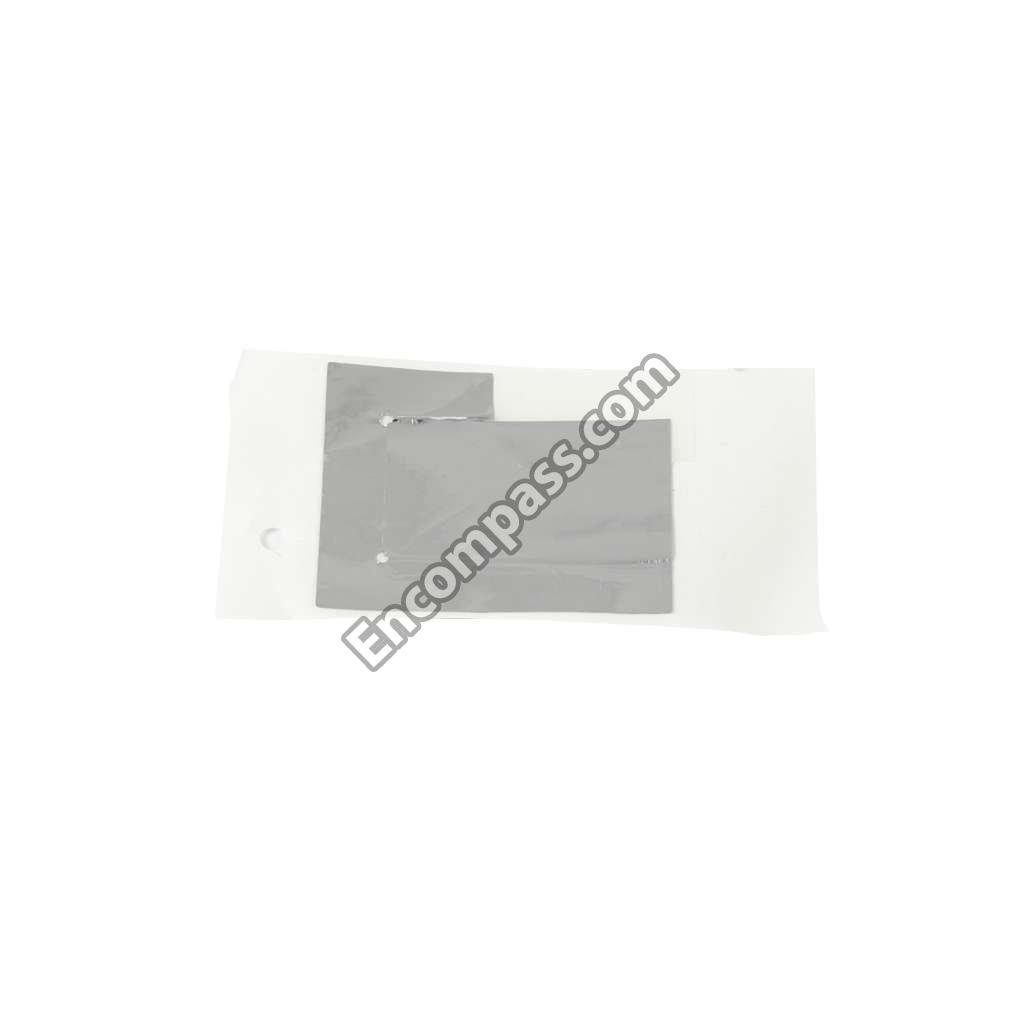

MECHANICAL WLAN THERMAL PAD |
|
|
MECH_ASM CS16_2BCP MYLAR BLACK TRA |
|
|
MECH_ASM LCD SUPPORT KIT |
|
|
MECH_ASM M.2 ADAPTER ASM FOR TACHI TC-2 |
|
|
MEMORY 16G DDR4 2400 SODIMM |
|
|
MEMORY 4G DDR4 2400 SODIMM |
|
|
MEMORY 8G DDR4 2400 SODIMM |
|
|

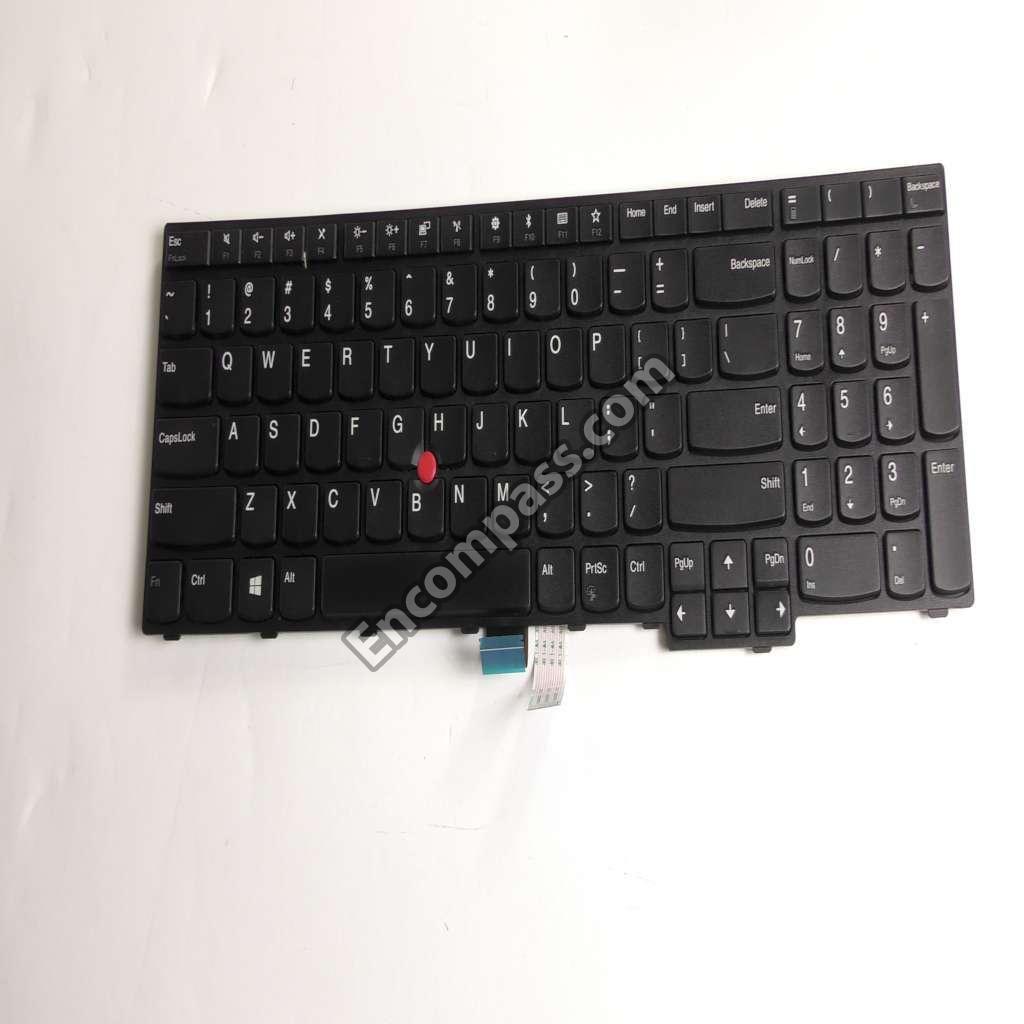

NB_KYB TACHI2 CHY BL-KB US |
|
|
NB_KYB TACHI2 CHY NBL-KB US |
|
|
SCREW SCREW KIT TC-2 |
|
|

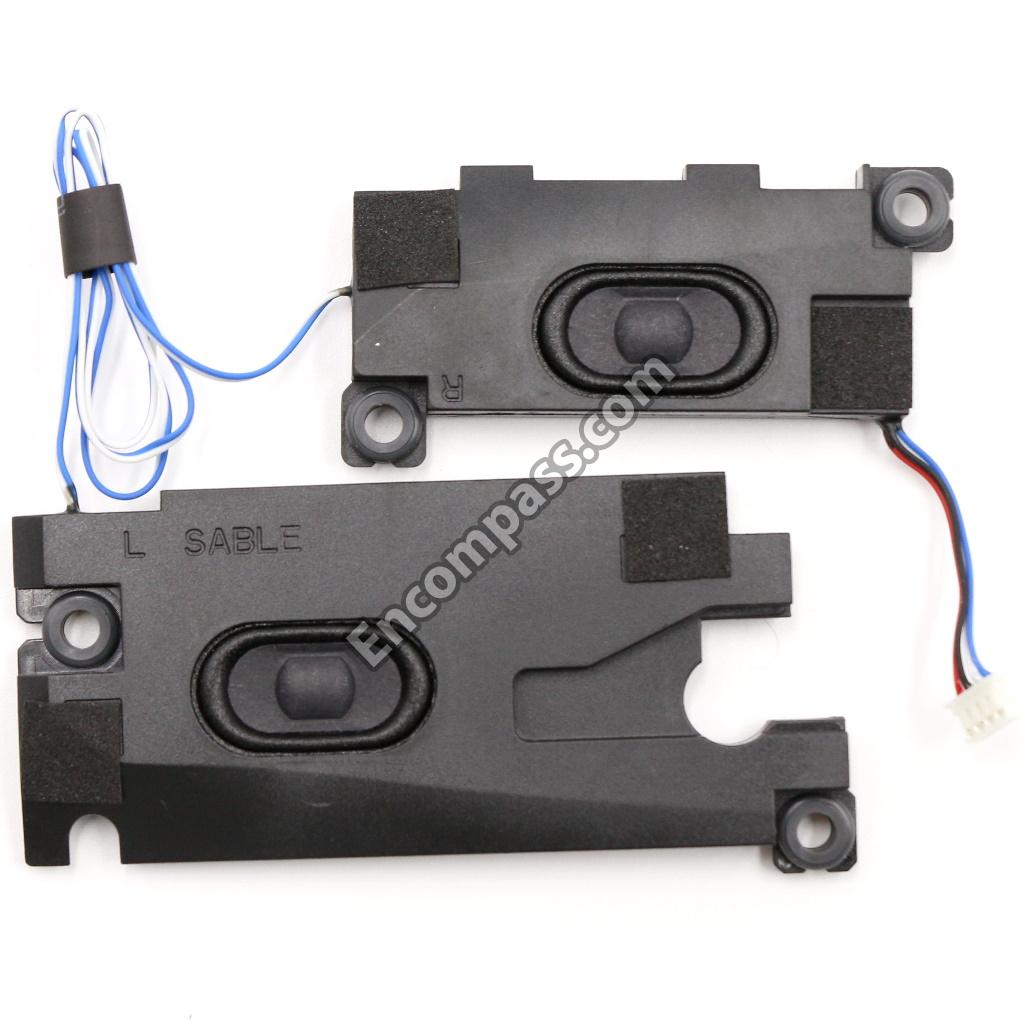

SPEAKERINT SPEAKER TC-2 |
|
|
SSD_ASM 1024G M.2 2280 PCIE3X4 SAM OPAL |
|
|
SSD_ASM 128G 2.5 7MM SATA6G SAM STD |
|
|
SSD_ASM 256G 2.5 7MM SATA6G SAM OPAL |
|
|
SSD_ASM 256G M.2 2280 PCIE3X4 SAM OPAL |
|
|
SSD_ASM 512G M.2 2280 PCIE3X4 SAM OPAL |
|
|
WIRELESS WIRELESS CMB IN 8265 NV M2 |
|
|
WIRELESS WIRELESS CMB IN 8265 VPRO |
|
|
WIRELESS WIRELESS NFC FXN NPC300 |
