Manufacturer
Lenovo
Model Number
59409532
Description
G500 - Touch 15.6" Touchscreen Laptop
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
CCYT6E1US102BLKKEYBLKFKBD |
|
|
DELTA ADLX65NDC3A 20V3.25A ADAPTER |
|
|
INTEL I3-3110M 2.4G L1 3M 2CPGA CPU |
|
|
LINETEK LP-30B + SPT-2 + LS15 1M CORD |
|
|
ST1000LM024 BP 9.5MM 5.4K 1T HDD |
|
|
VILG1 ANTENNA TS |
|
|
VILG1 CAMERA 1M |
|
|
VILG1 CAMERA TAPE TS |
|
|

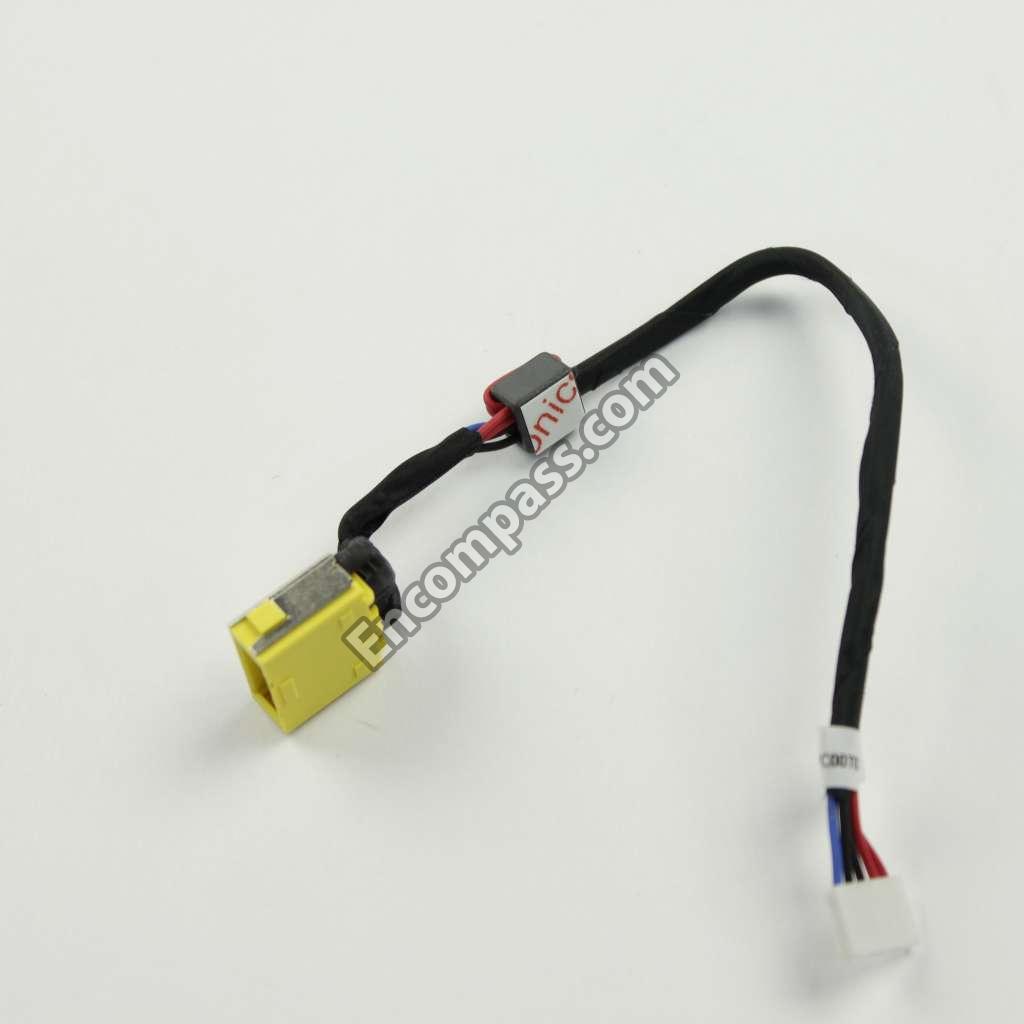

VILG1 DC-IN CABLE UMA |
|
|

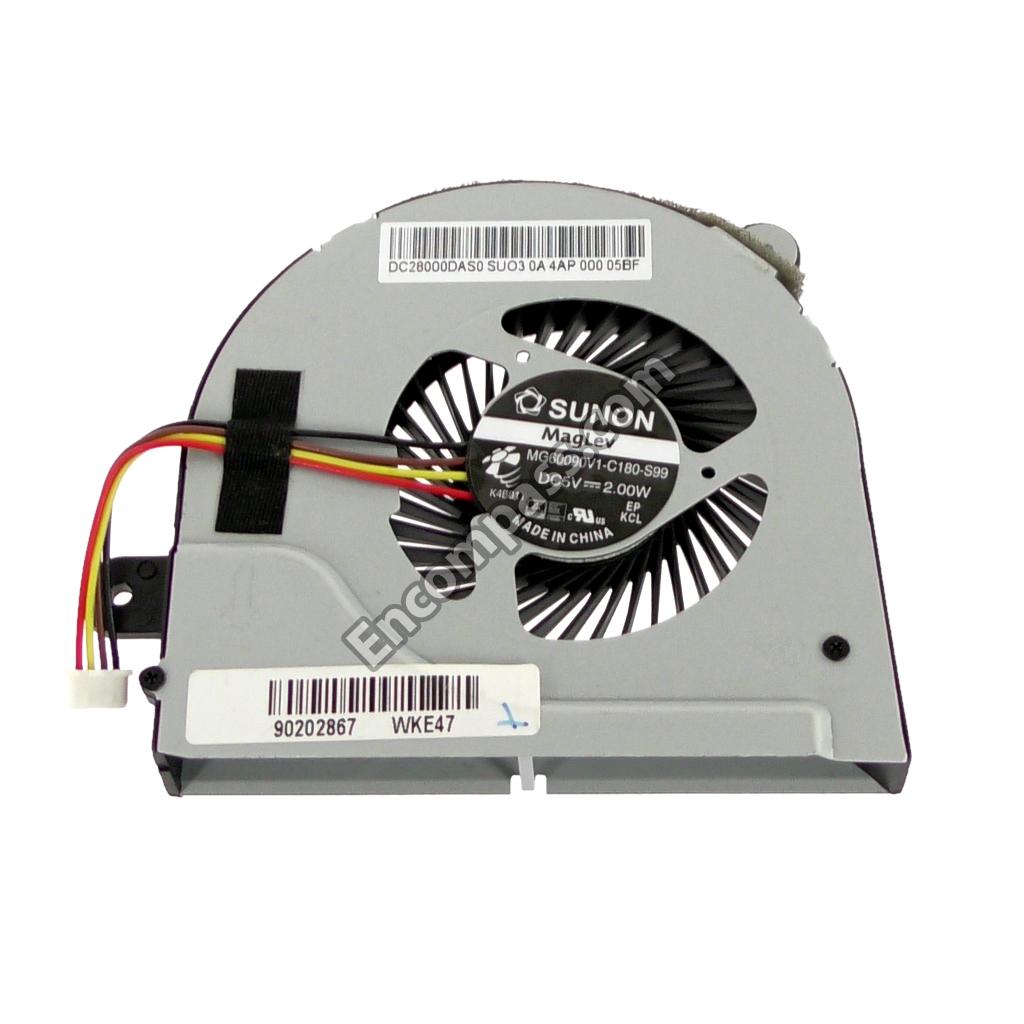

VILG1 FAN |
|
|
VILG1 HDD BRACKET |
|
|
VILG1 HEATSINK UMA |
|
|
VILG1 HINGE COVER L+R TS |
|
|
VILG1 LCD BRACKET L+R TS |
|
|
VILG1 LCD CABLE UMA |
|
|
VILG1 LCD COVER BLACK TS |
|
|

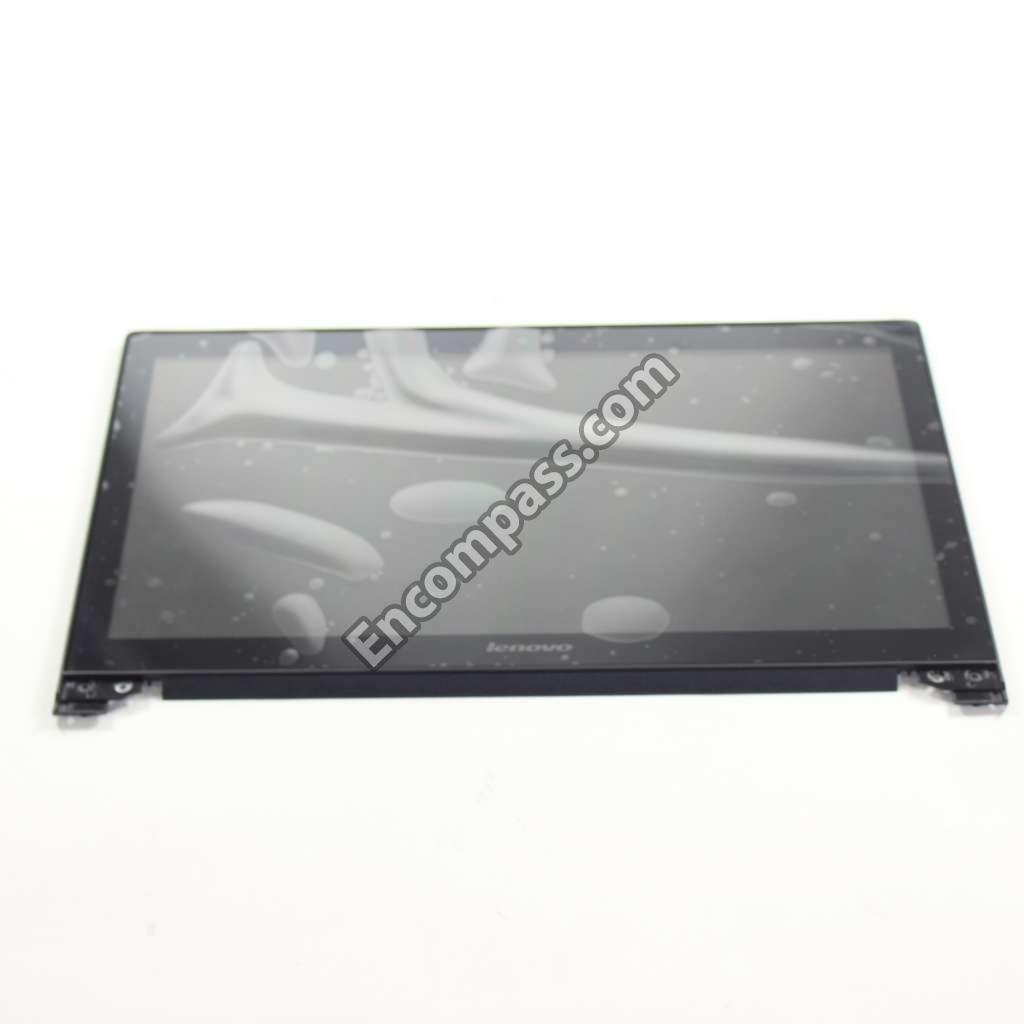

VILG1 LCD MODULE TS |
|
|
VILG1 LED BOARD W/CABLE |
|
|

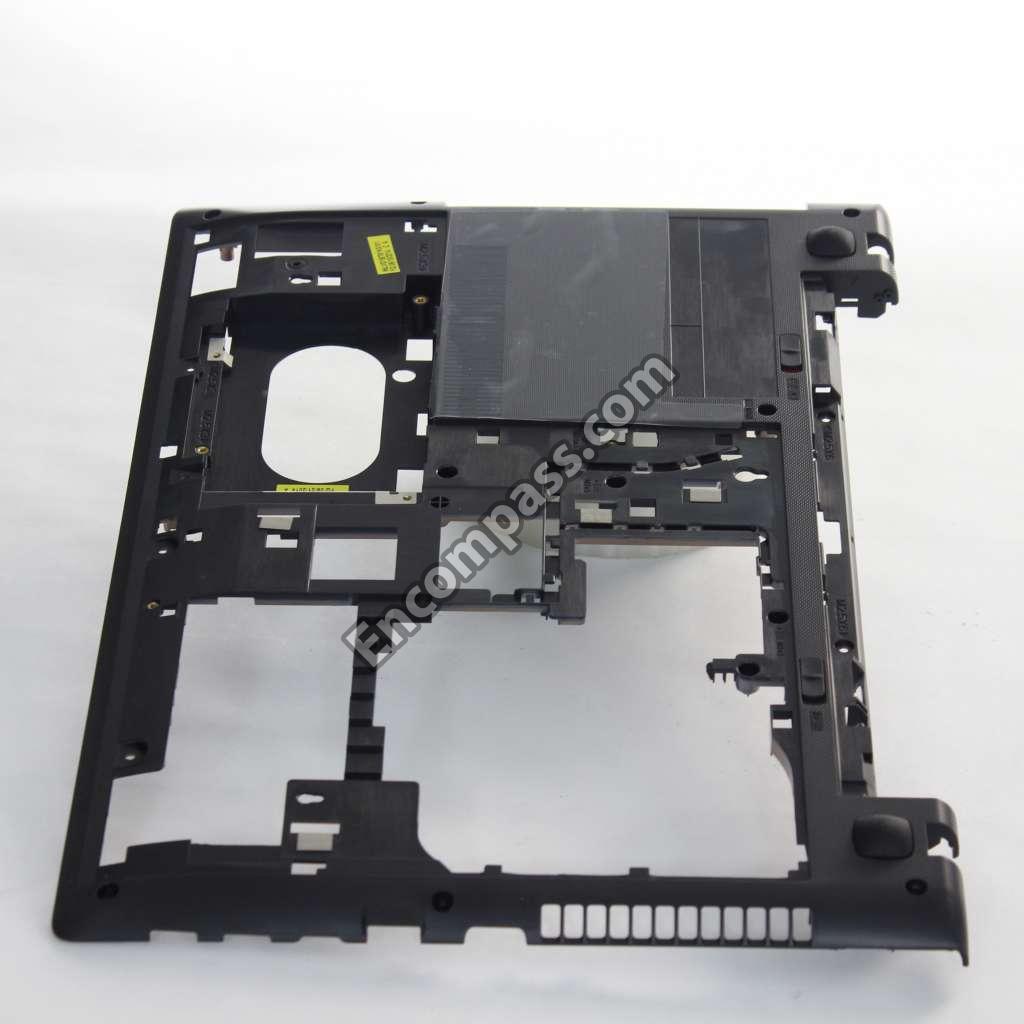

VILG1 LOWER CASE BLACK |
|
|
VILG1 ODD BEZEL BLACK RAMBO |
|
|
VILG1 ODD BOARD W/CABLE |
|
|
VILG1 ODD BRACKET |
|
|
VILG1 POWER BOARD W/CABLE |
|
|
VILG1 RUBBER FOOT BLACK |
|
|
VILG1 SCREW 2 2.0D 2L K 7D ZK NL + CR3+ |
|
|
VILG1 SCREW 2.0D 3.5L K 3.7D BNI NL+0.5T |
|
|
VILG1 SCREW 2.48D 6.0L K 5.5D 0.8T ZKNL+ |
|
|
VILG1 SCREW 2.5D 3.5L K 5.3D NI NL+0.5T |
|
|
VILG1 SCREW 2.5D 3L K 4.5D 0.5T ZK NL + |
|
|
VILG1 SCREW 2.5D 5.0L K 4.6D ZK NL+CR3+ |
|
|
VILG1 SCREW 2D 2L K 4.6D ZK NL + CR3+ |
|
|
VILG1 SCREW 2D 3L K 8D ZK NL + |
|
|
VILG1 SCREW 2D 5L K 4.6D ZK NL + CR3+ |
|
|
VILG1 SCREW 3.0D 3.0L K 4.9D NI + |
|
|
VILG1 SCREW JAT10_THML_SPRING_ASSY |
|
|
VILG1 SPEAKER |
|
|
VILG1 THERMAL DOOR BLACK |
|
|
VILG1 TOUCH LCD CABLE |
|
|
VILG1 TP CABLE |
|
|

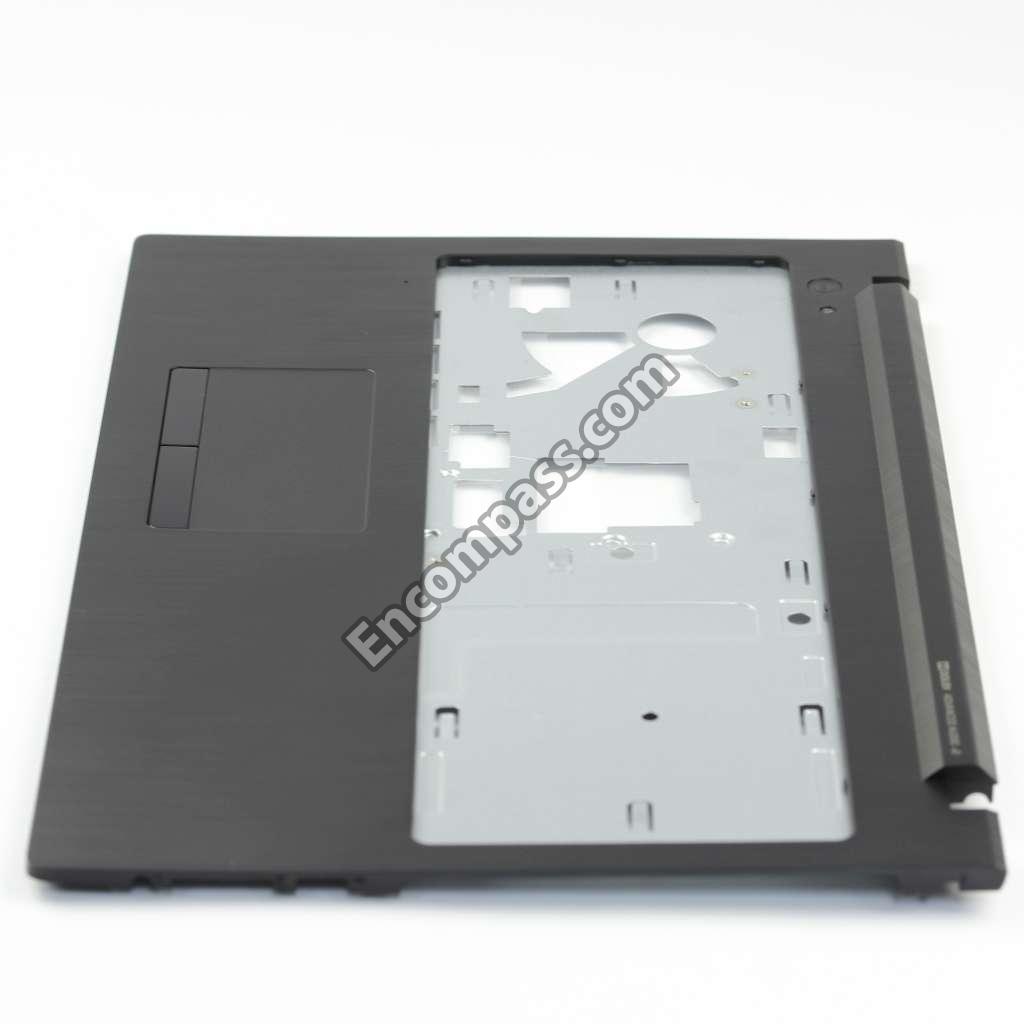

VILG1 UPPER CASE W/TP |
|
|
VILG1 USB BOARD W/CABLE |
|
|

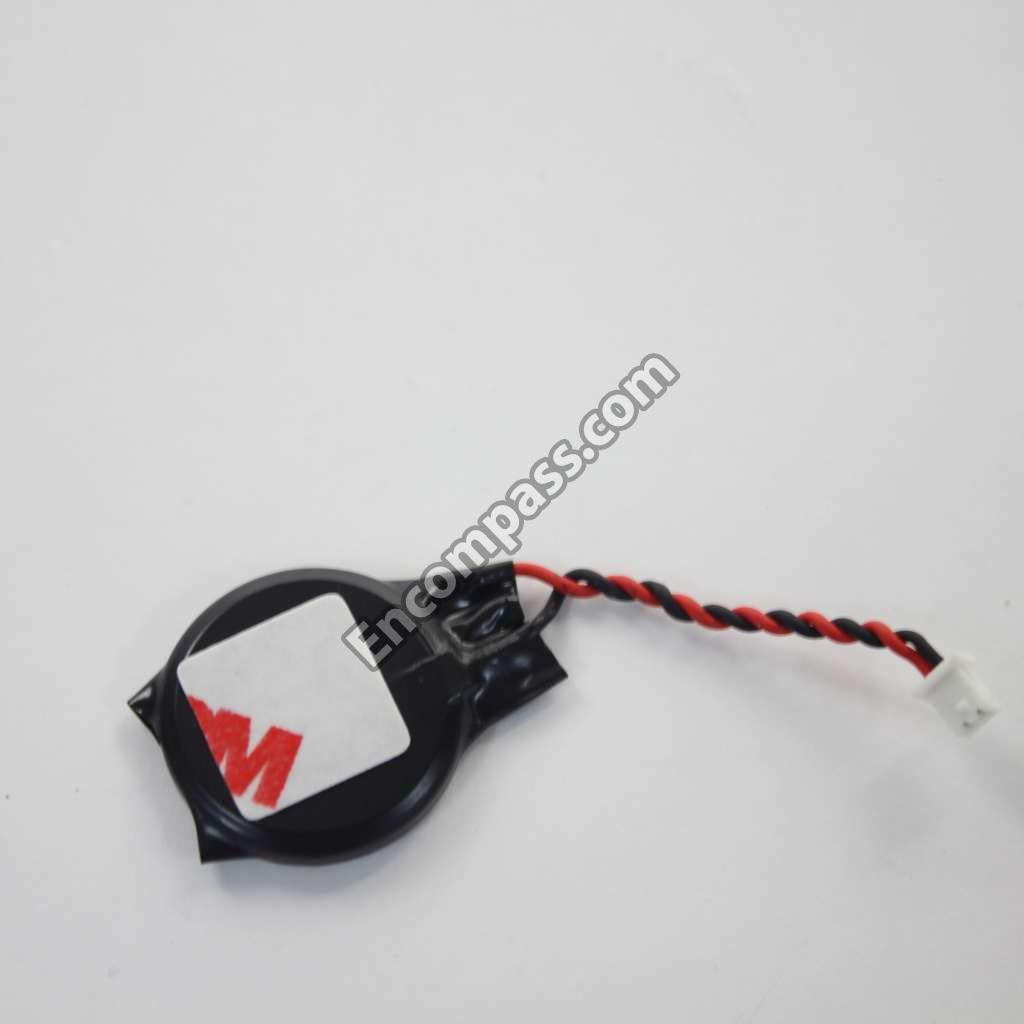

VILG2 RTC BATTERY |
