Manufacturer
Lenovo
Model Number
627775U
Description
Thinkpad-edge-e431
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
14" FRU PLANAR HM77 INTEGW8P |
|
|
14"FRU,ANTENNA,WLAN,AMP,N-TS |
|
|
14"FRU,ANTENNA,WLAN,ICT,N-TS |
|
|
14FRU LCD COVER BLACK PL,N-TS |
|
|
14W FRU LCD CABLE(NON-TOUCH) |
|
|
24G,M.2,2242,SATA6G,LTON,STD |
|
|
24G,M.2,2242,SATA6G,LTON,STD |
|
|
4GB DDR3L 1600 SODIMM |
|
|
65W,20VDC,2P,WW,CHY |
|
|
65W,20VDC,2P,WW,DEL |
|
|
65W,20VDC,2P,WW,LTN |
|
|
AUO 14.0"HD A |
|
|
CMI 14.0"HD A |
|
|
DISPLAY,14",HD,AG,NON-TOUCH |
|
|

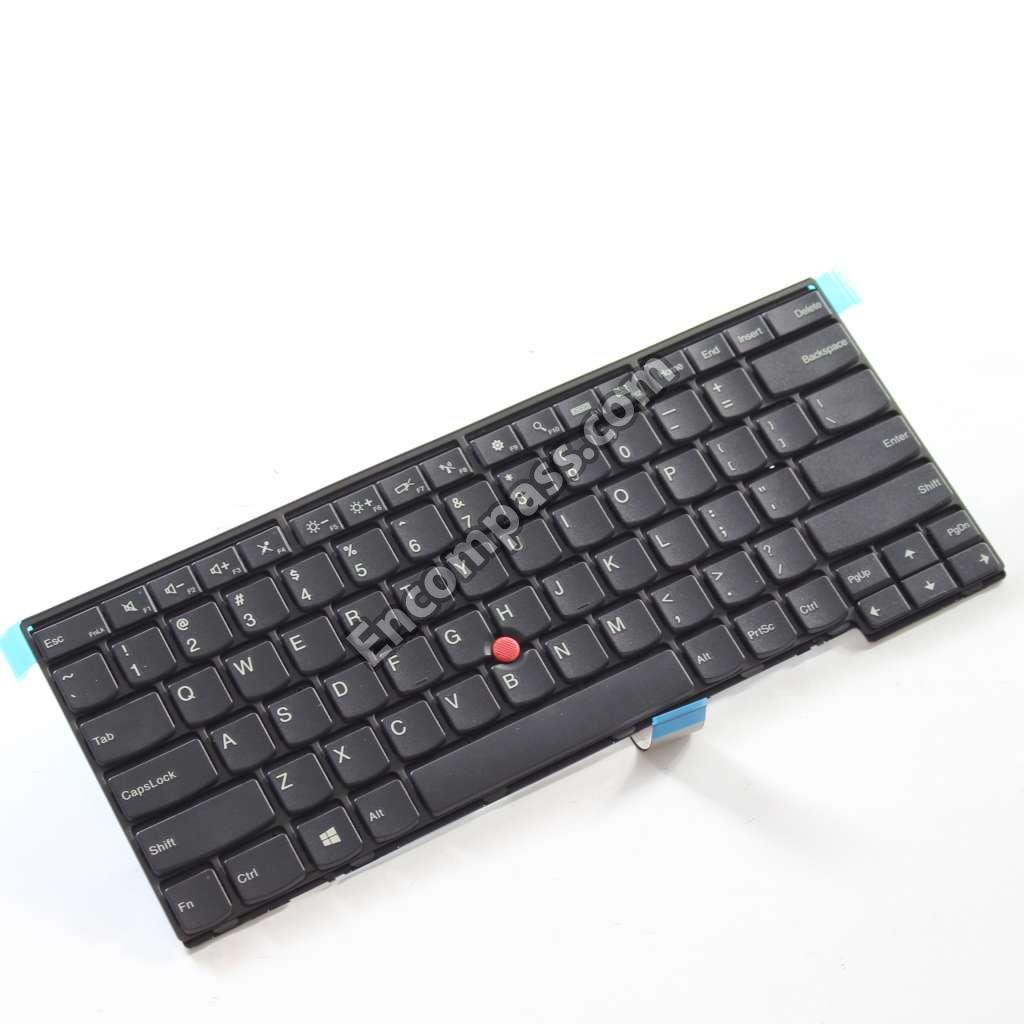

E431/E440,US,CHY |
|
|
E431/E440,US,LTN |
|
|
E431/E440,US,PRIMAX |
|
|
FRU BASE COVER 14W ROW Y-TS |
|
|
FRU BASECOVER 14W ROW N-TS |
|
|
FRU CARD READER AND USB 14W |
|
|
FRU DC-IN RJ45 WITH BRK 14W |
|
|
FRU INTEL UMA SV THERMAL AVC |
|
|
FRU INTEL UMA THERMAL DELTA |
|
|
FRU PALM W/FPR,N/EDGE LOGO-CHY |
|
|
FRU PALMREST 14W FPR PL |
|
|
FRU PALMREST W/F,N/EDGE LOGO |
|
|
FRU PALMREST W/FPR,N/EDGE LOGO |
|
|
FRU PALMREST W/FPR,N/EDGE LOGO |
|
|
FRU Q85 ATX MB WIN8.1 |
|
|
FRU Q85 ATX MB WIN8.1 PRO |
|
|
FRU, MYLAR, KIT |
|
|
FRU, P500 RONALDO PLANAR - W |
|
|
FRU, P500 RONALDO PLANAR - W |
|
|
FRU, P700 MESSI PLANAR - WIN |
|
|
FRU, P700 MESSI PLANAR - WIN |
|
|
FRU, P900 PELE PLANAR - WIN8 |
|
|
FRU, P900 PELE PLANAR - WIN8 |
|
|
FRU,14.0"HD,AG,BOE |
|
|
FRU,14.0"HD,AG,SEC |
|
|
FRU,14W,SB,CARD READER_USB |
|
|
FRU,14W,SB,DC-IN AND RJ45 |
|
|
FRU,14W,SCREW,MYLAR,LCD(2) |
|
|
FRU,14W,SCREW,MYLAR,LCD(500) |
|
|
FRU,720P,HD,CAMERA,W/MIC-BIS |
|
|
FRU,720P,HD,CAMERA,W/MIC-CCY |
|
|
FRU,720P,HD,CAMERA,W/MIC-LTN |
|
|
FRU,ANTENNA,WWAN/WLAN-14,AMP |
|
|
FRU,ANTENNA,WWAN/WLAN-14,ICT |
|
|
FRU,CONNECTER COVER |
|
|
FRU,DC-IN,BRACKET,14W |
|
|
FRU,HINGE,14W |
|
|
FRU,LCD,BEZEL,14W |
|
|
FRU,LION,SCREW KIT,N-TOUCH |
|
|
FRU,MINI DOOR,W/SCREW,14W |
|
|
FRU,POWER BUTTON,SUB CARD14W |
|
|
FRU,SPEAKER ASM,14W |
|
|
FRU,THERMAL DOOR,14W,N-TS |
|
|
HDD,500G,7200,7MM,HGST,SATA,STD |
|
|
HDD,500G,7200,7MM,TOS,SATA,STD |
|
|
HDD,500G,7200RPM,7MM,TOS,SATA,STD |
|
|
LGD 14.0"HD A |
|
|
RTC BATTERY |
|
|
SCREW, SCREW KIT |
|
|
SMB C01 LGC 6CELL 2.2AH |
|
|
SMB C01 SANYO 6CELL 2.2AH |
|
|
SMB C01 SIMPLO 6CELL 2.2AH |
|
|
SMB C01 SONY 6CELL 2.2AH |
|
|
SMD,HLDS,SATA,9.5MM,X8,SBLIO |
|
|
SMD,PPRD,SATA,9.5MM,X8,SBLIO |
|
|
TRACKPOINT,RED |
|
|
US/CANADA 1.0M 2PINS LINETEK |
|
|
US/CANADA 1.0M 2PINS LONGWELL |
|
|
US/CANADA 1.0M 2PINS LUXSHARE |
|
|
WIRELESS,CMB,IN,JP1 HMC |
