Manufacturer
Lenovo
Model Number
688566U
Description
Thinkpad-edge-e531
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|

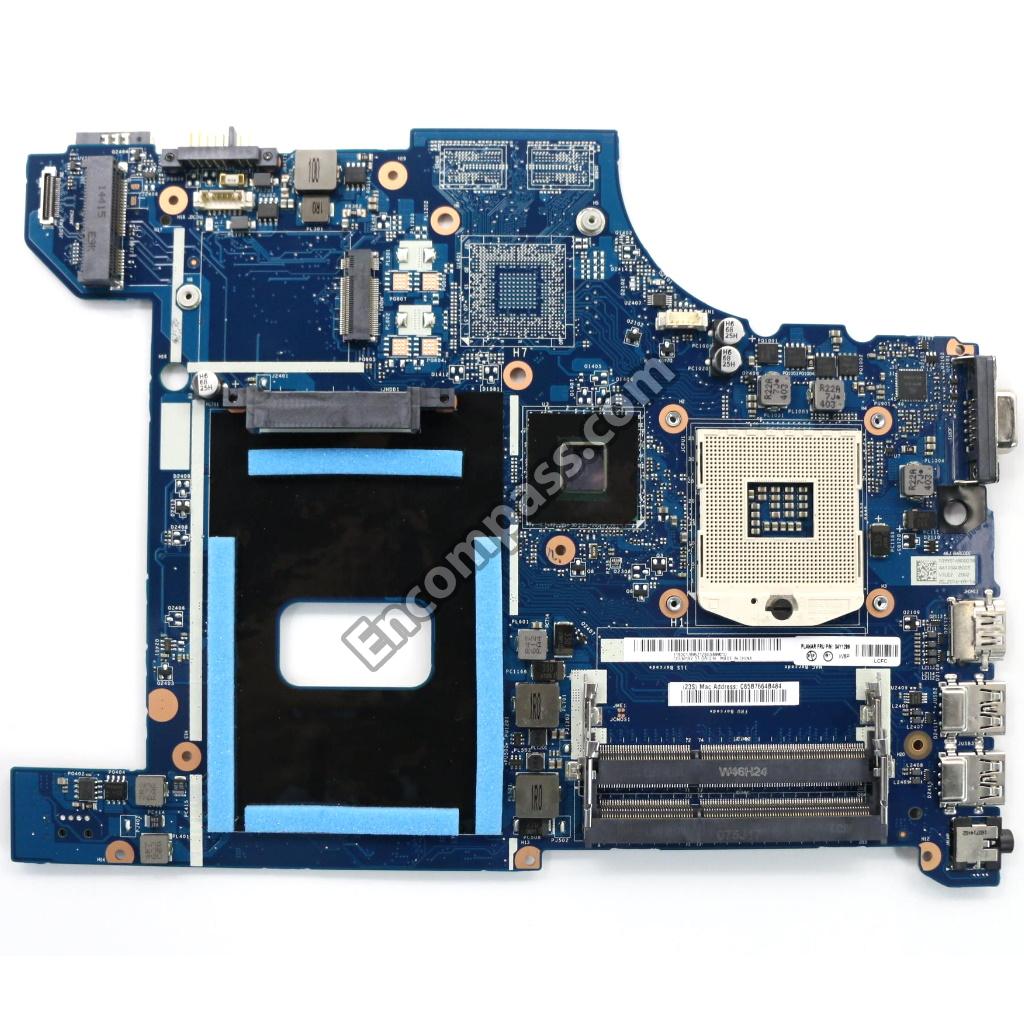

15" FRU PLANAR HM77 INTEGW8P |
|
|

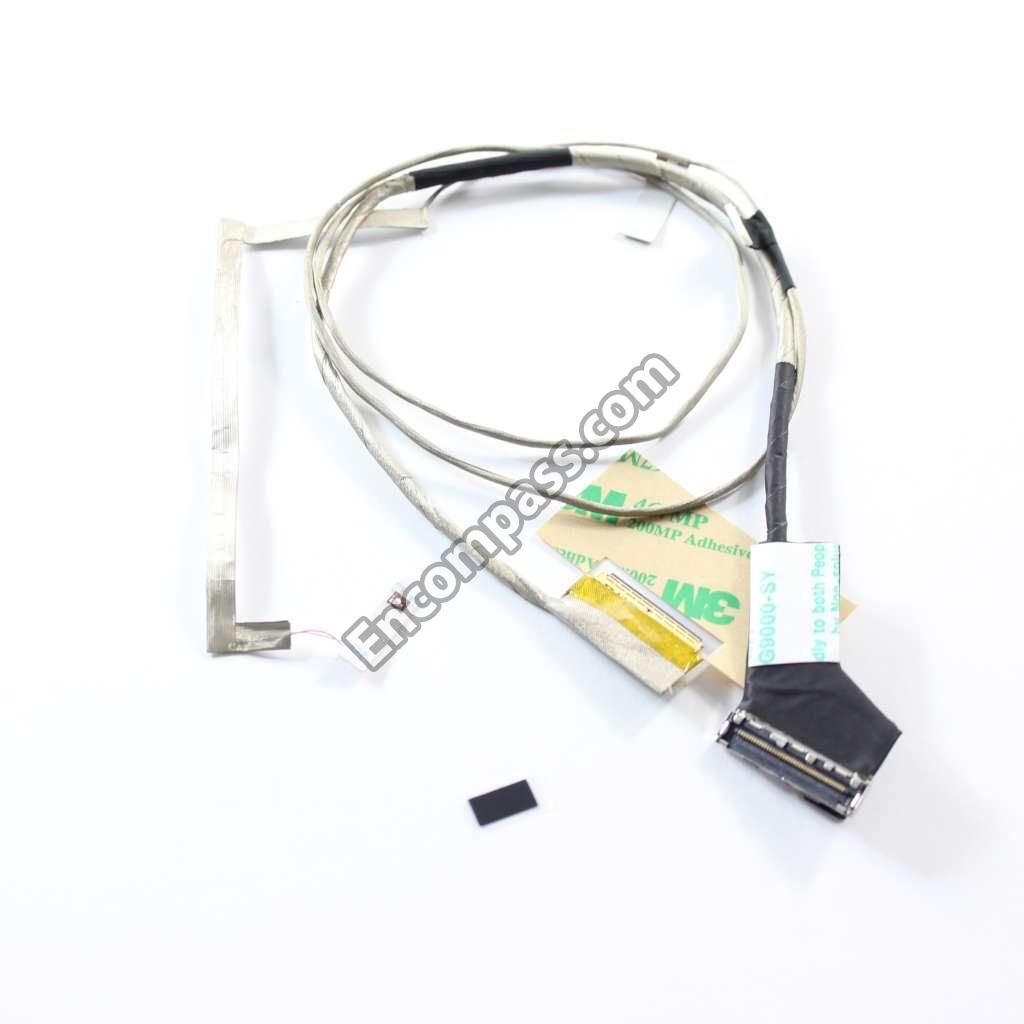

15W FRU LCD CABLE |
|
|
2.5 5400RPM SATAII 1TB HDD FRU |
|
|
2GB DDR3L 1600 SODIMM |
|
|
4GB DDR3L 1600 SODIMM |
|
|
65W,20VDC,2P,WW,CHY |
|
|
65W,20VDC,2P,WW,LTN |
|
|
65W,20VDC,2P,WW,LTN |
|
|
DISPLAY,15.6",HD,AG,N-TOUCH |
|
|
E531/E540,US,LTN |
|
|
FRU 15.6"HD AG AUO |
|
|
FRU 15.6"HD AG CMI |
|
|
FRU 15.6"HD AG SEC |
|
|
FRU ANTENNA WLAN SET-15 AMP |
|
|
FRU ANTENNA WLAN SET-15 ICT |
|
|
FRU BASE COVER 15W ROW Y-TS |
|
|
FRU BASECOVER 15W ROW N-TS |
|
|
FRU CARD READER AND USB 15W |
|
|
FRU DC-IN BRACKET 15W |
|
|
FRU DC-IN RJ45 WITH BRK 15W |
|
|
FRU GRANT SCREW KIT N-TOUCH |
|
|
FRU INTEL UMA SV THERMAL AVC |
|
|
FRU INTEL UMA THERMAL DELTA |
|
|
FRU ODD SUB CARD 15W |
|
|
FRU PALM W/FPR,N/EDGE LOGO-CHY |
|
|
FRU PALMREST 15W FPR PL |
|
|
FRU PALMREST W/FPR,N/EDGE LOGO |
|
|
FRU PALMREST W/FPR,N/EDGE LOGO |
|
|
FRU PALMREST W/FPR,N/EDGE LOGO |
|
|
FRU POWER BUTTON SUB CARD15W |
|
|
FRU Q85 ATX MB WIN8.1 |
|
|
FRU Q85 ATX MB WIN8.1 PRO |
|
|
FRU, P500 RONALDO PLANAR - W |
|
|
FRU, P500 RONALDO PLANAR - W |
|
|
FRU, P700 MESSI PLANAR - WIN |
|
|
FRU, P700 MESSI PLANAR - WIN |
|
|
FRU, P900 PELE PLANAR - WIN8 |
|
|
FRU, P900 PELE PLANAR - WIN8 |
|
|
FRU,15W,SCREW,MYLAR,LCD(2),NT |
|
|
FRU,15W,SCREW,MYLAR,LCD(500),NT |
|
|
FRU,720P,HD,CAMERA,W/MIC-BIS |
|
|
FRU,720P,HD,CAMERA,W/MIC-CCY |
|
|
FRU,720P,HD,CAMERA,W/MIC-LTN |
|
|
FRU,CONNECTER COVER |
|
|
FRU,HINGE,15W |
|
|
FRU,LCD COVER,15W,BLACK,PL |
|
|
FRU,LCD,BEZEL,15W |
|
|
FRU,MINI DOOR,W/ SCREW,15W |
|
|
FRU,SPEAKER ASM,15W |
|
|
FRU,THERMAL DOOR,W/SCREW,15W |
|
|
HDD,1TB,5400,9MM,HGST,SATA,STD |
|
|
HDD,1TB,5400,9MM,TOS,SATA,STD |
|
|
HDD,1TB,5400,9MM,WD,SATA,STD |
|
|
HDD,1TB,5400,9MM,WD,SATA,STD |
|
|
RTC BATTERY |
|
|
SCREW, SCREW KIT |
|
|
SMB C01 LGC 6CELL 2.2AH |
|
|
SMB C01 SANYO 6CELL 2.2AH |
|
|
SMB C01 SIMPLO 6CELL 2.2AH |
|
|
SMB C01 SONY 6CELL 2.2AH |
|
|
SMD,HLDS,SATA,9.5MM,X8,SBGNT |
|
|
SMD,PPRD,SATA,9.5MM,X8,SBGNT |
|
|
TRACKPOINT,RED |
|
|
US/CANADA 1.0M 2PINS LINETEK |
|
|
US/CANADA 1.0M 2PINS LONGWELL |
|
|
US/CANADA 1.0M 2PINS LUXSHARE |
|
|
WIRELESS,CMB,IN,JP1 HMC |
