Manufacturer
Lenovo
Model Number
90GVCTO1WW
Description
510a-15ikl Es
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
1TB HDD 7200RPM SATA 3GBPS 32M |
|
|
500 GB SEAGATE STAT HARD DRIVE |
|
|
BRACKET FIO BRACKET ASSY , 333 |
|
|
CABLE , 250MM SENSOR CABLE |
|
|

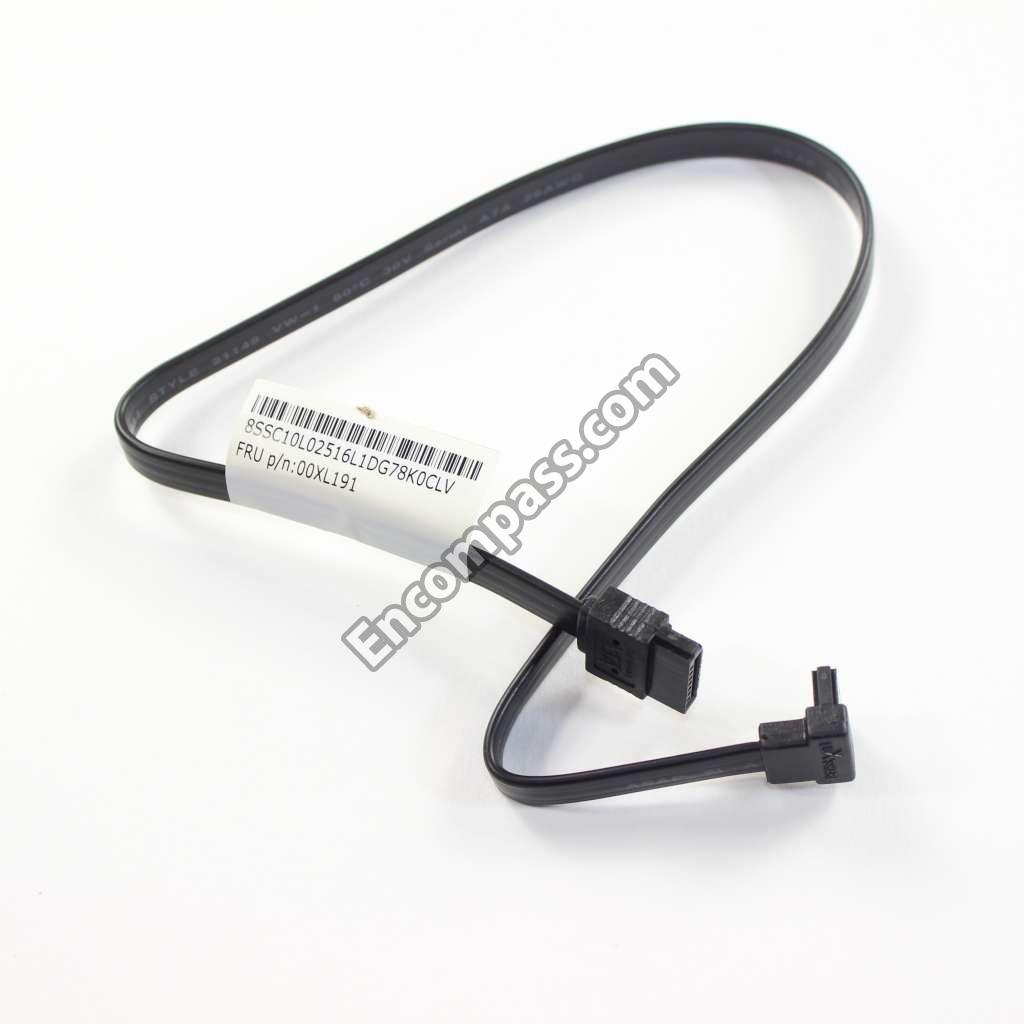

CABLE , 320MMSATA CABLE 1LATCH |
|
|

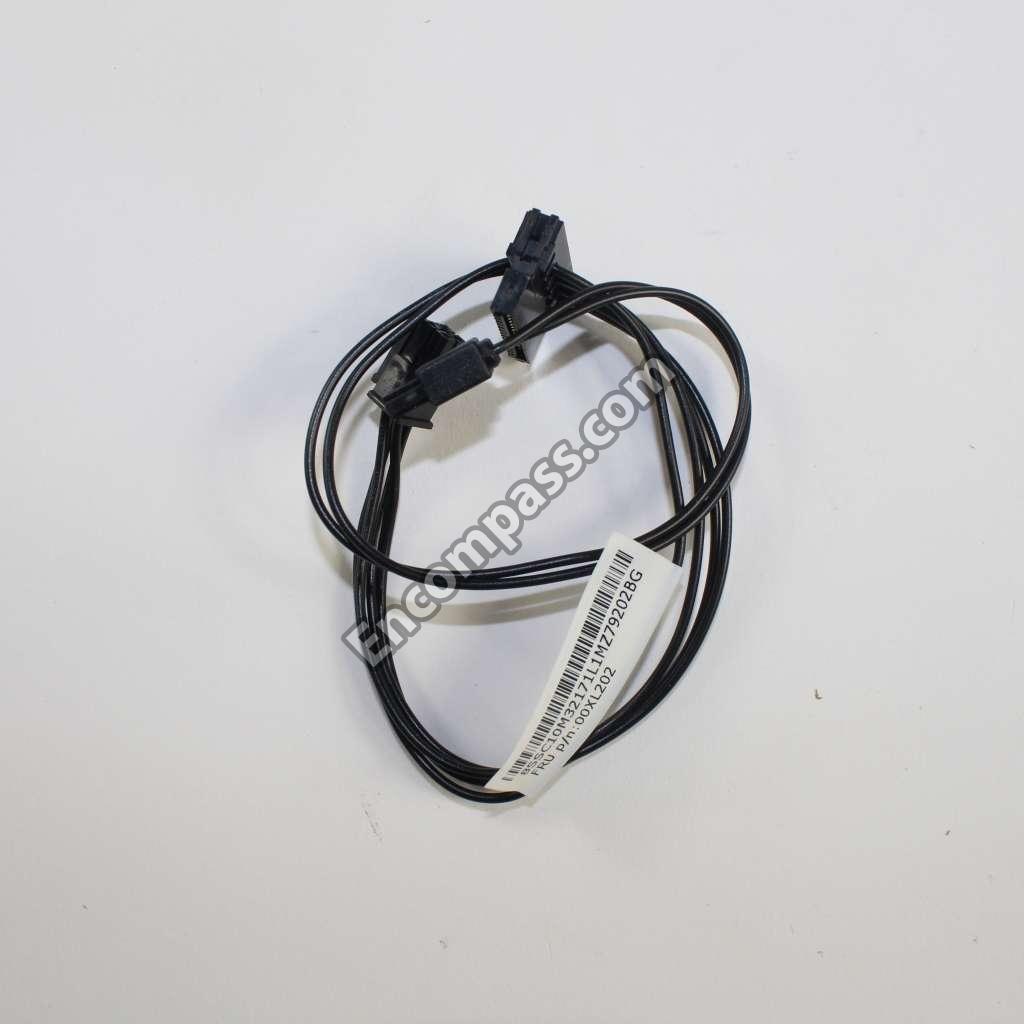

CABLE , SATA POWERCABLE(160MM+ |
|
|
CABLE 380MMSATA CABLE 1 LATCH |
|
|
CABLE 400MM SATA POWER CABLE |
|
|
CARDREADER 7 IN 1 CARD READER |
|
|
CC CABLES EXTERNAL |
|
|
CI CARDS MISC INTERNAL |
|
|
CW WIRELESS WAN ADAPTERS |
|
|
CW WIRELESS WAN ADAPTERS |
|
|
FRU380MM LED CABLE :1SW_LED+1LED |
|
|
GT730 1GB DDR5 64BIT |
|
|
HS HEAT SINKS |
|
|
INTEL B250 R/IO SHIELD,AVC |
|
|
INTEL CORE I3-7100 3.9GHZ/2C/3 |
|
|
INTEL CORE I5-7400 3.0G 4C |
|
|
INTEL PENTIUM G4560 3.5GHZ/2C/ |
|
|

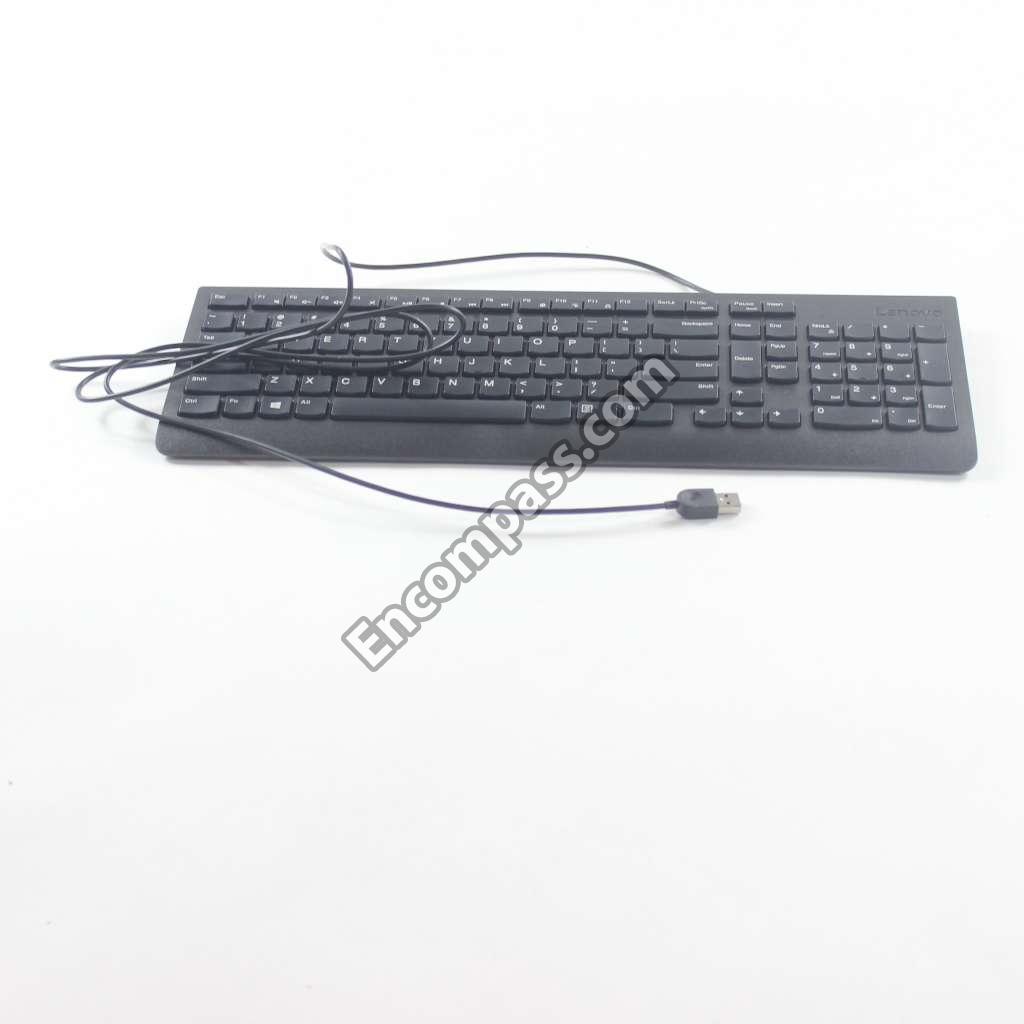

KB KEYBOARDS EXTERNAL |
|
|
LENOVO PART - 00XD436 |
|
|
MA MECHANICAL ASSEMBLIES |
|
|
MECH ASM 333ET1, BASE-CHASSIS, |
|
|
MECH ASM 333ET1, SIDE-COVER, A |
|
|
MECH ASM 333HT1, F-BEZEL ASSY |
|
|
MECH ASM 333HT1, ODD-DOOR ASSY |
|
|
MECH ASM 333HT2, F-BEZEL ASSY |
|
|
MECH ASM AVC, M.2 SSD BRK ASM( |
|
|

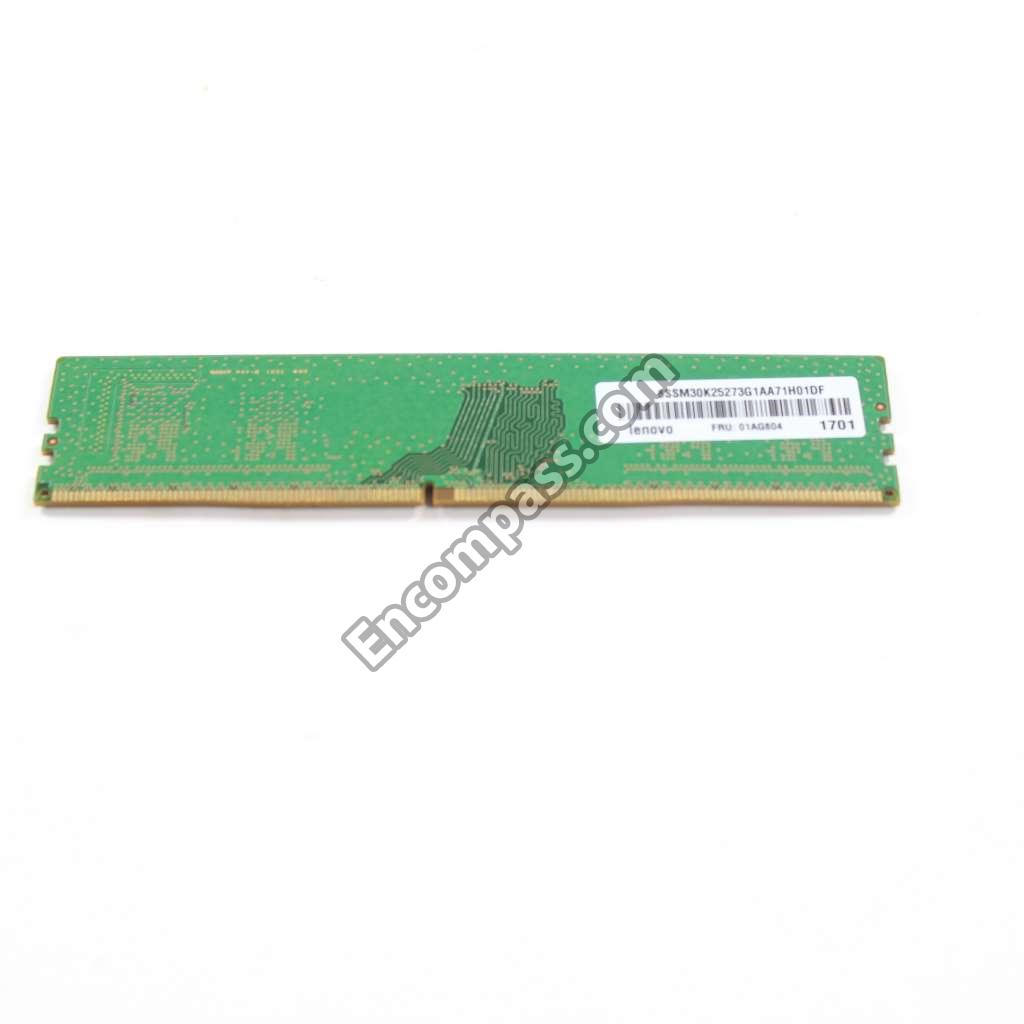

MEMORY 4GB DDR4 2400UDIMM |
|
|
MEMORY 8GB DDR4 2400UDIMM |
|
|
MS POINTING DEVICES |
|
|
OPT DRIVE 9.0MM DVD RAMBO WITH |
|
|

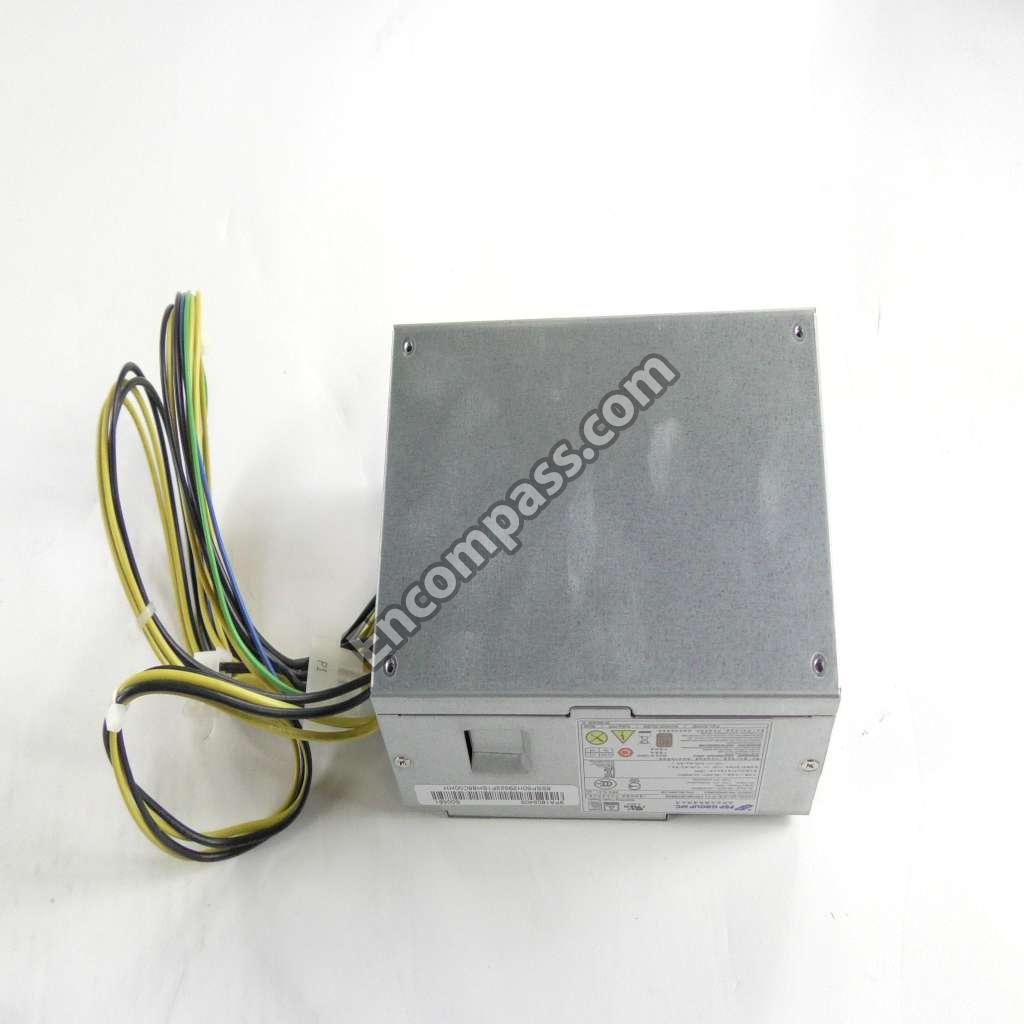

POWER SUPPLY 100-240VAC, SFF 1 |
|
|
PU PROCESSORS |
|
|
SHIELD AVC, SLIM-ODD-EMI COVER |
|
|
SSD ASM 128G,M.2,2280,PCIE3X4, |
