Model Image
Manufacturer

Liebherr

Model Number

HC1580

Description

Built-in Combined Fridge-freezer-nofrost

Interactive Exploded View
Exploded View

Parts List

Part Number Description

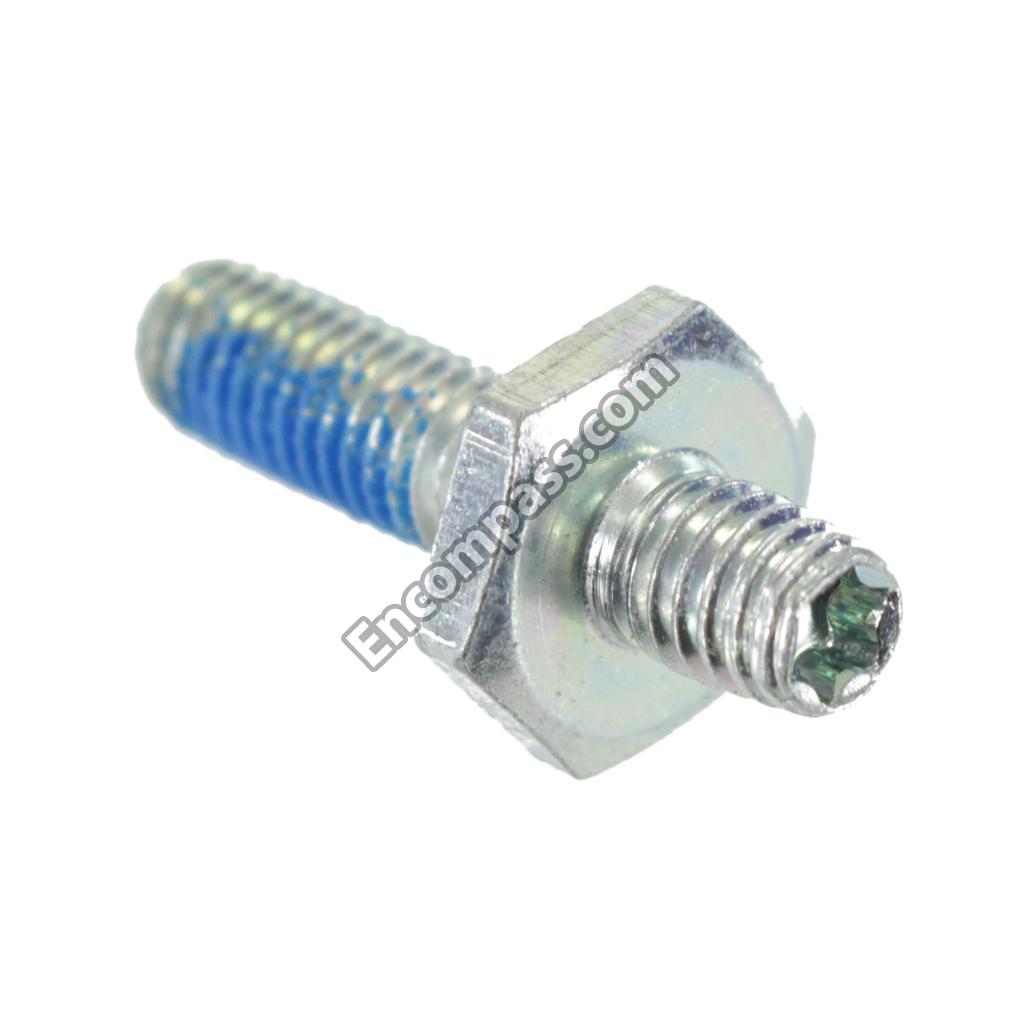

743707201 743707201 ADJUSTING SCREW
959020602 959020602 AIR SENSOR FOR FREEZER COMPARTMENT
7113137 7113137 BOLT
711366900 711366900 BOLT

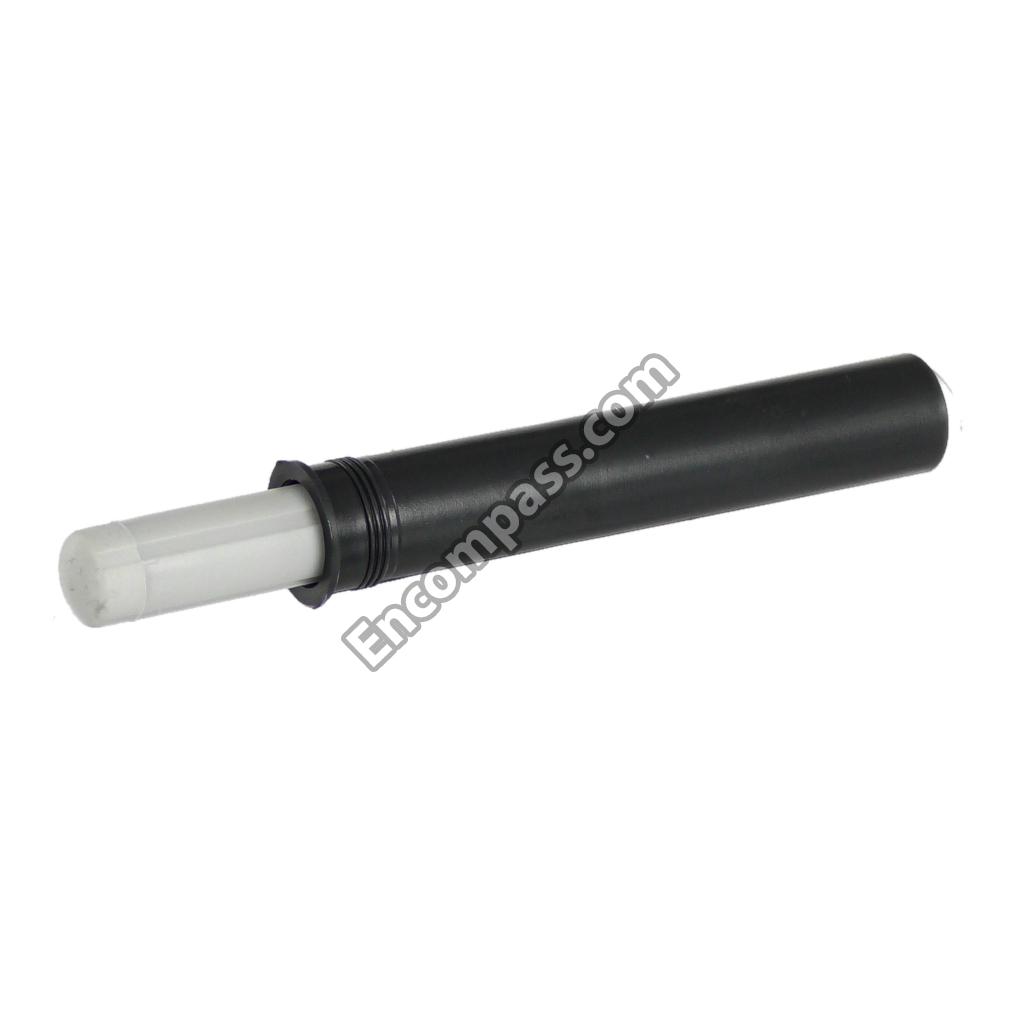

726607901 726607901 BUFFER
401079700 401079700 CHEESE-HEAD SCREW WITH SLOT
409858300 409858300 CHIPBOARD SCREW

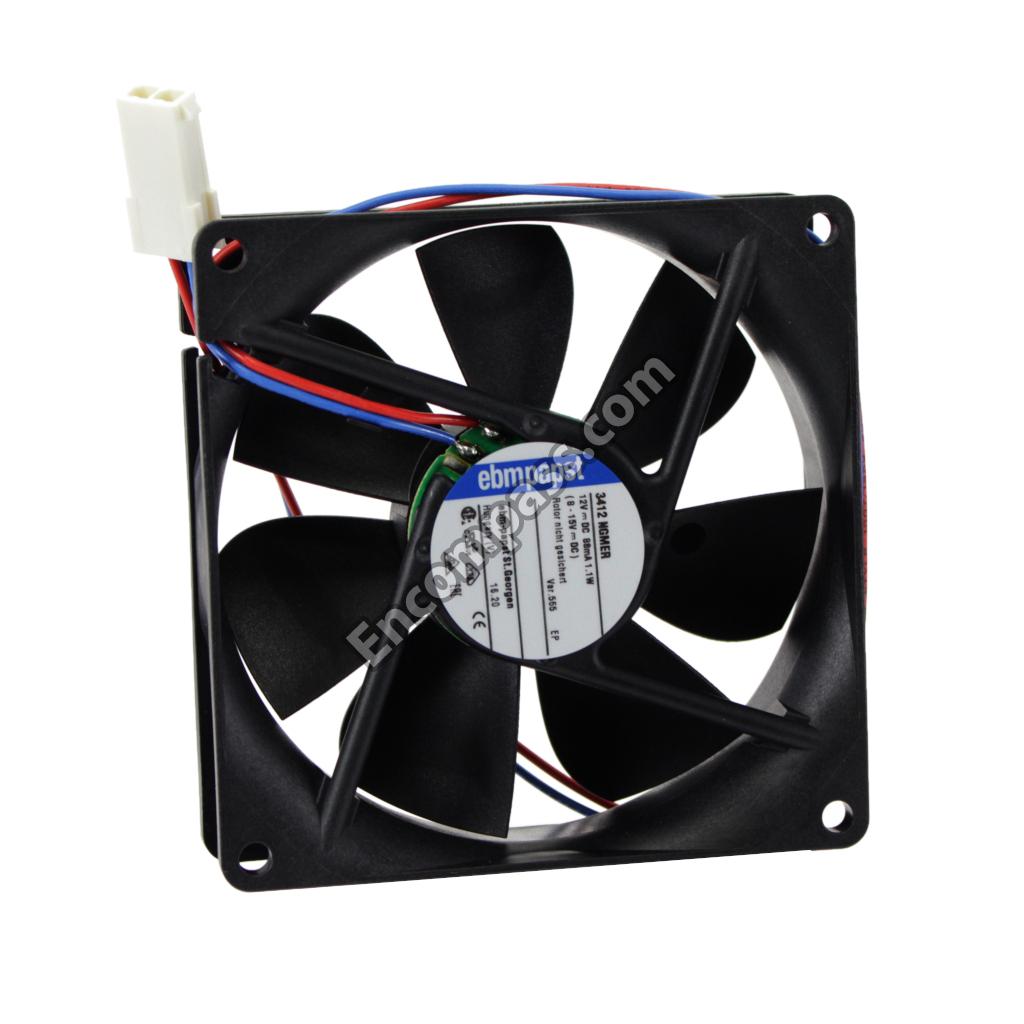

610867700 610867700 COMPACT FAN
611805300 611805300 COMPACT FAN
611869900 611869900 COMPACT FAN
614328500 614328500 COMPRESSOR ACCESSORIES
611933600 611933600 COMPRESSOR R 600 A

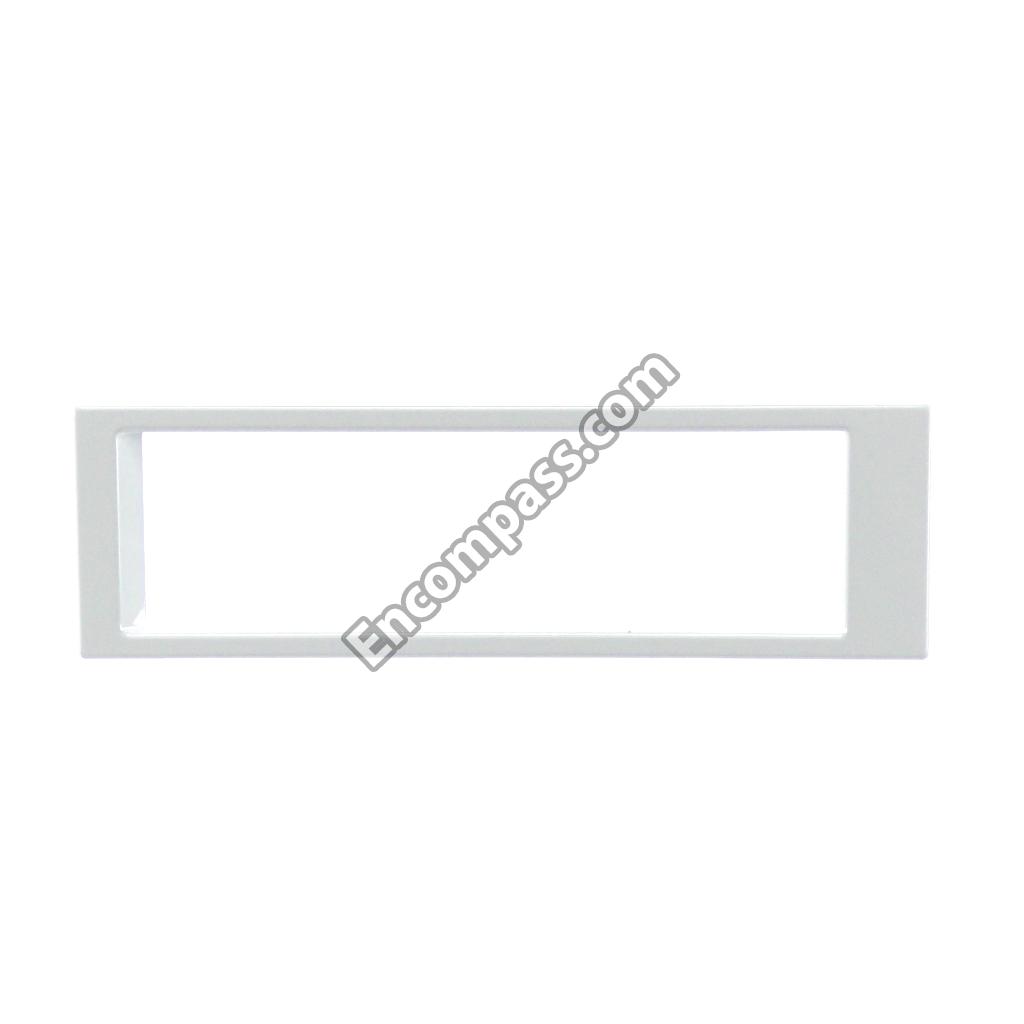

742436901 742436901 CONTROL PANEL TRIM, NO SYMBOLS
409864300 409864300 COUNTERSUNK SCREW

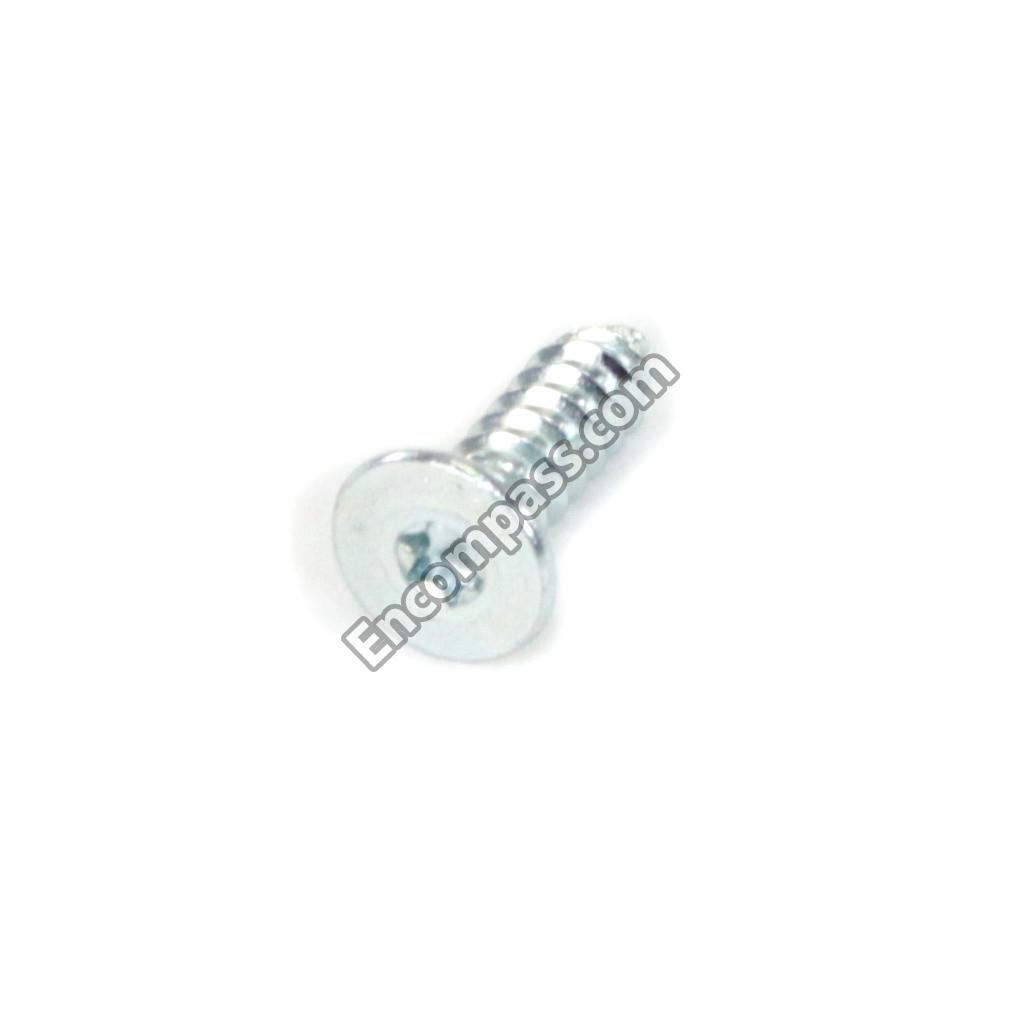

408269900 408269900 COUNTERSUNK SELF-TAPPING SCREW

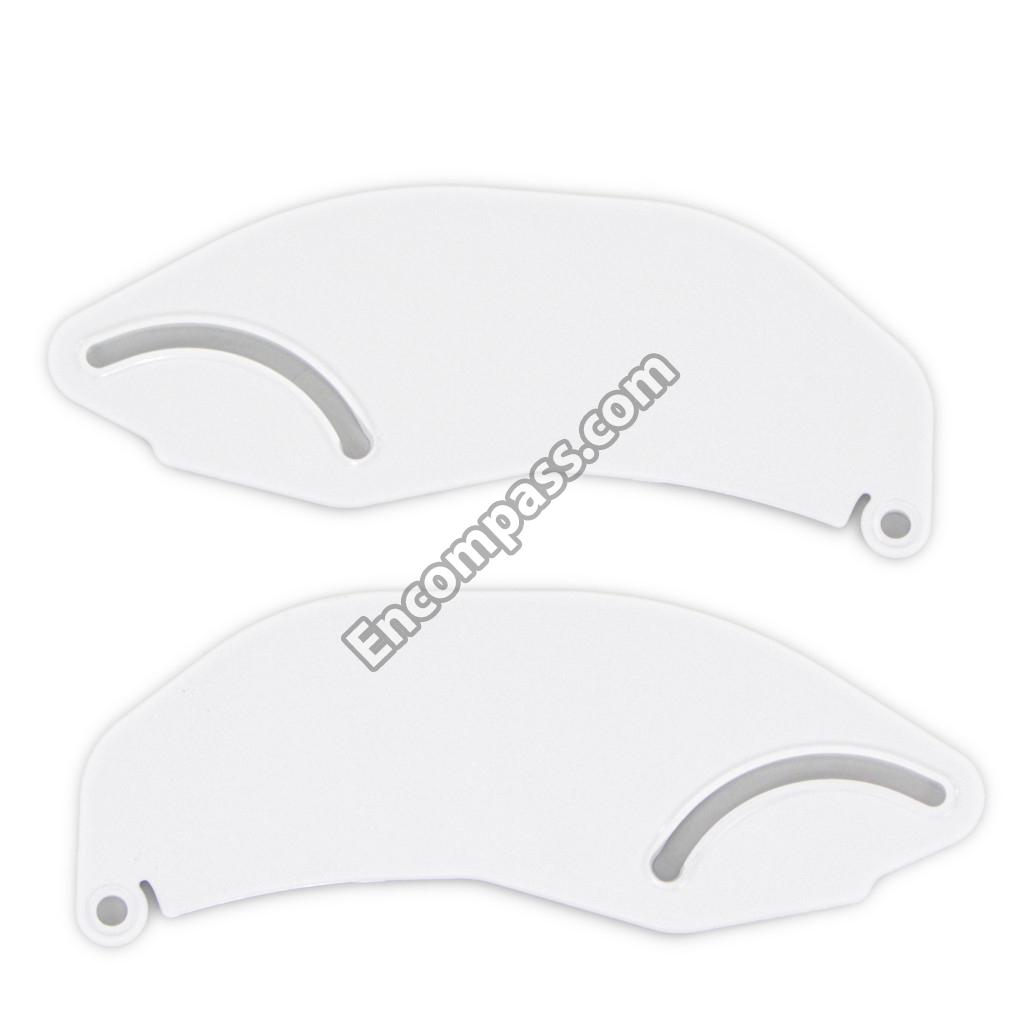

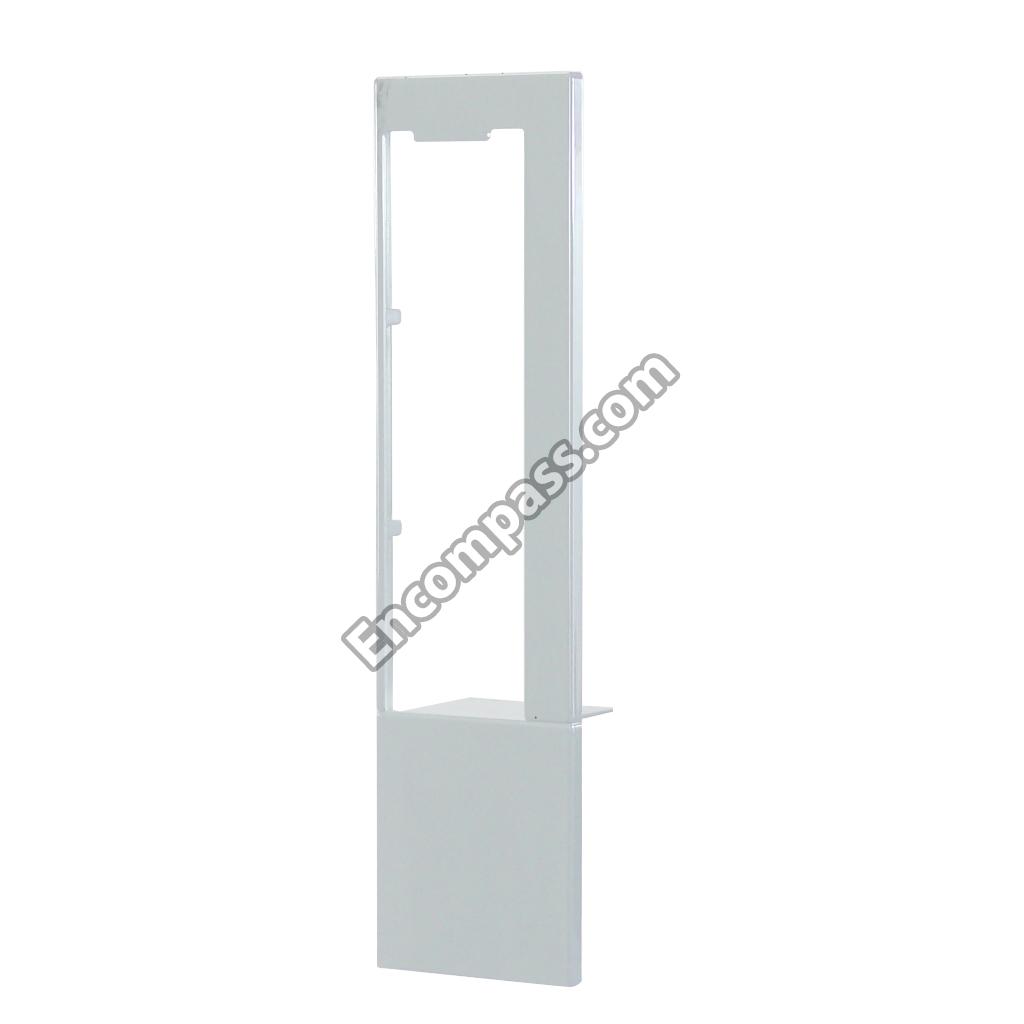

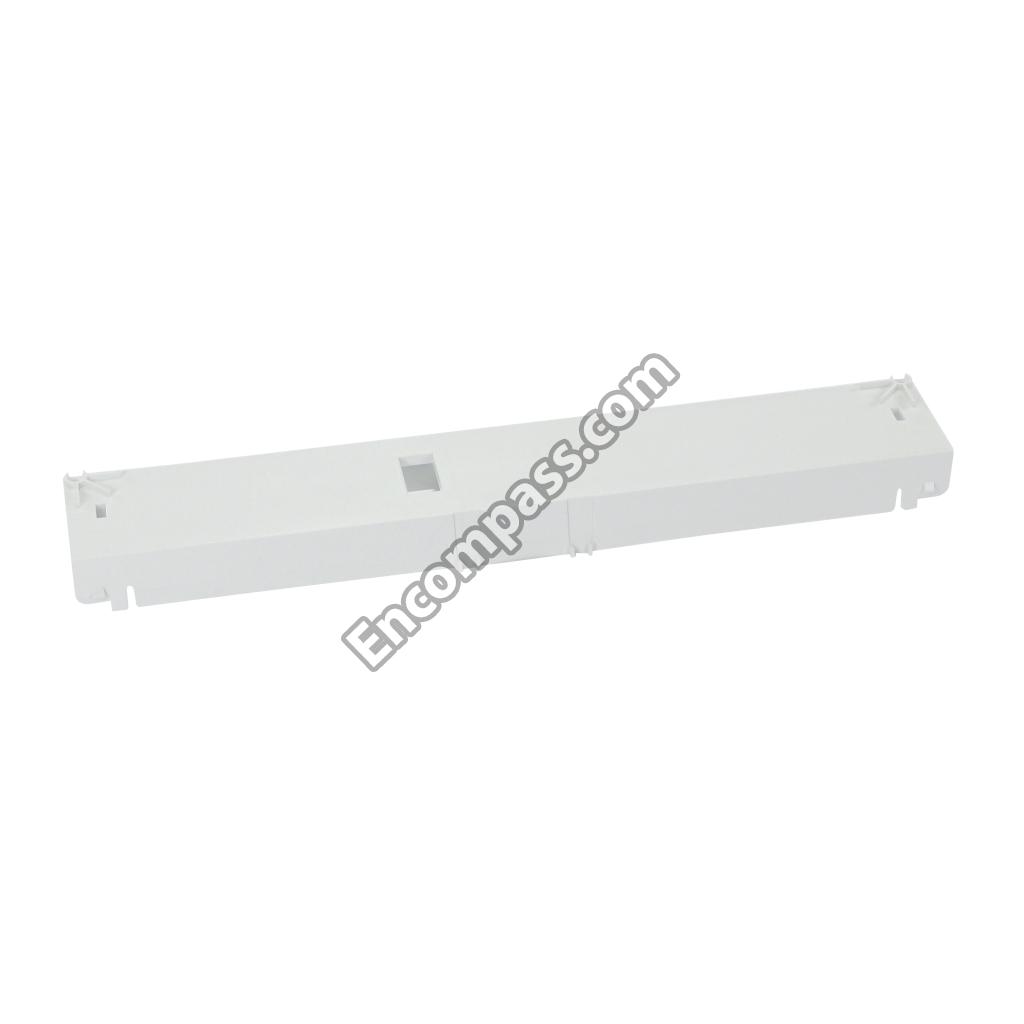

919017100 919017100 COVER
743636300 743636300 COVER
743650700 743650700 COVER
743116701 743116701 COVER
743363300 743363300 COVER
743365100 743365100 COVER
743076900 743076900 COVER
742430400 742430400 COVER
743134700 743134700 COVER
742935501 742935501 COVER
743225300 743225300 COVER
743224900 743224900 COVER
743651300 743651300 COVER
743651100 743651100 COVER

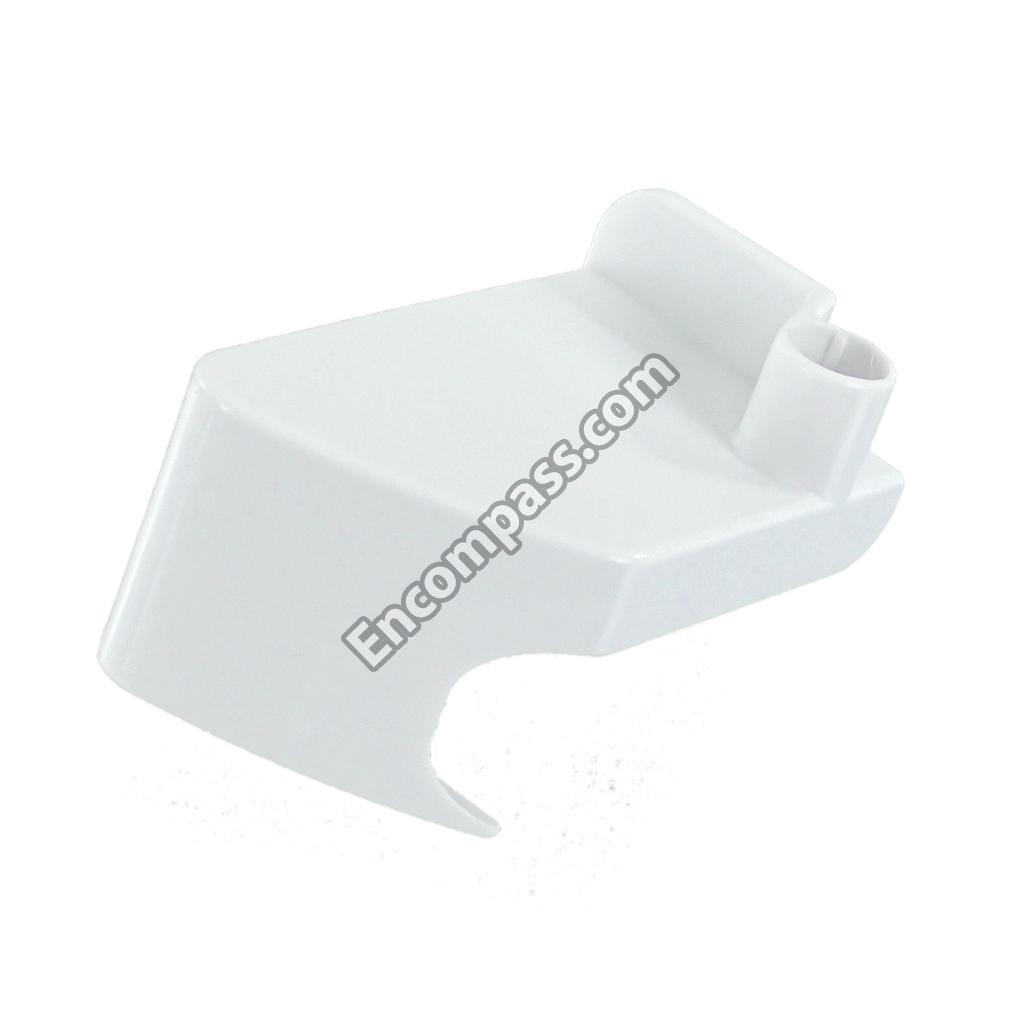

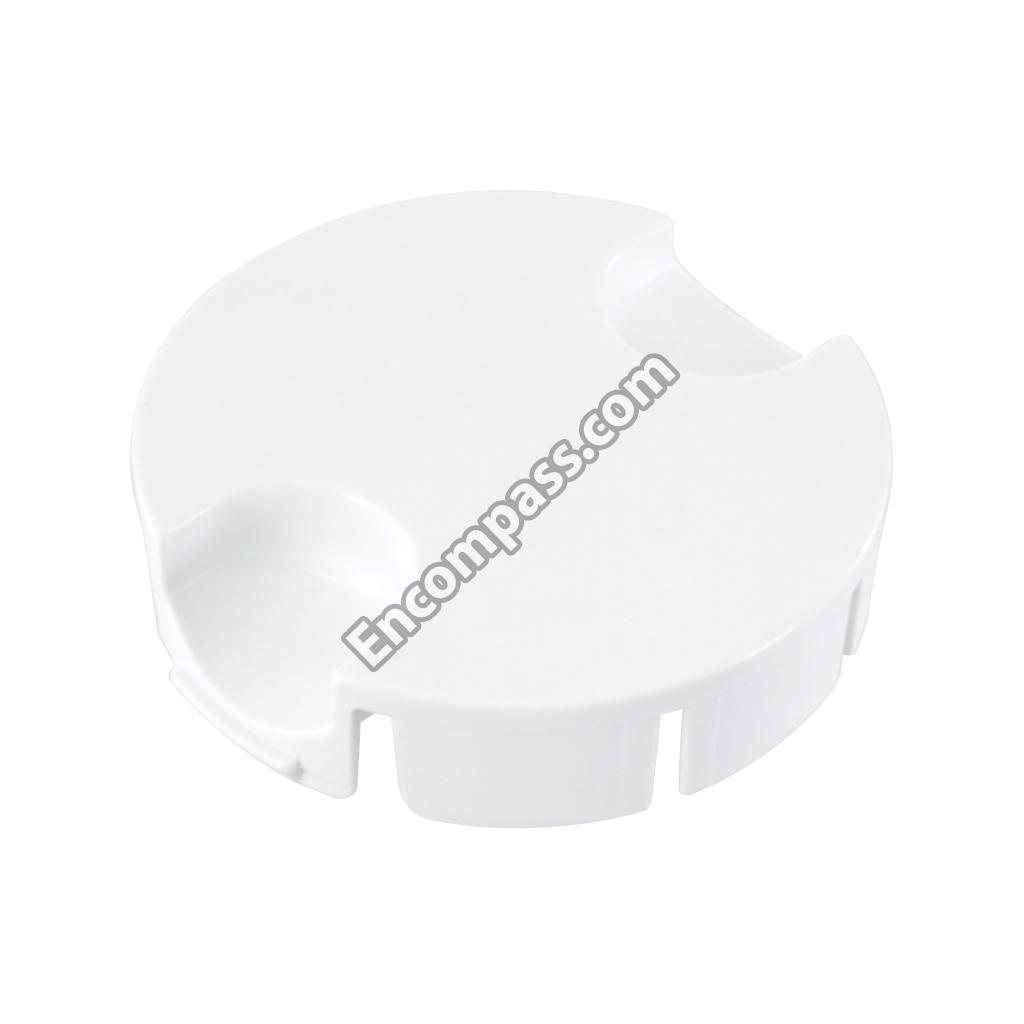

743205800 743205800 COVER CAP

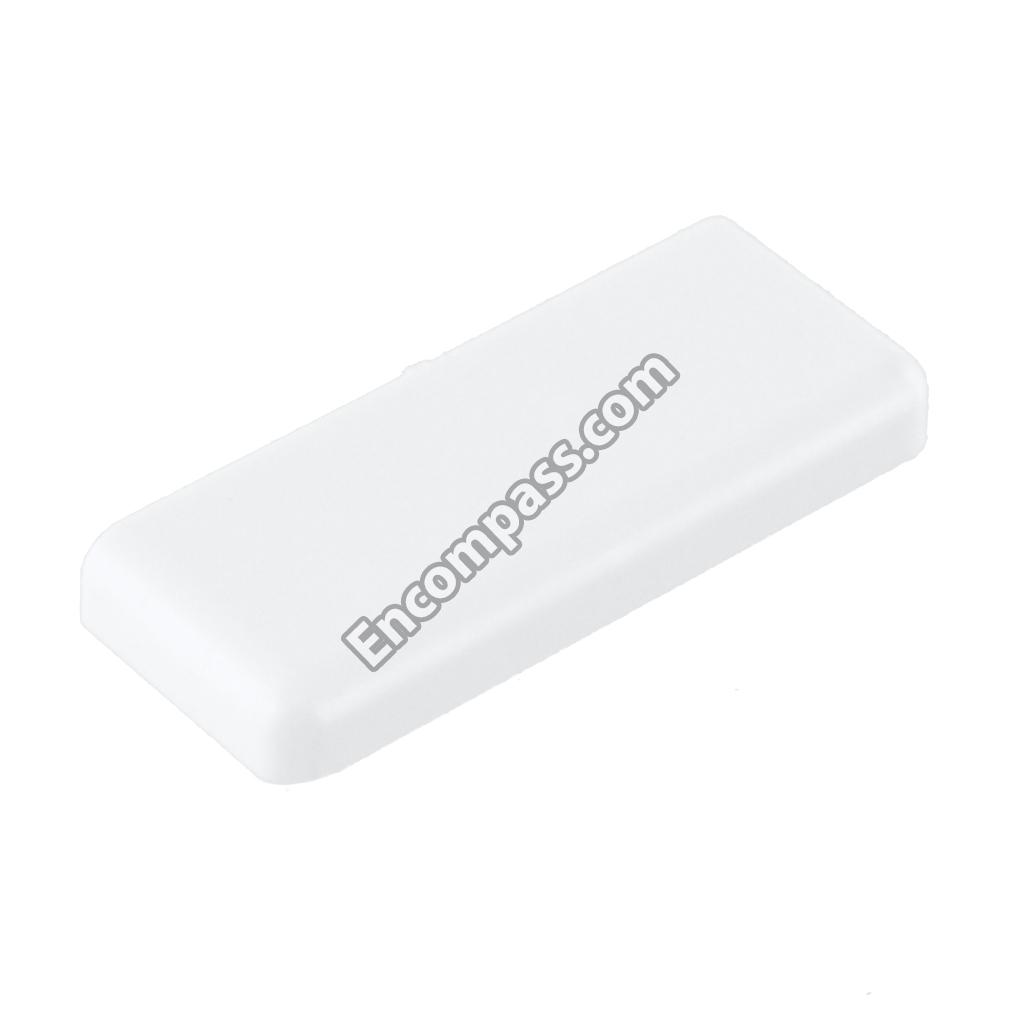

741222000 741222000 COVER CAP
743262701 743262701 COVER GRILLE FOR FAN

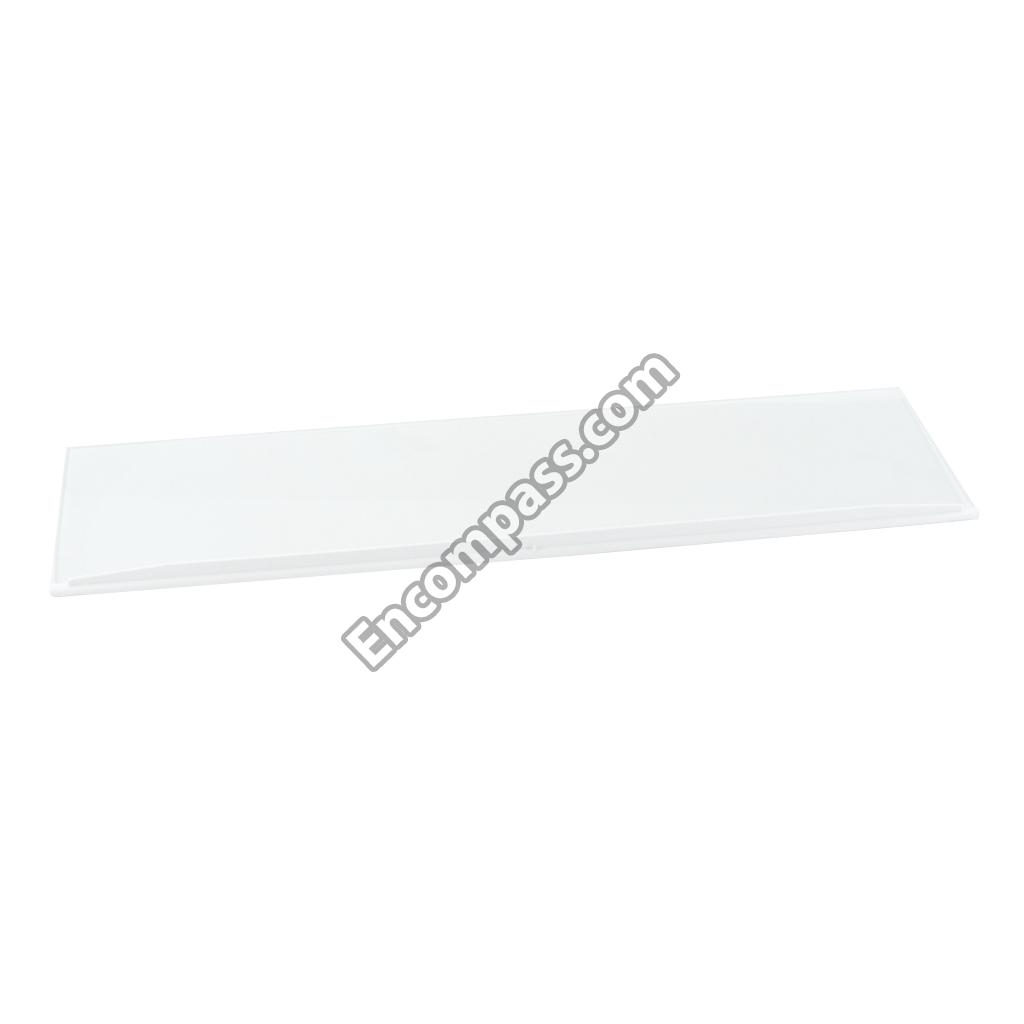

743251500 743251500 COVER PLATE
764157900 764157900 COVER PROFILE TRIM
743623600 743623600 COVERS, VARIOUS
743365500 743365500 DIVIDING WALL
743523300 743523300 DIVIDING WALL
743667500 743667500 DIVIDING WALL

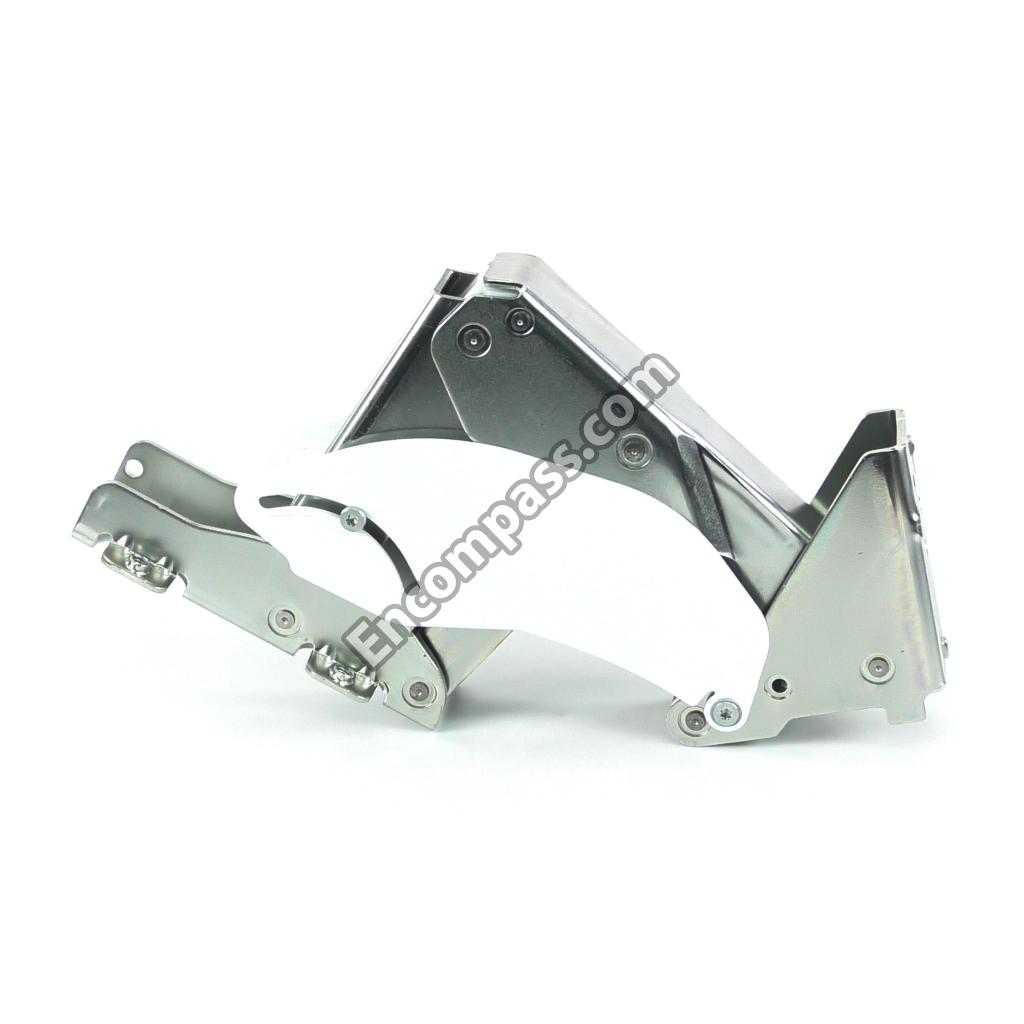

945454000 945454000 DOOR HINGE
704320300 704320300 DOOR HINGE
704307700 704307700 DOOR HINGE
909669901 909669901 DOOR OPENING LIMITATION
901770101 901770101 DOOR, CAVITY-FOAMED
901719313 901719313 DOOR, CAVITY-FOAMED
901719512 901719512 DOOR, CAVITY-FOAMED

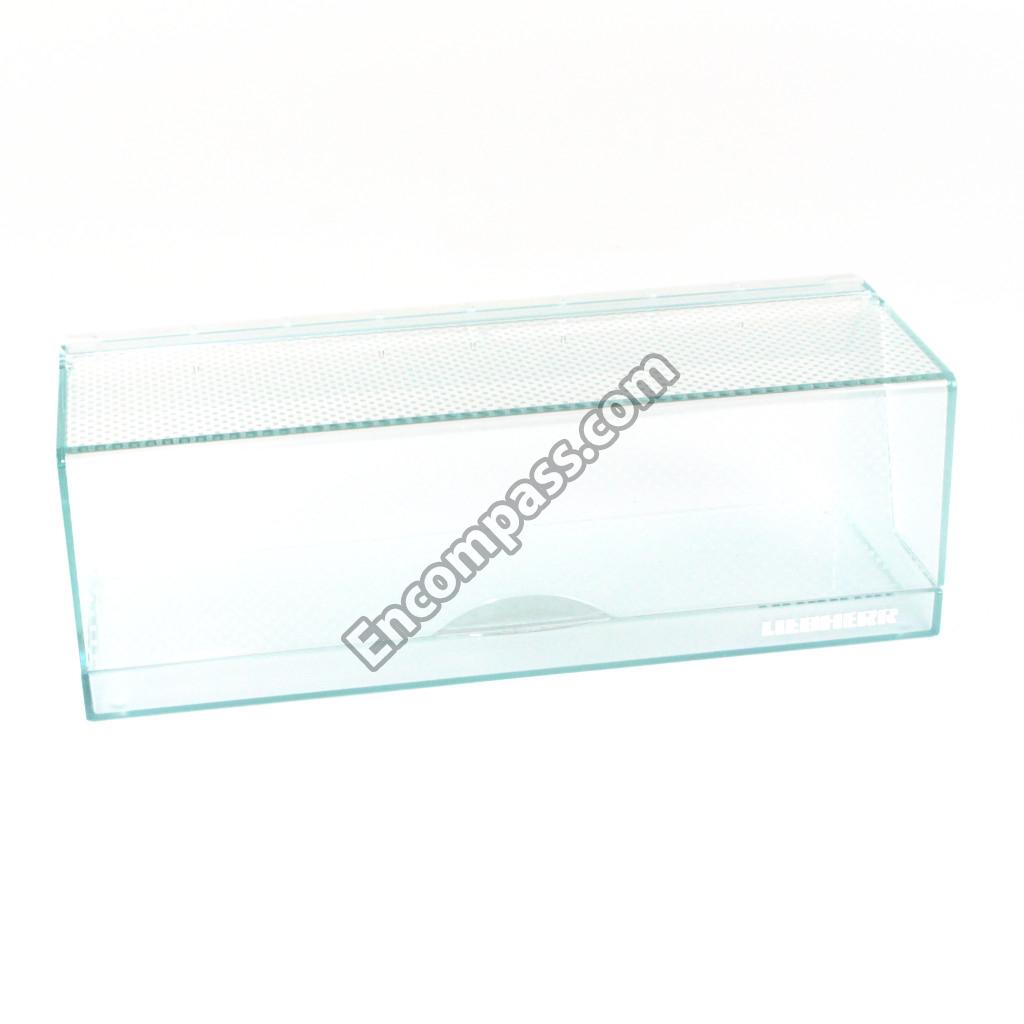

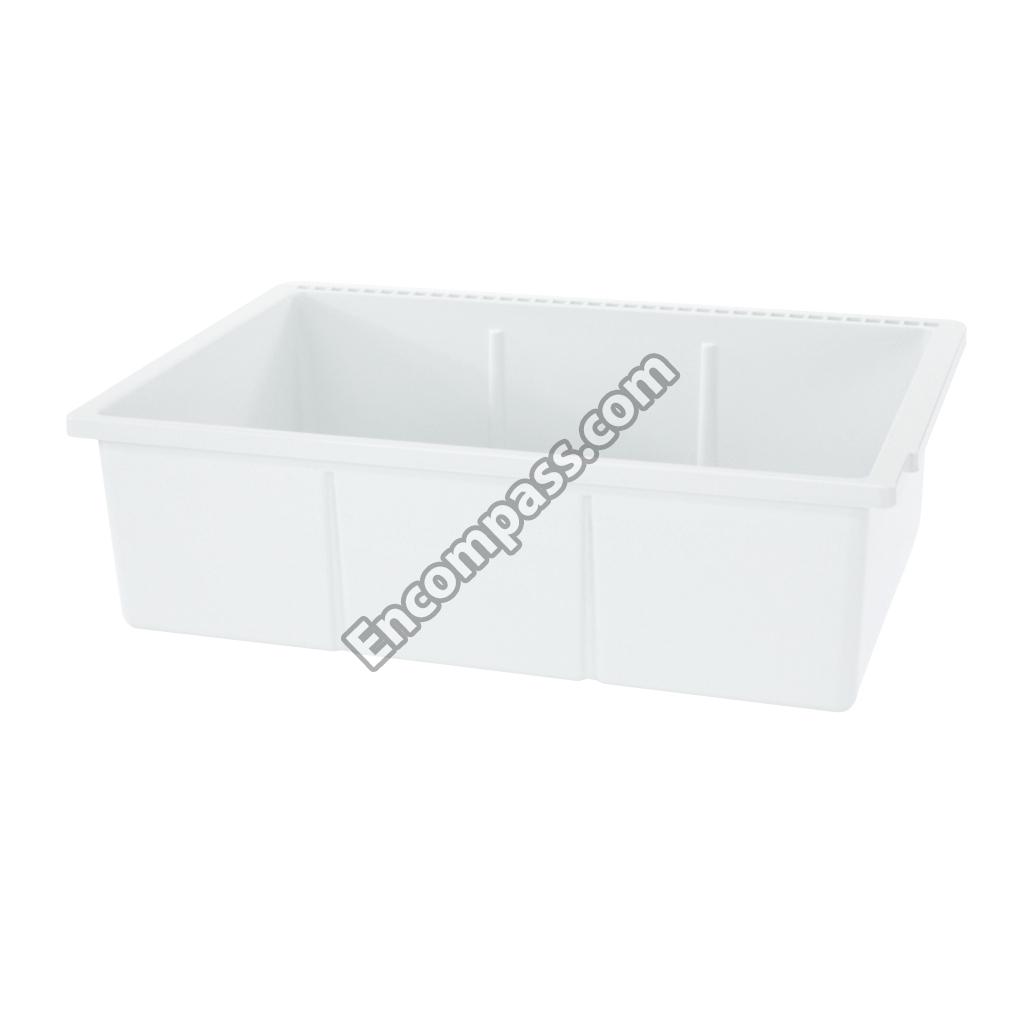

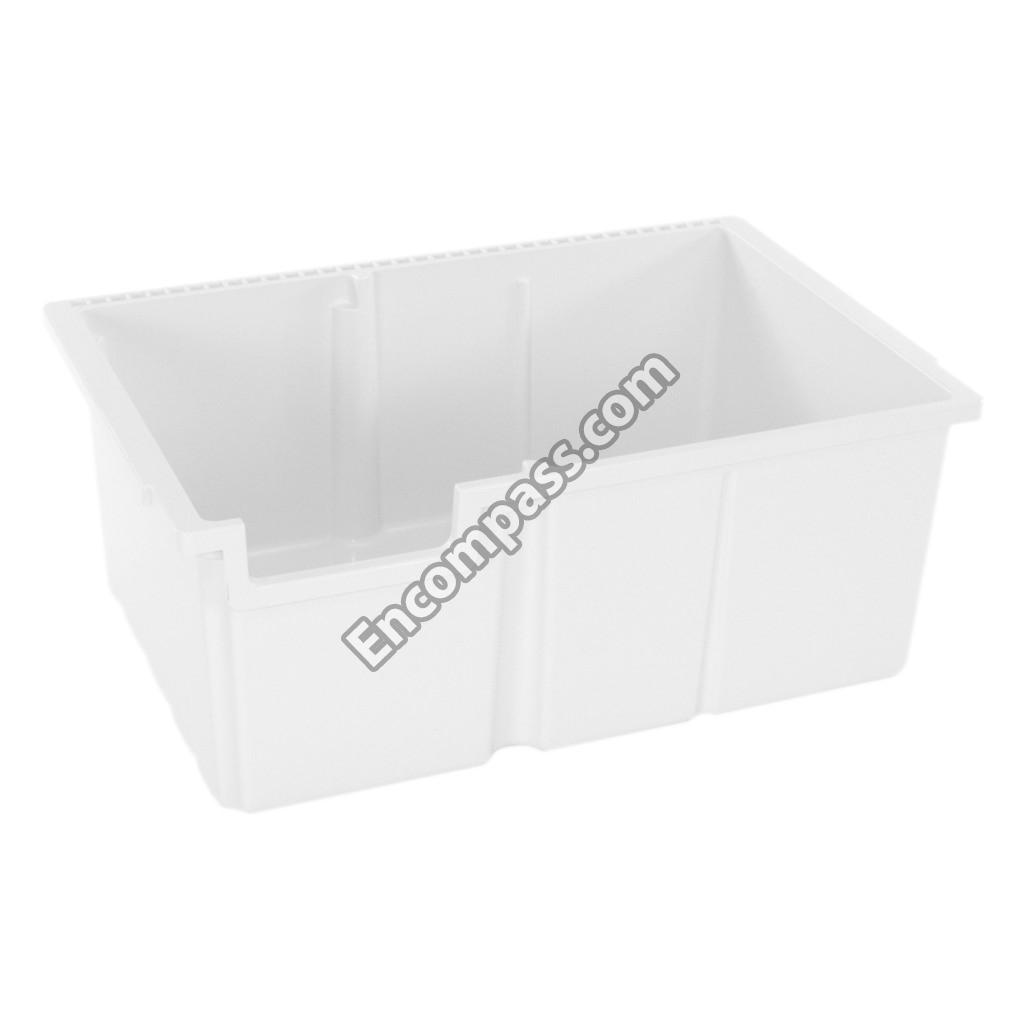

743668100 743668100 DRAWER BODY
743667900 743667900 DRAWER BODY

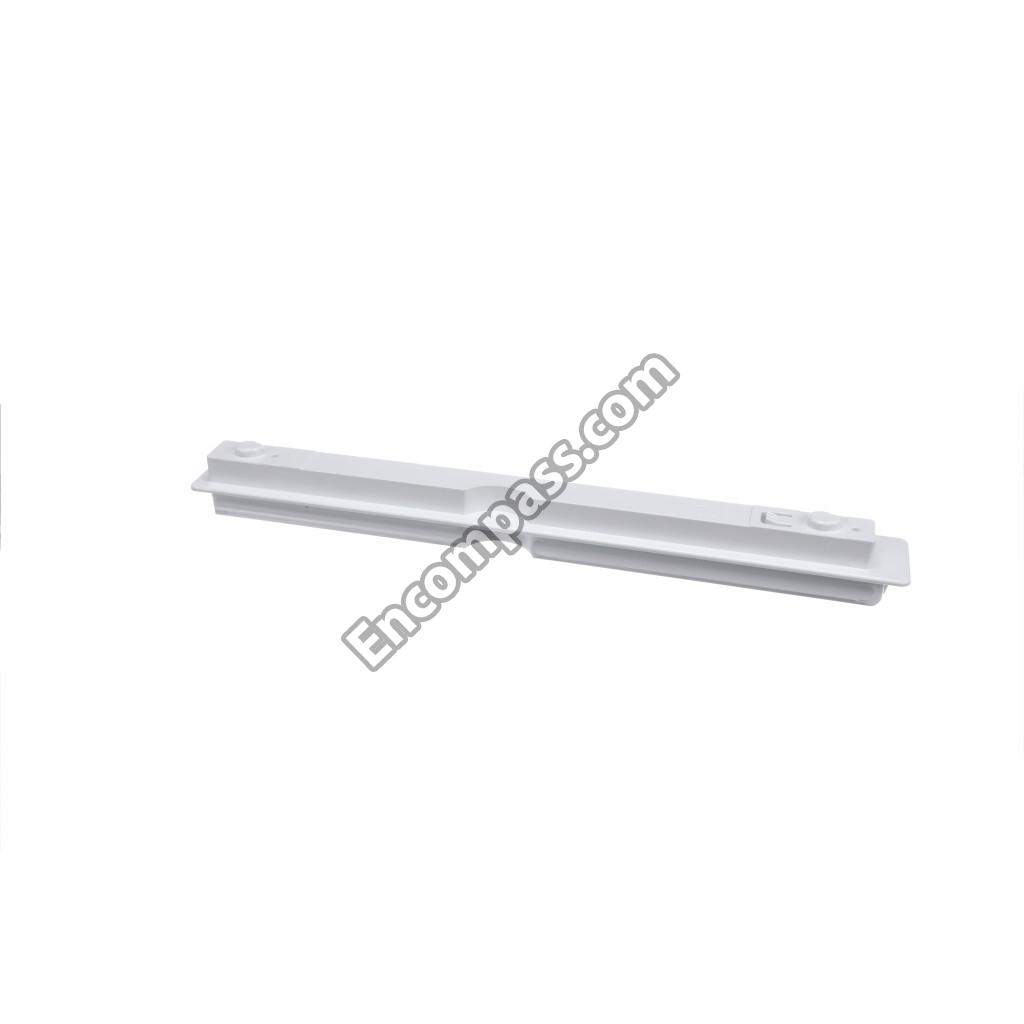

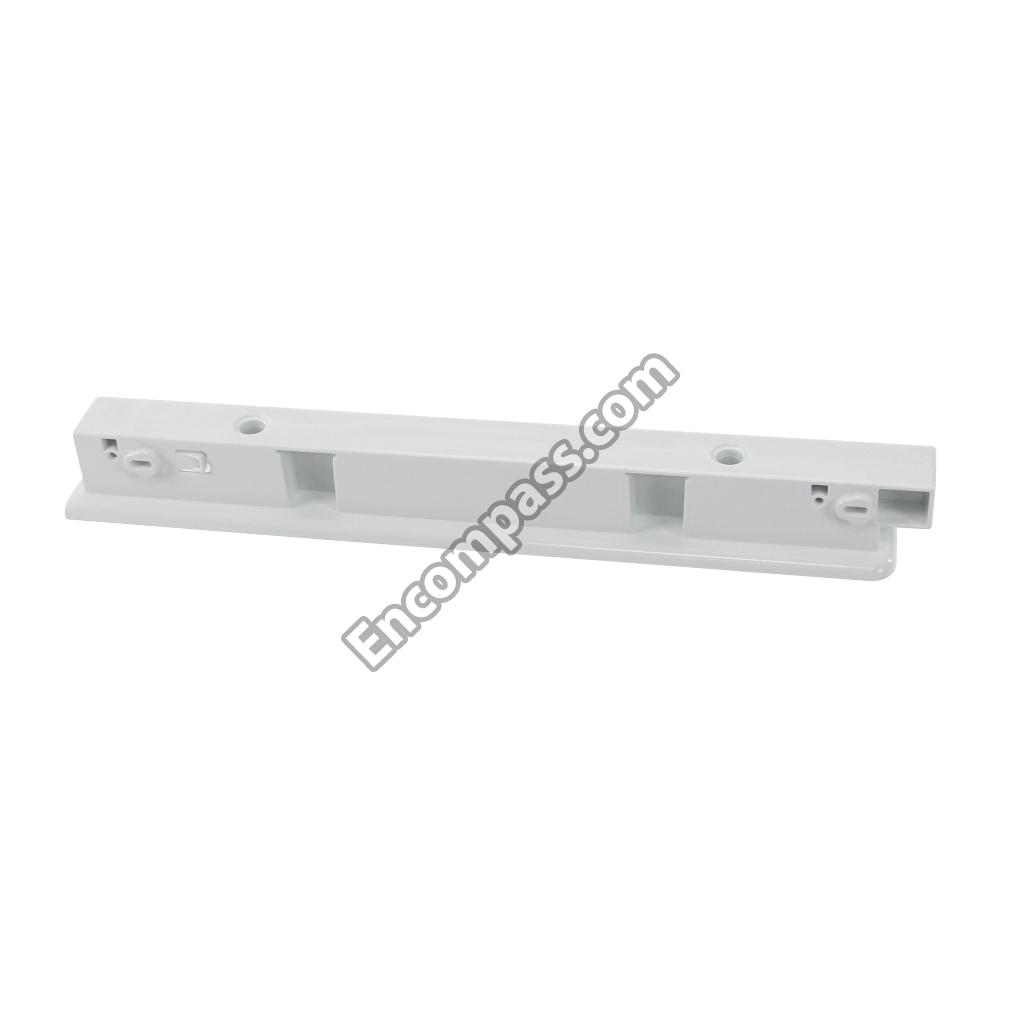

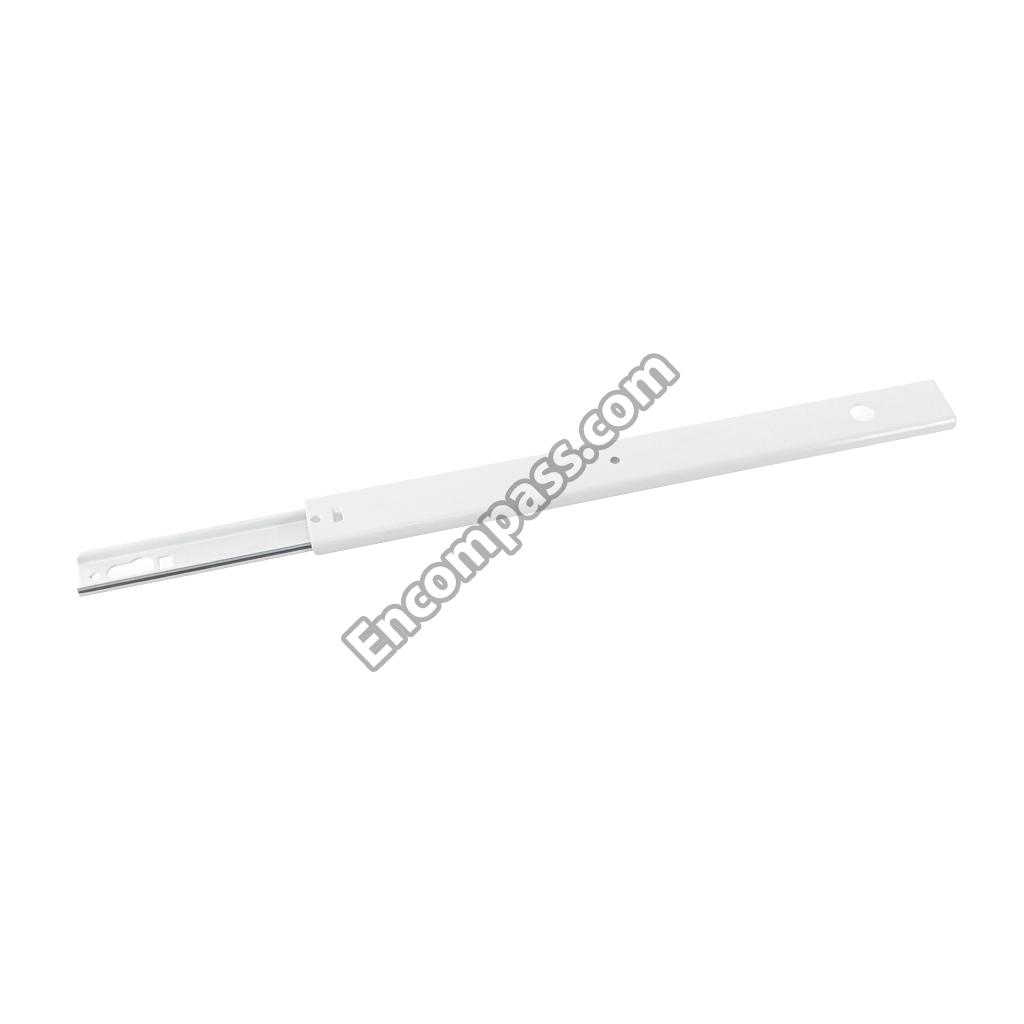

789066900 789066900 DRAWER RAIL
789065300 789065300 DRAWER RAIL
789065100 789065100 DRAWER RAIL

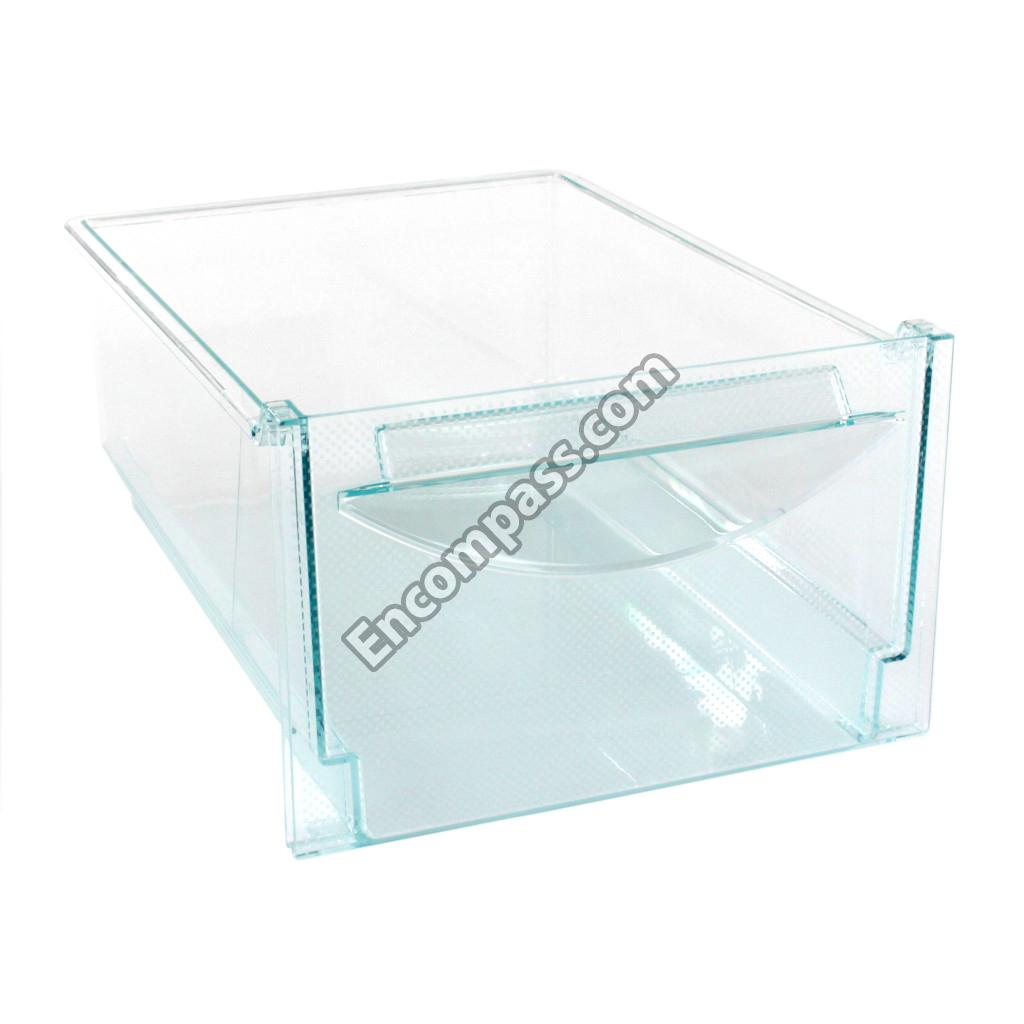

743363901 743363901 DRAWER, NON-PRINTED
594207001 594207001 DRYER
614385500 614385500 ELECTRICAL CONTROL SYSTEM

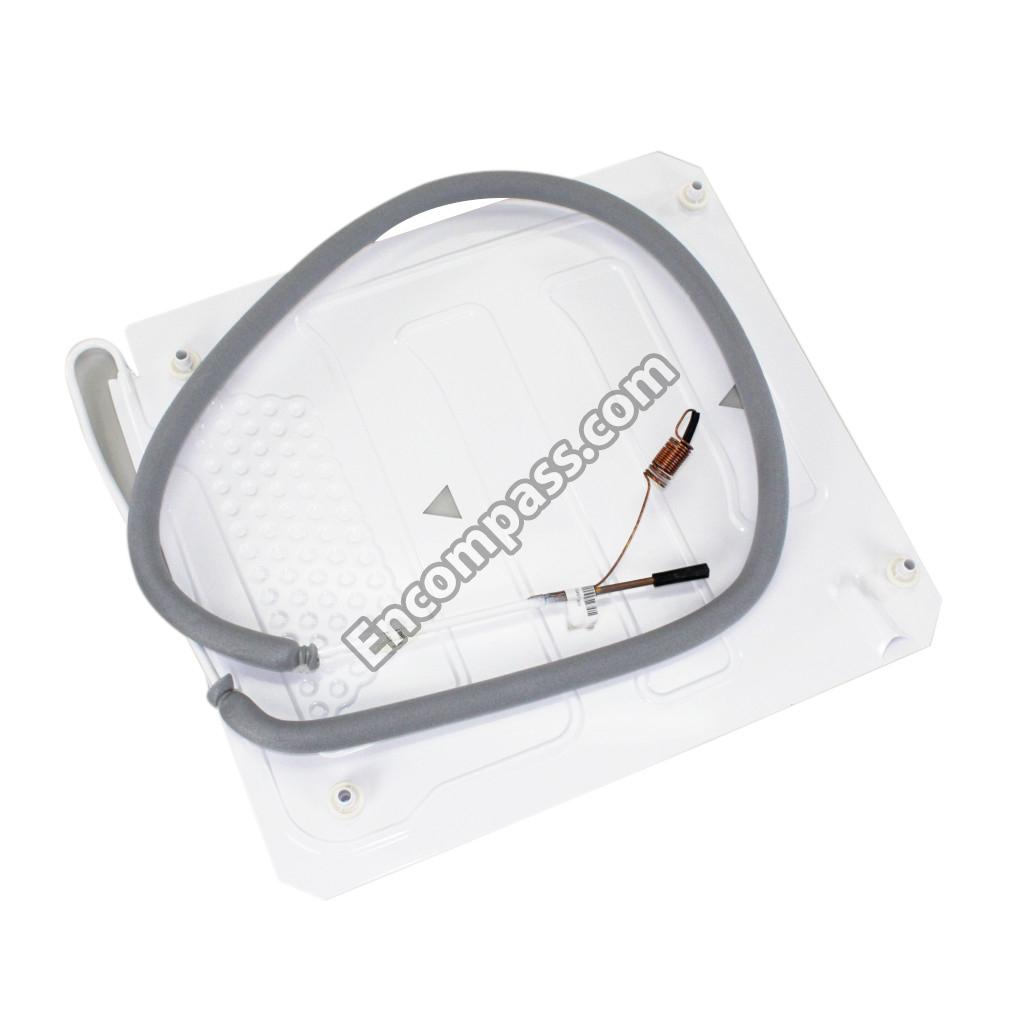

987307900 987307900 EVAPORATOR - REFRIGERATION
743220100 743220100 EVAPORATOR FIXTURE
742668001 742668001 EVAPORATOR TRAYS
743429900 743429900 EVAPORATOR TRAYS
629969101 629969101 FAN BLADE
629979700 629979700 FAN BLADE

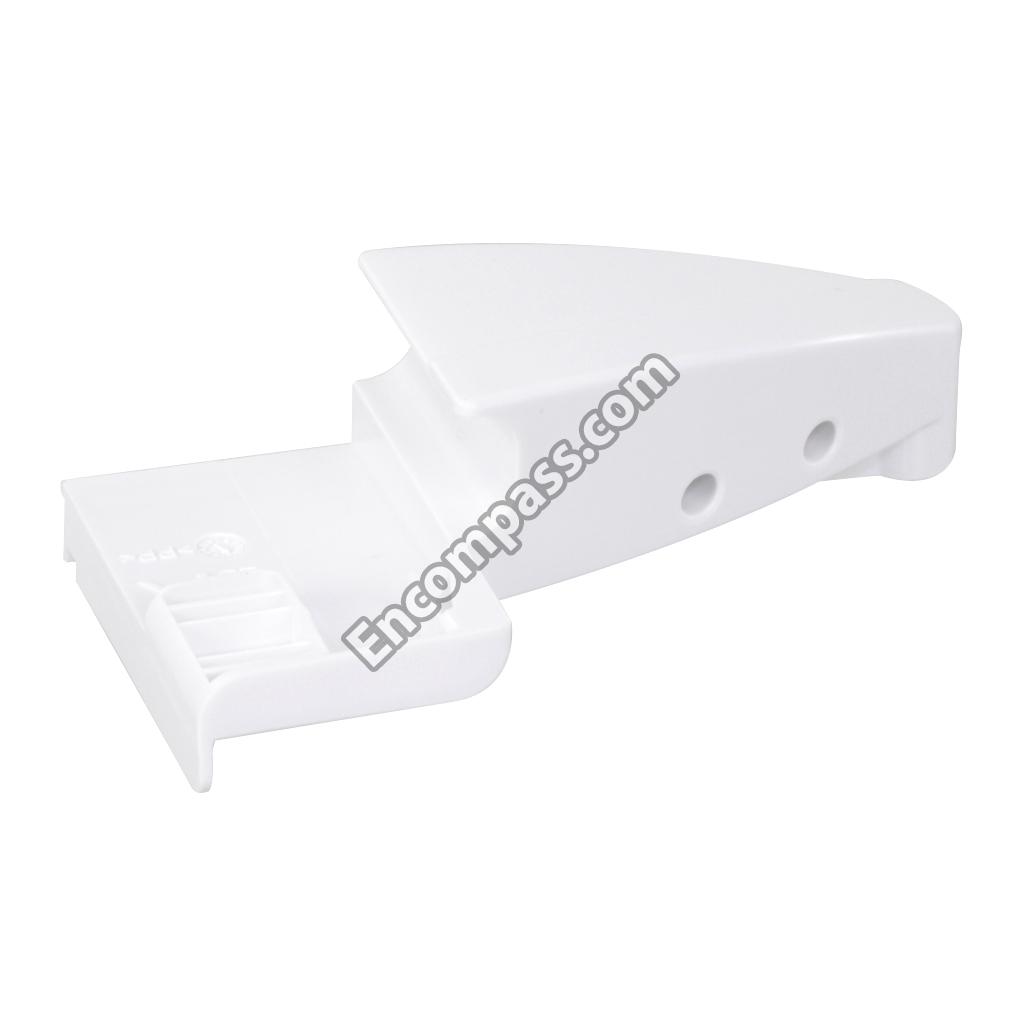

743363100 743363100 FASTENING
742919900 742919900 FASTENING
900556300 900556300 FASTENING
743063001 743063001 FASTENING
743063201 743063201 FASTENING
743600401 743600401 FASTENING
919335400 919335400 FASTENING
990283600 990283600 FILTER MAT
704311100 704311100 FILTER MAT
804135700 804135700 FOLDING CARDBOARD BOX

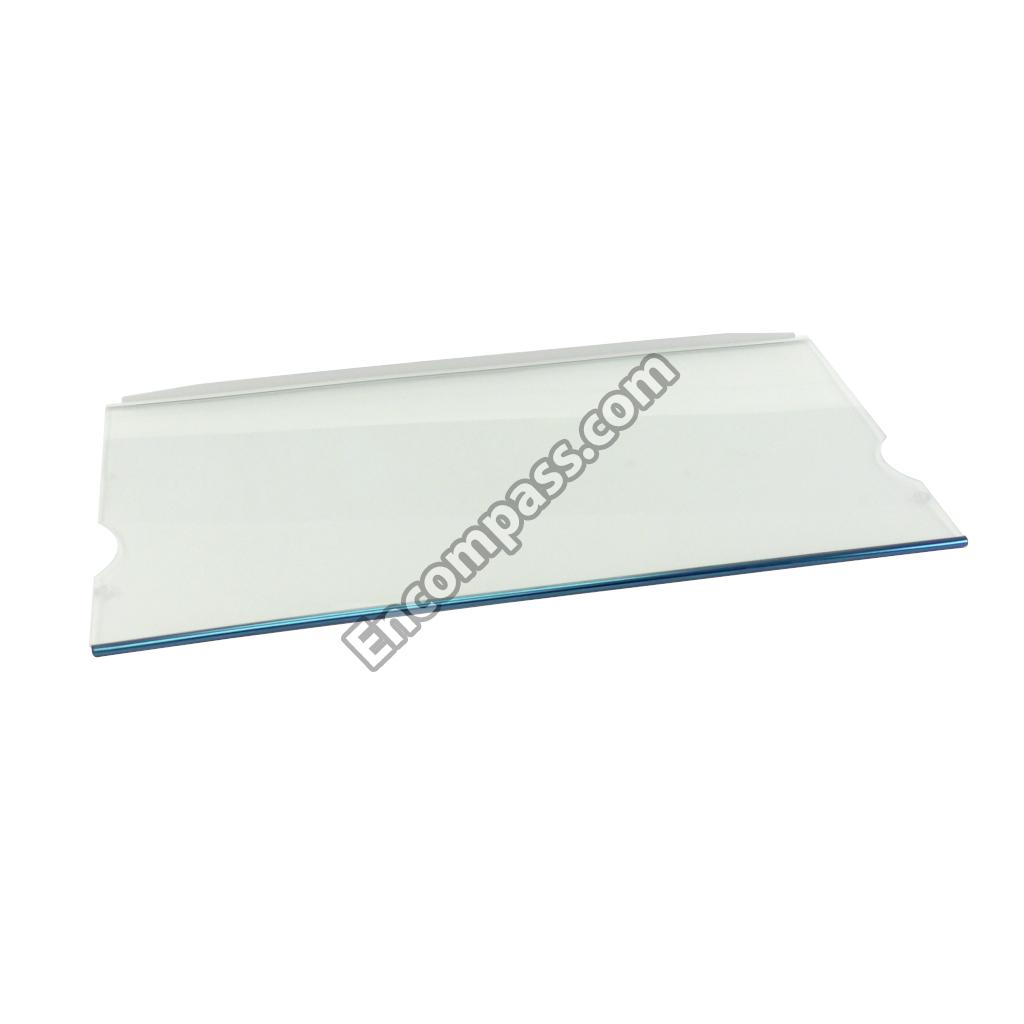

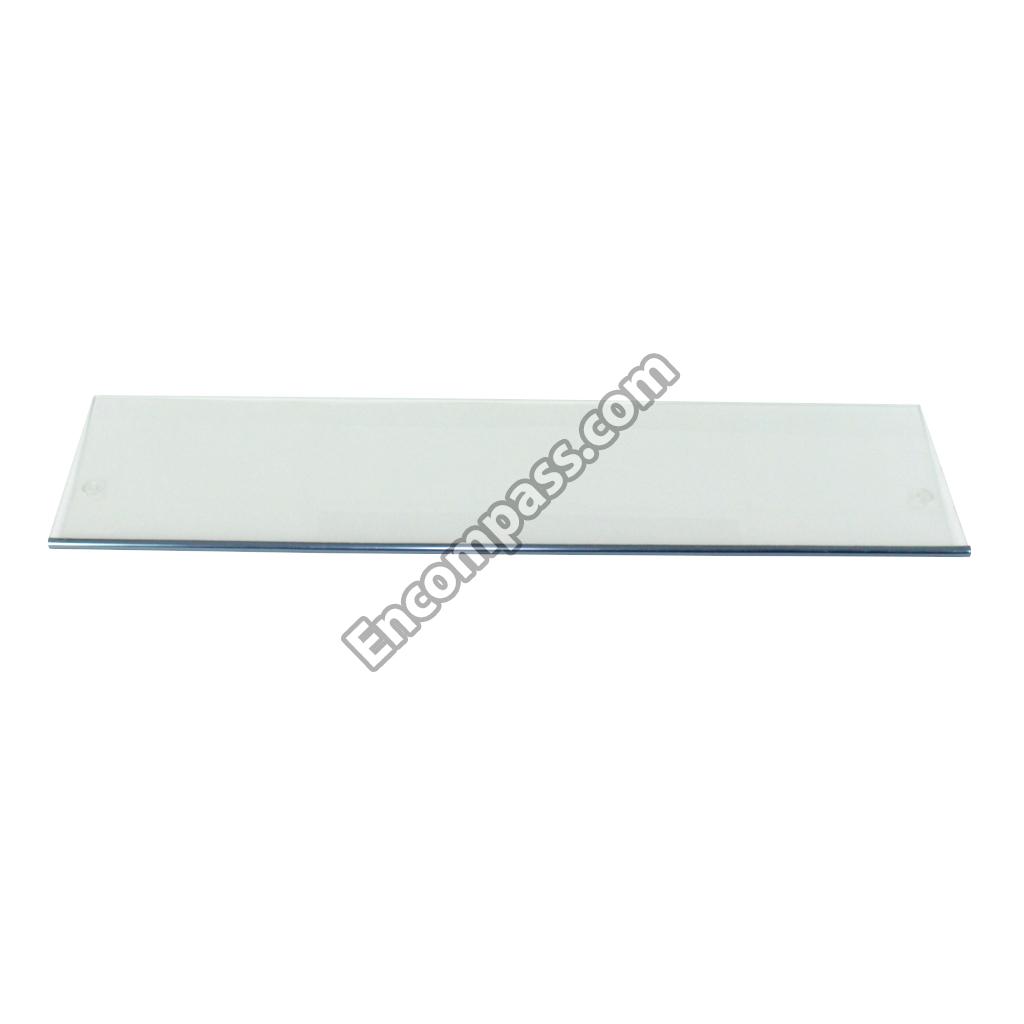

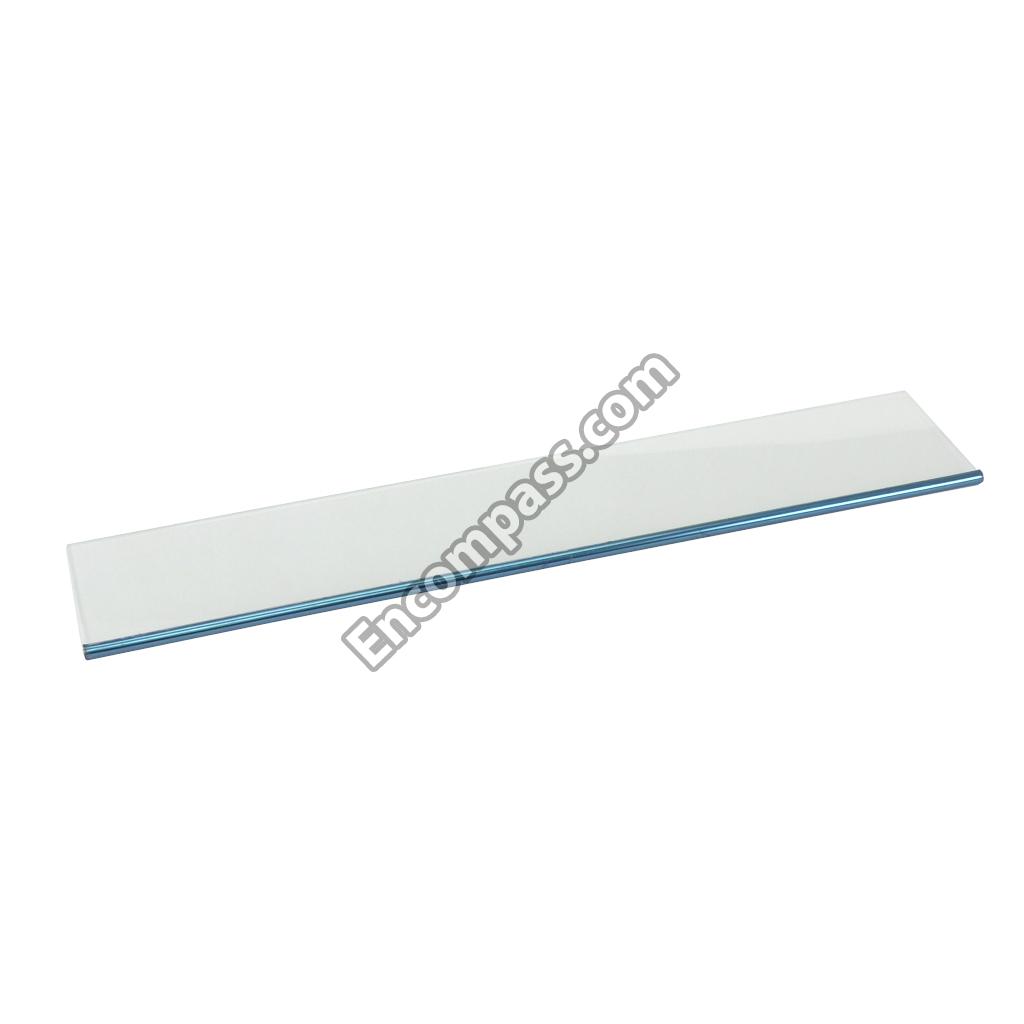

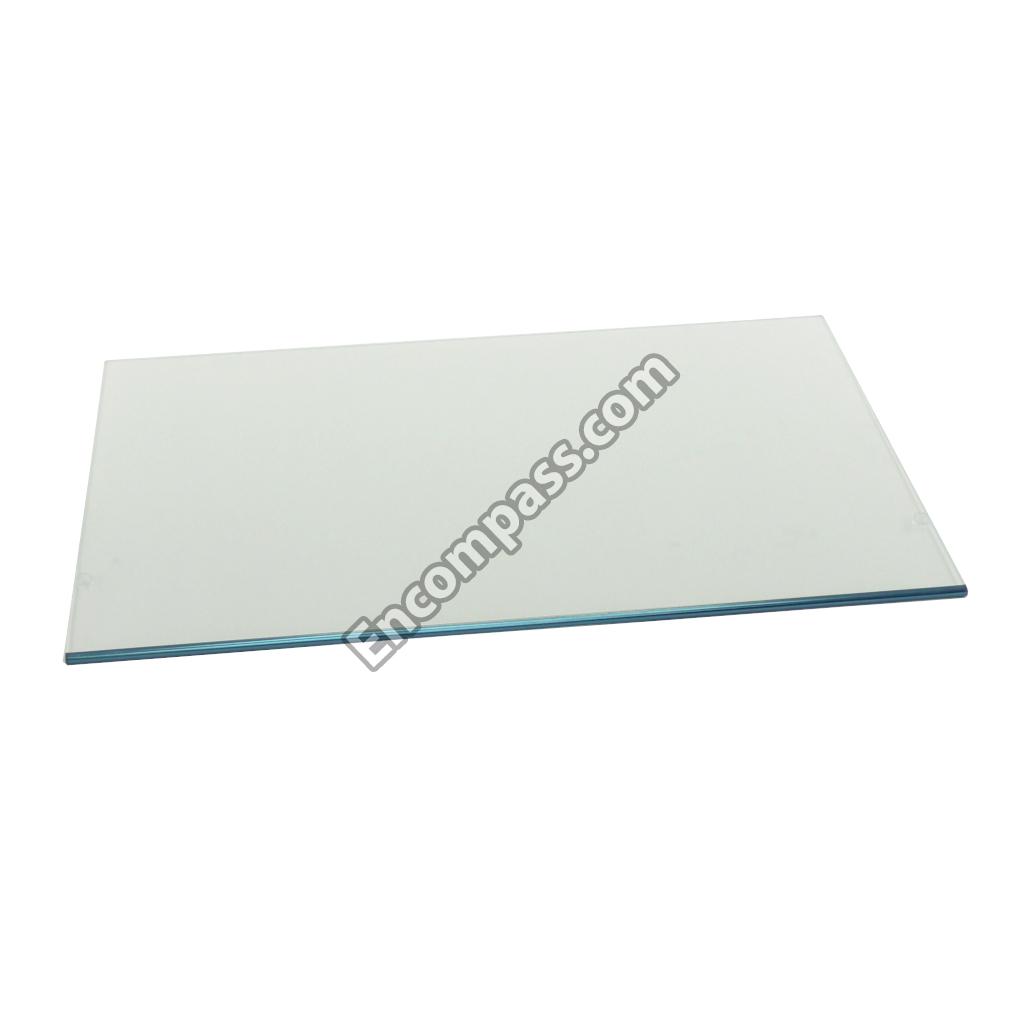

727262300 727262300 GLASS PLATE - COMPLETE
727264501 727264501 GLASS PLATE - COMPLETE
727264101 727264101 GLASS PLATE - COMPLETE
727268500 727268500 GLASS PLATE - COMPLETE
727269900 727269900 GLASS PLATE - COMPLETE
594158303 594158303 HEAT EXCHANGER
954090400 954090400 HEAT-SHRINKABLE HOSE

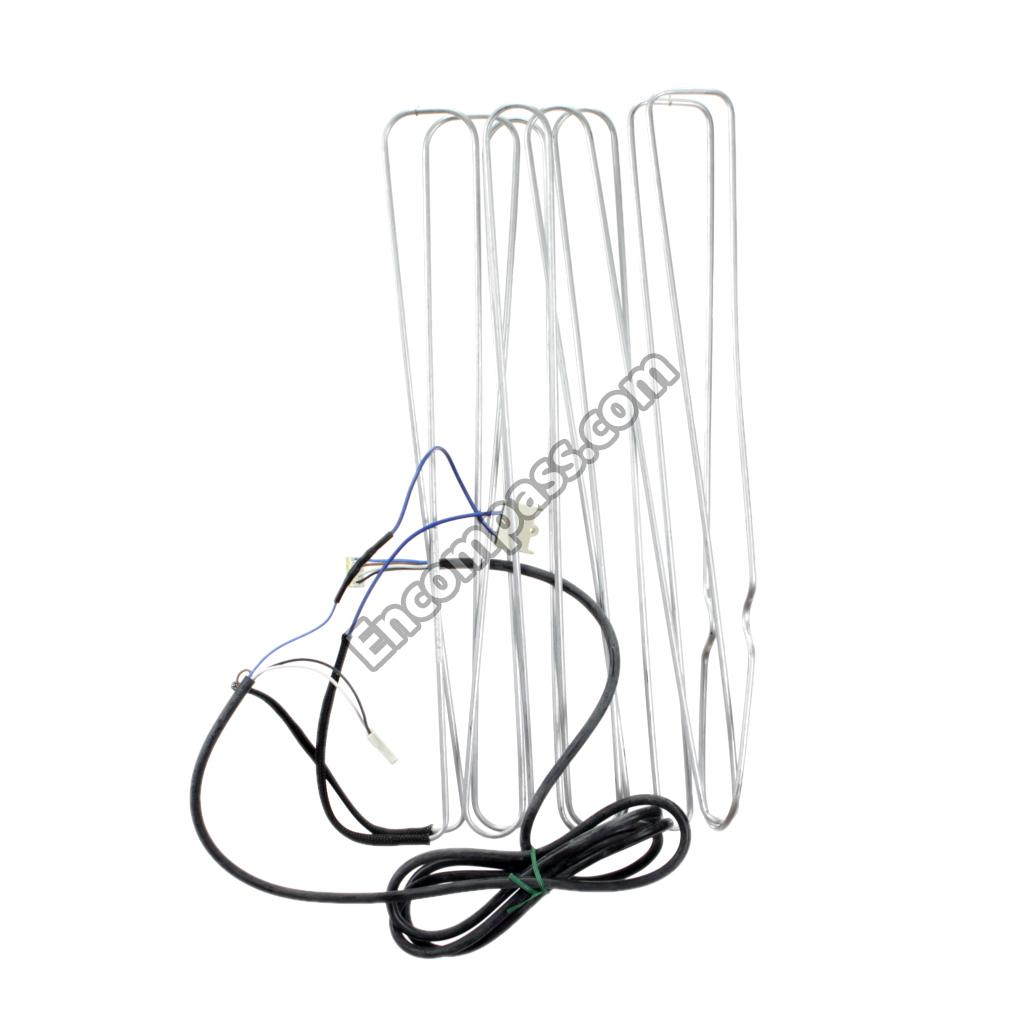

694167900 694167900 HEATING TUBE
694103500 694103500 HEATING TUBE
409837201 409837201 HEXAGON-HEAD SELF-TAPPING SCREW
409803301 409803301 HEXAGON-HEAD SELF-TAPPING SCREW
409800800 409800800 HEXAGON-HEAD SELF-TAPPING SCREW
409805901 409805901 HEXAGON-HEAD SELF-TAPPING SCREW
409802901 409802901 HEXAGON-HEAD SELF-TAPPING SCREW
409819600 409819600 HEXAGON-HEAD SELF-TAPPING SCREW
409834400 409834400 HEXAGON-HEAD SELF-TAPPING SCREW
409801000 409801000 HEXAGON-HEAD SELF-TAPPING SCREW
409869500 409869500 HEXAGON-HEAD SELF-TAPPING SCREW
409869100 409869100 HEXAGON-HEAD SELF-TAPPING SCREW
409813401 409813401 HEXAGON-HEAD SELF-TAPPING SCREW
994180501 994180501 HOSE
741338700 741338700 ICE CUBE TRAY WITH LID
990329400 990329400 ICE-CUBE MAKER
990031700 990031700 ICE-CUBE MAKER
742446900 742446900 ICE-SHOLVER
743232901 743232901 INJECTION-MOULDED WORKTOP
607156500 607156500 INTERIOR LIGHT
980379700 980379700 INTERIOR LIGHT
704207801 704207801 KEY
704202500 704202500 KEY
704202900 704202900 KEY
704208900 704208900 KEY
704369900 704369900 KEY
774654700 774654700 KEY
704460700 704460700 KEY
770048800 770048800 LOKRING
770046400 770046400 LOKRING
770047400 770047400 LOKRING
770048000 770048000 LOKRING
770049000 770049000 LOKRING

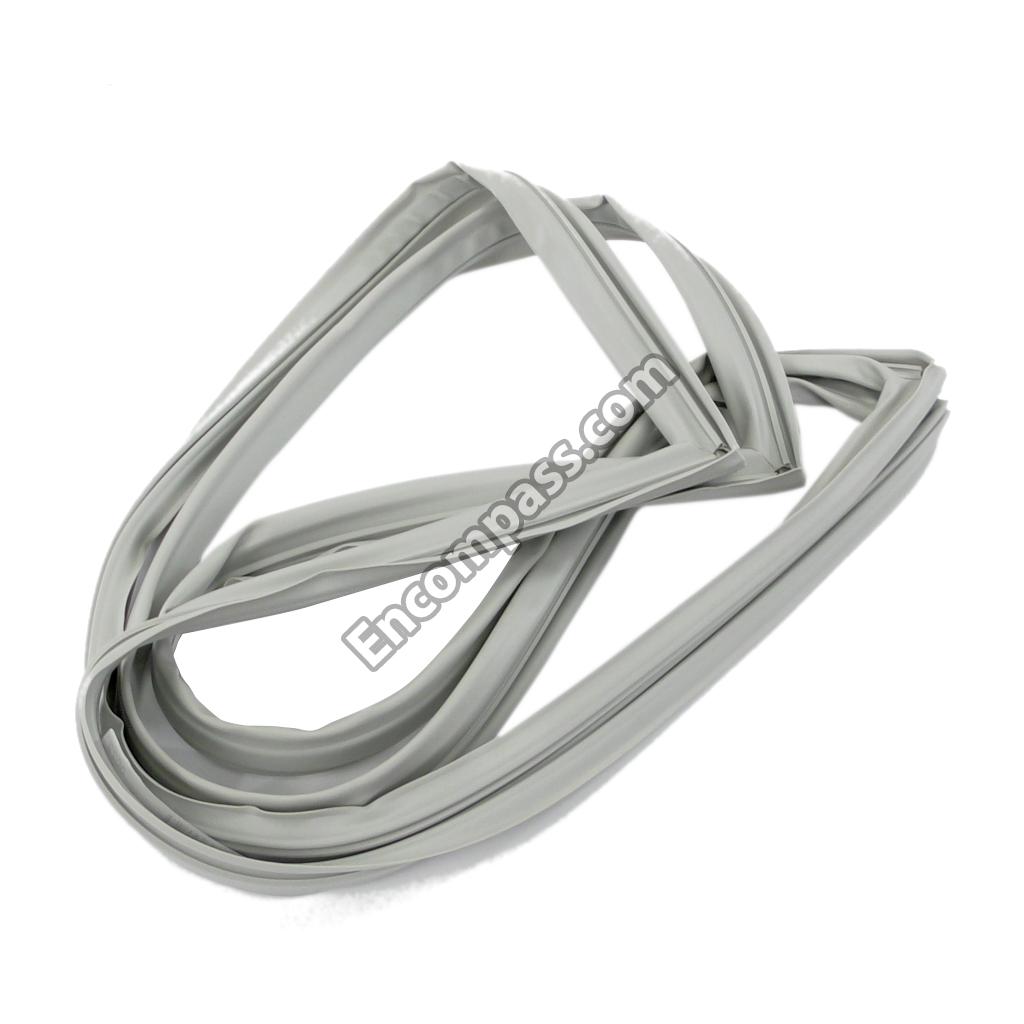

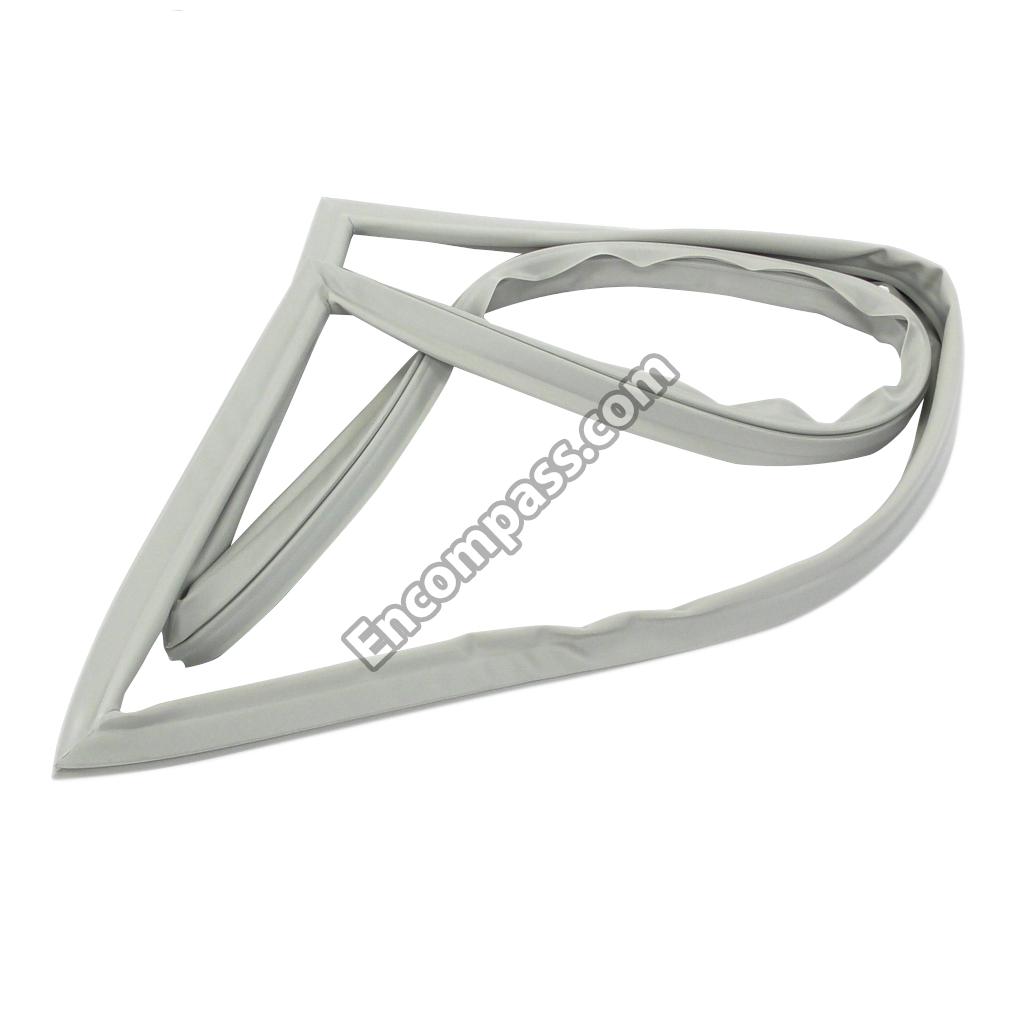

710912900 710912900 MAGNETIC DOOR SEAL TO BOND

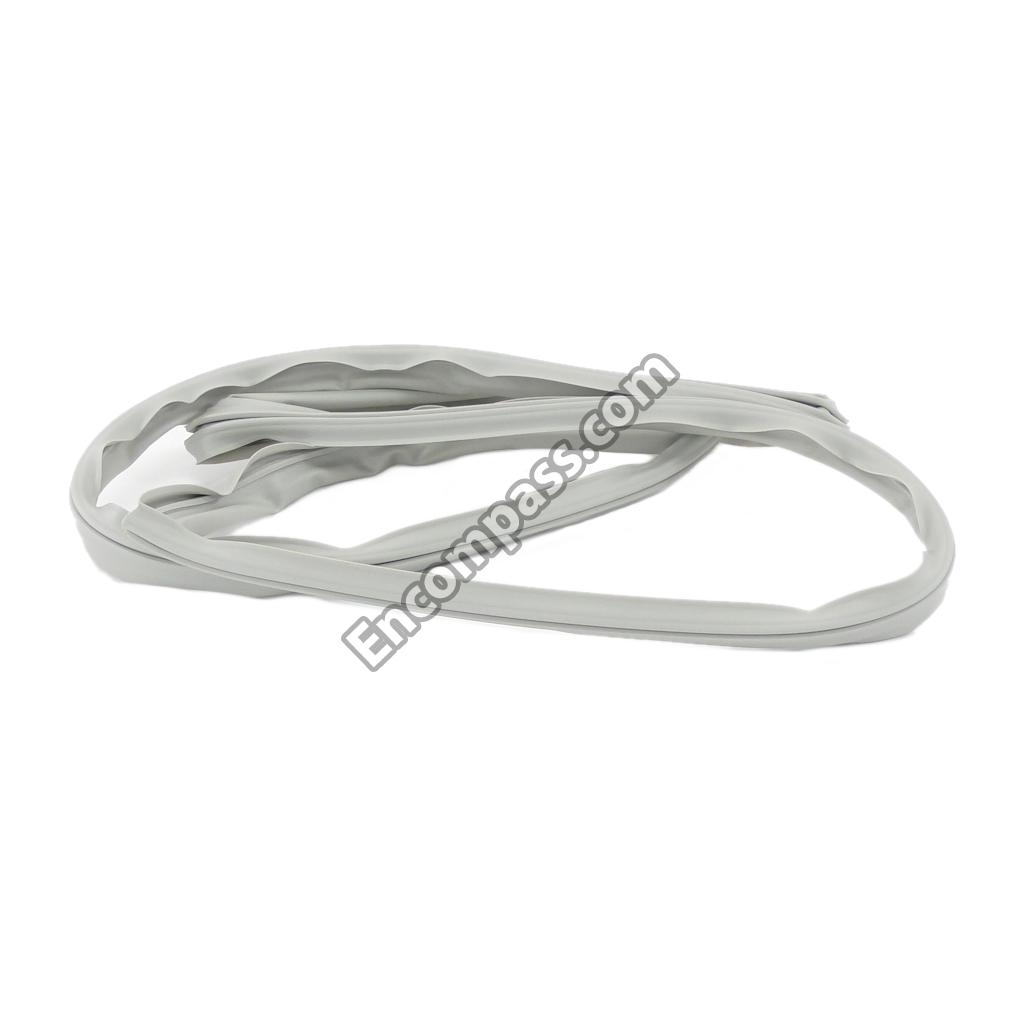

710912700 710912700 MAGNETIC DOOR SEAL TO BOND
710912500 710912500 MAGNETIC DOOR SEAL TO BOND
750100800 750100800 MAGNETIC STRIP
610878900 610878900 MOTOR
800308601 800308601 MOULDING

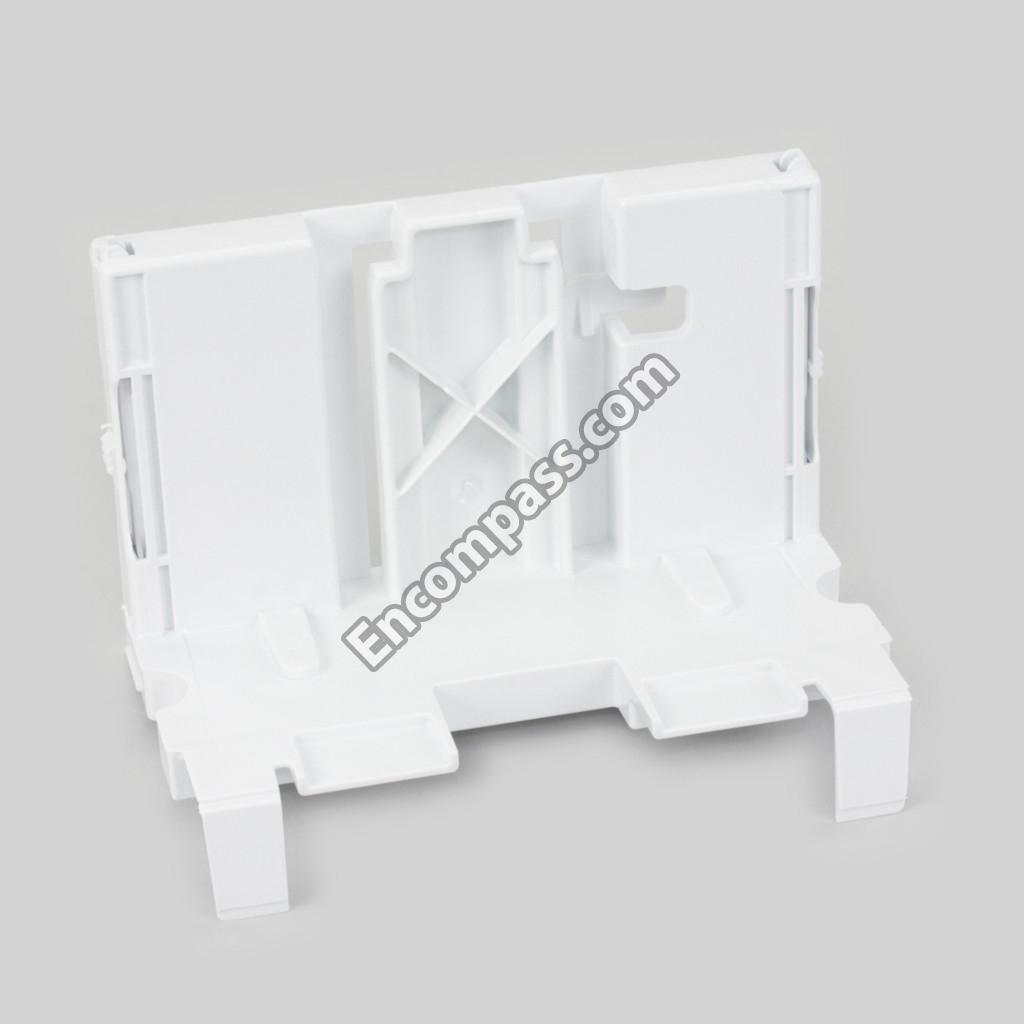

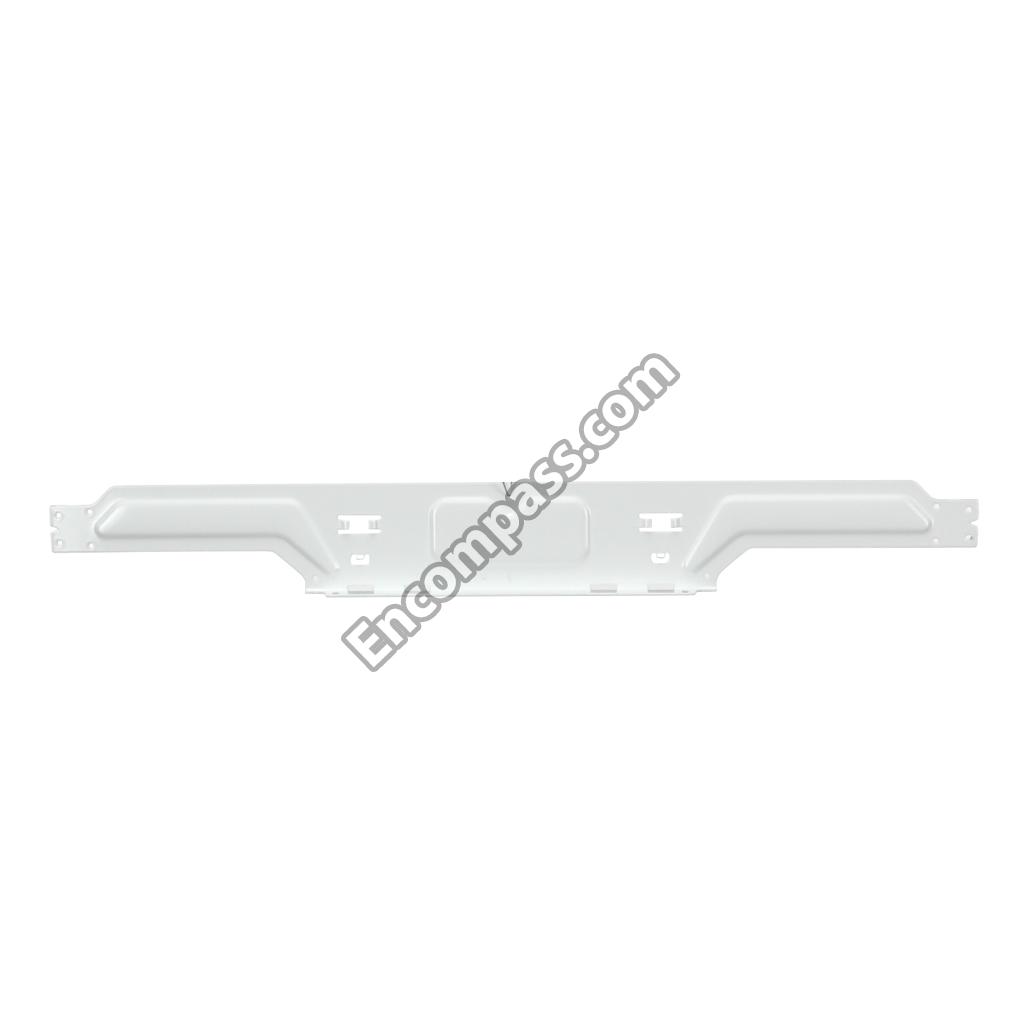

742430800 742430800 MOUNTING BRACKET
611645300 611645300 OPERATING PANEL HOUSING
611437600 611437600 OPERATING UNIT BOARD

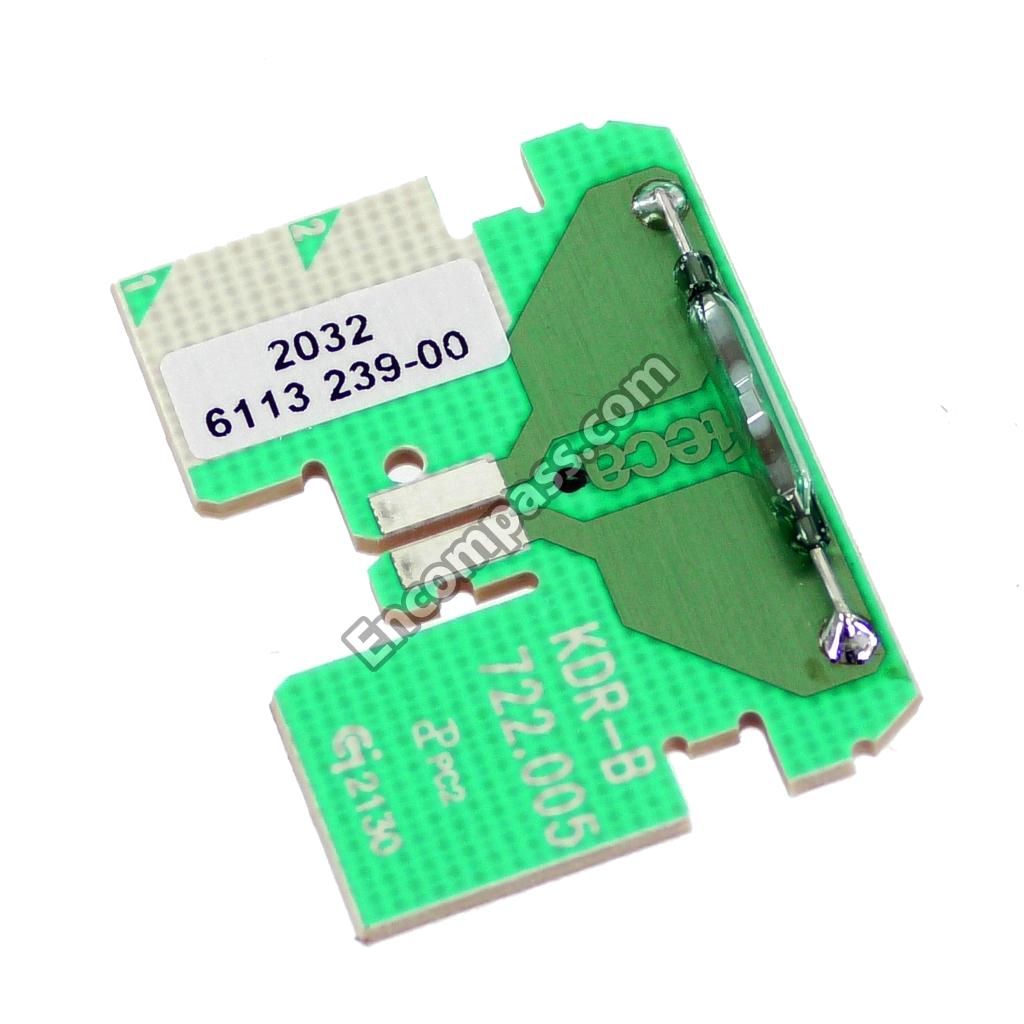

611323900 611323900 OPERATING UNIT BOARD
742544300 742544300 OPERATING UNIT TRIM
408469700 408469700 OVAL-HEAD SCREW
409898901 409898901 OVAL-HEAD SCREW
408281301 408281301 OVAL-HEAD SELF-TAPPING SCREW
409868500 409868500 OVAL-HEAD WOOD SCREW
409875500 409875500 OVAL-HEAD WOOD SCREW
988149900 988149900 PACKAGING, COMPLETELY
969366300 969366300 PARTS, POWDER-COATED, COLOURED
969369701 969369701 PARTS, POWDER-COATED, COLOURED
969369901 969369901 PARTS, POWDER-COATED, COLOURED
969357900 969357900 PARTS, POWDER-COATED, COLOURED
987544900 987544900 PARTS, POWDER-COATED, WHITE
969358900 969358900 PARTS, POWDER-COATED, WHITE

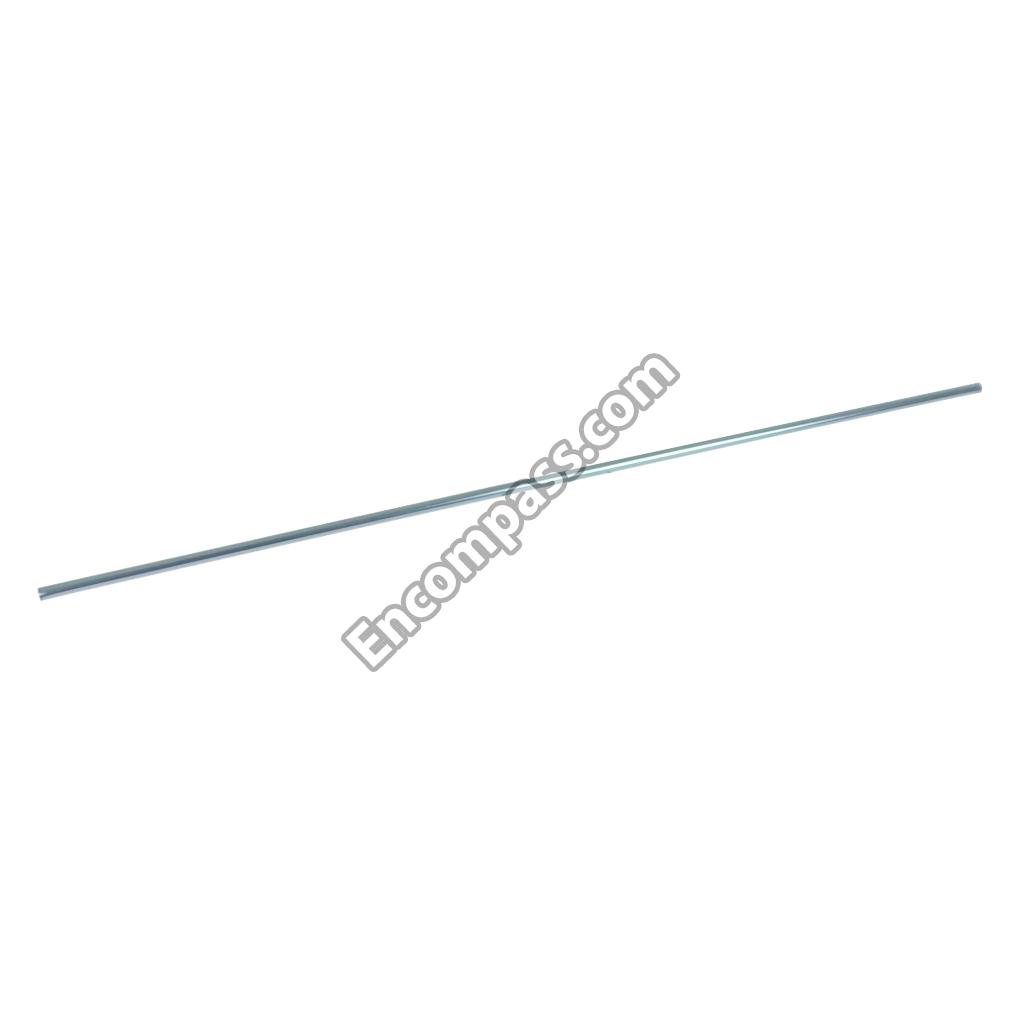

770000100 770000100 PIPE
743341900 743341900 PLATE TRIM
741223300 741223300 PLUG
743124900 743124900 PLUG CONNECTOR WATER
743750000 743750000 PLUG CONNECTOR WATER
787102700 787102700 PLUG CONNECTOR WATER
904179300 904179300 PRESSURE COMPENSATION VALVE
764153500 764153500 PROFILE/WELT GASKET
764158500 764158500 PROFILE/WELT GASKET
903656100 903656100 PSEUDOGROUP
742544100 742544100 PUSHBUTTON
594412700 594412700 REFRIGERATOR EVAPORATOR, SPEC. DESIGN
409890401 409890401 SCREW
710906300 710906300 SEAL
743567300 743567300 SEAL
710920300 710920300 SEAL
694258600 694258600 SENSOR F. FREEZER COMPARTMENT EVAPORATOR

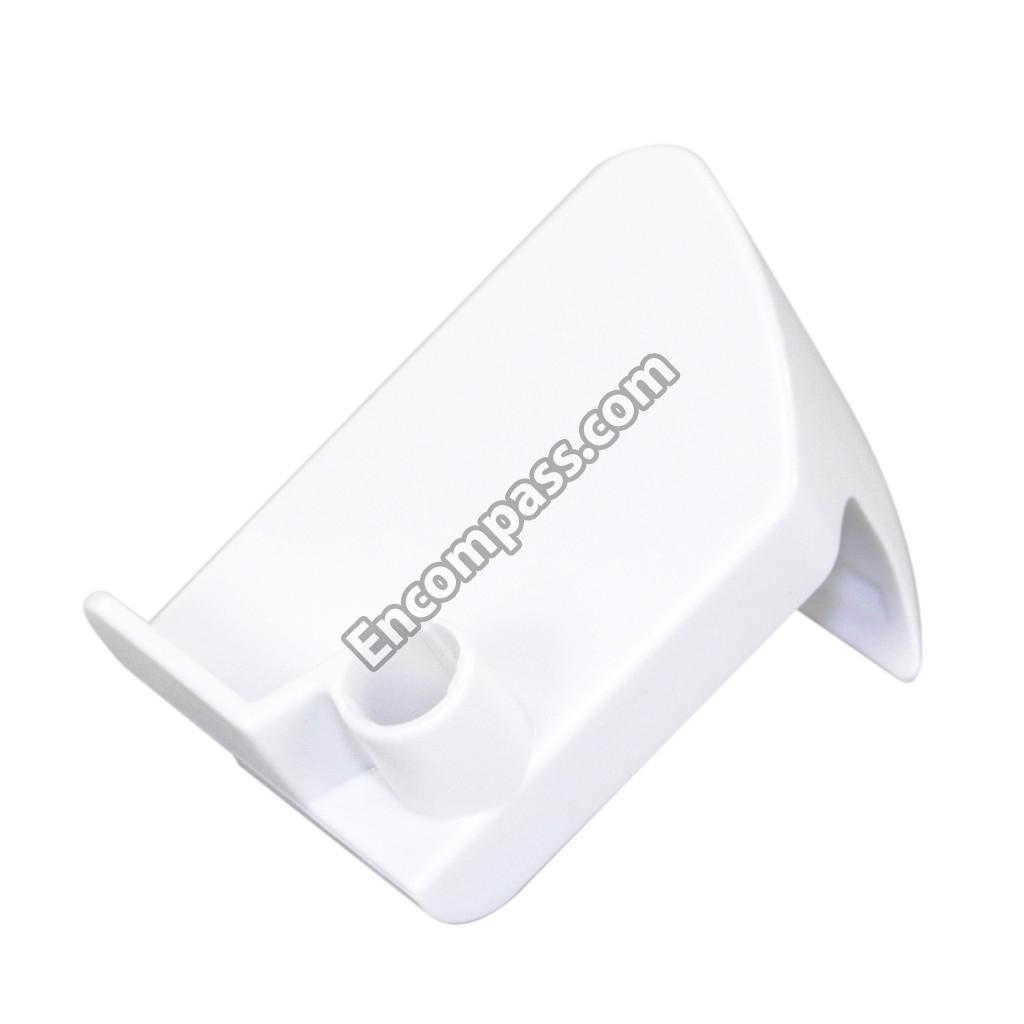

743922101 743922101 SENSOR RETAINING FIXTURE

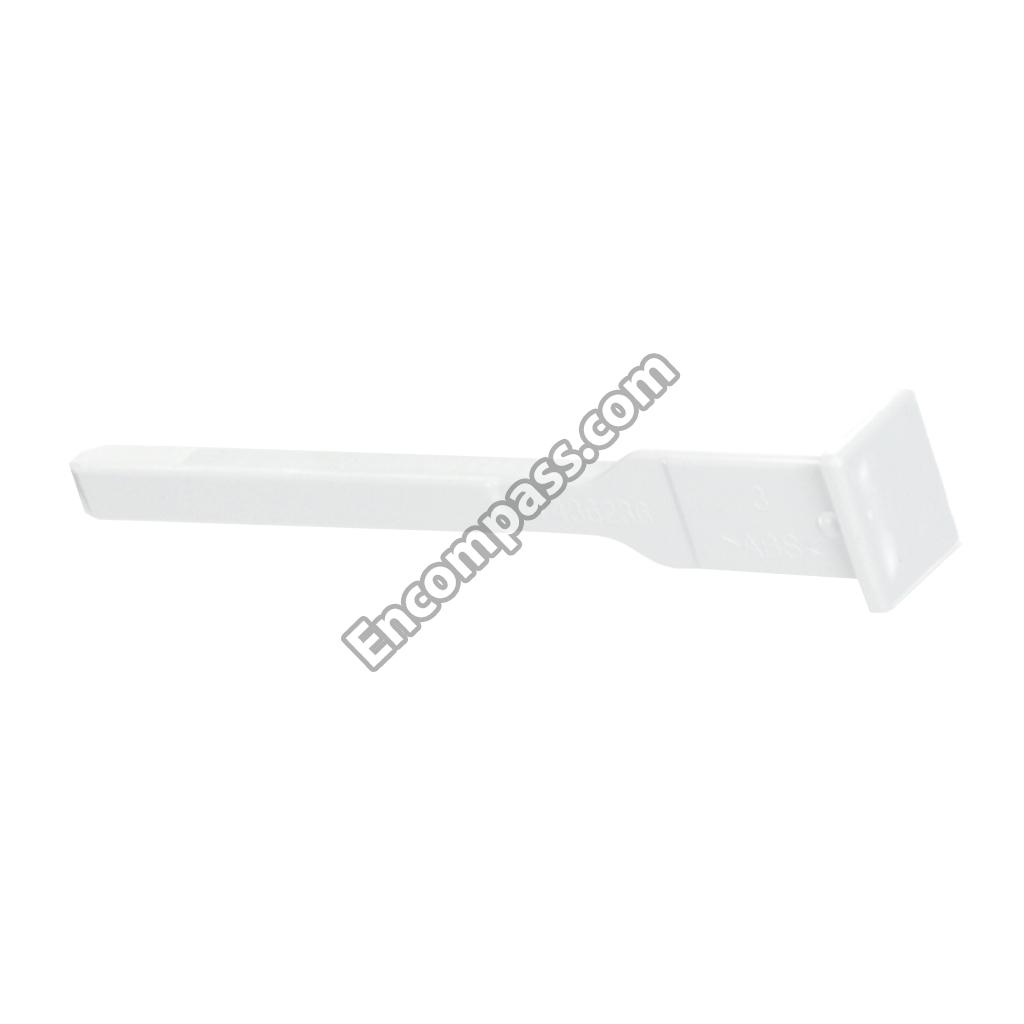

742544700 742544700 SHAFT

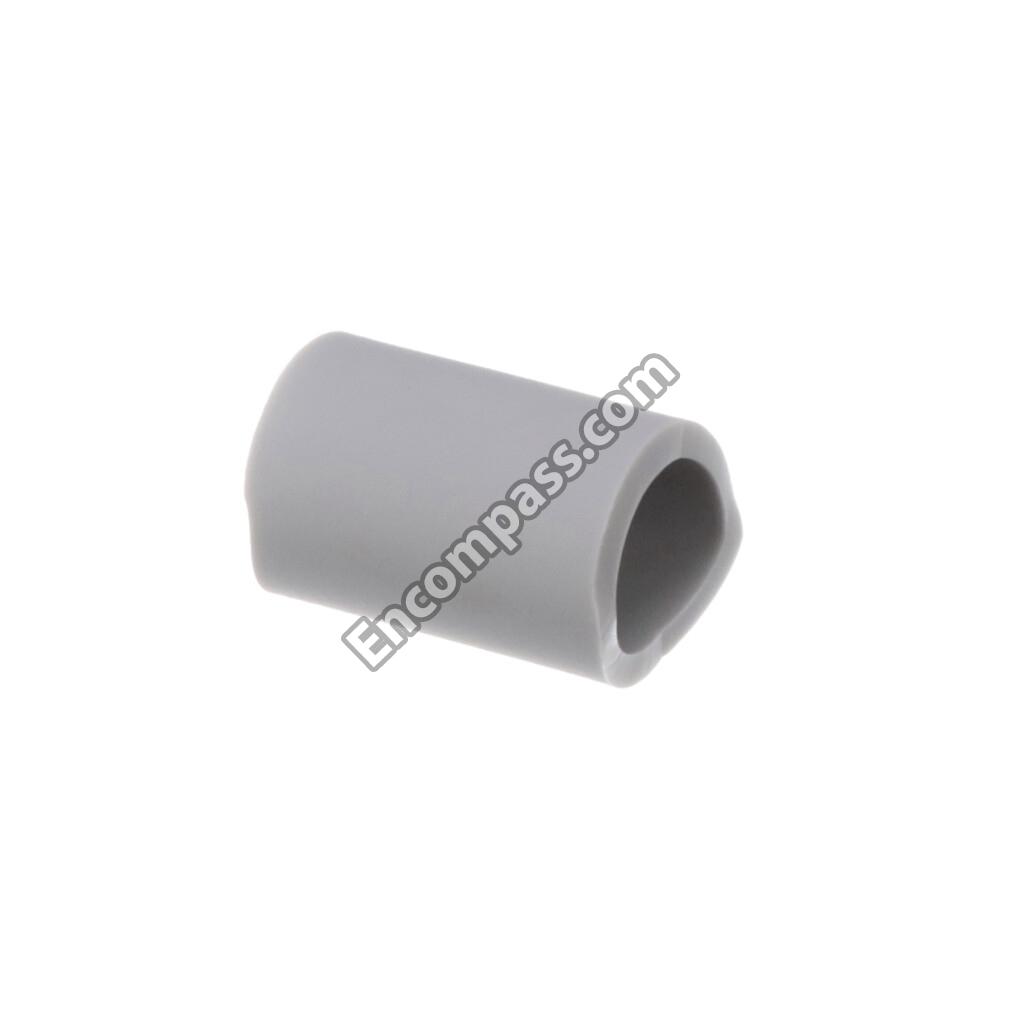

726617600 726617600 SLEEVE
726615800 726615800 SLEEVE

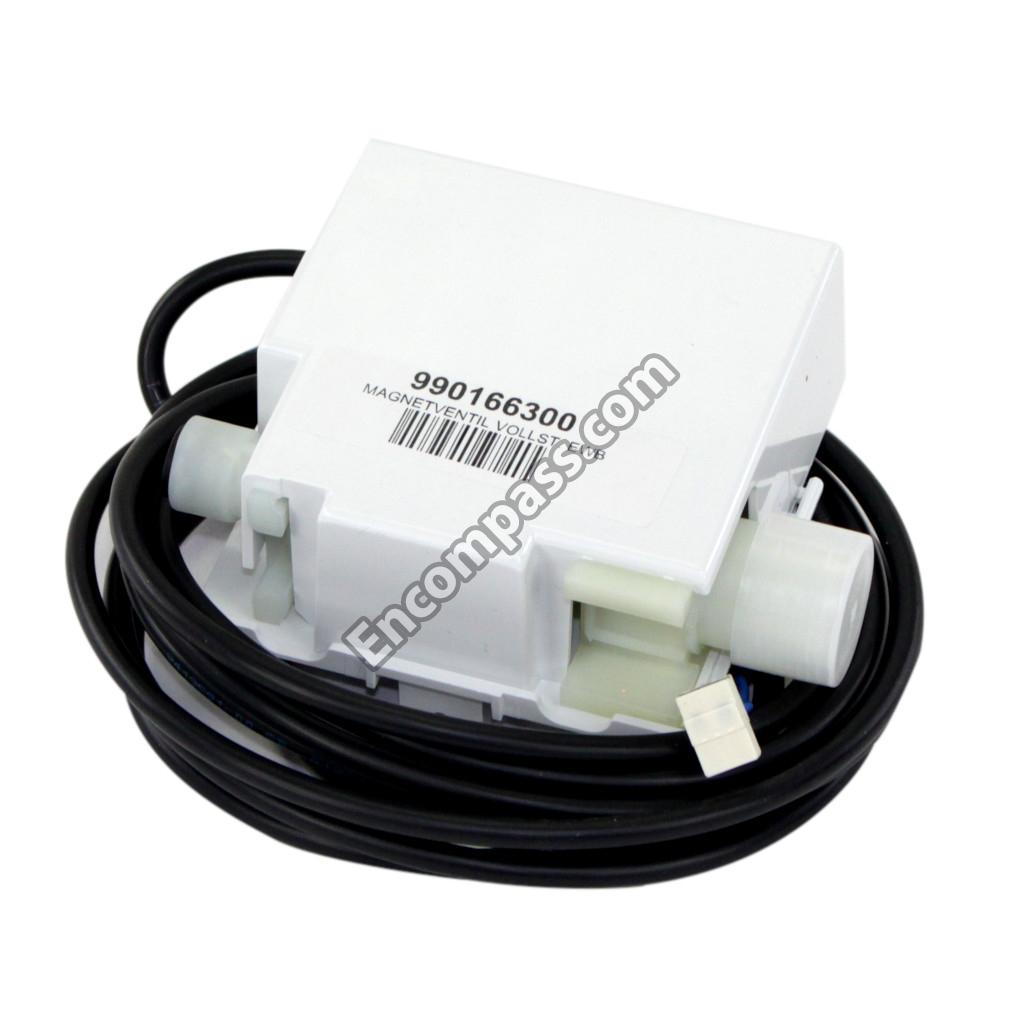

990166300 990166300 SOLENOID VALVE
743254700 743254700 SPACERS
743355700 743355700 SPARE PART
743361300 743361300 SPARE PART
412902501 412902501 SPECIAL NUT
726620201 726620201 SPECIAL SECURING HARDWARE
726679700 726679700 SPECIAL SECURING HARDWARE
840903001 840903001 STAINLESS STEEL CLEANER CHROMOL
903336300 903336300 STORAGE RACK, PRINTED, PLAIN

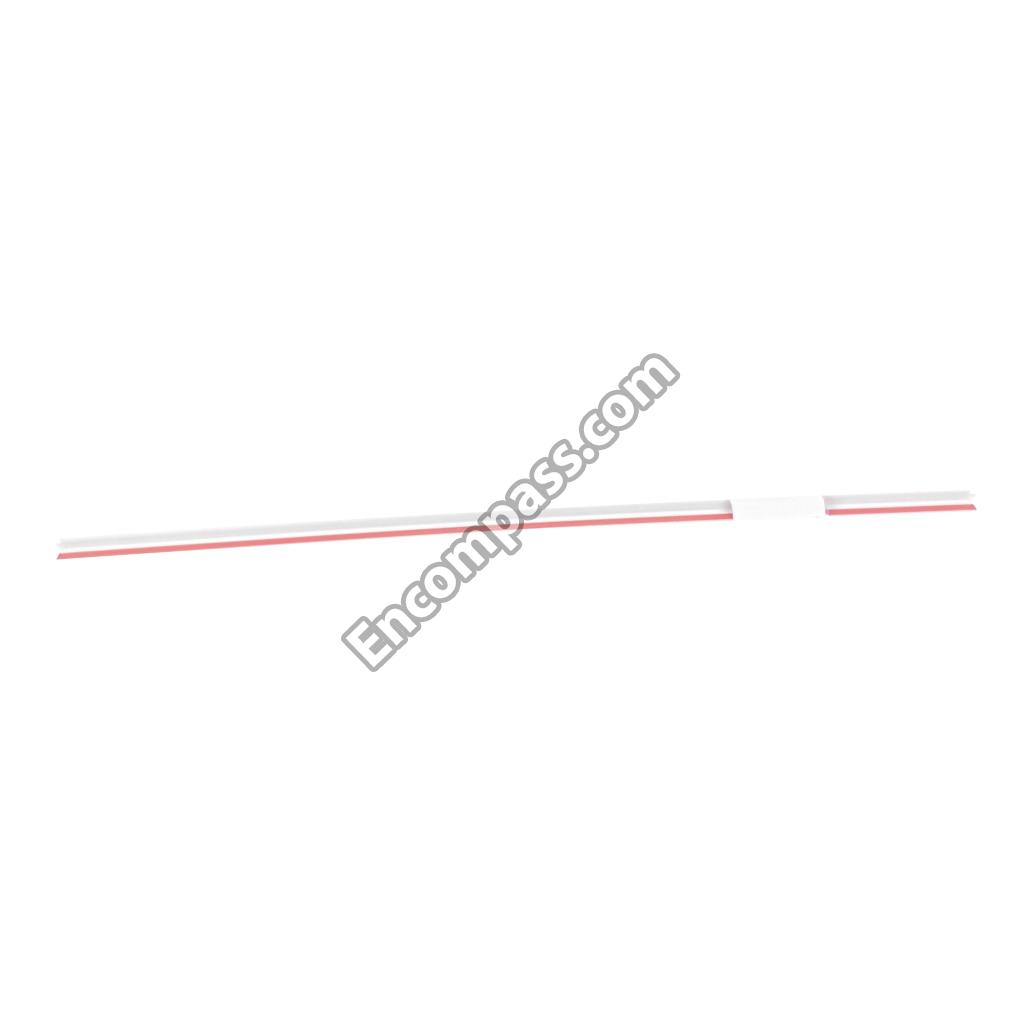

904000000 904000000 STRIP
774532900 774532900 STRIP

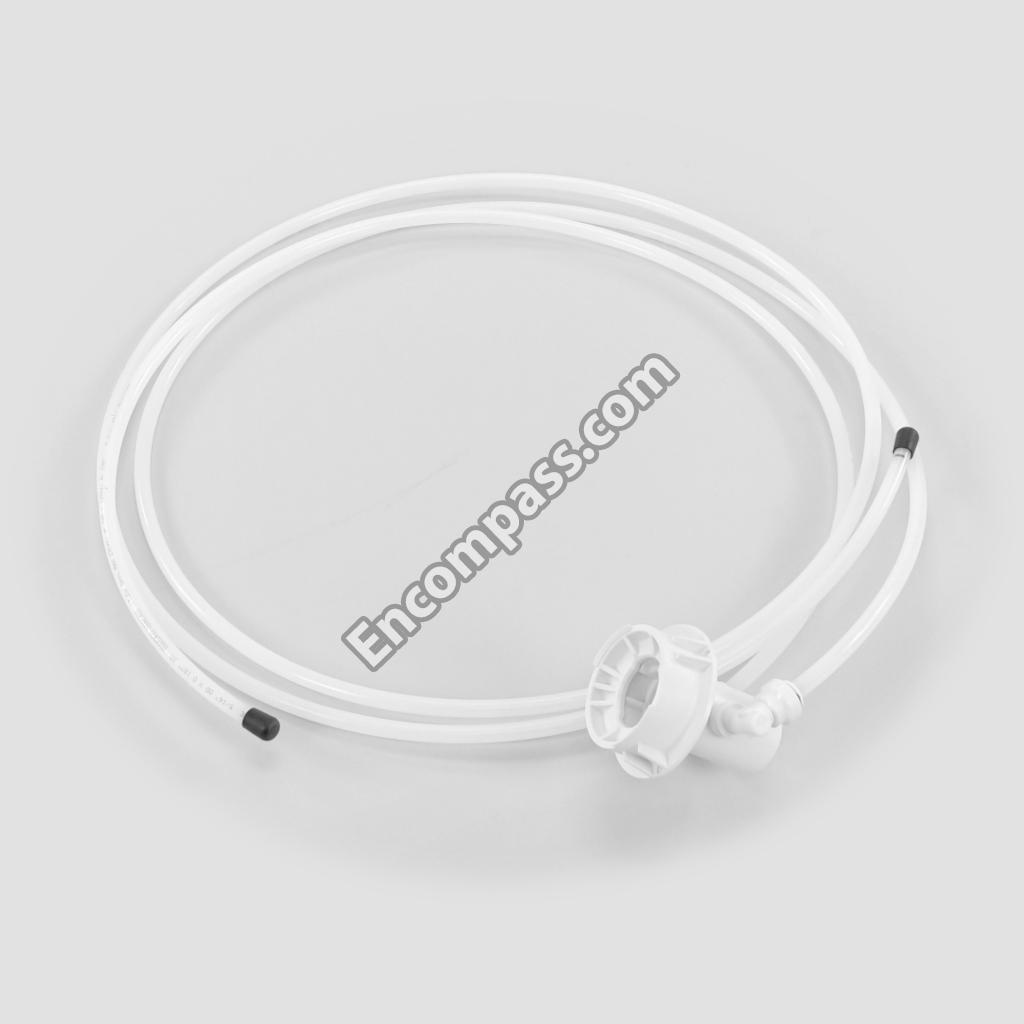

600964500 600964500 SUPPLY LINE
743667601 743667601 SWITCHING COMPONENTS
742672600 742672600 SWITCHING COMPONENTS
750101000 750101000 SWITCHING COMPONENTS
615203600 615203600 TEMPERATURE LIMITER

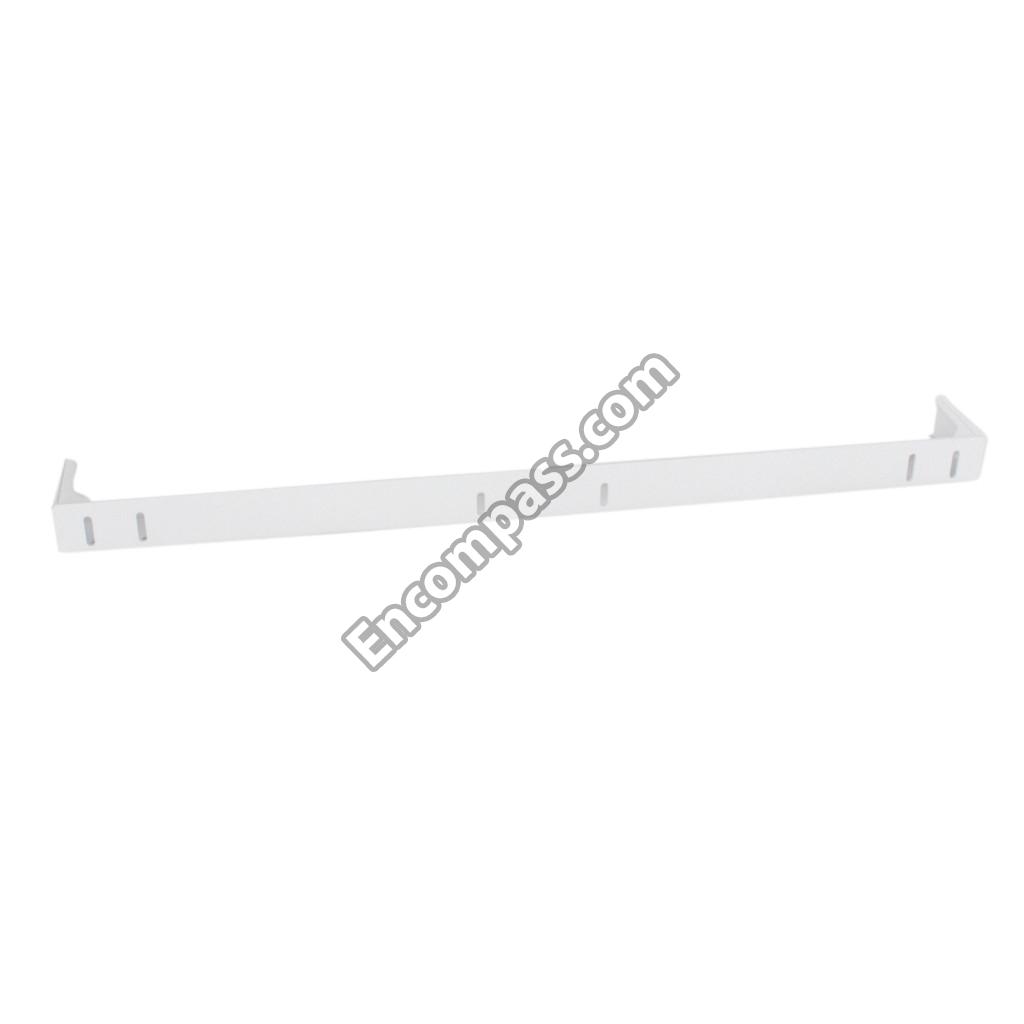

764150100 764150100 TRIM STRIP PROFILE
764157300 764157300 TRIM STRIP PROFILE
743141300 743141300 VARIABLE EGG TRAY
741338300 741338300 VARIOUS HOUSINGS

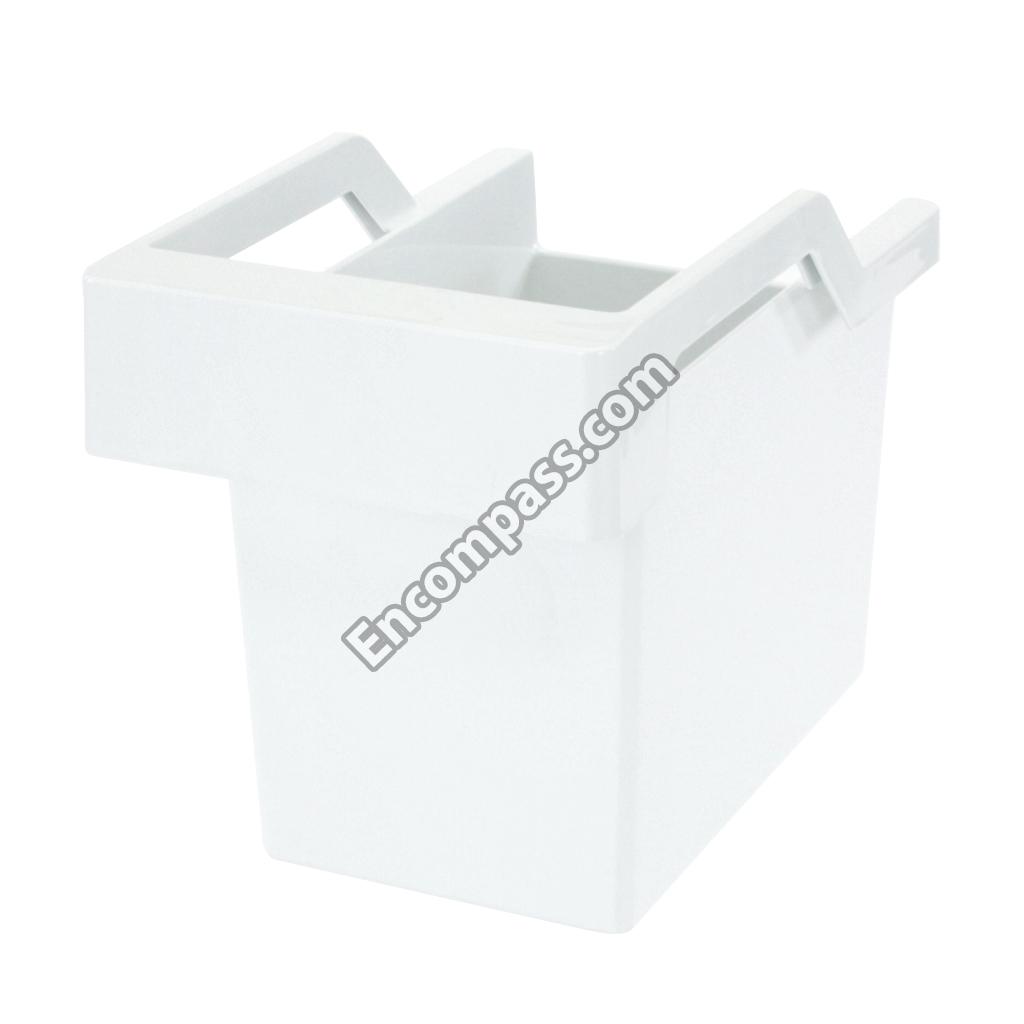

742876400 742876400 VARIOUS INJECTION-MOULDED ITEMS
742936100 742936100 VARIOUS INJECTION-MOULDED ITEMS
742962302 742962302 VARIOUS INJECTION-MOULDED ITEMS
743014500 743014500 VARIOUS INJECTION-MOULDED ITEMS
743337500 743337500 VARIOUS INJECTION-MOULDED ITEMS
743668900 743668900 VARIOUS INJECTION-MOULDED ITEMS
743052100 743052100 VARIOUS INJECTION-MOULDED ITEMS
743051900 743051900 VARIOUS INJECTION-MOULDED ITEMS
742946300 742946300 VARIOUS INJECTION-MOULDED ITEMS
742946100 742946100 VARIOUS INJECTION-MOULDED ITEMS
726605200 726605200 VARIOUS INJECTION-MOULDED ITEMS
743221501 743221501 VARIOUS INJECTION-MOULDED ITEMS
743213800 743213800 VARIOUS INJECTION-MOULDED ITEMS
742931300 742931300 VARIOUS INJECTION-MOULDED ITEMS
743257800 743257800 VARIOUS RETAINING FIXTURES
742925700 742925700 VARIOUS RETAINING FIXTURES
743269300 743269300 VARIOUS RETAINING FIXTURES
743133300 743133300 VARIOUS RETAINING FIXTURES
742223600 742223600 VARIOUS RETAINING FIXTURES
742223400 742223400 VARIOUS RETAINING FIXTURES
774634900 774634900 VARIOUS RETAINING FIXTURES
742620200 742620200 VARIOUS RETAINING FIXTURES
742619800 742619800 VARIOUS RETAINING FIXTURES

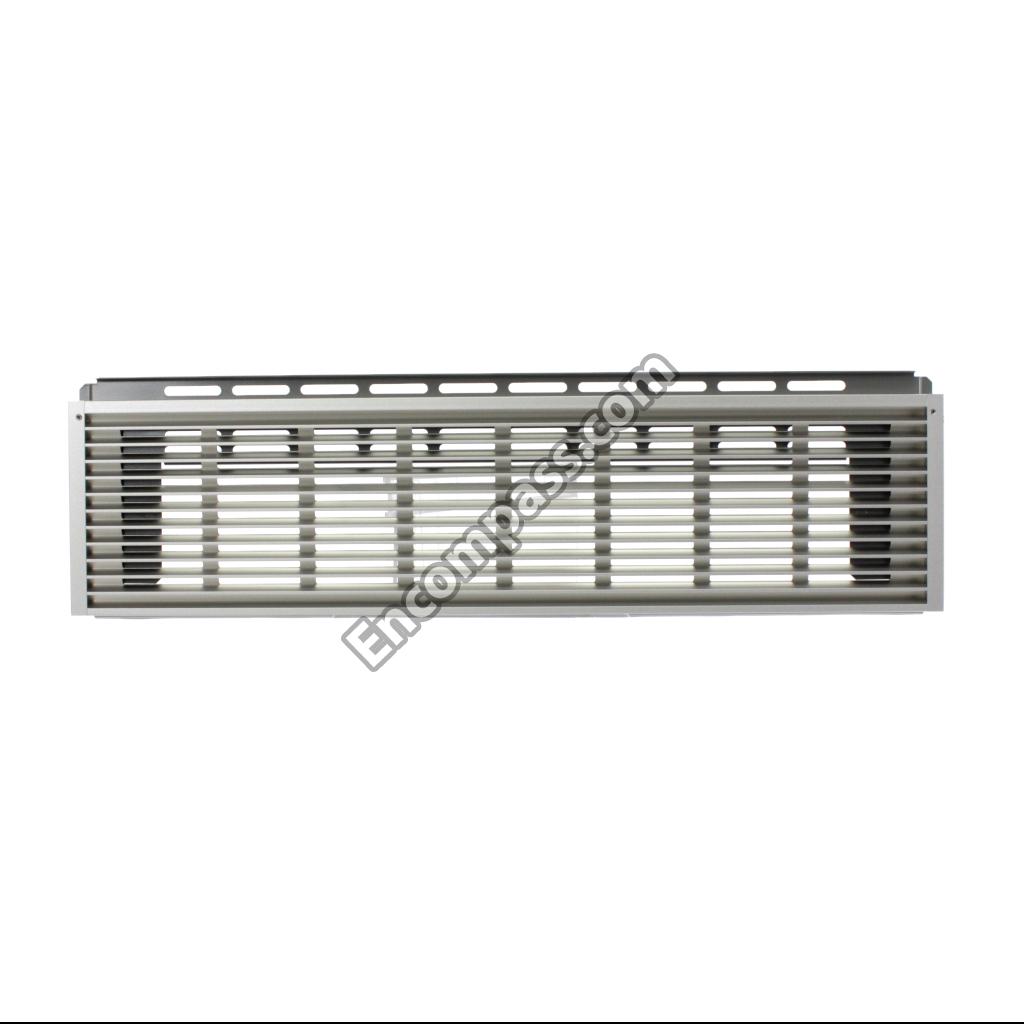

764155500 764155500 VENTILATION TRIM
743257300 743257300 VENTILATION TRIM

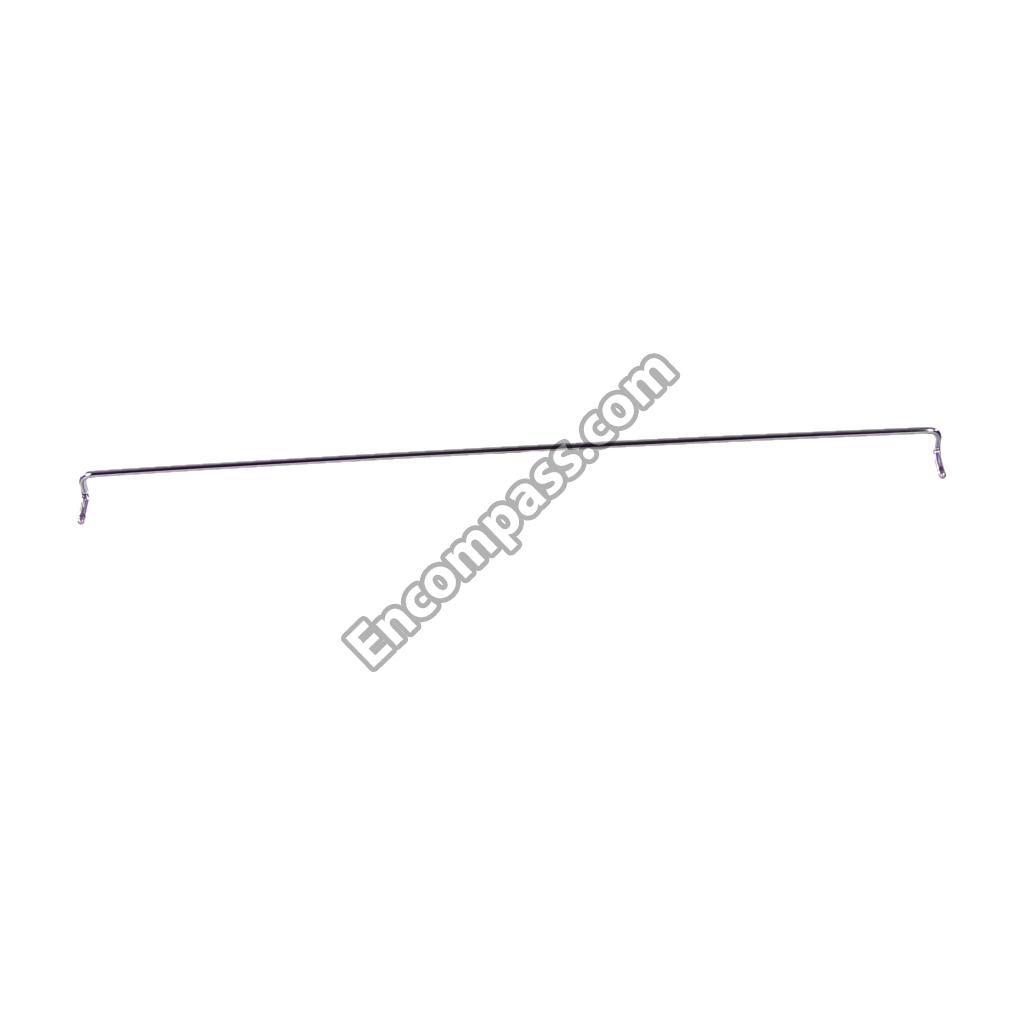

711364100 711364100 WIRE BRACKET/GLASS-LINE DOOR
711363300 711363300 WIRE BRACKET/GLASS-LINE DOOR
711363500 711363500 WIRE BRACKET/GLASS-LINE DOOR
711363700 711363700 WIRE BRACKET/GLASS-LINE DOOR
711315300 711315300 WIRE BRACKET/GLASS-LINE DOOR
711210300 711210300 WIRE BRACKET/GLASS-LINE DOOR
711204500 711204500 WIRE SHELF
743466800 743466800 WORKTOP, INJECTION-MOULDED, ASSY.
704466702 704466702 ZINC DIE-CAST BEARING BLOCK
