Model Image
Manufacturer

Liebherr

Model Number

HC1581G

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
909731500 909731500 ADJUSTING SCREW
959020602 959020602 AIR SENSOR FOR FREEZER COMPARTMENT
6943651 6943651 ALUM. HEATING STRIP
711366900 711366900 BOLT
711313700 711313700 BOLT
7641970 7641970 BOTTLE RACK RETAINING STRIP
900544100 900544100 BRACKET
726609500 726609500 BUFFER
726625400 726625400 BUFFER
401079700 401079700 CHEESE-HEAD SCREW WITH SLOT
409858300 409858300 CHIPBOARD SCREW
611869900 611869900 COMPACT FAN
610804700 610804700 COMPACT FAN
610867700 610867700 COMPACT FAN
614328500 614328500 COMPRESSOR ACCESSORIES
611933600 611933600 COMPRESSOR R 600 A
7440198 7440198 CONTROL PANEL TRIM, NO SYMBOLS
409862901 409862901 COUNTERSUNK SCREW
409864300 409864300 COUNTERSUNK SCREW
408269900 408269900 COUNTERSUNK SELF-TAPPING SCREW
7440105 7440105 COVER
7440103 7440103 COVER
7440127 7440127 COVER
742935501 742935501 COVER
743134700 743134700 COVER
7440193 7440193 COVER
743076900 743076900 COVER
7440268 7440268 COVER
7440246 7440246 COVER
7440252 7440252 COVER
7439955 7439955 COVER
7440143 7440143 COVER
743642301 743642301 COVER
743636300 743636300 COVER
742849100 742849100 COVER CAP
7436939 7436939 COVER CAP
7440214 7440214 COVER GRILLE FOR FAN
744014500 744014500 COVER PLATE
764169500 764169500 COVER PROFILE TRIM
7641537 7641537 COVER STRIP
743623600 743623600 COVERS, VARIOUS
7436937 7436937 DIVIDING WALL
7440096 7440096 DIVIDING WALL
7439956 7439956 DIVIDING WALL
704307700 704307700 DOOR HINGE

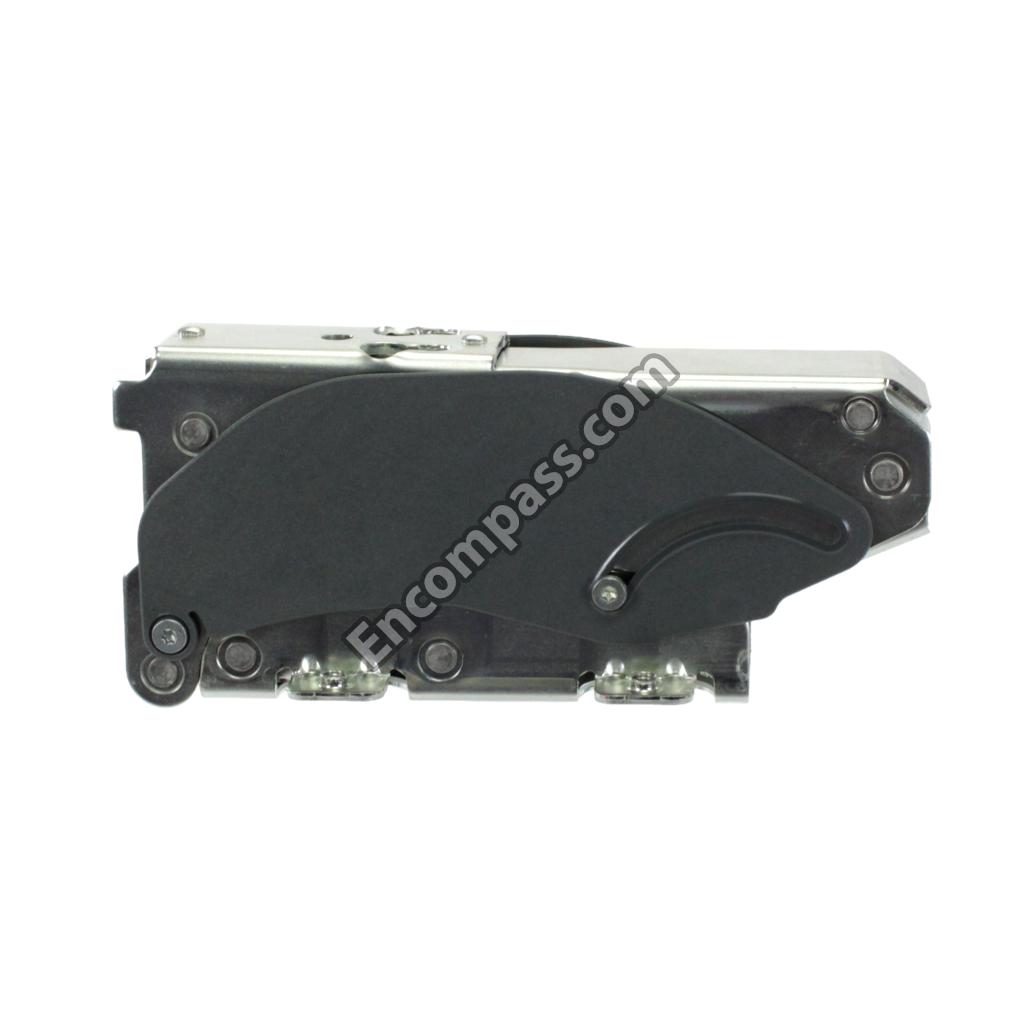

945463700 945463700 DOOR HINGE
945466400 945466400 DOOR HINGE
909669901 909669901 DOOR OPENING LIMITATION
9029246 9029246 DOOR, CAVITY-FOAMED
9029247 9029247 DOOR, CAVITY-FOAMED
9029238 9029238 DOOR, CAVITY-FOAMED
7742247 7742247 DOOR, WELDED
7742233 7742233 DOOR, WELDED
7742241 7742241 DOOR, WELDED
7742237 7742237 DOOR, WELDED
7439946 7439946 DRAWER BODY
7439945 7439945 DRAWER BODY
789028000 789028000 DRAWER RAIL
789027900 789027900 DRAWER RAIL
7890281 7890281 DRAWER RAIL
7439930 7439930 DRAWER, NON-PRINTED
594207001 594207001 DRYER
614385500 614385500 ELECTRICAL CONTROL SYSTEM
987307900 987307900 EVAPORATOR - REFRIGERATION
743220100 743220100 EVAPORATOR FIXTURE
743429900 743429900 EVAPORATOR TRAYS
629979700 629979700 FAN BLADE
900556300 900556300 FASTENING
7439960 7439960 FASTENING
7439961 7439961 FASTENING
704311100 704311100 FILTER MAT
990283600 990283600 FILTER MAT
804135700 804135700 FOLDING CARDBOARD BOX
7270475 7270475 GLASS PLATE - COMPLETE
7270476 7270476 GLASS PLATE - COMPLETE
7270478 7270478 GLASS PLATE - COMPLETE
7270477 7270477 GLASS PLATE - COMPLETE
594158302 594158302 HEAT EXCHANGER
694103500 694103500 HEATING TUBE
694167900 694167900 HEATING TUBE
409813401 409813401 HEXAGON-HEAD SELF-TAPPING SCREW
409869100 409869100 HEXAGON-HEAD SELF-TAPPING SCREW
409869500 409869500 HEXAGON-HEAD SELF-TAPPING SCREW
409801000 409801000 HEXAGON-HEAD SELF-TAPPING SCREW
409834400 409834400 HEXAGON-HEAD SELF-TAPPING SCREW
409819600 409819600 HEXAGON-HEAD SELF-TAPPING SCREW
409802901 409802901 HEXAGON-HEAD SELF-TAPPING SCREW
409806601 409806601 HEXAGON-HEAD SELF-TAPPING SCREW

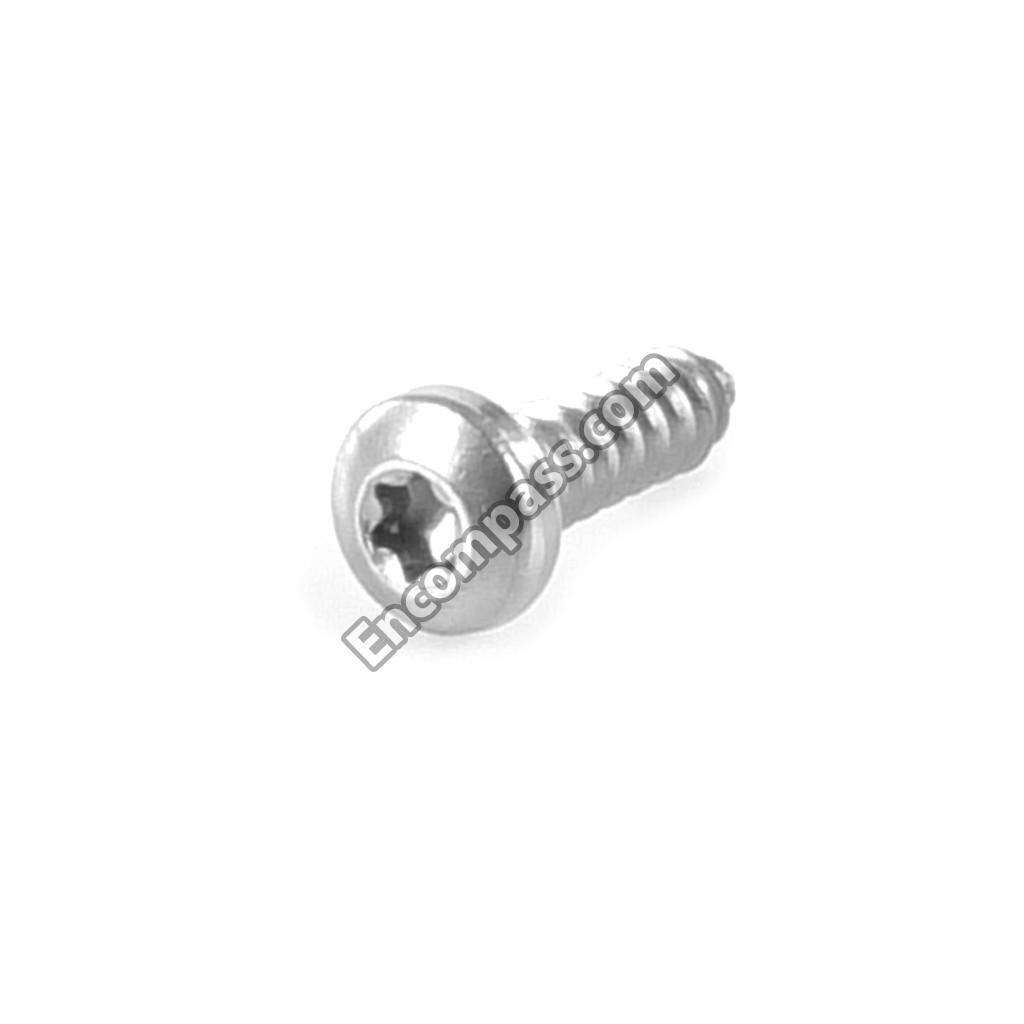

408281101 408281101 HEXAGON-HEAD SELF-TAPPING SCREW
409800800 409800800 HEXAGON-HEAD SELF-TAPPING SCREW
409803301 409803301 HEXAGON-HEAD SELF-TAPPING SCREW
409837201 409837201 HEXAGON-HEAD SELF-TAPPING SCREW
994103101 994103101 HOSE
741338700 741338700 ICE CUBE TRAY WITH LID
9904154 9904154 ICE-CUBE MAKER
990419200 990419200 ICE-CUBE MAKER
7421593 7421593 ICE-SHOLVER
743232901 743232901 INJECTION-MOULDED WORKTOP
980379700 980379700 INTERIOR LIGHT
607156500 607156500 INTERIOR LIGHT
704460700 704460700 KEY
774654700 774654700 KEY
704202500 704202500 KEY
704207801 704207801 KEY
770049000 770049000 LOKRING
770048000 770048000 LOKRING
770047400 770047400 LOKRING
770046400 770046400 LOKRING
770048800 770048800 LOKRING
710912500 710912500 MAGNETIC DOOR SEAL TO BOND
710912700 710912700 MAGNETIC DOOR SEAL TO BOND
710011100 710011100 MAGNETIC DOOR SEAL TO BOND
750100800 750100800 MAGNETIC STRIP
610878900 610878900 MOTOR
7043033 7043033 MOULDED HANDLE
7043011 7043011 MOULDED HANDLE
704333701 704333701 MOULDED HANDLE
7043015 7043015 MOULDED HANDLE
800308601 800308601 MOULDING
742430800 742430800 MOUNTING BRACKET
7083448 7083448 OPERATING INSTRUCTIONS
7083460 7083460 OPERATING INSTRUCTIONS
6116474 6116474 OPERATING PANEL HOUSING
611323900 611323900 OPERATING UNIT BOARD
611437600 611437600 OPERATING UNIT BOARD
7440197 7440197 OPERATING UNIT TRIM
409875500 409875500 OVAL-HEAD SCREW
409898901 409898901 OVAL-HEAD SCREW
408469700 408469700 OVAL-HEAD SCREW
408281301 408281301 OVAL-HEAD SELF-TAPPING SCREW
409899701 409899701 OVAL-HEAD WOOD SCREW
409868500 409868500 OVAL-HEAD WOOD SCREW
988149900 988149900 PACKAGING, COMPLETELY
987549000 987549000 PARTS, POWDER-COATED, COLOURED
9875492 9875492 PARTS, POWDER-COATED, COLOURED
9875494 9875494 PARTS, POWDER-COATED, COLOURED
9875496 9875496 PARTS, POWDER-COATED, COLOURED
9041686 9041686 PARTS, POWDER-COATED, COLOURED
9041688 9041688 PARTS, POWDER-COATED, COLOURED
969358900 969358900 PARTS, POWDER-COATED, WHITE
904168200 904168200 PARTS, POWDER-COATED, WHITE
9875486 9875486 PARTS, POWDER-COATED, WHITE
9875488 9875488 PARTS, POWDER-COATED, WHITE
770053300 770053300 PIPE
7428719 7428719 PLUG
787102700 787102700 PLUG CONNECTOR WATER
743750000 743750000 PLUG CONNECTOR WATER
743124900 743124900 PLUG CONNECTOR WATER
904179300 904179300 PRESSURE COMPENSATION VALVE
764196800 764196800 PROFILE/WELT GASKET
764196700 764196700 PROFILE/WELT GASKET
903656100 903656100 PSEUDOGROUP
7440199 7440199 PUSHBUTTON
594412700 594412700 REFRIGERATOR EVAPORATOR, SPEC. DESIGN
7440141 7440141 RETAINING STRIP FOR GLASS PLATES
409890401 409890401 SCREW
710920300 710920300 SEAL
743567300 743567300 SEAL
710906300 710906300 SEAL
743922101 743922101 SENSOR RETAINING FIXTURE
742544700 742544700 SHAFT
726615800 726615800 SLEEVE
726617600 726617600 SLEEVE
990166300 990166300 SOLENOID VALVE
743254700 743254700 SPACERS
7439959 7439959 SPARE PART
412902501 412902501 SPECIAL NUT
726679700 726679700 SPECIAL SECURING HARDWARE
726620201 726620201 SPECIAL SECURING HARDWARE
840903001 840903001 STAINLESS STEEL CLEANER CHROMOL
9033042 9033042 STORAGE RACK, STUDDED
9033048 9033048 STORAGE RACK, STUDDED
774532900 774532900 STRIP
600964500 600964500 SUPPLY LINE
750101000 750101000 SWITCHING COMPONENTS
742672600 742672600 SWITCHING COMPONENTS
744019100 744019100 SWITCHING COMPONENTS
615203600 615203600 TEMPERATURE LIMITER
613068500 613068500 TRANSFORMER
7643291 7643291 TRIM STRIP PROFILE
764150100 764150100 TRIM STRIP PROFILE
743141300 743141300 VARIABLE EGG TRAY
741338300 741338300 VARIOUS HOUSINGS
744025000 744025000 VARIOUS INJECTION-MOULDED ITEMS
7440140 7440140 VARIOUS INJECTION-MOULDED ITEMS
7440237 7440237 VARIOUS INJECTION-MOULDED ITEMS
726605200 726605200 VARIOUS INJECTION-MOULDED ITEMS
742946100 742946100 VARIOUS INJECTION-MOULDED ITEMS
742946300 742946300 VARIOUS INJECTION-MOULDED ITEMS
7440079 7440079 VARIOUS INJECTION-MOULDED ITEMS
7440078 7440078 VARIOUS INJECTION-MOULDED ITEMS
7440144 7440144 VARIOUS INJECTION-MOULDED ITEMS
743337500 743337500 VARIOUS INJECTION-MOULDED ITEMS
7440309 7440309 VARIOUS INJECTION-MOULDED ITEMS
742962302 742962302 VARIOUS INJECTION-MOULDED ITEMS
742936100 742936100 VARIOUS INJECTION-MOULDED ITEMS
7440142 7440142 VARIOUS INJECTION-MOULDED ITEMS
7440219 7440219 VARIOUS RETAINING FIXTURES
774634900 774634900 VARIOUS RETAINING FIXTURES
742223400 742223400 VARIOUS RETAINING FIXTURES
742223600 742223600 VARIOUS RETAINING FIXTURES
743133300 743133300 VARIOUS RETAINING FIXTURES
743269300 743269300 VARIOUS RETAINING FIXTURES
742925700 742925700 VARIOUS RETAINING FIXTURES
743257800 743257800 VARIOUS RETAINING FIXTURES
743257300 743257300 VENTILATION TRIM
764155500 764155500 VENTILATION TRIM
988098000 988098000 WATER FILTER
711204500 711204500 WIRE SHELF
7434668 7434668 WORKTOP, INJECTION-MOULDED, ASSY.
704466302 704466302 ZINC DIE-CAST BEARING BLOCK
