Model Image
Manufacturer

Liebherr

Model Number

MCB3060

Description

Built-in Combined Fridge-freezer-biofresh-nofrost

Interactive Exploded View

Parts List

Part Number Description

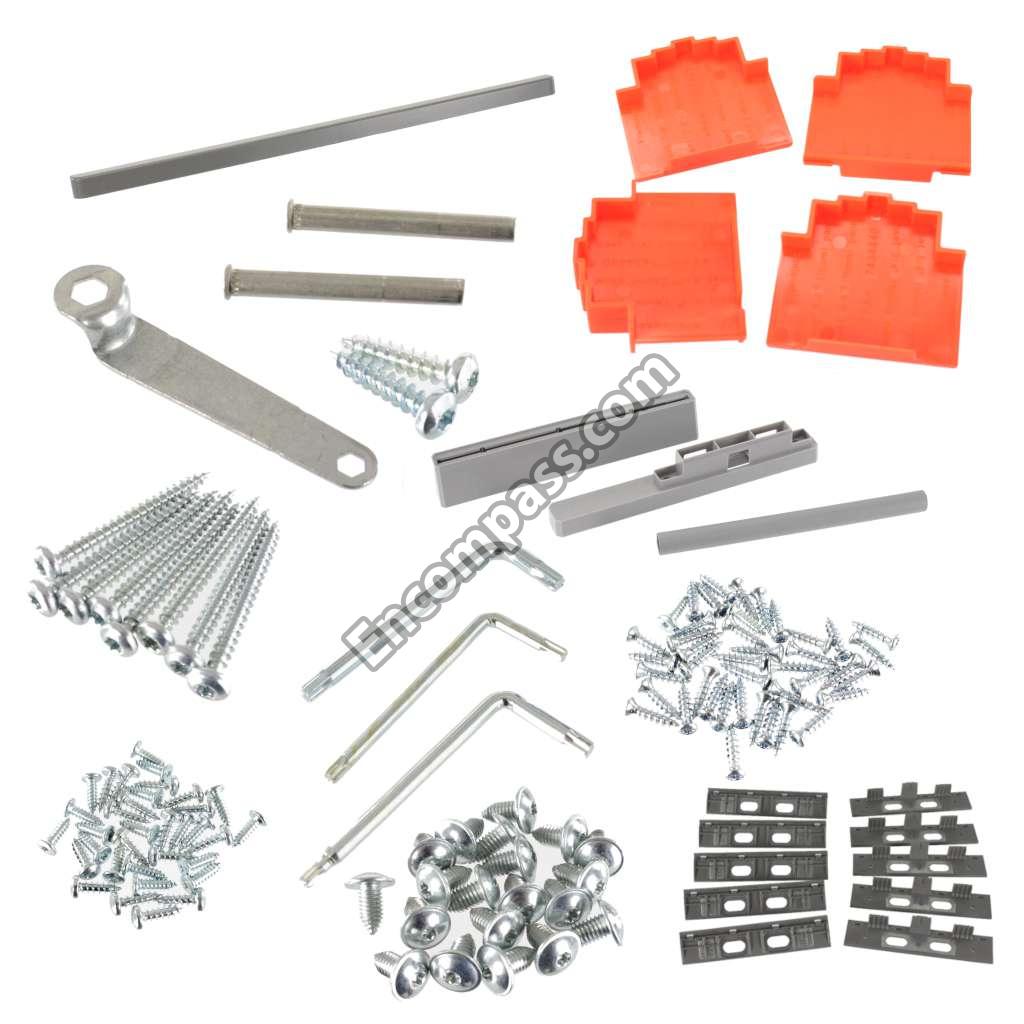

909668200 909668200 ACCESSORY PACK
6125259 6125259 ACCESSORY PACK
9086898 9086898 ACCESSORY PACK
908689900 908689900 ACCESSORY PACK

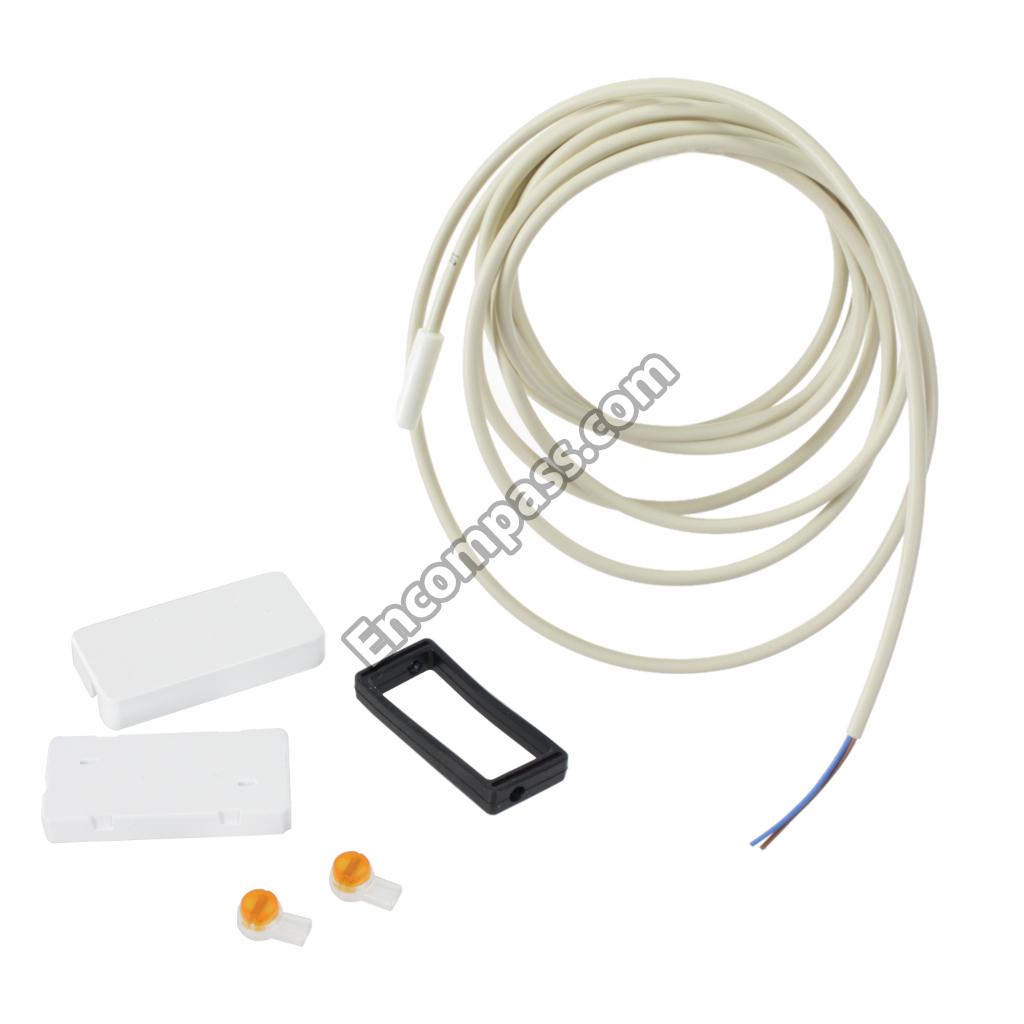

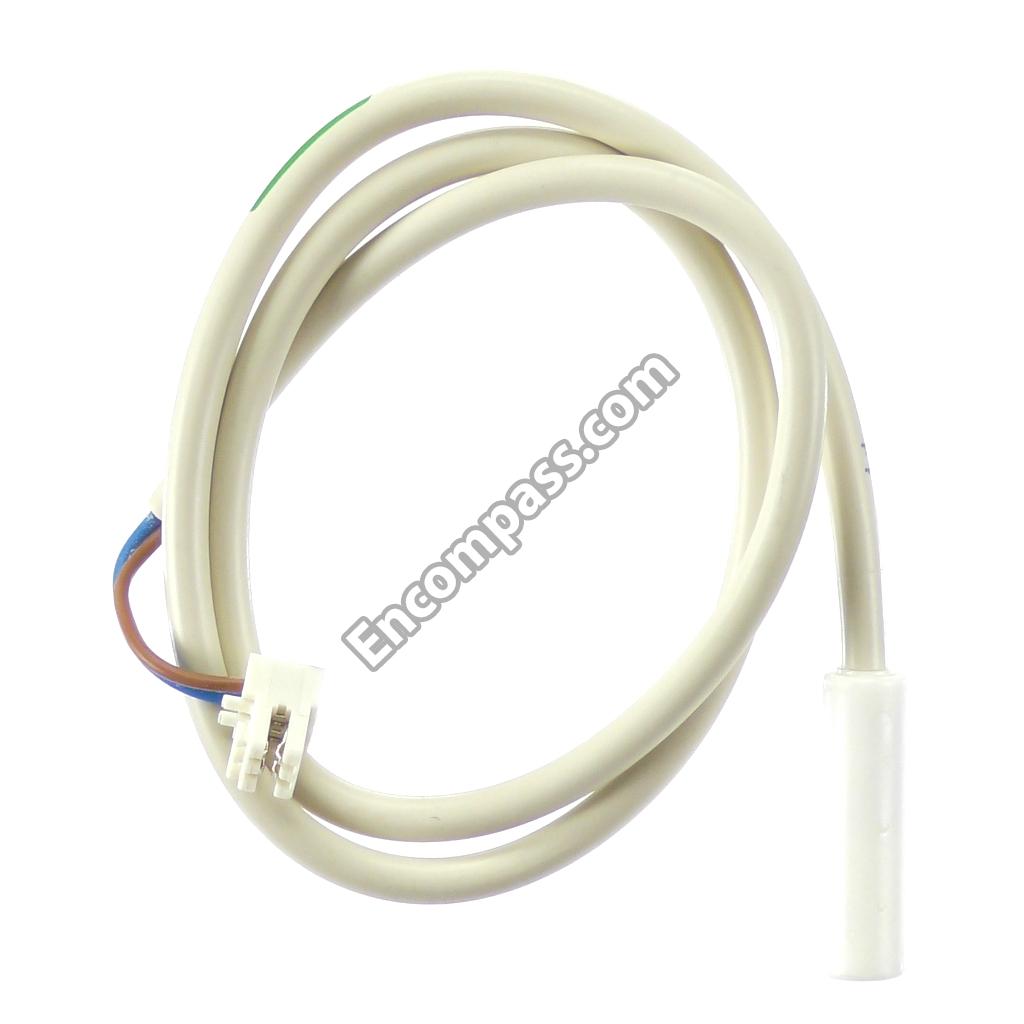

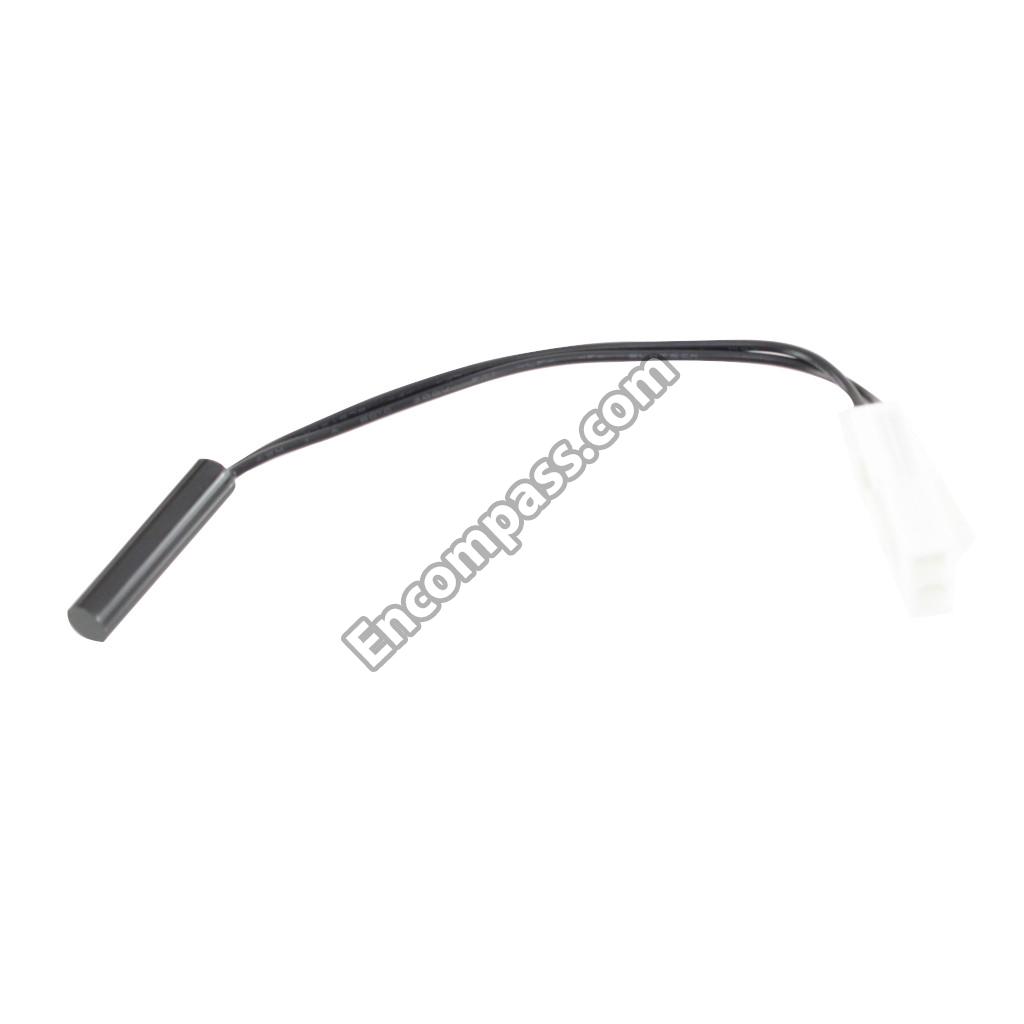

959142401 959142401 ADDITIONAL SENSOR

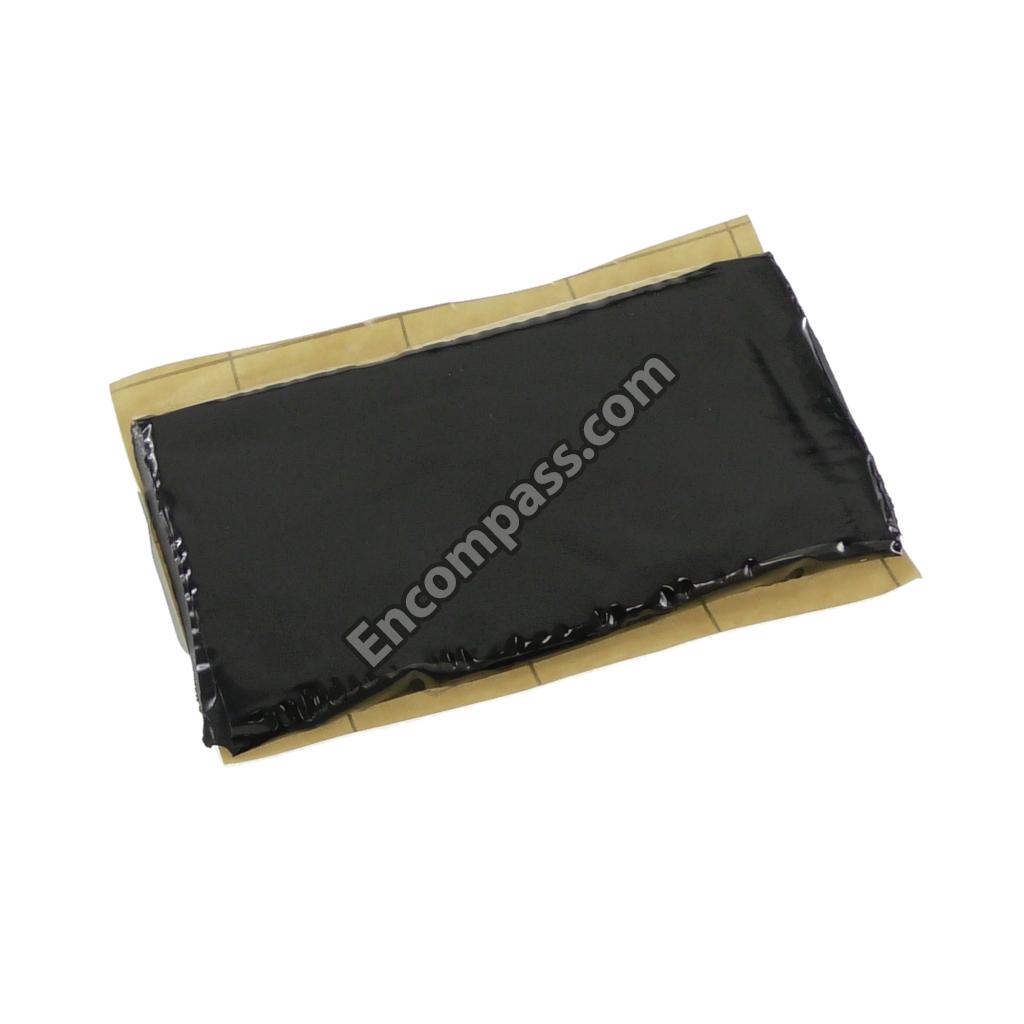

740342000 740342000 ADHESIVE TAPE
727016700 727016700 ADHESIVE TAPE

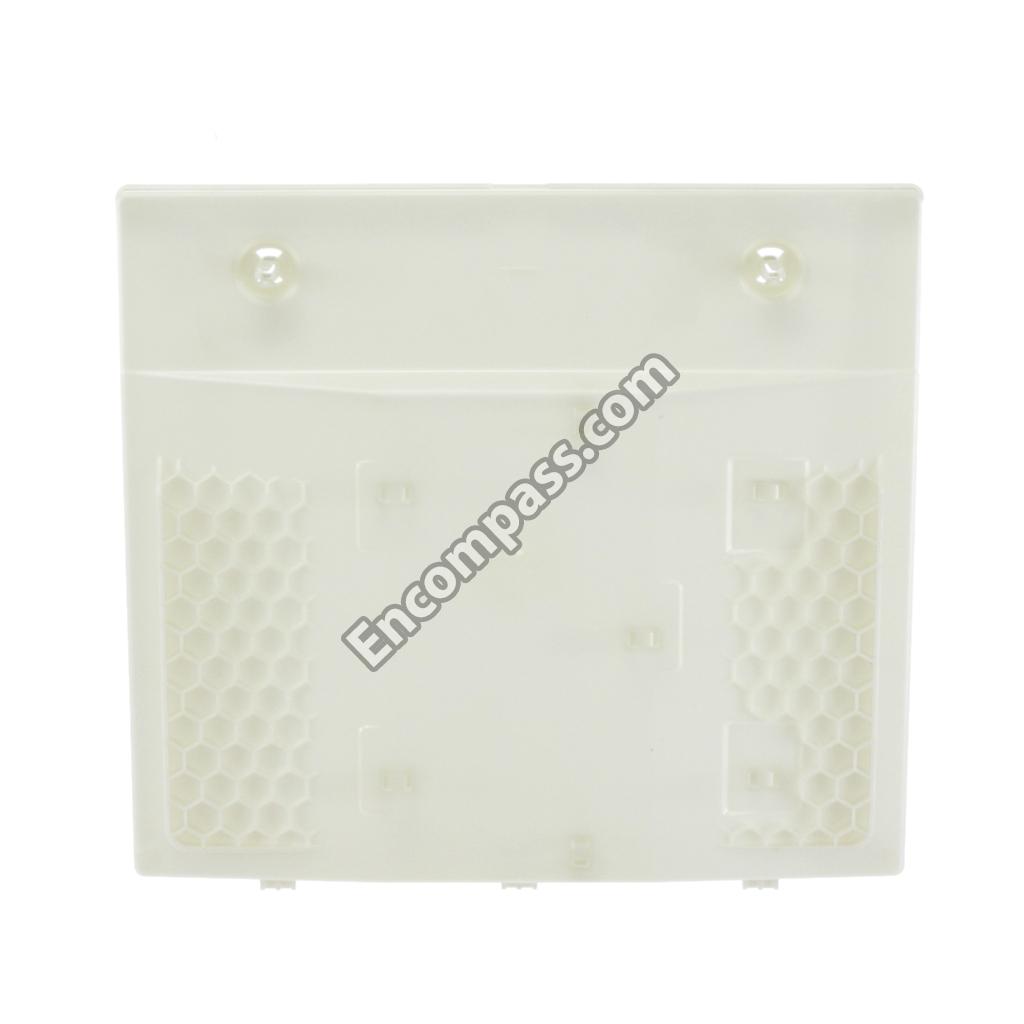

9240120 9240120 AIR DUCT COVER
7439492 7439492 AIR FUNNEL

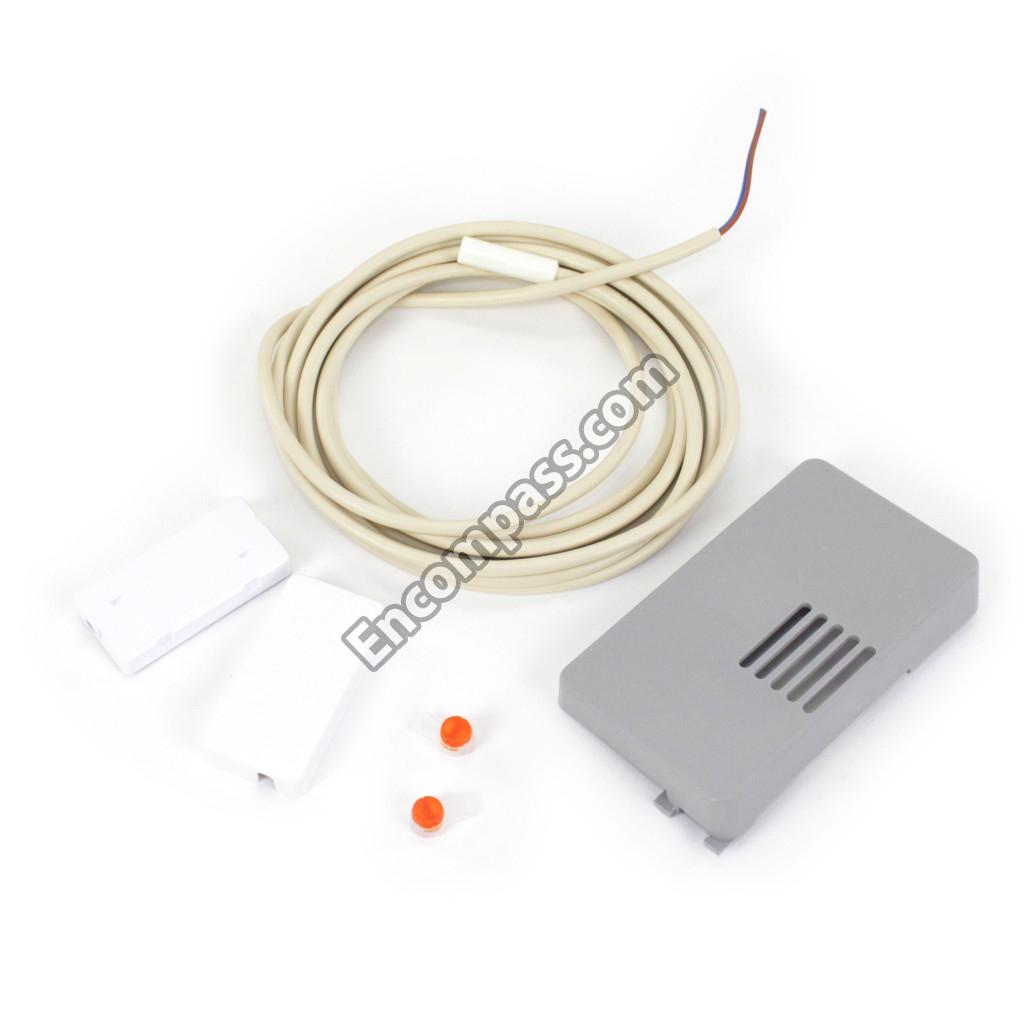

959020602 959020602 AIR SENSOR FOR REFRIGERATOR COMPARTMENT
694300100 694300100 ALUM. HEATING STRIP
979444200 979444200 APPLIANCE EQUIPMENT
979443500 979443500 APPLIANCE EQUIPMENT
979443100 979443100 APPLIANCE EQUIPMENT
9796393 9796393 APPLIANCE EQUIPMENT
9796391 9796391 APPLIANCE EQUIPMENT
9796375 9796375 APPLIANCE EQUIPMENT
980019500 980019500 BASE TRIM
980019600 980019600 BASE TRIM
980020000 980020000 BASE TRIM
9800259 9800259 BASE TRIM
980020100 980020100 BASE TRIM
980020200 980020200 BASE TRIM
980020300 980020300 BASE TRIM
9800260 9800260 BASE TRIM
9800682 9800682 BASE TRIM
9800261 9800261 BASE TRIM

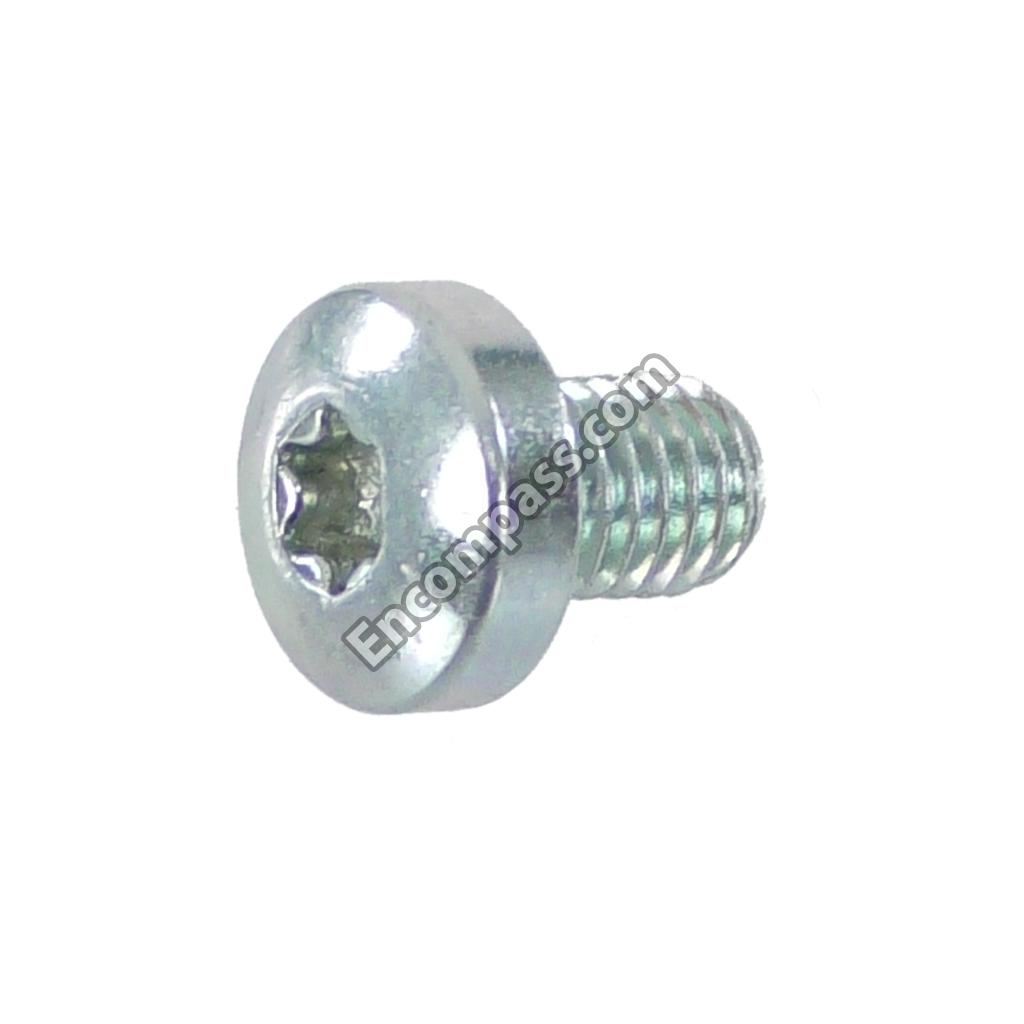

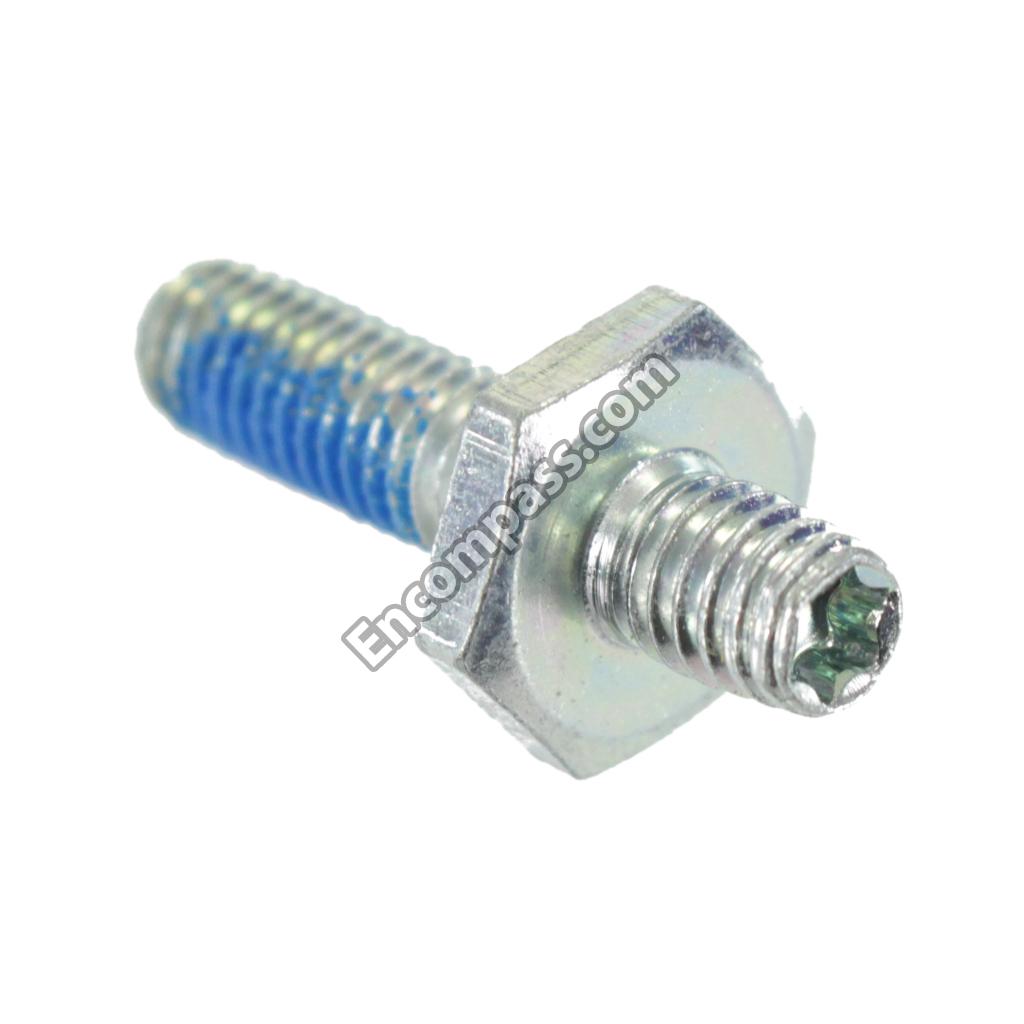

711311704 711311704 BOLT
711313700 711313700 BOLT
7113147 7113147 BOLT
7113687 7113687 BOLT

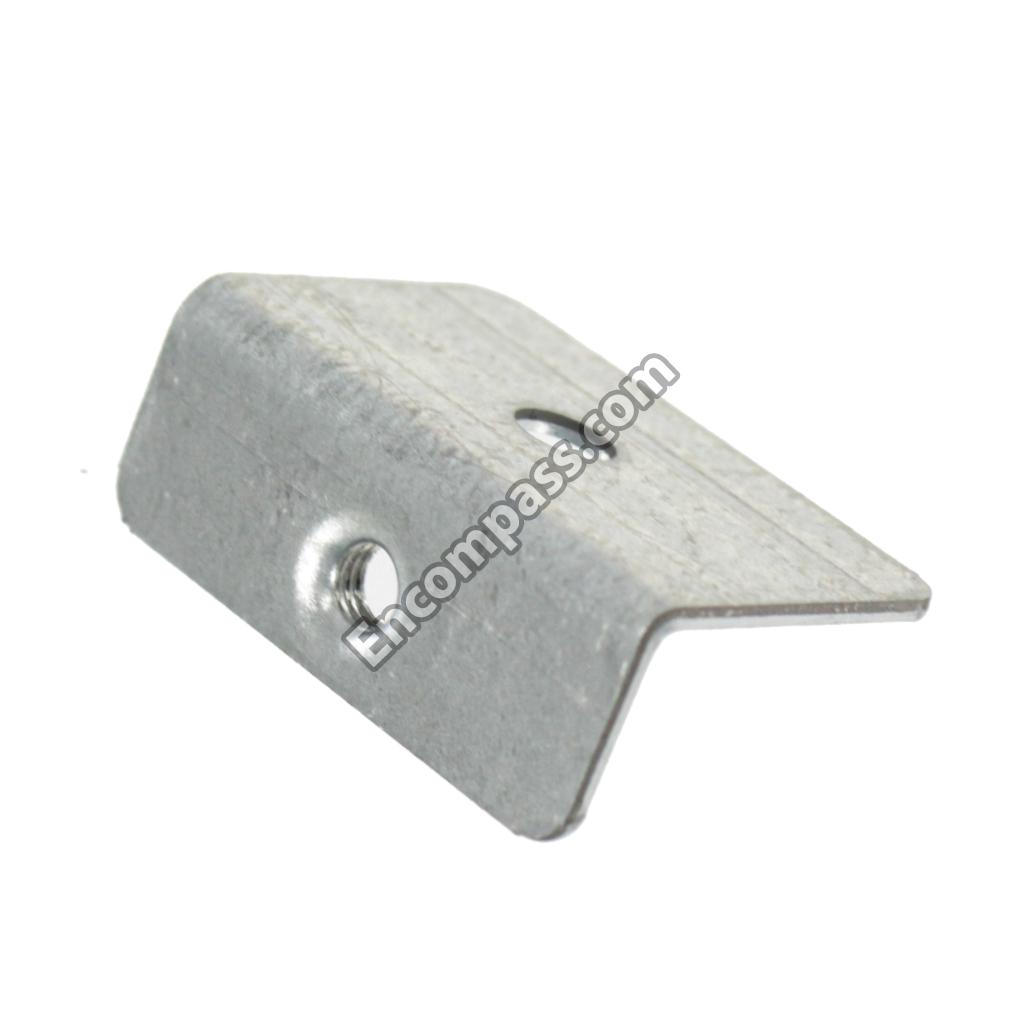

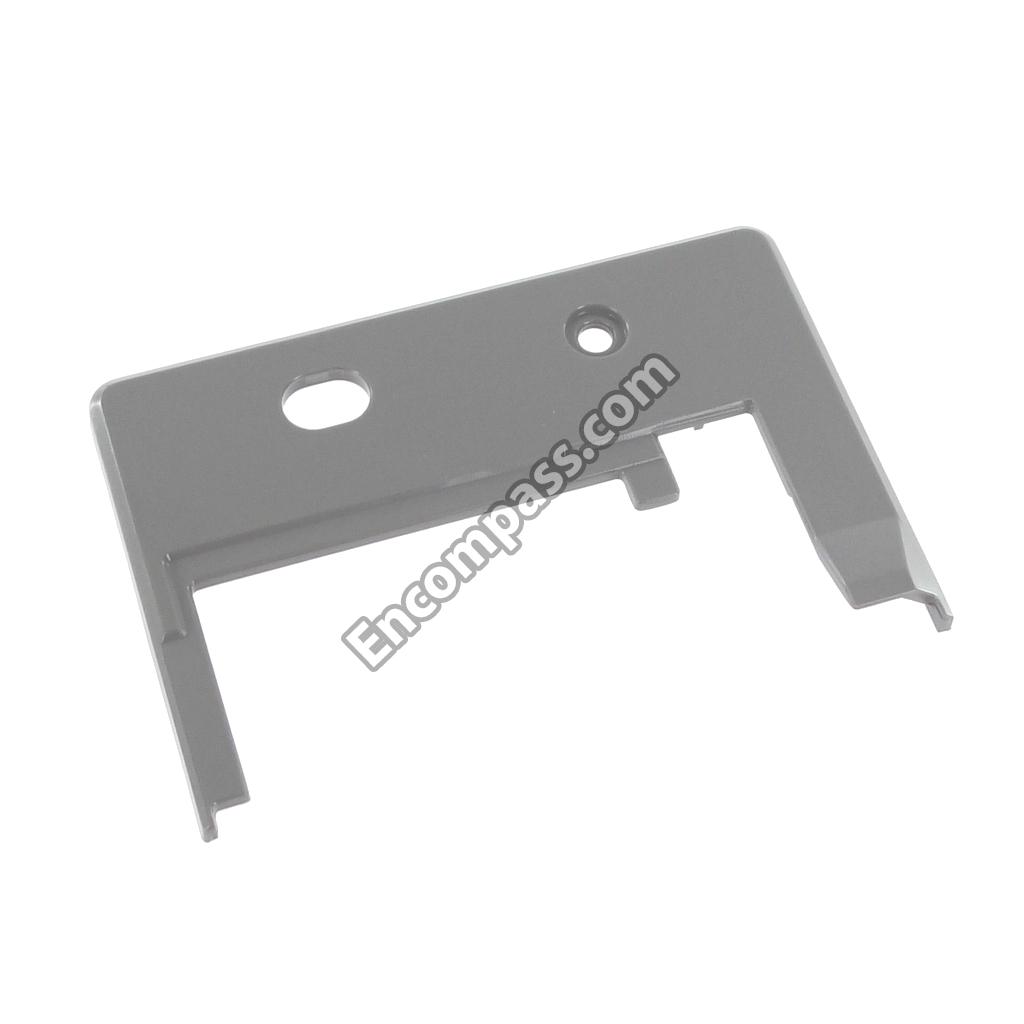

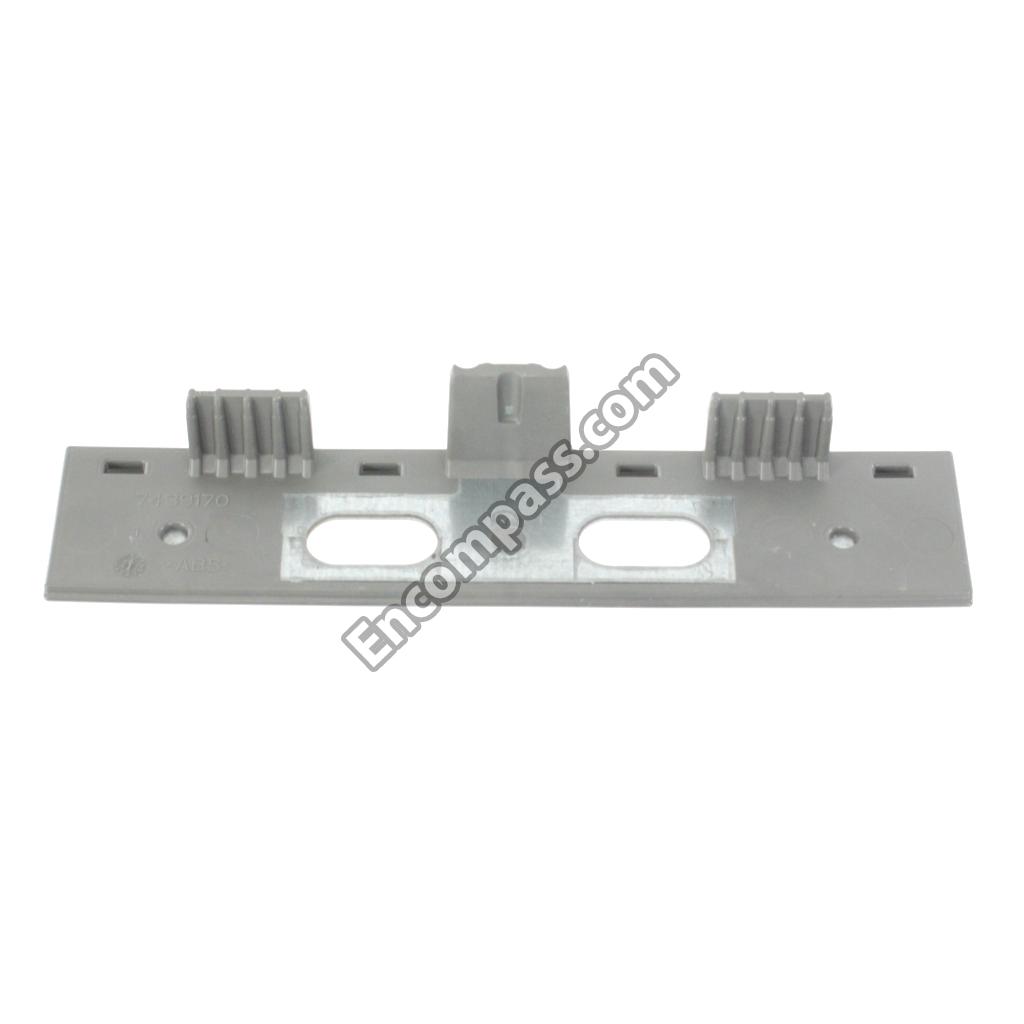

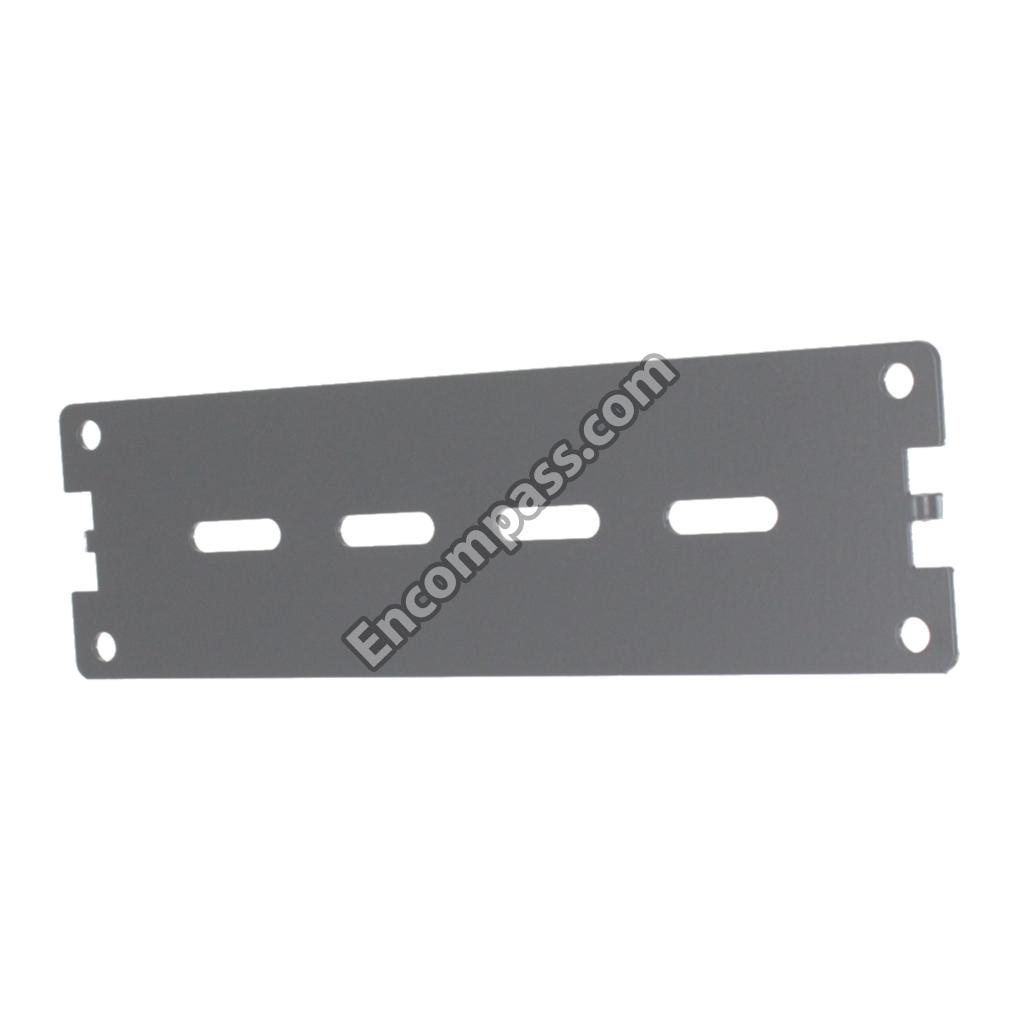

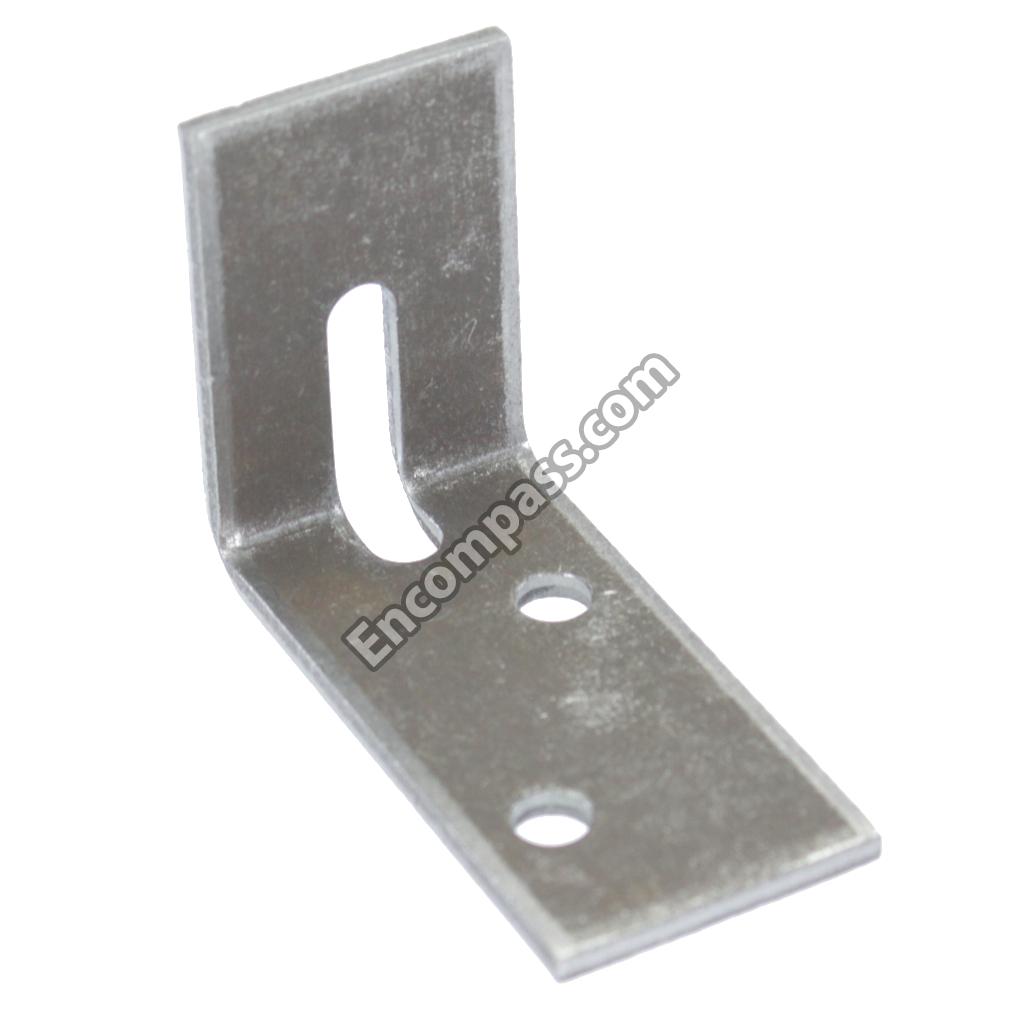

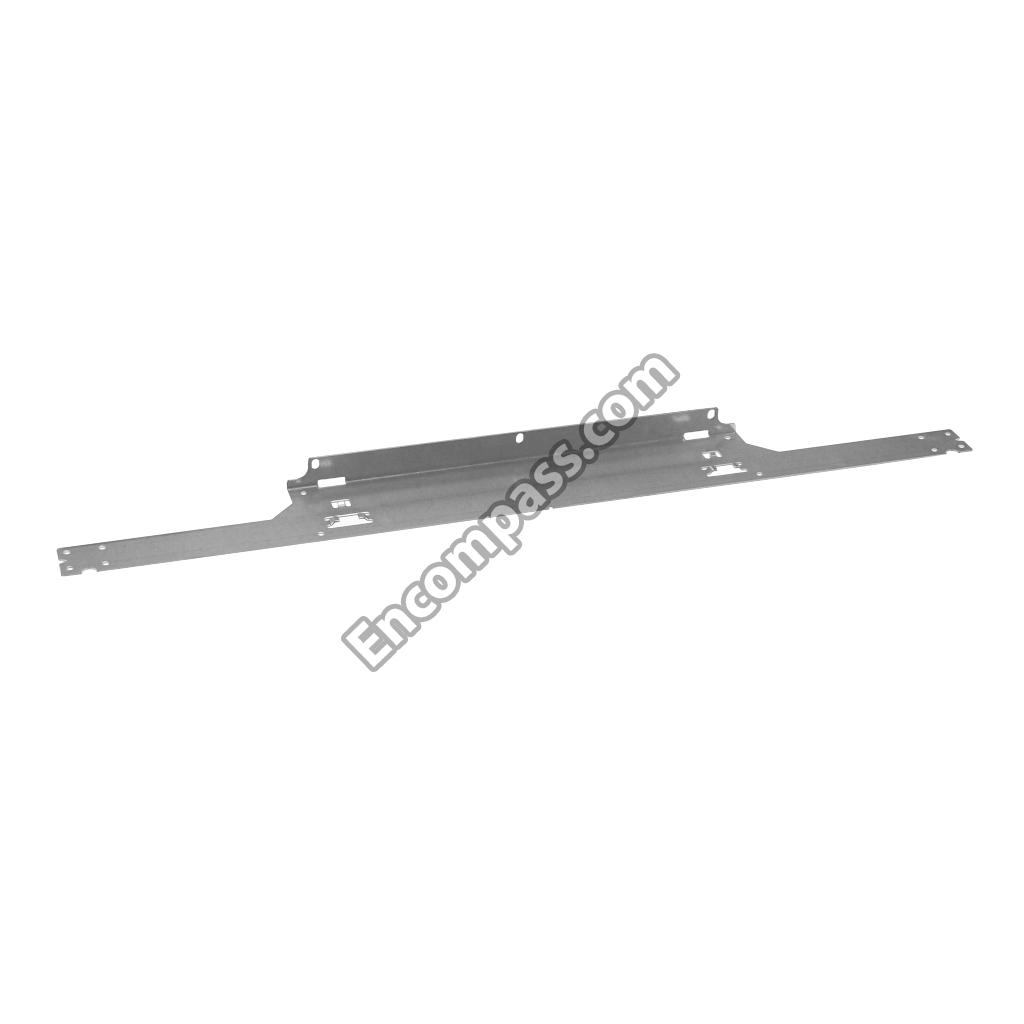

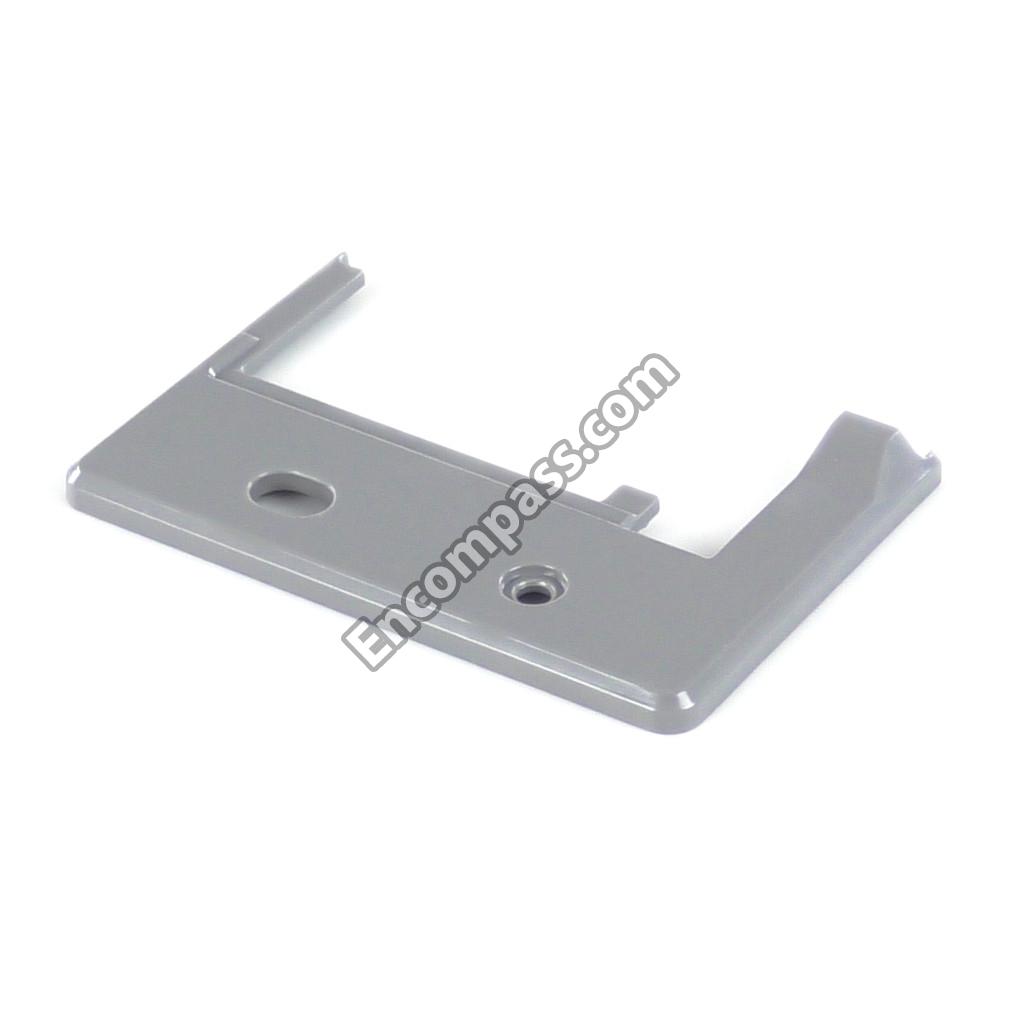

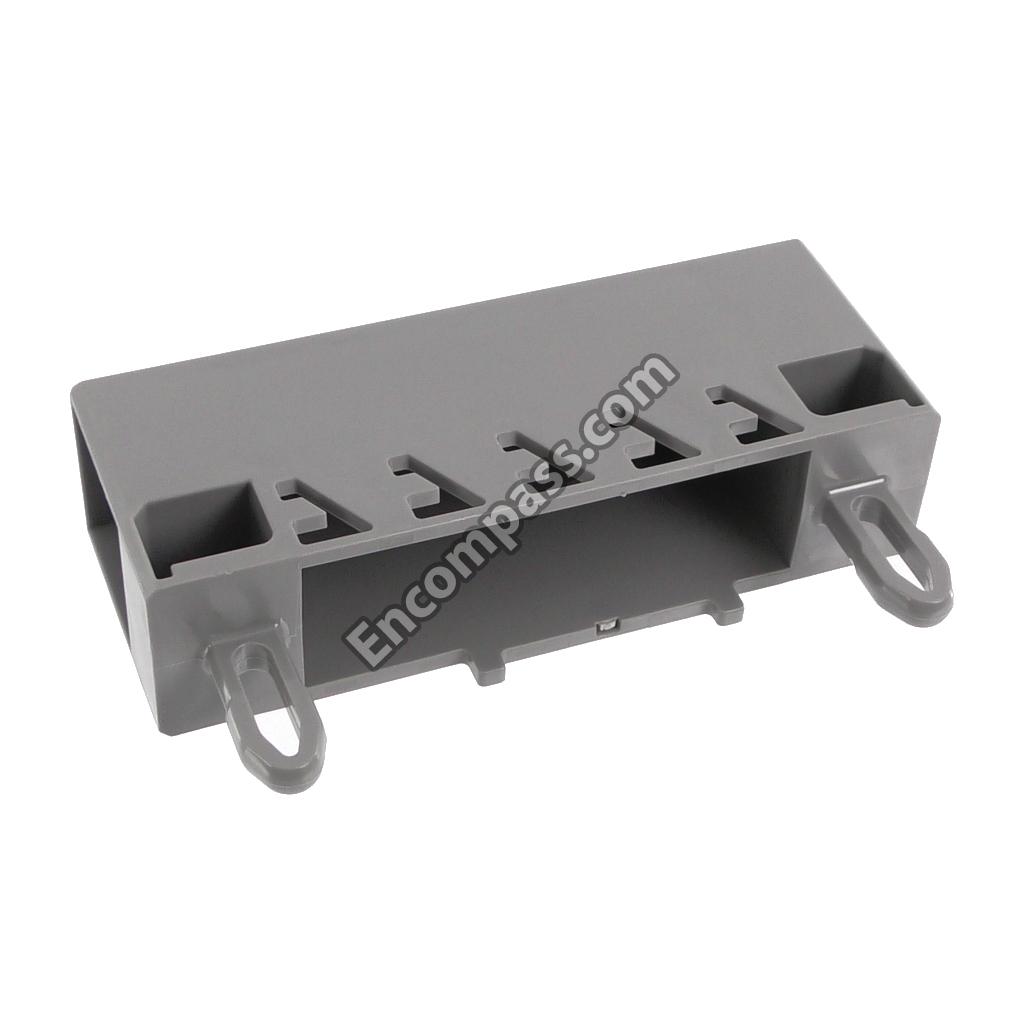

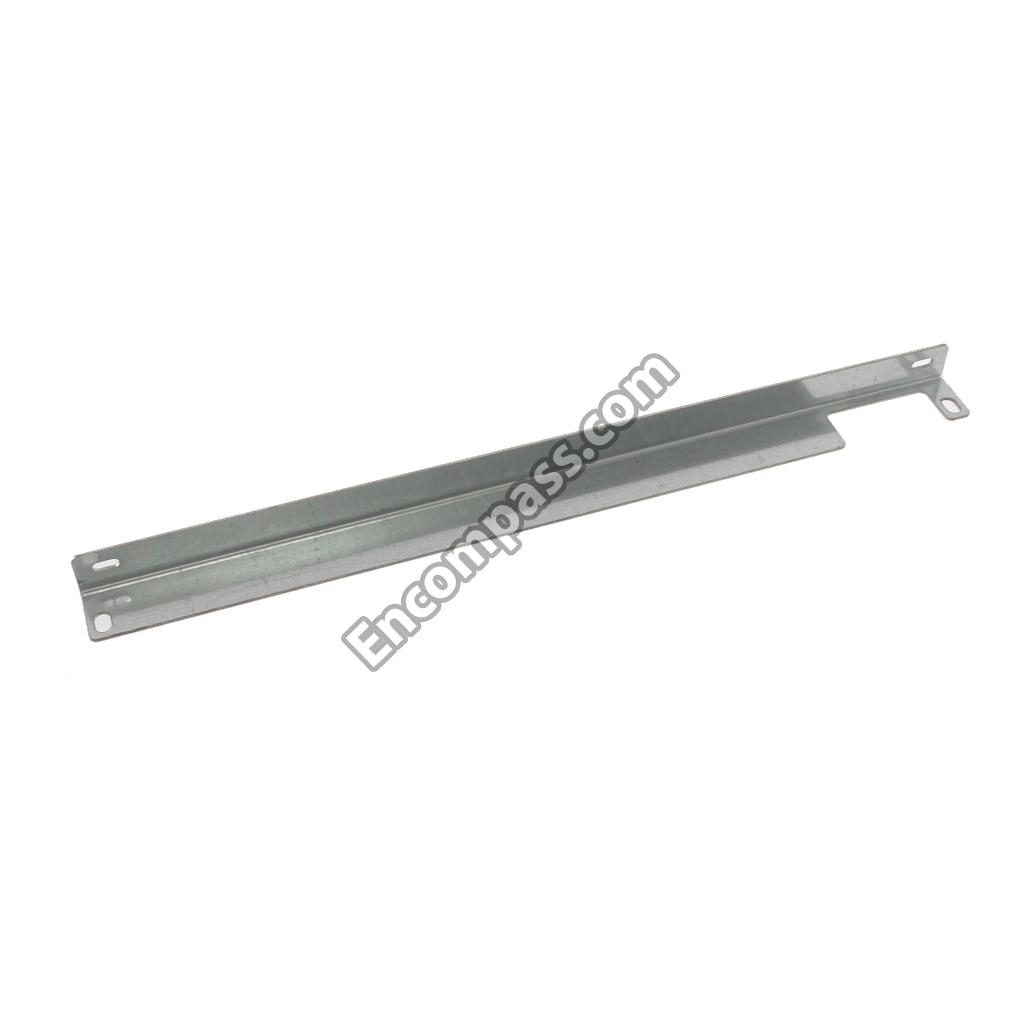

704292001 704292001 BRACKET
774621400 774621400 BRACKET
774610701 774610701 BRACKET
7747993 7747993 BRACKET
7747996 7747996 BRACKET
7747994 7747994 BRACKET
920170900 920170900 BRACKET
9201716 9201716 BRACKET
9201717 9201717 BRACKET
920171400 920171400 BRACKET
774784500 774784500 BRACKET
774785500 774785500 BRACKET

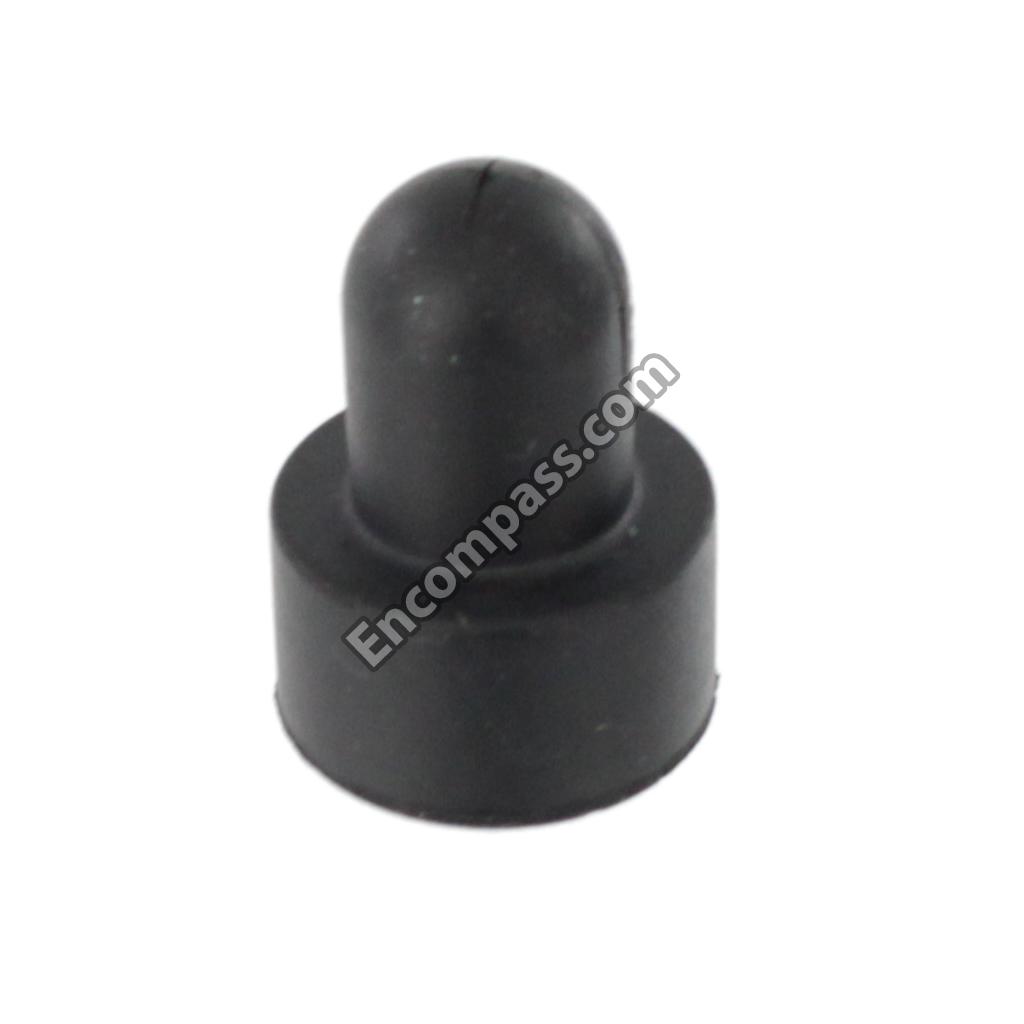

7266225 7266225 BUFFER
726625200 726625200 BUFFER
726625400 726625400 BUFFER
9002472 9002472 BUTTON
401079700 401079700 CHEESE-HEAD SCREW WITH SLOT
9043041 9043041 CLIP-IN STRIP
9043042 9043042 CLIP-IN STRIP

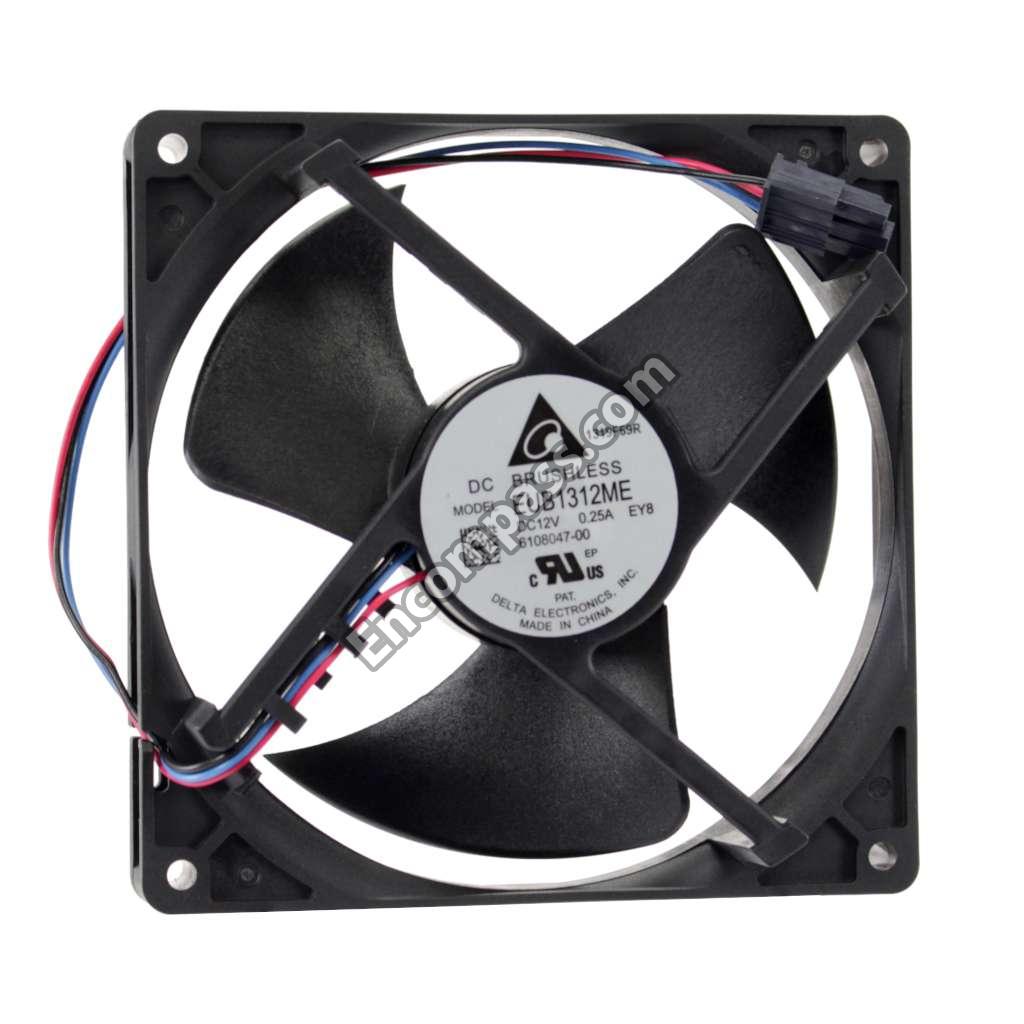

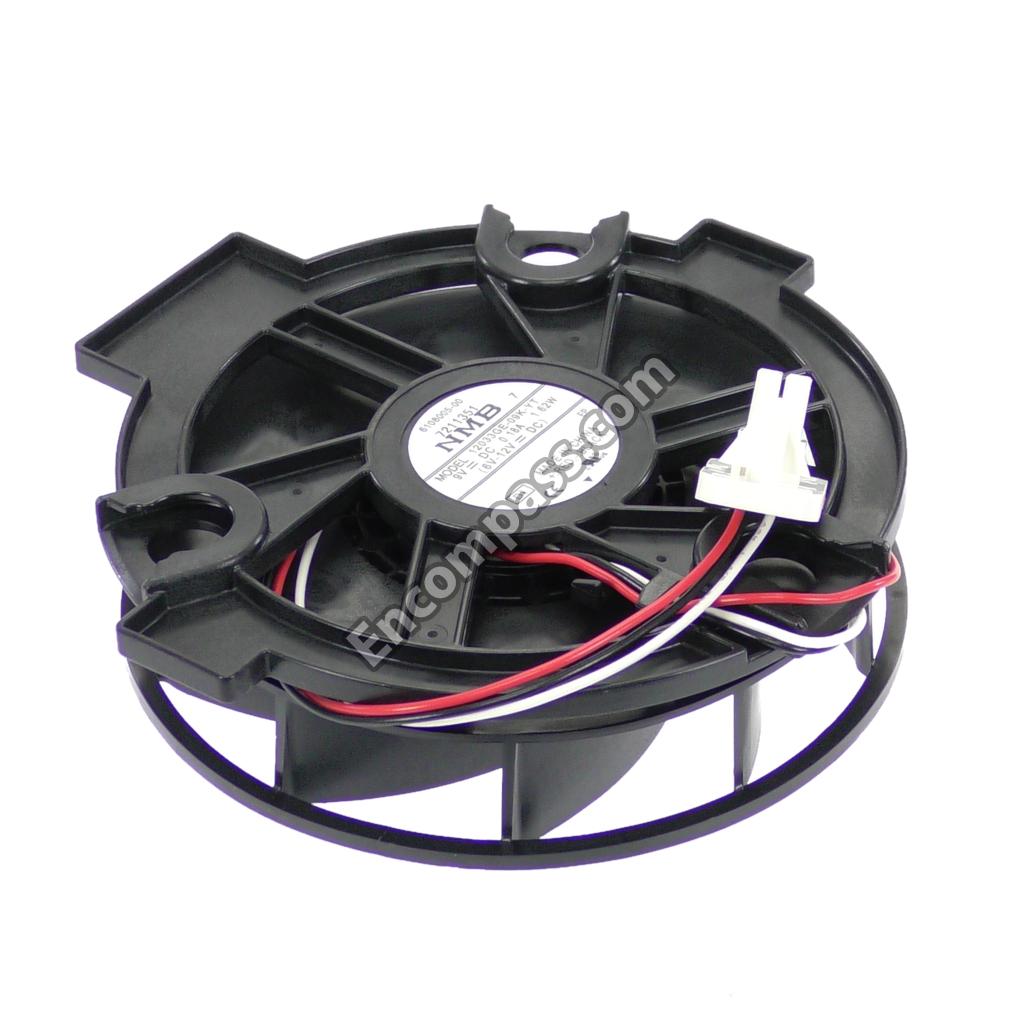

610800500 610800500 COMPACT FAN
610804700 610804700 COMPACT FAN
610909400 610909400 COMPRESSOR R 600 A
987432701 987432701 COMPRESSOR SUPPORT

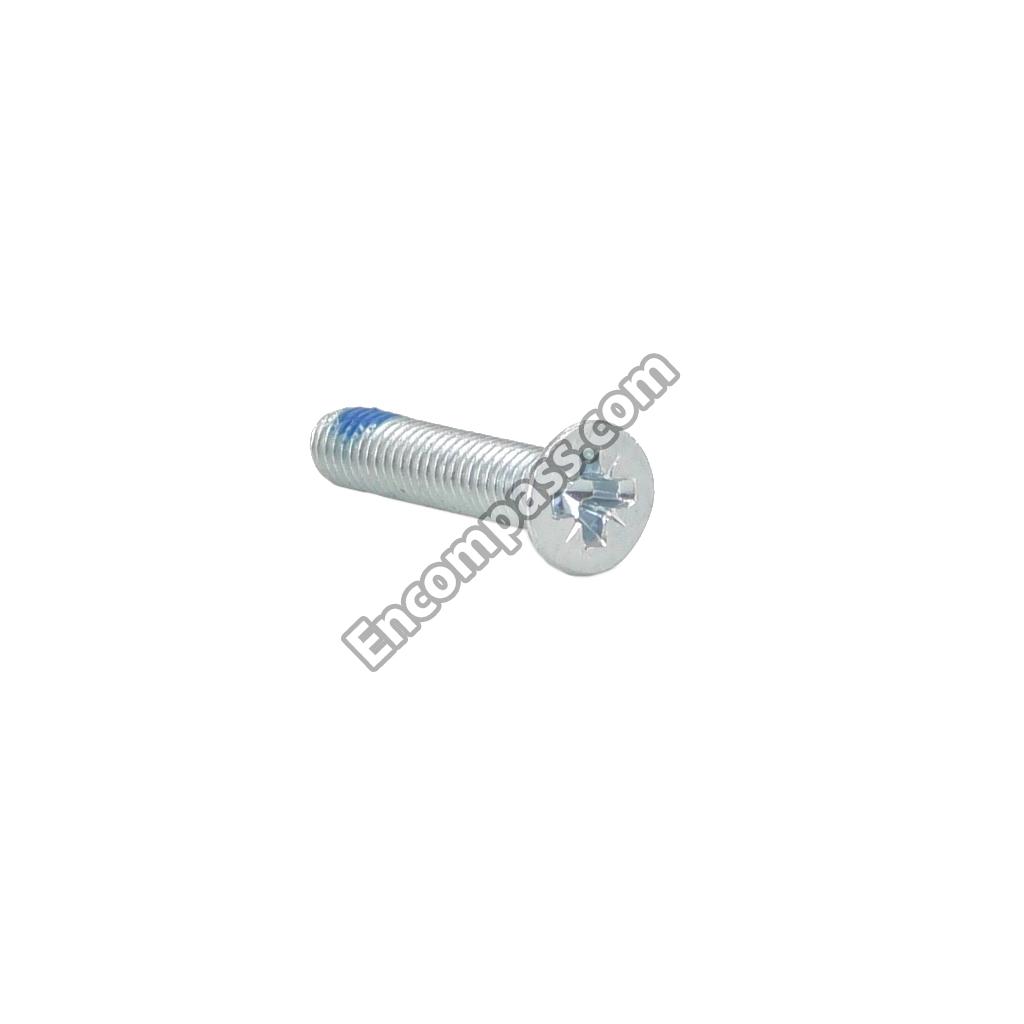

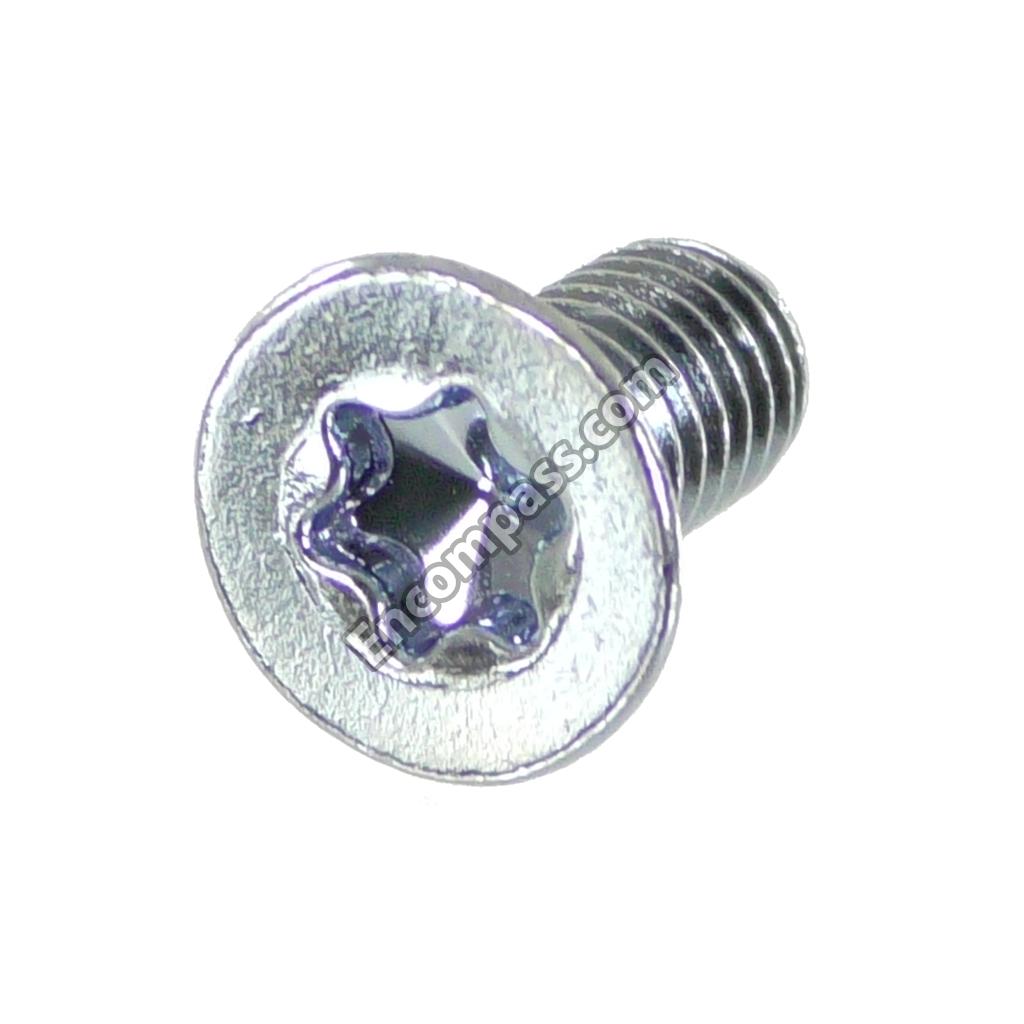

409864300 409864300 COUNTERSUNK SCREW
409862901 409862901 COUNTERSUNK SCREW
409831500 409831500 COUNTERSUNK SCREW

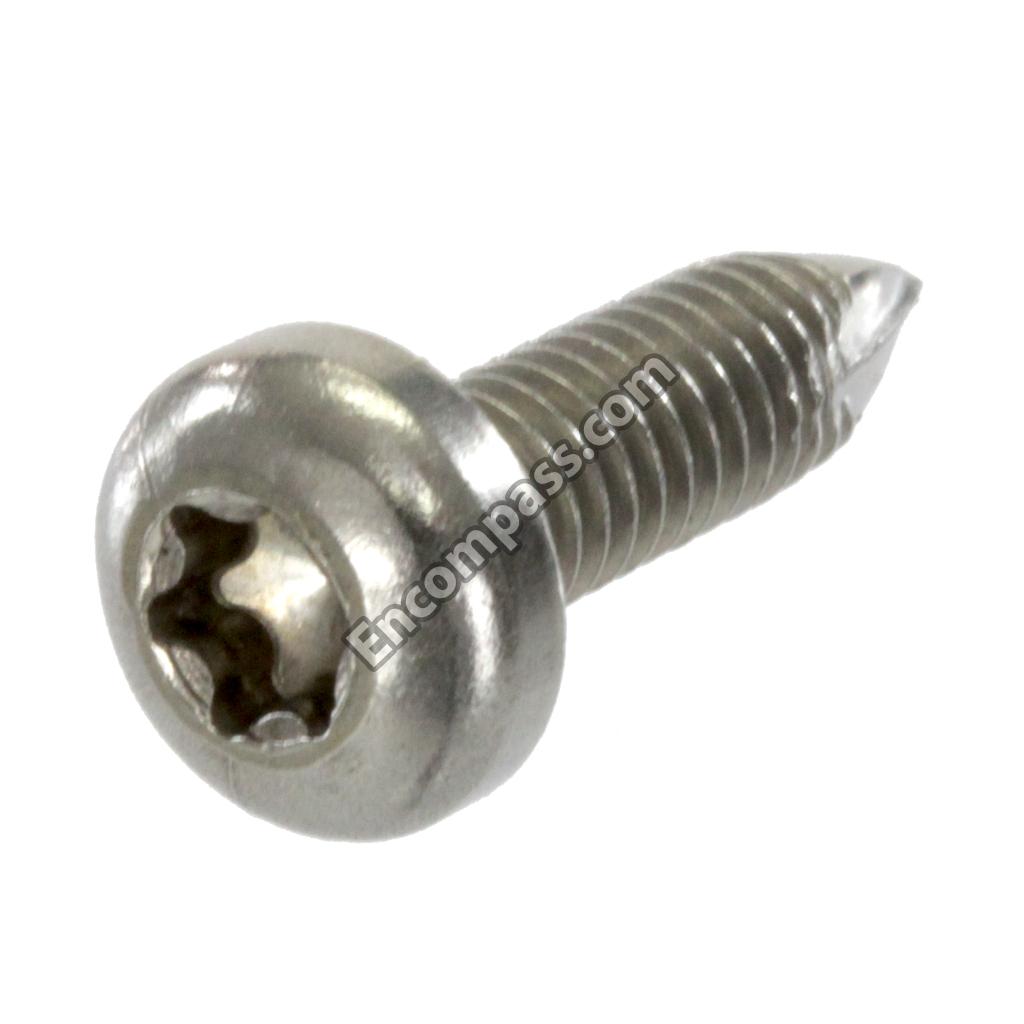

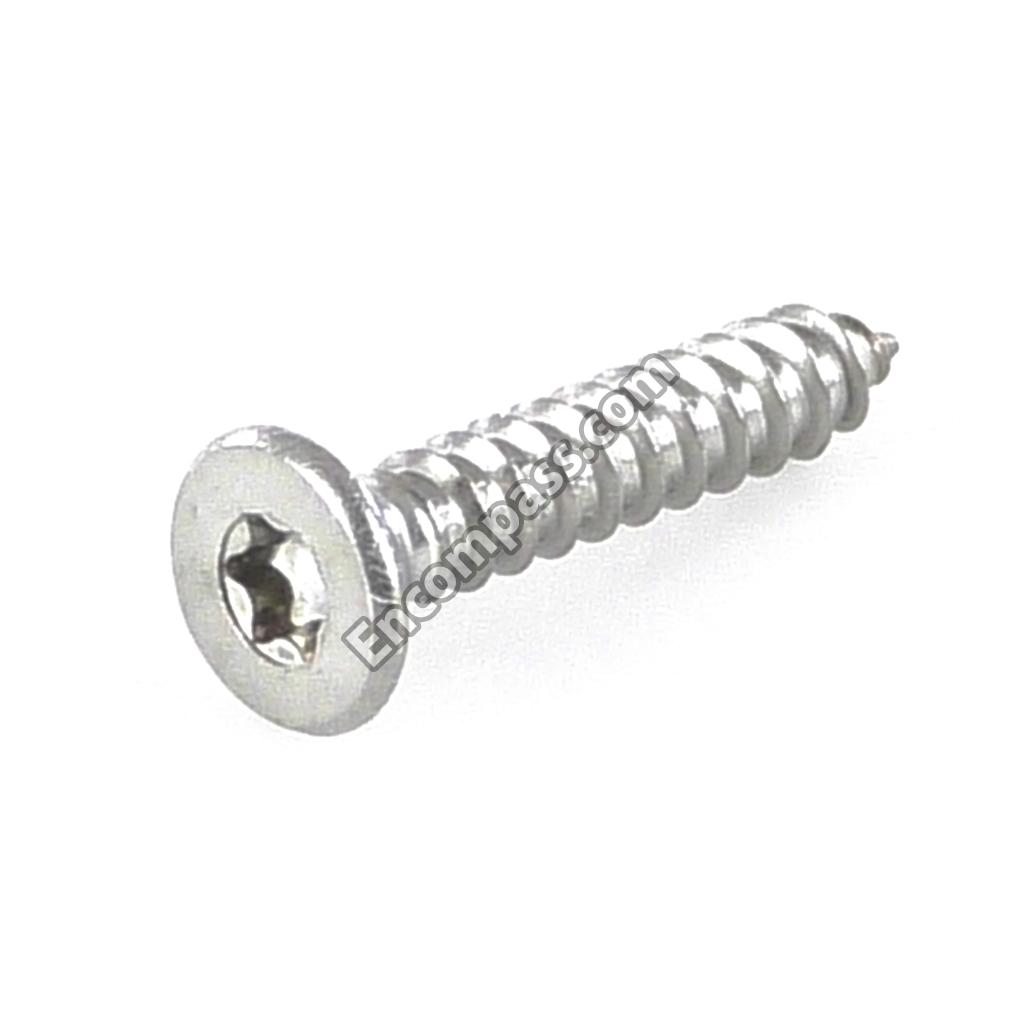

409826100 409826100 COUNTERSUNK SELF-TAPPING SCREW
409831700 409831700 COUNTERSUNK SELF-TAPPING SCREW
408286001 408286001 COUNTERSUNK SELF-TAPPING SCREW
408285301 408285301 COUNTERSUNK SELF-TAPPING SCREW

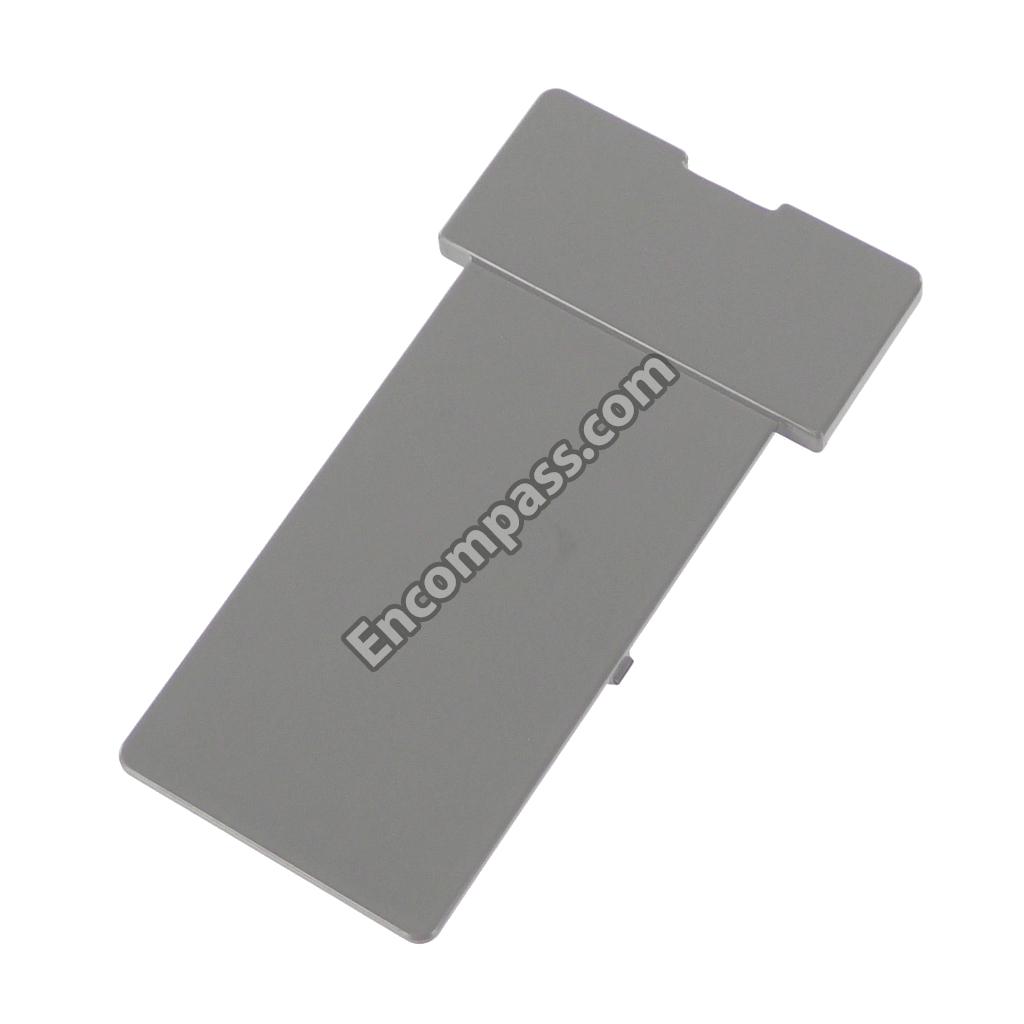

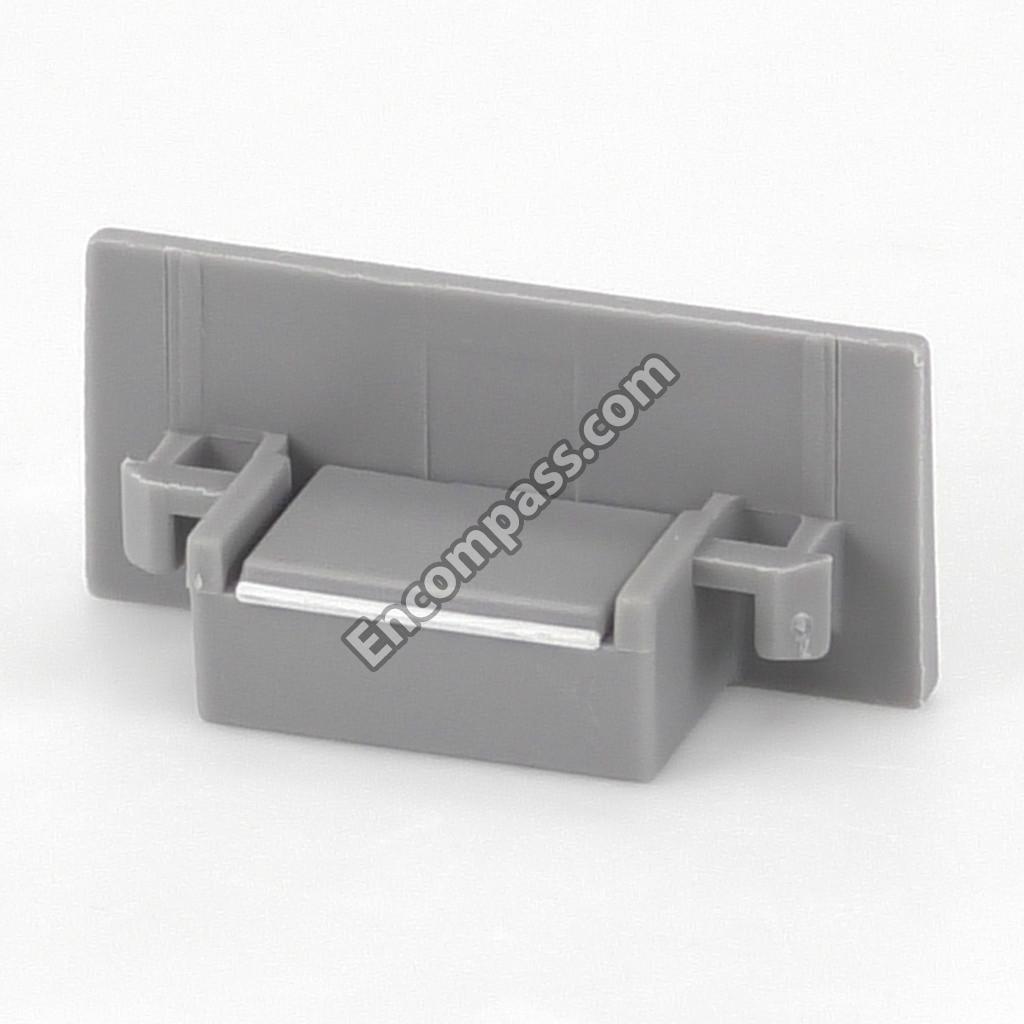

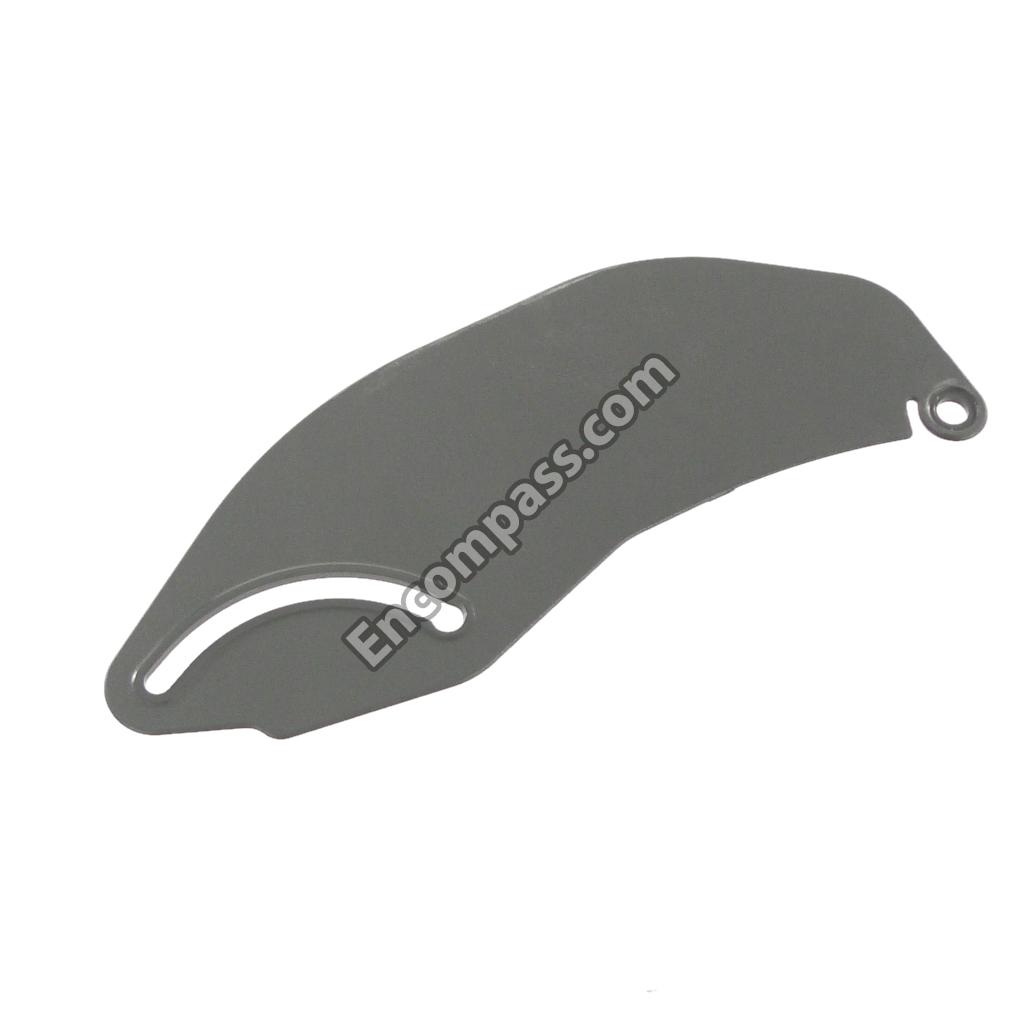

743919001 743919001 COVER
7439422 7439422 COVER
7421175 7421175 COVER
7426205 7426205 COVER
742620300 742620300 COVER
743913501 743913501 COVER
743360200 743360200 COVER
743924901 743924901 COVER
743683500 743683500 COVER
743642301 743642301 COVER
743908601 743908601 COVER
7439414 7439414 COVER

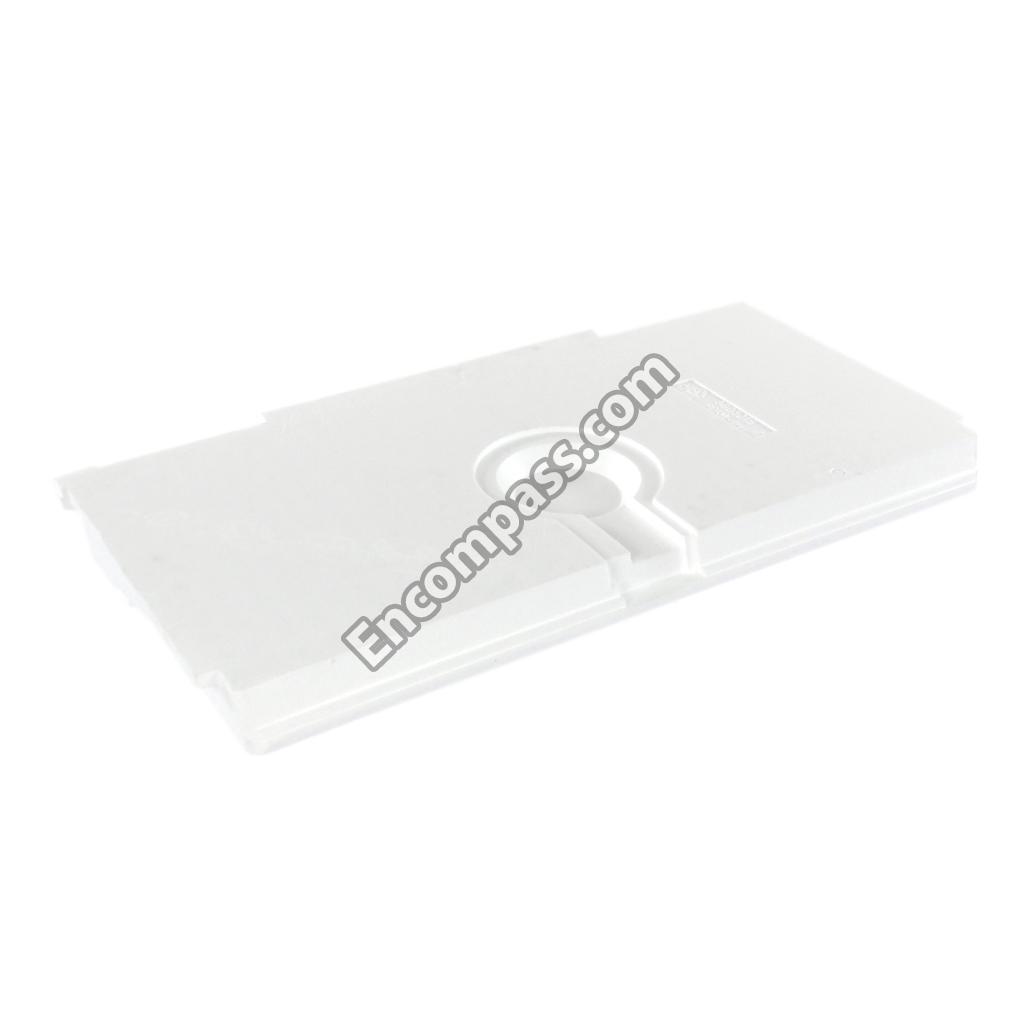

774780000 774780000 COVER PANEL
774725200 774725200 COVER PANEL
9007859 9007859 COVER PANEL
9000682 9000682 COVER PANEL
900703700 900703700 COVER PANEL
764103300 764103300 COVER STRIP
9000530 9000530 COVERS, VARIOUS
9821077 9821077 DECOR PANEL
9821081 9821081 DECOR PANEL
7439229 7439229 DIVIDING WALL

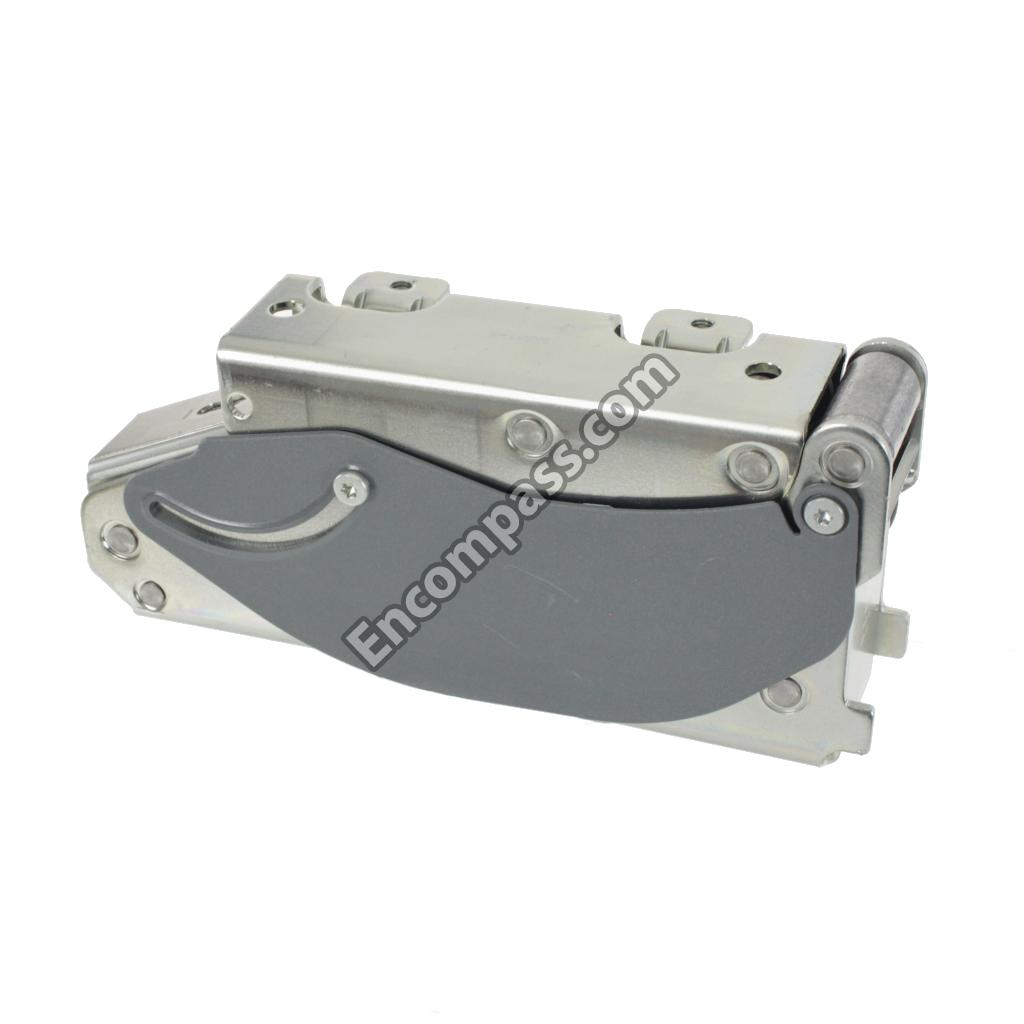

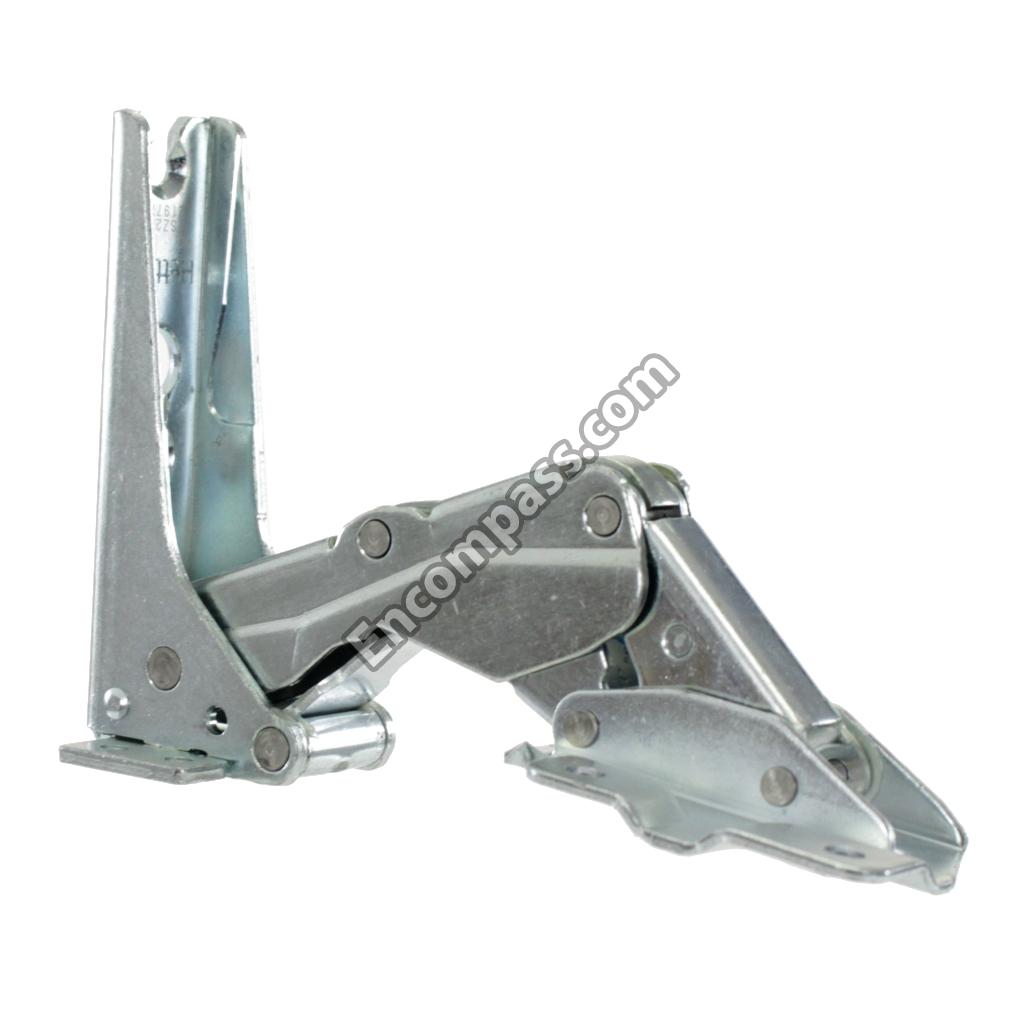

704425900 704425900 DOOR HINGE
945466400 945466400 DOOR HINGE
7429694 7429694 DOOR RACK COMPLETE
9024358 9024358 DOOR, CAVITY-FOAMED
9022331 9022331 DOOR, CAVITY-FOAMED
9821079 9821079 DOOR, WELDED
9821083 9821083 DOOR, WELDED
9821041 9821041 DOOR, WELDED

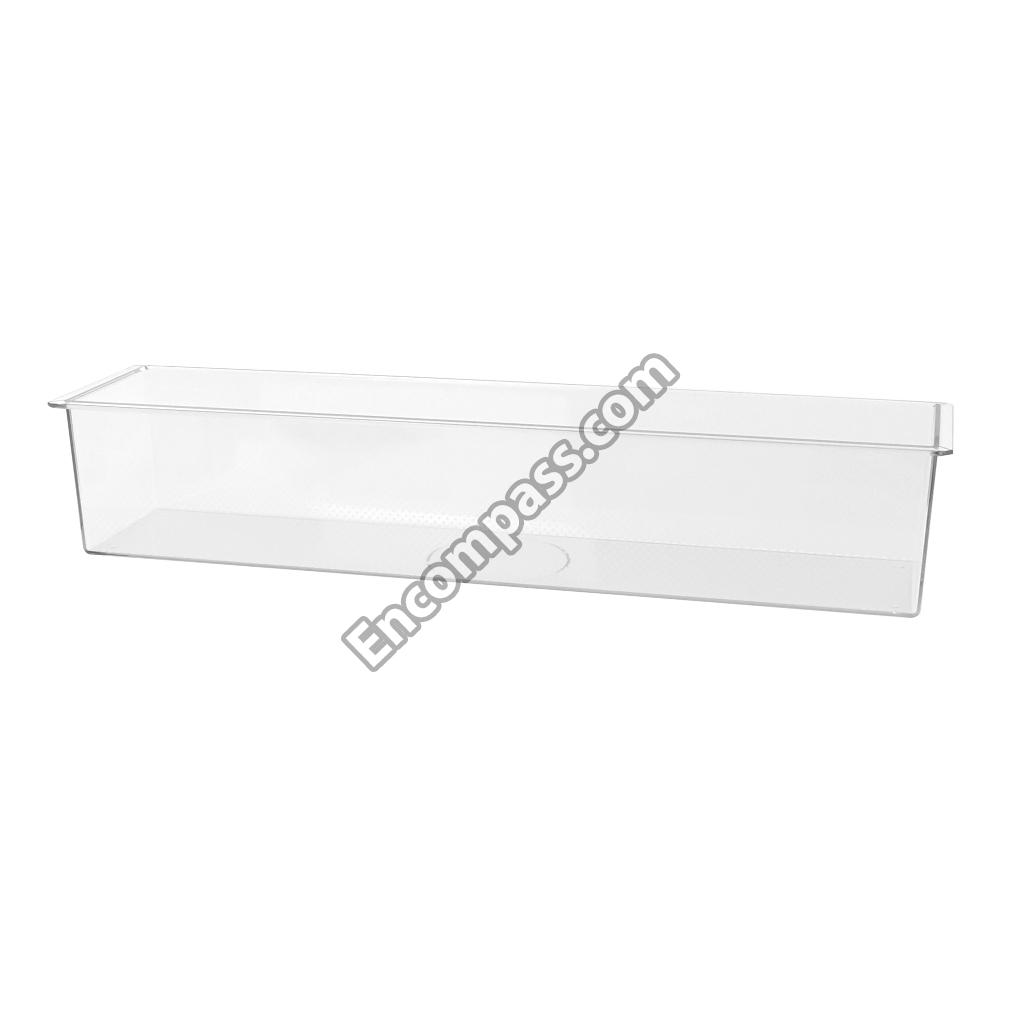

743903200 743903200 DRAWER BODY

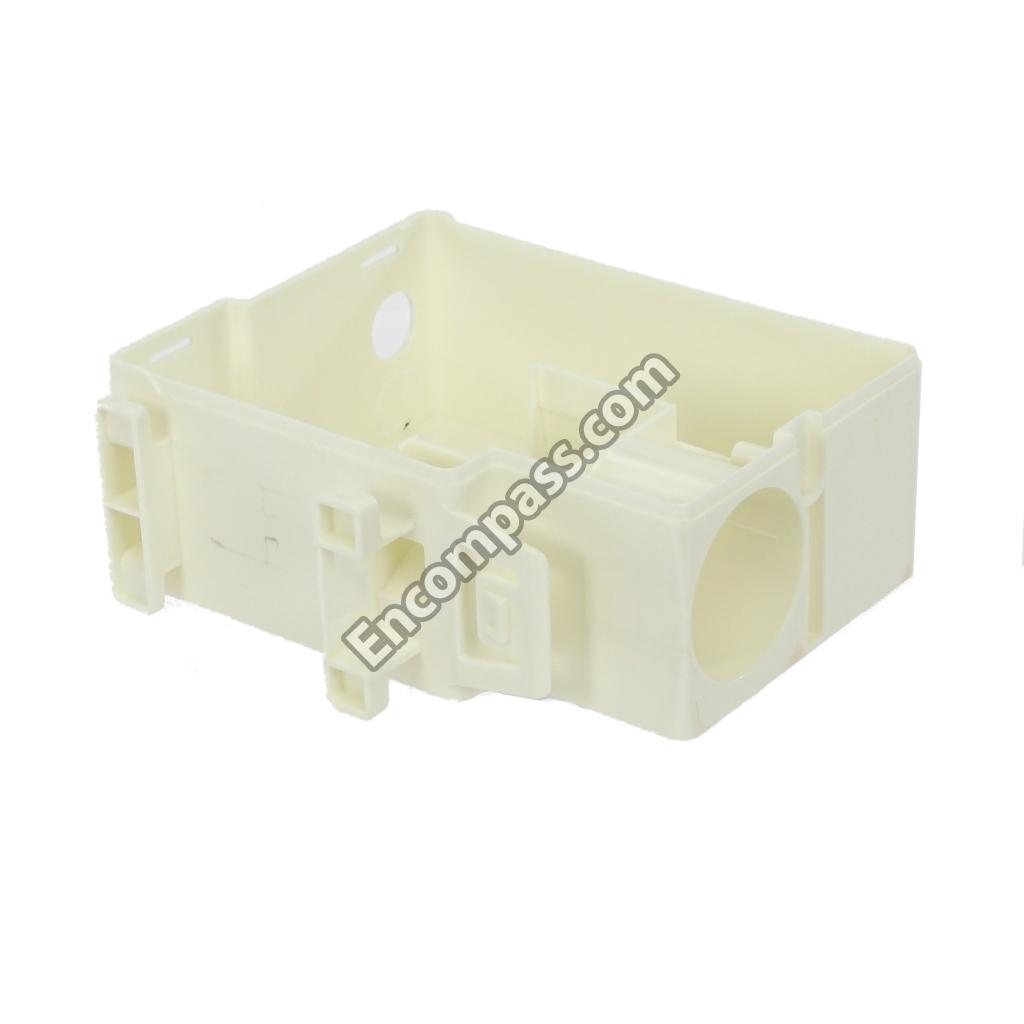

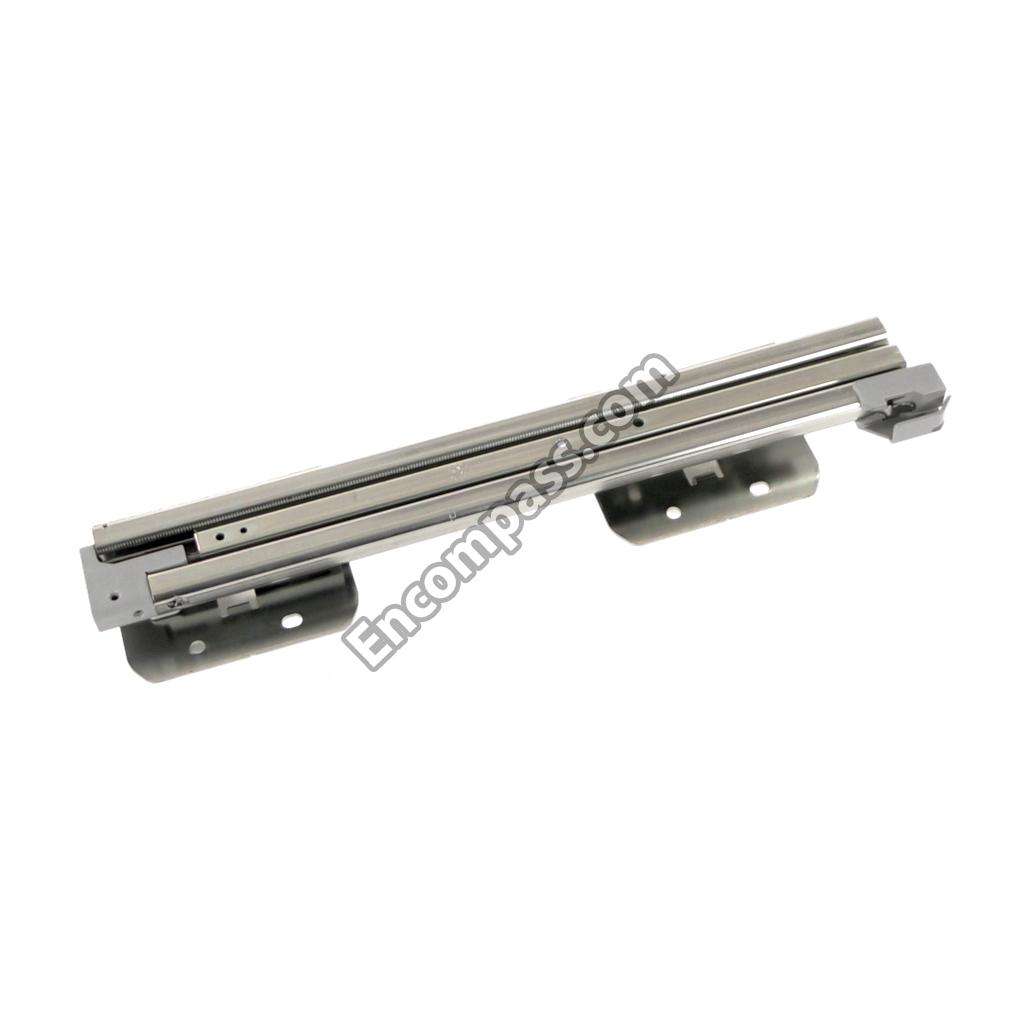

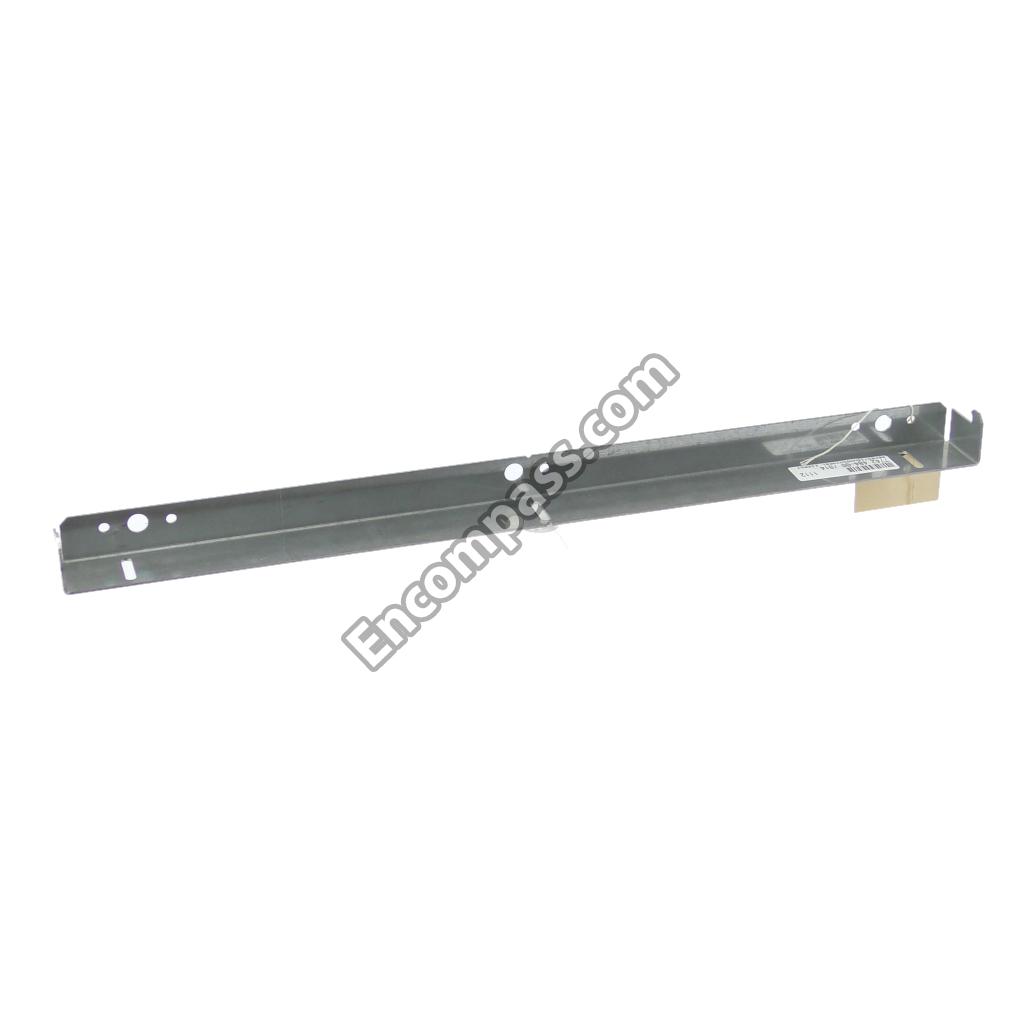

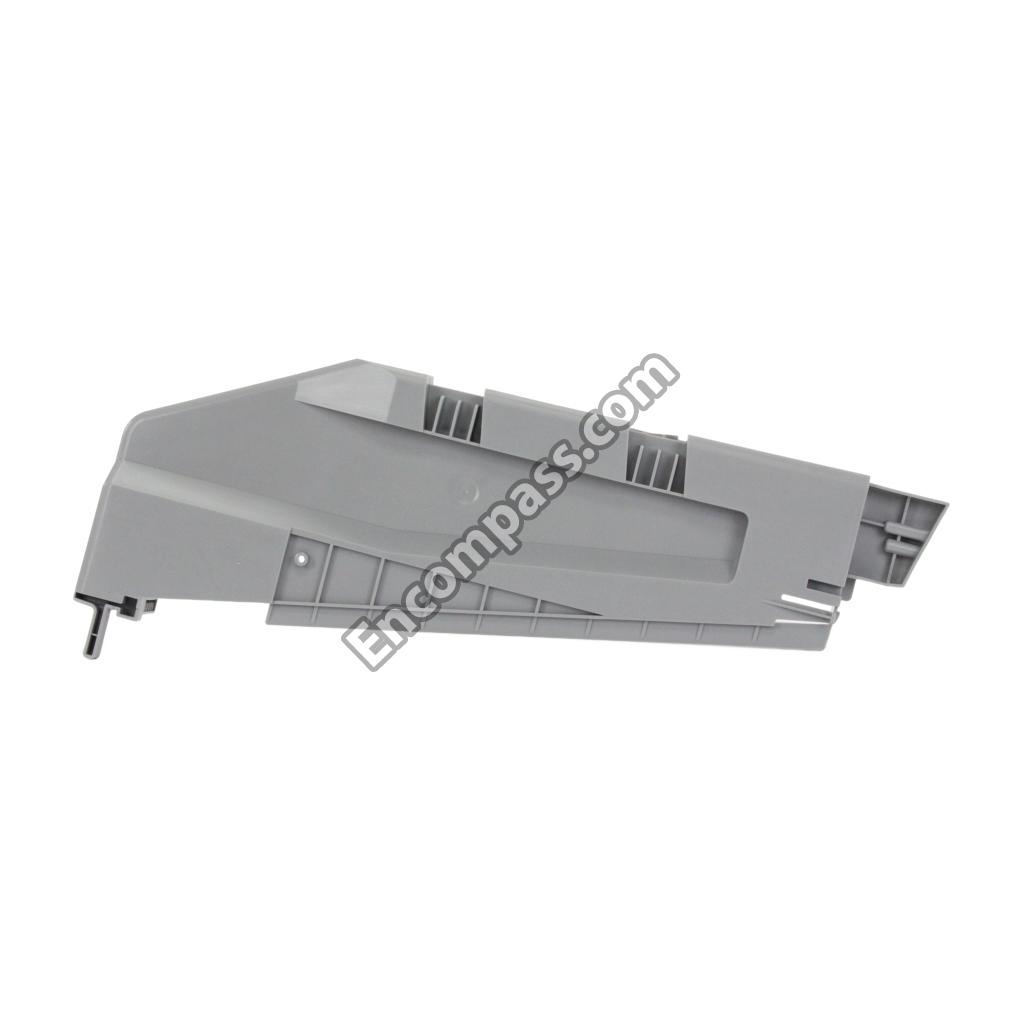

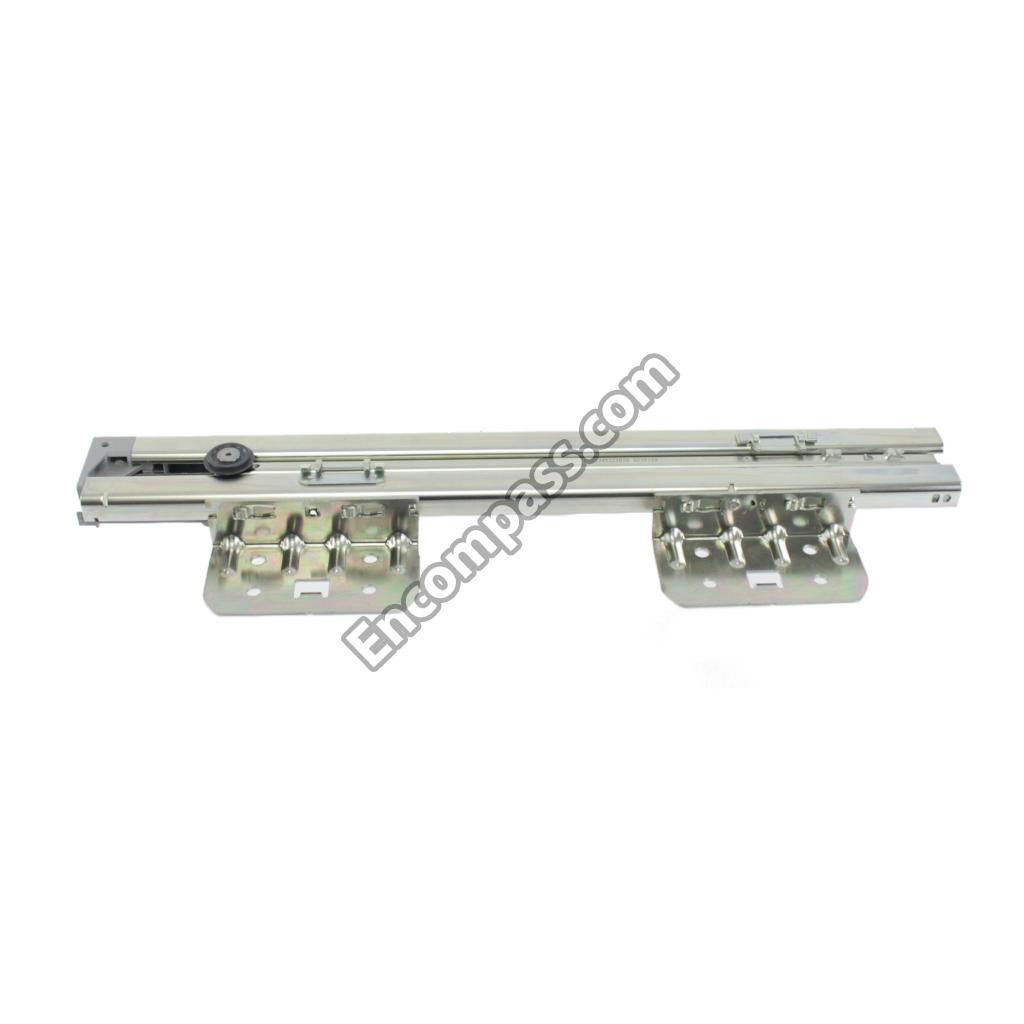

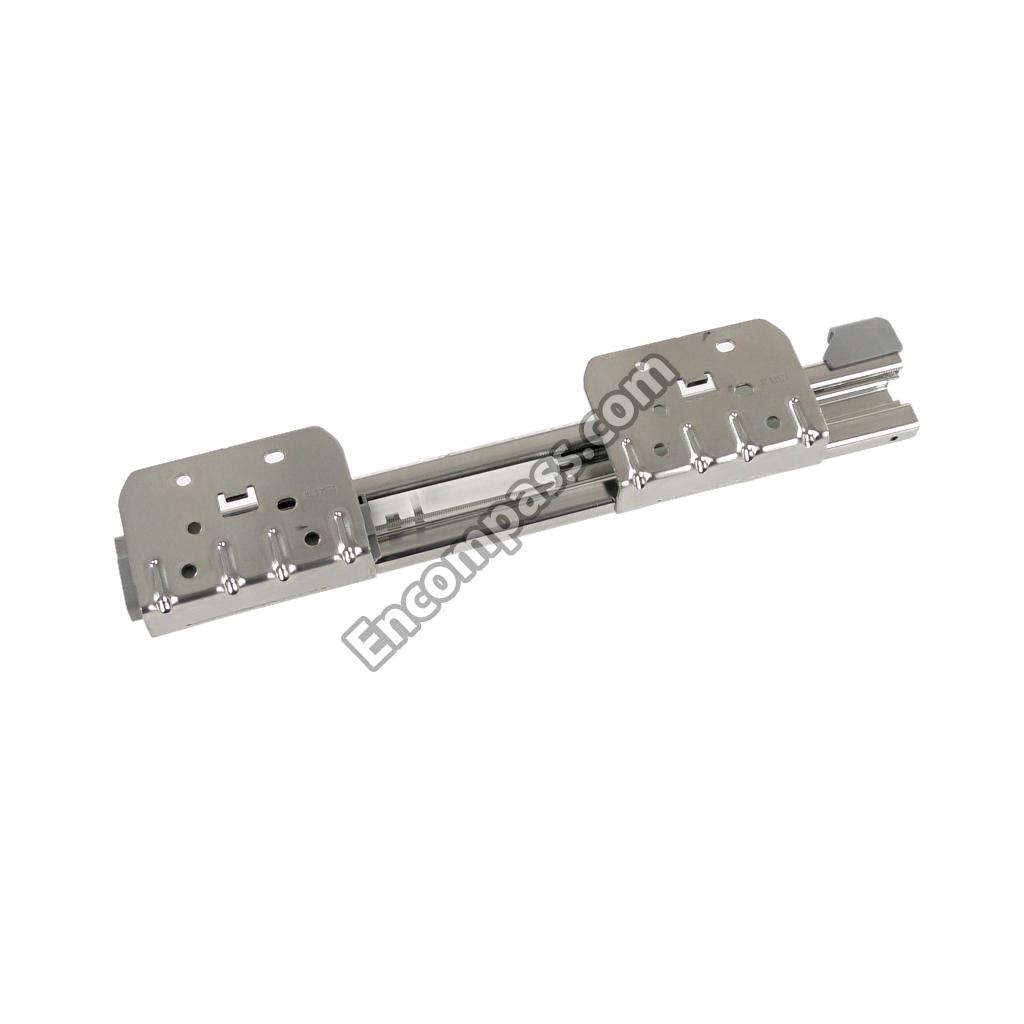

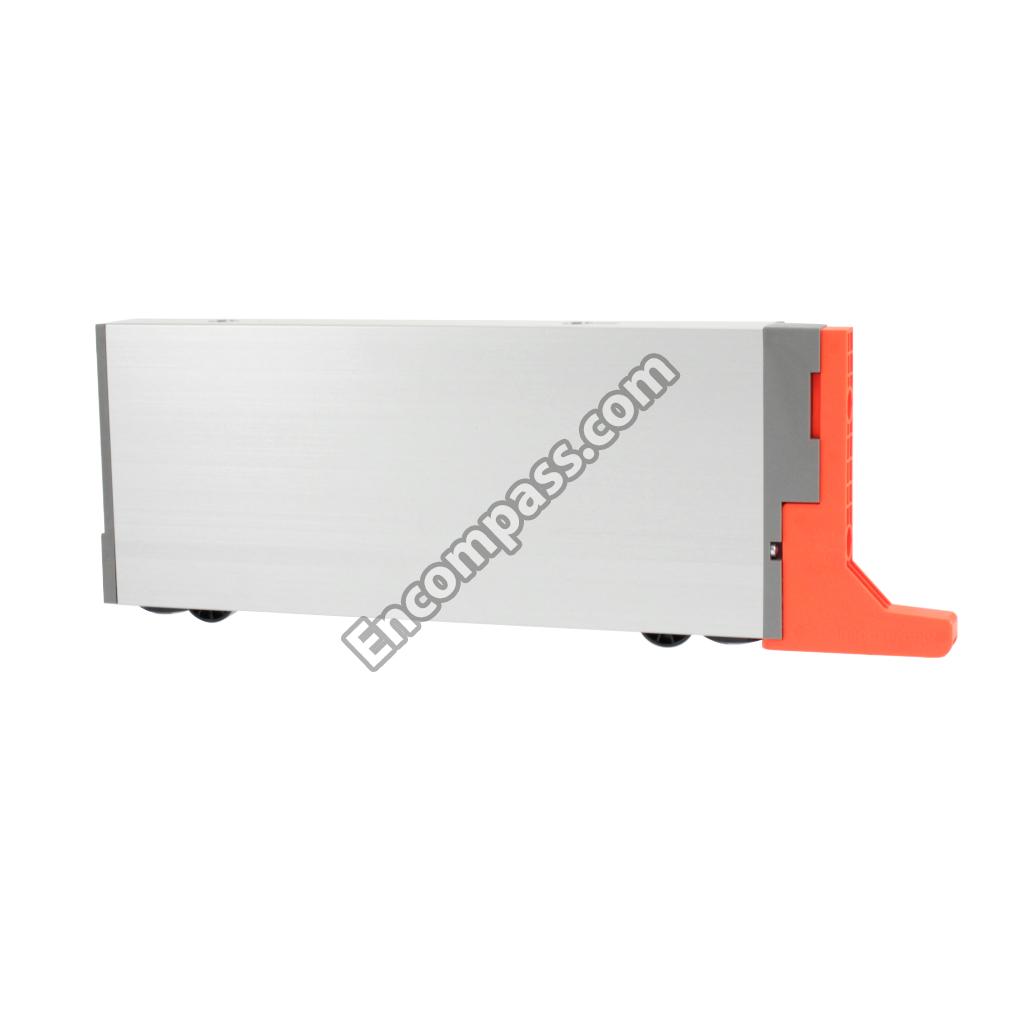

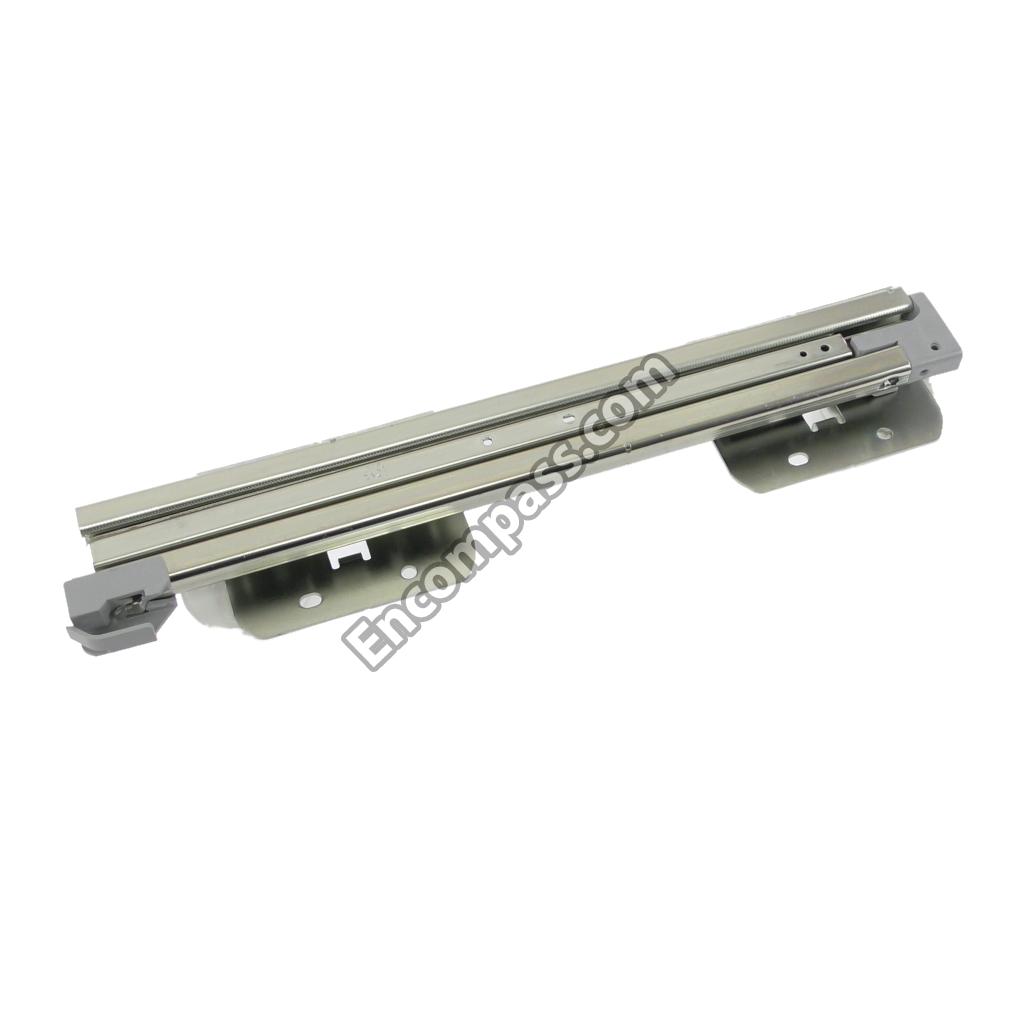

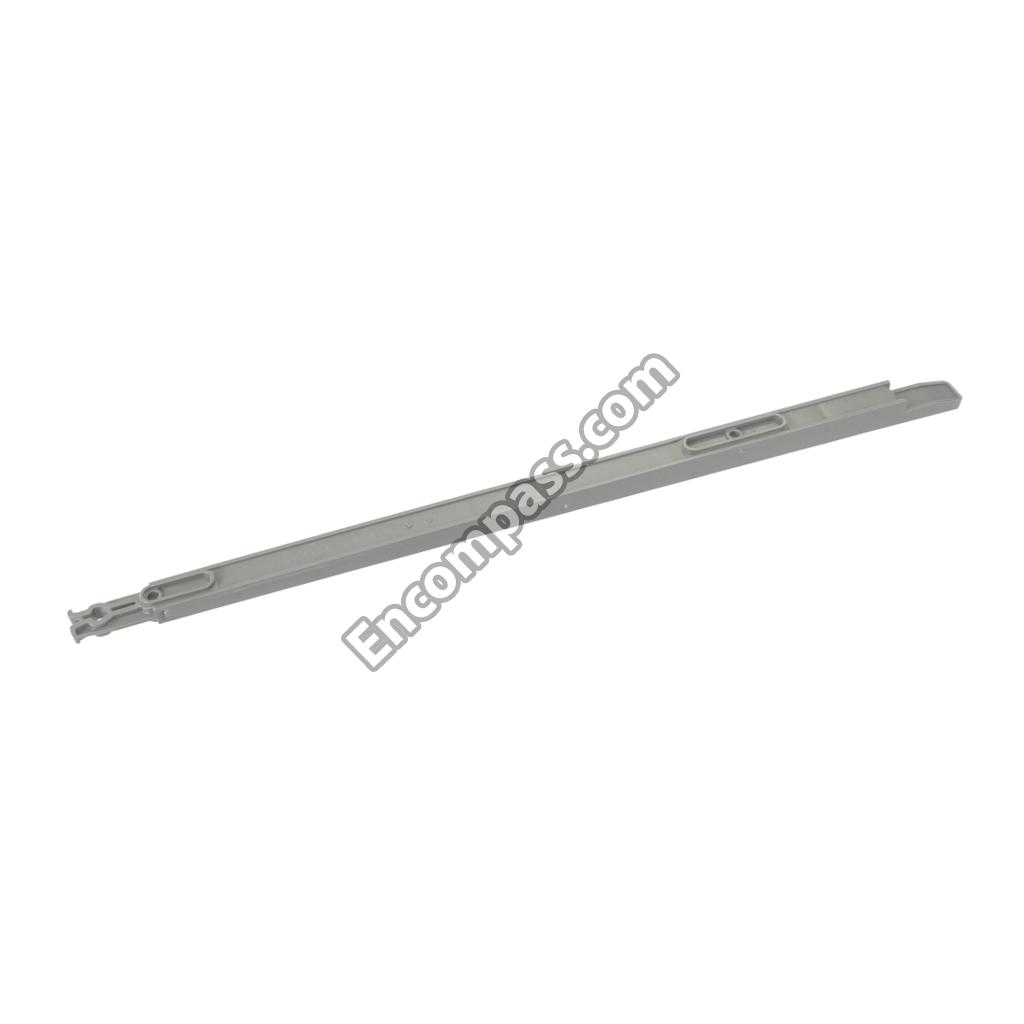

789058100 789058100 DRAWER RAIL
789058300 789058300 DRAWER RAIL
789058101 789058101 DRAWER RAIL
7890500 7890500 DRAWER RAIL
789050100 789050100 DRAWER RAIL
7890105 7890105 DRAWER RAIL
9797291 9797291 DRAWER-COMPLETE
9796150 9796150 DRAWER-COMPLETE
9796333 9796333 DRAWER-COMPLETE
9797391 9797391 DRAWER-COMPLETE
409862700 409862700 DRILLING SELF-TAPPING SCREW

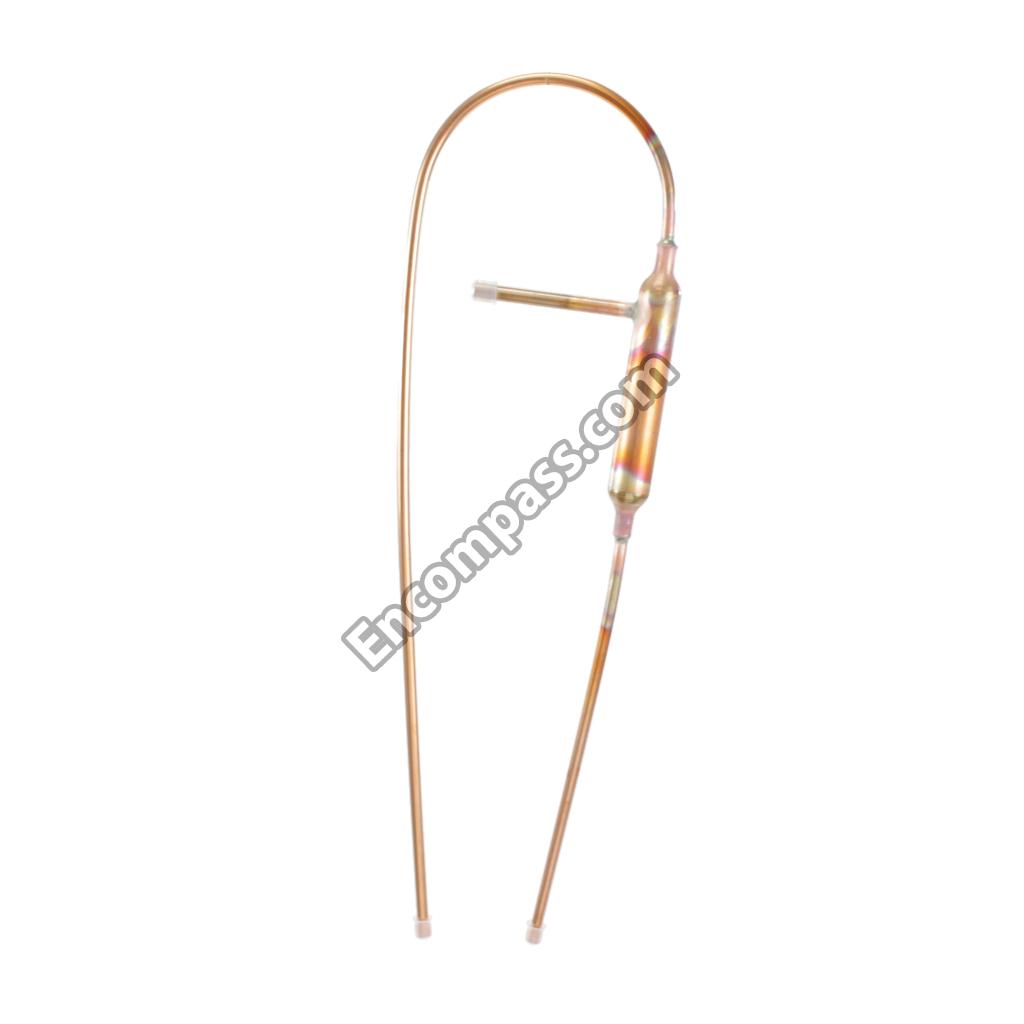

594268100 594268100 DRYER
594207001 594207001 DRYER
743914900 743914900 EVAPORATOR FIXTURE
987409900 987409900 EVAPORATOR-MODULE COMPLETE

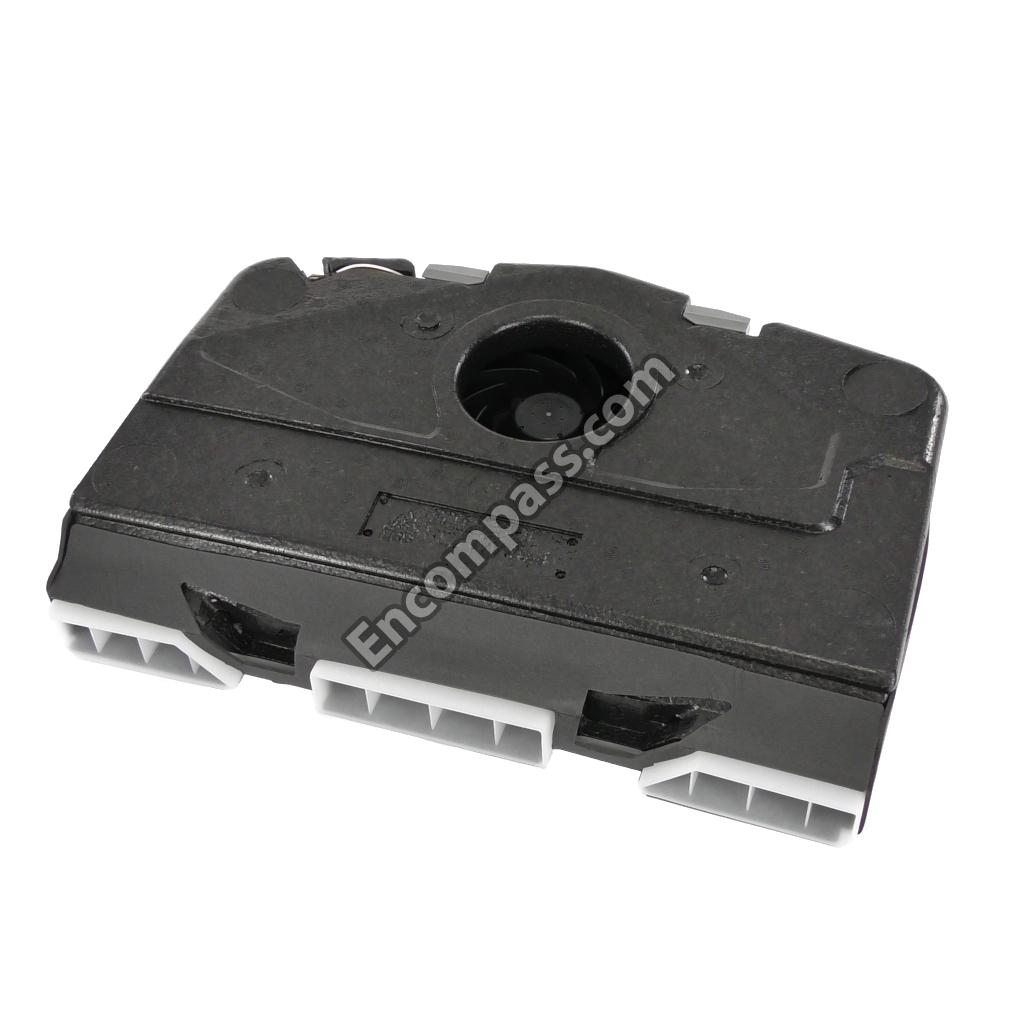

987005701 987005701 FAN, ASSY.
7439482 7439482 FASTENING
7400469 7400469 FASTENING
7439484 7439484 FASTENING

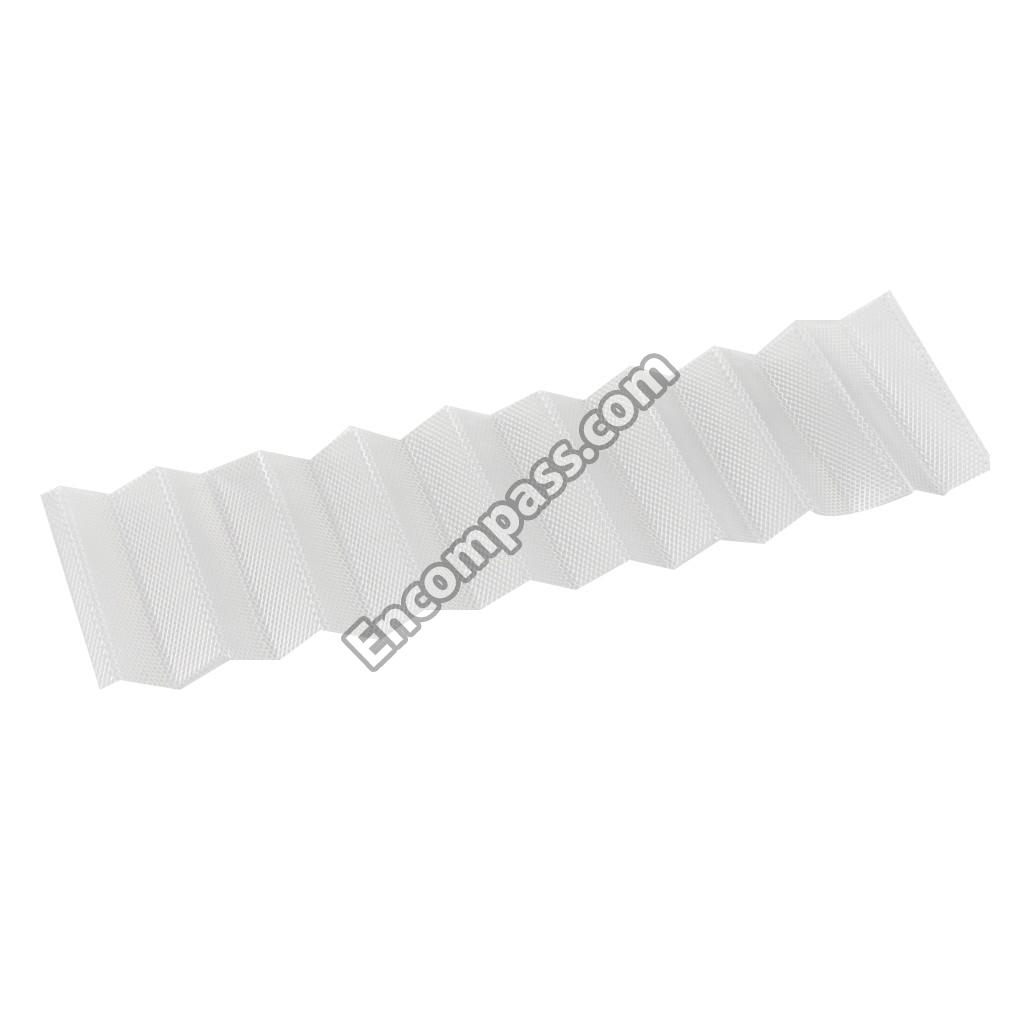

990227300 990227300 FILTER MAT
990304700 990304700 FILTER MAT
704357000 704357000 FILTER MAT
8042163 8042163 FOLDING CARDBOARD BOX

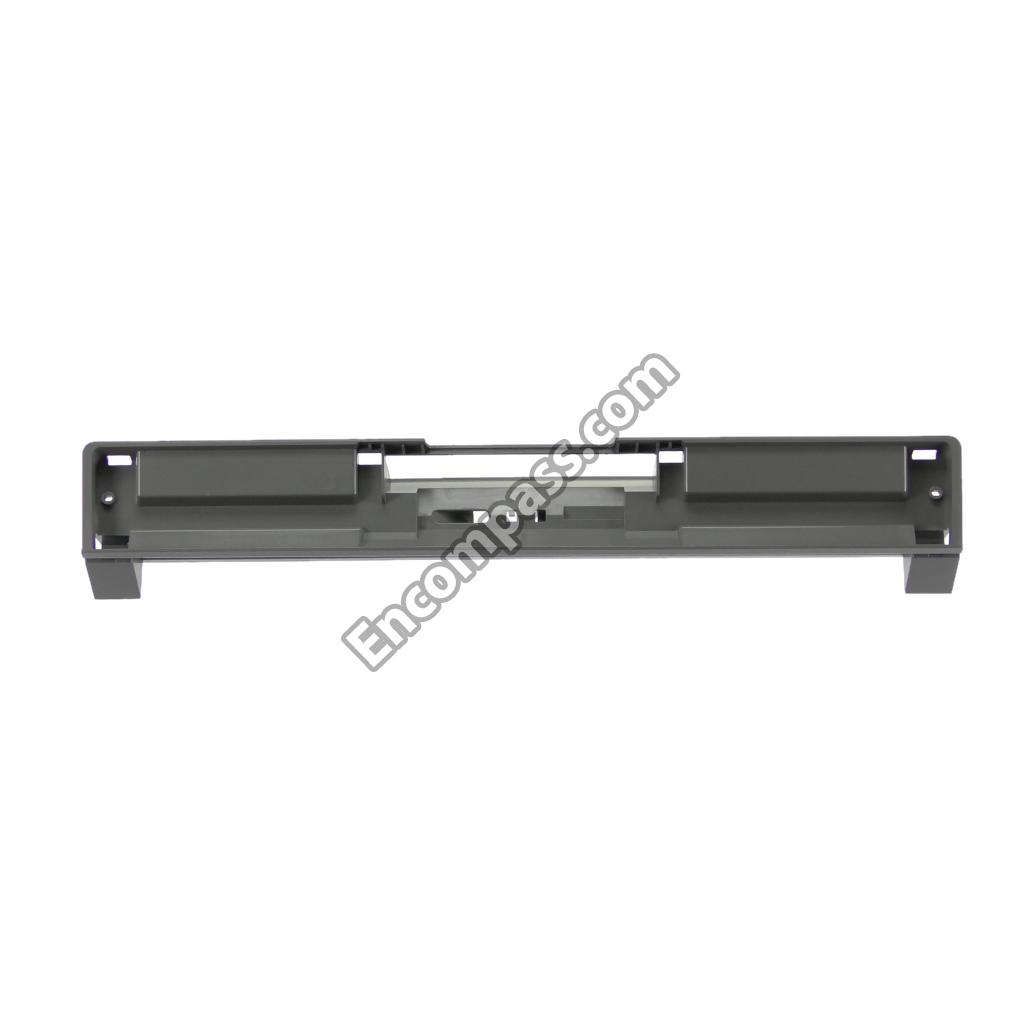

743907801 743907801 FRONT TRIM
7110383 7110383 GASKET
7110371 7110371 GASKET

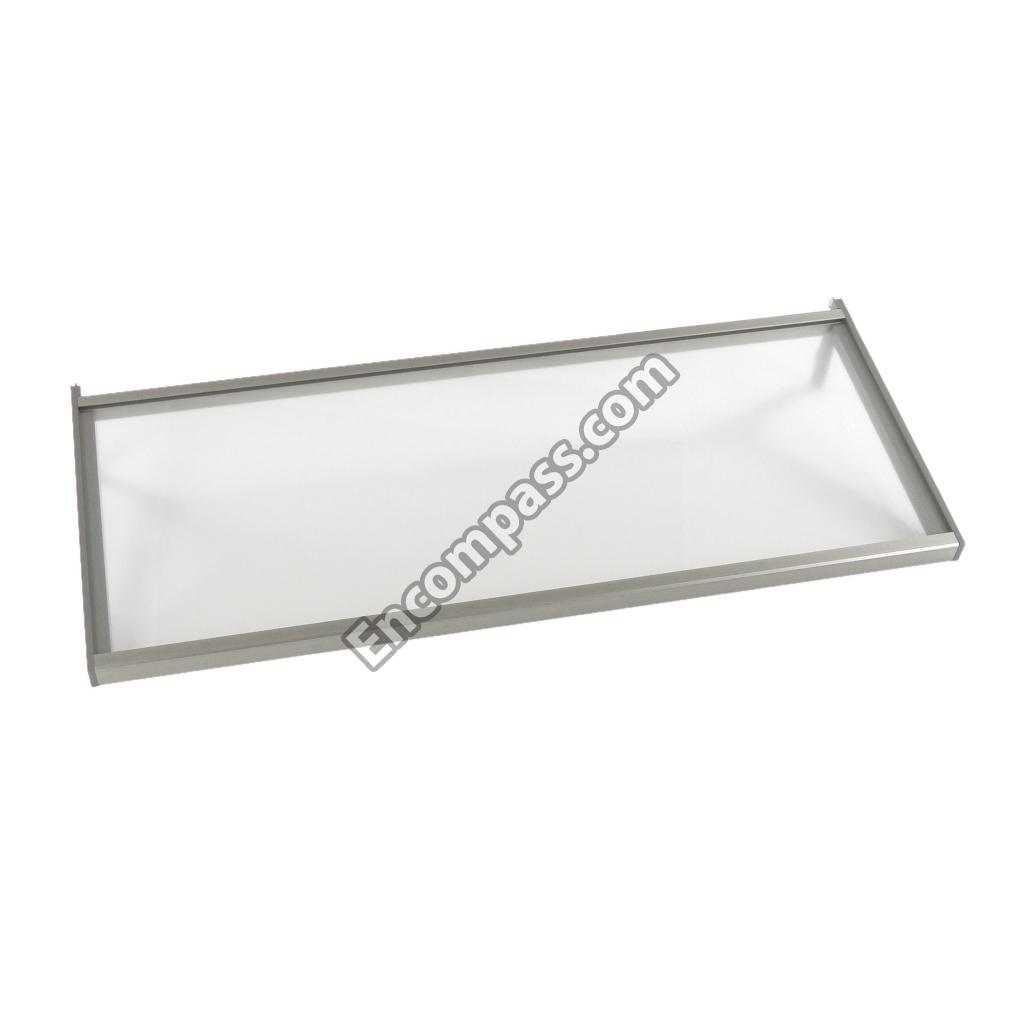

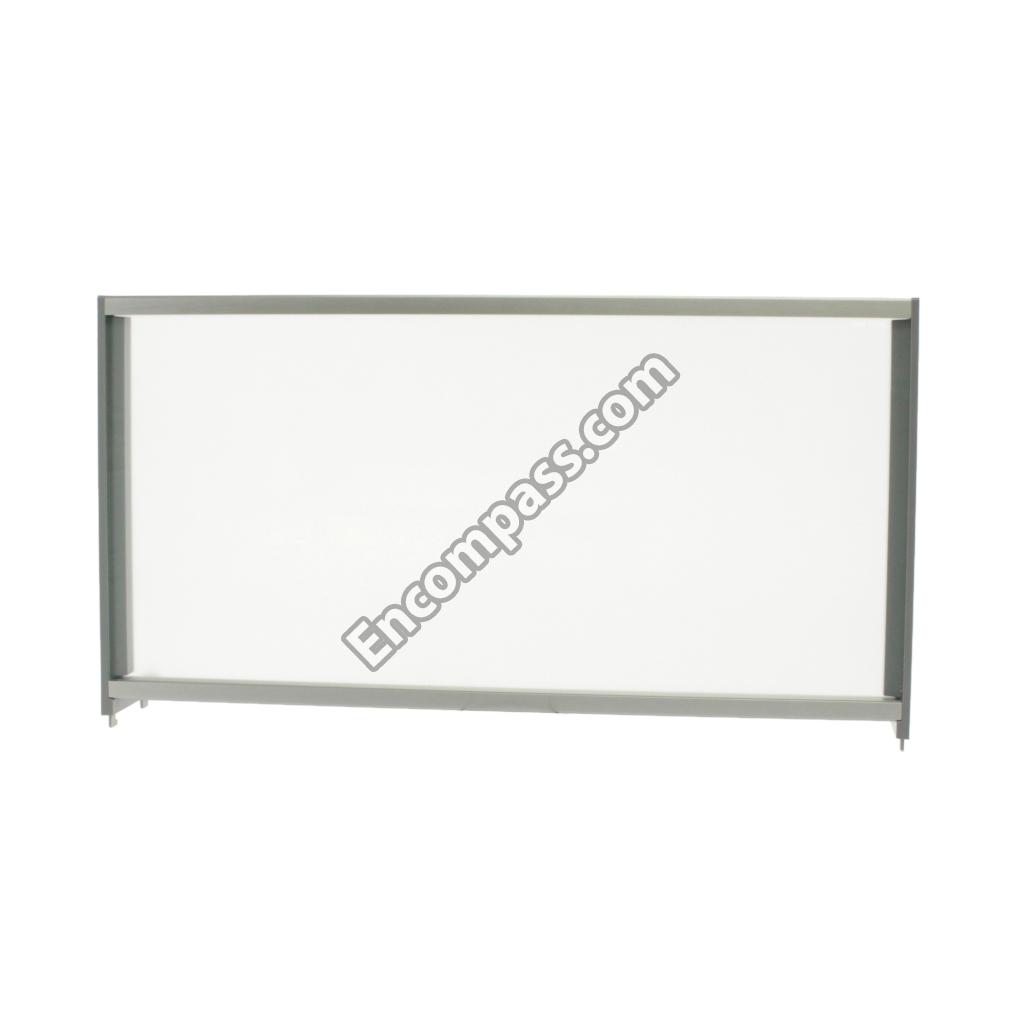

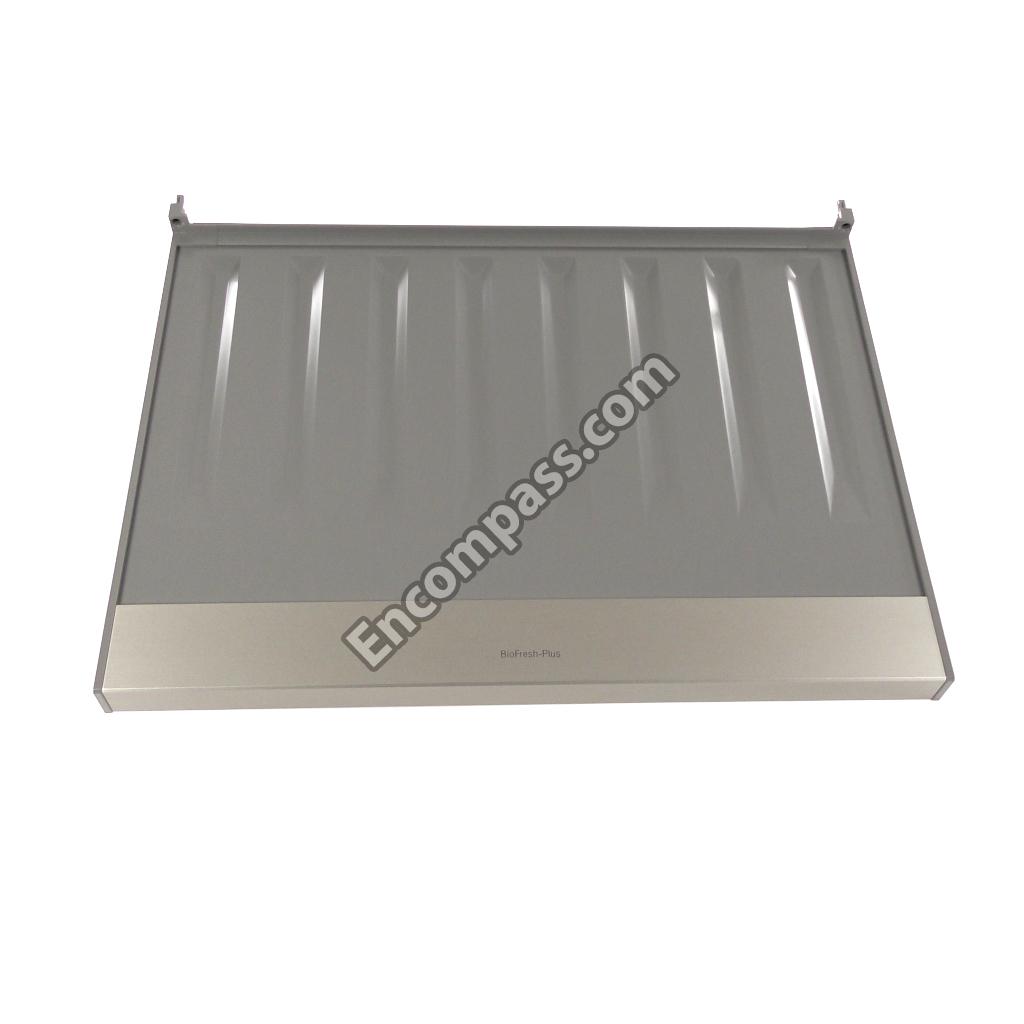

741358500 741358500 GLASS PLATE - COMPLETE
741357500 741357500 GLASS PLATE - COMPLETE
5941299 5941299 HEAT EXCHANGER
409837201 409837201 HEXAGON-HEAD SELF-TAPPING SCREW
409801000 409801000 HEXAGON-HEAD SELF-TAPPING SCREW
408403800 408403800 HEXAGON-HEAD SELF-TAPPING SCREW
408404100 408404100 HEXAGON-HEAD SELF-TAPPING SCREW
409832600 409832600 HEXAGON-HEAD SELF-TAPPING SCREW
409834400 409834400 HEXAGON-HEAD SELF-TAPPING SCREW
409806601 409806601 HEXAGON-HEAD SELF-TAPPING SCREW
409823100 409823100 HEXAGON-HEAD SELF-TAPPING SCREW
4098597 4098597 HEXAGON-HEAD SELF-TAPPING SCREW
409803301 409803301 HEXAGON-HEAD SELF-TAPPING SCREW
409869500 409869500 HEXAGON-HEAD SELF-TAPPING SCREW
409802901 409802901 HEXAGON-HEAD SELF-TAPPING SCREW

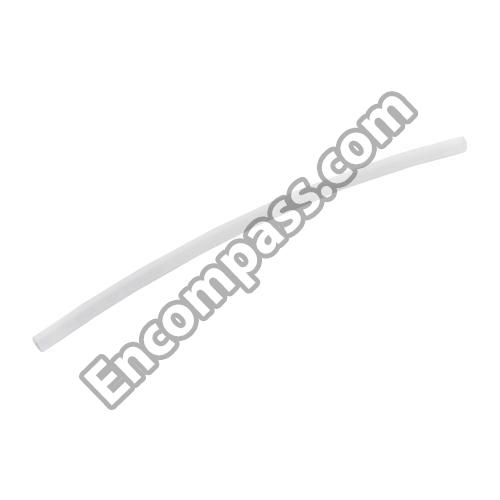

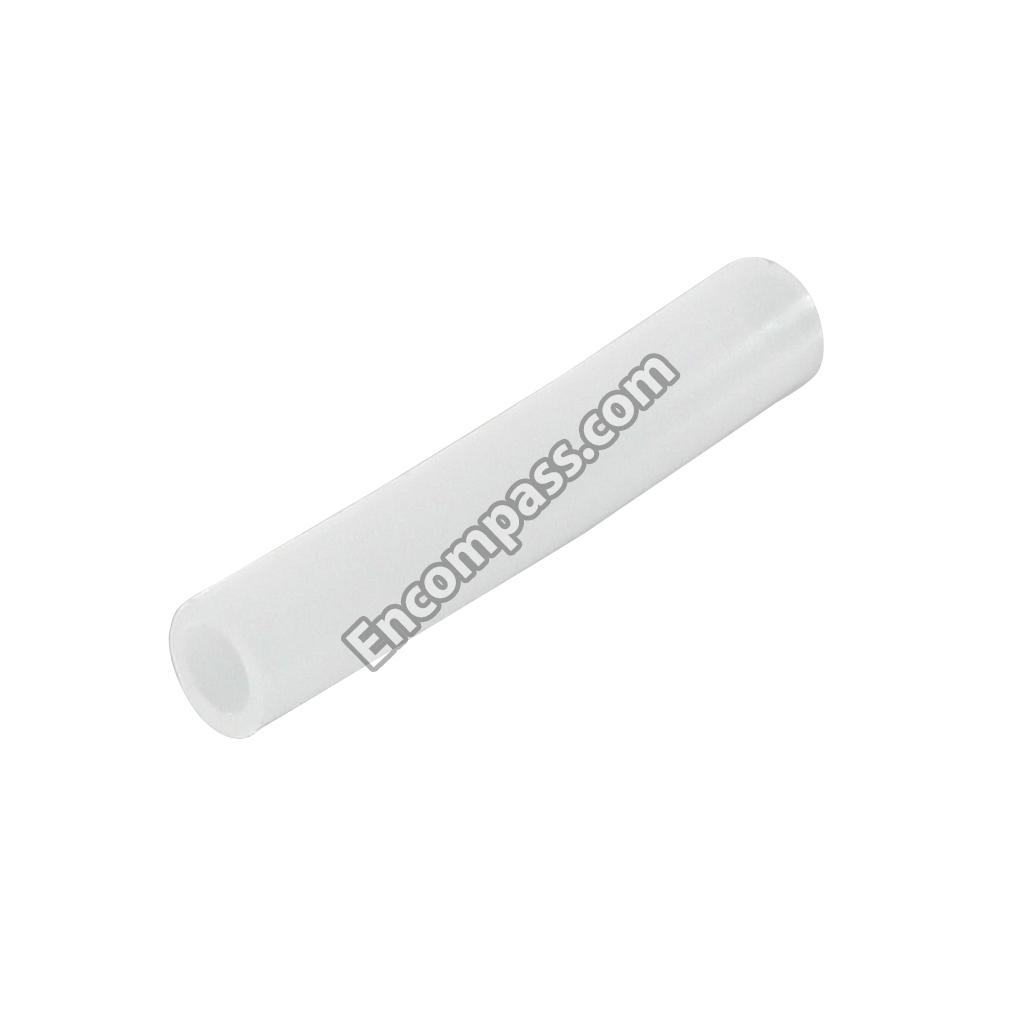

9540084 9540084 HOSE
954007700 954007700 HOSE
9540081 9540081 HOSE
9540215 9540215 HOSE
9540082 9540082 HOSE
603013800 603013800 HOSE
971107800 971107800 HOSE
971113300 971113300 HOSE
971078700 971078700 HOSE
6121005 6121005 HOUSING FOR LAMP, ASSY.
9903029 9903029 ICE-CUBE MAKER
7421593 7421593 ICE-SHOLVER
7080404 7080404 INSERT
708363101 708363101 INSERT
9363381 9363381 INSULATING PLATE, ASSY.
9040340 9040340 INSULATING PLATE, ASSY.
614629200 614629200 INTEGRAL BOARD

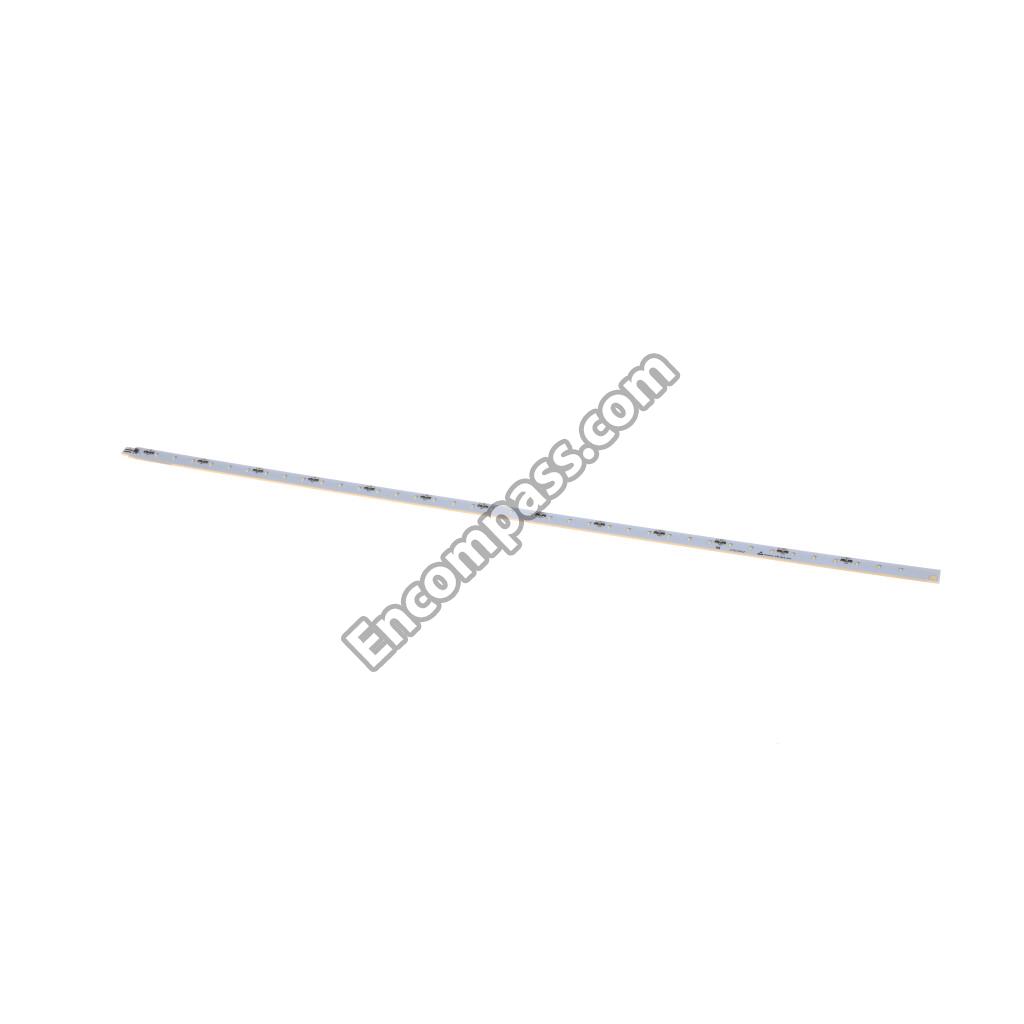

607164000 607164000 INTERIOR LIGHT
704202900 704202900 KEY
704369900 704369900 KEY
704208900 704208900 KEY
929201200 929201200 KEY

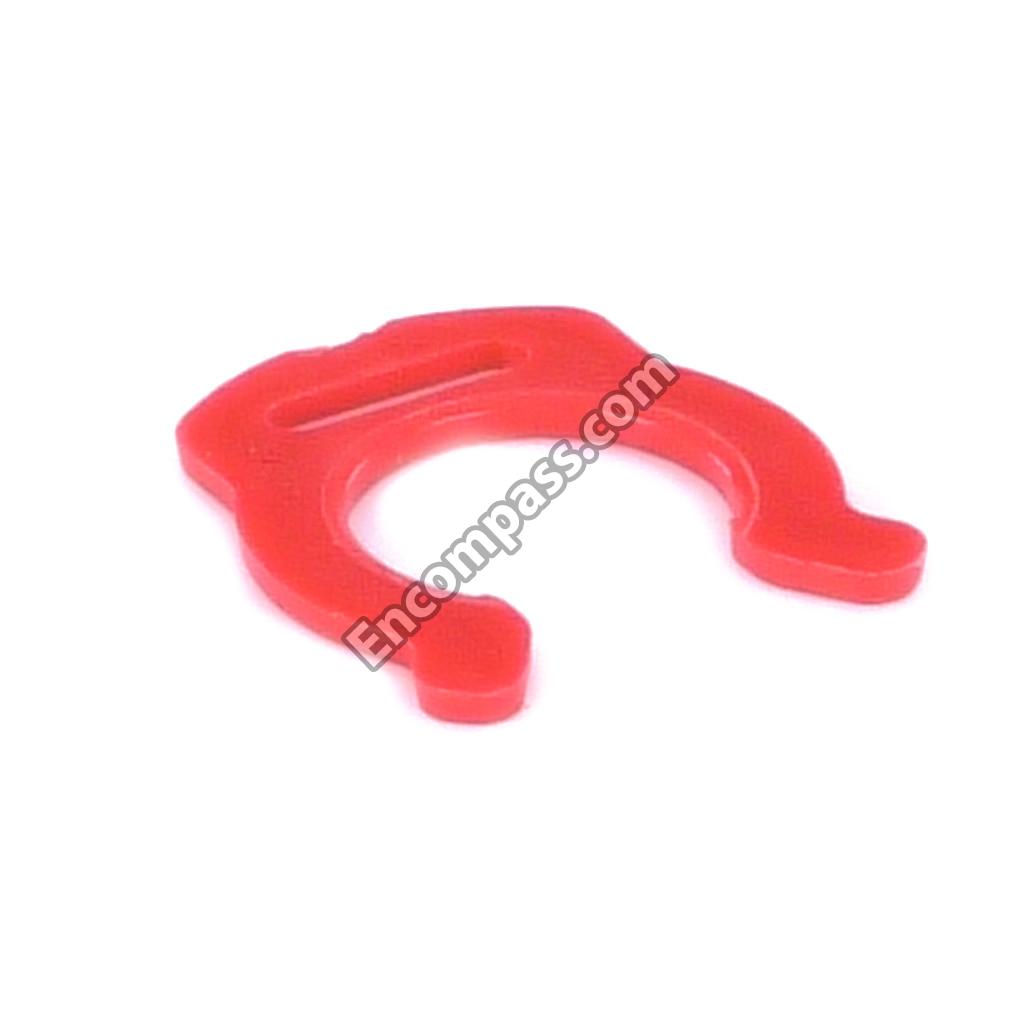

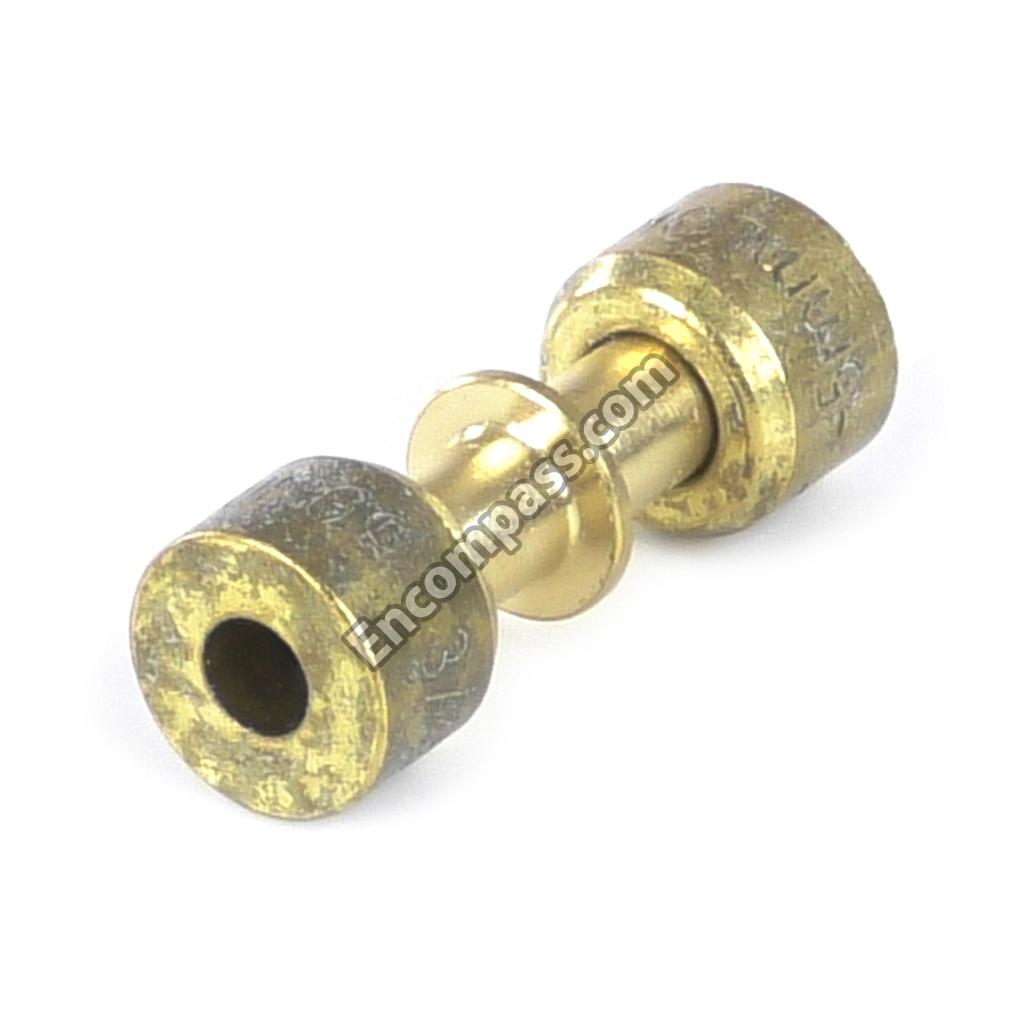

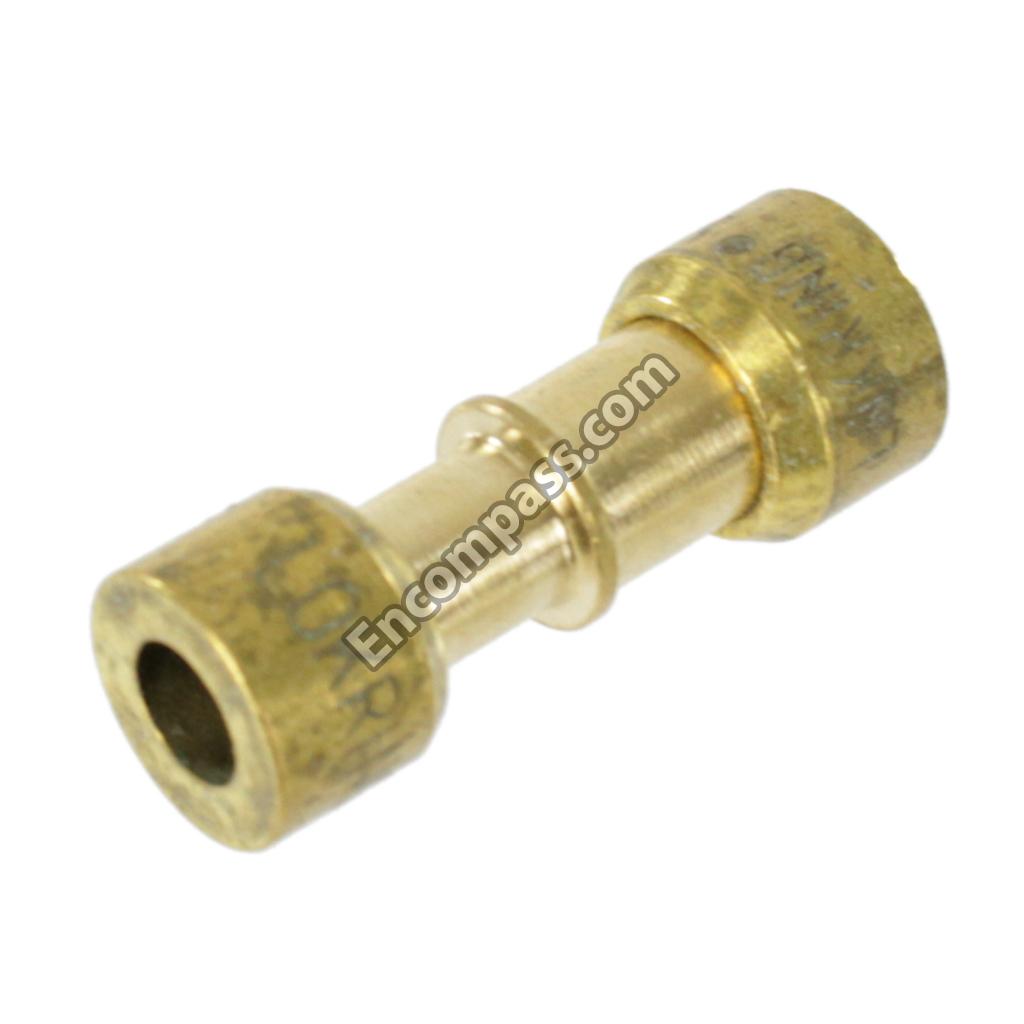

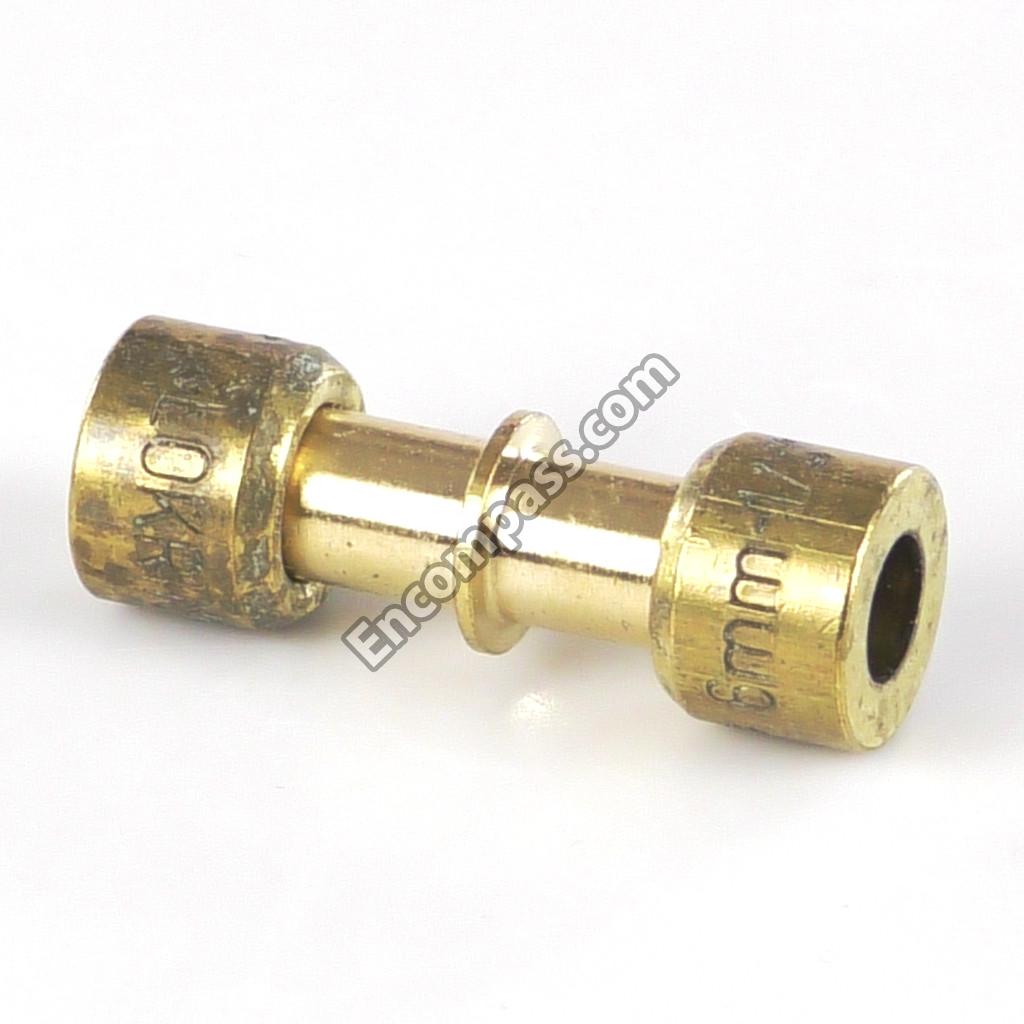

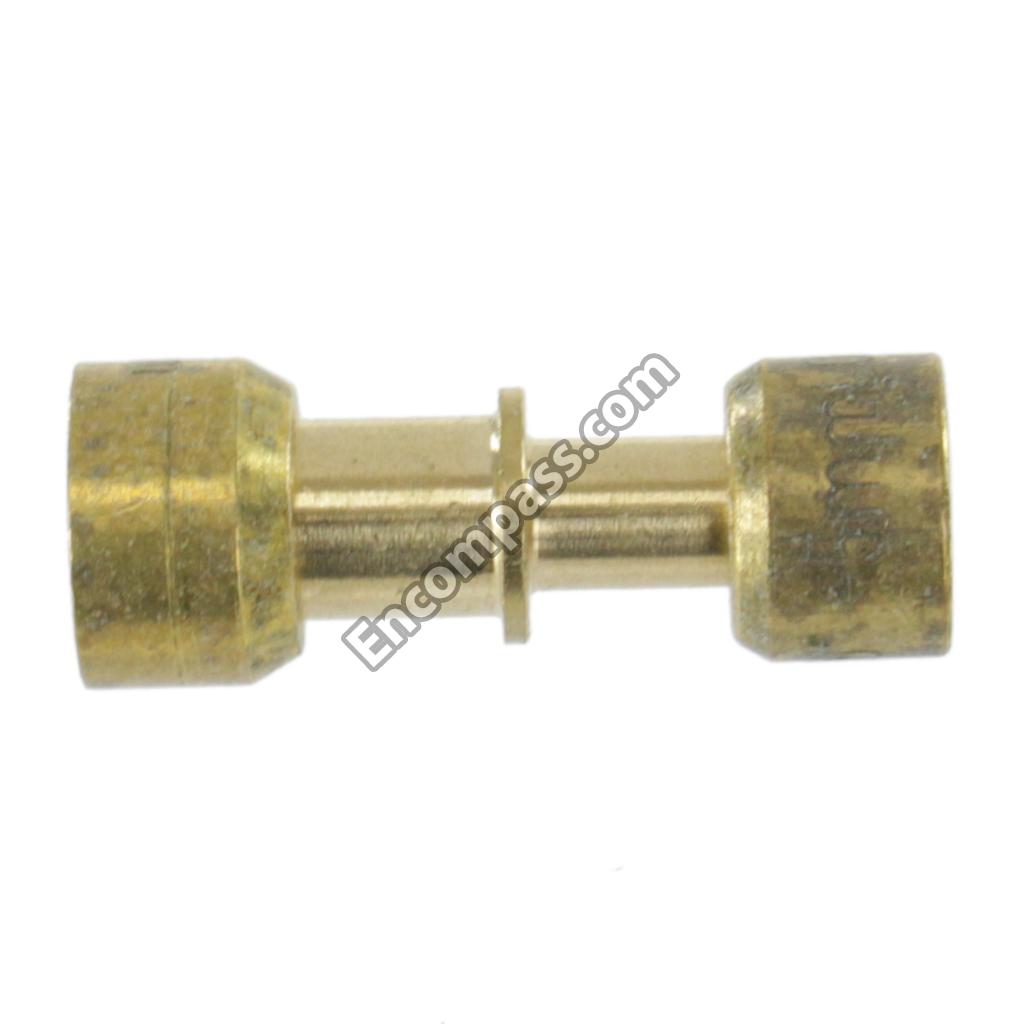

770047400 770047400 LOKRING
770048800 770048800 LOKRING
680000000 680000000 LOKRING
680000200 680000200 LOKRING
770049000 770049000 LOKRING
770048000 770048000 LOKRING
743368800 743368800 MOULDING
8003265 8003265 MOULDING
8003267 8003267 MOULDING
8003654 8003654 MOULDING
740344401 740344401 MOULDING
8003634 8003634 MOULDING
800306501 800306501 MOULDING
743462600 743462600 MOULDING
742430800 742430800 MOUNTING BRACKET
7080402 7080402 OPERATING INSTRUCTIONS
612222700 612222700 OPERATING PANEL HOUSING

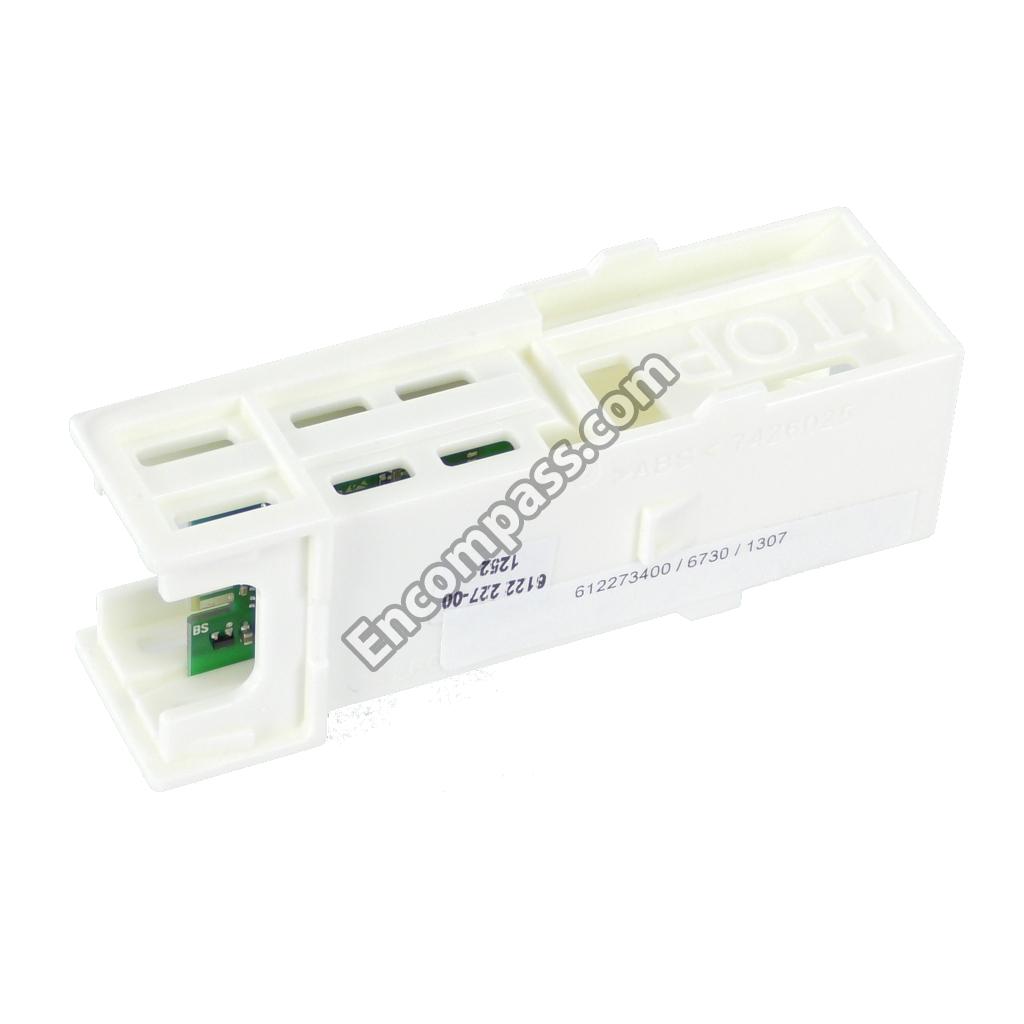

612273400 612273400 OPERATING PANEL HOUSING
6116496 6116496 OPERATING UNIT TRIM

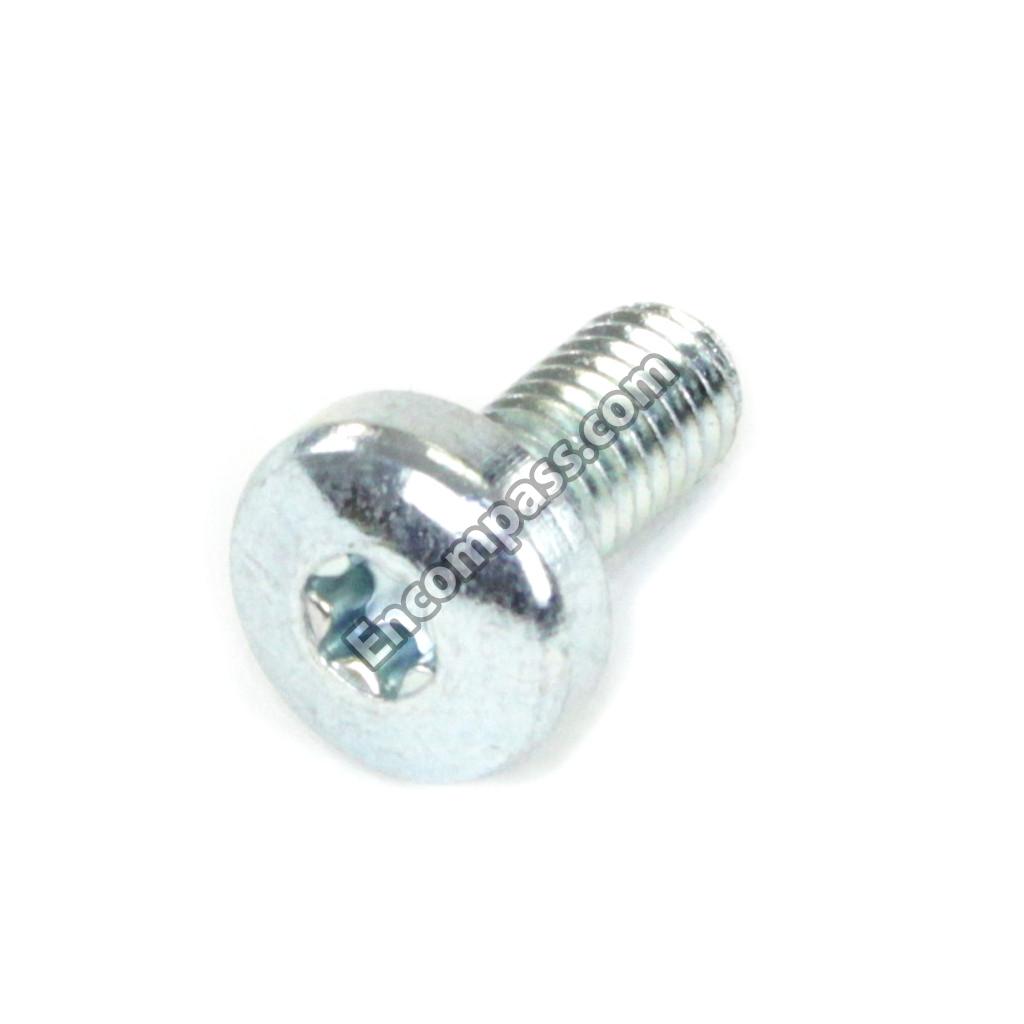

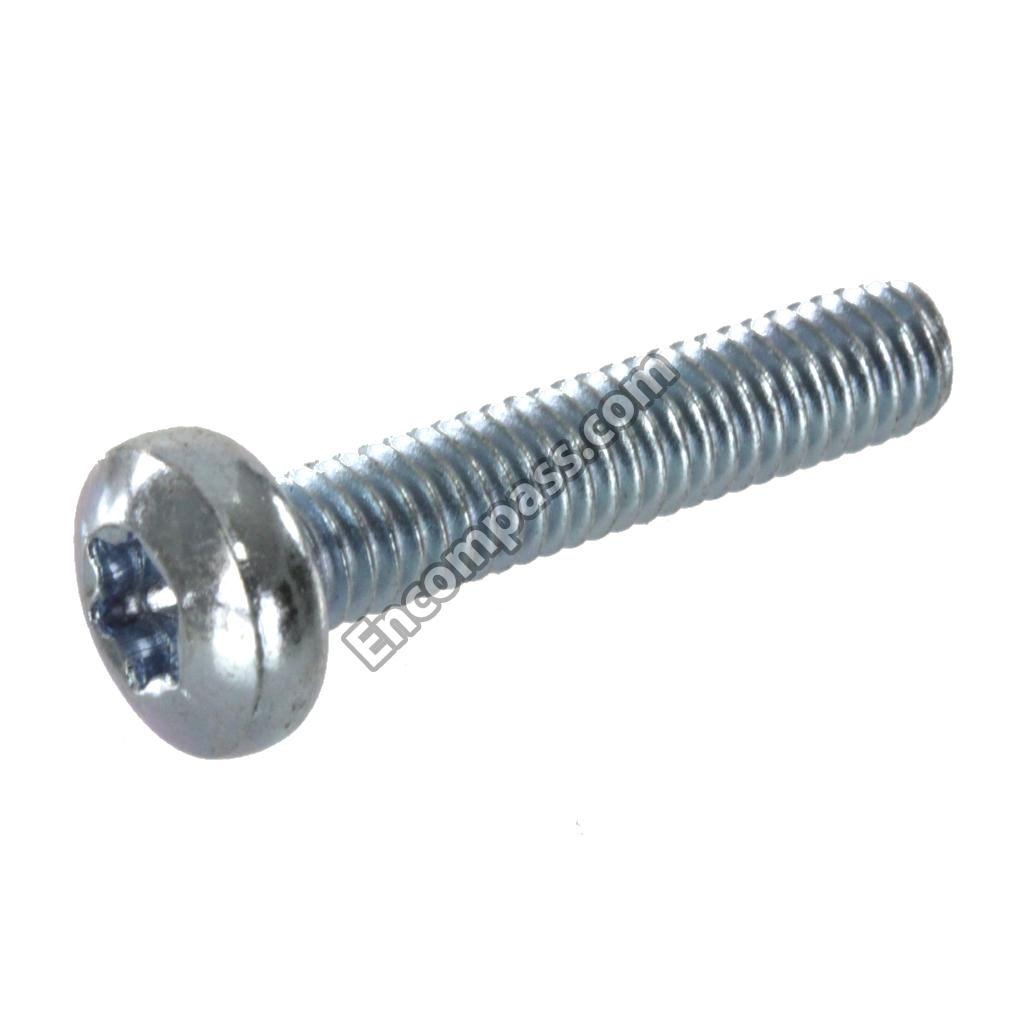

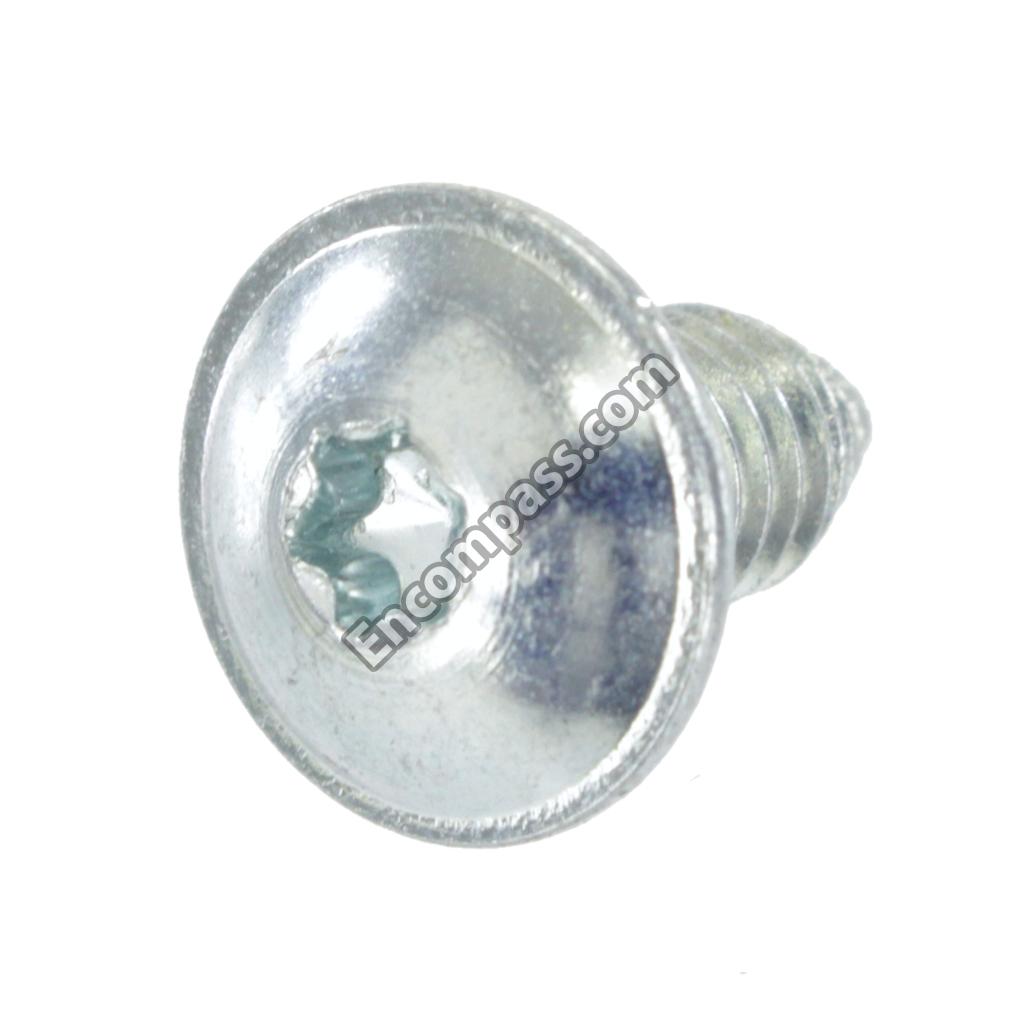

408400501 408400501 OVAL-HEAD SCREW
408469700 408469700 OVAL-HEAD SCREW

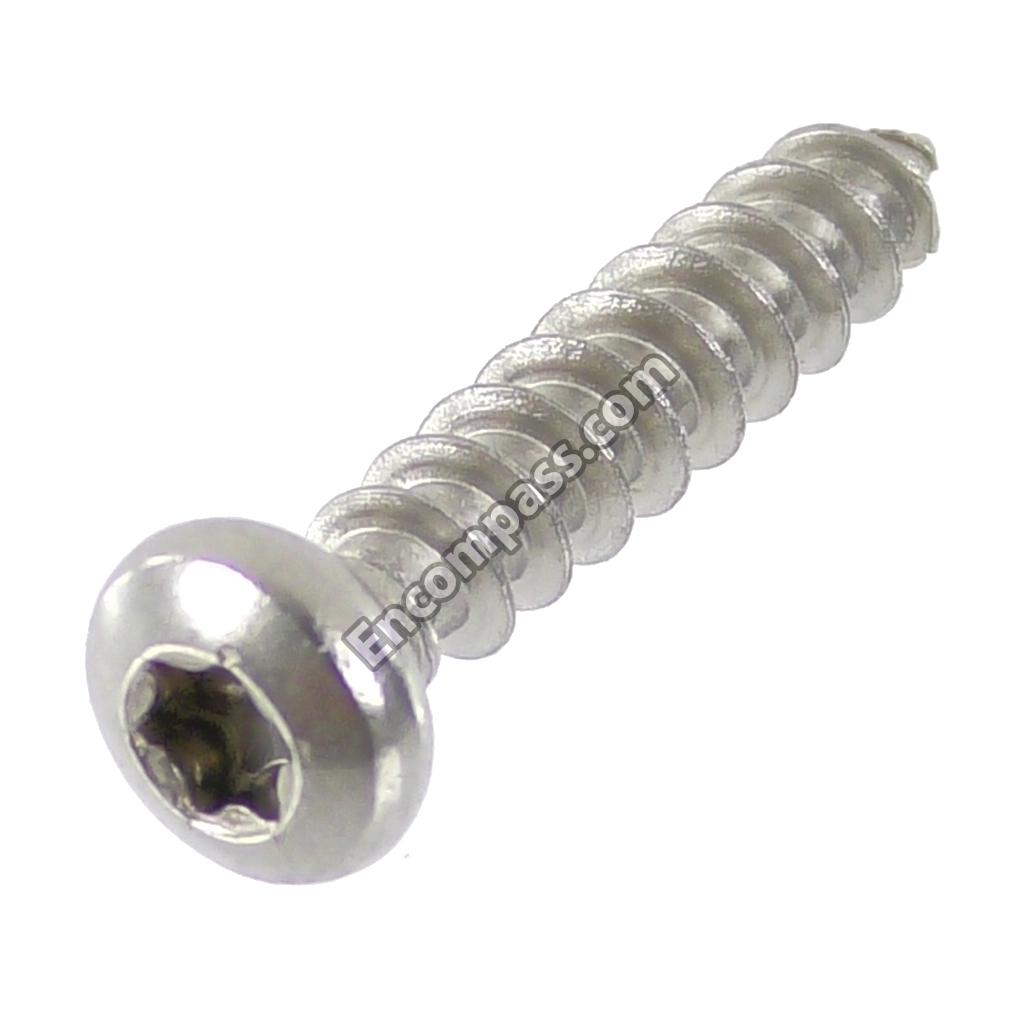

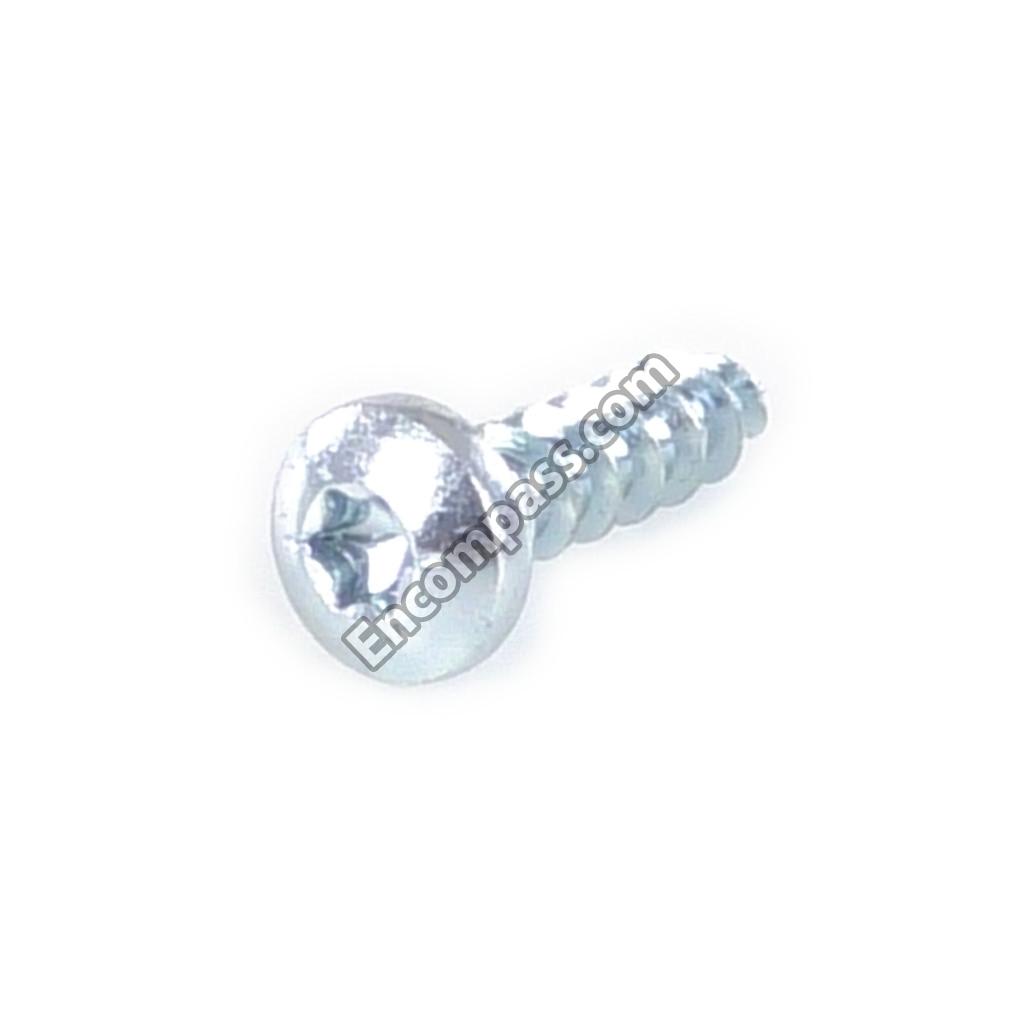

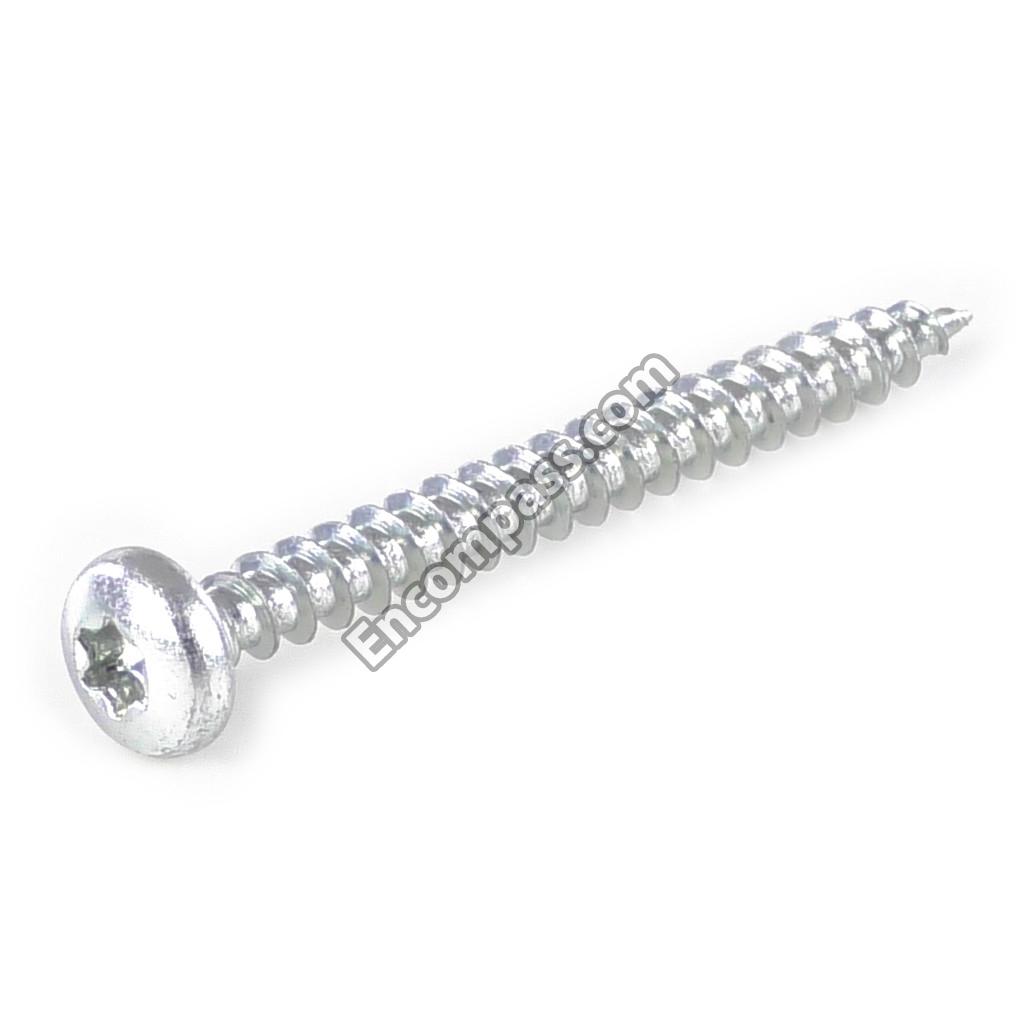

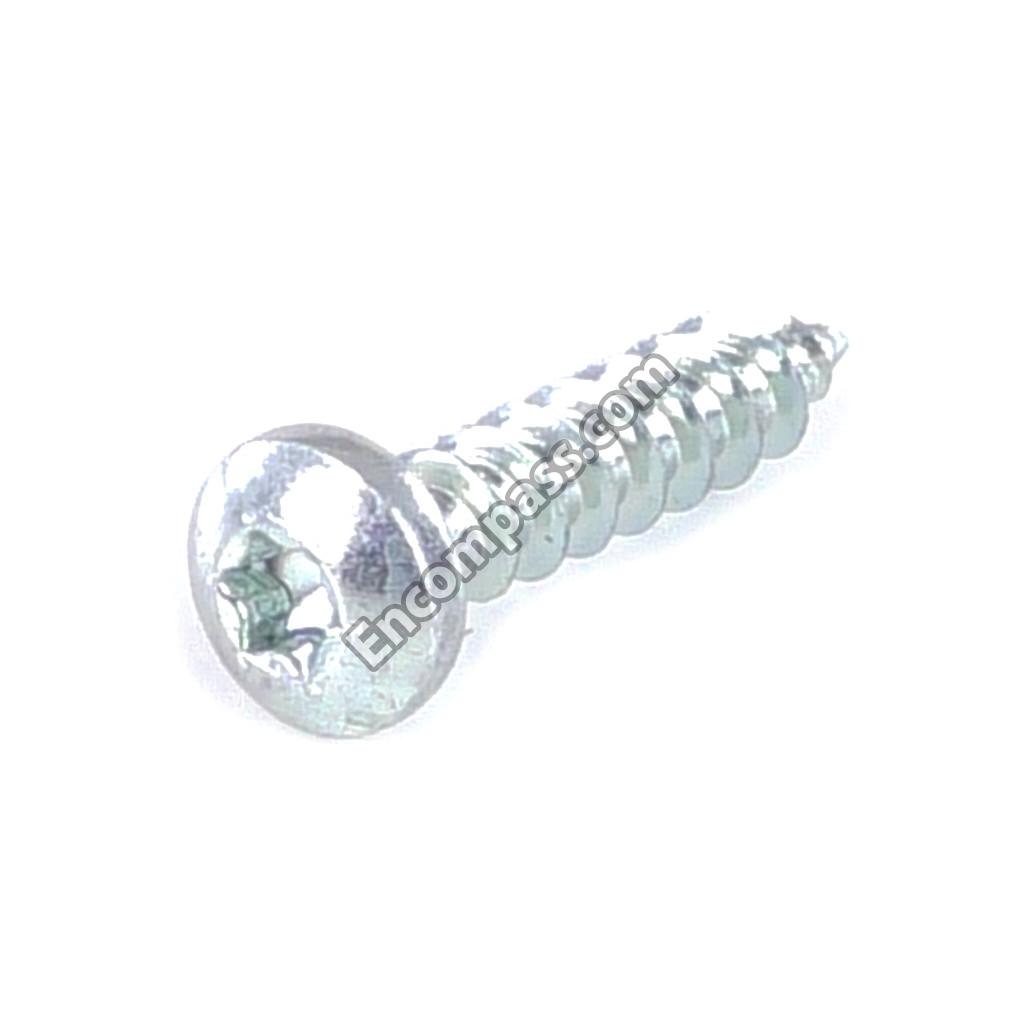

408271601 408271601 OVAL-HEAD SELF-TAPPING SCREW

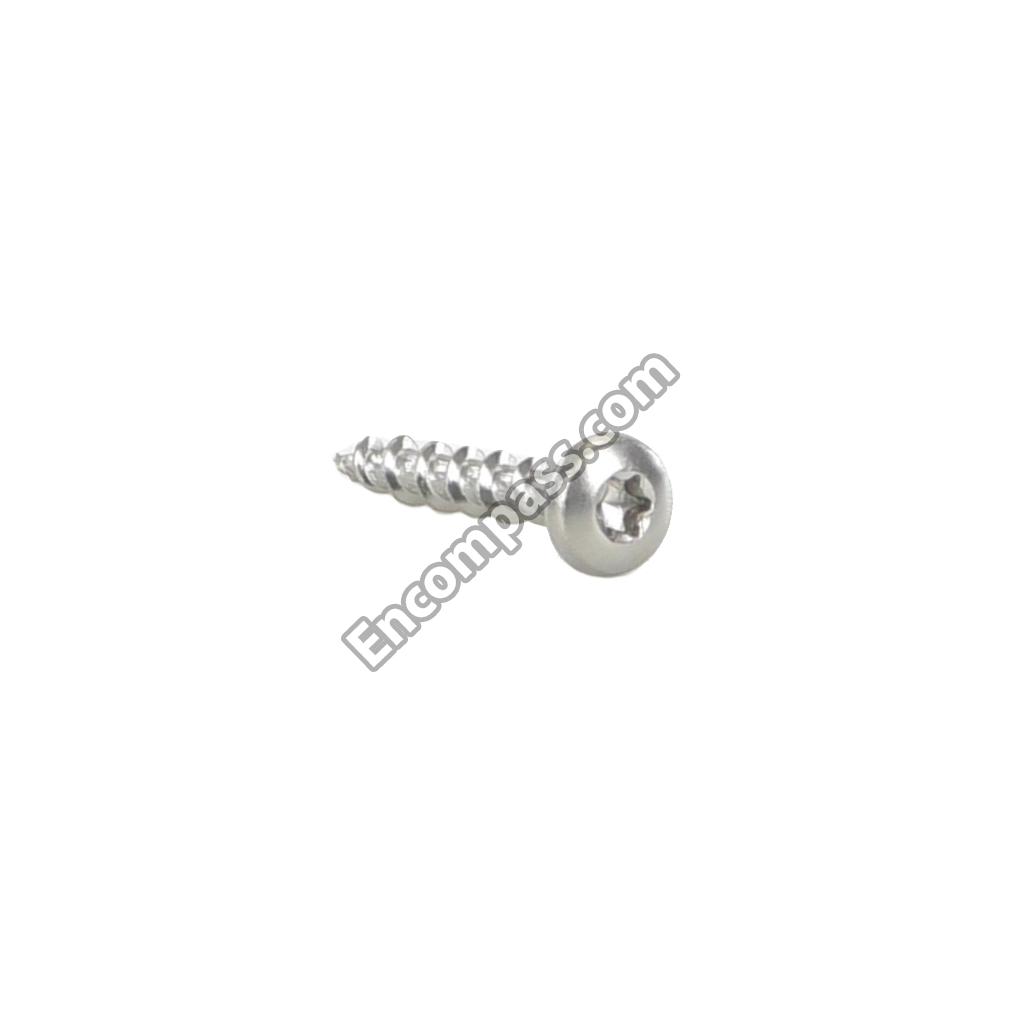

409877100 409877100 OVAL-HEAD WOOD SCREW
9882737 9882737 PACKAGING, COMPLETELY
9027319 9027319 PADDED BASE
902277600 902277600 PARTS, POWDER-COATED, COLOURED
902277800 902277800 PARTS, POWDER-COATED, COLOURED
902277700 902277700 PARTS, POWDER-COATED, COLOURED
990250500 990250500 PLINTH FOR APPLIANCES
990251900 990251900 PLINTH FOR APPLIANCES

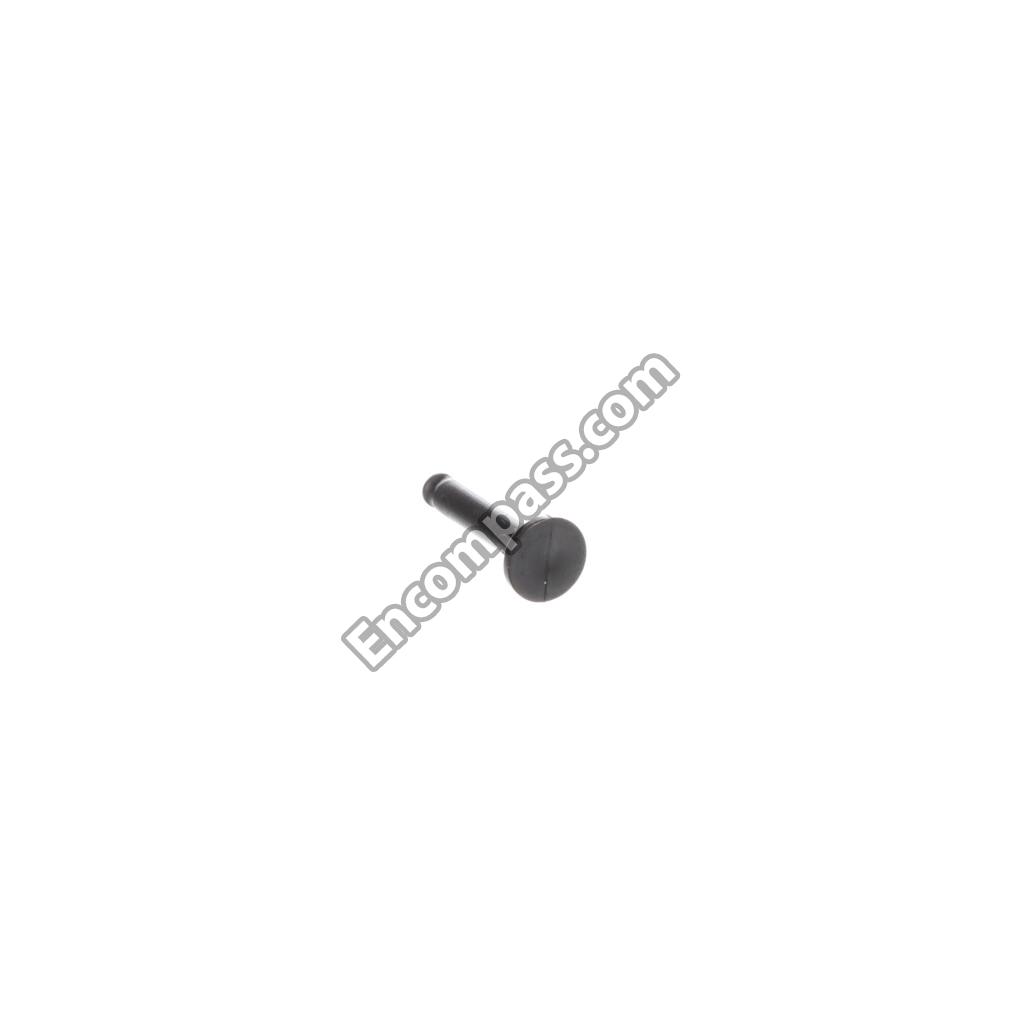

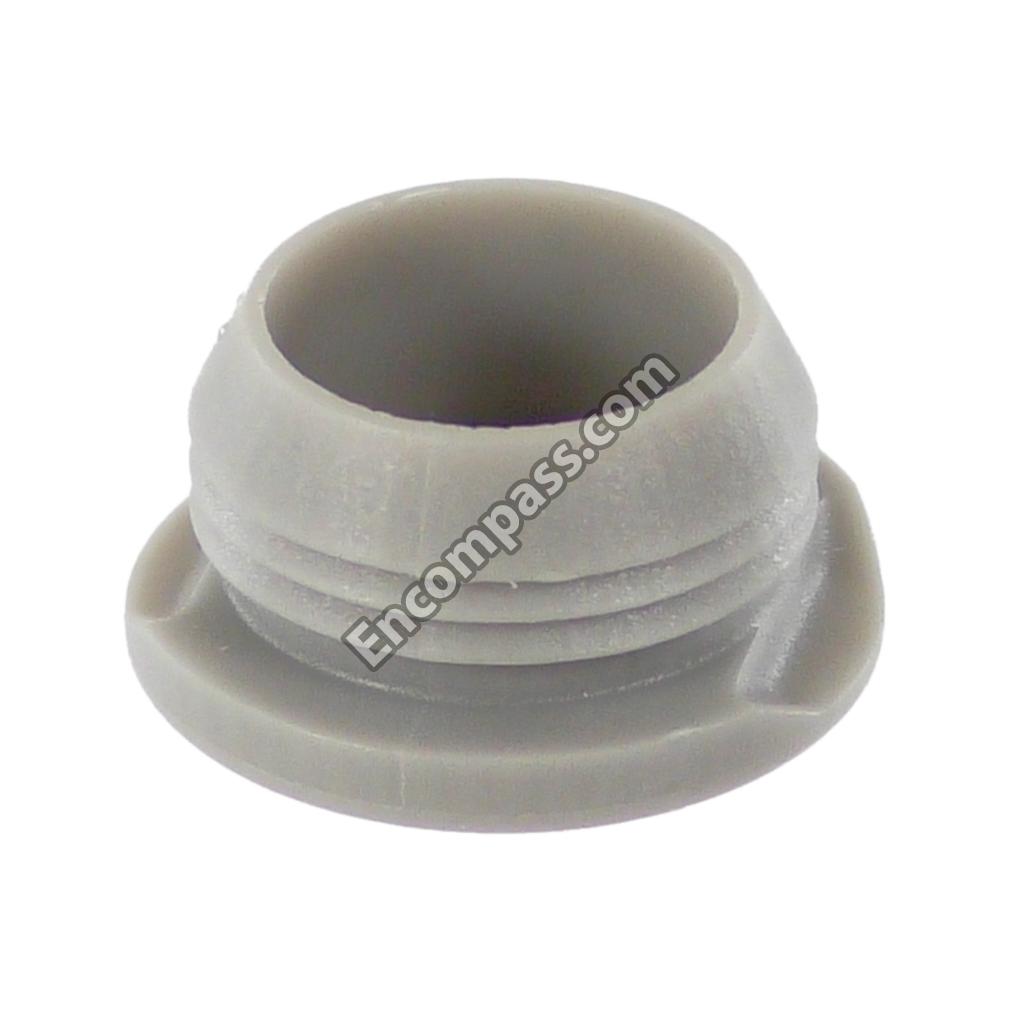

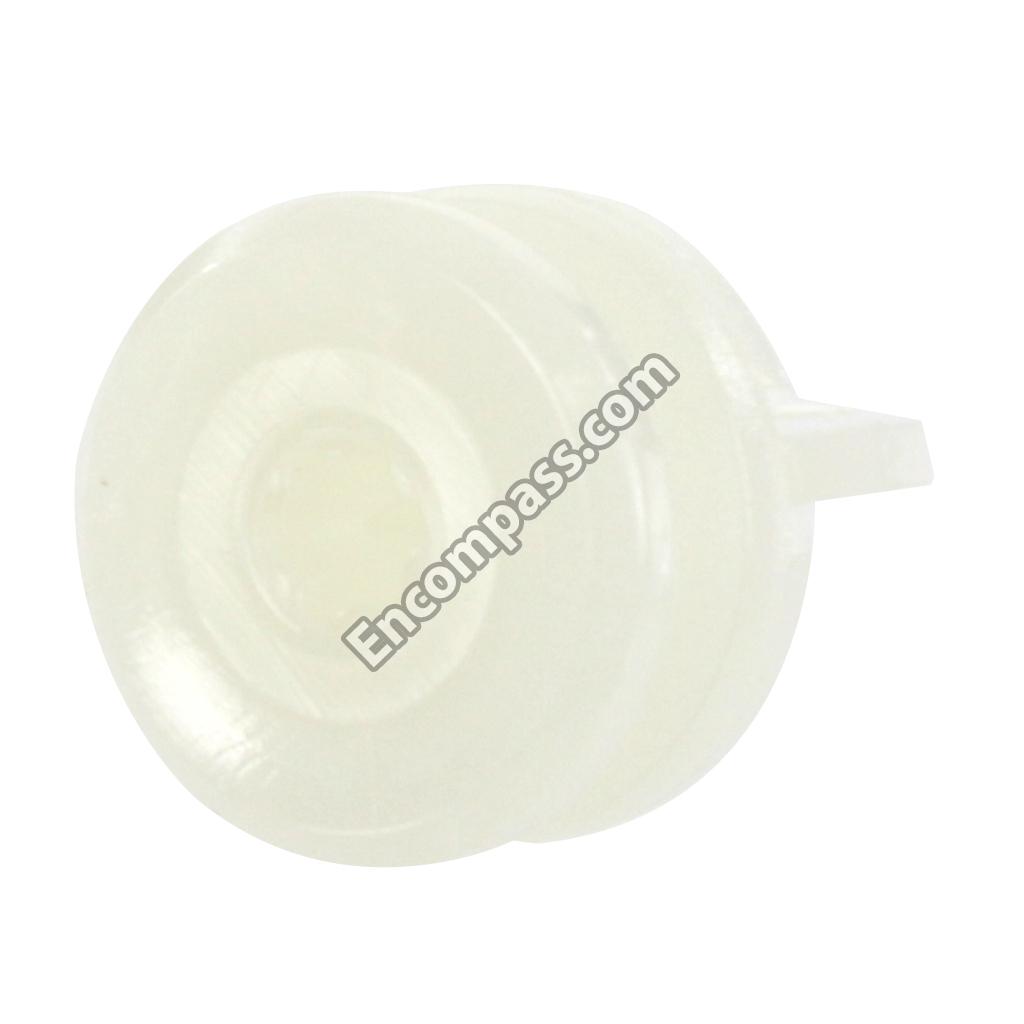

743290900 743290900 PLUG
7402098 7402098 PLUG
743931200 743931200 PLUG

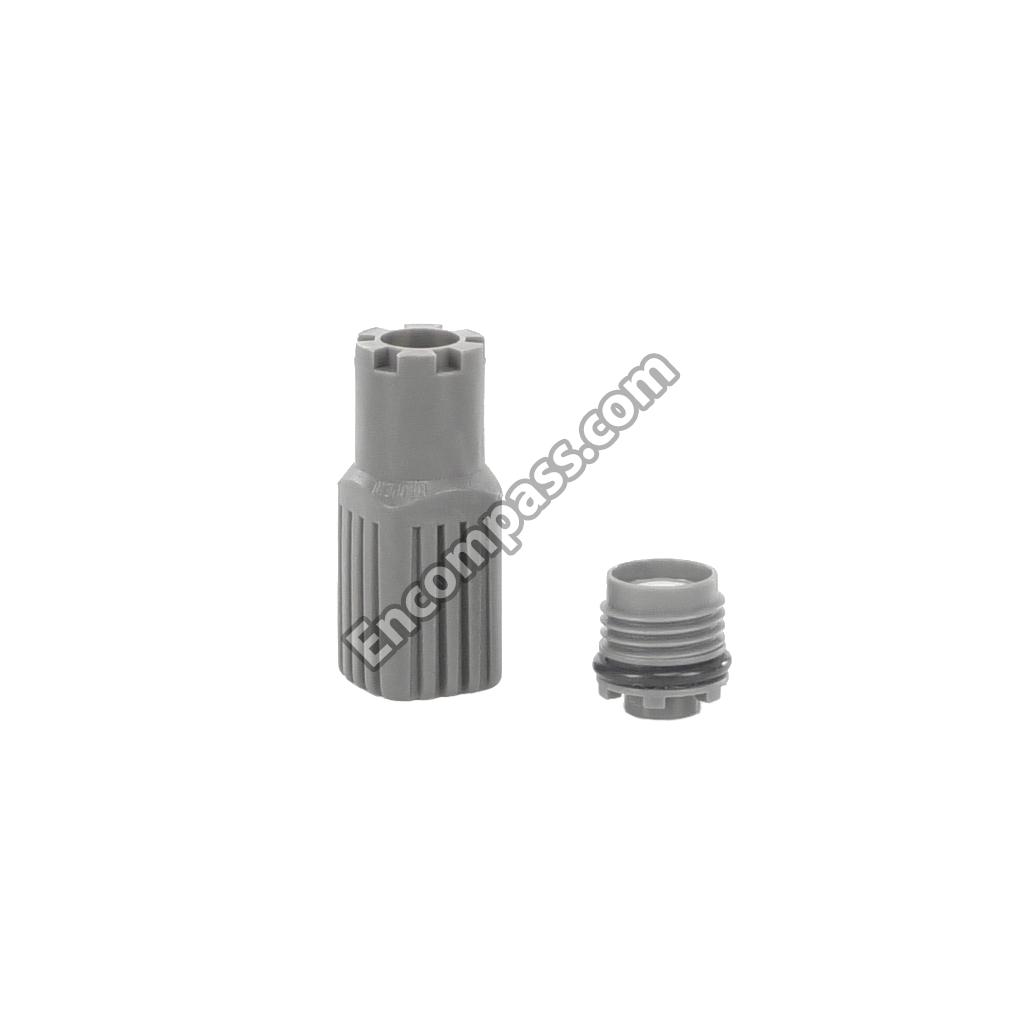

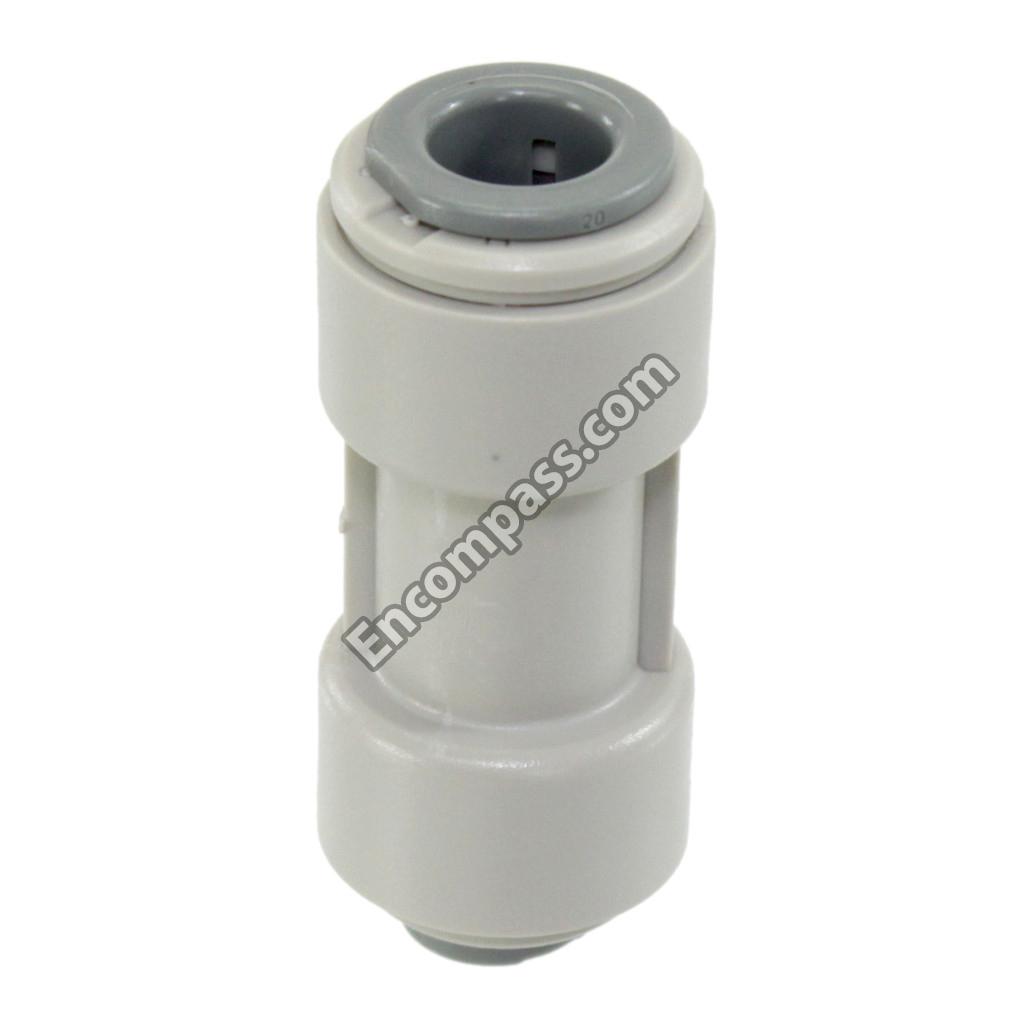

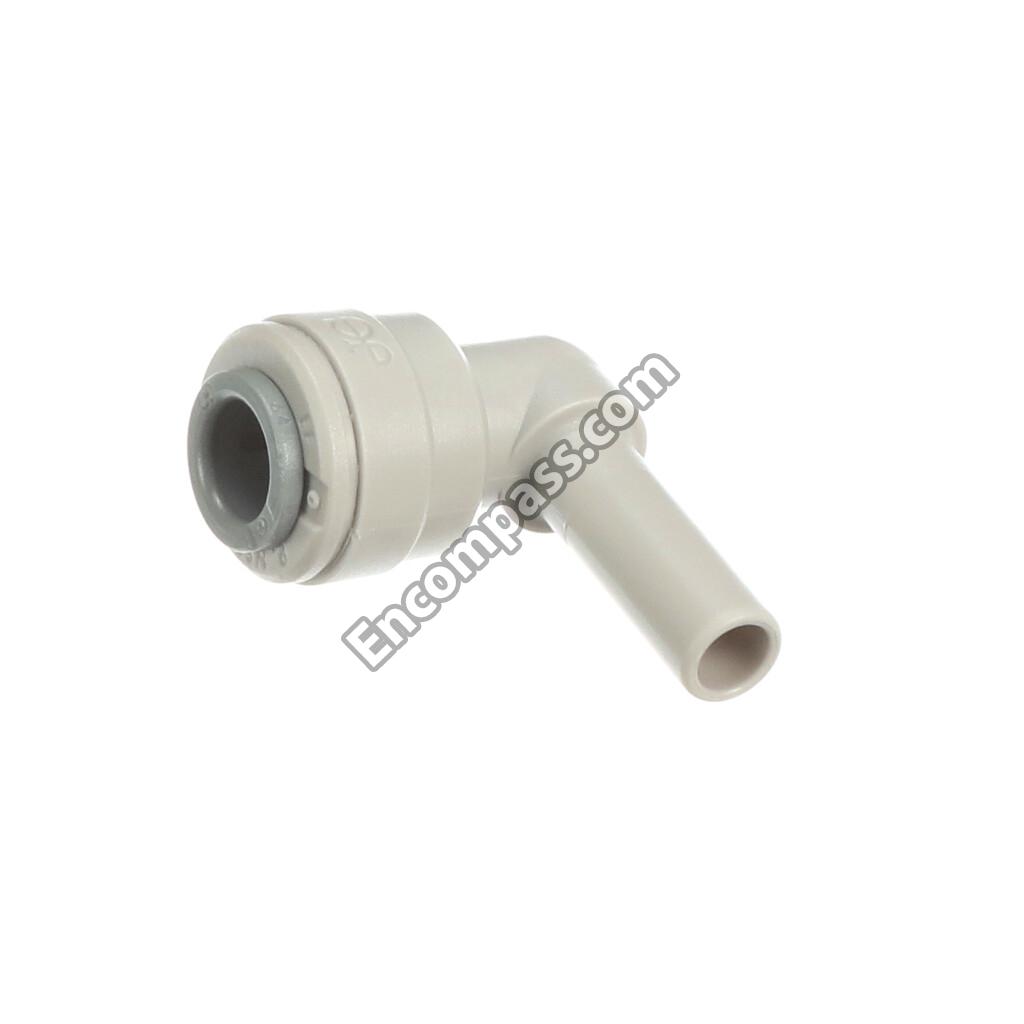

743750000 743750000 PLUG CONNECTOR WATER
7420470 7420470 PLUG CONNECTOR WATER
743397900 743397900 PLUG CONNECTOR WATER
7434680 7434680 PLUG CONNECTOR WATER
743366400 743366400 PLUG CONNECTOR WATER

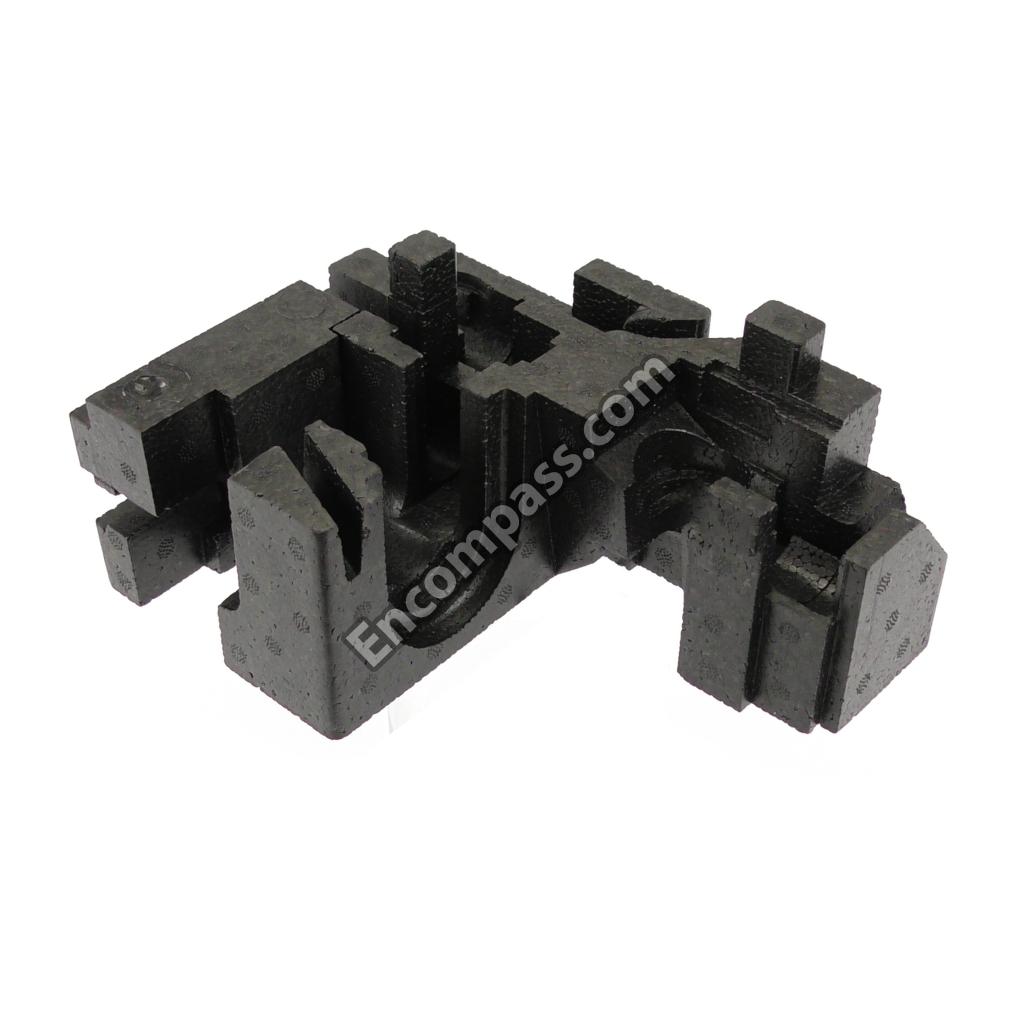

800321500 800321500 POLYSTYRENE PART
800314300 800314300 POLYSTYRENE PART
8003287 8003287 POLYSTYRENE PART
8003289 8003289 POLYSTYRENE PART
8003630 8003630 POLYSTYRENE PART
800325500 800325500 POLYSTYRENE PART
800325700 800325700 POLYSTYRENE PART
800322901 800322901 POLYSTYRENE PART
800309500 800309500 POLYSTYRENE PART
8003281 8003281 POLYSTYRENE PART
8003271 8003271 POLYSTYRENE PART

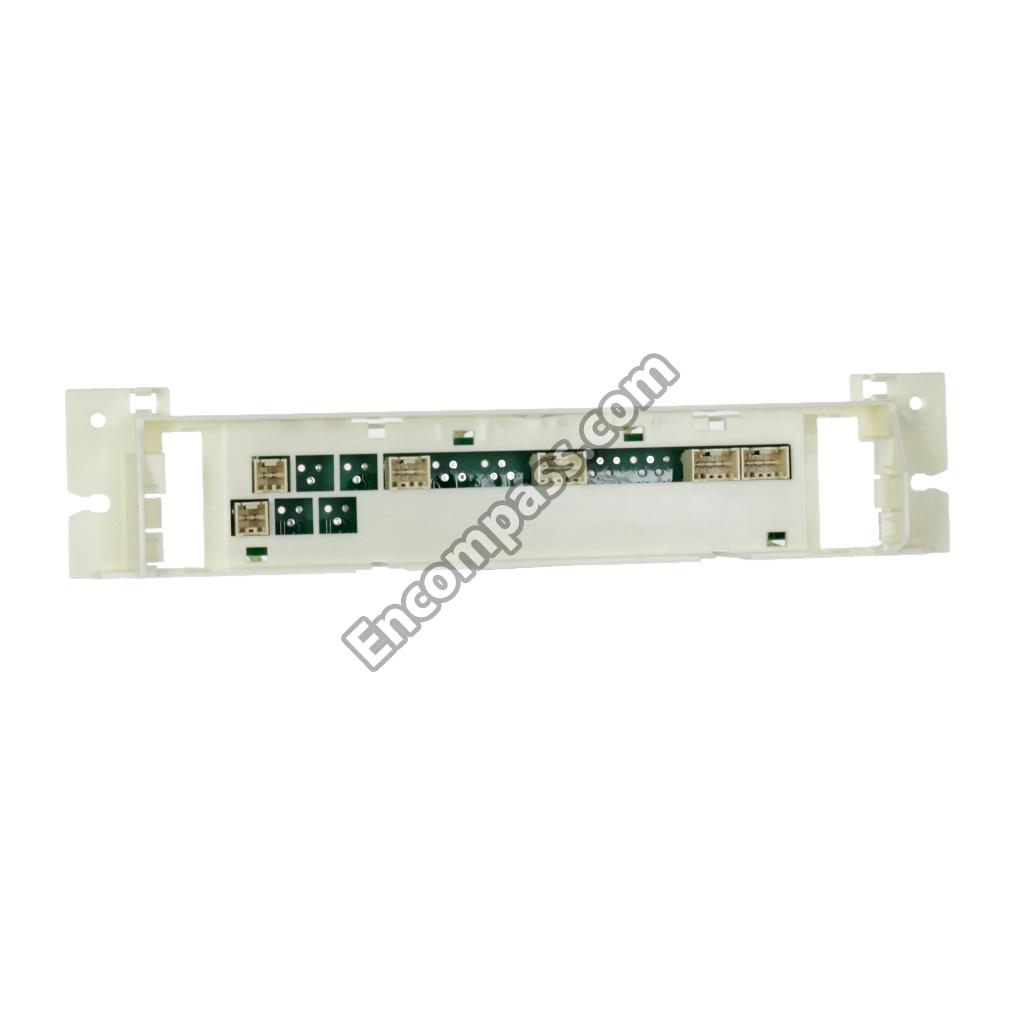

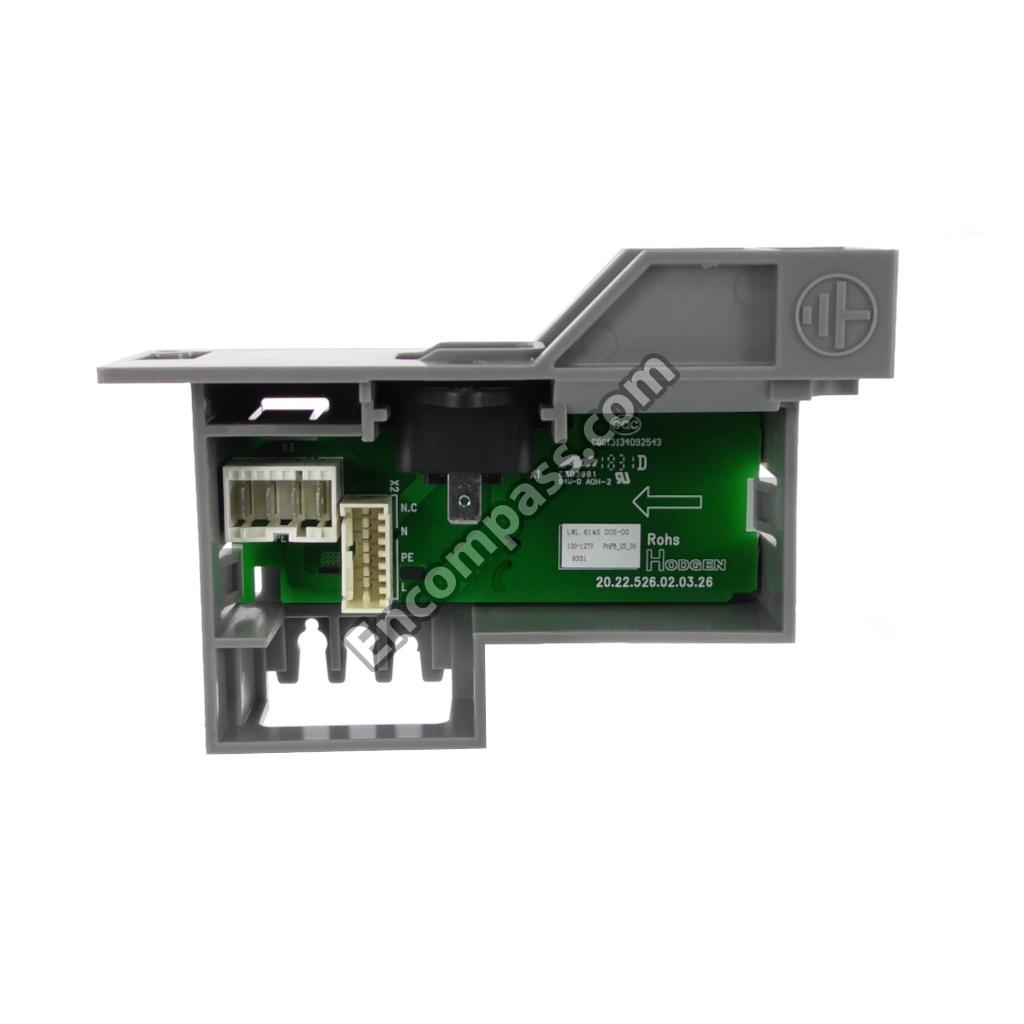

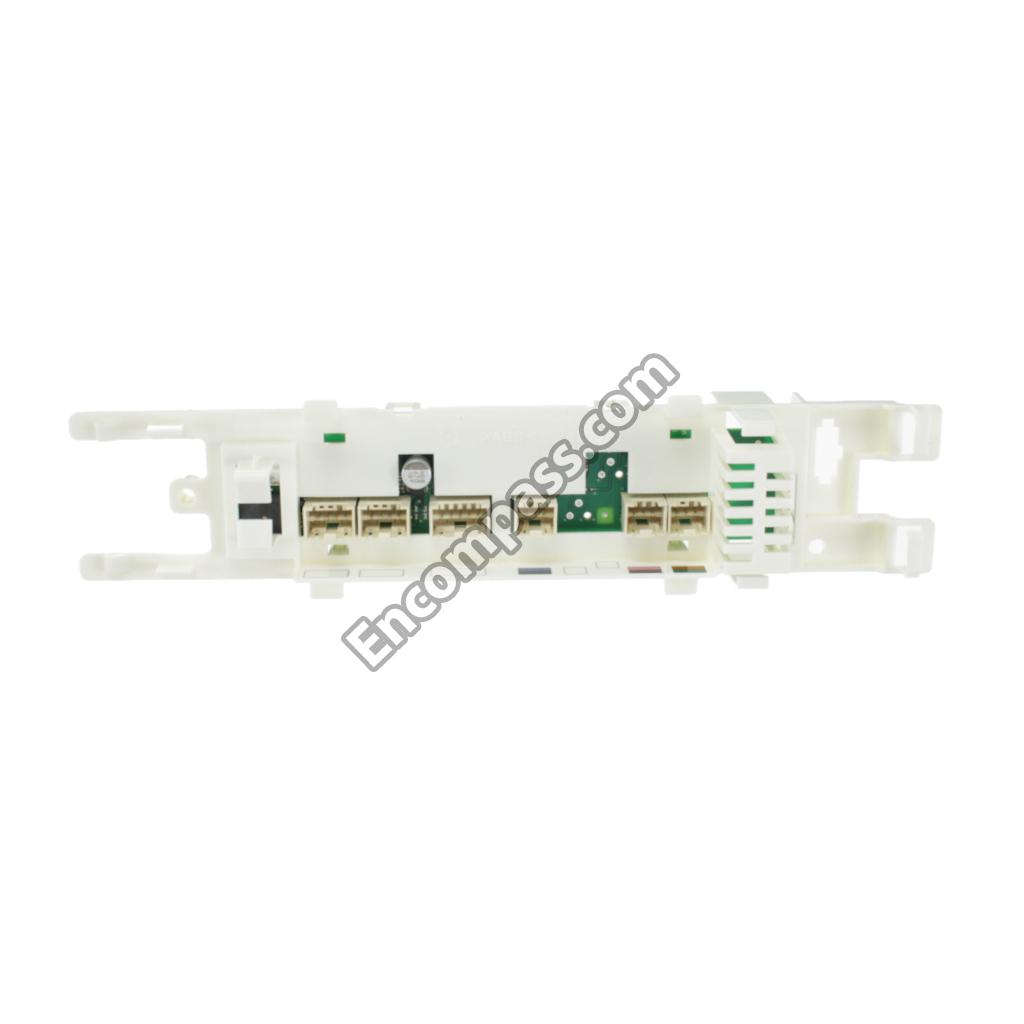

6143732 6143732 POWER BOARD

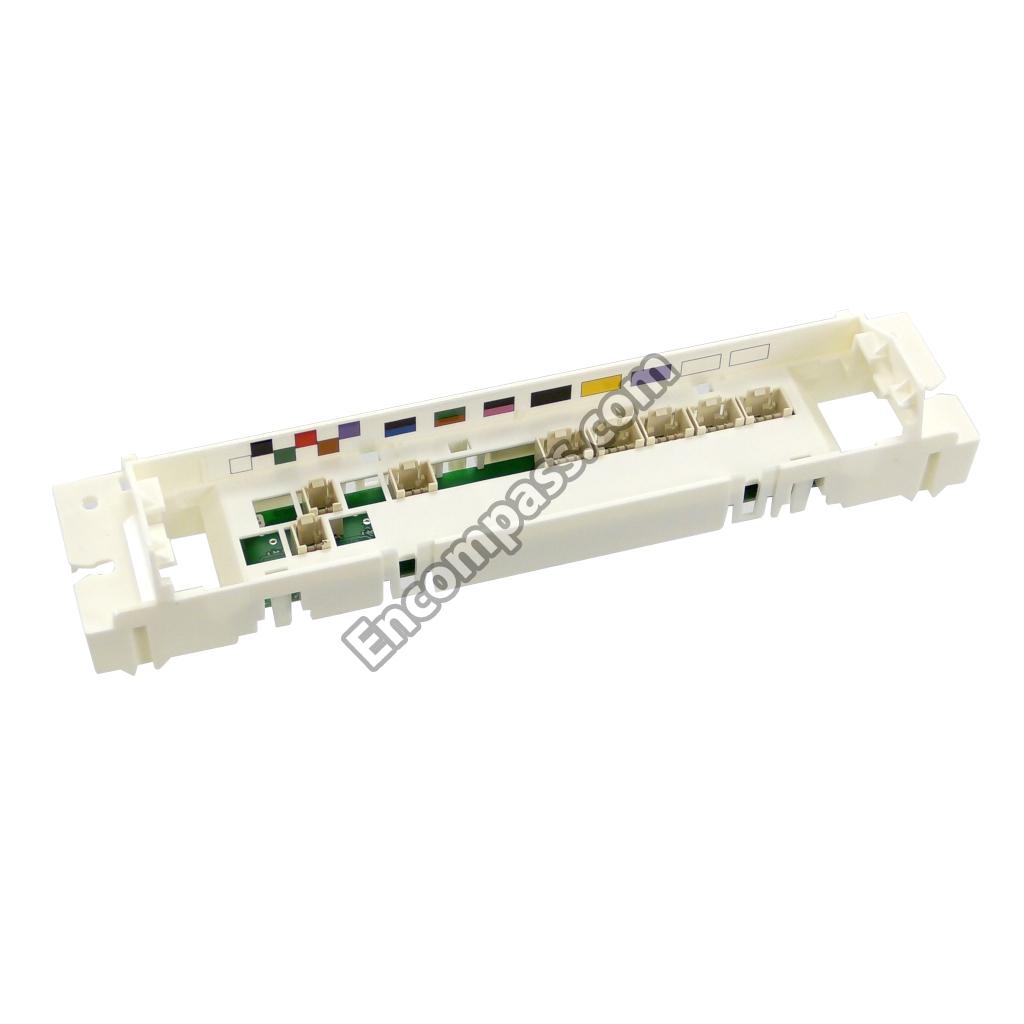

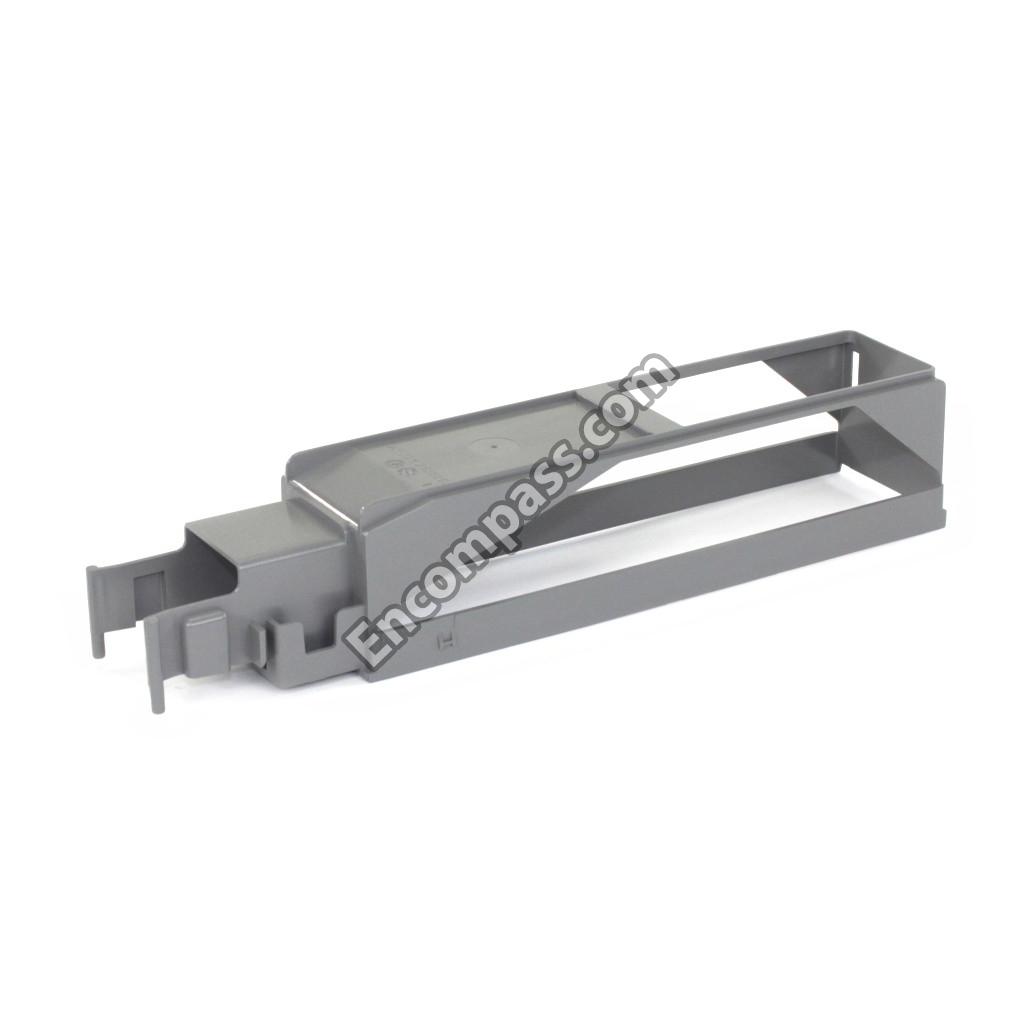

612223300 612223300 POWER BOARD HOLDER
612215100 612215100 POWER BOARD HOLDER
612273300 612273300 POWER BOARD HOLDER
612202500 612202500 POWER BOARD HOLDER
612223500 612223500 POWER BOARD HOLDER

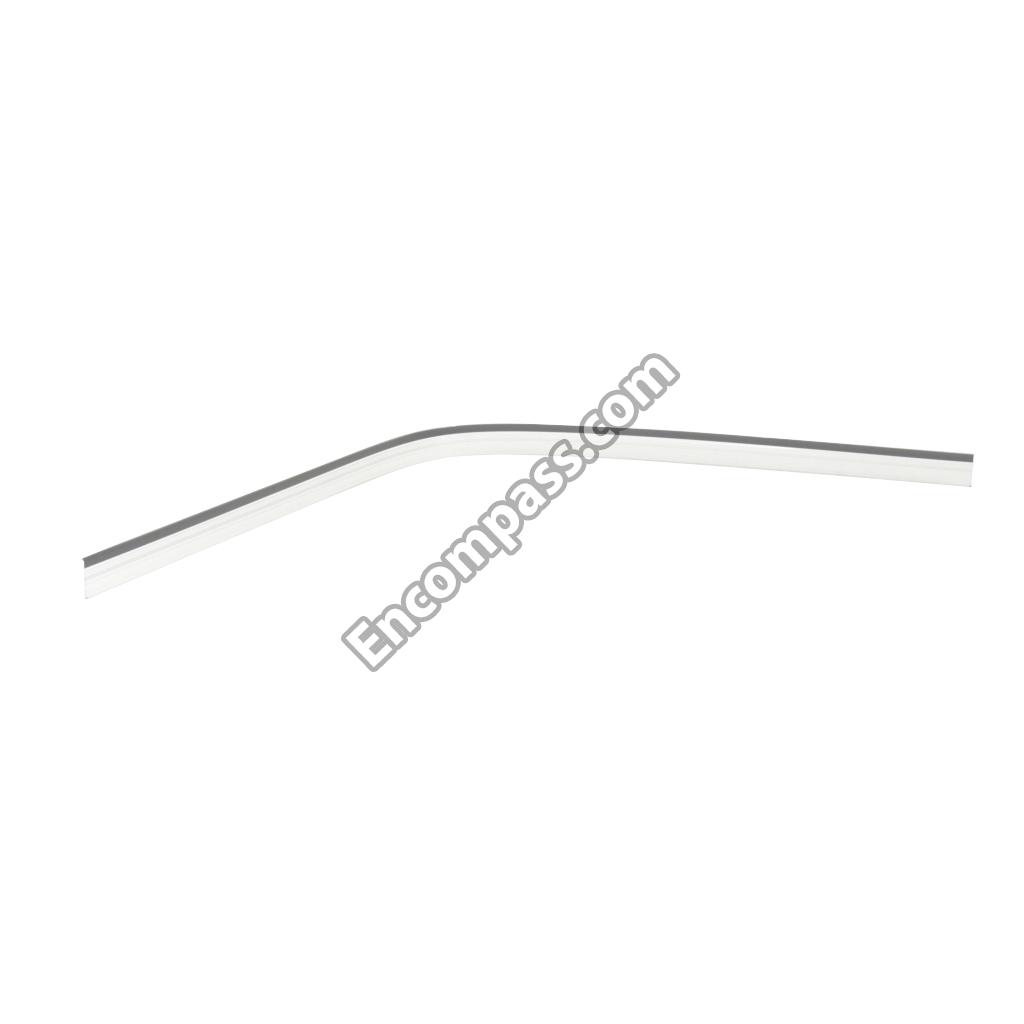

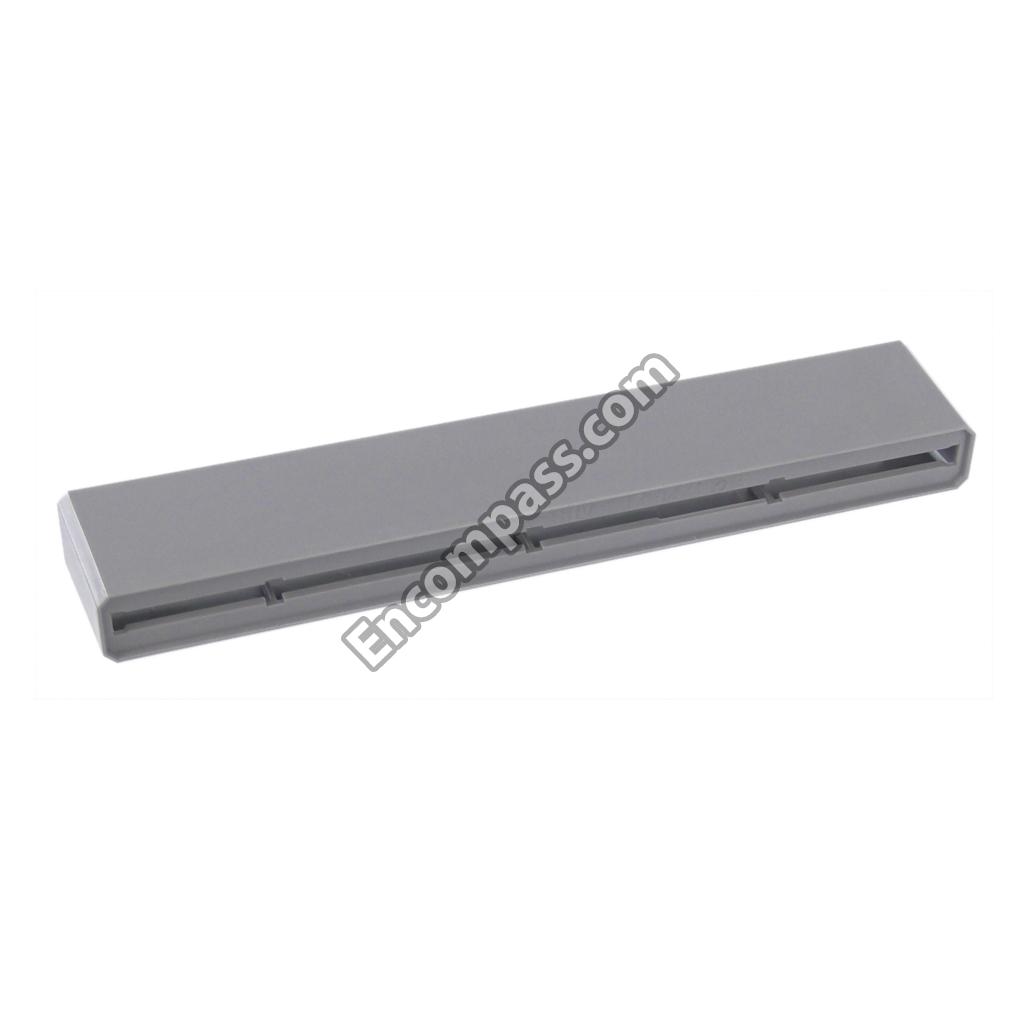

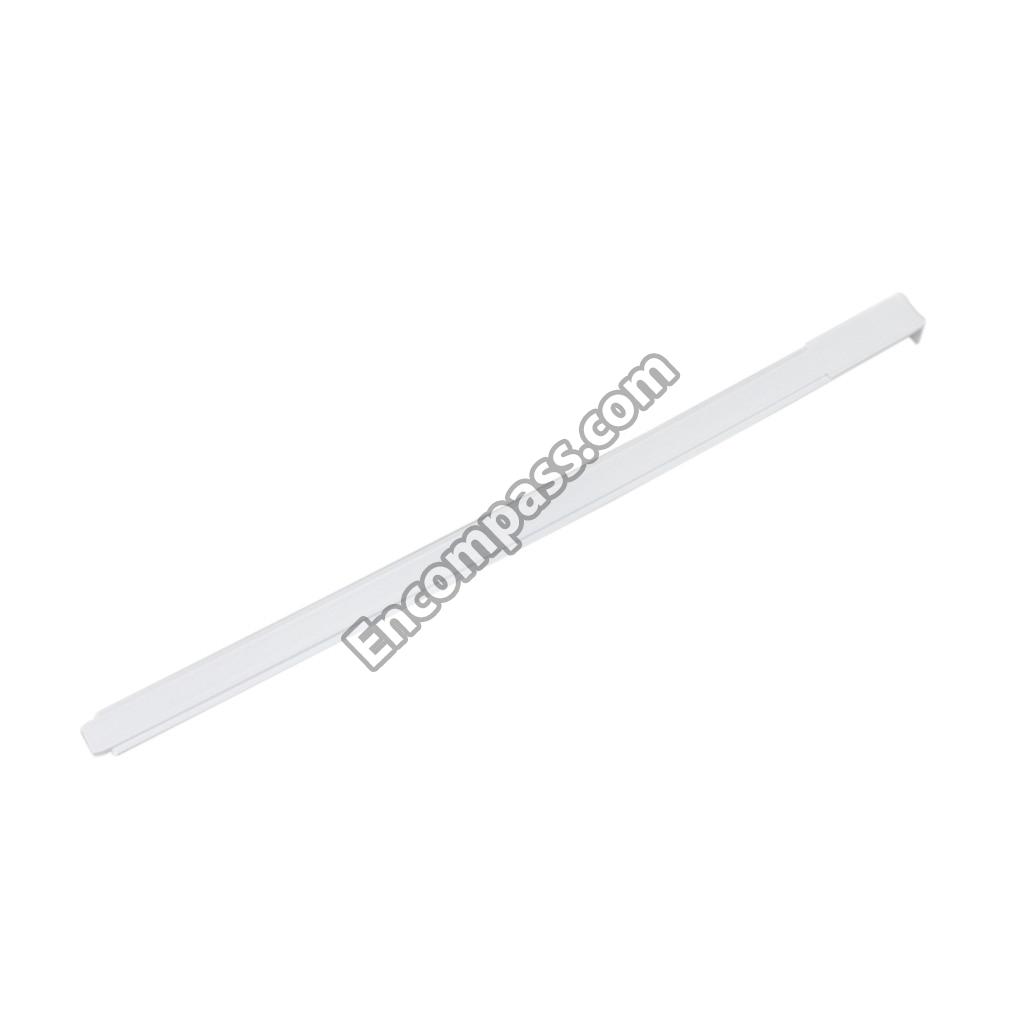

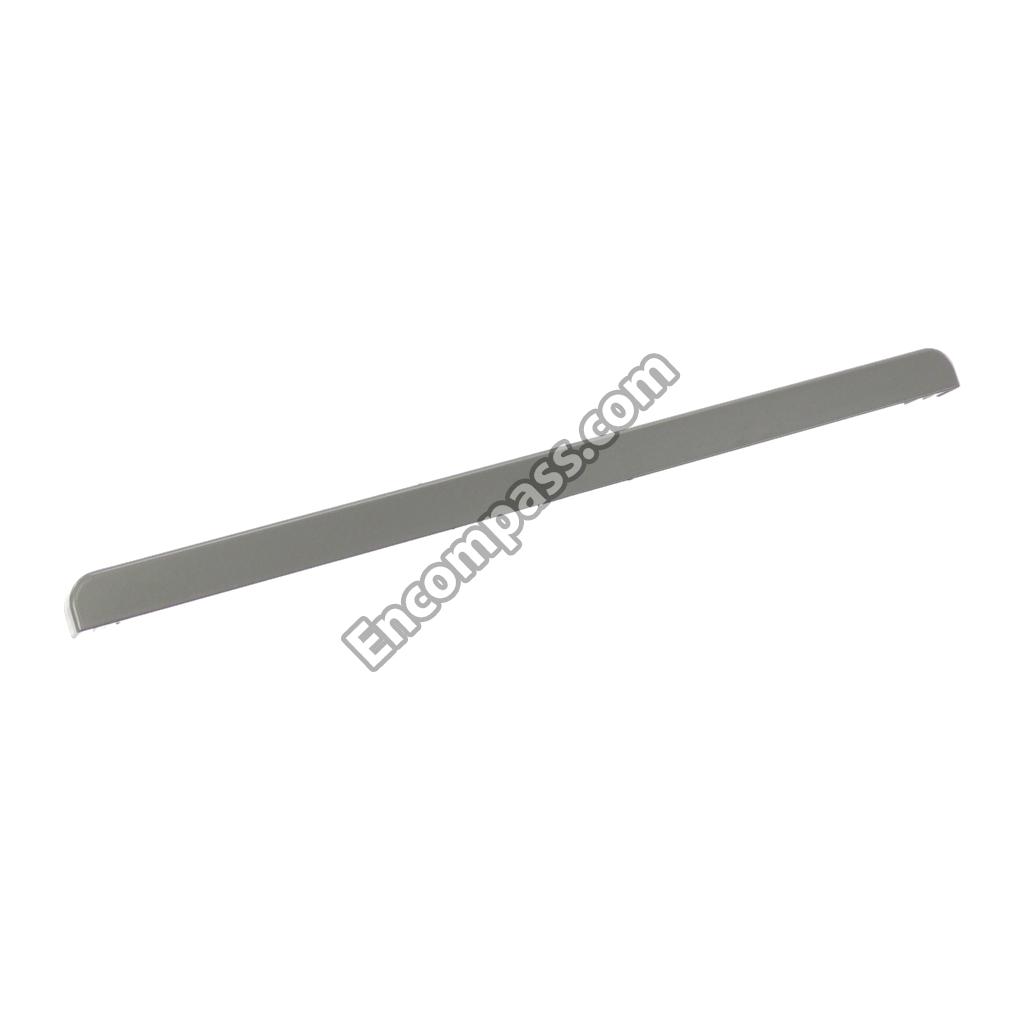

765201700 765201700 PROFILE STRIP
765208800 765208800 PROFILE STRIP
765006000 765006000 PROFILE STRIP
765210000 765210000 PROFILE STRIP
703054700 703054700 PROFILE STRIP
703054100 703054100 PROFILE STRIP
7030080 7030080 PROFILE STRIP
765226701 765226701 PROFILE STRIP
765227102 765227102 PROFILE STRIP
7652570 7652570 PROFILE STRIP
7652568 7652568 PROFILE STRIP
7652594 7652594 PROFILE STRIP
7652574 7652574 PROFILE STRIP
7652584 7652584 PROFILE STRIP
7652538 7652538 PROFILE STRIP
7652540 7652540 PROFILE STRIP
7652564 7652564 PROFILE STRIP
765225900 765225900 PROFILE STRIP
7652091 7652091 PROFILE STRIP
7652090 7652090 PROFILE STRIP
764138900 764138900 PROFILE/WELT GASKET
764138700 764138700 PROFILE/WELT GASKET
7642031 7642031 PROFILE/WELT GASKET
743893600 743893600 PROFILE/WELT GASKET
908692800 908692800 PSEUDOGROUP
908000900 908000900 PSEUDOGROUP

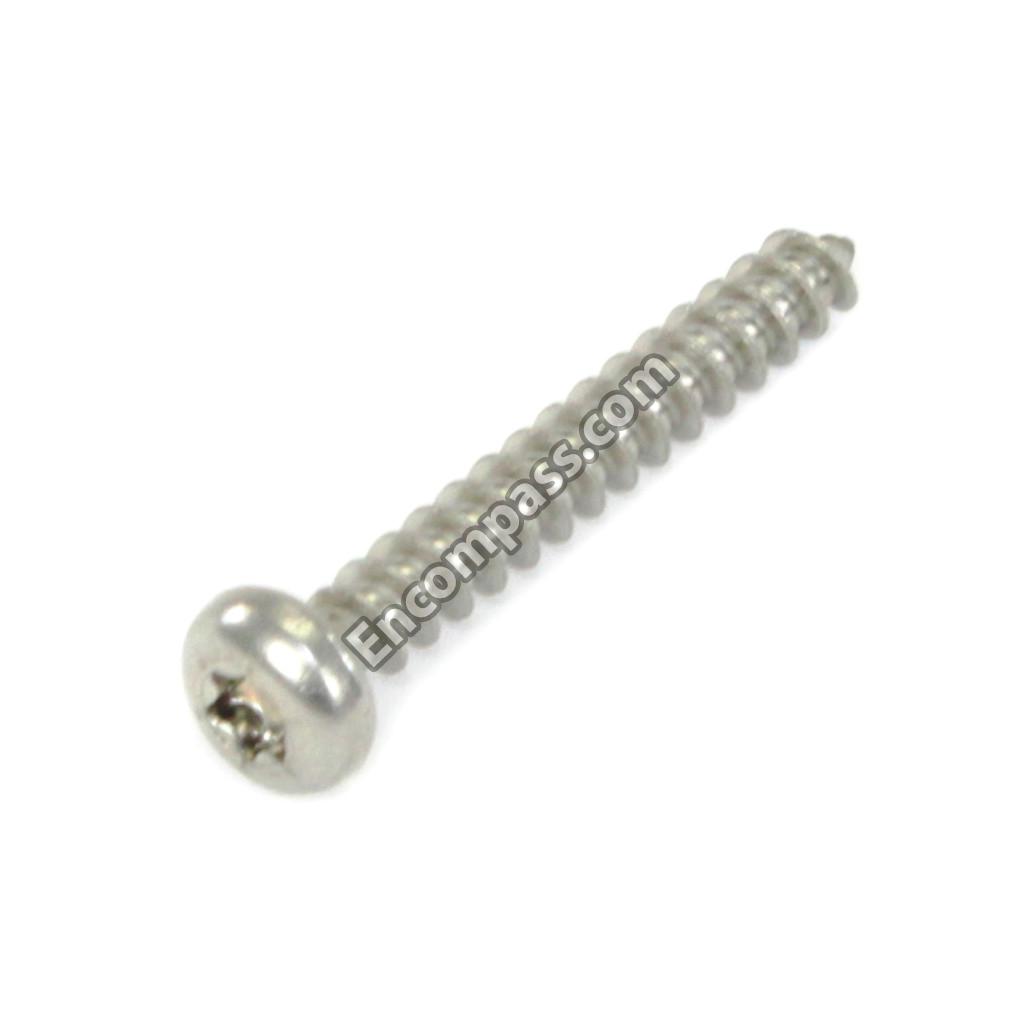

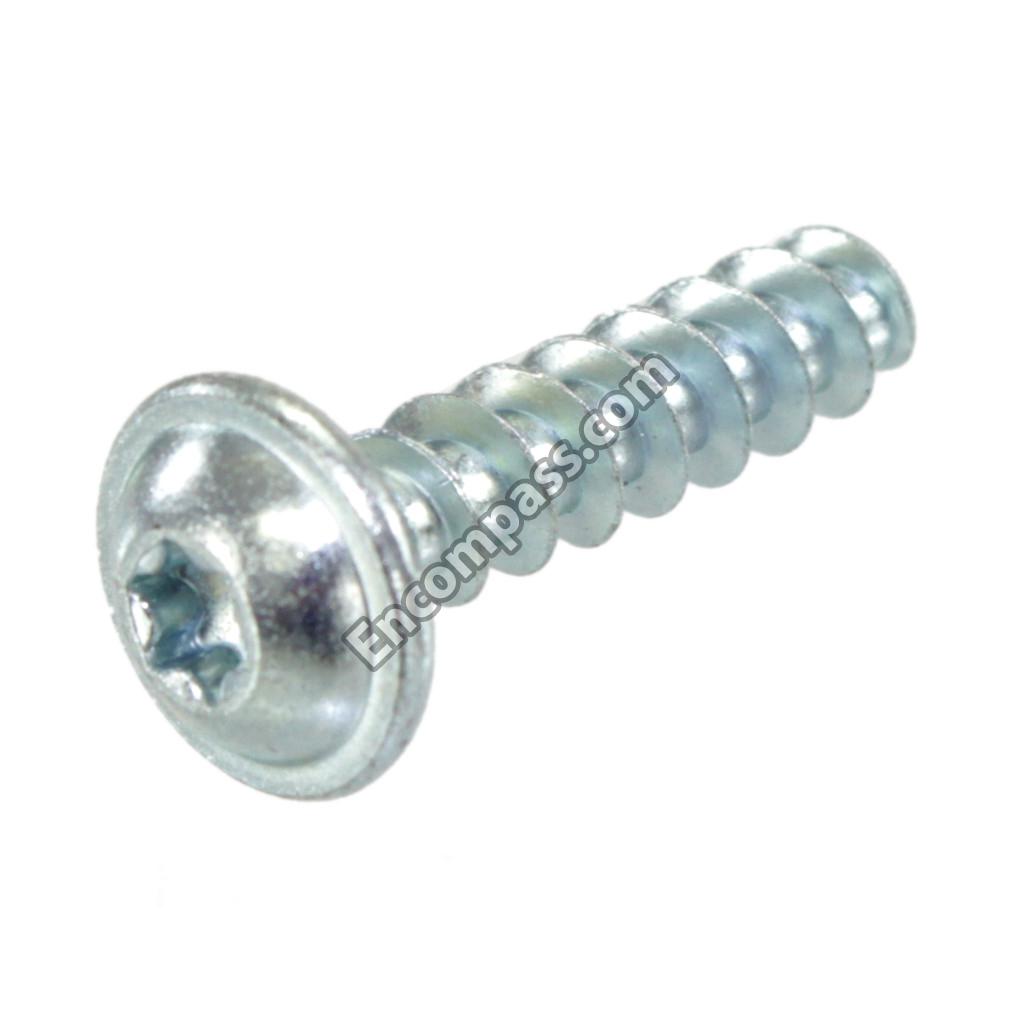

409868900 409868900 PT SCREW
409000000 409000000 PT SCREW
409859300 409859300 PT SCREW
409877901 409877901 PT SCREW
614350500 614350500 REED BOARD
9302251 9302251 REFRIGERANT PIPE HEATER

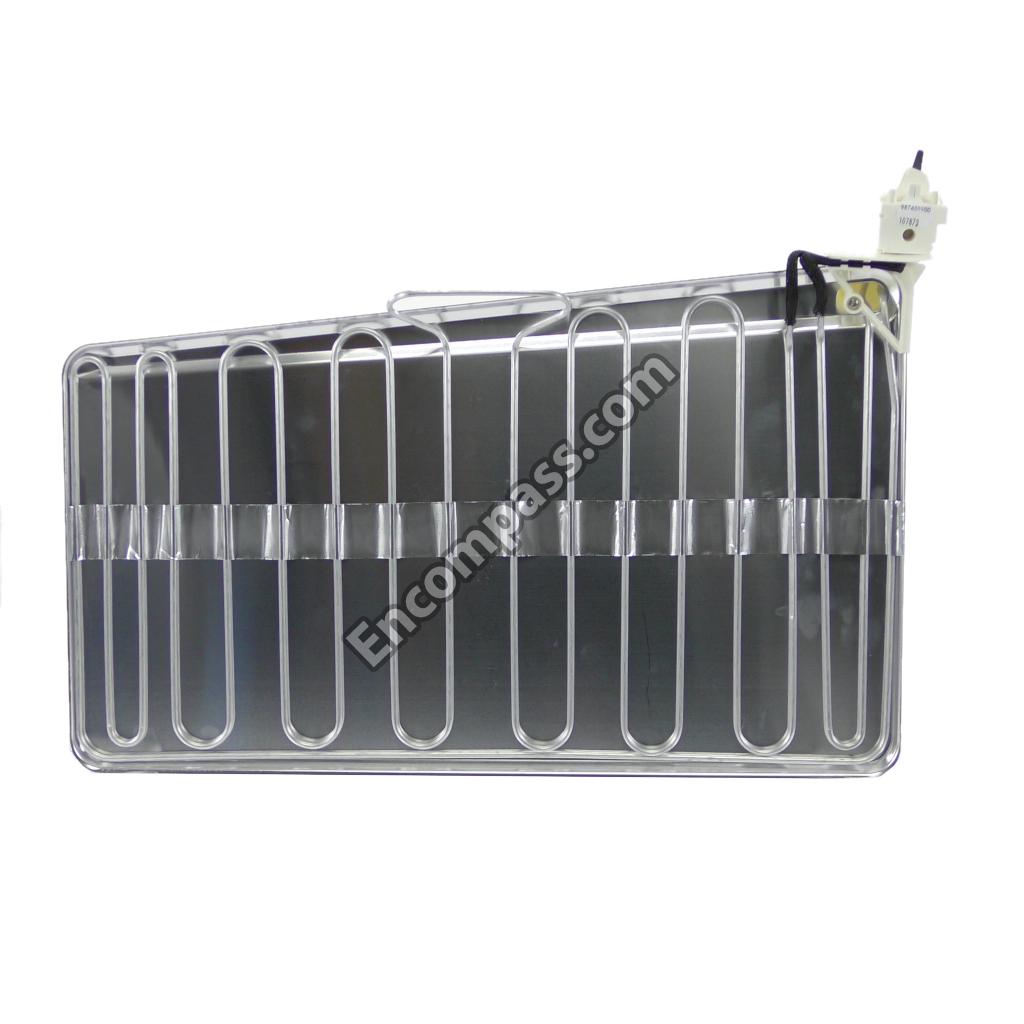

5944119 5944119 REFRIGERATOR EVAPORATOR, SPEC. DESIGN
594411500 594411500 REFRIGERATOR EVAPORATOR, SPEC. DESIGN

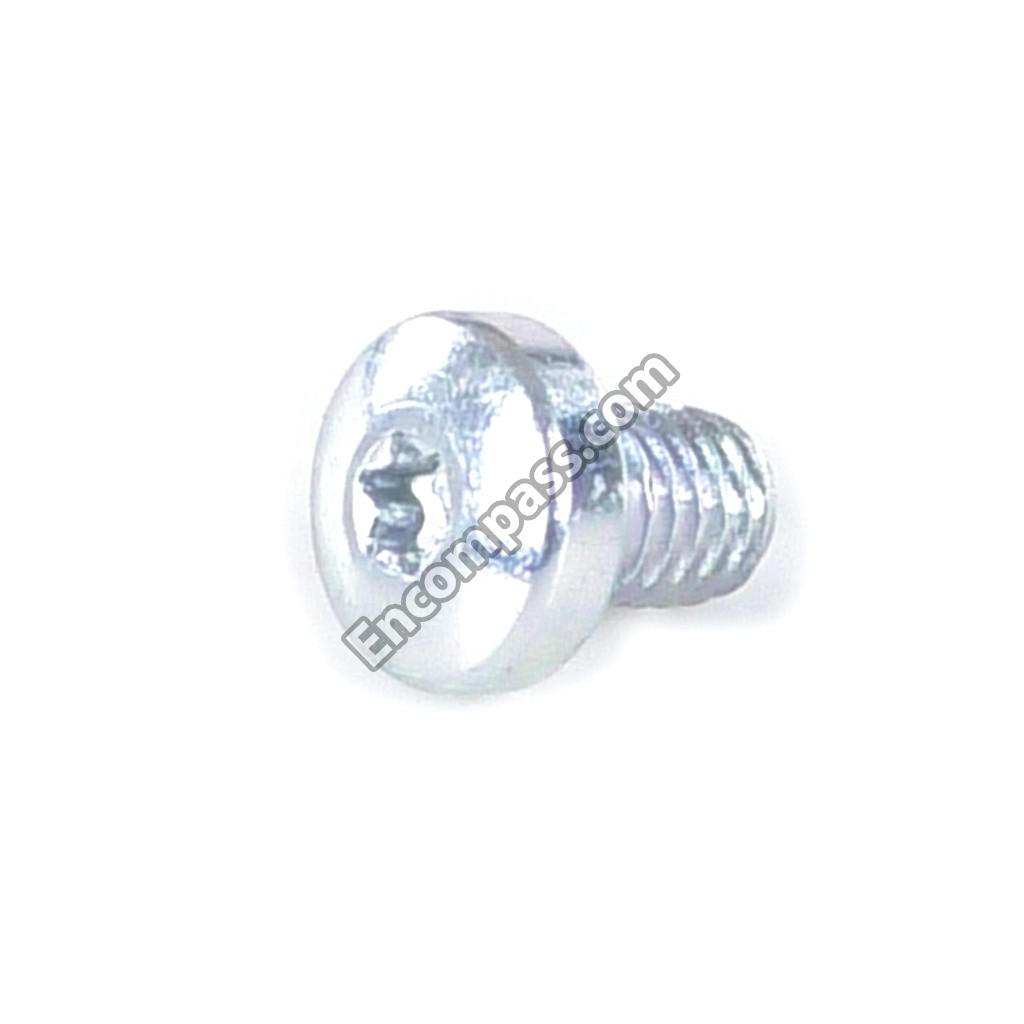

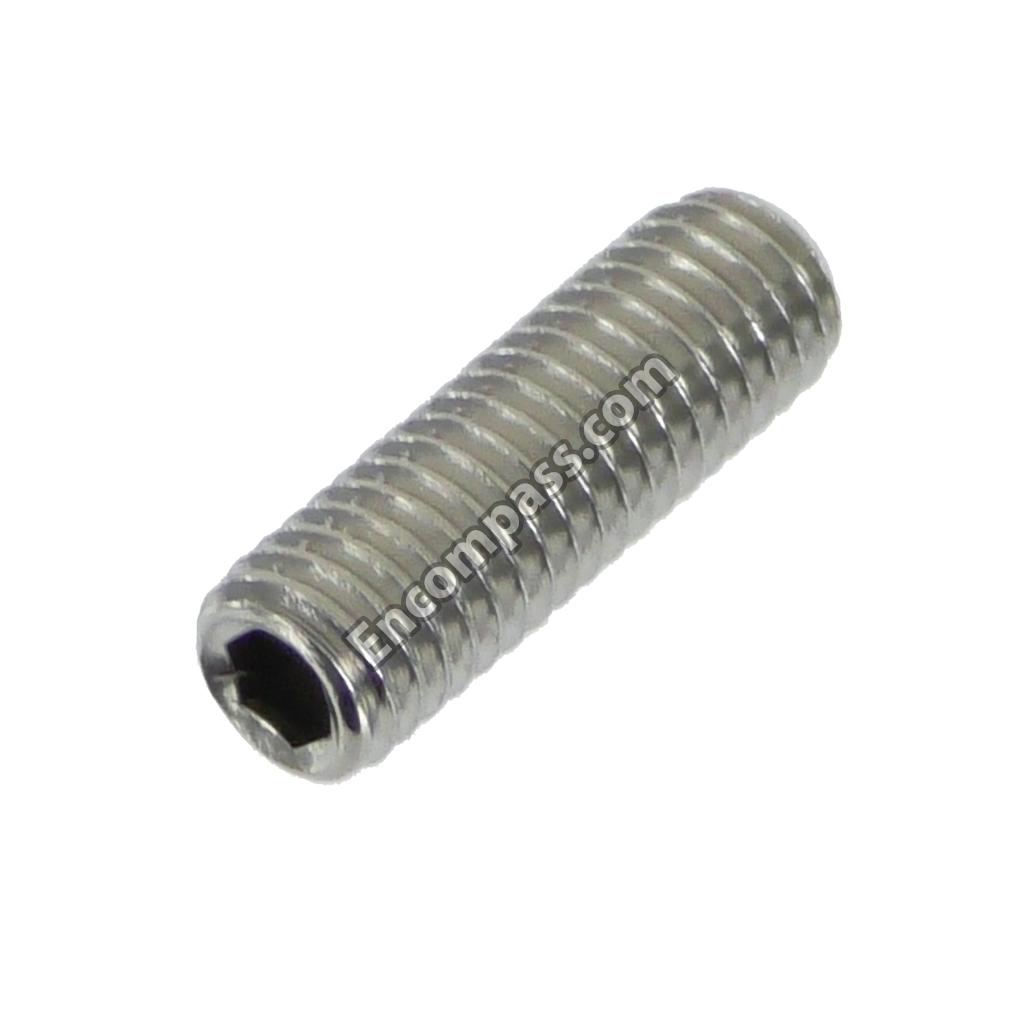

409861700 409861700 SCREW
409867500 409867500 SCREW
4098047 4098047 SCREW

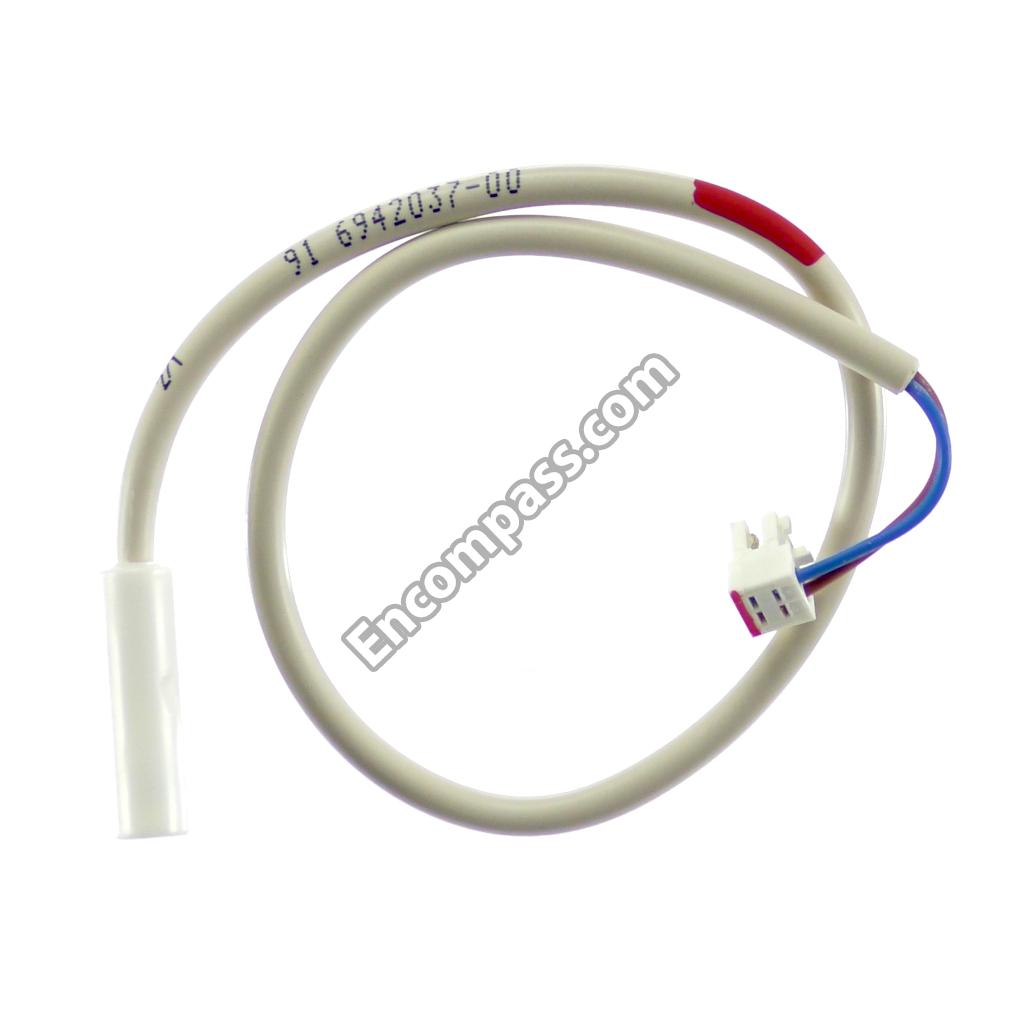

694203700 694203700 SENSOR F. FREEZER COMPARTMENT EVAPORATOR
694203500 694203500 SENSOR F. FREEZER COMPARTMENT EVAPORATOR

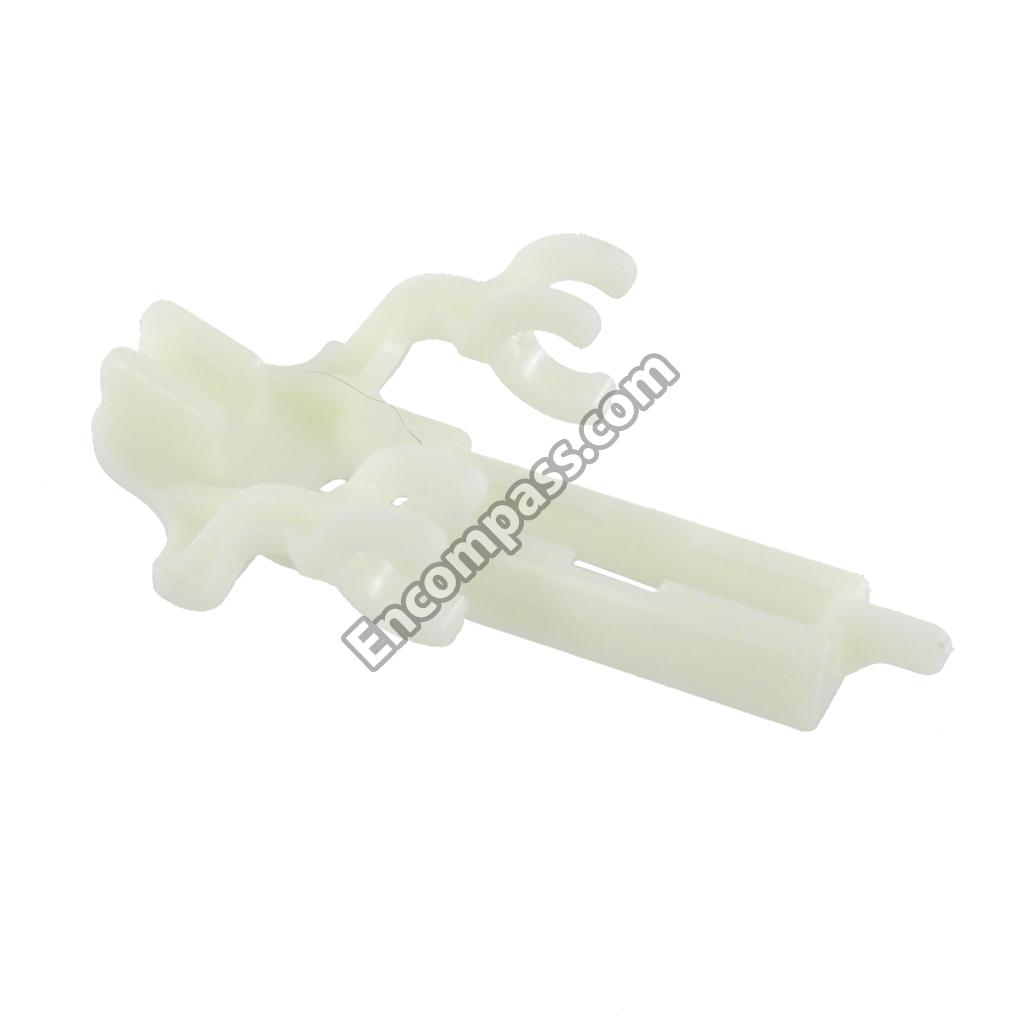

743922101 743922101 SENSOR RETAINING FIXTURE
704423300 704423300 SET DOOR HINGES
9594466 9594466 SET DOOR HINGES
945454600 945454600 SET DOOR HINGES

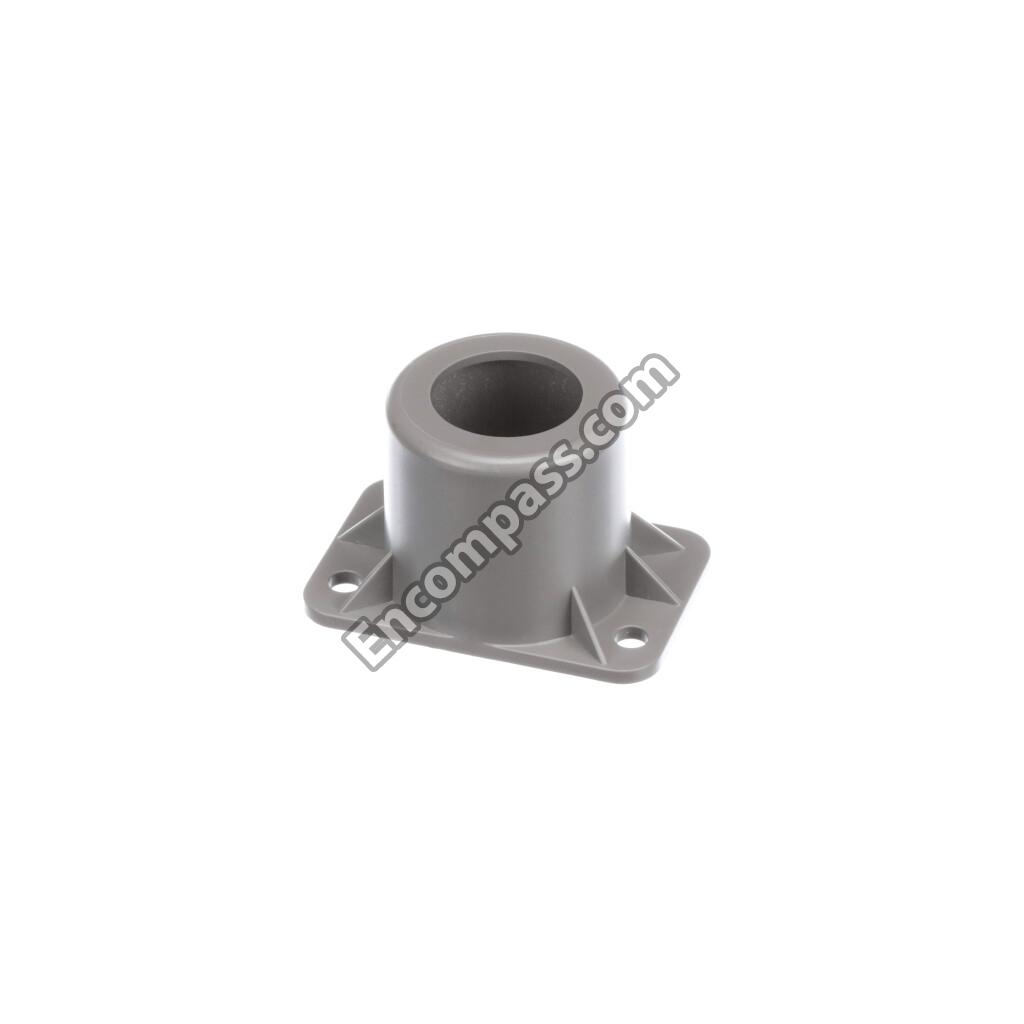

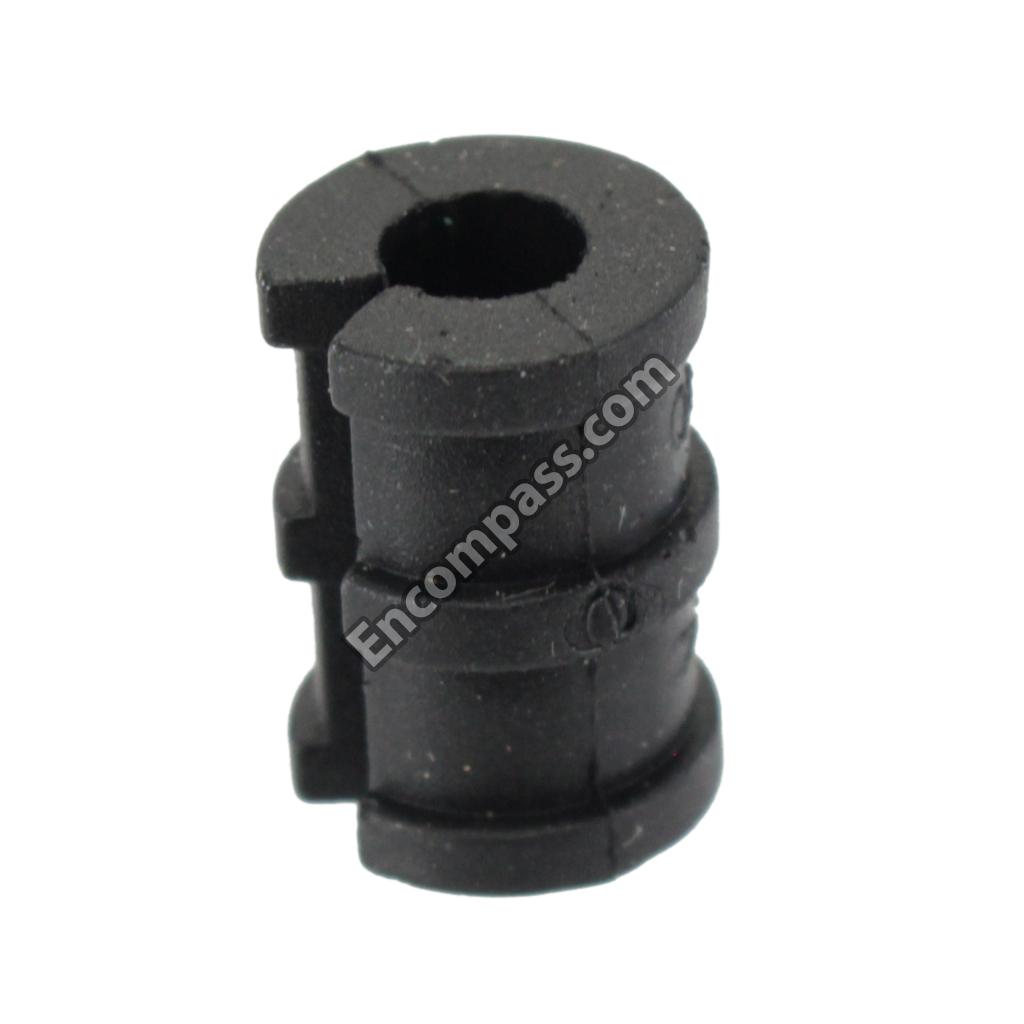

7266140 7266140 SLEEVE
726613402 726613402 SLEEVE
726606900 726606900 SLEEVE

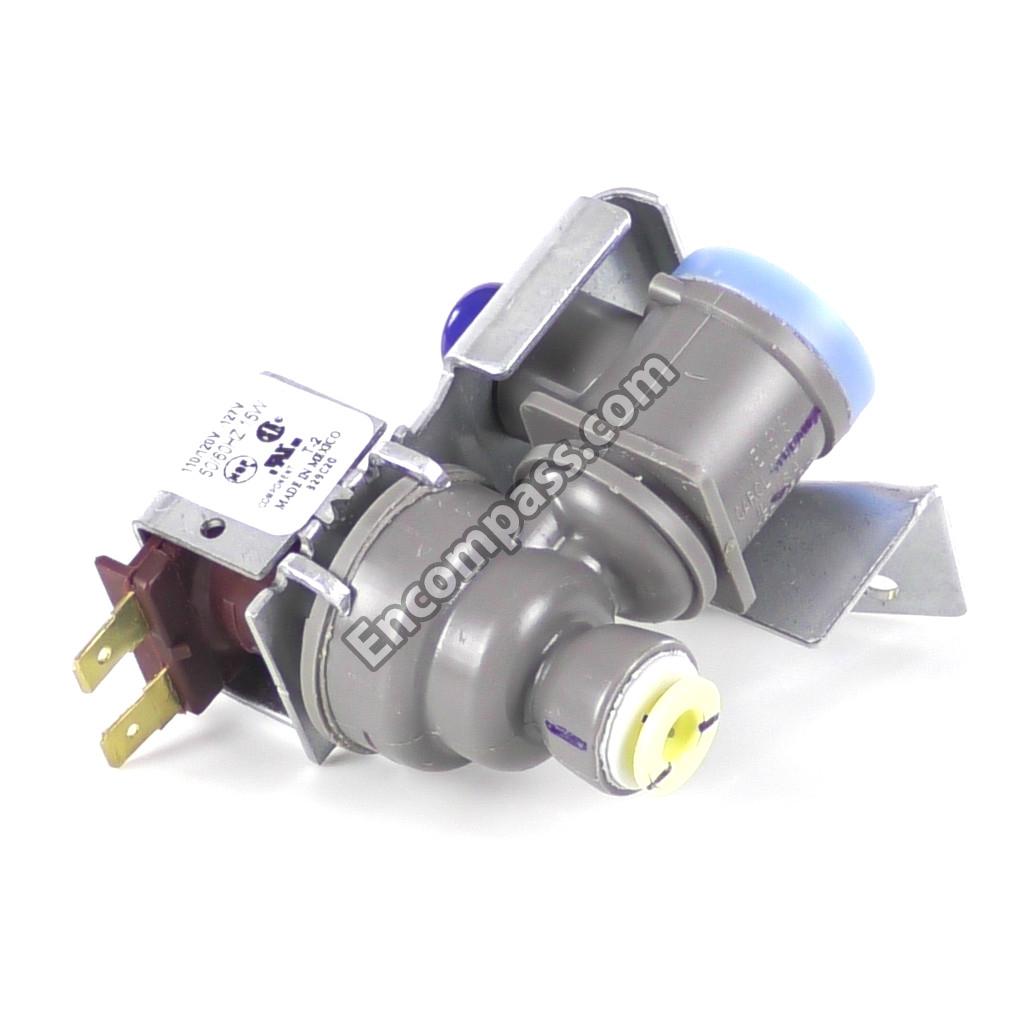

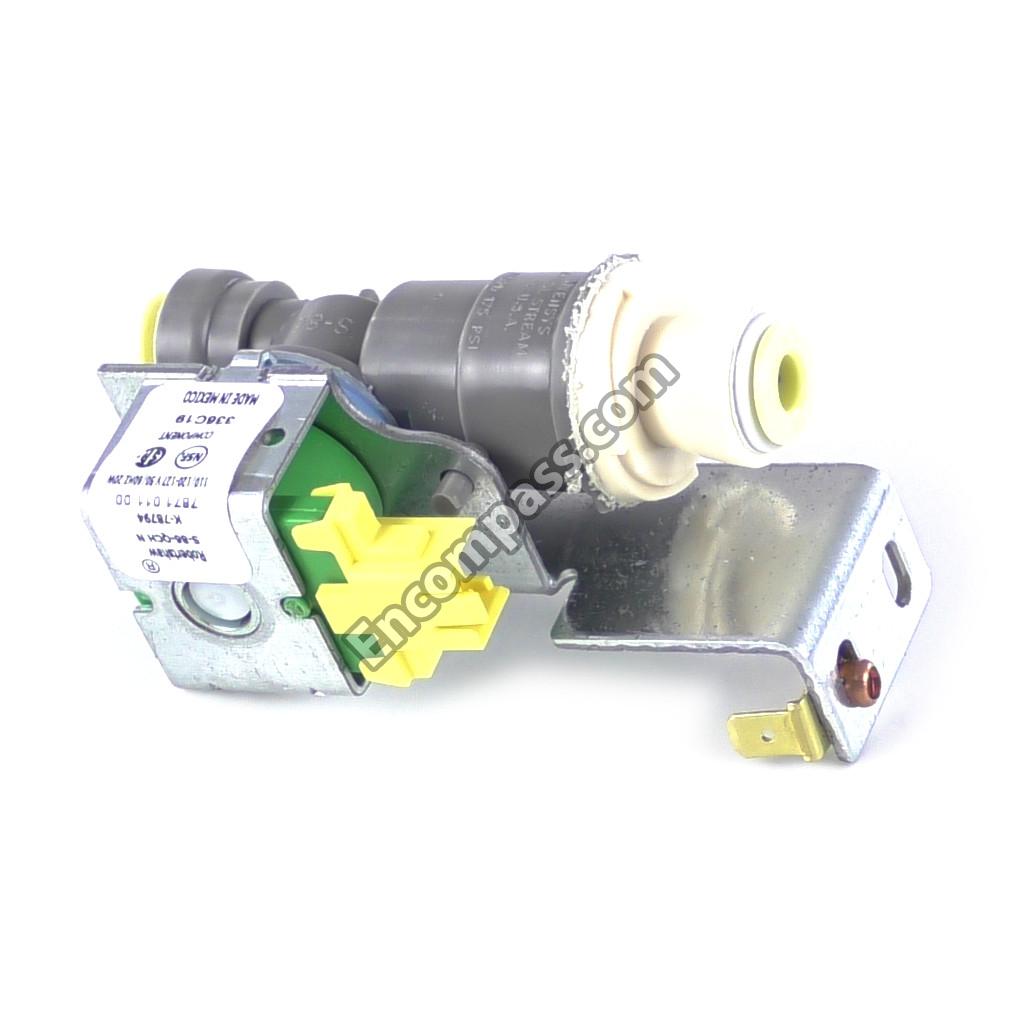

7871047 7871047 SOLENOID VALVE
787201600 787201600 SOLENOID VALVE
900214000 900214000 SOLENOID VALVE
900214400 900214400 SOLENOID VALVE

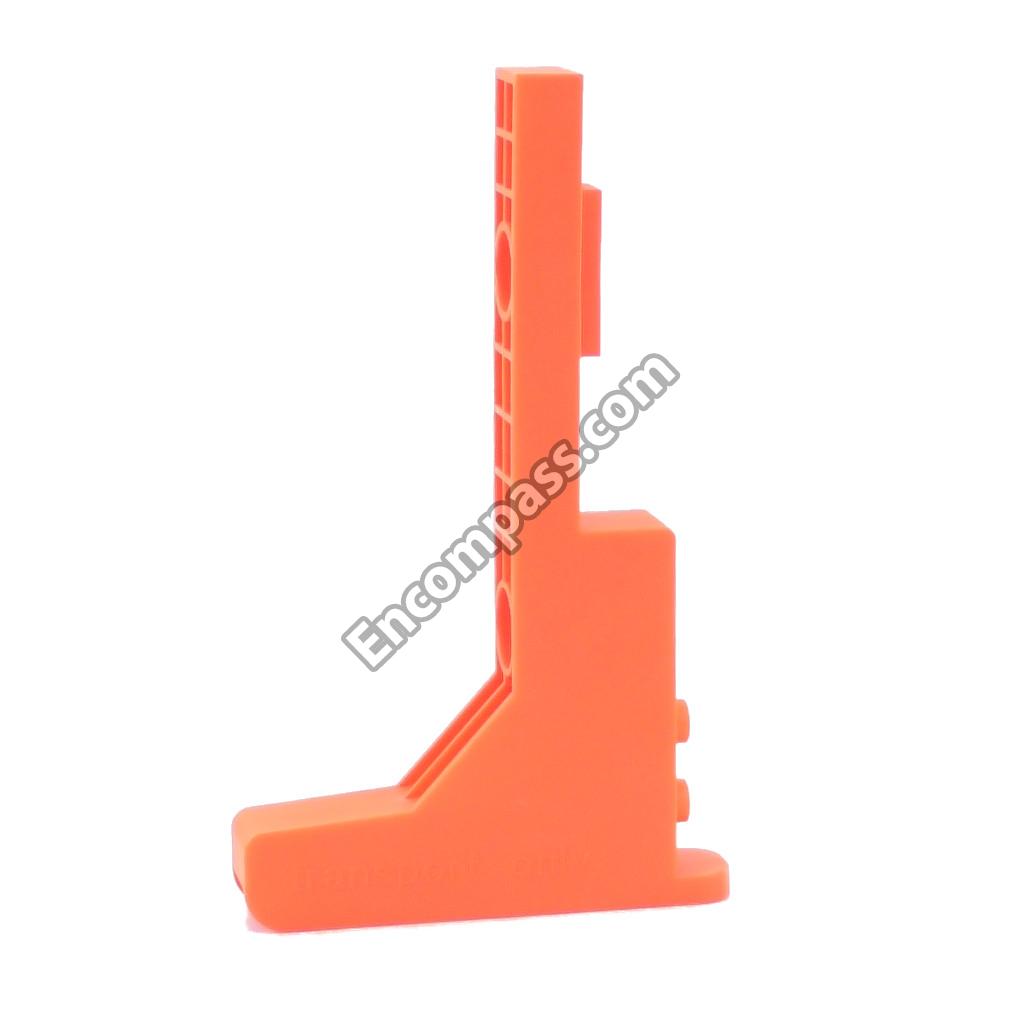

742034000 742034000 SPACERS

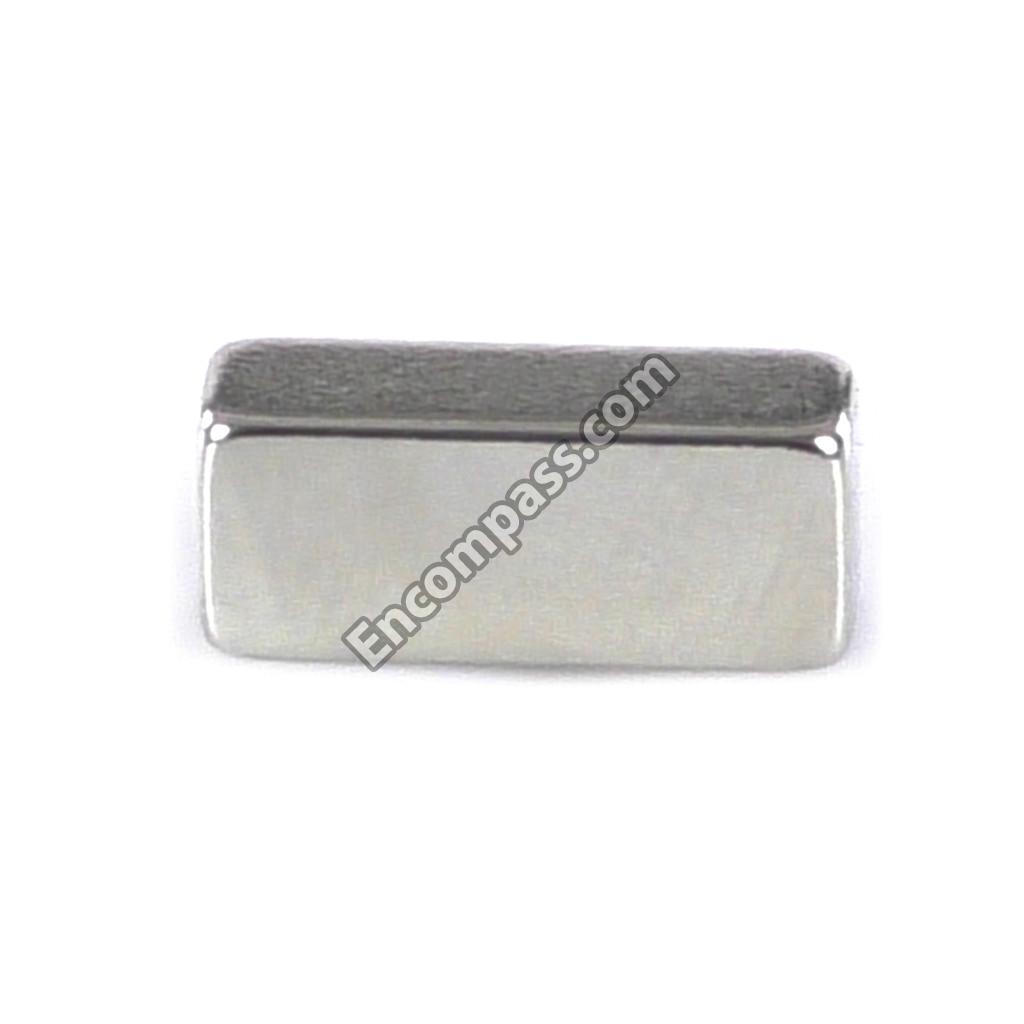

743963800 743963800 SPARE PART

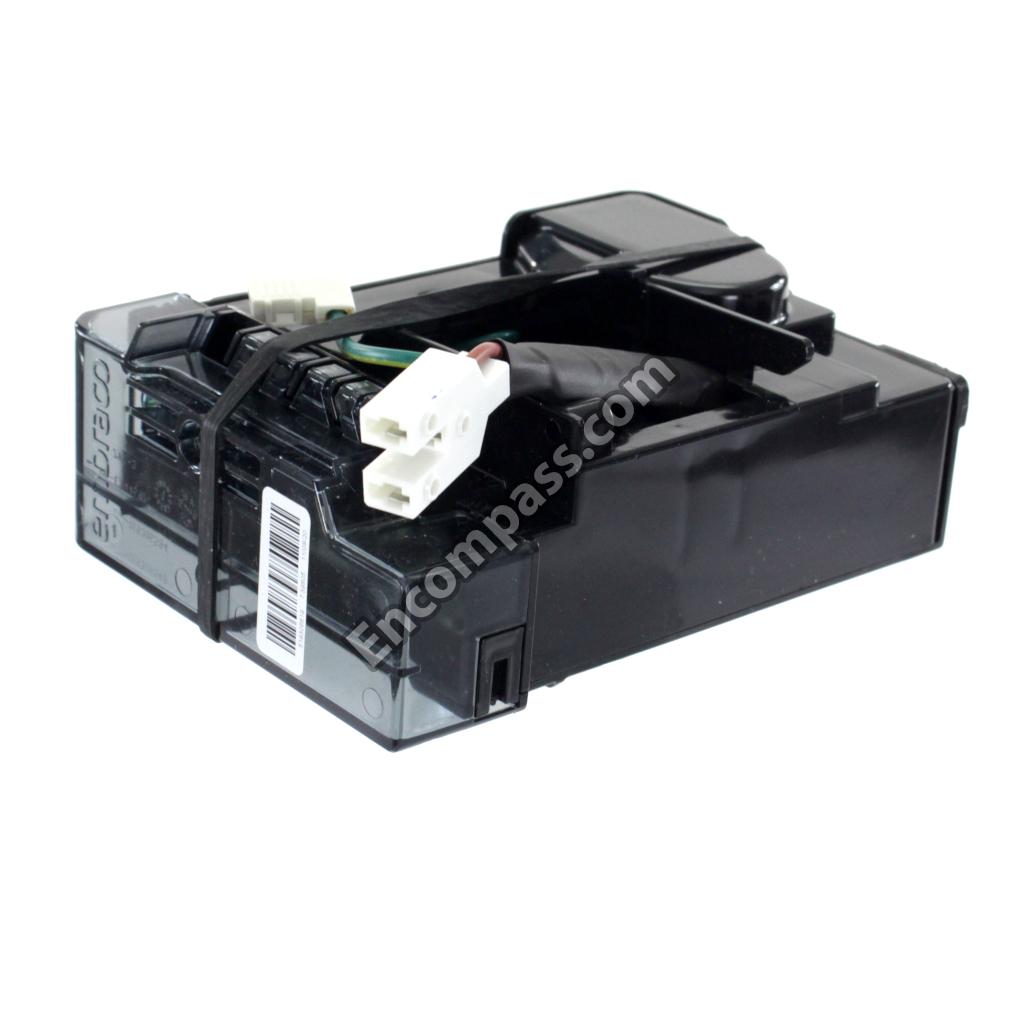

6141512 6141512 SPARE PART

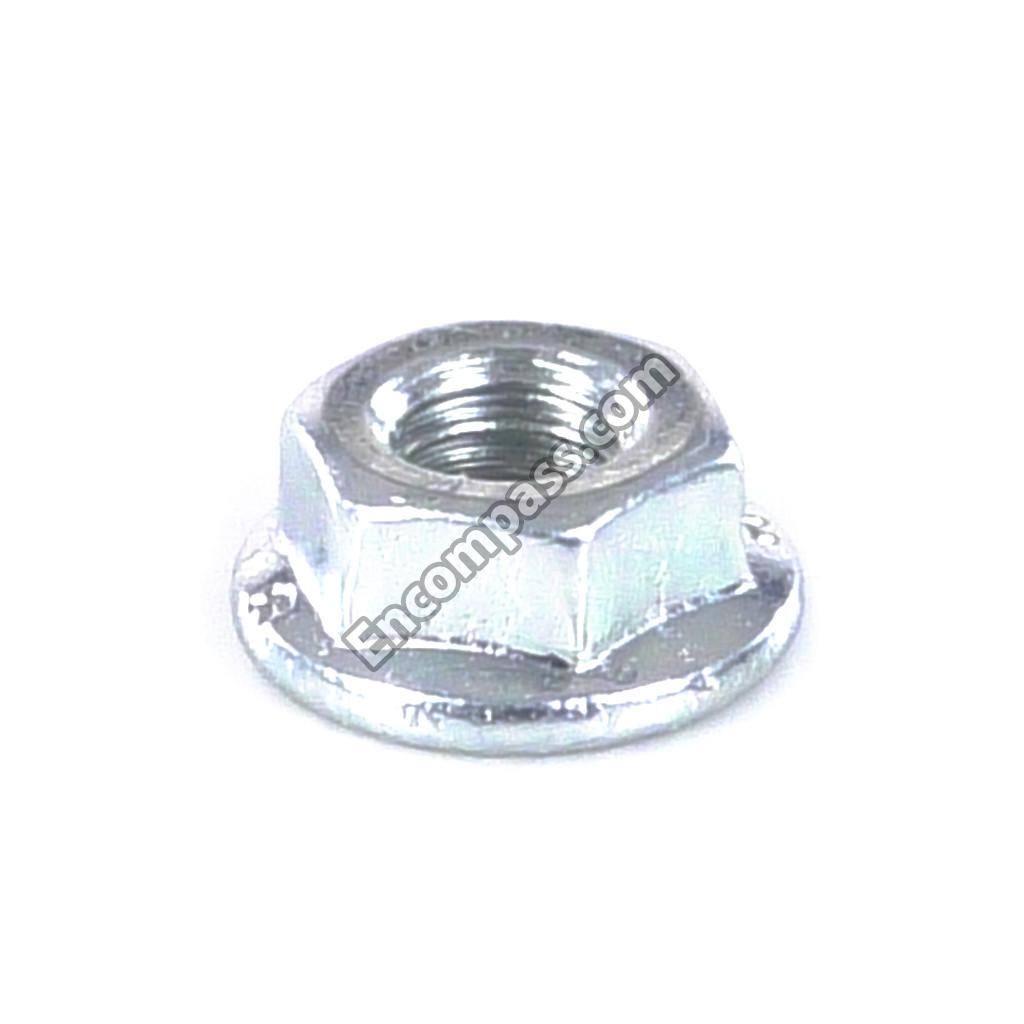

412902501 412902501 SPECIAL NUT
4129043 4129043 SPECIAL NUT
726679700 726679700 SPECIAL SECURING HARDWARE
774248400 774248400 SPECIAL SECURING HARDWARE

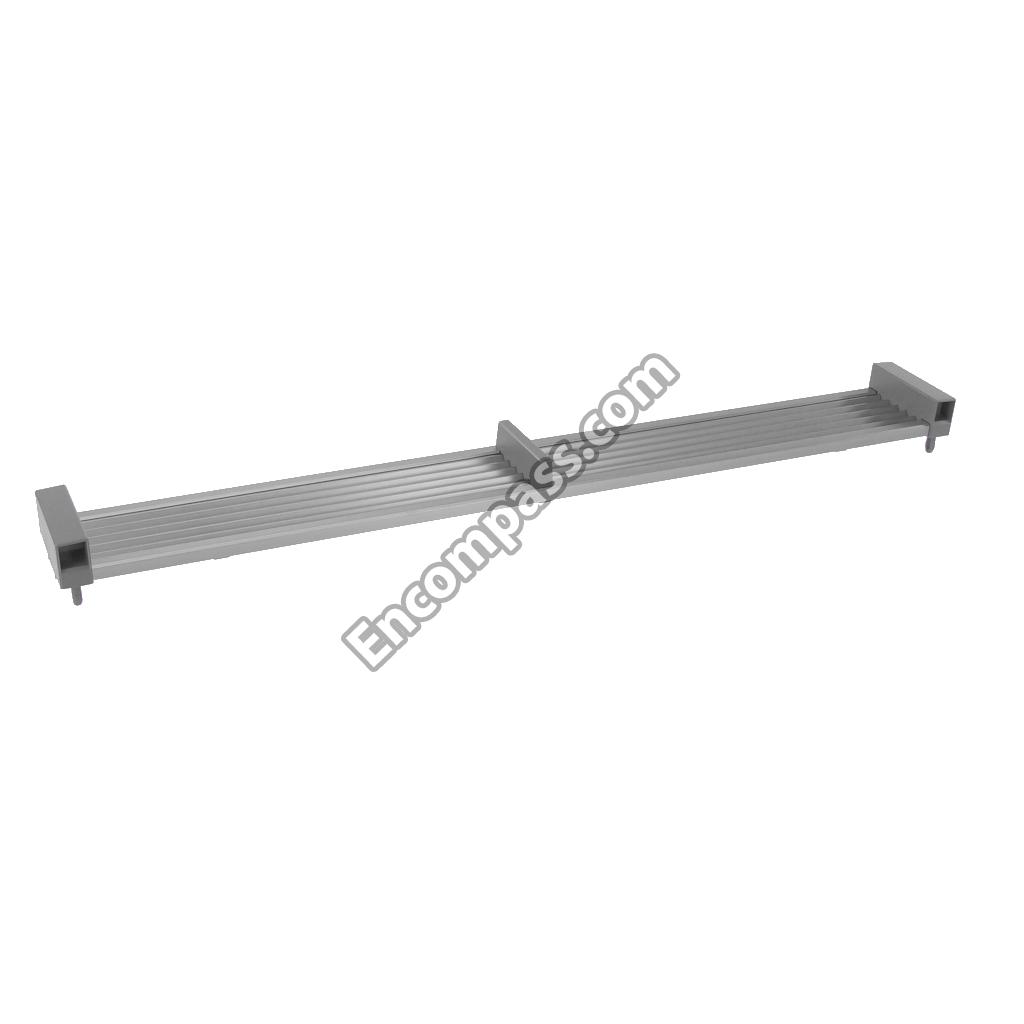

9035140 9035140 STORAGE RACK, STUDDED
9035130 9035130 STORAGE RACK, STUDDED

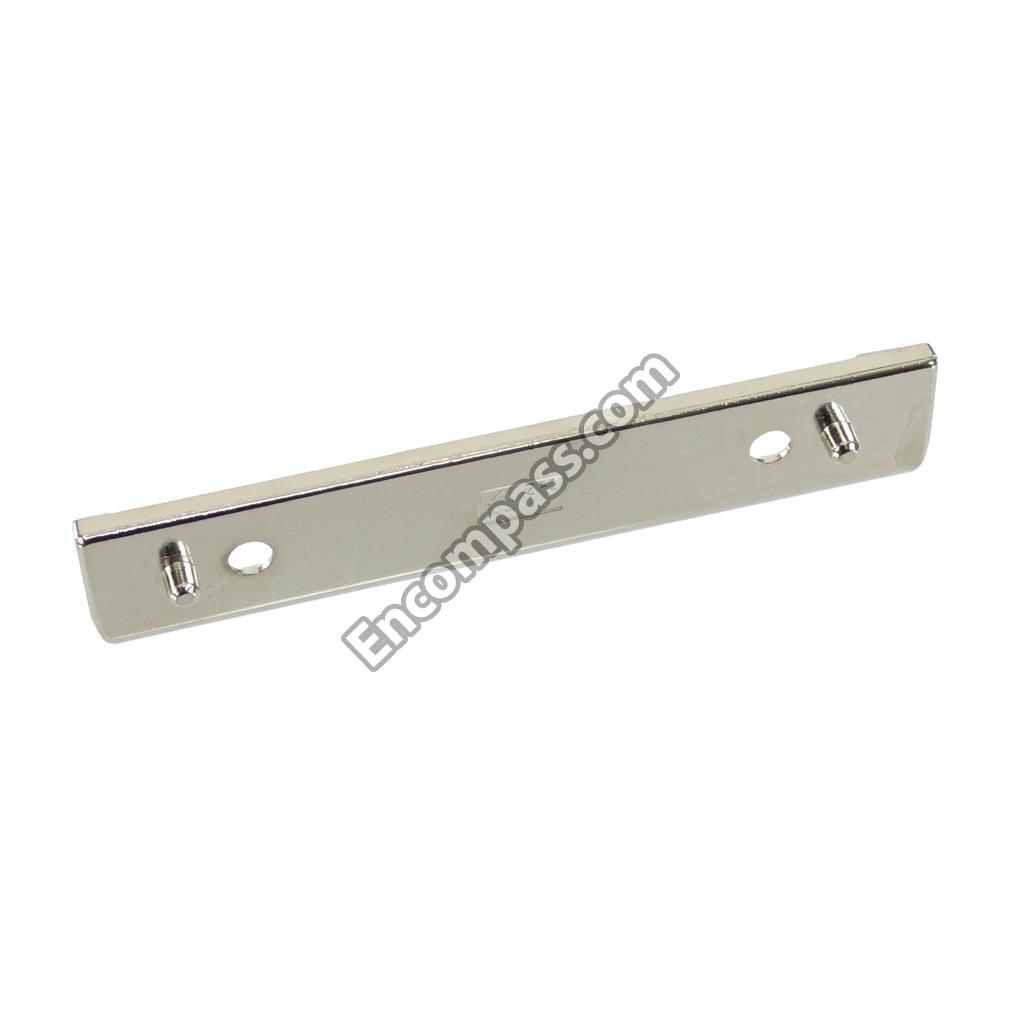

904359300 904359300 STRIP
774747700 774747700 STRIP
774747500 774747500 STRIP
774747100 774747100 STRIP
774747300 774747300 STRIP

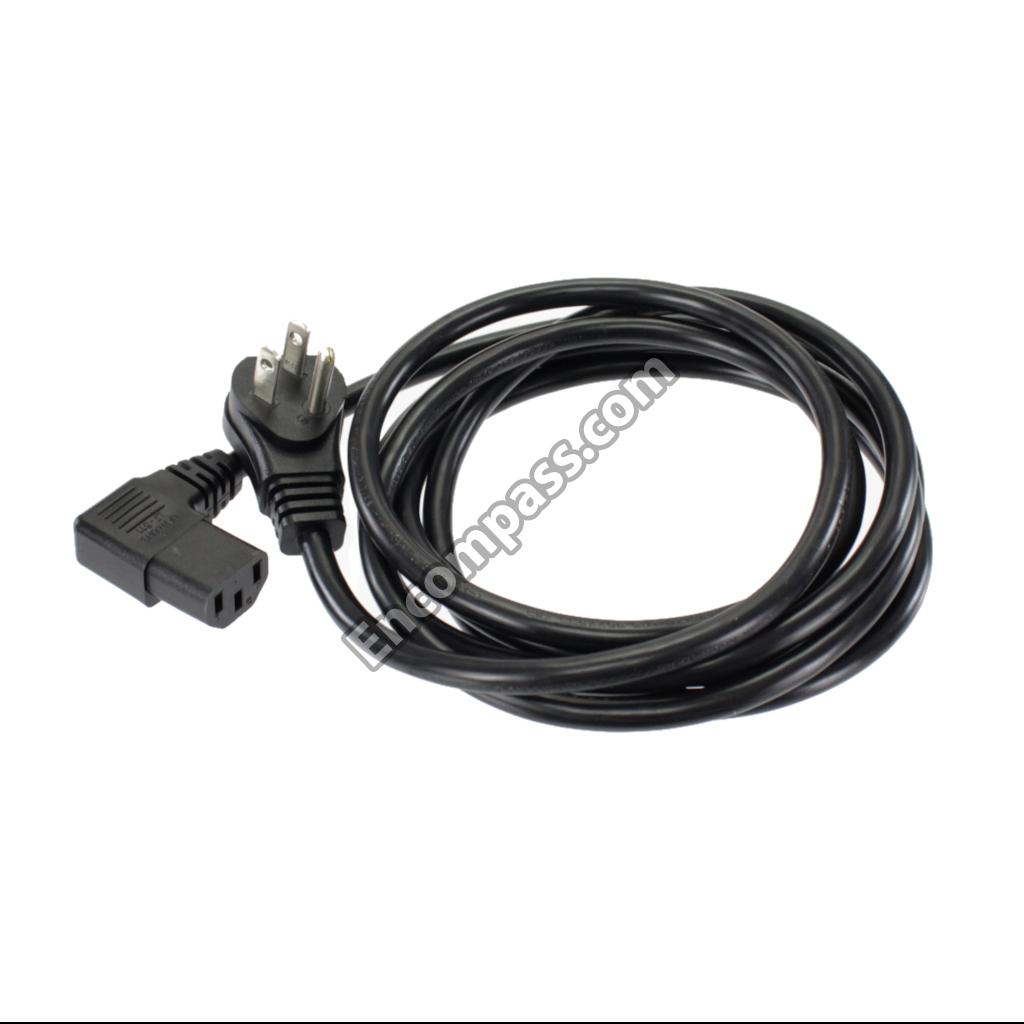

600921400 600921400 SUPPLY LINE

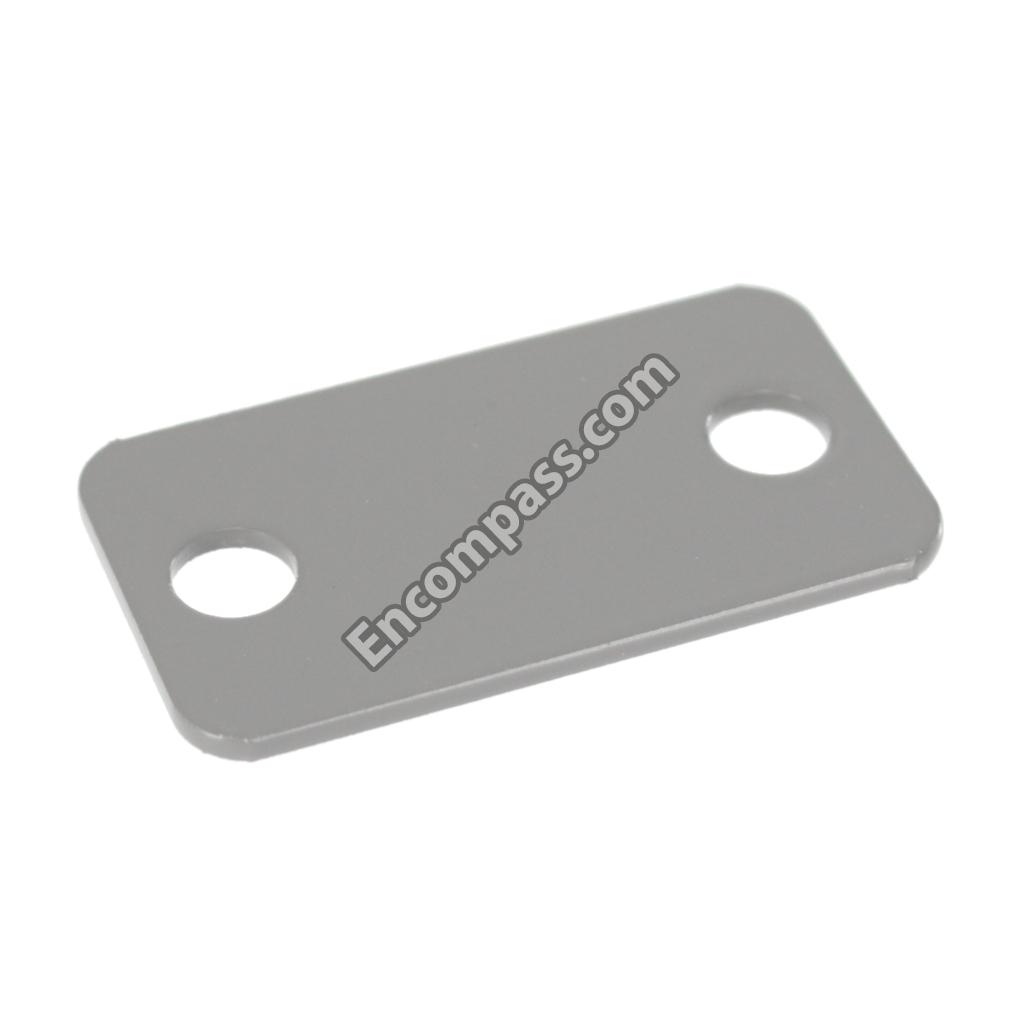

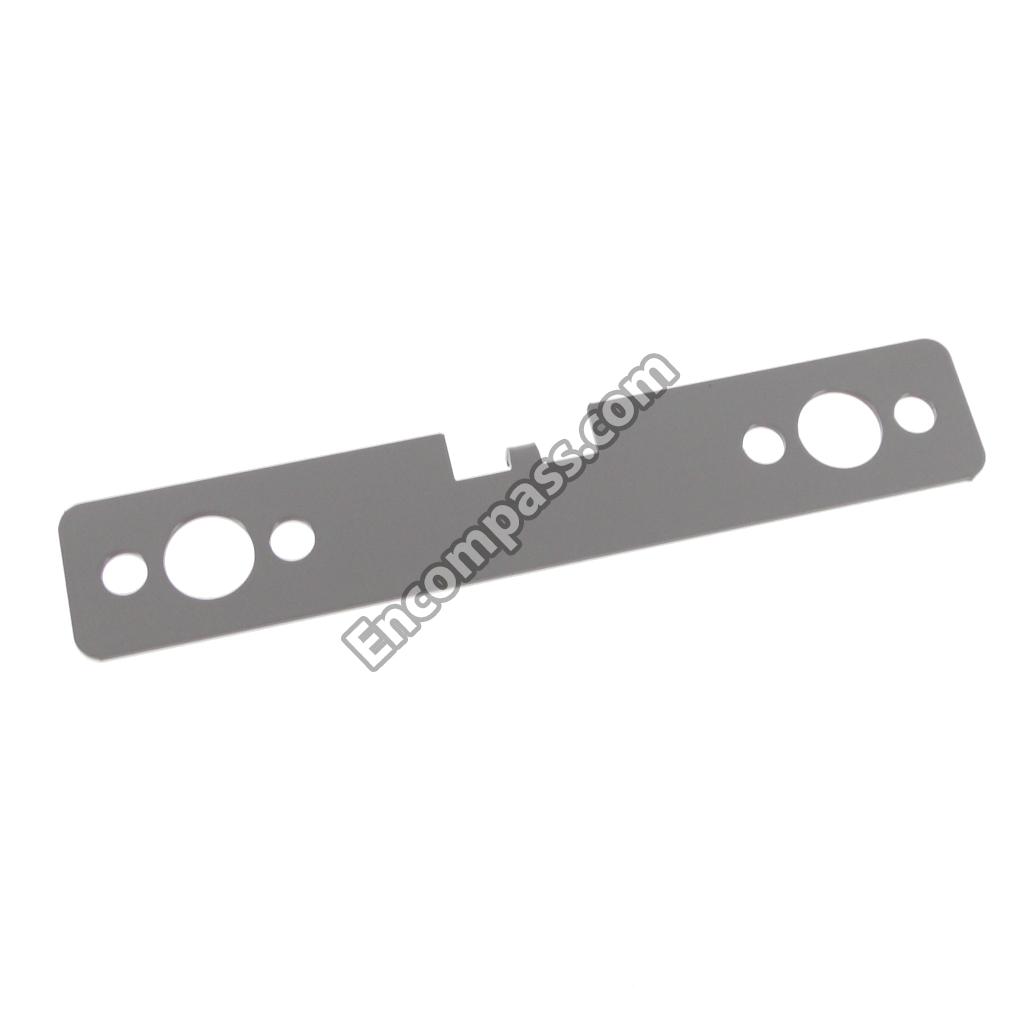

7043444 7043444 SUPPORT PLATE
743065803 743065803 SWITCHING COMPONENTS
750101000 750101000 SWITCHING COMPONENTS

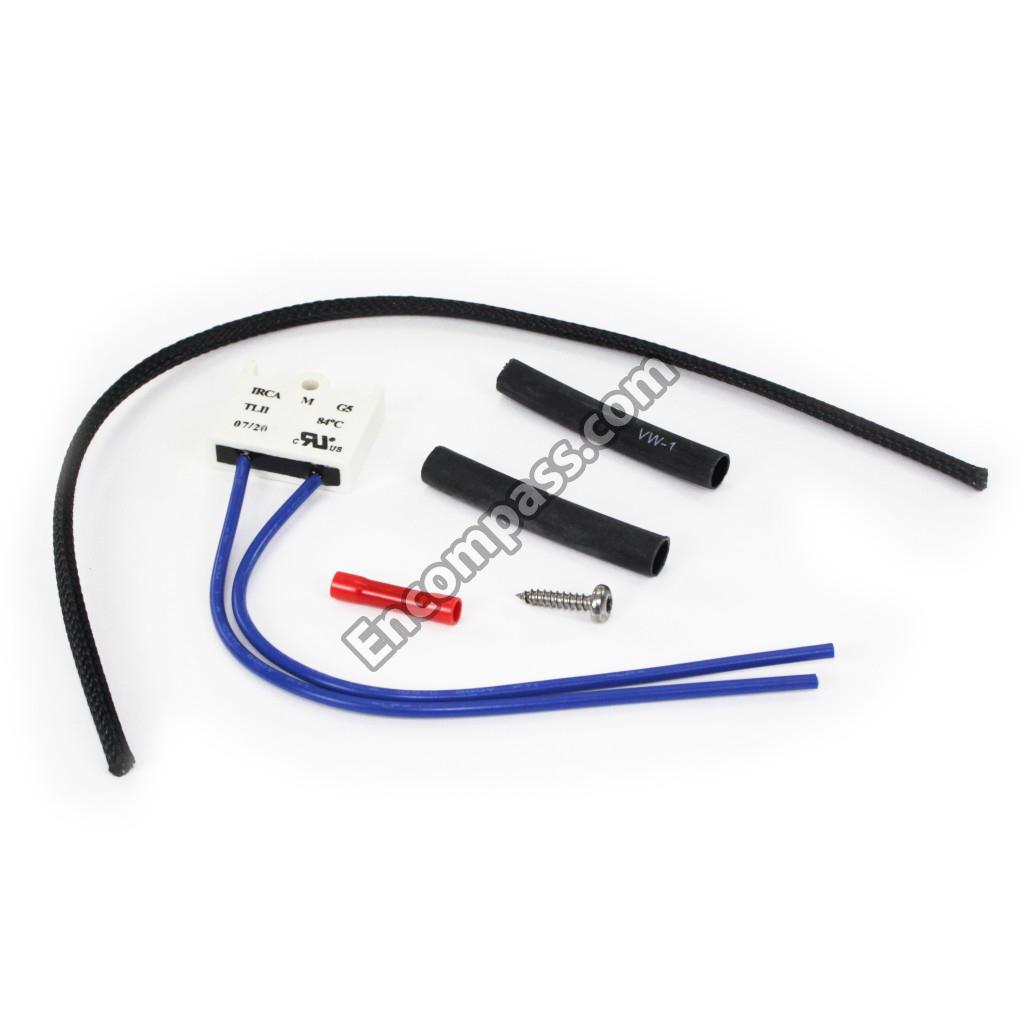

615205600 615205600 TEMPERATURE LIMITER
615203000 615203000 TEMPERATURE LIMITER
615203800 615203800 TEMPERATURE LIMITER
615206300 615206300 TEMPERATURE LIMITER
727759301 727759301 TOUGHENED SAFETY-GLASS PLATE
7272059 7272059 TOUGHENED SAFETY-GLASS PLATE
727218500 727218500 TOUGHENED SAFETY-GLASS PLATE
727217900 727217900 TOUGHENED SAFETY-GLASS PLATE
7270492 7270492 TOUGHENED SAFETY-GLASS PLATE

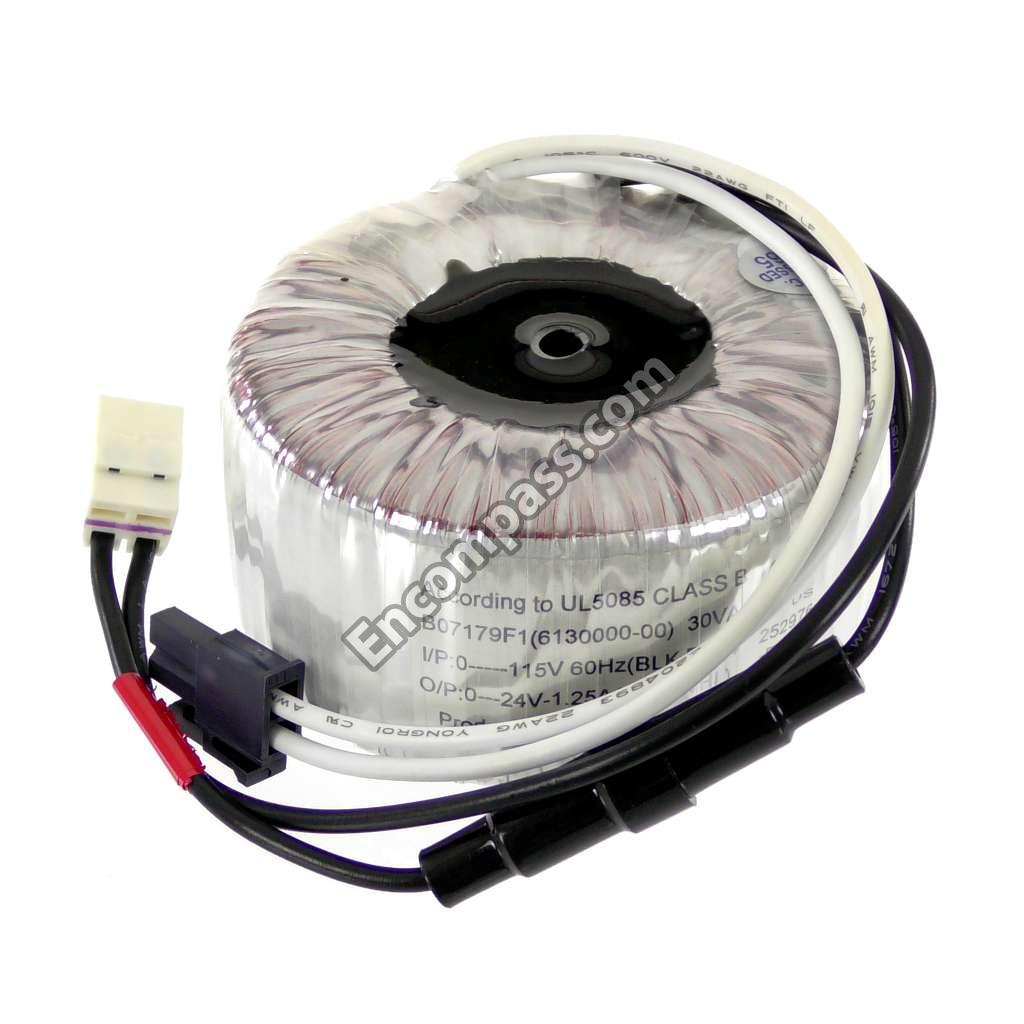

613000000 613000000 TRANSFORMER
743913000 743913000 TRAY
743913100 743913100 TRAY
7439486 7439486 TRAY
7439488 7439488 TRAY
743912900 743912900 TRAY

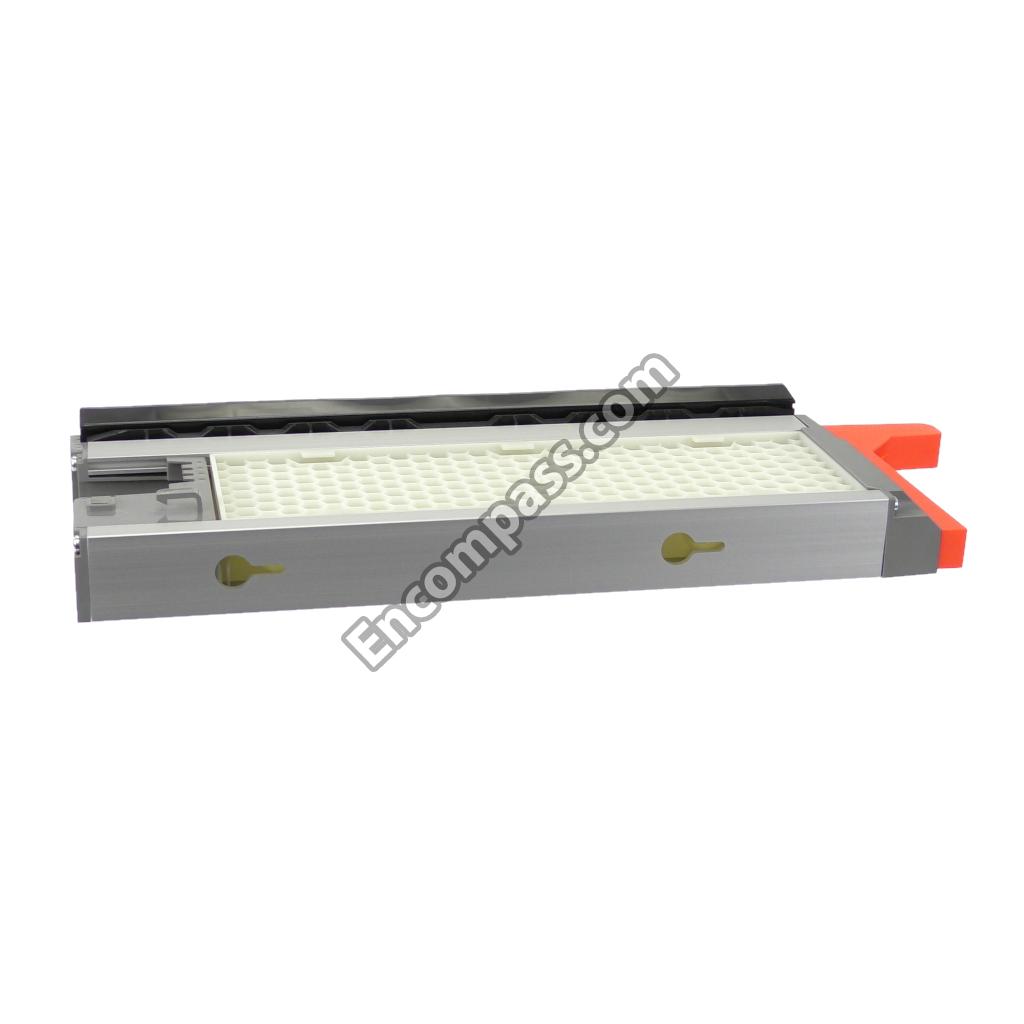

936302702 936302702 VARIO ENERGY-SAVING PANEL

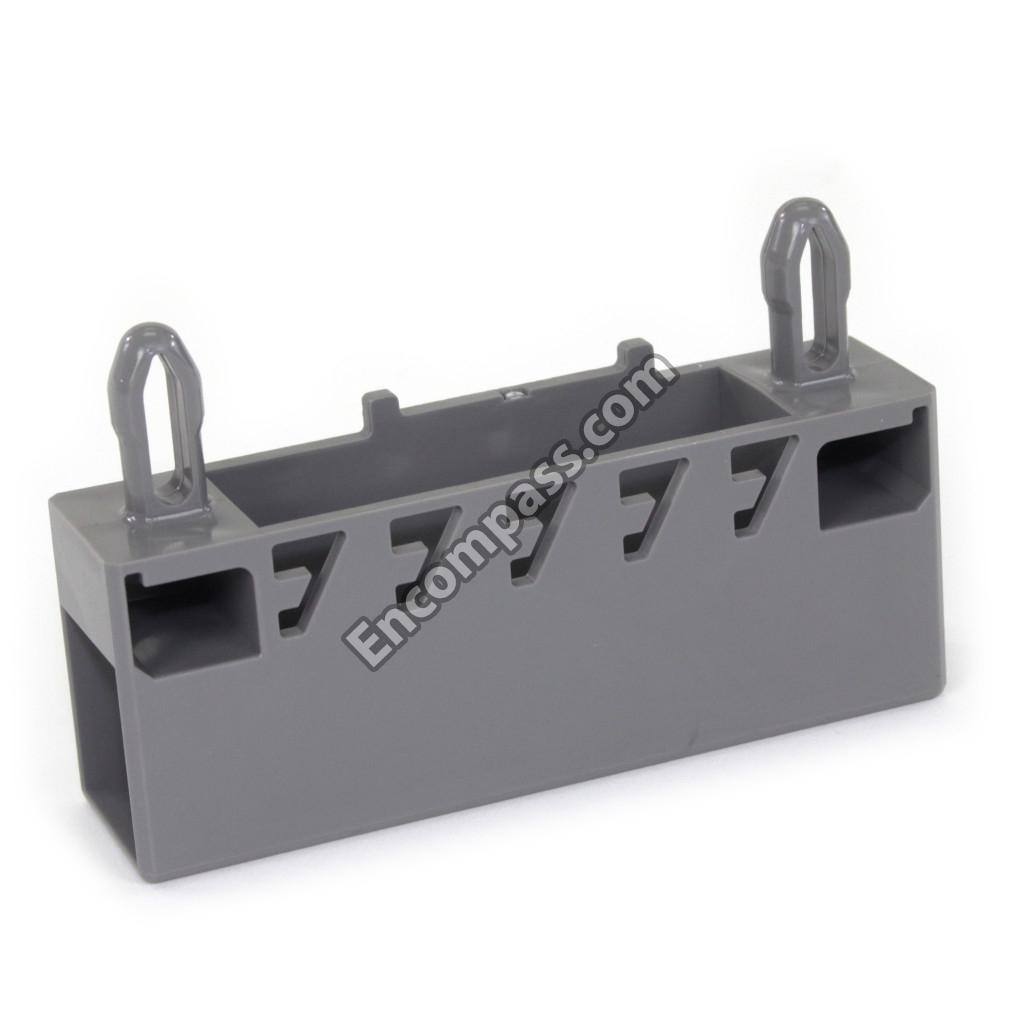

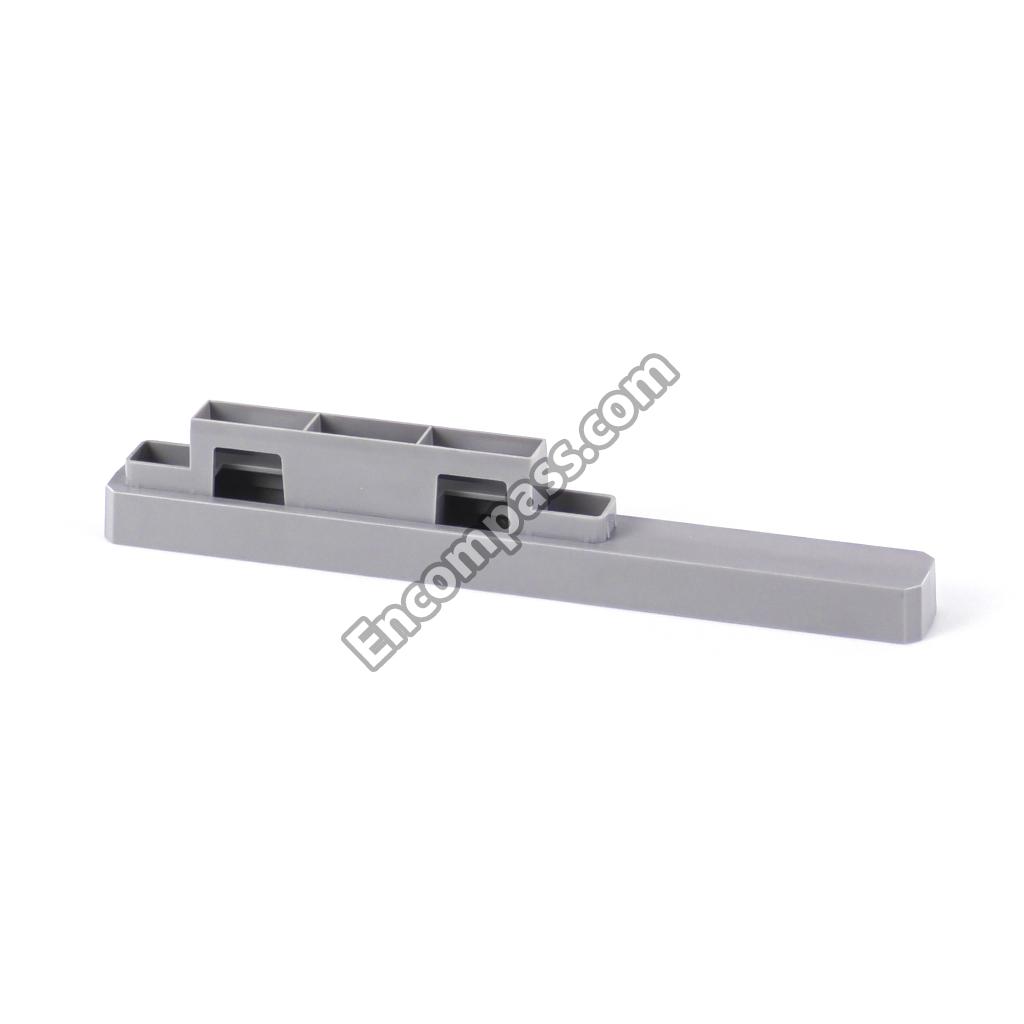

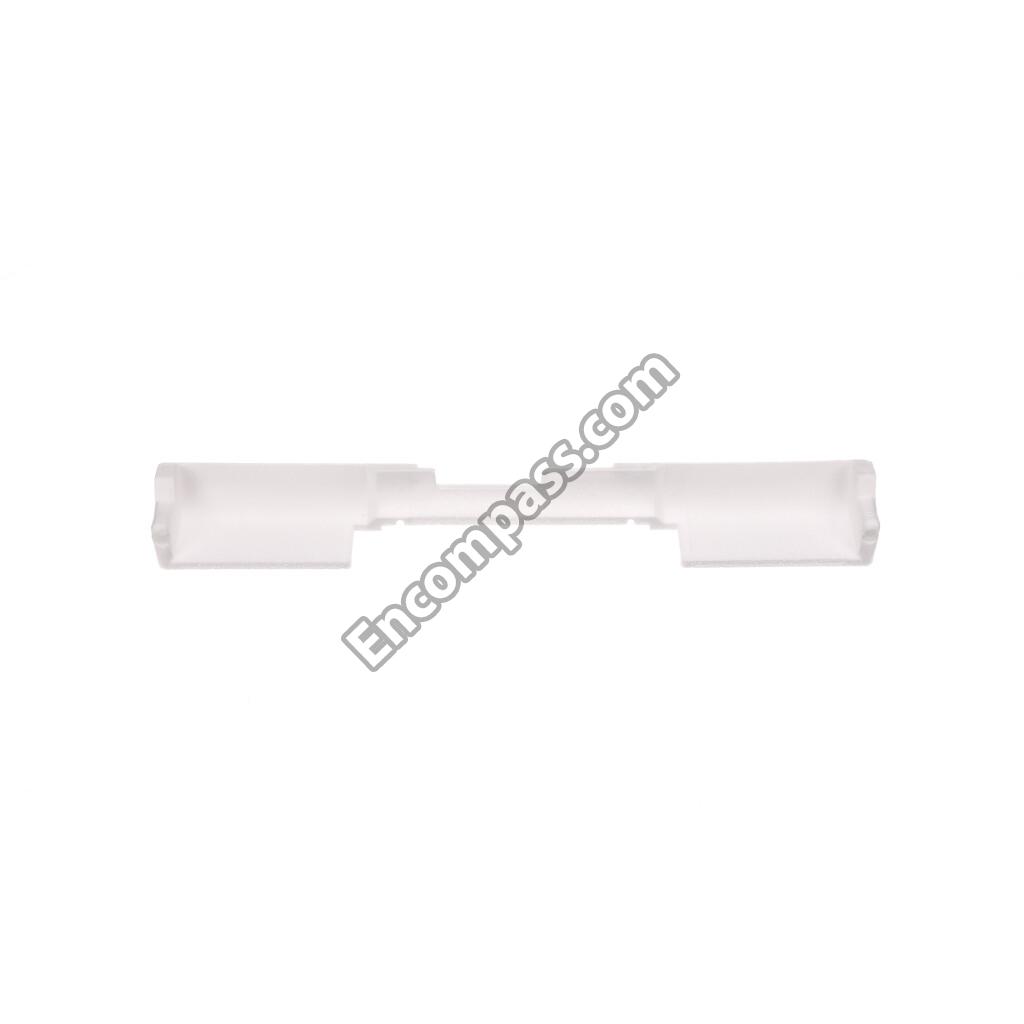

743432401 743432401 VARIOUS INJECTION-MOULDED ITEMS
7439424 7439424 VARIOUS INJECTION-MOULDED ITEMS
743920701 743920701 VARIOUS INJECTION-MOULDED ITEMS
743920801 743920801 VARIOUS INJECTION-MOULDED ITEMS
743901600 743901600 VARIOUS INJECTION-MOULDED ITEMS
9903028 9903028 VARIOUS INJECTION-MOULDED ITEMS
7439584 7439584 VARIOUS INJECTION-MOULDED ITEMS
7439586 7439586 VARIOUS INJECTION-MOULDED ITEMS
7439580 7439580 VARIOUS INJECTION-MOULDED ITEMS
7439582 7439582 VARIOUS INJECTION-MOULDED ITEMS
7439578 7439578 VARIOUS INJECTION-MOULDED ITEMS
743825302 743825302 VARIOUS INJECTION-MOULDED ITEMS
743914702 743914702 VARIOUS INJECTION-MOULDED ITEMS
743917000 743917000 VARIOUS INJECTION-MOULDED ITEMS
7426129 7426129 VARIOUS INJECTION-MOULDED ITEMS
7426131 7426131 VARIOUS INJECTION-MOULDED ITEMS
7426133 7426133 VARIOUS INJECTION-MOULDED ITEMS
742637500 742637500 VARIOUS INJECTION-MOULDED ITEMS
743963701 743963701 VARIOUS INJECTION-MOULDED ITEMS
742600501 742600501 VARIOUS INJECTION-MOULDED ITEMS
742600701 742600701 VARIOUS INJECTION-MOULDED ITEMS
743940700 743940700 VARIOUS INJECTION-MOULDED ITEMS
743940900 743940900 VARIOUS INJECTION-MOULDED ITEMS
743939900 743939900 VARIOUS INJECTION-MOULDED ITEMS
743939700 743939700 VARIOUS INJECTION-MOULDED ITEMS
743435000 743435000 VARIOUS INJECTION-MOULDED ITEMS
7440292 7440292 VARIOUS INJECTION-MOULDED ITEMS
7429696 7429696 VARIOUS INJECTION-MOULDED ITEMS
7429748 7429748 VARIOUS INJECTION-MOULDED ITEMS
7429692 7429692 VARIOUS INJECTION-MOULDED ITEMS
7429688 7429688 VARIOUS INJECTION-MOULDED ITEMS
7429686 7429686 VARIOUS INJECTION-MOULDED ITEMS
7429690 7429690 VARIOUS INJECTION-MOULDED ITEMS
7440264 7440264 VARIOUS INJECTION-MOULDED ITEMS
743904100 743904100 VARIOUS INJECTION-MOULDED ITEMS
742638502 742638502 VARIOUS INJECTION-MOULDED ITEMS
742604101 742604101 VARIOUS INJECTION-MOULDED ITEMS
742612100 742612100 VARIOUS INJECTION-MOULDED ITEMS
7439710 7439710 VARIOUS INJECTION-MOULDED ITEMS
743932600 743932600 VARIOUS INJECTION-MOULDED ITEMS
743913401 743913401 VARIOUS INJECTION-MOULDED ITEMS
743912400 743912400 VARIOUS INJECTION-MOULDED ITEMS
742604900 742604900 VARIOUS INJECTION-MOULDED ITEMS
743076100 743076100 VARIOUS INJECTION-MOULDED ITEMS
742602901 742602901 VARIOUS INJECTION-MOULDED ITEMS
743926201 743926201 VARIOUS INJECTION-MOULDED ITEMS
743926001 743926001 VARIOUS INJECTION-MOULDED ITEMS
743444000 743444000 VARIOUS INJECTION-MOULDED ITEMS
742603900 742603900 VARIOUS INJECTION-MOULDED ITEMS
743915801 743915801 VARIOUS INJECTION-MOULDED ITEMS
742223400 742223400 VARIOUS RETAINING FIXTURES
742223600 742223600 VARIOUS RETAINING FIXTURES
742145200 742145200 VARIOUS RETAINING FIXTURES
743269300 743269300 VARIOUS RETAINING FIXTURES
742925700 742925700 VARIOUS RETAINING FIXTURES
7643037 7643037 VARIOUS RETAINING FIXTURES

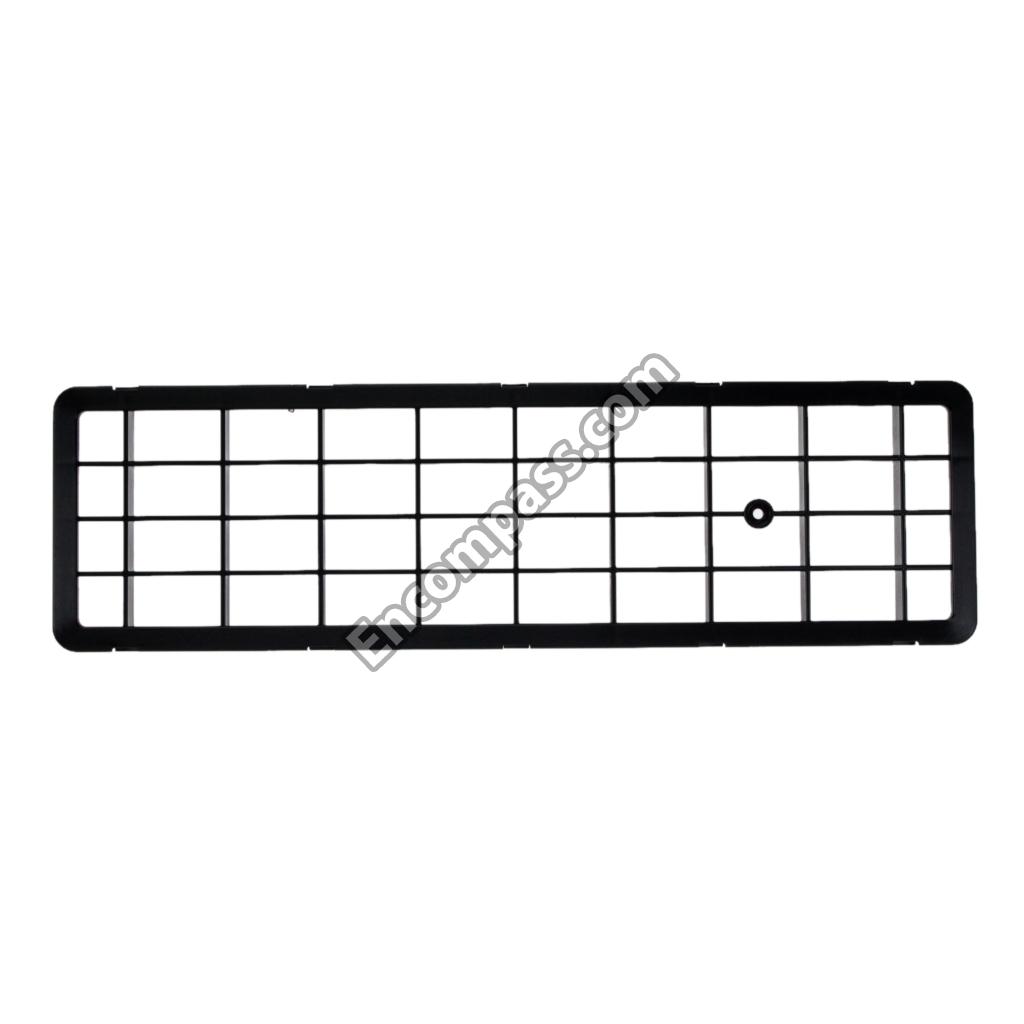

987374402 987374402 VENTILATION TRIM
743909800 743909800 VENTILATION TRIM
9031902 9031902 WATER DISCHARGE
726605200 726605200 WATER DISCHARGE
990301800 990301800 WATER DRAINPIPE

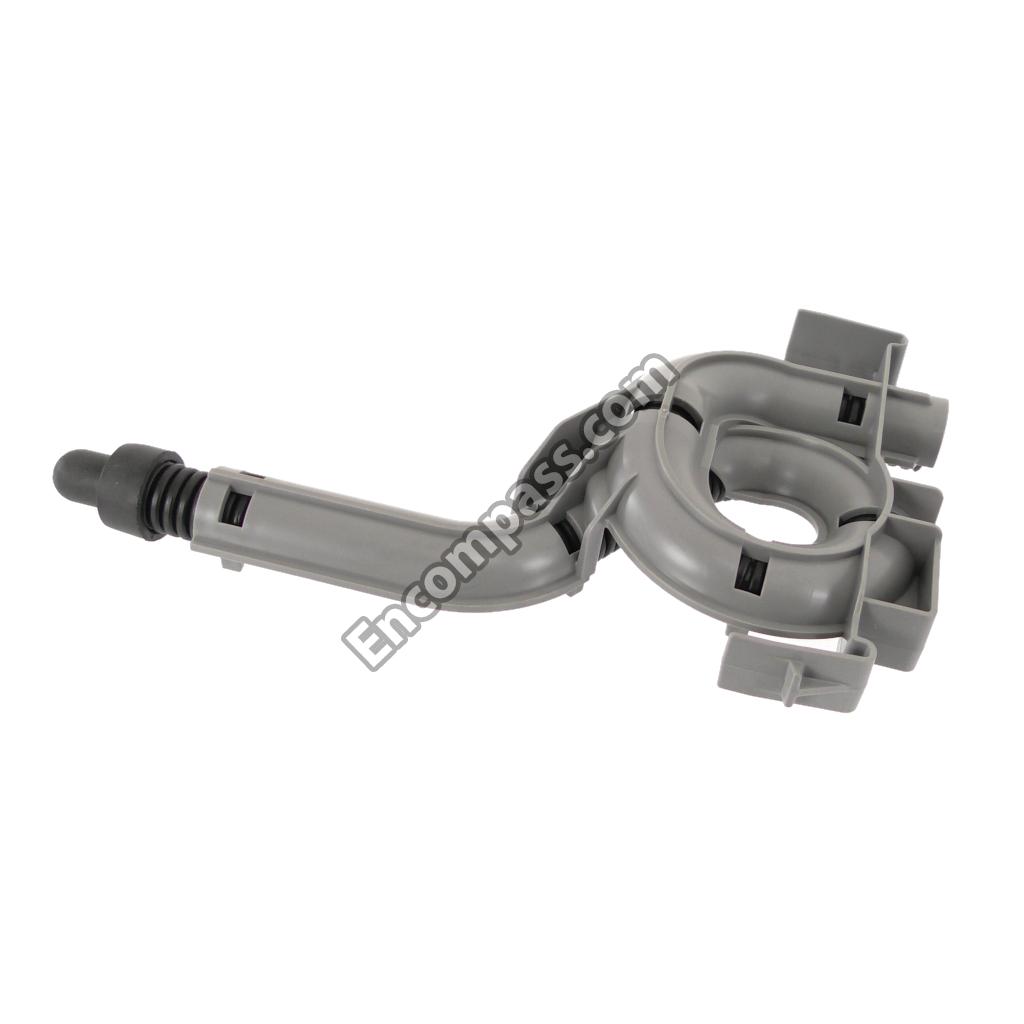

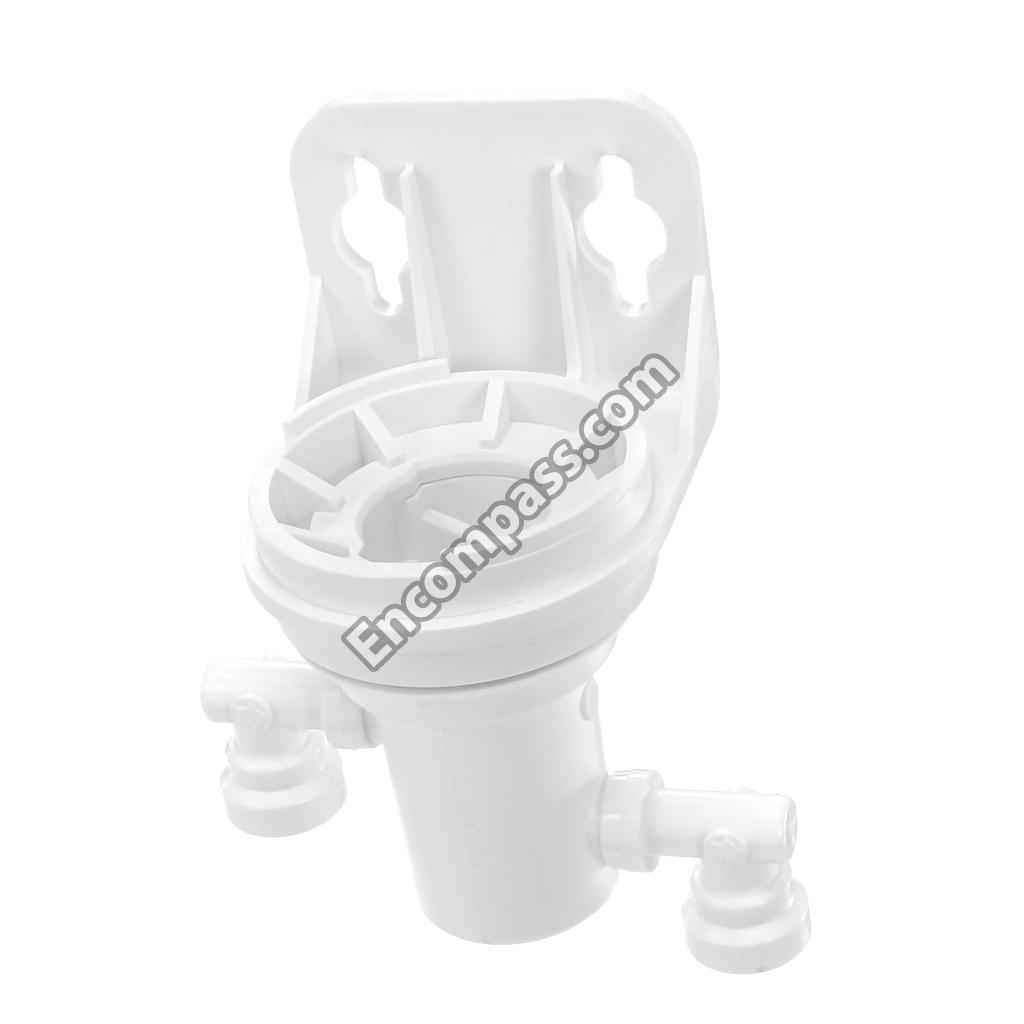

743967100 743967100 WATER INTAKE
7439428 7439428 WATER TANK
704466702 704466702 ZINC DIE-CAST BEARING BLOCK
Main Menu x
