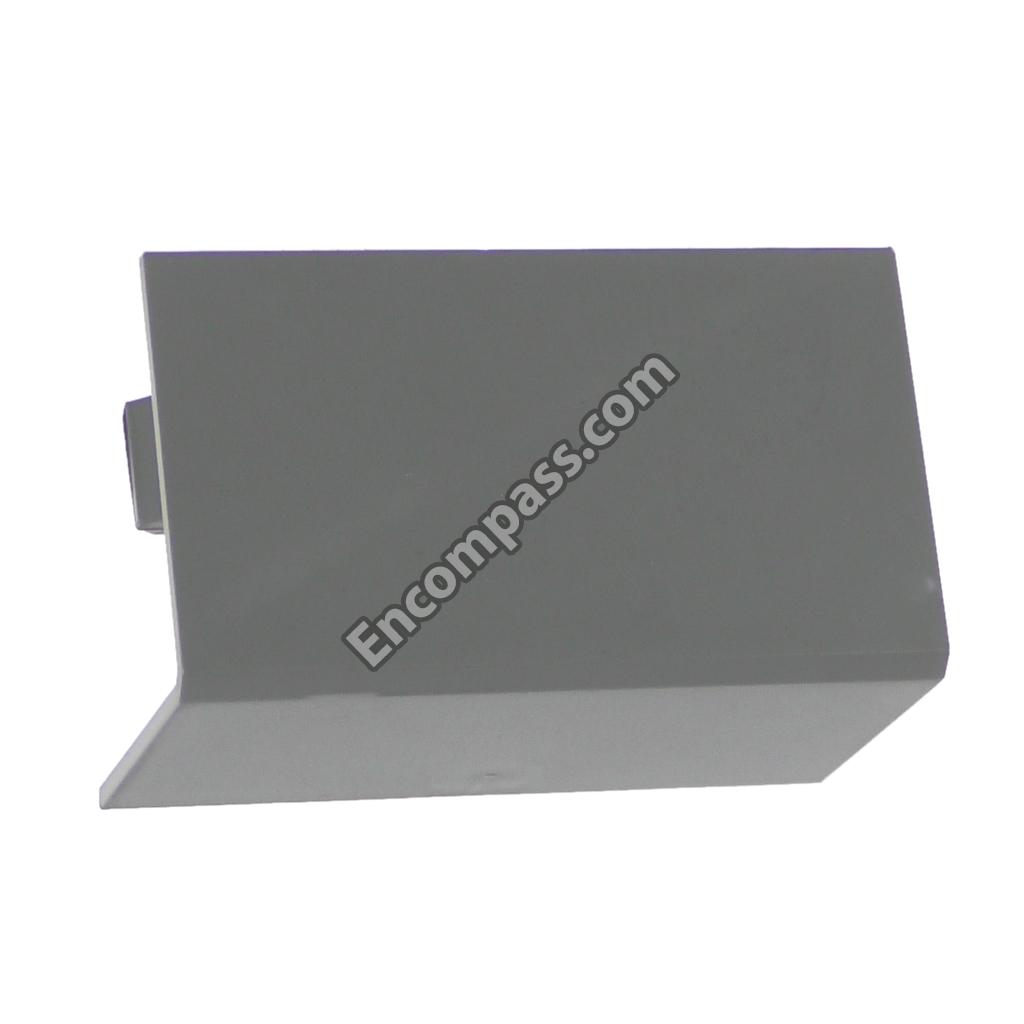

Model Image
Manufacturer

Liebherr

Model Number

MW2411

Description

Built-in Multi-temperature Wine Cabinet

Interactive Exploded View

Parts List

Part Number Description

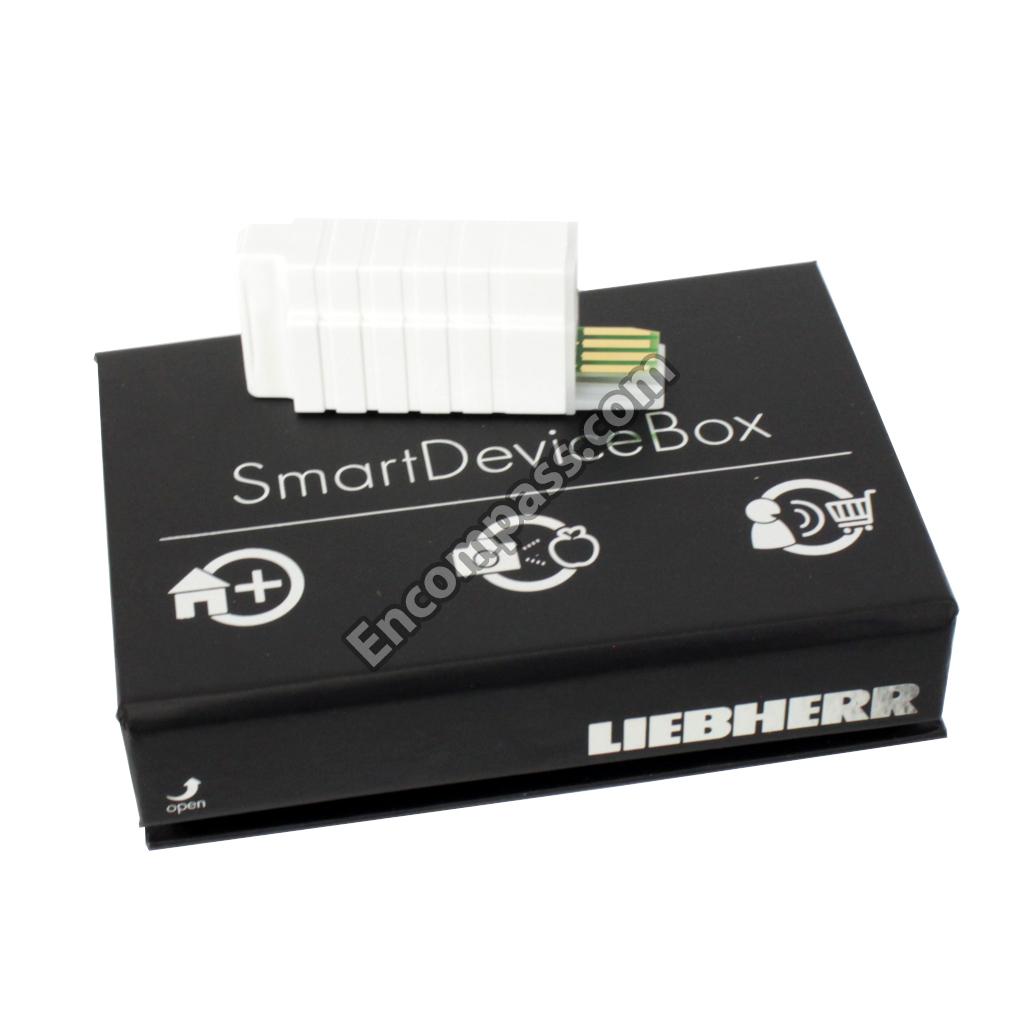

612523500 612523500 ACCESSORY PACK

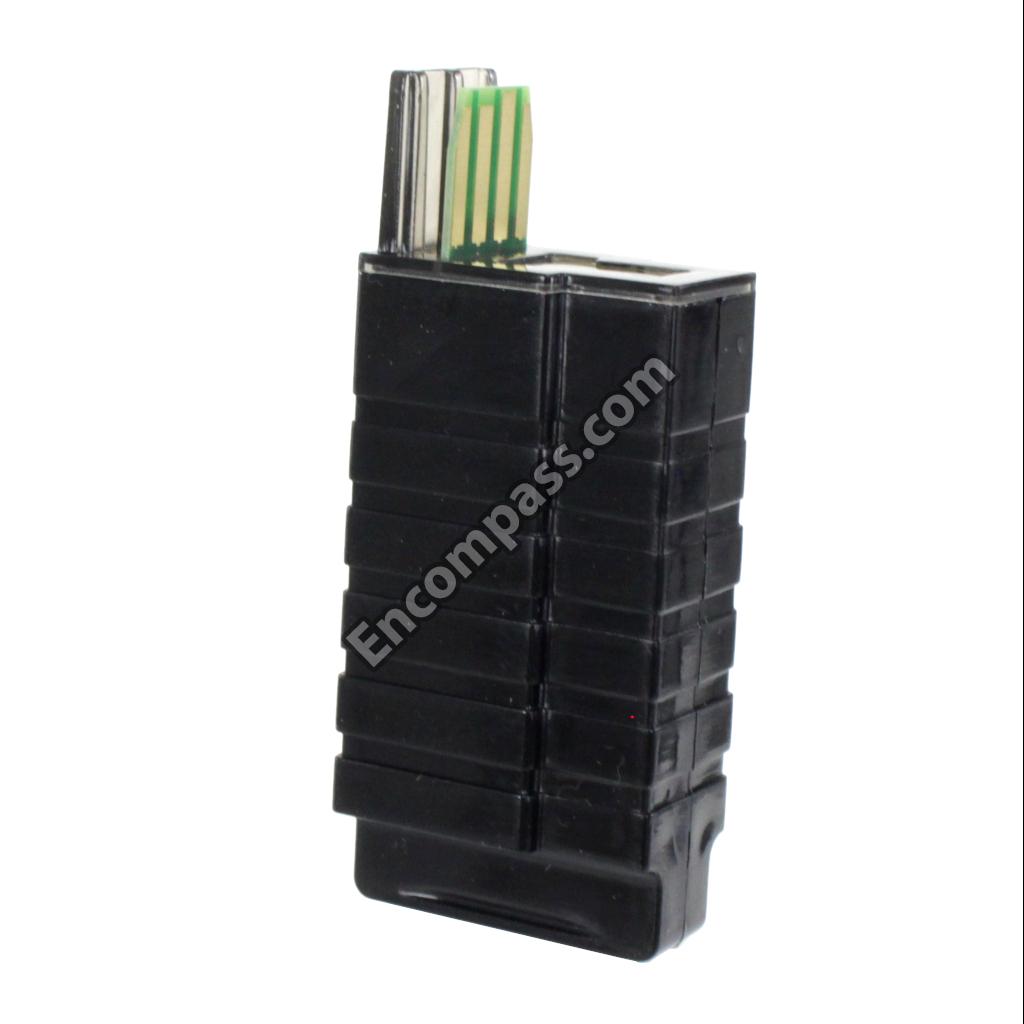

612525900 612525900 ACCESSORY PACK
909634200 909634200 ACCESSORY PACK
9086962 9086962 ACCESSORY PACK
727016700 727016700 ADHESIVE TAPE
743517201 743517201 AIR DUCT COVER

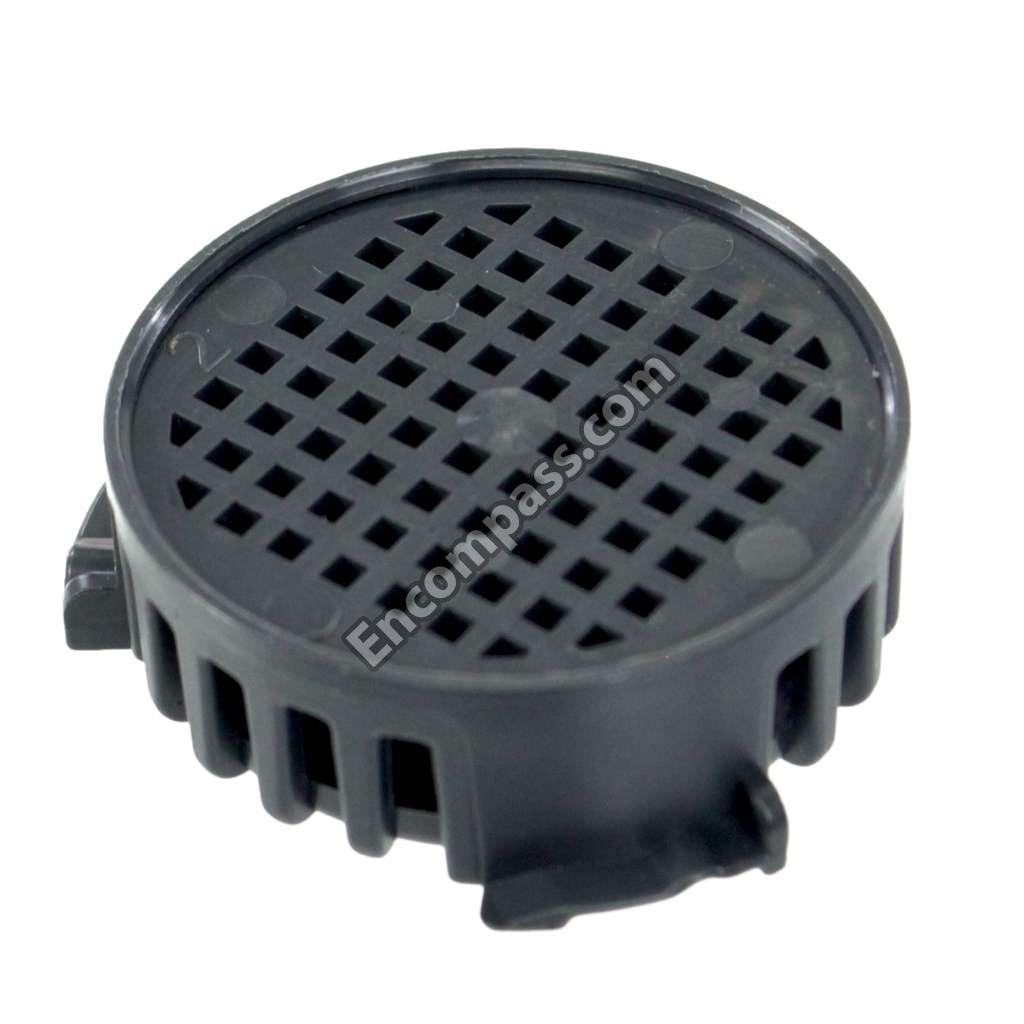

743909300 743909300 AIR FUNNEL
959394201 959394201 AIR SENSOR FOR REFRIGERATOR COMPARTMENT
694300100 694300100 ALUM. HEATING STRIP
979444200 979444200 APPLIANCE EQUIPMENT
979443500 979443500 APPLIANCE EQUIPMENT
979443100 979443100 APPLIANCE EQUIPMENT
980019600 980019600 BASE TRIM
980020000 980020000 BASE TRIM
980020100 980020100 BASE TRIM
980020200 980020200 BASE TRIM
980020300 980020300 BASE TRIM
711311704 711311704 BOLT
711313700 711313700 BOLT

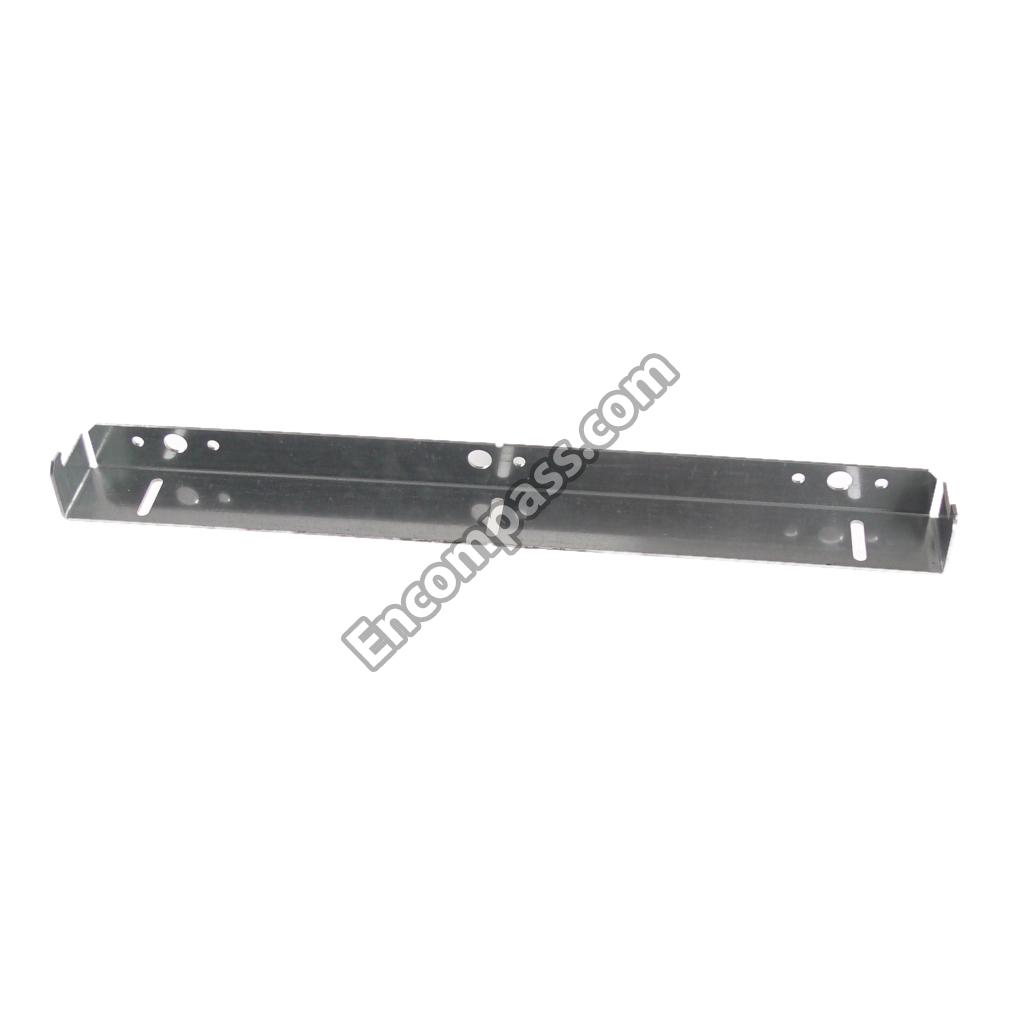

774743500 774743500 BRACKET
704292001 704292001 BRACKET
774621200 774621200 BRACKET
774618400 774618400 BRACKET
774784500 774784500 BRACKET
774785500 774785500 BRACKET
726625400 726625400 BUFFER
726625200 726625200 BUFFER
401079700 401079700 CHEESE-HEAD SCREW WITH SLOT
610804700 610804700 COMPACT FAN
610800500 610800500 COMPACT FAN
610907400 610907400 COMPRESSOR R 600 A
987432501 987432501 COMPRESSOR SUPPORT
409871900 409871900 COUNTERSUNK SCREW
409864300 409864300 COUNTERSUNK SCREW
409831500 409831500 COUNTERSUNK SCREW
409862901 409862901 COUNTERSUNK SCREW
408286001 408286001 COUNTERSUNK SELF-TAPPING SCREW

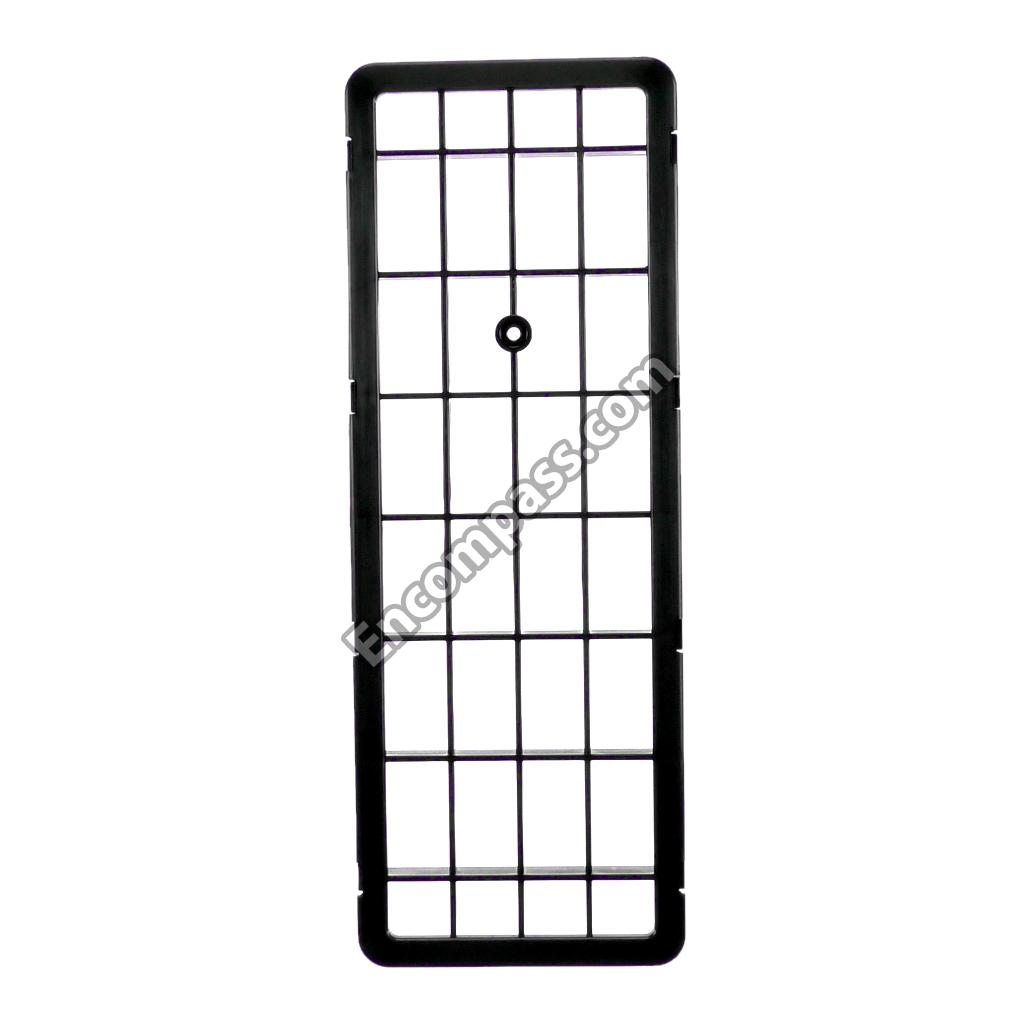

743924901 743924901 COVER
743683500 743683500 COVER
743642301 743642301 COVER
743908501 743908501 COVER
743517600 743517600 COVER
743517401 743517401 COVER

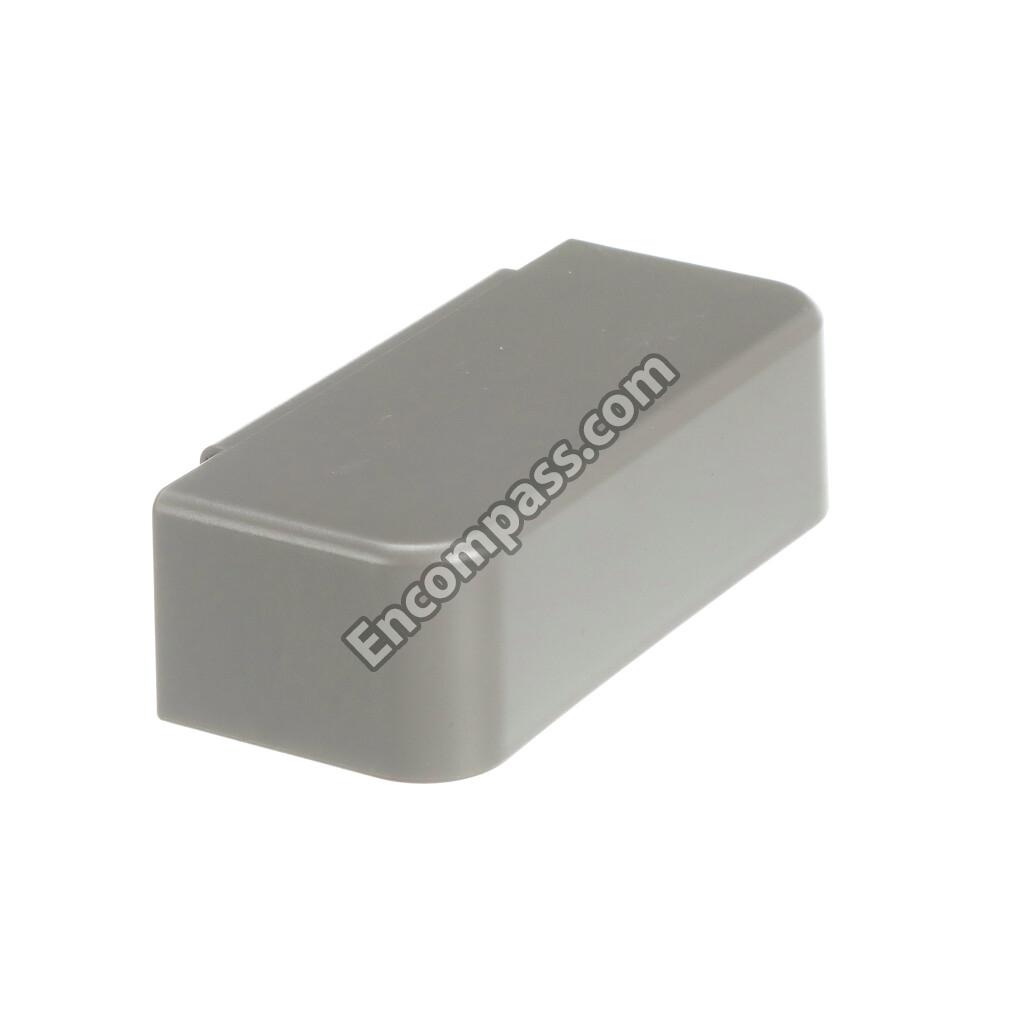

743324100 743324100 COVER CAP
774780000 774780000 COVER PANEL
900790300 900790300 COVER PANEL
774718400 774718400 COVER PANEL
743233700 743233700 COVER PLATE

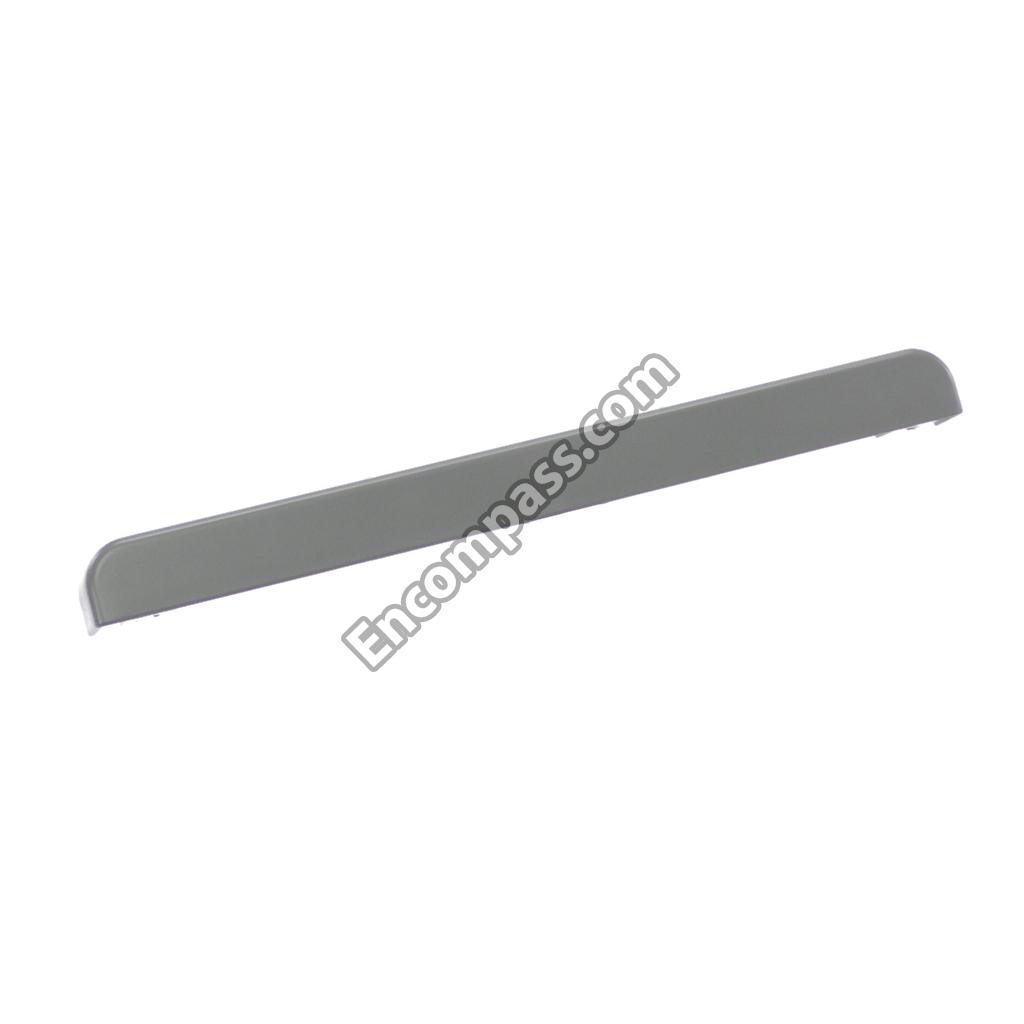

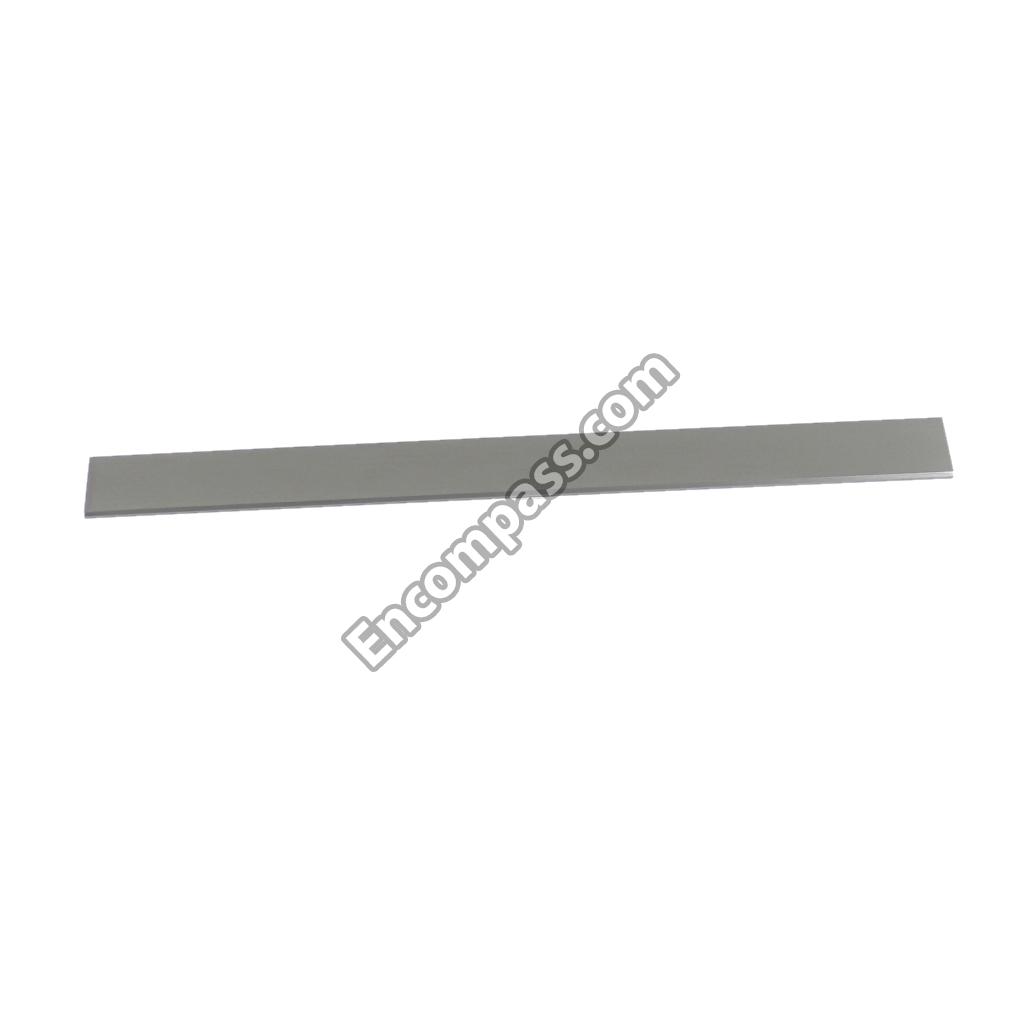

764103300 764103300 COVER STRIP
936318700 936318700 CROSS PIECE FOR COMB. DOORS
743898200 743898200 DIVIDING WALL
704425900 704425900 DOOR HINGE
945466400 945466400 DOOR HINGE
9029841 9029841 DOOR, CAVITY-FOAMED
982108502 982108502 DOOR, WELDED
982108702 982108702 DOOR, WELDED
982108902 982108902 DOOR, WELDED
982109102 982109102 DOOR, WELDED
982104700 982104700 DOOR, WELDED
982104500 982104500 DOOR, WELDED

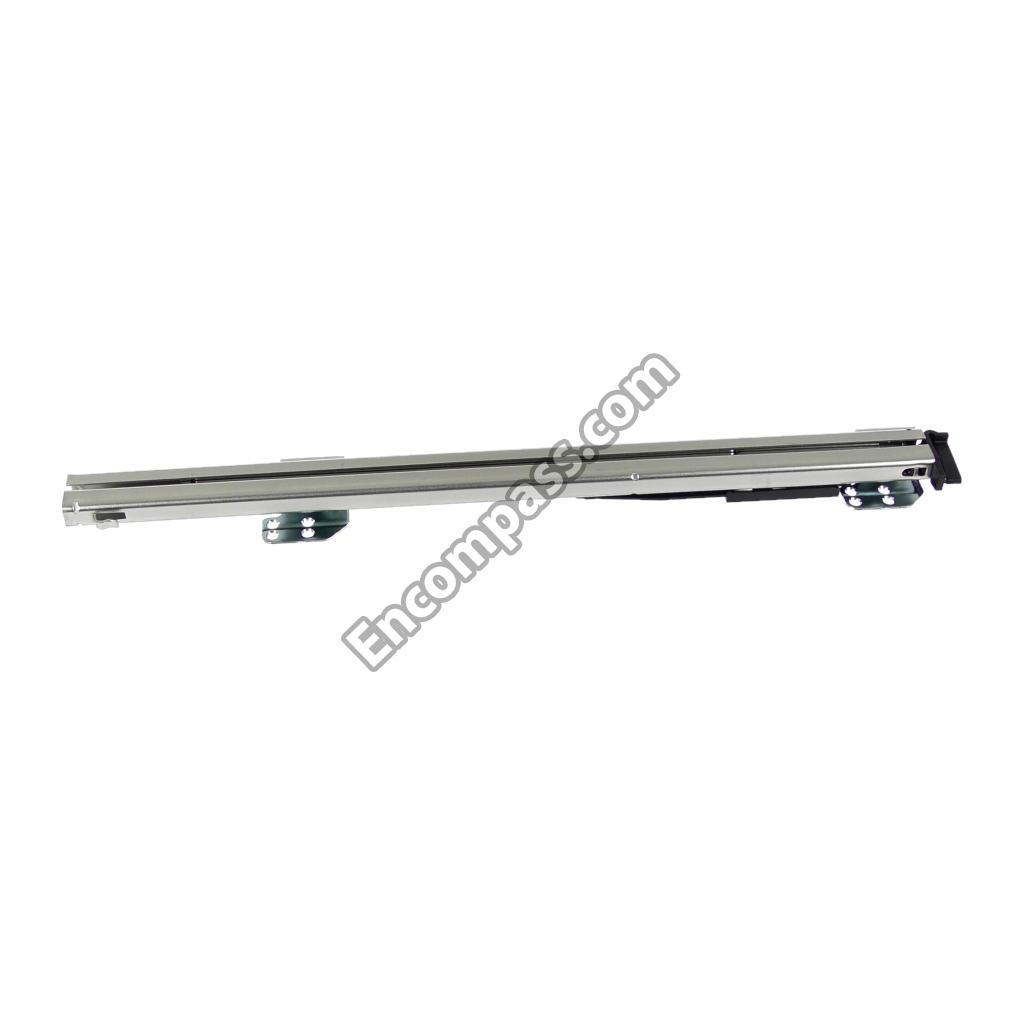

789019300 789019300 DRAWER RAIL
789022500 789022500 DRAWER RAIL
789019100 789019100 DRAWER RAIL
409862700 409862700 DRILLING SELF-TAPPING SCREW
594207001 594207001 DRYER

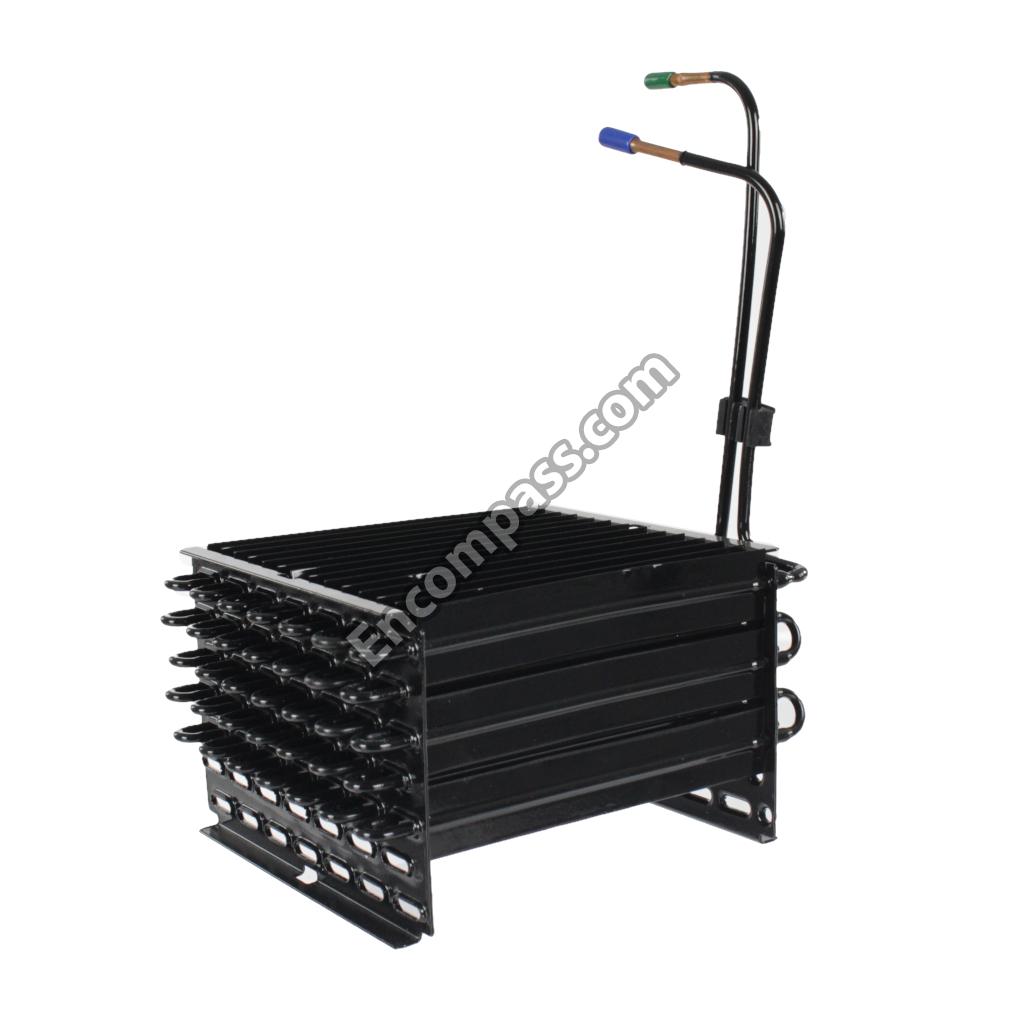

987411800 987411800 EVAPORATOR - REFRIGERATION
774805900 774805900 EXPANDED-FOAM SEAL
740036000 740036000 FAN BLADE

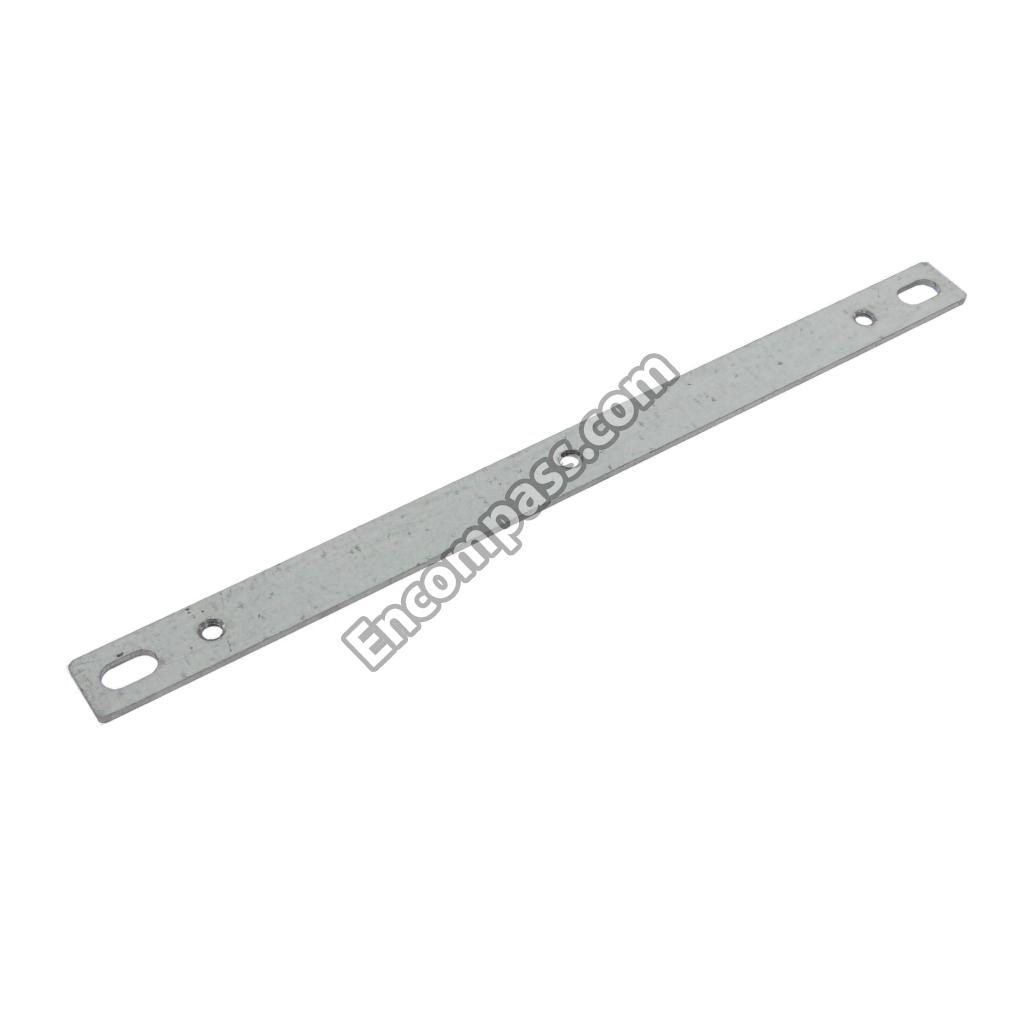

904359500 904359500 FASTENING
741311700 741311700 FASTENING
743482901 743482901 FASTENING
743916300 743916300 FASTENING
743916400 743916400 FASTENING
743938402 743938402 FASTENING

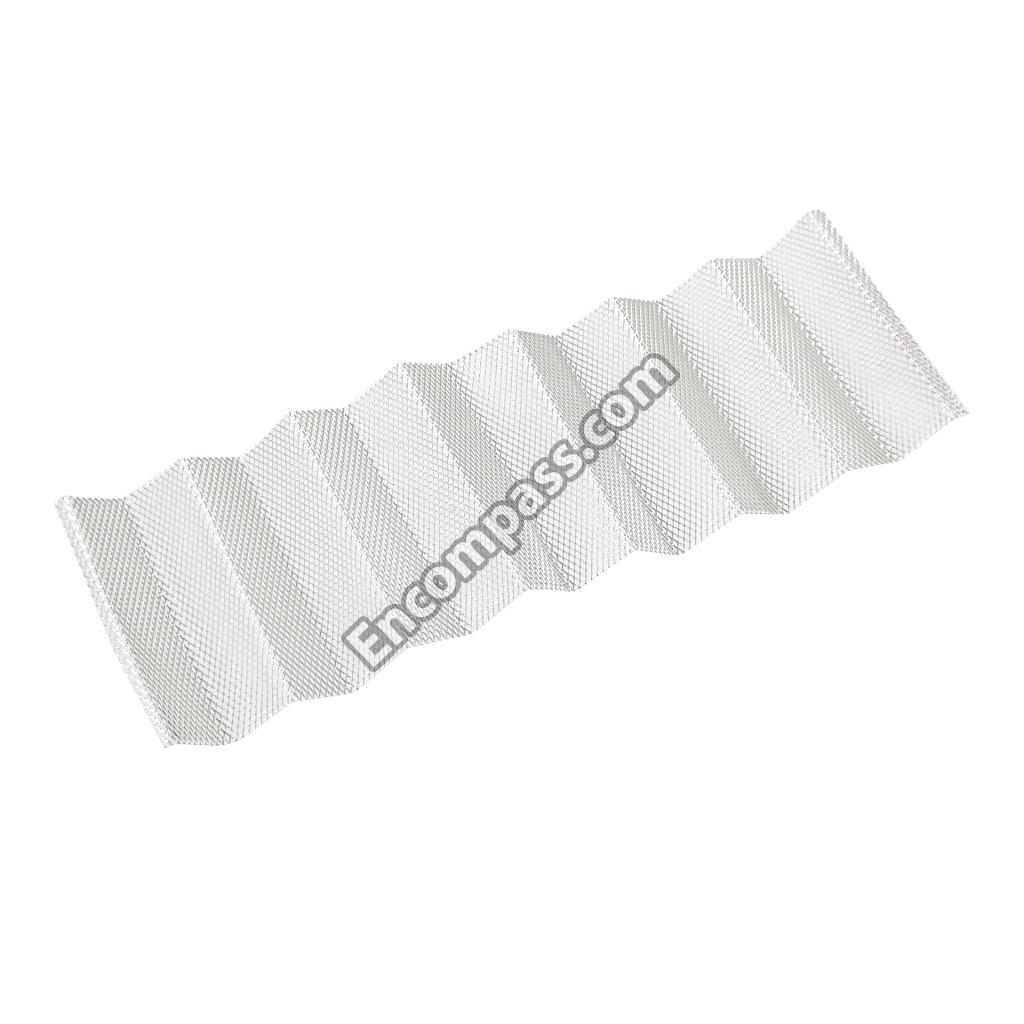

704356800 704356800 FILTER MAT
8042162 8042162 FOLDING CARDBOARD BOX
711039301 711039301 GASKET
594101900 594101900 HEAT EXCHANGER
409837201 409837201 HEXAGON-HEAD SELF-TAPPING SCREW
409801000 409801000 HEXAGON-HEAD SELF-TAPPING SCREW
408403800 408403800 HEXAGON-HEAD SELF-TAPPING SCREW
409806601 409806601 HEXAGON-HEAD SELF-TAPPING SCREW
409800800 409800800 HEXAGON-HEAD SELF-TAPPING SCREW
603013800 603013800 HOSE
612102700 612102700 HOUSING FOR LAMP, ASSY.
7080554 7080554 INSERT
708363101 708363101 INSERT
614614400 614614400 INTEGRAL BOARD
704202900 704202900 KEY
704369900 704369900 KEY
704208900 704208900 KEY
770047400 770047400 LOKRING
770048800 770048800 LOKRING
680000000 680000000 LOKRING
680000200 680000200 LOKRING
770042800 770042800 LOKRING
770048000 770048000 LOKRING
770049000 770049000 LOKRING
770046800 770046800 LOKRING
900131000 900131000 METALBOARD PREPARED
740344401 740344401 MOULDING
800307901 800307901 MOULDING
7085984 7085984 OPERATING INSTRUCTIONS
612222700 612222700 OPERATING PANEL HOUSING
612273400 612273400 OPERATING PANEL HOUSING
6116494 6116494 OPERATING UNIT TRIM
408400501 408400501 OVAL-HEAD SCREW
400000000 400000000 OVAL-HEAD SCREW
408271601 408271601 OVAL-HEAD SELF-TAPPING SCREW
409898100 409898100 OVAL-HEAD SELF-TAPPING SCREW
9882736 9882736 PACKAGING, COMPLETELY
9027318 9027318 PADDED BASE
902277600 902277600 PARTS, POWDER-COATED, COLOURED
902277800 902277800 PARTS, POWDER-COATED, COLOURED
902277700 902277700 PARTS, POWDER-COATED, COLOURED
770012700 770012700 PIPE
972068300 972068300 PIPE
990250500 990250500 PLINTH FOR APPLIANCES
990251900 990251900 PLINTH FOR APPLIANCES
743897900 743897900 PLUG
743931200 743931200 PLUG

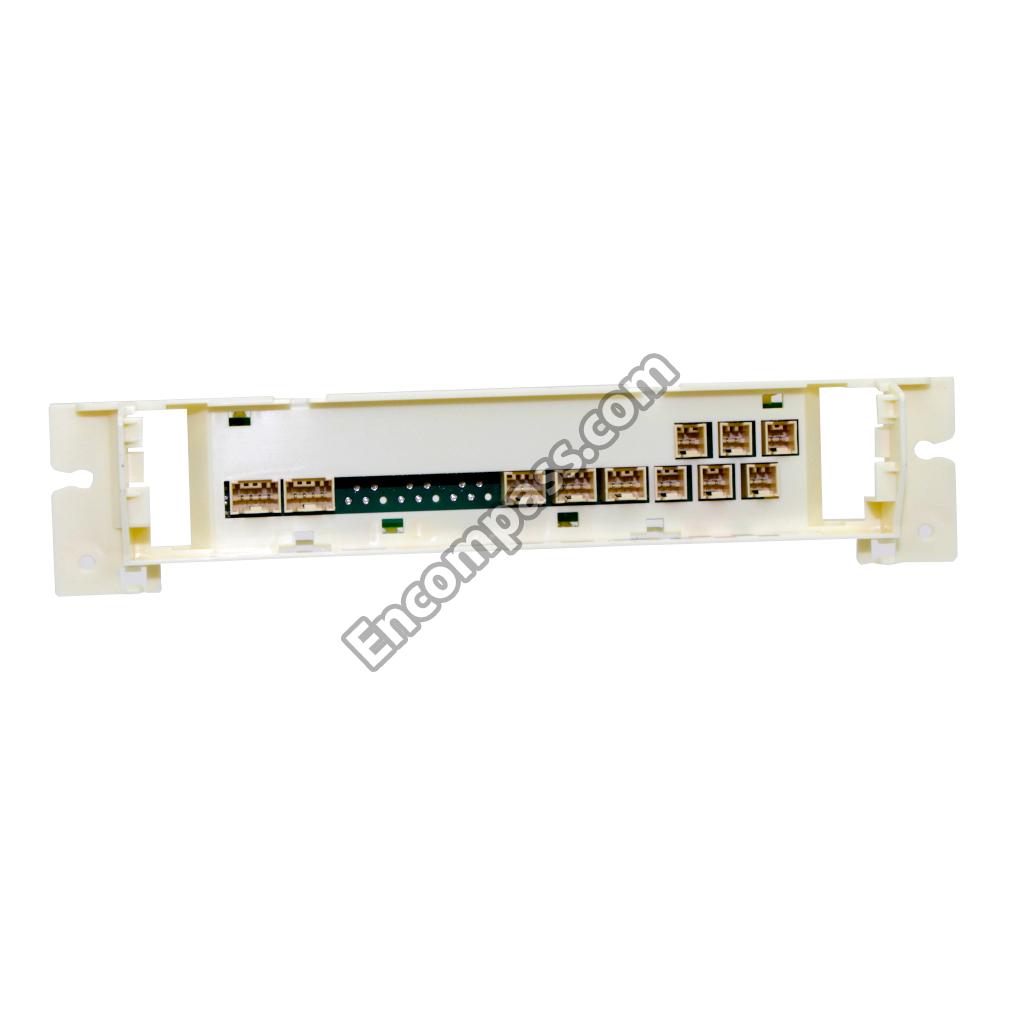

6143937 6143937 POWER BOARD
612271300 612271300 POWER BOARD HOLDER
612273300 612273300 POWER BOARD HOLDER
612202500 612202500 POWER BOARD HOLDER
612222500 612222500 POWER BOARD HOLDER
765005800 765005800 PROFILE STRIP
765214900 765214900 PROFILE STRIP
765215100 765215100 PROFILE STRIP
764087400 764087400 PROFILE STRIP
765213800 765213800 PROFILE STRIP
765210000 765210000 PROFILE STRIP
743893600 743893600 PROFILE/WELT GASKET
409859300 409859300 PT SCREW
409000000 409000000 PT SCREW
614350500 614350500 REED BOARD
711002400 711002400 SEAL
711002600 711002600 SEAL
743922101 743922101 SENSOR RETAINING FIXTURE
704423300 704423300 SET DOOR HINGES
945454600 945454600 SET DOOR HINGES
9594466 9594466 SET DOOR HINGES
726613402 726613402 SLEEVE
726606900 726606900 SLEEVE
787105100 787105100 SOLENOID VALVE
742034000 742034000 SPACERS
9080056 9080056 SPARE PART
6141280 6141280 SPARE PART
412902501 412902501 SPECIAL NUT
774248600 774248600 SPECIAL SECURING HARDWARE
726660500 726660500 SPECIAL SECURING HARDWARE
726679700 726679700 SPECIAL SECURING HARDWARE
720310801 720310801 SPRING
720311001 720311001 SPRING
743516600 743516600 STRIP
600921400 600921400 SUPPLY LINE
750101000 750101000 SWITCHING COMPONENTS
615203000 615203000 TEMPERATURE LIMITER
615203800 615203800 TEMPERATURE LIMITER
613000000 613000000 TRANSFORMER
743913202 743913202 TRAY
743913300 743913300 TRAY
743912900 743912900 TRAY
743825302 743825302 VARIOUS INJECTION-MOULDED ITEMS
742638702 742638702 VARIOUS INJECTION-MOULDED ITEMS
742600501 742600501 VARIOUS INJECTION-MOULDED ITEMS
742600701 742600701 VARIOUS INJECTION-MOULDED ITEMS
743930601 743930601 VARIOUS INJECTION-MOULDED ITEMS
704382100 704382100 VARIOUS INJECTION-MOULDED ITEMS
742604101 742604101 VARIOUS INJECTION-MOULDED ITEMS
742612100 742612100 VARIOUS INJECTION-MOULDED ITEMS
743932600 743932600 VARIOUS INJECTION-MOULDED ITEMS
743912400 743912400 VARIOUS INJECTION-MOULDED ITEMS
742604900 742604900 VARIOUS INJECTION-MOULDED ITEMS
742602901 742602901 VARIOUS INJECTION-MOULDED ITEMS
742614301 742614301 VARIOUS INJECTION-MOULDED ITEMS
743683301 743683301 VARIOUS INJECTION-MOULDED ITEMS
743940001 743940001 VARIOUS INJECTION-MOULDED ITEMS
743915801 743915801 VARIOUS INJECTION-MOULDED ITEMS
743444000 743444000 VARIOUS INJECTION-MOULDED ITEMS
743269300 743269300 VARIOUS RETAINING FIXTURES
742925700 742925700 VARIOUS RETAINING FIXTURES
742021701 742021701 VARIOUS RETAINING FIXTURES
742223400 742223400 VARIOUS RETAINING FIXTURES
742223600 742223600 VARIOUS RETAINING FIXTURES
742022302 742022302 VARIOUS RETAINING FIXTURES
742145200 742145200 VARIOUS RETAINING FIXTURES

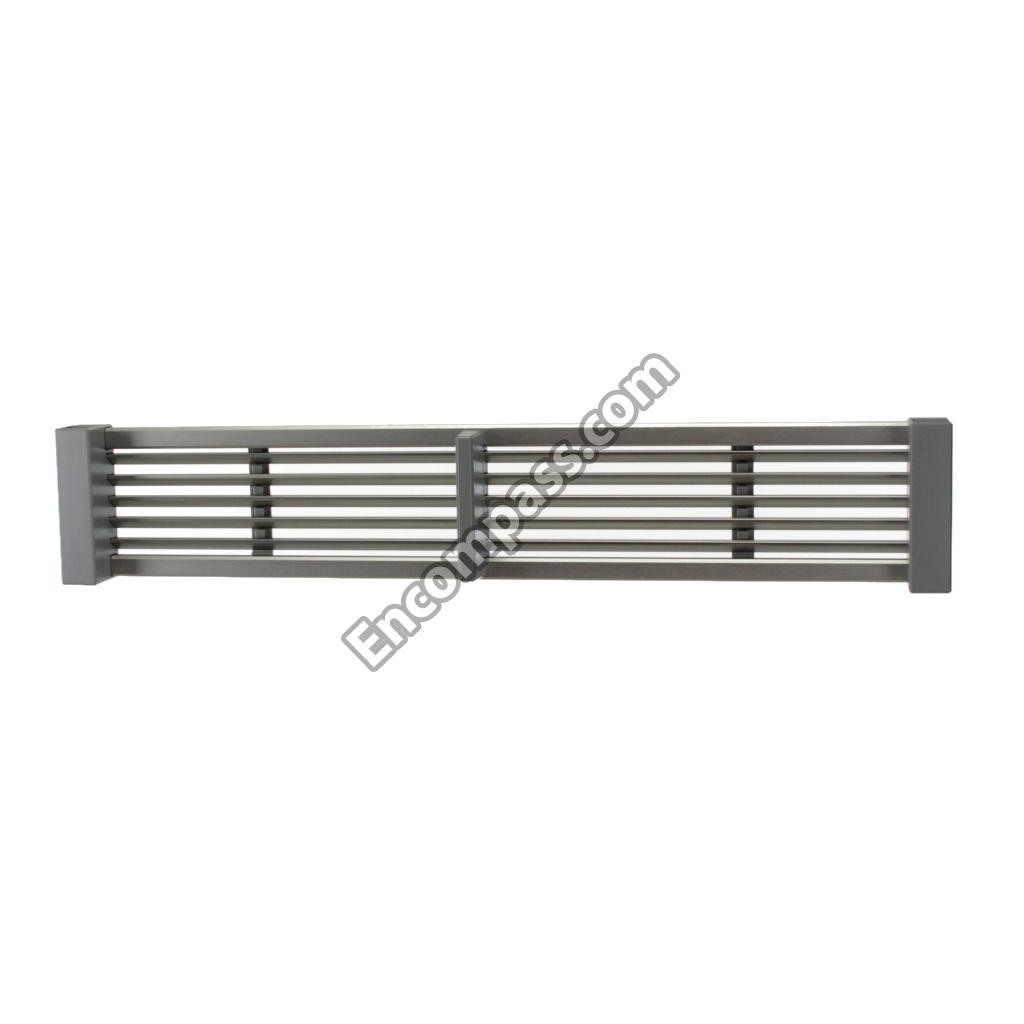

987374202 987374202 VENTILATION TRIM
743909700 743909700 VENTILATION TRIM
420679700 420679700 WASHER
990301800 990301800 WATER DRAINPIPE

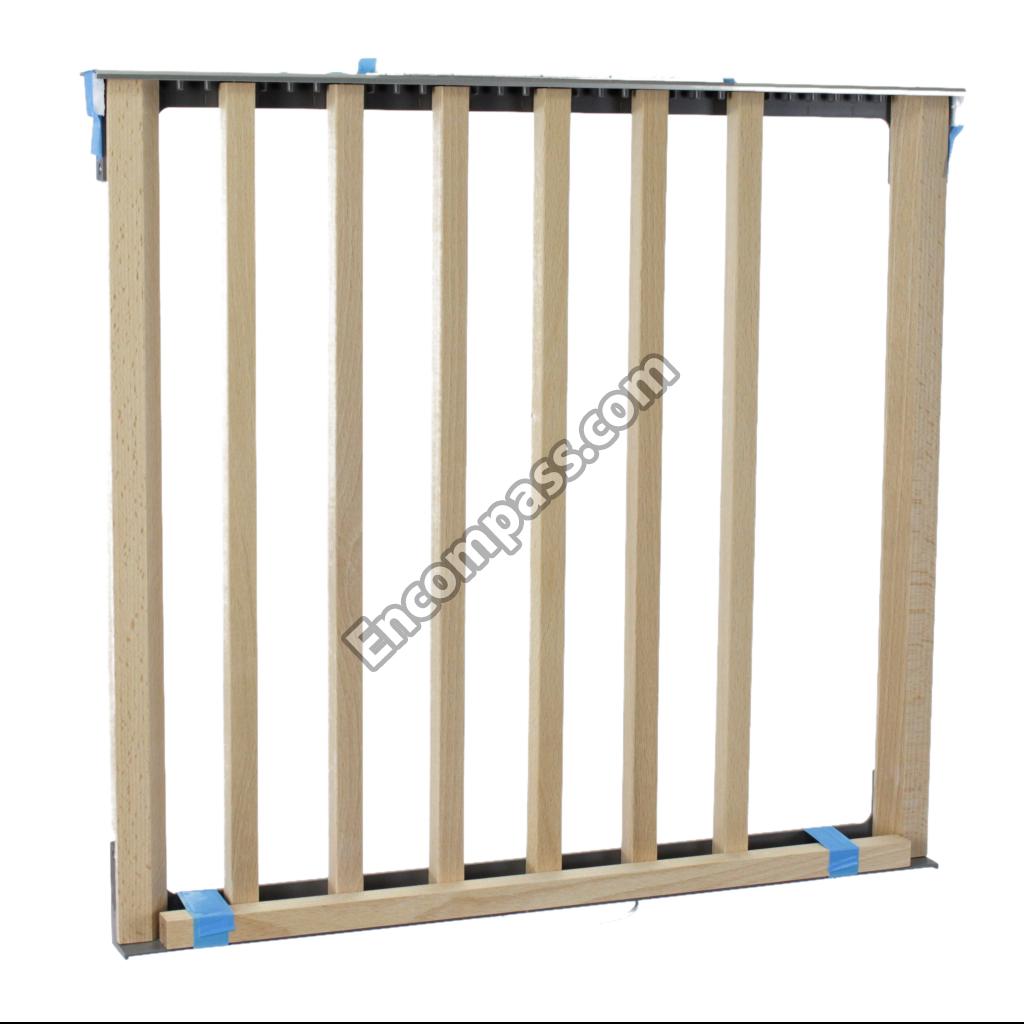

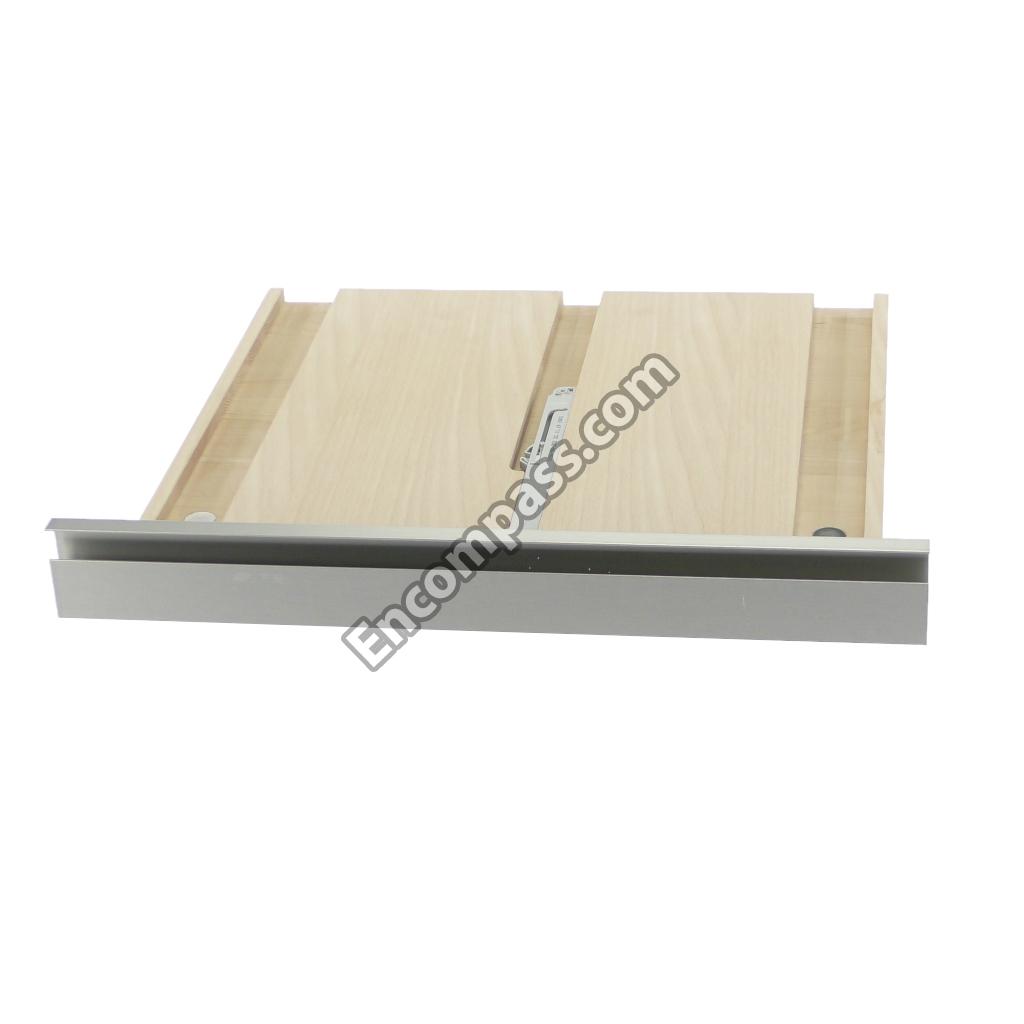

711314500 711314500 WOODEN SHELF
711314101 711314101 WOODEN SHELF
711315101 711315101 WOODEN SHELF
704466302 704466302 ZINC DIE-CAST BEARING BLOCK
