Model Image
Manufacturer

Liebherr

Model Number

SRPVH8401

Description

Laboratory-refrigerator, Forced Air Cooling

Interactive Exploded View

Parts List

Part Number Description
9095388 9095388 ACCESSORY PACK
6942874 6942874 ADDITIONAL SENSOR
7429612 7429612 AIR FUNNEL
959020602 959020602 AIR SENSOR FOR REFRIGERATOR COMPARTMENT
6342103 6342103 BATTERY
9457388 9457388 BEARING BLOCK, PAINTED
7113018 7113018 BOLT
9194106 9194106 BRACKET
7439284 7439284 BUSHING
7044090 7044090 BUSHING
7411121 7411121 CABLE CONNECTION, COMPLETE
4804006 4804006 CLIP
6108073 6108073 COMPACT FAN
6119966 6119966 COMPRESSOR R 600 A
7740277 7740277 COMPRESSOR SUPPORT
5941373 5941373 CONDENSER WIRE TUBE, UPRIGHT
6145187 6145187 CONNECTIVITY CONTROL UNIT
409814401 409814401 COUNTERSUNK SCREW
409832000 409832000 COUNTERSUNK SCREW
409831500 409831500 COUNTERSUNK SCREW
7437933 7437933 COVER
7429620 7429620 COVER
7641744 7641744 COVER
7641903 7641903 COVER
7429656 7429656 COVER
7440266 7440266 COVER
7440267 7440267 COVER
743324100 743324100 COVER CAP
7427369 7427369 COVER FOR DRILL HOLE
7420711 7420711 COVER FOR DRILL HOLE
7040150 7040150 DOOR HINGE
704339900 704339900 DOOR HINGE
7040149 7040149 DOOR HINGE
9027534 9027534 DOOR, CAVITY-FOAMED
594269500 594269500 DRYER
6139426 6139426 ELECTRONIC PARAMETERED
7435996 7435996 ELECTRONICS HOUSING
7439906 7439906 EVAPORATOR TRAYS
7109666 7109666 EXCHANGEABLE DOOR GASKET, PUSH IN
6299015 6299015 FAN BLADE
7429610 7429610 FILTER MAT
5940327 5940327 FIN-TYPE EVAPORATOR
8042160 8042160 FOLDING CARDBOARD BOX
408440402 408440402 FREEZER TRAY TRIM
409801000 409801000 HEXAGON-HEAD SELF-TAPPING SCREW
409802901 409802901 HEXAGON-HEAD SELF-TAPPING SCREW
409834400 409834400 HEXAGON-HEAD SELF-TAPPING SCREW
7745086 7745086 HOOK
7420339 7420339 HOOK
6121047 6121047 HOUSING FOR LAMP, ASSY.
6146397 6146397 INTEGRAL BOARD
7400968 7400968 LOCK
770049000 770049000 LOKRING
7700476 7700476 LOKRING
770048000 770048000 LOKRING
7700470 7700470 LOKRING
770048800 770048800 LOKRING
770046400 770046400 LOKRING
9594297 9594297 MAINS LEAD CLEAT
6118033 6118033 MOTOR
7086725 7086725 OPERATING INSTRUCTIONS
7083328 7083328 OPERATING INSTRUCTIONS
6125904 6125904 OPERATING PANEL HOUSING
408469700 408469700 OVAL-HEAD SCREW
400000000 400000000 OVAL-HEAD SCREW
409898901 409898901 OVAL-HEAD SCREW
409863500 409863500 OVAL-HEAD SCREW
408278501 408278501 OVAL-HEAD SELF-TAPPING SCREW
4098745 4098745 OVAL-HEAD SELF-TAPPING SCREW
408270802 408270802 OVAL-HEAD SELF-TAPPING SCREW
409898100 409898100 OVAL-HEAD SELF-TAPPING SCREW
409899101 409899101 OVAL-HEAD WOOD SCREW
9882665 9882665 PACKAGING, COMPLETELY
9749322 9749322 PARTS, POWDER-COATED, COLOURED
9749361 9749361 PARTS, POWDER-COATED, COLOURED
9040640 9040640 PERFORATED METAL PLATE, FINISHED
7700343 7700343 PIPE
7700160 7700160 PIPE
742920101 742920101 PLASTIC TUBE
742553500 742553500 PLUG
743203800 743203800 PLUG
6021389 6021389 PLUG CONNECTOR
6123640 6123640 POWER BOARD HOLDER
9040546 9040546 PROFILE STRIP
9040540 9040540 PROFILE STRIP
9194121 9194121 PSEUDOGROUP
9029598 9029598 REFR. UNIT HOUSING, FRONT SECTION
4098377 4098377 SCREW
409800601 409800601 SCREW
7400660 7400660 SENSOR RETAINING FIXTURE
7420606 7420606 SENSOR RETAINING FIXTURE
9040676 9040676 SHELF RAIL
9040678 9040678 SHELF RAIL
726614200 726614200 SLEEVE
7260000 7260000 SLEEVE
7871073 7871073 SOLENOID VALVE
9903433 9903433 SOLENOID VALVE
7871079 7871079 SOLENOID VALVE
7700927 7700927 SPARE PART
612347700 612347700 SPARE PART
412902501 412902501 SPECIAL NUT
726612000 726612000 SPECIAL SECURING HARDWARE
740285700 740285700 SPECIAL SECURING HARDWARE
409860900 409860900 SPECIAL WOOD SCREW
4119999 4119999 STANDARD NUT
411500000 411500000 STANDARD NUT
7044091 7044091 STEEL BEARING BLOCK
7044092 7044092 STEEL BEARING BLOCK
7745500 7745500 STORAGE RACK CLIP-IN STRIP

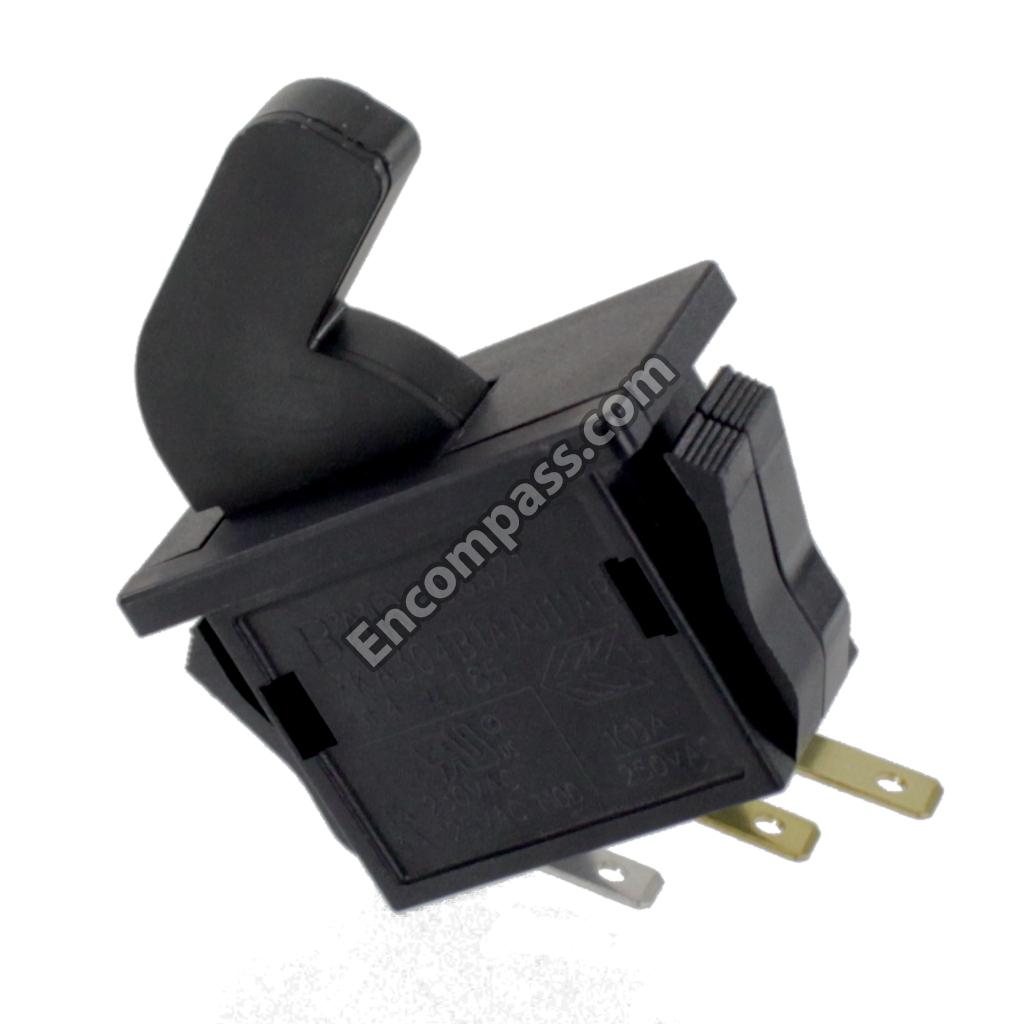

606099100 606099100 SWITCH
7040125 7040125 SWIVELLING CASTORS
7040126 7040126 SWIVELLING CASTORS
409802803 409802803 THREAD-CUTTING SCREW
7401281 7401281 VARIOUS COMPONENTS
743039100 743039100 VARIOUS COMPONENTS
9760755 9760755 VARIOUS COMPONENTS
7436944 7436944 VARIOUS HOUSINGS
7426201 7426201 VARIOUS INJECTION-MOULDED ITEMS
7426103 7426103 VARIOUS INJECTION-MOULDED ITEMS
743959900 743959900 VARIOUS INJECTION-MOULDED ITEMS
7439863 7439863 VARIOUS INJECTION-MOULDED ITEMS
7436864 7436864 VARIOUS INJECTION-MOULDED ITEMS
7440039 7440039 VARIOUS INJECTION-MOULDED ITEMS
7435997 7435997 VARIOUS INJECTION-MOULDED ITEMS
7435999 7435999 VARIOUS INJECTION-MOULDED ITEMS
7435998 7435998 VARIOUS INJECTION-MOULDED ITEMS
7044098 7044098 VARIOUS PLATES
7434293 7434293 VARIOUS RETAINING FIXTURES
720379901 720379901 VARIOUS RETAINING FIXTURES

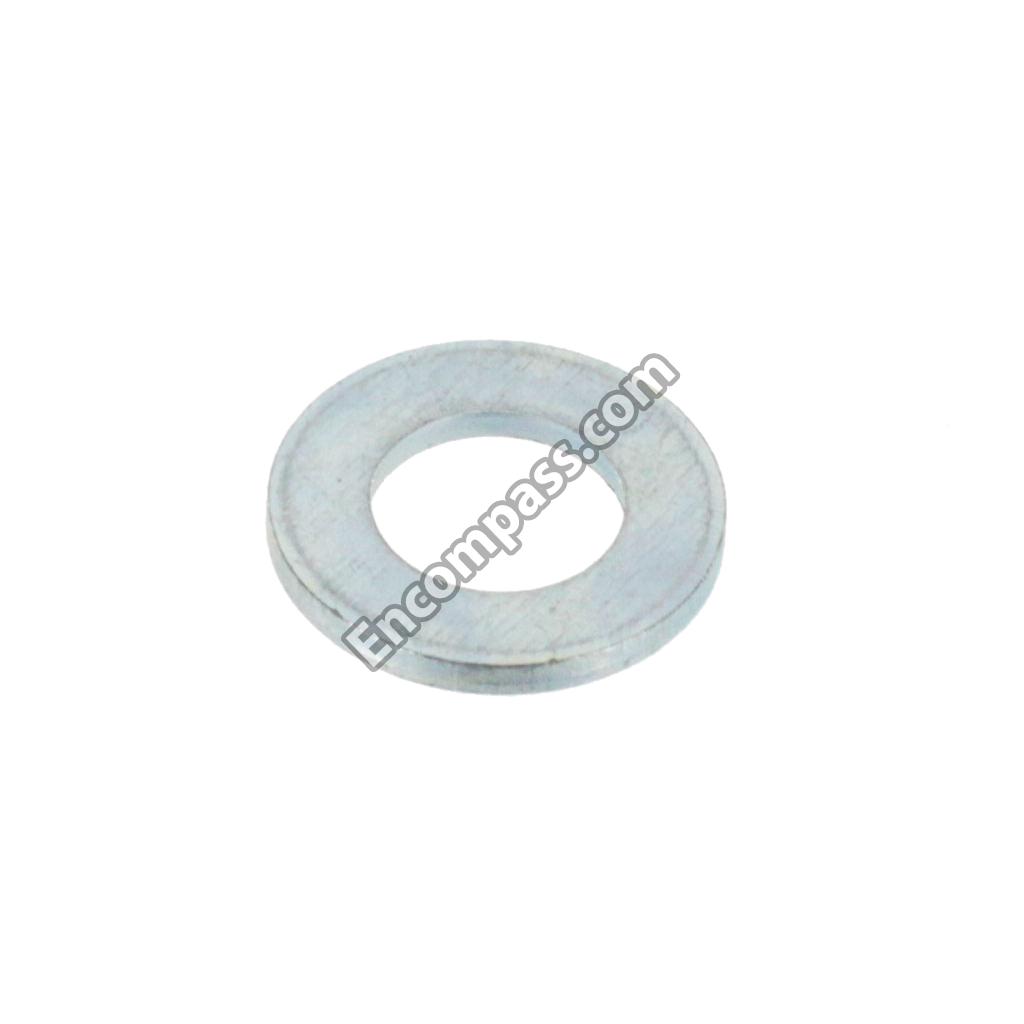

7401643 7401643 WASHER
7044080 7044080 WASHER
7044079 7044079 WASHER
420000100 420000100 WASHER
422950300 422950300 WASHER
7200017 7200017 WASHER
711261400 711261400 WIRE SHELF
704428300 704428300 ZINC DIE-CAST BEARING BLOCK
7043919 7043919 ZINC DIE-CAST BEARING BLOCK
