Manufacturer
Whirlpool
Model Number
MVW6200KW2
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ABSORBER, IMPACT |
|
|
ABSORBER, IMPACT |
|
|
ACCESSORY PARTS, 4-FEET DRAIN HOSE EXTENSION |
|
|
ACCESSORY PARTS, 8-FEET DRAIN HOSE W/CLAMP |
|
|
ACCESSORY PARTS, AFFRESH MACHINE CLEANING WIPES |
|
|
ACCESSORY PARTS, AFFRESH WASHER CLEANER |
|
|
ACCESSORY PARTS, AFFRESH WASHER CLEANER POUCH |
|
|
ACCESSORY PARTS, CLEANERS AFFRESH MACHINE CLEANING WIPES |
|
|
ACCESSORY PARTS, DELICATES LAUNDRY WASH BAG |
|
|
ACCESSORY PARTS, DRAIN HOSE EXTENSION KIT |
|
|
ACCESSORY PARTS, DRAIN HOSE EXTENSION KIT |
|
|
ACCESSORY PARTS, HOSE FILL KIT |
|
|
ACCESSORY PARTS, INLET HOSES, 10 FT. (2 BLK W/STRAIGHT ENDS) |
|
|
ACCESSORY PARTS, INLET HOSES, 4 FT. (2 BLK W/STRAIGHT ENDS) |
|
|
ACCESSORY PARTS, INLET HOSES, 5 FT. (1 RED & 1 BLUE W/STRAIGHT ENDS) |
|
|
ACCESSORY PARTS, INLET HOSES, 5 FT. (2 BLK W/STRAIGHT ENDS) |
|
|
ACCESSORY PARTS, INLET HOSES, 5 FT. (2 BRAIDED W/STRAIGHT ENDS). |
|
|
ACCESSORY PARTS, INLET HOSES, 5 FT. (2 BRAIDED W/STRAIGHT ENDS). |
|
|
ACCESSORY PARTS, INLET HOSES, 6 FT (2 BRAIDED W/1 STRAIGHT & 1 90 DEG END) |
|
|
ACCESSORY PARTS, INLET HOSES, 6 FT (2 BRAIDED W/1 STRAIGHT & 1 90 DEG END) |
|
|
ACCESSORY PARTS, LAUNDRY APPLIANCE HANGER RACK |
|
|
ACCESSORY PARTS, OTHER WASHER, DRIP TRAY |
|
|
ACCESSORY PARTS, SIPHON BREAK KIT |
|
|
ACCESSORY PARTS, TOP LOAD WASHER/DRYER COVER (GRAY) |
|
|
ACTUATOR, SHIFT |
|
|
ASSEMBLY, CONSOLE (WHITE) |
|
|
ASSEMBLY, DISPENSER BEZEL (WHITE) |
|
|
ASSEMBLY, DISPENSER DRAWER (WHITE) |
|
|
ASSEMBLY, DISPENSER HOUSING & INLET VALVE |
|
|
ASSEMBLY, FASCIA |
|
|
ASSEMBLY, LID (GLASS) (TEMPEST GREY) |
|
|
ASSEMBLY, LID LOCK |
|
|
ASSEMBLY, LINE FILTER |
|
|
BADGE |
|
|
BASKET ASSEMBLY |
|
|
BASKET, LOCK NUT |
|
|
BELT, DRIVE |
|
|
BEZEL, BLEACH DISPENSER (WHITE) |
|
|
BEZEL, LID LOCK (WHITE) |
|
|
BUMPER, LID |
|
|
CABINET (WHITE) |
|
|
CAP, IMPELLER |
|
|

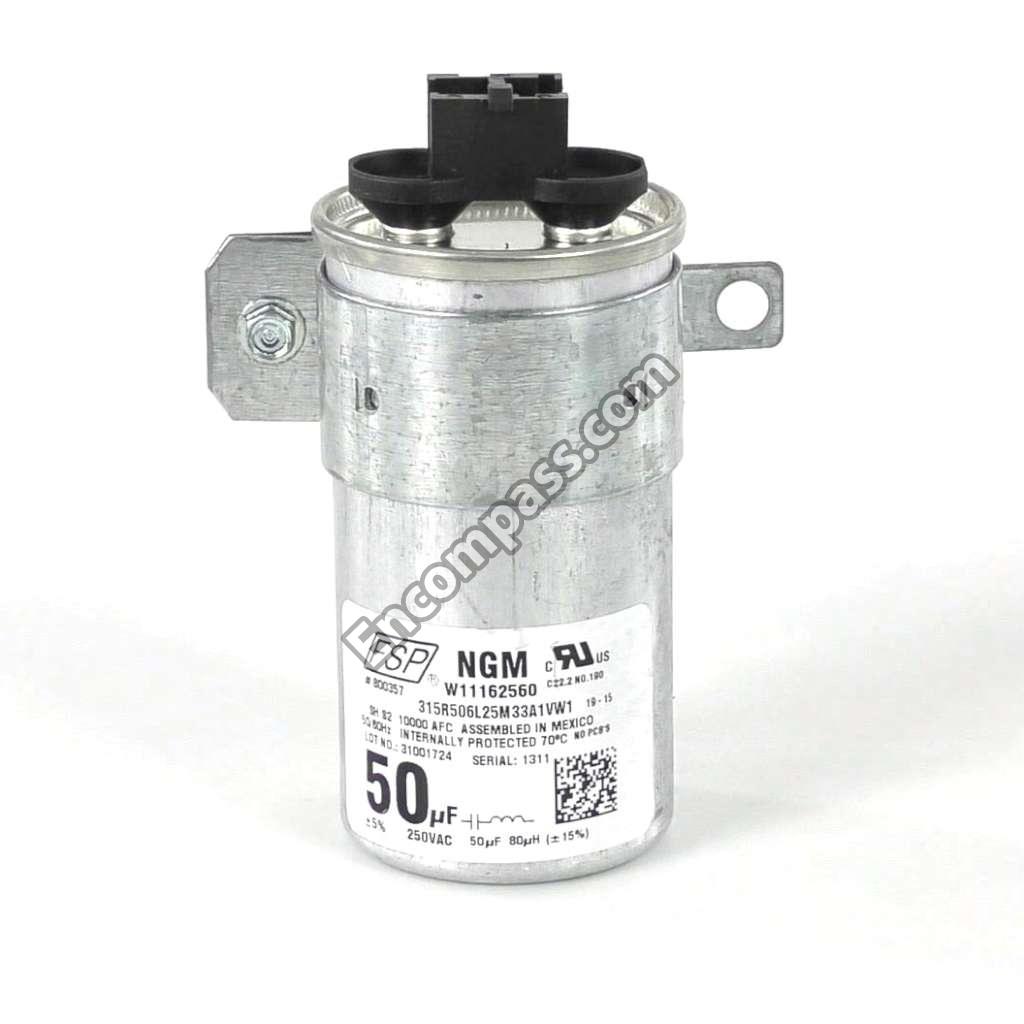

CAPACITOR, MOTOR RUN |
|
|
CHANNEL, TOP FRONT (WHITE) |
|
|
CHANNEL, TOP REAR |
|
|
CLAMP, HOSE |
|
|
CLAMP, HOSE |
|
|
CLIP, CONSOLE |
|
|
CLIP, HARNESS |
|
|
CLIP, HARNESS |
|
|
CONTROL UNIT ASSEMBLY, MACHINE AND MOTOR |
|
|
COVER, HARNESS |
|
|
DAMPER ASSEMBLY, TUB SUSPENSION (SET OF 4 W/SUSPENSION BUSHINGS & BALLS) |
|
|
ENCODER ASSEMBLY |
|
|
ENERGY GUIDE |
|
|
FILTER, DRAIN PUMP |
|
|
FOOT ASSEMBLY, LEVELING |
|
|
GEARCASE ASSEMBLY |
|
|
HARNESS, LOWER |
|
|
HARNESS, UI |
|
|
HARNESS, VALVE |
|
|
HINGE, LID (LEFT) |
|
|
HINGE, LID (RIGHT) |
|
|
HOSE, INNER DRAIN ASSEMBLY |
|
|
HOSE, OUTER DRAIN ASSEMBLY |
|
|
HOSE, PRESSURE SWITCH |
|
|
IMPELLER (WASHPLATE) |
|
|
KNOB, ASSEMBLY (CHROME) |
|
|
MOTOR, DRIVE |
|
|
NUT, "U" |
|
|
OWNERS MANUAL |
|
|
PAINT, BULK (1 QT. WHITE (UNCUT)) |
|
|
PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER) |
|
|
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) |
|
|
PAINT, TOUCH-UP (1/2OZ. CHROME SHADOW) |
|
|
PAINT, TOUCH-UP (1/2OZ. WHITE) |
|
|
PANEL, CONSOLE REAR |
|
|
PANEL, REAR |
|
|
POWER CORD |
|
|
PUMP ASSEMBLY, DRAIN |
|
|
QUICK START GUIDE |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW |
|
|
SEALER, GASKET (.20 FL. OZ.) (6ML) |
|
|
SHIELD, PULLEY COVER |
|
|
SPLUTCH KIT (60HZ) |
|
|
STRIKE ASSEMBLY |
|
|
TECH SHEET |
|
|
TIE, CABLE |
|
|
TOP (WHITE) |
|
|
TUB |
|
|
TUB RING |
|
|
U-BEND, DRAIN HOSE |
|
|
VALVE, WATER INLET |
|
|
WASHER, THRUST |
|
|
WATER SYSTEM PARTS, 4-FEET DRAIN HOSE W/CLAMP |
