Model Image
Manufacturer

Midea

Model Number

003719075

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
12676000000411 12676000000411 ABSORBENT COTTON
12676000000414 12676000000414 ABSORBENT COTTON
12176000009745 12176000009745 ADJUST FOOT
12976000000311 12976000000311 ADJUSTING CLAMP I
12176000003911 12176000003911 AIR BREATHER ASSEMBLY
12176000009578 12176000009578 AIR BREATHER NUT
12176000003059 12176000003059 BASE TRAY
12176000003086 12176000003086 BASE TRAY COVER
12276000001316 12276000001316 BLADE
12176000010421 12176000010421 BRACKET

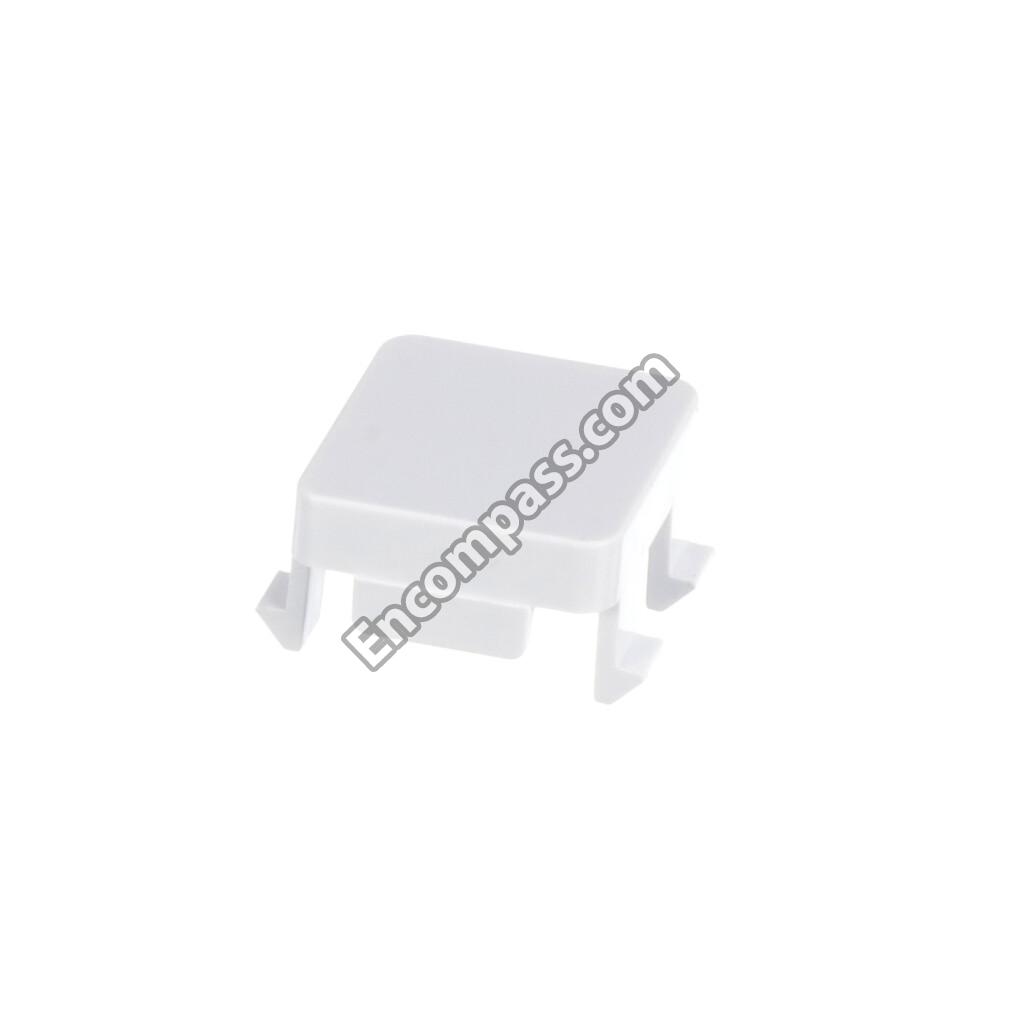

12176000001054 12176000001054 BUTTON
12176000000655 12176000000655 BUTTON

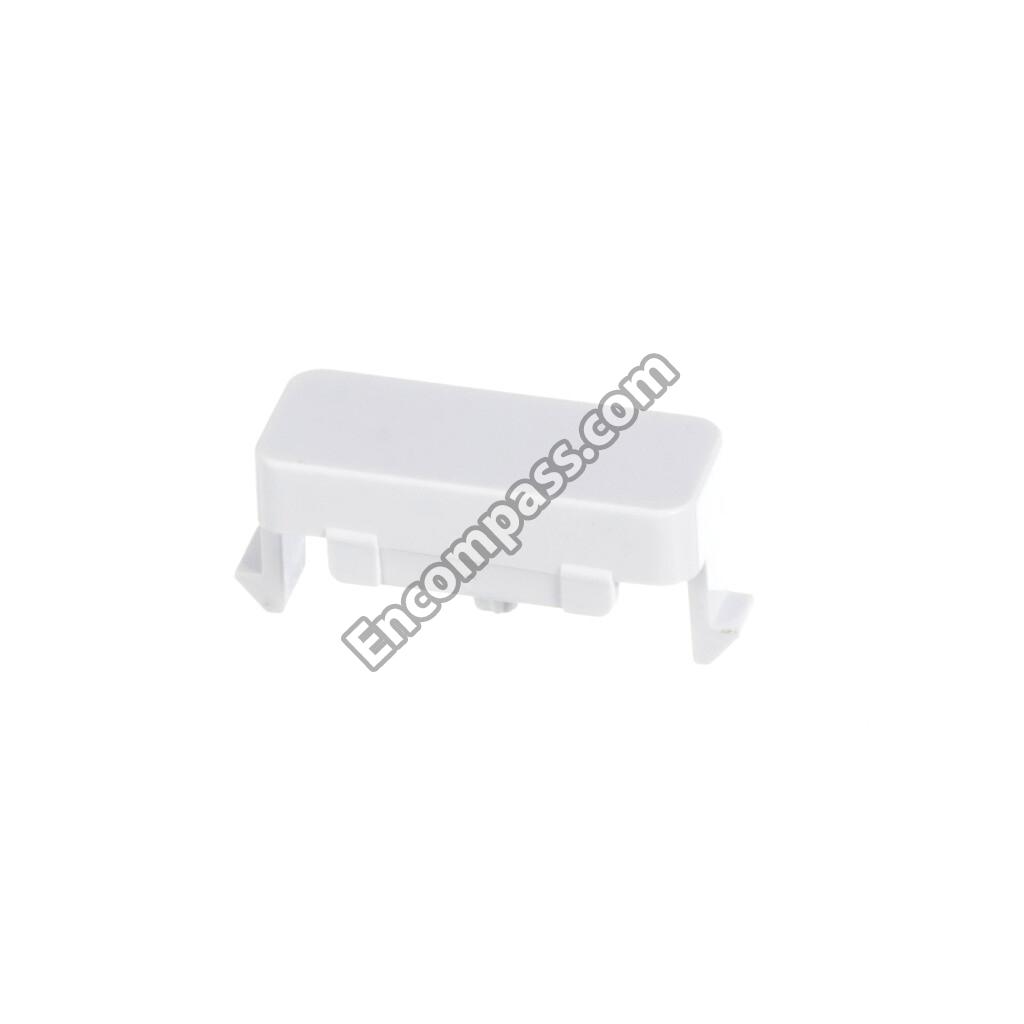

12176000013324 12176000013324 BUTTON
12976000004605 12976000004605 CLAMP
12976000004608 12976000004608 CLAMP
12976000000308 12976000000308 CLAMP
12976000004604 12976000004604 CLAMP
12176000A69755 12176000A69755 CONTROL PANEL
12176000003566 12176000003566 COVER
12176000002805 12176000002805 CUTLERY BASKET
12176000003649 12176000003649 CYLINDRICAL FILTER

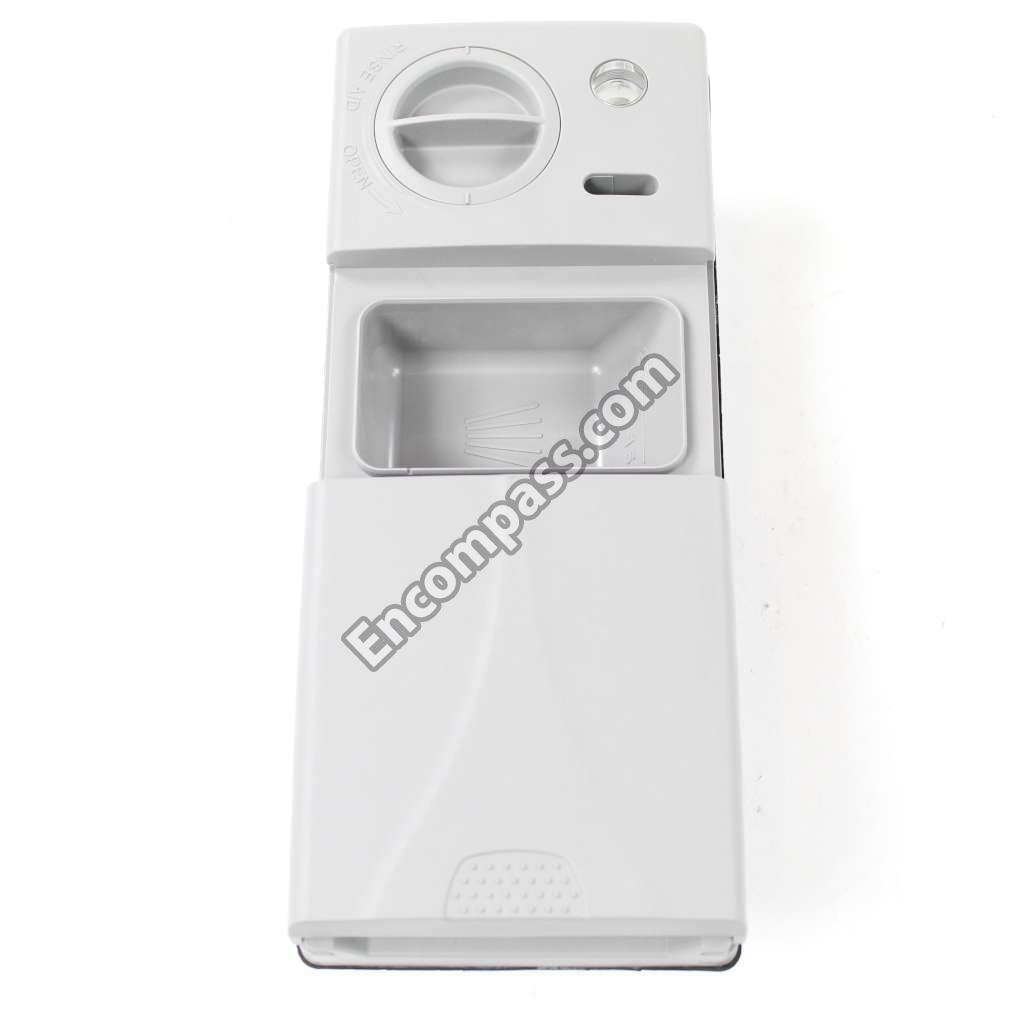

17476000001467 17476000001467 DISPENSER
17176000005470 17176000005470 DISPLAY PANEL
12276000001753 12276000001753 DOOR GEMEL ASSEMBLY (LEFT)
12276000001787 12276000001787 DOOR GEMEL ASSEMBLY (RIGHT)
12276000002203 12276000002203 DOOR LOCK HOOK
17476000012184 17476000012184 DOOR SWICTH ASSEMBLY
12676000000954 12676000000954 DRAIN HOSE
12676000000955 12676000000955 DRAIN HOSE
12176000009643 12176000009643 FILTER HANDLE
12876000000050 12876000000050 FLOAT
12176000003496 12176000003496 FLOAT SEAT
12176000003492 12176000003492 GUIDE PLATE BACKING ASSEMBLY
12176000010393 12176000010393 GUIDE ROLLER SUPPORT ASSEMBLY
17476000001425 17476000001425 HEATING ELEMENTS
12276000001830 12276000001830 HINGE JOIN BOARD
12176000008784 12176000008784 HINGE ROLLER
12976000000332 12976000000332 HOOP
12976000000322 12976000000322 HOOP
12176000002989 12176000002989 INDICATOR LIGHT COVER
17476000A02374 17476000A02374 INDUCTION PUMP
12676000000179 12676000000179 INLET PIPE
12676000000113 12676000000113 INLET PIPE
17476000001140 17476000001140 INLET VALVE
12676000000621 12676000000621 INLET VALVE CONNECTING PIPE
12276000005215 12276000005215 INNER DOOR ASSEMBLY
12176000013098 12176000013098 INNER PIPE ASSEMBLY
12276000001798 12276000001798 JUNCTION BOX A
12276000001800 12276000001800 JUNCTION BOX B
12276000001365 12276000001365 LEFT RAIL ASSEMBLY
12176000002949 12176000002949 LIGHT COVER
12976000001654 12976000001654 LOWER BASKET ASSEMBLY
12176000008732 12176000008732 LOWER BASKET ROLLER ASSEMBLY
12176000008805 12176000008805 LOWER BASKET WHEEL AXLE
12176000003865 12176000003865 LOWER FRONT CROSS PIECE
12176000009151 12176000009151 LOWER SPRAYER
12276000001579 12276000001579 LOWER-FRONT BAFFLE PLATE
17176000007878 17176000007878 MAIN CONTROL PANEL
17476000012825 17476000012825 MAIN WIRE HARNESS
17476000001137 17476000001137 MICROSWITCH
12176000009577 12176000009577 NUT
12276000006818 12276000006818 OUTER DOOR
12676000000181 12676000000181 OUTLET PIPE
12176000010493 12176000010493 PANEL COVER
12176000013106 12176000013106 PCB BOX
12176000013107 12176000013107 PCB BOX COVER
11001011000221 11001011000221 PERMANENT MAGNET SYNCHRONOUS PUMP
12976000001074 12976000001074 PIN
12276000001513 12276000001513 PLANE FILTER
17476000001149 17476000001149 PRESSURE SWITCH
12676000000628 12676000000628 PRESSURE SWITCH PVC PIPE
12976000000391 12976000000391 PULL
12176000008809 12176000008809 PUMP IMPELLER
12676000000787 12676000000787 PUMP SEALING RING
17476000A05315 17476000A05315 PUMPCASE
12176000008428 12176000008428 RAIL BLOCK(BACK)
12176000002594 12176000002594 REAR PUMP SHELL
12276000001355 12276000001355 RIGHT RAIL ASSEMBLY
12276000005303 12276000005303 SEAL
12676000002681 12676000002681 SEAL
12676000000823 12676000000823 SEALING RING
17176000000312 17176000000312 SENSOR ASSEMBLY
12176000008578 12176000008578 SIDE BOARD SUPPORT BLOCK
12276000001019 12276000001019 SIDE PANEL
12176000008521 12176000008521 SPIKES BLOCK
12176000008657 12176000008657 SPRAYER SEAT
12976000000128 12976000000128 SPRING
12276000001840 12276000001840 STATOR
17176000012008 17176000012008 TEMPERATURE SENSOR
12176000008663 12176000008663 TRANSOM CONNECTIONS
12176000003569 12176000003569 TRANSOM COVER
12676000000733 12676000000733 TRANSOM COVER SEALING RING
12676000000845 12676000000845 TRANSOM SEALING STRIP
12176000008440 12176000008440 TUB CONNECTING BLOCK
12676000000365 12676000000365 TUB SOUND ABSORBING STRIP
12176000008450 12176000008450 TUB SUPPORT
12976000002544 12976000002544 UPPER BASKET ASSEMBLY
12176000013099 12176000013099 UPPER SPRAYER
12176000009246 12176000009246 UPPER SPRAYER PIPE
12676000000713 12676000000713 WASHERS
12176000015663 12176000015663 WATER CUP ASSEMBLY
12176000009048 12176000009048 WATER DISPENSER
12676000001011 12676000001011 WATERPROOF CASE
11302502000008 11302502000008 WOOD SCREW
