Manufacturer
Midea
Model Number
1028238
Description
Outdoor Unit Of Split
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
1/2-INCH --3/8-INCH ADAPTER |
|
|
1/2-INCH --5/8-INCH ADAPTER |
|
|
1/4-INCH --3/8-INCH ADAPTER |
|
|
3/8-INCH --1/2-INCH ADAPTER |
|
|
3/8-INCH --1/2-INCH ADAPTER |
|
|
AIR OUTLET GUARD |
|
|

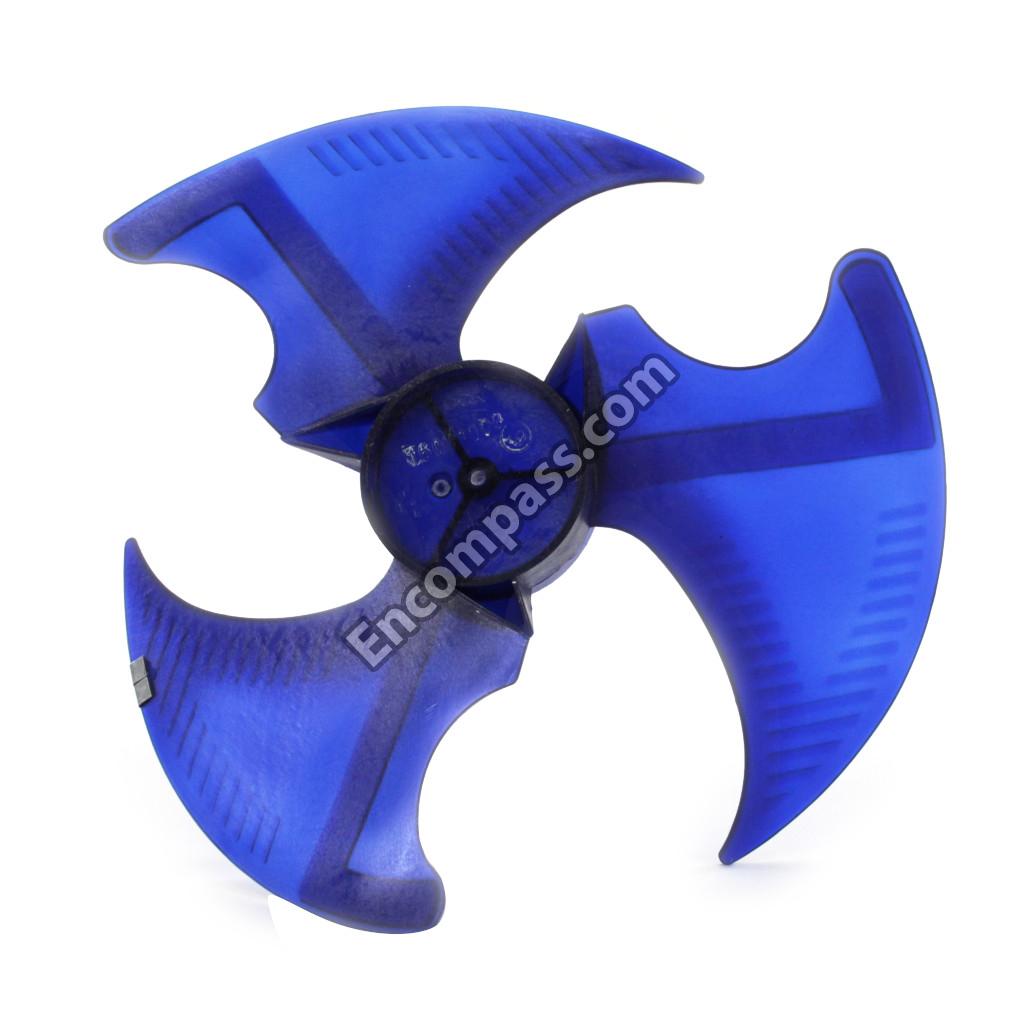

AXIAL FAN |
|
|
BIG HANDLE. |
|
|
CAPACITOR CLAMP |
|
|
CHASSIS ASSEMBLY |
|
|
COMPRESSOR CAPACITOR(ROUND) |
|
|
CONDENSER ASSEMBLY |
|
|
COVER OF ELECTRONIC CONTROL BOX |
|
|
DISCHARGE TEMPERATURE SENSOR ASSEMBLY |
|
|
DRAIN PIPE |
|
|
ELECTRIC INSTALLING BOX SUBASSEMBLY |
|
|
ELECTRICAL CONTROL BOX COVER |
|
|
FAN MOTOR HOLDER |
|
|
FRONT PANEL |
|
|
HIGH-VOLTAGE VALVE |
|
|
HIGH-VOLTAGE VALVE ASSEMBLY |
|
|
HOLDER FOR ELECTRICAL CONTROL BOX |
|
|
INSTALLATION BOX OF ELECTRIC PARTS |
|
|
INSTALLING PLATE FOR VALVES |
|
|
INSTALLING RUBBER GASKET |
|
|
INVERTER CONTROLLED ROTARY COMPRESSOR |
|
|
LEFT SUPPORT STRIP |
|
|
LINE SET (1/4-INCH - 1/2-INCH ) 16 FT |
|
|
LINE SET (1/4-INCH - 1/2-INCH ) 24.5 FT |
|
|
LINE SET (1/4-INCH - 3/8-INCH ) 16 FT |
|
|
LINE SET (1/4-INCH - 3/8-INCH ) 24.5 FT |
|
|
LINE SET (3/8-INCH - 5/8-INCH ) 16 FT |
|
|
LINE SET (3/8-INCH - 5/8-INCH ) 24.5 FT |
|
|
LOW PRESSURE VALVE |
|
|
OUTDOOR E-PARTS BOX SUBASSEMBLY |
|
|
PARTS FN RIGHT SIDE PLATE |
|
|
PARTS OF COMPRESSOR RETURN PIPE |
|
|
RADIATOR |
|
|

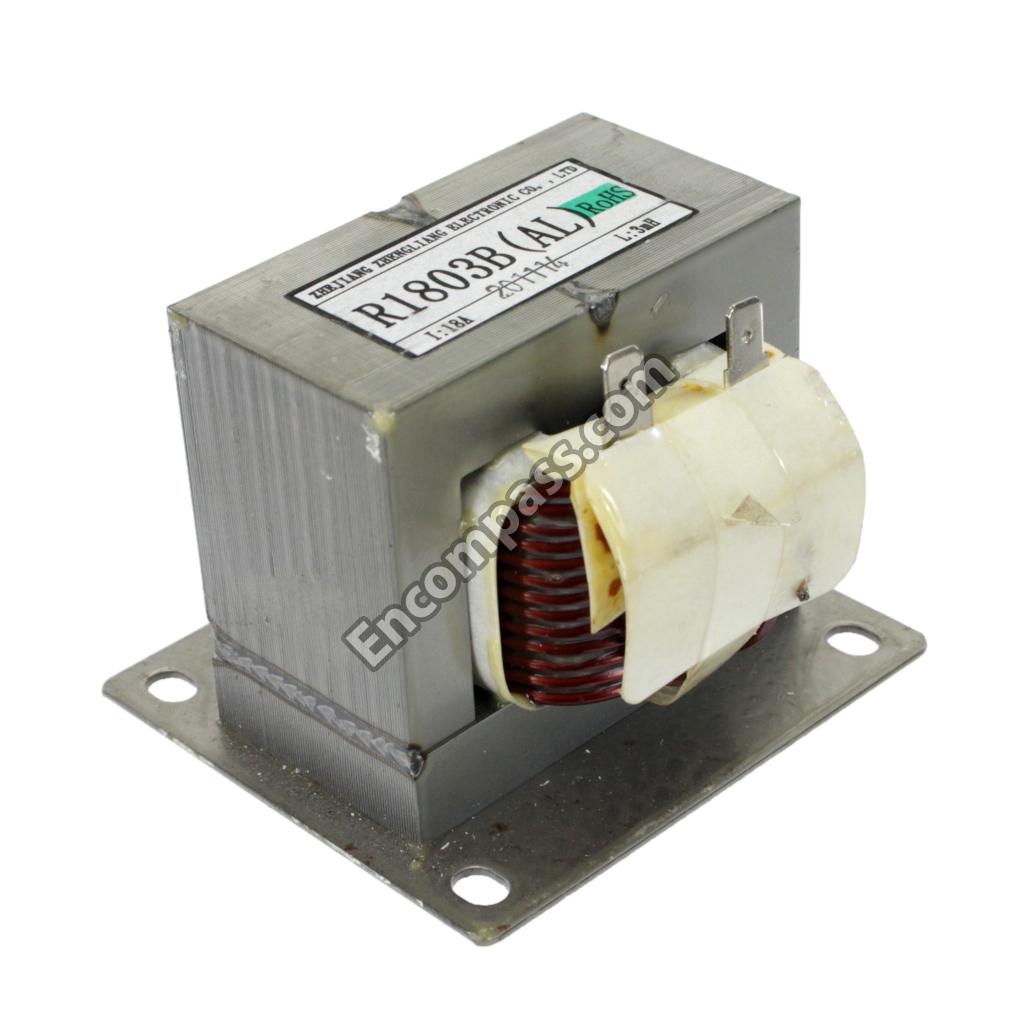

REACTOR |
|
|
REAR NET |
|
|
ROOM TEMPERATURE SENSOR |
|
|
SEPARATOR ASSEMBLY |
|
|
SINGLE-PHASE ASYNCHRONOUS MOTOR |
|
|
SUBASSEMBLY OF OUTDOOR MAIN CONTROL BOARD |
|
|
TEMPERATURE SENSOR |
|
|
TOP COVER |
|
|
WATER COLLECTING COVER |
