Model Image
Manufacturer

Midea

Model Number

1028240

Description

Outdoor Unit Of Split

Interactive Exploded View
Exploded View

Parts List

Part Number Description
15111600000083 15111600000083 Midea 1/2-INCH --3/8-INCH ADAPTER
15111600000073 15111600000073 Midea 1/2-INCH --5/8-INCH ADAPTER
15111600000081 15111600000081 Midea 1/4-INCH --3/8-INCH ADAPTER
15500405000008 15500405000008 Midea 3/8-INCH --1/2-INCH ADAPTER
15500307000001 15500307000001 Midea 3/8-INCH --1/2-INCH ADAPTER
12222000001858 12222000001858 Midea AIR OUTLET GUARD
12100105000060 12100105000060 Midea AXIAL FAN
12222000002532 12222000002532 Midea BIG HANDLE.
12200203000011 12200203000011 Midea CAPACITOR CLAMP
12222300000215 12222300000215 Midea CHASSIS ASSEMBLY
12122000006844 12122000006844 Midea CLAMP OF FRONT NET
12222200001643 12222200001643 Midea COMPONENTS OF LEFT PANEL
17400103000055 17400103000055 Midea COMPRESSOR CAPACITOR(ROUND)
15822000002189 15822000002189 Midea CONDENSER ASSEMBLY
12122000014665 12122000014665 Midea COVER OF ELECTRONIC CONTROL BOX
11201007000157 11201007000157 Midea DISCHARGE TEMPERATURE SENSOR ASSEMBLY
12222000003674 12222000003674 Midea ELECTRIC INSTALLING BOX
12222000001457 12222000001457 Midea ELECTRICAL CONTROL BOX COVER
12222200001790 12222200001790 Midea FAN MOTOR HOLDER ASSEMBLY
12222200001825 12222200001825 Midea FRONT PANEL
12222200001662 12222200001662 Midea FRONT RIGHT SIDE PLATE ASSEMBLY
15500208000026 15500208000026 Midea HIGH-VOLTAGE VALVE
15422000000515 15422000000515 Midea HIGH-VOLTAGE VALVE ASSEMBLY
12122000006883 12122000006883 Midea HOLDER FOR ELECTRICAL CONTROL BOX
12222200001792 12222200001792 Midea INDUCTOR COVER ASSEMBLY
12222000007105 12222000007105 Midea INSTALLATION BOX OF ELECTRIC PARTS
12222000002556 12222000002556 Midea INSTALLING PLATE FOR VALVES

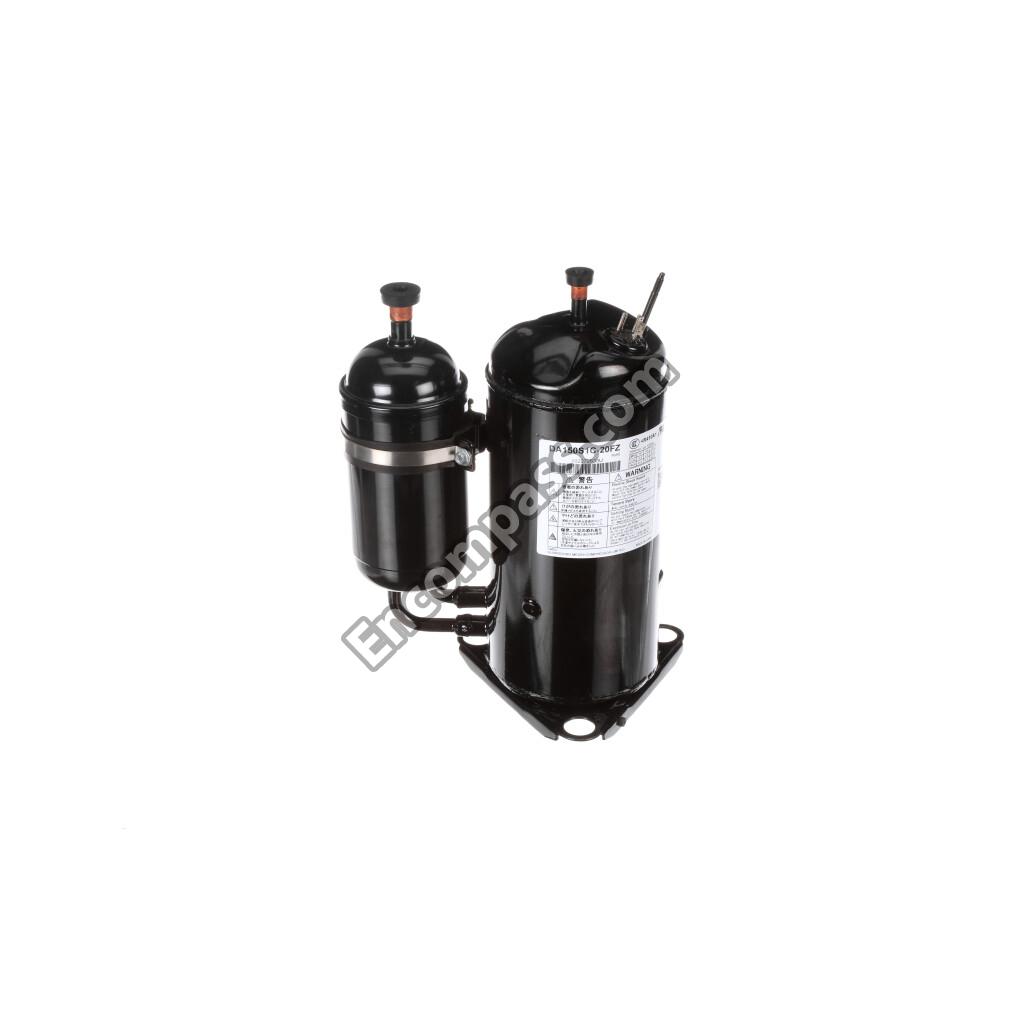

11103020000201 11103020000201 Midea INVERTER CONTROLLED ROTARY COMPRESSOR
22011600000033 22011600000033 Midea LINE SET (1/4-INCH - 1/2-INCH ) 16 FT
22011600000016 22011600000016 Midea LINE SET (1/4-INCH - 1/2-INCH ) 24.5 FT
22011600000147 22011600000147 Midea LINE SET (1/4-INCH - 3/8-INCH ) 16 FT
22011600000030 22011600000030 Midea LINE SET (1/4-INCH - 3/8-INCH ) 24.5 FT
22011600000149 22011600000149 Midea LINE SET (3/8-INCH - 5/8-INCH ) 16 FT
22011600000066 22011600000066 Midea LINE SET (3/8-INCH - 5/8-INCH ) 24.5 FT
15500204000003 15500204000003 Midea LOW PRESSURE VALVE
15422000000383 15422000000383 Midea LOW PRESSURE VALVE ASSEMBLY
17222000001847 17222000001847 Midea OUTDOOR E-PARTS BOX SUBASSEMBLY
12222000001837 12222000001837 Midea PARTS OF REAR RIGHT SIDE PLATE
11203803000236 11203803000236 Midea RADIATOR
17400306000055 17400306000055 Midea REACTOR
17400306000001 17400306000001 Midea REACTOR
12222200001554 12222200001554 Midea REAR NET SHIELD SUBASSEMBLY
11201007000143 11201007000143 Midea ROOM TEMPERATURE SENSOR
11201007000039 11201007000039 Midea ROOM TEMPERATURE SENSOR
12222000002351 12222000002351 Midea SEPARATOR ASSEMBLY
11002012005429 11002012005429 Midea SINGLE PHASE ASYNCHRONOUS MOTOR
11002012005083 11002012005083 Midea SINGLE-PHASE ASYNCHRONOUS MOTOR
17122000000460 17122000000460 Midea SUBASSEMBLY OF OUTDOOR MAIN CONTROL BOARD
11201007000136 11201007000136 Midea TEMPERATURE SENSOR
12222000002266 12222000002266 Midea TERMINAL BLOCK SUBASSEMBLY OF ELECTRICAL CONTROL BOX
17222000002907 17222000002907 Midea TERMINAL BOARD SUBASSEMBLY
12222200001997 12222200001997 Midea TOP COVER ASSEMBLY
12122000007140 12122000007140 Midea WATER COLLECTING COVER
17400401000075 17400401000075 Midea WIRE HOLDER
