Model Image
Manufacturer

Midea

Model Number

292CP320B

Description

Mini-split-condenser

Interactive Exploded View

Parts List

Part Number Description
15111600000083 15111600000083 Midea 1/2-INCH --3/8-INCH ADAPTER
15111600000073 15111600000073 Midea 1/2-INCH --5/8-INCH ADAPTER
15111600000081 15111600000081 Midea 1/4-INCH --3/8-INCH ADAPTER
15500307000001 15500307000001 Midea 3/8-INCH --1/2-INCH ADAPTER
15500405000008 15500405000008 Midea 3/8-INCH --1/2-INCH ADAPTER
15500216000019 15500216000019 Midea 4-WAYS VALVE
15422300000106 15422300000106 Midea 4-WAYS VALVE ASSEMBLY
15500508000008 15500508000008 Midea ACCUMULATOR CYLINDER
12222000001865 12222000001865 Midea AIR OUTLET GRILLE
11201007000143 11201007000143 Midea AMBIENT TEMPERATURE SENSOR ASSEMBLY
12100105000028 12100105000028 Midea AXIAL FLOW FAN
12222300000040 12222300000040 Midea BIG HANDLE
11002015000252 11002015000252 Midea BRUSHLESS DC MOTOR
15122300000430 15122300000430 Midea CAPILLARY ASSEMBLY
17402001000021 17402001000021 Midea CHAISSIS HEATER
12223000A00620 12223000A00620 Midea CHASSIS ASSEMBLY
12122000006844 12122000006844 Midea CLAMP OF FRONT NET
11103020000044 11103020000044 Midea COMPRESSOR
15822300000046 15822300000046 Midea CONDENSER ASSEMBLY
12122300000044 12122300000044 Midea COVER OF ELECTRONIC CONTROL BOX
12222200001793 12222200001793 Midea COVER OF INDUCTANCE
17402001000017 17402001000017 Midea CRANKCASE ELECTRIC HEATER
11201007000246 11201007000246 Midea DISCHARGE TEMPERATURE SENSOR ASSEMBLY
17222300000321 17222300000321 Midea ELECTRONIC CONTROL BOX ASSEMBLY
15500213000046 15500213000046 Midea ELECTRONIC EXPANSION VALVE ASSEMBLY
12122300000041 12122300000041 Midea ELECTRONIC INSTALLING BOX
12222200001487 12222200001487 Midea FRONT PANEL
12222200001991 12222200001991 Midea FRONT RIGHT CLAPBOARD ASSEMBLY
15500204000008 15500204000008 Midea GAS VALVE
12100702000047 12100702000047 Midea HANDLE
17122300000731 17122300000731 Midea INVERTER CONTROL BOARD ASSEMBLY
12222200001183 12222200001183 Midea LEFT SUPPORTER
22011600000033 22011600000033 Midea LINE SET (1/4-INCH - 1/2-INCH ) 16 FT
22011600000016 22011600000016 Midea LINE SET (1/4-INCH - 1/2-INCH ) 24.5 FT
22011600000147 22011600000147 Midea LINE SET (1/4-INCH - 3/8-INCH ) 16 FT
22011600000030 22011600000030 Midea LINE SET (1/4-INCH - 3/8-INCH ) 24.5 FT
22011600000149 22011600000149 Midea LINE SET (3/8-INCH - 5/8-INCH ) 16 FT
22011600000066 22011600000066 Midea LINE SET (3/8-INCH - 5/8-INCH ) 24.5 FT
15500208000018 15500208000018 Midea LIQUID VALVE
15422300000041 15422300000041 Midea LIQUID VALVE ASSEMBLY
15422300000053 15422300000053 Midea LIQUID VALVE ASSEMBLY
15422300000180 15422300000180 Midea LIQUID VALVE ASSEMBLY

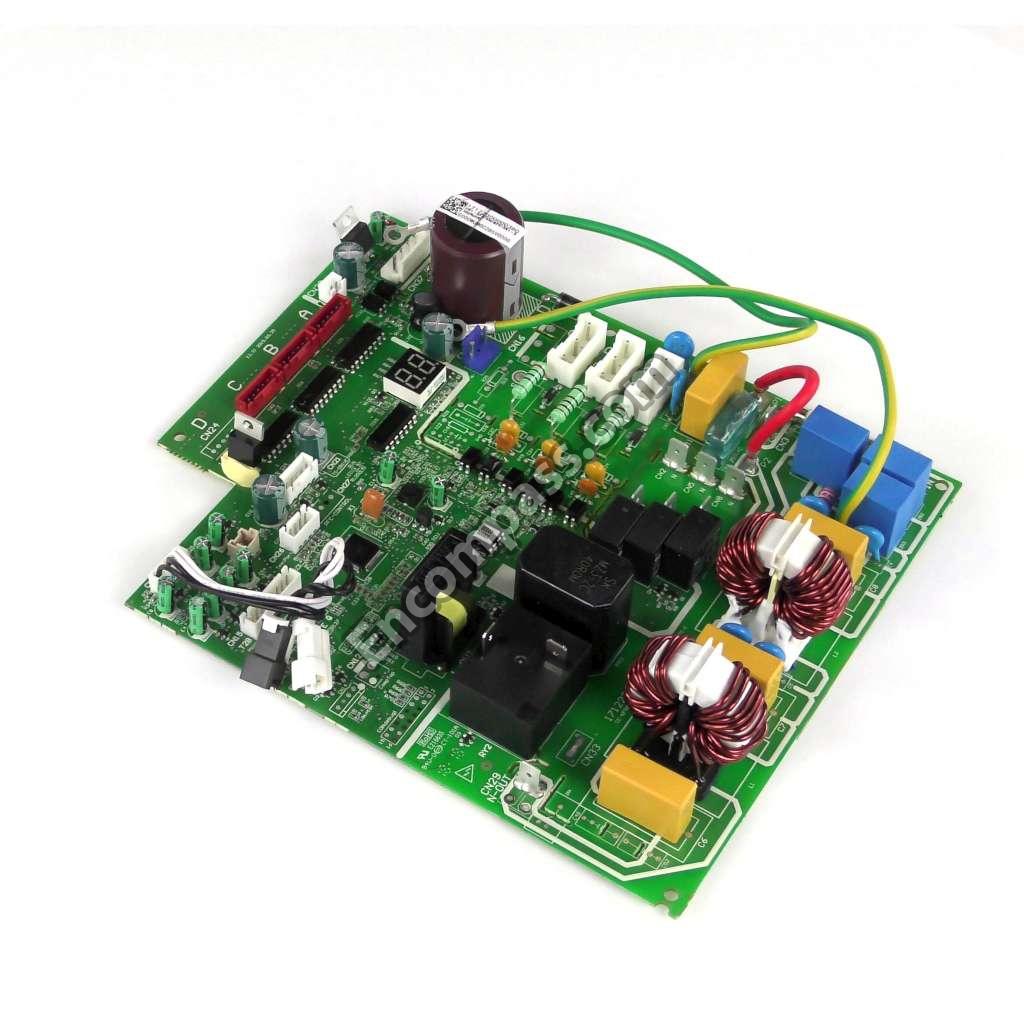

17122300000380 17122300000380 Midea OUTDOOR MAIN CONTROL BOARD ASSEMBLY
12222300000174 12222300000174 Midea PARTITION BOARD ASSEMBLY
11201007000044 11201007000044 Midea PIPE TEMPERATURE SENSOR ASSEMBLY
11203803000085 11203803000085 Midea RADIATOR
17400306000058 17400306000058 Midea REACTOR
12222200001126 12222200001126 Midea REAR NET
12222300000076 12222300000076 Midea REAR RIGHT CLAPBOARD ASSEMBLY
11201007000006 11201007000006 Midea SENSOR (T3 PIPE TEMP)
12222300000240 12222300000240 Midea SUPPORTER ASSEMBLY OF FAN MOTOR
12222300000225 12222300000225 Midea TERMINAL BOARD
17222300000158 17222300000158 Midea TERMINAL BOARD ASSEMBLY
12222200001927 12222200001927 Midea TOP COVER ASSEMBLY
12222300000123 12222300000123 Midea VALVE PLATE
12122300000014 12122300000014 Midea WATER COLLECTOR
17400401000135 17400401000135 Midea WIRE JOINT
