Model Number

FFBN1721TV

Description

17.4 Cu. Ft. 4 Door French Door Refrigerator

Interactive Exploded View
Exploded View

Parts List

Part Number Description
12131000057691 12131000057691 AIR DUCT ASSEMBLY OF FREEZER
11002015005301 11002015005301 BRUSHLESS DC MOTOR
12831000018781 12831000018781 CABINET ASSEMBLY
17431000001249 17431000001249 CAPACITOR
15831000001221 15831000001221 COMPONENT SUPPLYING FIN EVAPORATOR
15531000000581 15531000000581 COMPONENT SUPPLYING PIPE CONNECTOR
12231000023521 12231000023521 COMPRESSOR BACK COVER
12231000005834 12231000005834 COMPRESSOR MOUNTING PANEL ASSEMBLY
15531000000043 15531000000043 CONNECTOR TUBE
17431000006541 17431000006541 DEFROST HEATER
12131000021581 12131000021581 DEODORIZER ASSEMBLY
12131000031701 12131000031701 DISPLAY CONTROL PANEL
17131000003501 17131000003501 DISPLAY CONTROL PANEL
12131000011592 12131000011592 DOOR GASKET ASSEMBLY OF FREEZER
12131000018351 12131000018351 DOOR GASKET ASSEMBLY OF REFRIGERATOR
12131000030261 12131000030261 DOOR SELF-LOCKING
12131000030262 12131000030262 DOOR SELF-LOCKING
12131000037361 12131000037361 DRAIN TRAY
12231000011280 12231000011280 DRAIN TRAY
12131000071295 12131000071295 DRAIN-PIPE
12131000030041 12131000030041 DRAWER ASSEMBLY OF REFRIGERATOR
15531000000118 15531000000118 DRY FILTER

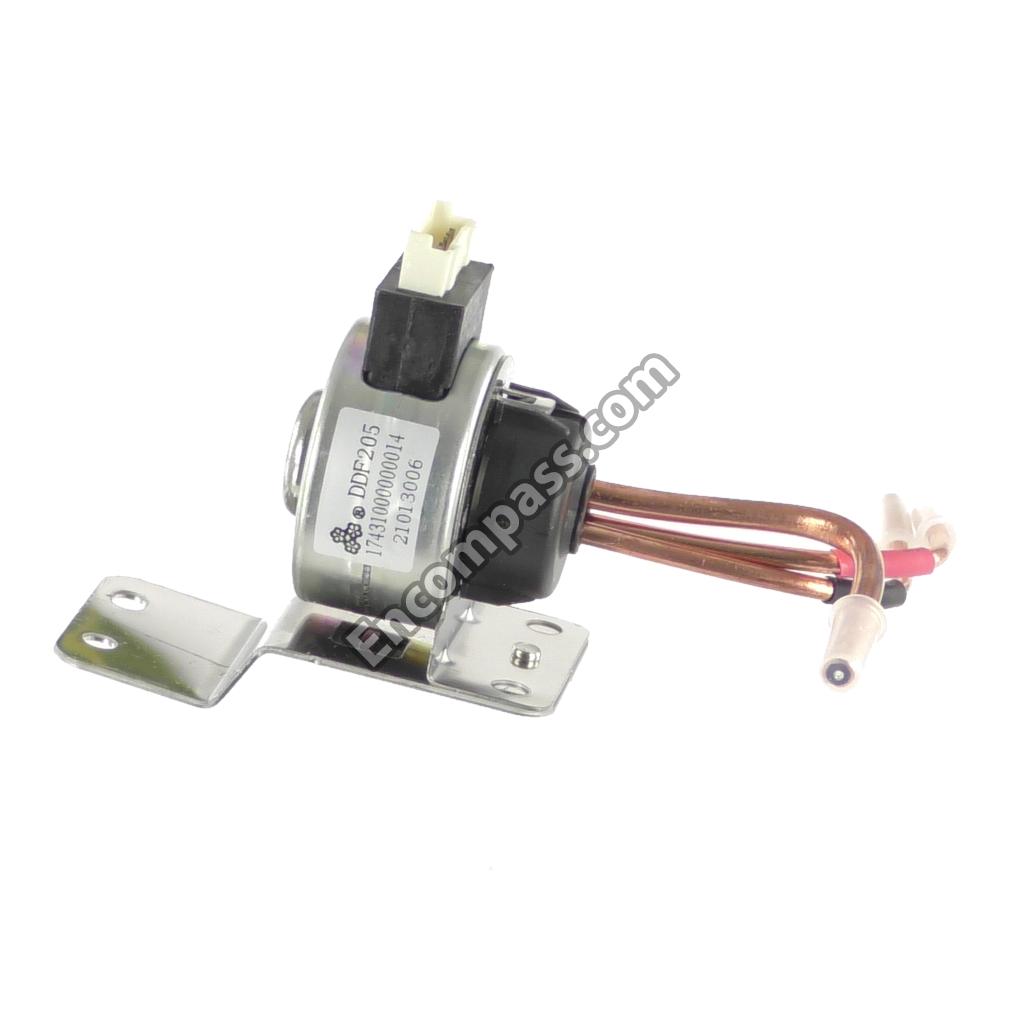

17431000000014 17431000000014 ELECTRIC EXCHANGE VALVE
12131000033341 12131000033341 END COVER ASSEMBLY OF FREEZER
12131000033342 12131000033342 END COVER ASSEMBLY OF FREEZER
12131000033322 12131000033322 END COVERS COMPONENTS OF REFRIGERATOR
12131000033340 12131000033340 END COVERS COMPONENTS OF REFRIGERATOR
12131000030321 12131000030321 F BOTTOM DRAWER ASSEMBLY
12131000030026 12131000030026 F UPPER DRAWER
11002015002064 11002015002064 FAN MOTOR
11101010007545 11101010007545 FIXED SPEED RECIPROCATING COMPRESSOR
12131000034881 12131000034881 FLIPPING BEAM COMPONENT
12831000017446 12831000017446 FREEZER DOOR ASSEMBLY
12831000017448 12831000017448 FREEZER DOOR ASSEMBLY
12531000007081 12531000007081 GLASS SHELF ASSEMBLY OF REFRIGERATOR
12531000006284 12531000006284 GLASS SHELF COMPONENTS OF REFRIGERATOR
12131000018388 12131000018388 GUIDE ASSEMBLY
12131000011285 12131000011285 GUIDE SEAT
12131000057699 12131000057699 HINGE COVER ASSEMBLY
12131000057689 12131000057689 HINGE COVER ASSEMBLY
11201004000089 11201004000089 HUMIDITY SENSOR
12131000034903 12131000034903 LAMP COVER
17431000002863 17431000002863 LED LAMP
12231000007377 12231000007377 LOWER HINGE ASSEMBLY
12231000007378 12231000007378 LOWER HINGE ASSEMBLY
17431000000121 17431000000121 MAGNETISM CONTROL SWITCH

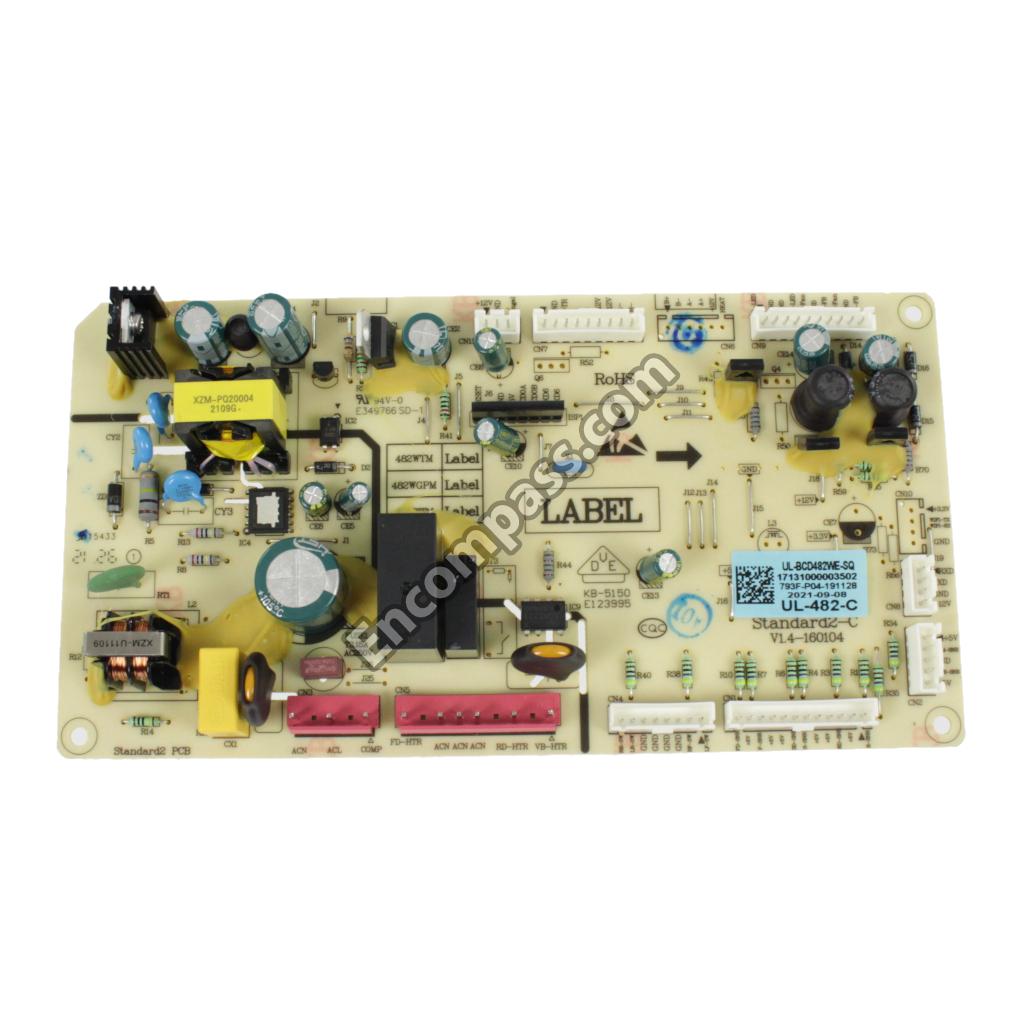

17131000003502 17131000003502 MAIN CONTROL BOARD
12231000007280 12231000007280 MIDDLE HINGE
12231000007279 12231000007279 MIDDLE HINGE ASSEMBLIES
12131000057690 12131000057690 MIDEA PART 12131000057690
12231000019941 12231000019941 MOUNTING BOX COVER OF MAIN CONTROL BOARD
17431000000323 17431000000323 POWER CORD
15531000000088 15531000000088 PROCESS PIPES
12131000030021 12131000030021 R LARGE TRAY
12131000030022 12131000030022 R MIDDLE TRAY

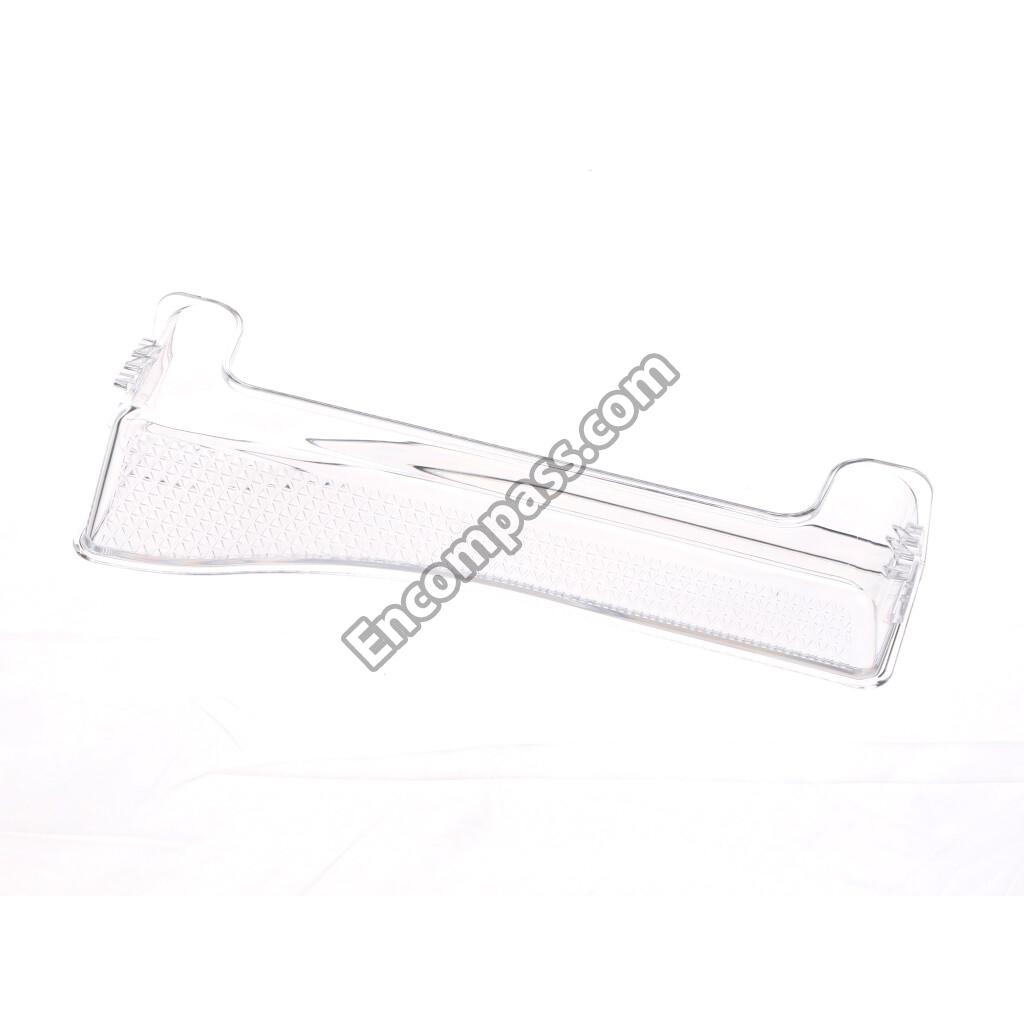

12131000030023 12131000030023 R SMALL TRAY
12131000030027 12131000030027 R SMALL TRAY
12831000017447 12831000017447 REFRIGERATOR LEFT DOOR ASSEMBLY
12831000017445 12831000017445 REFRIGERATOR RIGHT DOOR ASSEMBLY
12131000018382 12131000018382 SEPERATION PLATE COMPONENTS
15531000000090 15531000000090 SUCTION CONNECTION TUBE
11303305000045 11303305000045 TAPPING LOCKING SCREW
11201007002760 11201007002760 TEMPERATURE SENSOR
11201007001540 11201007001540 TEMPERATURE SENSOR
12131000000524 12131000000524 THE SCREW CAP
12231000007304 12231000007304 UPPER HINGE
12231000007305 12231000007305 UPPER HINGE
15831000000421 15831000000421 VERTICAL FIN EVAPORATOR
