Model Image
Manufacturer

Midea

Model Number

GPRSS18

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
12131000000399 12131000000399 AIR DUCT ASSEMBLY OF FREEZER
12131000017194 12131000017194 AIR DUCT ASSEMBLY OF FREEZER
12131000000329 12131000000329 AIR DUCT COMPONENTS OF REFRIGERATOR
11301803000063 11301803000063 BOLT
12131000001127 12131000001127 BOX COVER
12131000001160 12131000001160 BOX COVER
12831000009729 12831000009729 CABINET ASSEMBLY
17431000001249 17431000001249 CAPACITOR
17431000001501 17431000001501 COMPENSATION HEATER\
15831000000227 15831000000227 COMPONENT SUPPLYING FIN EVAPORATOR
15531000000012 15531000000012 COMPONENT SUPPLYING PIPE CONNECTOR
12231000010143 12231000010143 COMPRESSOR MOUNTING PANEL ASSEMBLY
12131000057911 12131000057911 COVER ASSEMBLY
12131000017245 12131000017245 CRUSHED ICE ASSEMBLY
17431000002011 17431000002011 DEFROST HEATER
12131000003062 12131000003062 DISPLAY CONTROL PANEL
17131000000097 17131000000097 DISPLAY CONTROL PANEL
12131000009957 12131000009957 DOOR GASKET ASSEMBLY OF FREEZER
12131000010479 12131000010479 DOOR GASKET ASSEMBLY OF REFRIGERATOR
12931000000447 12931000000447 DOOR HANDLE OF FRIDGE COMPARTMENT

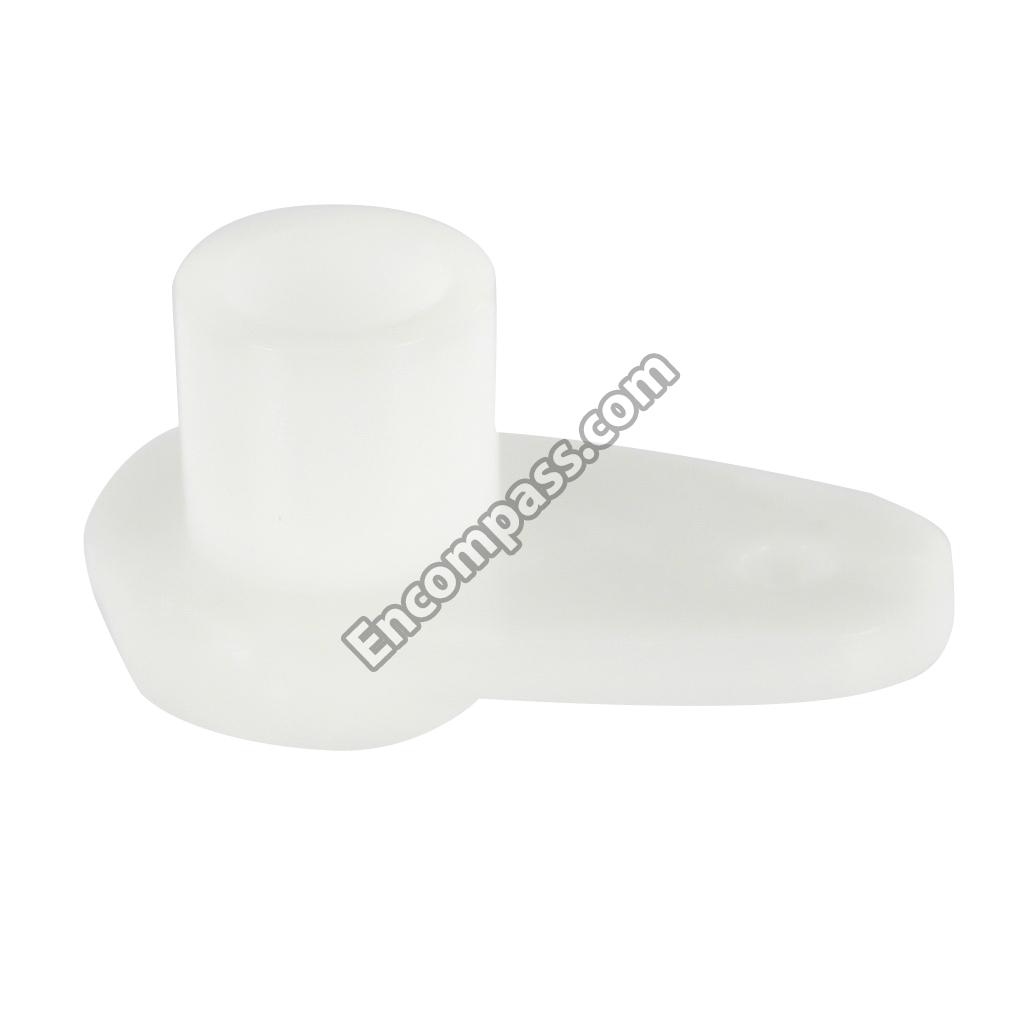

12131000003250 12131000003250 DOOR SELF-LOCKING
12131000006779 12131000006779 DRAIN PIPE CONNECTOR
12131000012792 12131000012792 DRAIN TRAY
12231000006702 12231000006702 DRAIN TRAY
12131000005969 12131000005969 DRAIN-PIPE
12131000037462 12131000037462 DRAIN-PIPE ASSEMBLY
12131000006189 12131000006189 EGG TRAY
12031000001171 12031000001171 ELECTRIC APPLIANCE SHIELD
17431000000895 17431000000895 ELECTRIC DAMPER
17431000000907 17431000000907 ELECTROMAGENT
12131000009420 12131000009420 END CAP ASSEMBLY OF FREEZER
12131000009086 12131000009086 END CAP ASSEMBLY OF REFRIGERATOR
12131000000261 12131000000261 F BOTTOM DRAWER ASSEMBLY
12131000006004 12131000006004 F SMALL TRAY
12131000005683 12131000005683 F SMALL TRAY
12131000000256 12131000000256 F UPPER DRAWER ASSEMBLY

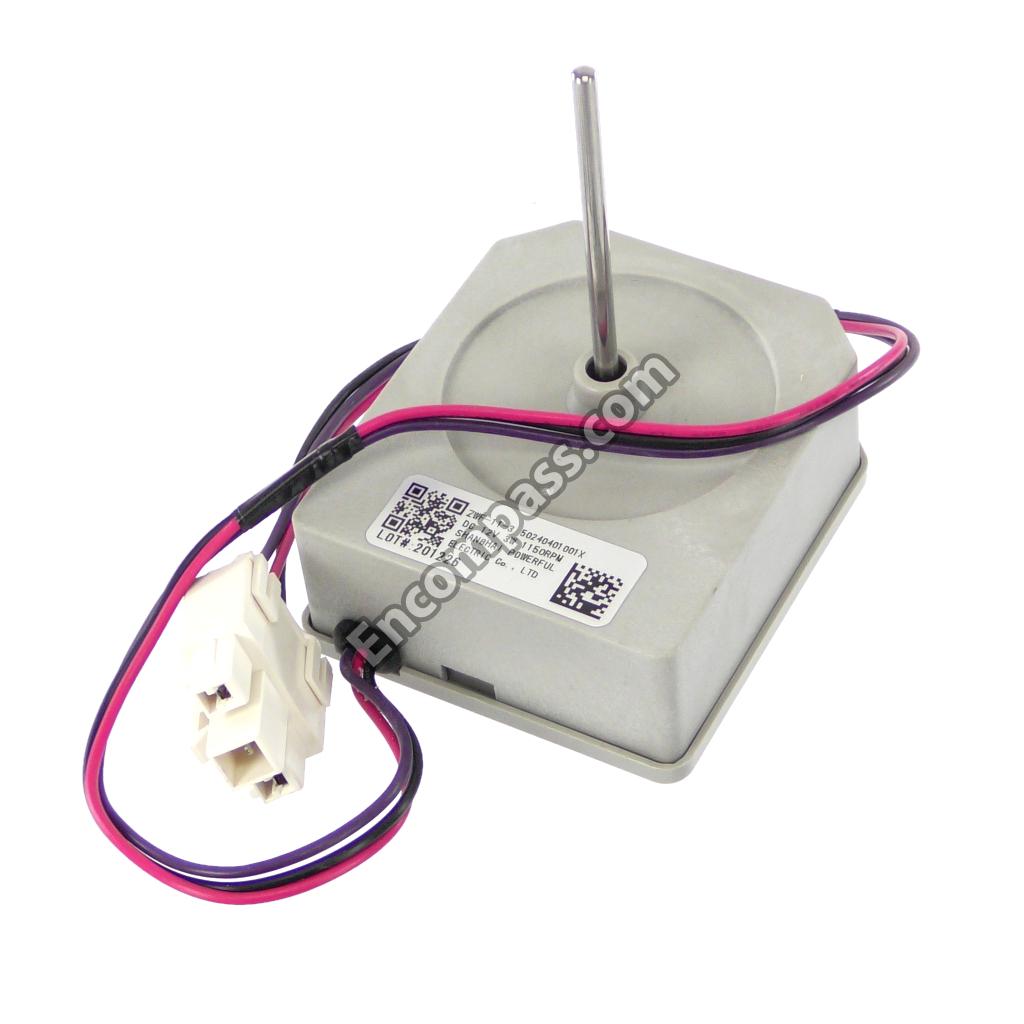

11002015001688 11002015001688 FAN MOTOR
11002015001684 11002015001684 FAN MOTOR
12131000006892 12131000006892 FILTER ASSEMBLY
12131000006895 12131000006895 FILTER HEAD
11101010000702 11101010000702 FIXED SPEED RECIPROCATING COMPRESSOR
12131000006650 12131000006650 FLABELLUM
12831000019282 12831000019282 FREEZER DOOR ASSEMBLY
12531000001808 12531000001808 FREEZER GLASS SHELF ASSEMBLY
12131000004879 12131000004879 FRUITS AND VEGETABLES BOX COMPONENT
12131000004728 12131000004728 FRUITS AND VEGETABLES BOX COMPONENT
12531000001806 12531000001806 GLASS SHELF ASSEMBLY OF REFRIGERATOR
12531000001807 12531000001807 GLASS SHELF ASSEMBLY OF REFRIGERATOR
12131000018244 12131000018244 HINGE COVER ASSEMBLY
12131000010140 12131000010140 HINGE COVER ASSEMBLY
11201004000089 11201004000089 HUMIDITY SENSOR
17431000000353 17431000000353 ICE OUTPUT MOTOR
12131000017290 12131000017290 LAMP COVER
17431000000146 17431000000146 LED LAMP
17431000000228 17431000000228 LED LAMP
17431000000072 17431000000072 LED LAMP

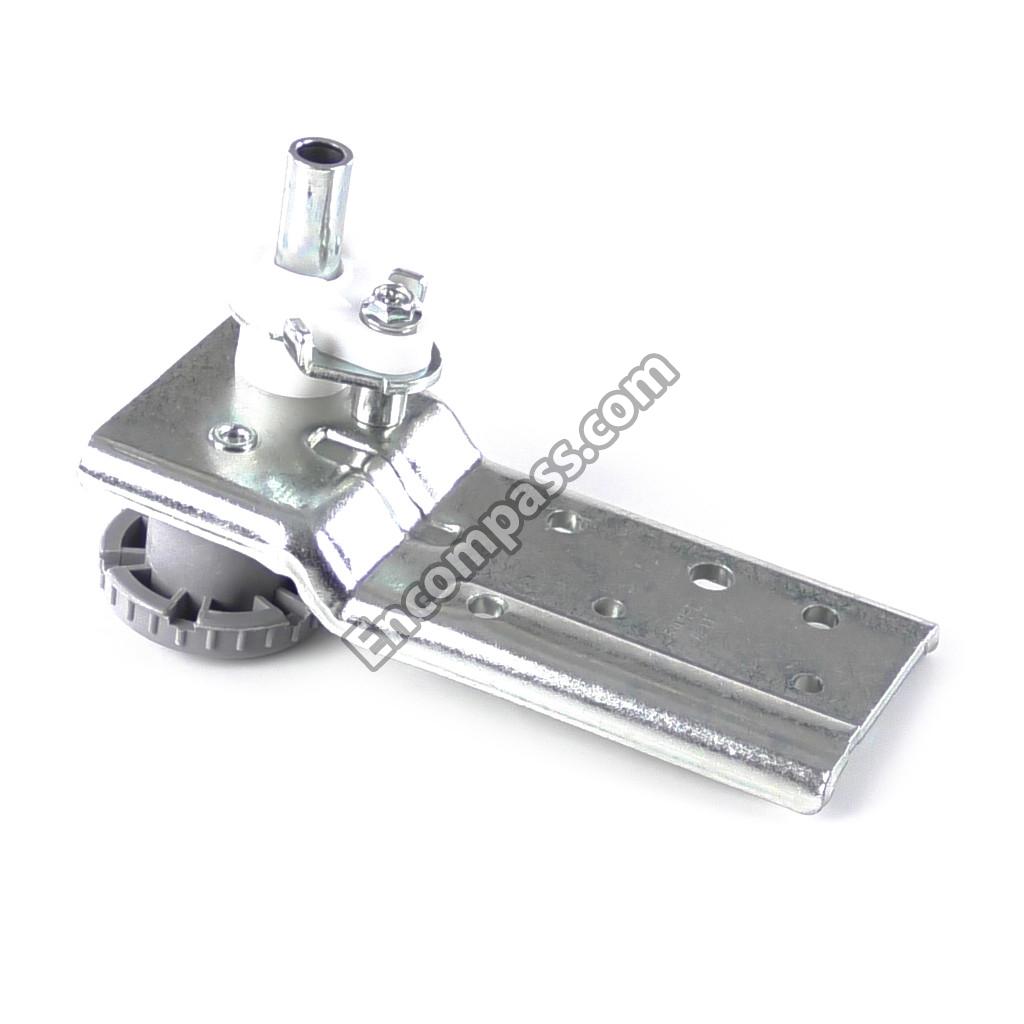

12231000010021 12231000010021 LOWER HINGE ADJUST FEET ASSEMBLY
12231000010013 12231000010013 LOWER HINGE ASSEMBLY

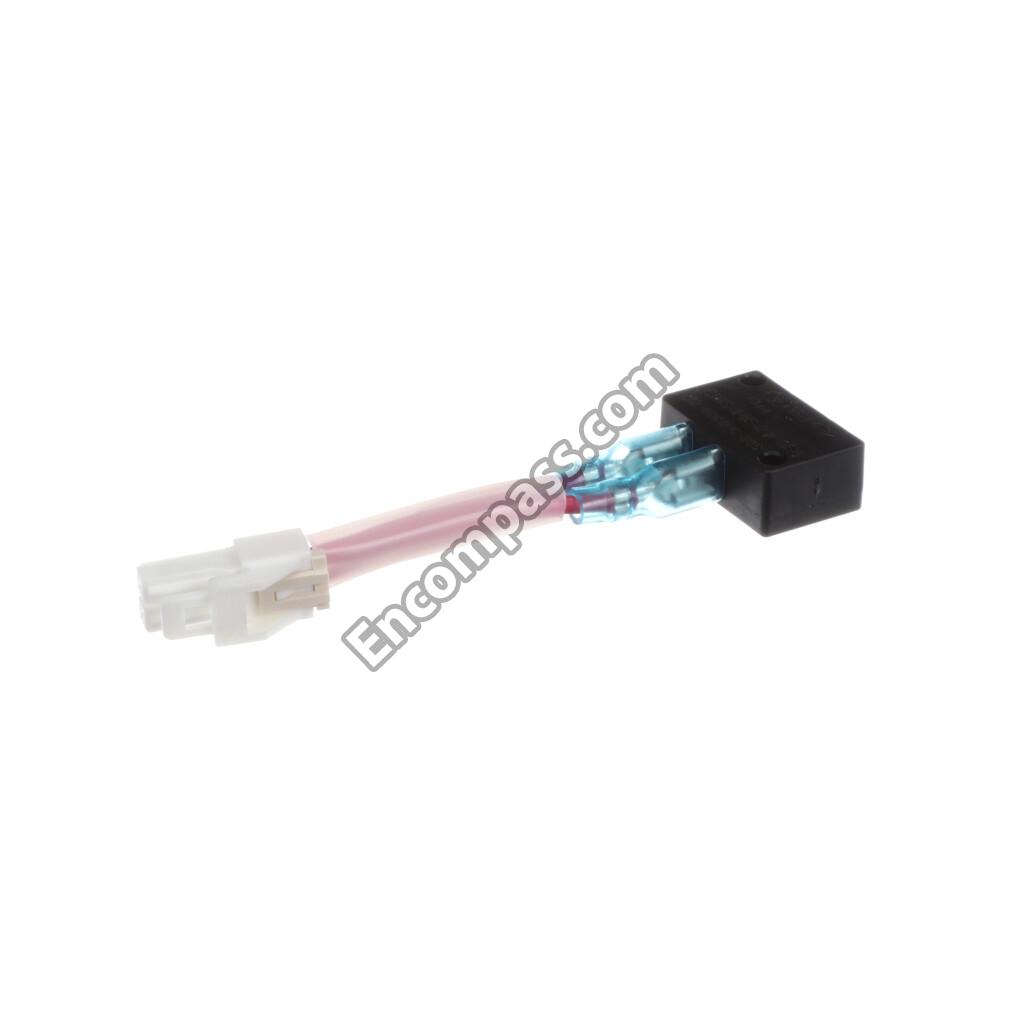

17431000000119 17431000000119 MAGNETISM CONTROL SWITCH

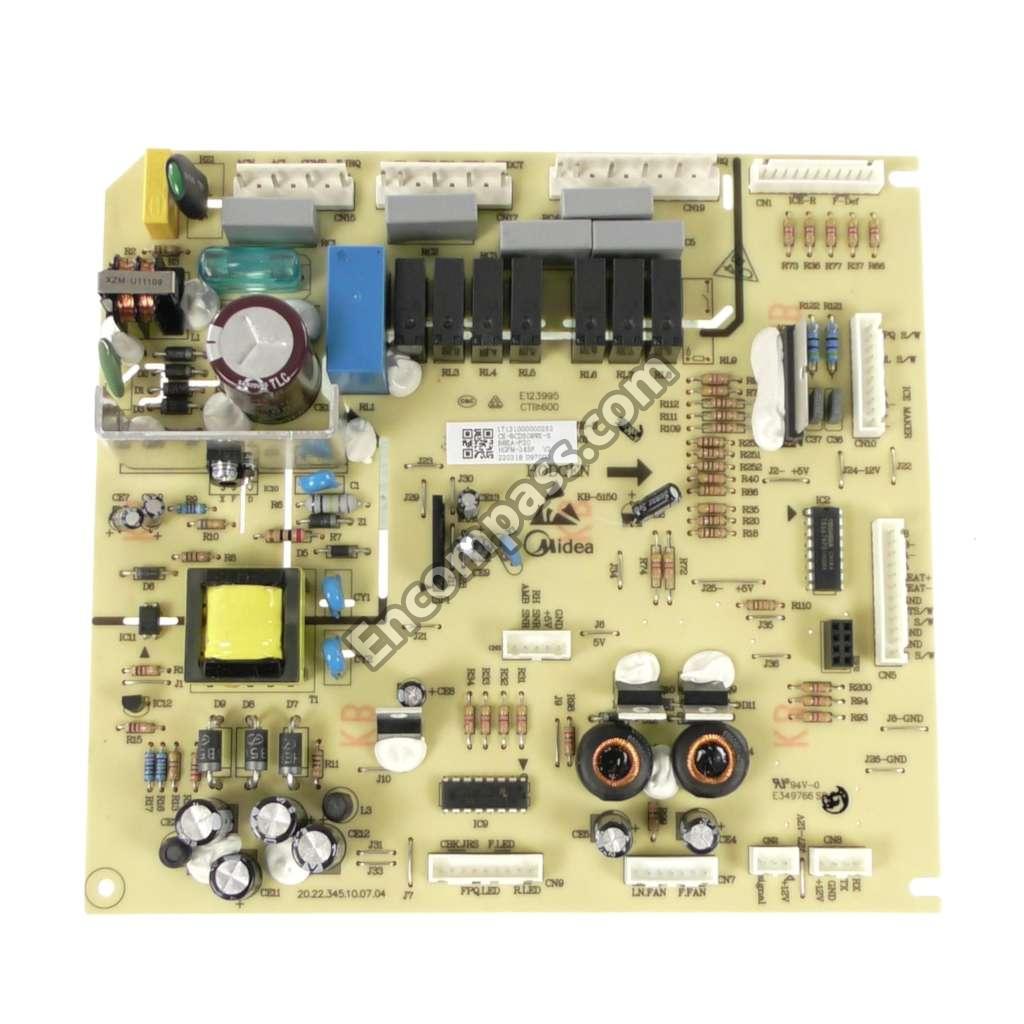

17131000000252 17131000000252 MAIN CONTROL BOARD
17431000000346 17431000000346 OPEN DOOR MOTOR
12131000073266 12131000073266 PARTS OF ICE CUBE BOX
17431000000375 17431000000375 PILLAR SWITCH
17431000000410 17431000000410 PILLAR SWITCH
12131000001181 12131000001181 PLASTIC COVER
12031000001225 12031000001225 PROTECTOR
12131000005957 12131000005957 R MIDDLE TRAY
12131000005702 12131000005702 R SMALL TRAY
12831000005748 12831000005748 REFRIGERATOR DOOR ASSEMBLY
12231000006156 12231000006156 REINFORCEMENT IRON BAR
12131000011278 12131000011278 SEALEDCASE ASSEMBLY
12031000001741 12031000001741 STARTER
12131000006411 12131000006411 SUPPORTER

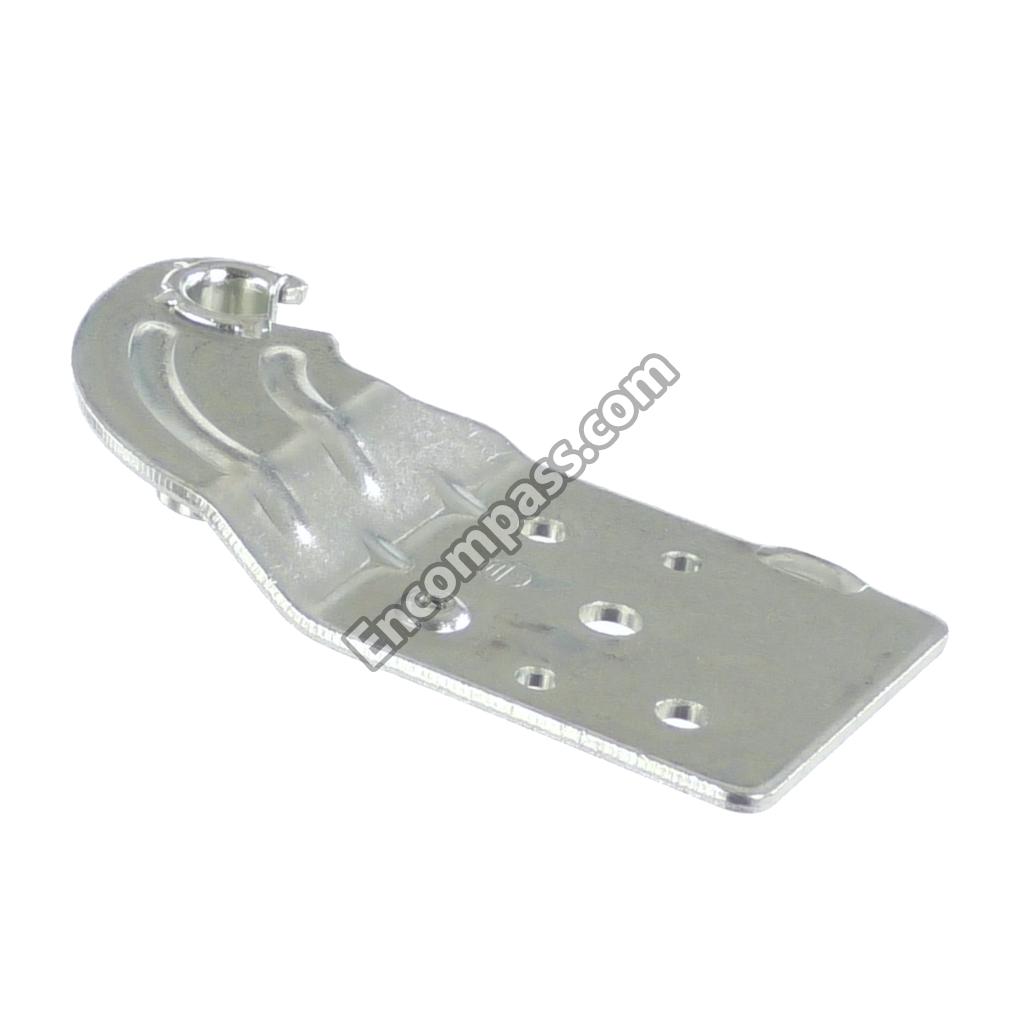

12231000007002 12231000007002 UPPER HINGE

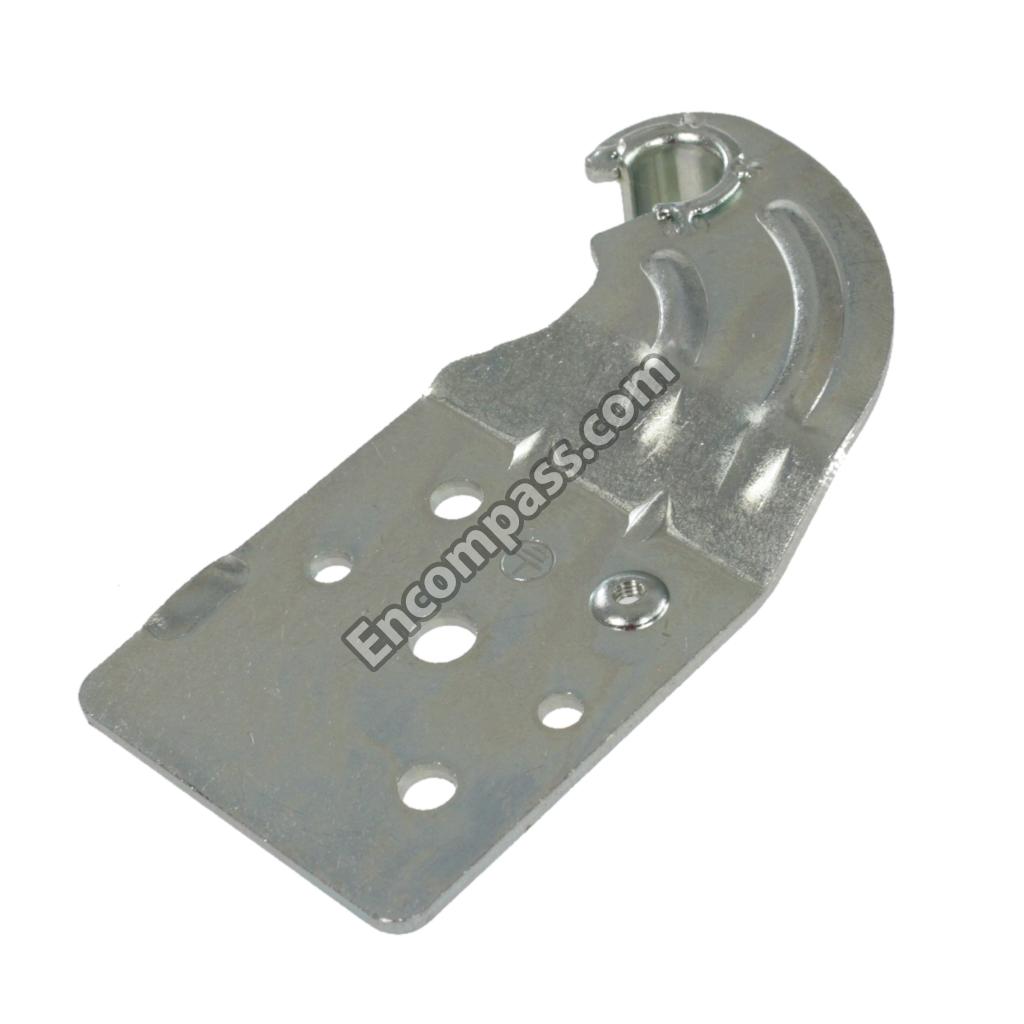

12231000007140 12231000007140 UPPER HINGE ASSEMBLY
12131000007677 12131000007677 WATER TANK
17431000001476 17431000001476 WATER VALVE
17431000001326 17431000001326 WIRES

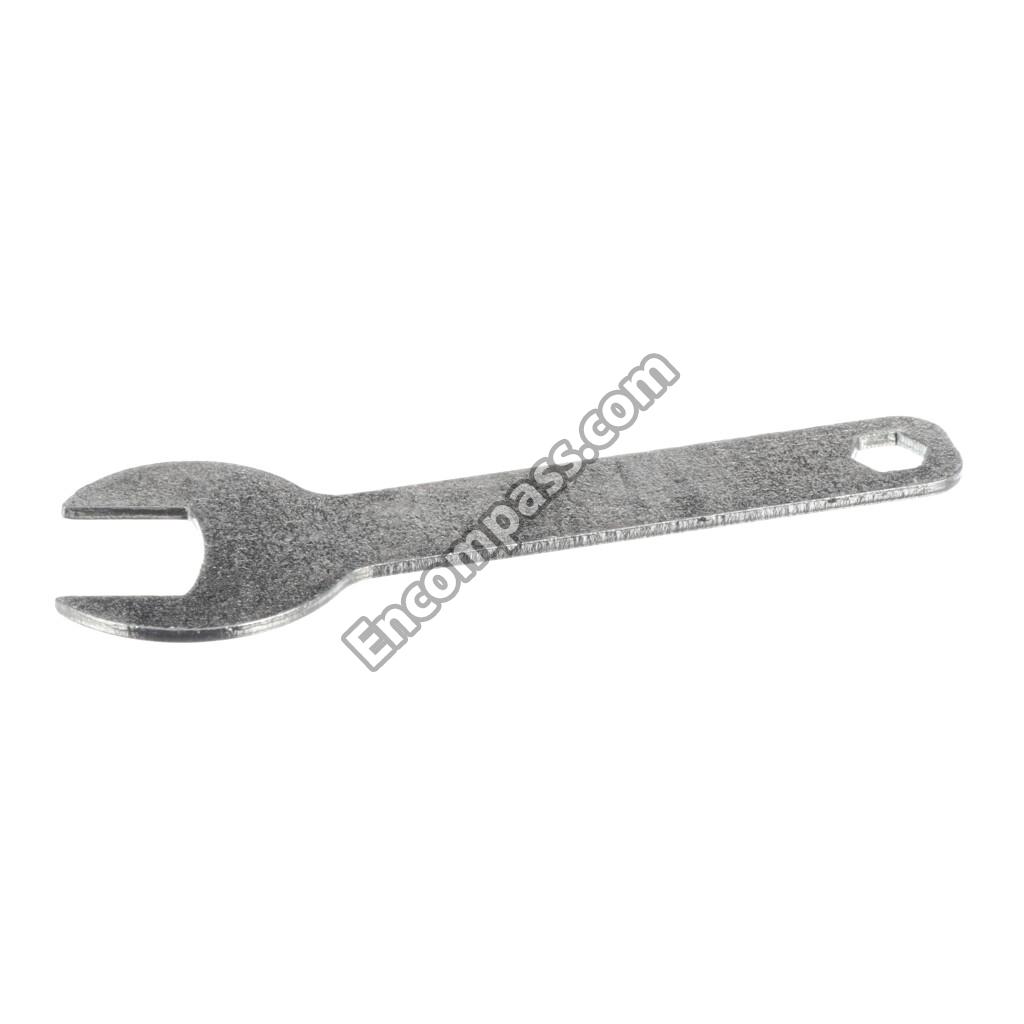

12931000001301 12931000001301 WRENCH
