Midea

Model Number

MEHS48CVF2

Description

Indoor Unit Of Floor Ceiling

Interactive Exploded View
Exploded View

Parts List

Part Number Description
12100204000719 12100204000719 AIR FILTER I
12100204000718 12100204000718 AIR FILTER II
12122700000096 12122700000096 AIR INLET GRILLE ASSEMBLY I
12122700000103 12122700000103 AIR INLET GRILLE ASSEMBLY II
11201007000073 11201007000073 AMBIENT TEMPERATURE SENSOR ASSEMBLY

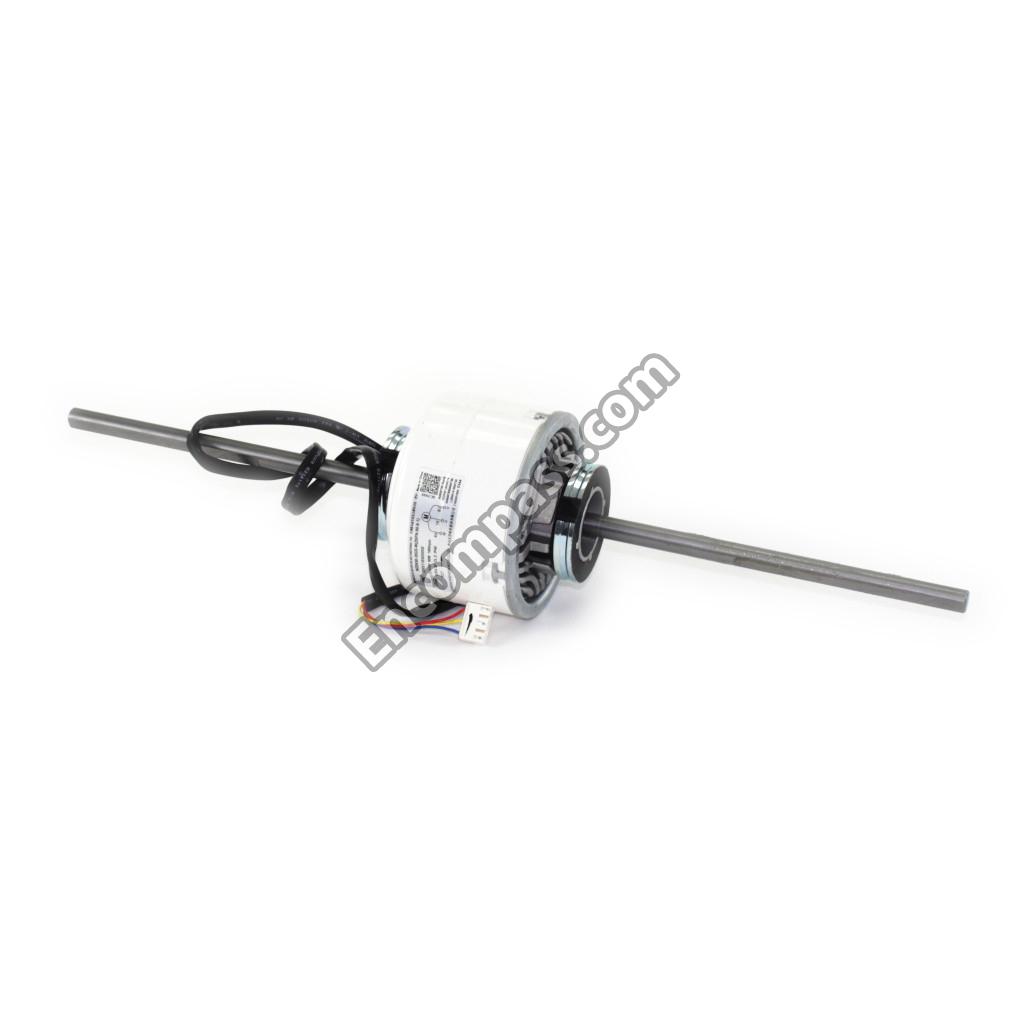

11002015000344 11002015000344 ASYNCHRONOUS MOTOR

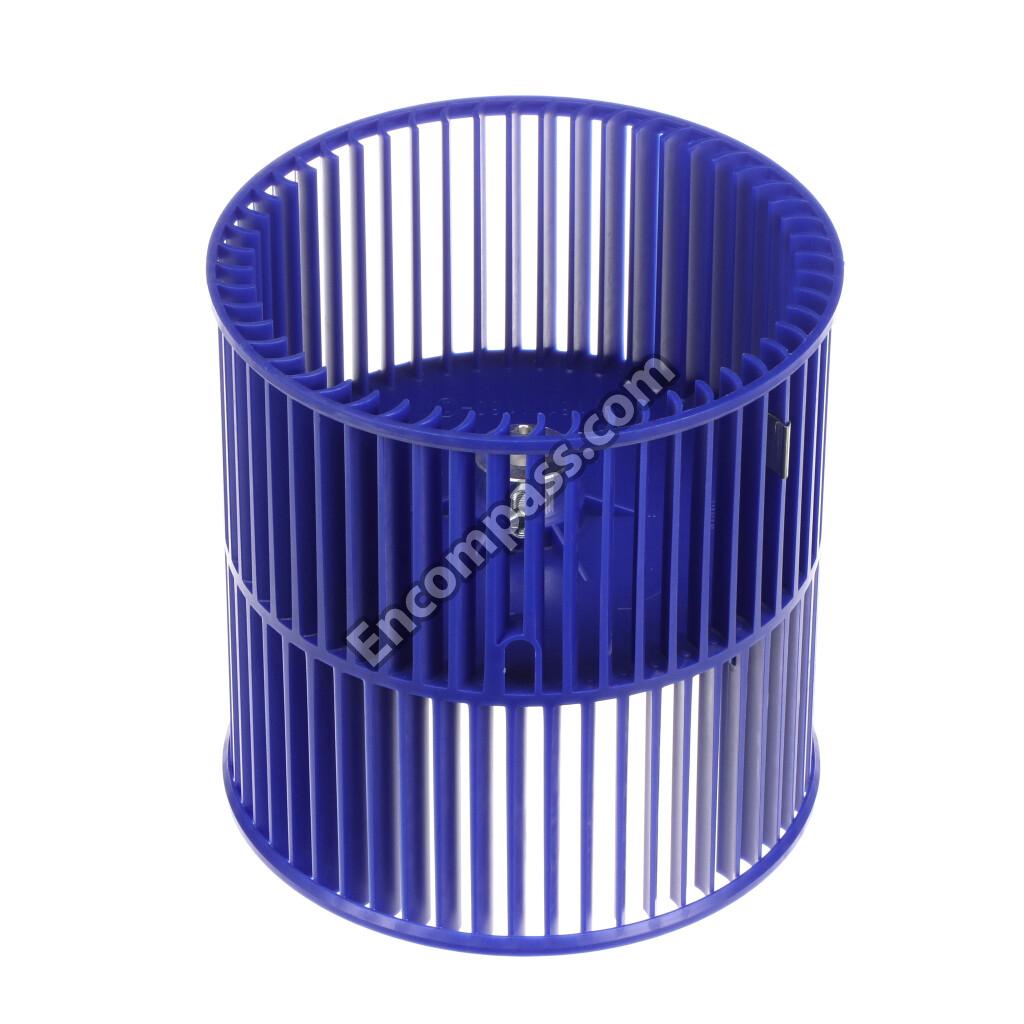

12100103000002 12100103000002 CENTRIFUGAL FAN
12222700000065 12222700000065 CHASSIS ASSEMBLY
15500406000003 15500406000003 COPPER NUT
15500406000010 15500406000010 COPPER NUT
12222700000058 12222700000058 COVER OF ELECTRONIC CONTROL BOX
17122700000005 17122700000005 DISPLAY BOARD ASSEMBLY
12122700000044 12122700000044 DISPLAY INSTALLATION BOX
12100509A00015 12100509A00015 DRAIN HOSE
12222700A00002 12222700A00002 DRAIN PUMP HOLDER
12622500000003 12622500000003 DRAIN PUMP RUBBER WASHER
12622500000004 12622500000004 DRAIN PUMP RUBBER WASHER
12222700000083 12222700000083 ELECTRONIC CONTROL BOX
12223000000052 12223000000052 ELECTRONIC CONTROL BOX
17222700000135 17222700000135 ELECTRONIC CONTROL BOX ASSEMBLY
17222700000162 17222700000162 ELECTRONIC CONTROL BOX ASSEMBLY
15822700001442 15822700001442 EVAPORATOR
15822700A00292 15822700A00292 EVAPORATOR ASSEMBLY
12222500000253 12222500000253 FAN MOTOR AXES CLAMP (LEFT)
12222500000255 12222500000255 FAN MOTOR AXES CLAMP (RIGHT)
12223000000537 12223000000537 FAN MOTOR FIXING BOARD
15122700A00113 15122700A00113 INPUT PIPE ASSEMBLY
12122000000344 12122000000344 INSULATED AXIS
17122000008498 17122000008498 INVERTER CONTROL BOARD ASSEMBLY
12122700000093 12122700000093 LEFT COVER
12222700000016 12222700000016 LEFT HOOK
12122700000059 12122700000059 LOUVER
11002010000053 11002010000053 LOUVER MOTOR
11002010000057 11002010000057 LOUVER MOTOR

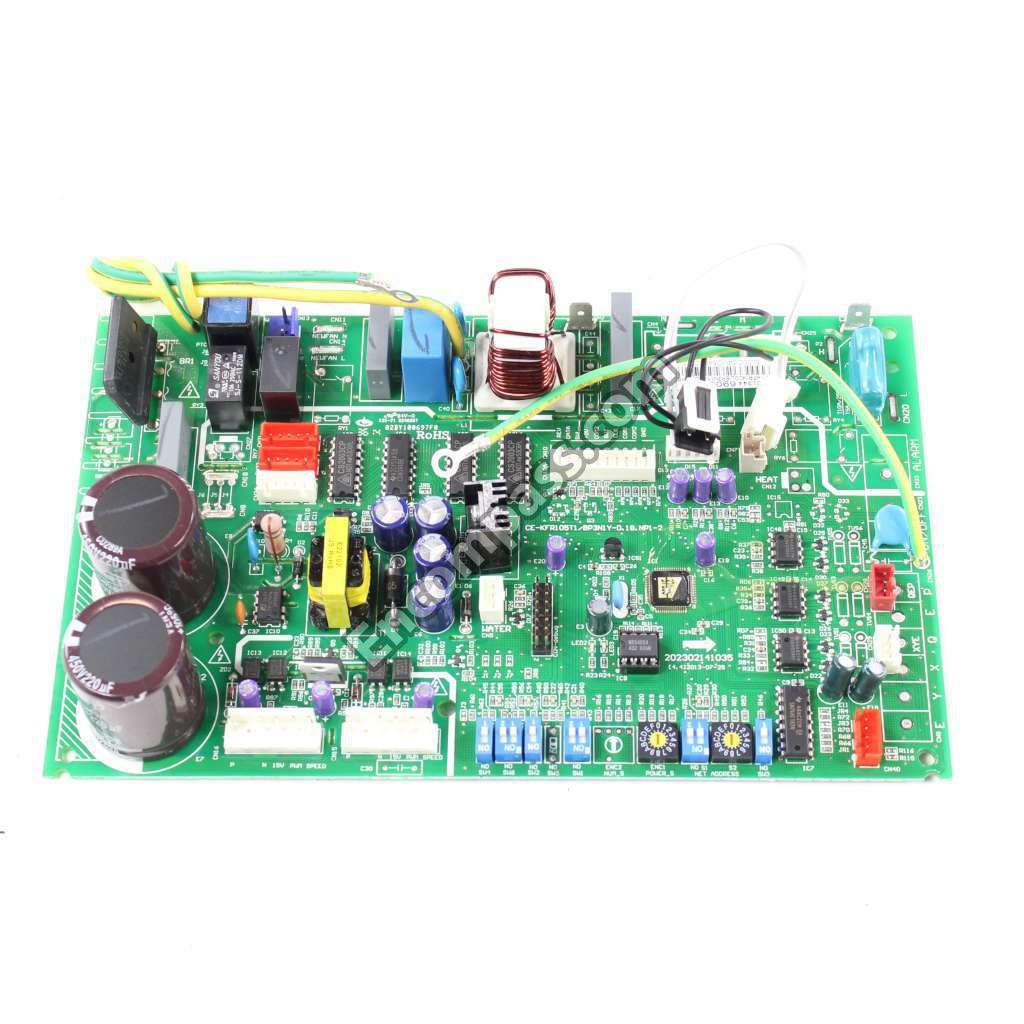

17122700000076 17122700000076 MAIN CONTROL BOARD ASSEMBLY
11001010000063 11001010000063 MOTOR SUBASSEMBLY
15122700000186 15122700000186 OUTPUT PIPE ASSEMBLY
12222700000054 12222700000054 PIPE CLAMP BOARD
11201007000266 11201007000266 PIPE TEMPERATURE SENSOR ASSEMBLY
11203803000154 11203803000154 RADIATOR
17317000A00222 17317000A00222 REMOTE CONTROLLER
12122700000087 12122700000087 RIGHT COVER
12222700000018 12222700000018 RIGHT HOOK
11201007000047 11201007000047 SENSOR (T3 PIPE TEMP)

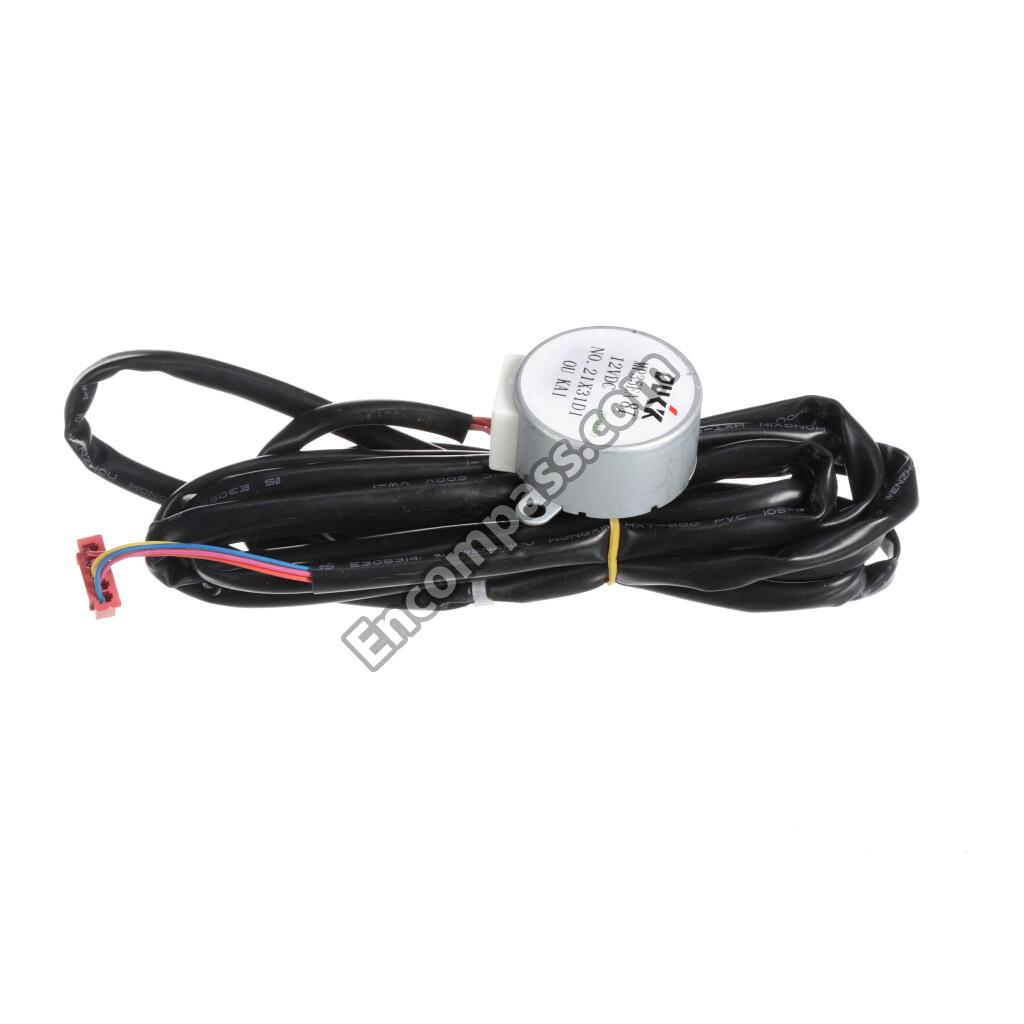

11002010000546 11002010000546 STEPPER MOTOR
12122700000150 12122700000150 SUPPORTER OF LOUVER
12222700000093 12222700000093 TOP COVER ASSEMBLY
12122700000047 12122700000047 VOLUTE SHELL (ABOVE)
12122700000111 12122700000111 VOLUTE SHELL (BELOW)
12122700A00050 12122700A00050 WATER COLLECTOR
12822700000009 12822700000009 WATER COLLECTOR
11201005000006 11201005000006 WATER LEVEL SENSOR
12222700A00050 12222700A00050 WATER PUMP INSTALLATION BRACKET SUBASSEMBLY
17400401000006 17400401000006 WIRE JOINT
17400401000042 17400401000042 WIRE JOINT
17317100A00082 17317100A00082 WIRED CONTROLLER (KJR-120C/TF-E - 7 DAY PROGRAMMABLE)
17317100A00042 17317100A00042 WIRED CONTROLLER (KJR-12B/DP(T)-E - BLACK W/ MIDEA LOGO)
17317100000020 17317100000020 WIRED CONTROLLER (KJR-12B/DP(T)-F - BLACK W/O LOGO)
17317100A00237 17317100A00237 WIRED CONTROLLER (KJR-12B/DP(T)-F-01 - SILVER W/ MIDEA LOGO)
17317100000022 17317100000022 WIRED CONTROLLER (KJR-12B/DP(T)-F-1 - FAHRENHEIT/CELSIUS ADJUSTABLE)
17401204001601 17401204001601 WIRING HARNESS (WIRED CONTROLLER 20 FT W/EXTENSION ADAPTOR)
17401204000565 17401204000565 WIRING HARNESS (WIRED CONTROLLER 20FT)
17401204000900 17401204000900 WIRING HARNESS (WIRED CONTROLLER 3 FT)
