Model Image
Manufacturer

Midea

Model Number

MOD3024HFN1MT0W

Description

Outdoor Unit Of Split

Interactive Exploded View
Exploded View

Parts List

Part Number Description
15111600000083 15111600000083 Midea 1/2-INCH --3/8-INCH ADAPTER
15111600000073 15111600000073 Midea 1/2-INCH --5/8-INCH ADAPTER
15111600000081 15111600000081 Midea 1/4-INCH --3/8-INCH ADAPTER
15500307000001 15500307000001 Midea 3/8-INCH --1/2-INCH ADAPTER
15500405000008 15500405000008 Midea 3/8-INCH --1/2-INCH ADAPTER
15500216000361 15500216000361 Midea 4-WAY VALVE
15422000003952 15422000003952 Midea 4-WAY VALVE ASSEMBLY
12222200000907 12222200000907 Midea AIR OUTLET GRILLE
12222000007904 12222000007904 Midea AIR OUTLET GRILLE
11201007000039 11201007000039 Midea AMBIENT TEMPERATURE SENSOR ASSEMBLY
12100105000084 12100105000084 Midea AXIAL FLOW FAN
12222000004019 12222000004019 Midea BIG HANDLE
12222000011086 12222000011086 Midea BIG HANDLE ASSEMBLY
12222000004762 12222000004762 Midea CHASSIS ASSEMBLY
12222000004018 12222000004018 Midea CHASSIS ASSEMBLY
12122000006844 12122000006844 Midea CLAMP OF FRONT NET
11103020000179 11103020000179 Midea COMPRESSOR
17401203000909 17401203000909 Midea COMPRESSOR WIRE SUBASSEMBLY
15822300A00372 15822300A00372 Midea CONDENSER ASSEMBLY
15822000009576 15822000009576 Midea CONDENSER ASSEMBLY
15822300000086 15822300000086 Midea CONDENSER ASSEMBLY
15500406000003 15500406000003 Midea COPPER NUT
15500406000010 15500406000010 Midea COPPER NUT
12122200002719 12122200002719 Midea COVER OF ELECTRONIC CONTROL BOX
17402001000119 17402001000119 Midea CRANKCASE HEATER
15122000010256 15122000010256 Midea DISCHARGE PIPE
11201007000157 11201007000157 Midea DISCHARGE TEMPERATURE SENSOR ASSEMBLY
17402002000043 17402002000043 Midea ELECTRIC HEATING TUBE

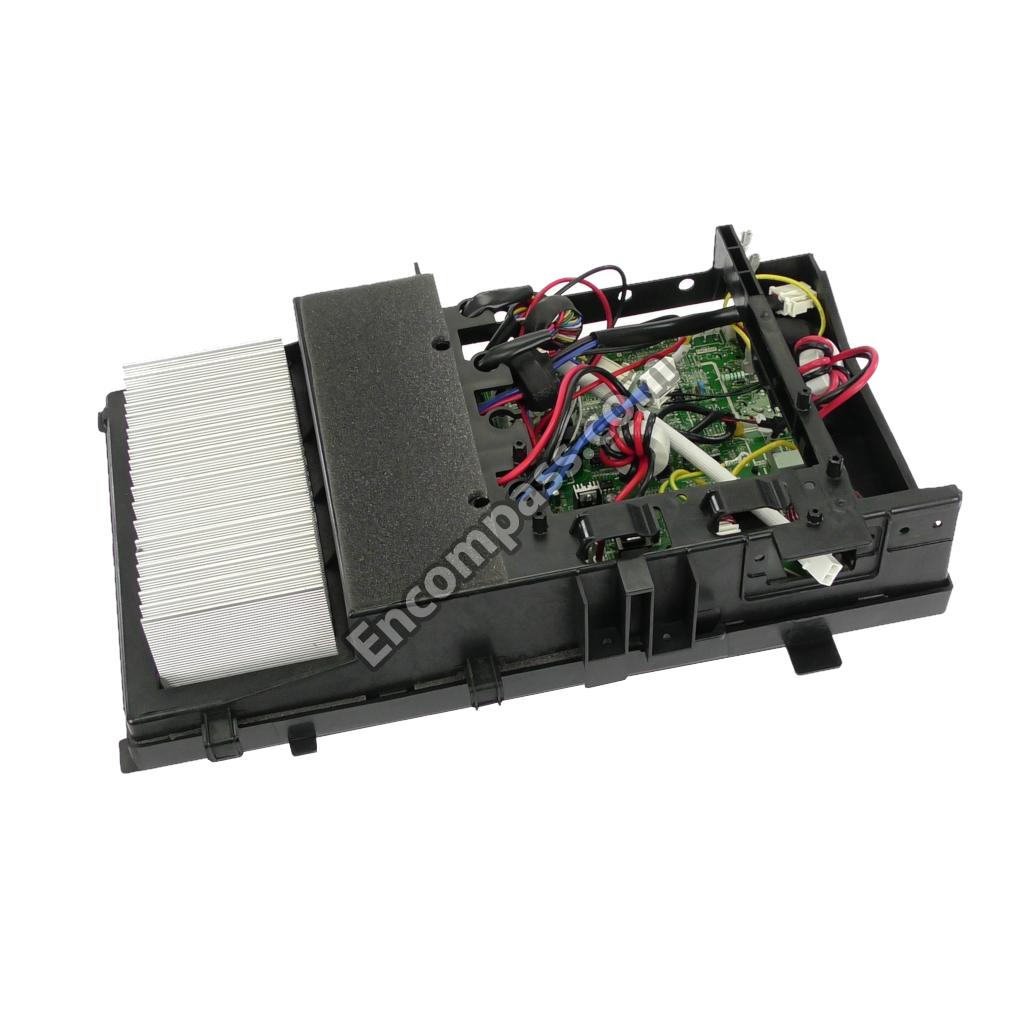

17222000007413 17222000007413 Midea ELECTRONIC CONTROL BOX ASSEMBLY
17222000025708 17222000025708 Midea ELECTRONIC CONTROL BOX SUBASSEMBLY

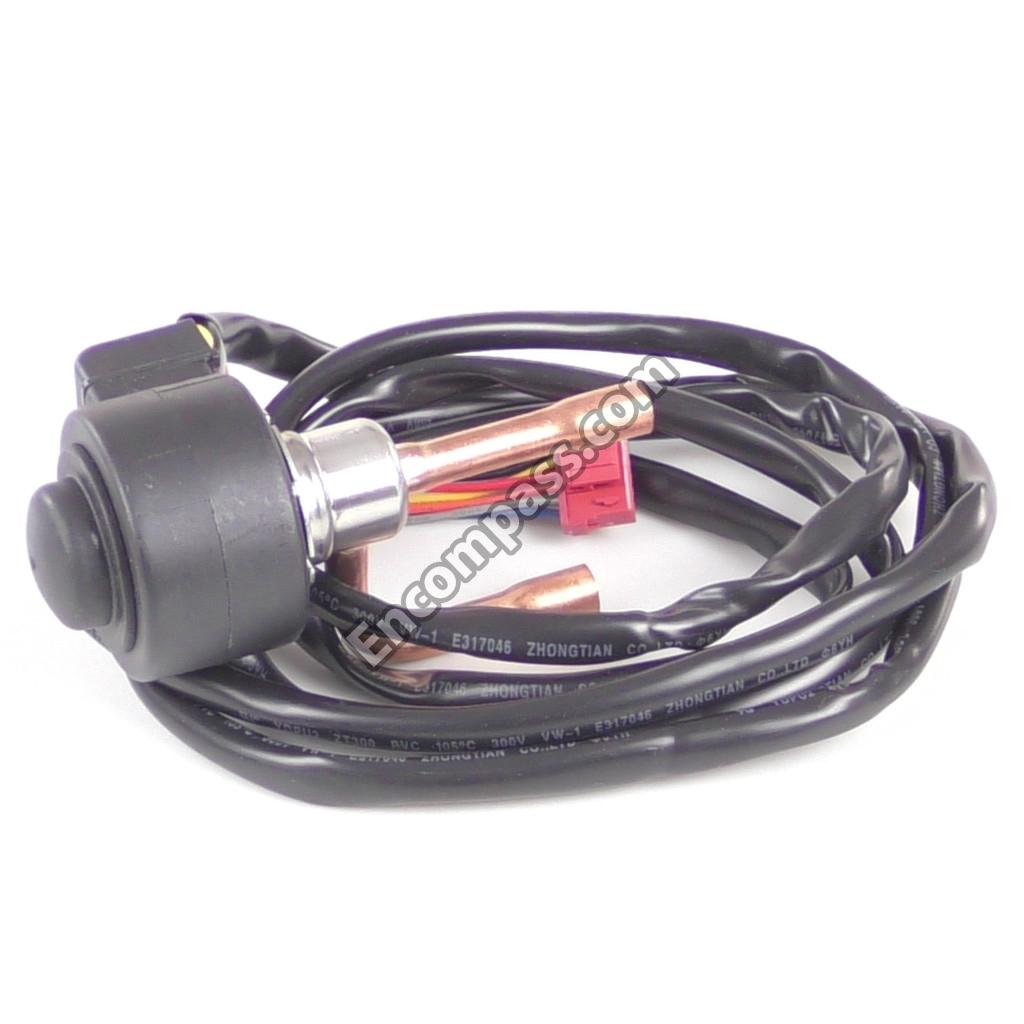

15500213000265 15500213000265 Midea ELECTRONIC EXPANSION VALVE
12122200002715 12122200002715 Midea ELECTRONIC INSTALLING BOX
11002015000247 11002015000247 Midea FAN MOTOR
12222000004983 12222000004983 Midea FRONT PANEL
12222000A01431 12222000A01431 Midea FRONT PANEL
12222500000633 12222500000633 Midea FRONT RIGHT CLAPBOARD ASSEMBLY
12222500A00135 12222500A00135 Midea FRONT RIGHT CLAPBOARD ASSEMBLY
15500204000025 15500204000025 Midea GAS VALVE
12100702000038 12100702000038 Midea HANDLE

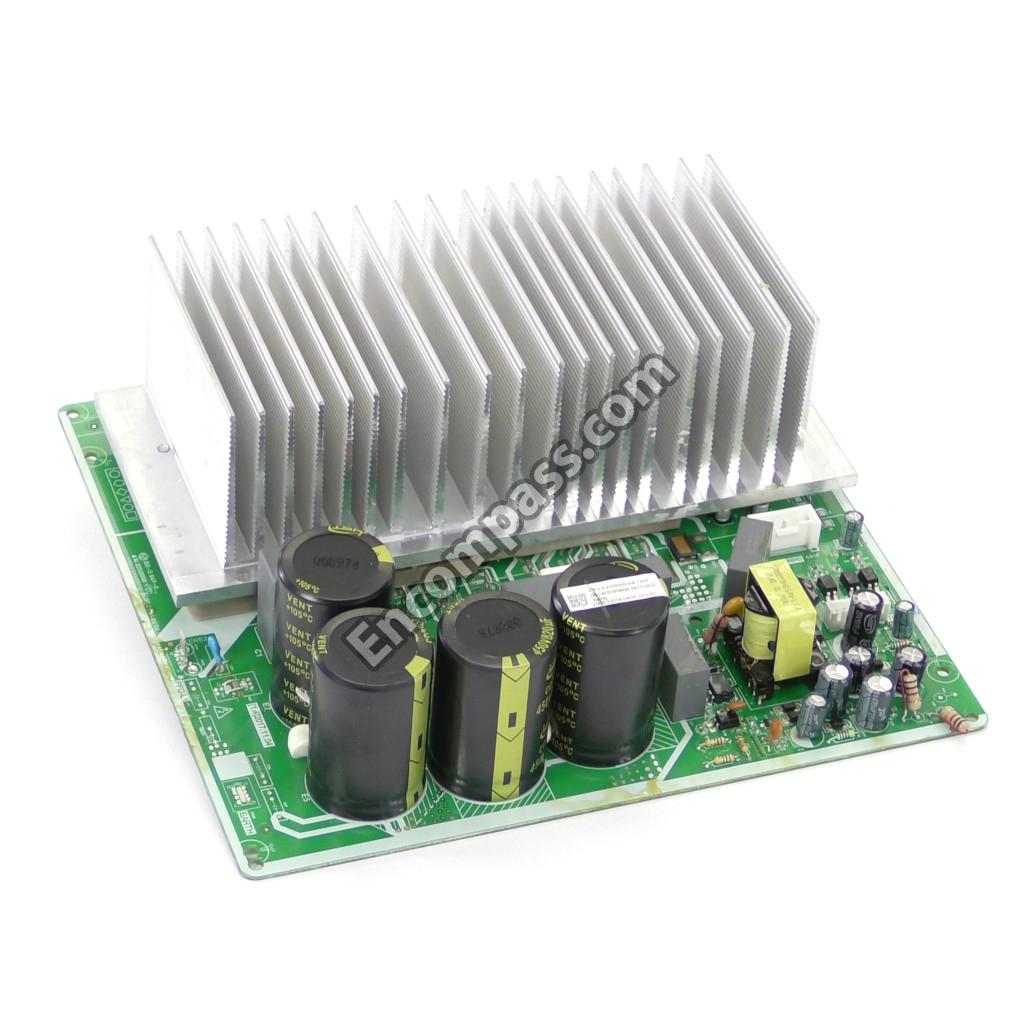

17122000039750 17122000039750 Midea INVERTER MODULE SUBASSEMBLY
17122000015997 17122000015997 Midea IPM
12222000006665 12222000006665 Midea LEFT SIDE PLATE ASSEMBLY OF CABINET
22011600000033 22011600000033 Midea LINE SET (1/4-INCH - 1/2-INCH ) 16 FT
22011600000016 22011600000016 Midea LINE SET (1/4-INCH - 1/2-INCH ) 24.5 FT
22011600000147 22011600000147 Midea LINE SET (1/4-INCH - 3/8-INCH ) 16 FT
22011600000030 22011600000030 Midea LINE SET (1/4-INCH - 3/8-INCH ) 24.5 FT
22011600000149 22011600000149 Midea LINE SET (3/8-INCH - 5/8-INCH ) 16 FT
22011600000066 22011600000066 Midea LINE SET (3/8-INCH - 5/8-INCH ) 24.5 FT
15500204000021 15500204000021 Midea LIQUID VALVE
15422000012293 15422000012293 Midea LIQUID VALVE ASSEMBLY
15422000003309 15422000003309 Midea LIQUID VALVE ASSEMBLY

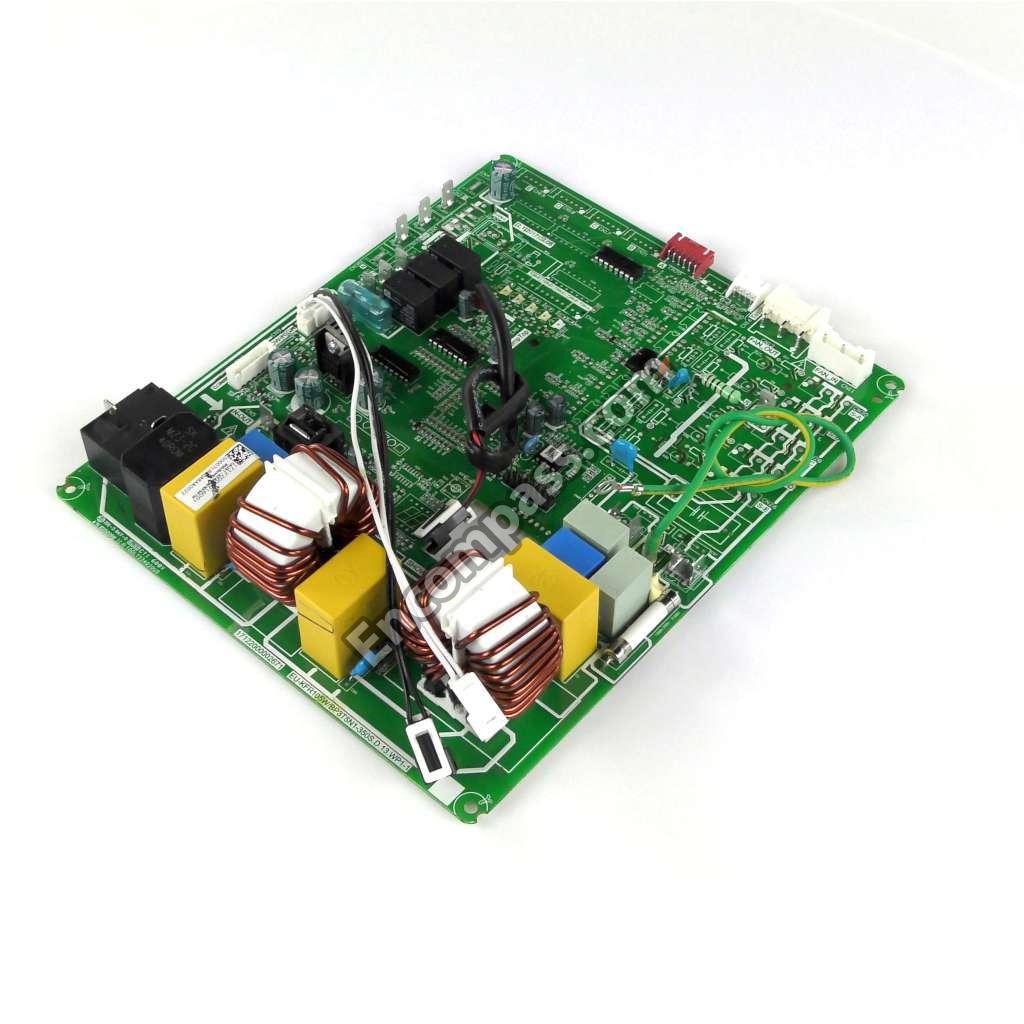

17122000016001 17122000016001 Midea MAIN CONTROL BOARD ASSEMBLY
12222200001158 12222200001158 Midea PARTITION BOARD ASSEMBLY
11201007000136 11201007000136 Midea PIPE TEMPERATURE SENSOR
11201007000006 11201007000006 Midea PIPE TEMPERATURE SENSOR ASSEMBLY
12222000006604 12222000006604 Midea REAR NET
12222000006664 12222000006664 Midea REAR RIGHT CLAPBOARD ASSEMBLY
12100701000033 12100701000033 Midea SMALL HANDLE
15122000010254 15122000010254 Midea SUCTION PIPE
12222000005162 12222000005162 Midea SUPPORTER SUBASSEMBLY OF FAN MOTOR
17222000014908 17222000014908 Midea TERMINAL BLOCK SUBASSEMBLY OF ELECTRICAL CONTROL BOX
12222200001476 12222200001476 Midea TERMINAL BOARD
12222500000587 12222500000587 Midea TOP COVER ASSEMBLY
12222200002110 12222200002110 Midea VALVE PLATE
12122200002695 12122200002695 Midea WATER COLLECTOR
17400401000037 17400401000037 Midea WIRE JOINT
