Model Image
Manufacturer

Midea

Model Number

RACPD1413HRRU

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
15420600000451 15420600000451 4-WAY VALVE ASSEMBLY
12120600A23603 12120600A23603 AIR EXHAUST PASSAGE
12120600000898 12120600000898 AIR OUTLET VOLUTE SHELL

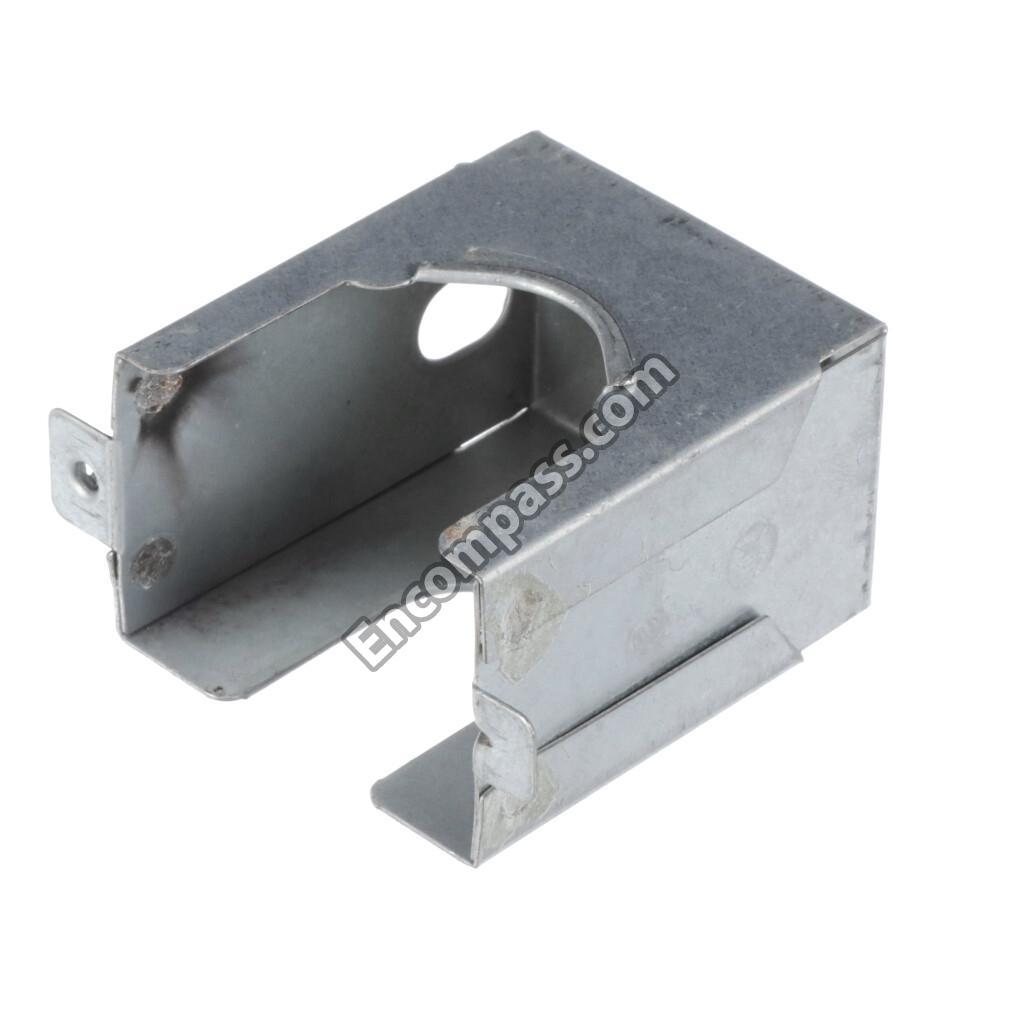

12220600000465 12220600000465 BRACKET
17122000048220 17122000048220 CAPACITOR AUXILIARY BOARD SUBASSEMBLY
12100601000126 12100601000126 CAPACITOR BOX
17400103000090 17400103000090 CAPACITOR OF COMPRESSOR
17400101A00464 17400101A00464 CAPACITOR OF FAN MOTOR
15120600002657 15120600002657 CAPILLARY ASSEMBLY

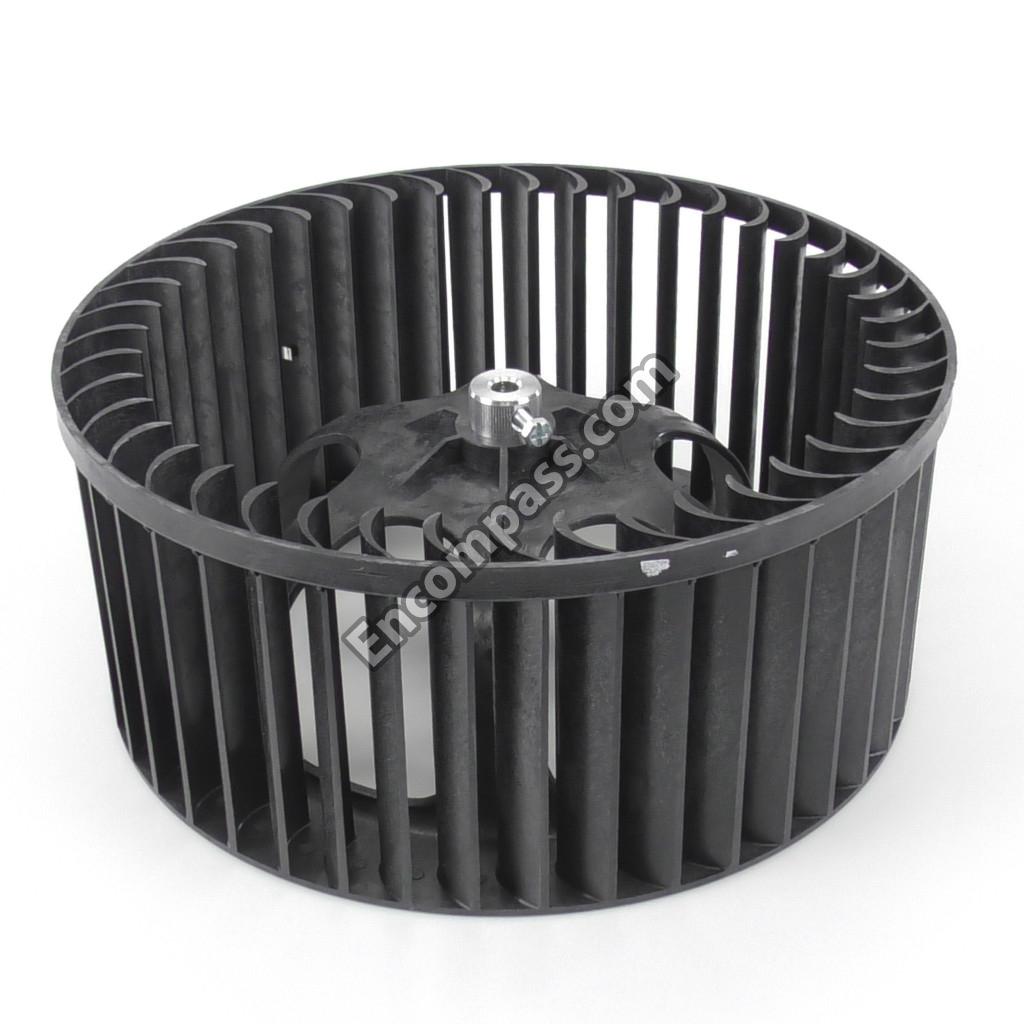

12100103A00062 12100103A00062 CENTRIFUGE FAN
12100103000099 12100103000099 CENTRIFUGE FAN
12120600005631 12120600005631 CHASSIS ASSEMBLY
12120600005629 12120600005629 CHASSIS SUBASSEMBLY
15820600001057 15820600001057 CONDENSER ASSEMBLY

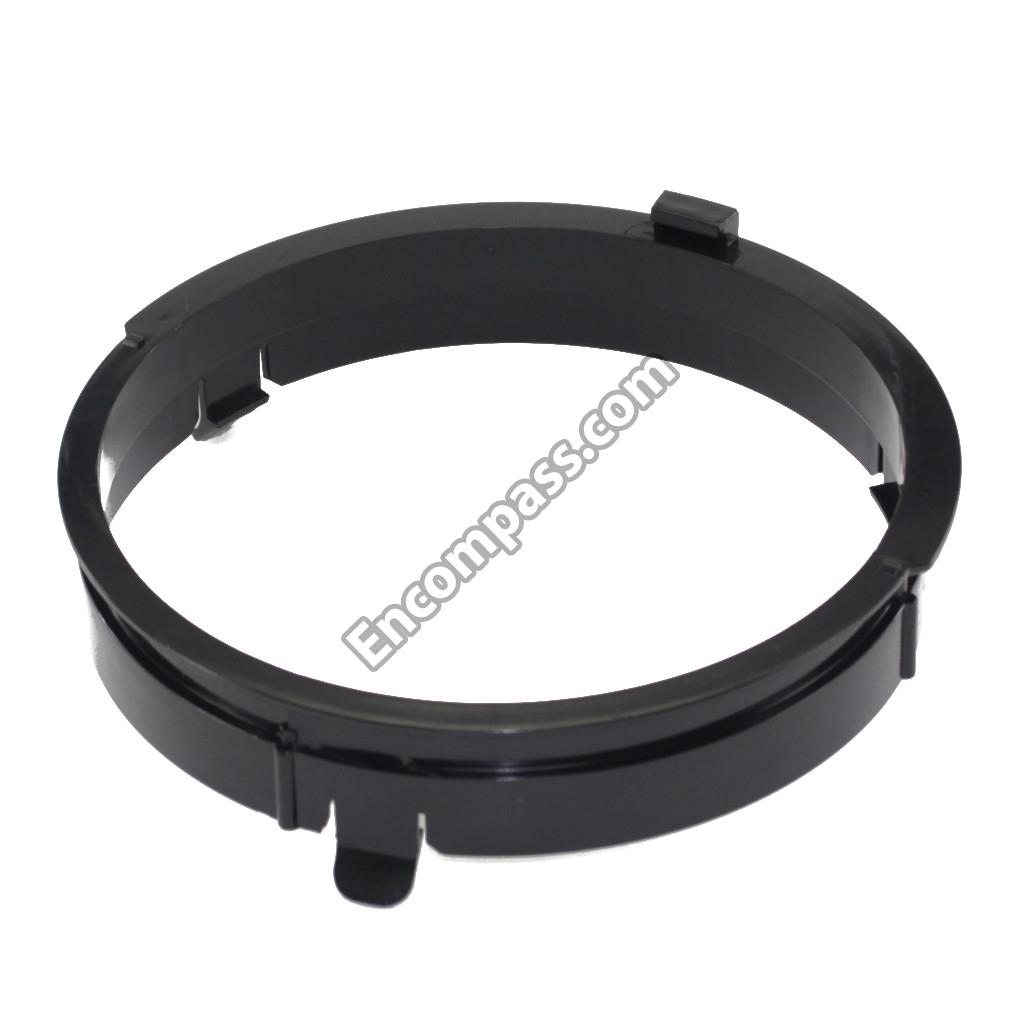

12120600A12679 12120600A12679 CONNECTOR, AIR EXCHAUST DUCT
12120600005843 12120600005843 COVER FOR AIR OUTLET VOLUTE SHELL
12120600005763 12120600005763 COVER OF AIR EXHAUST VOLUTE SHELL ASSEMBLY
12120600005628 12120600005628 COVER OF AIR EXHAUST VOLUTE SHELL(OUTDOOR)

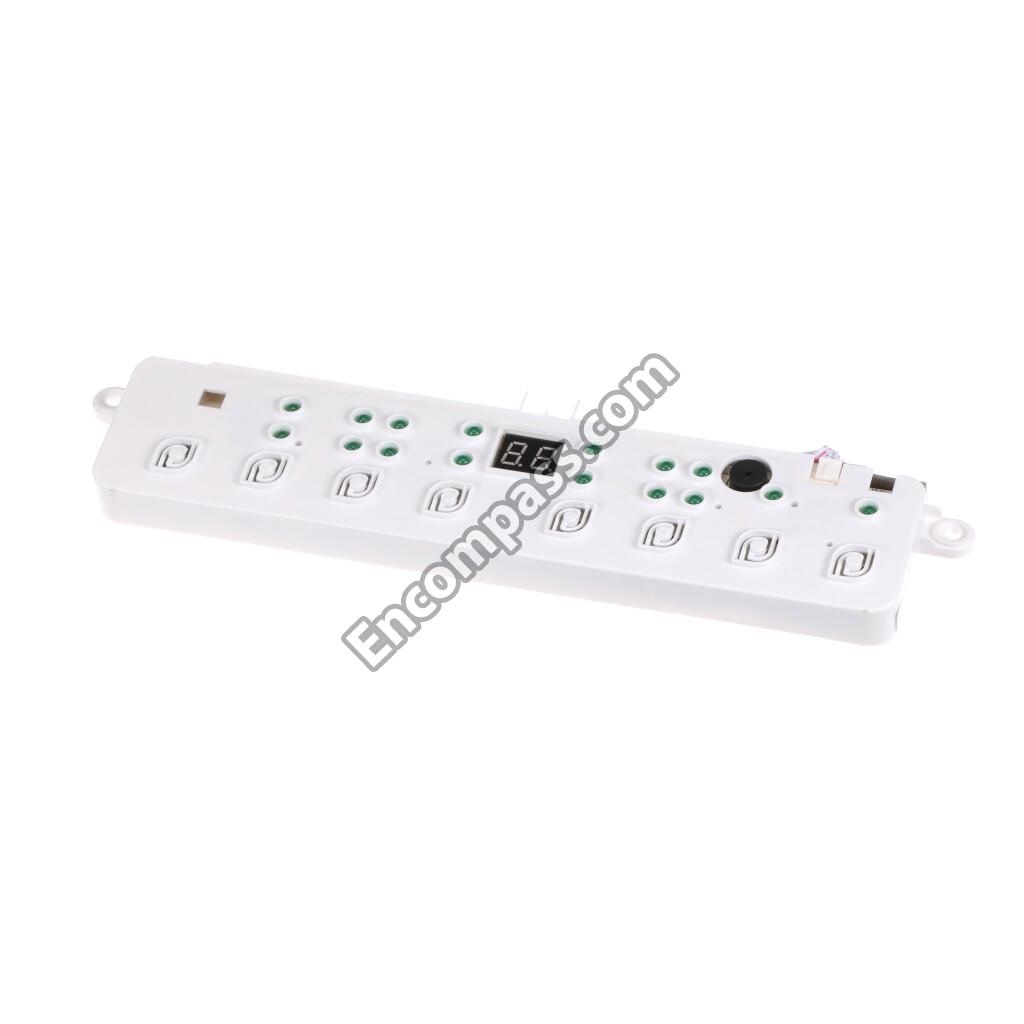

17220600001883 17220600001883 DISPLAY BOARD SUBASSEMBLY
12120600000721 12120600000721 DOWN FILTER

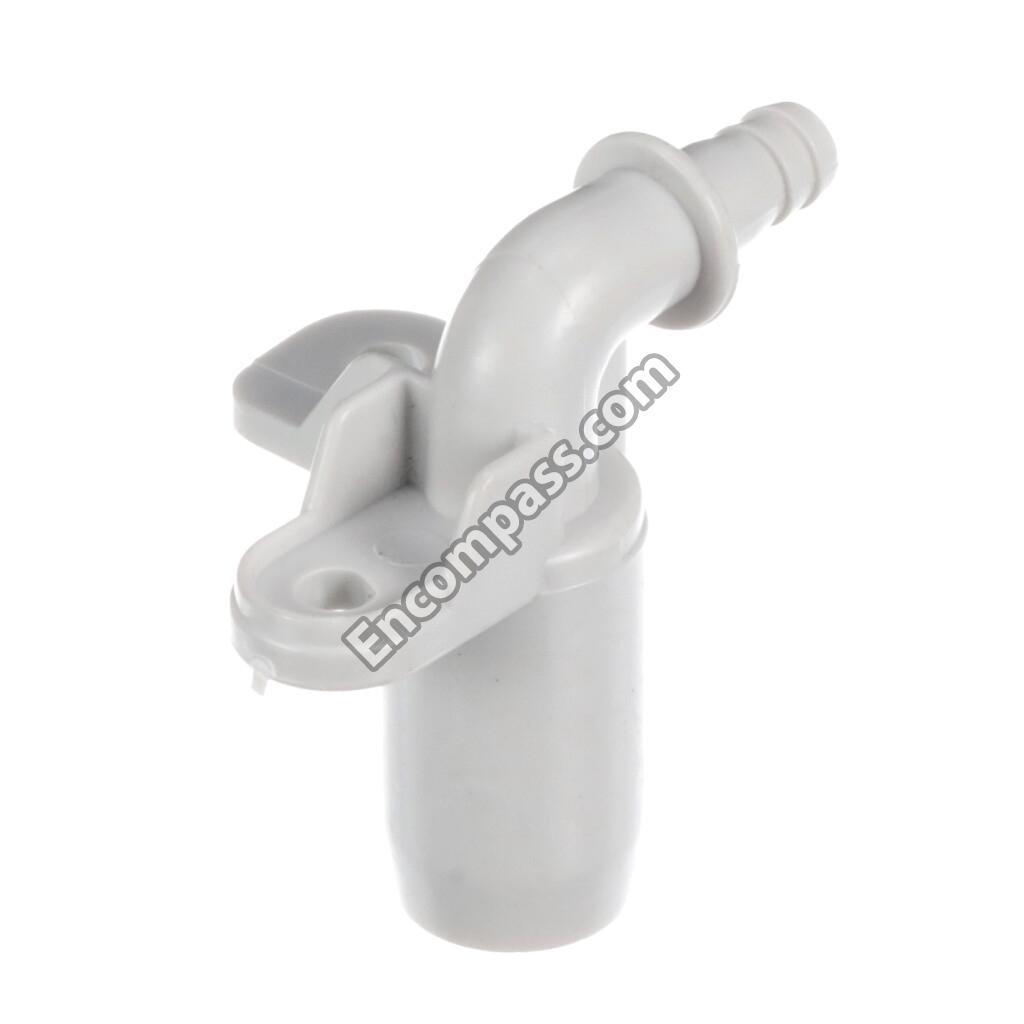

12120600001495 12120600001495 DRAIN CONNECTION
12100510000013 12100510000013 DRAIN CONNECTION
12100510000005 12100510000005 DRAIN CONNECTION
12120600A00746 12120600A00746 DRAIN CONNECTION
12100509000040 12100509000040 DRAIN PIPE

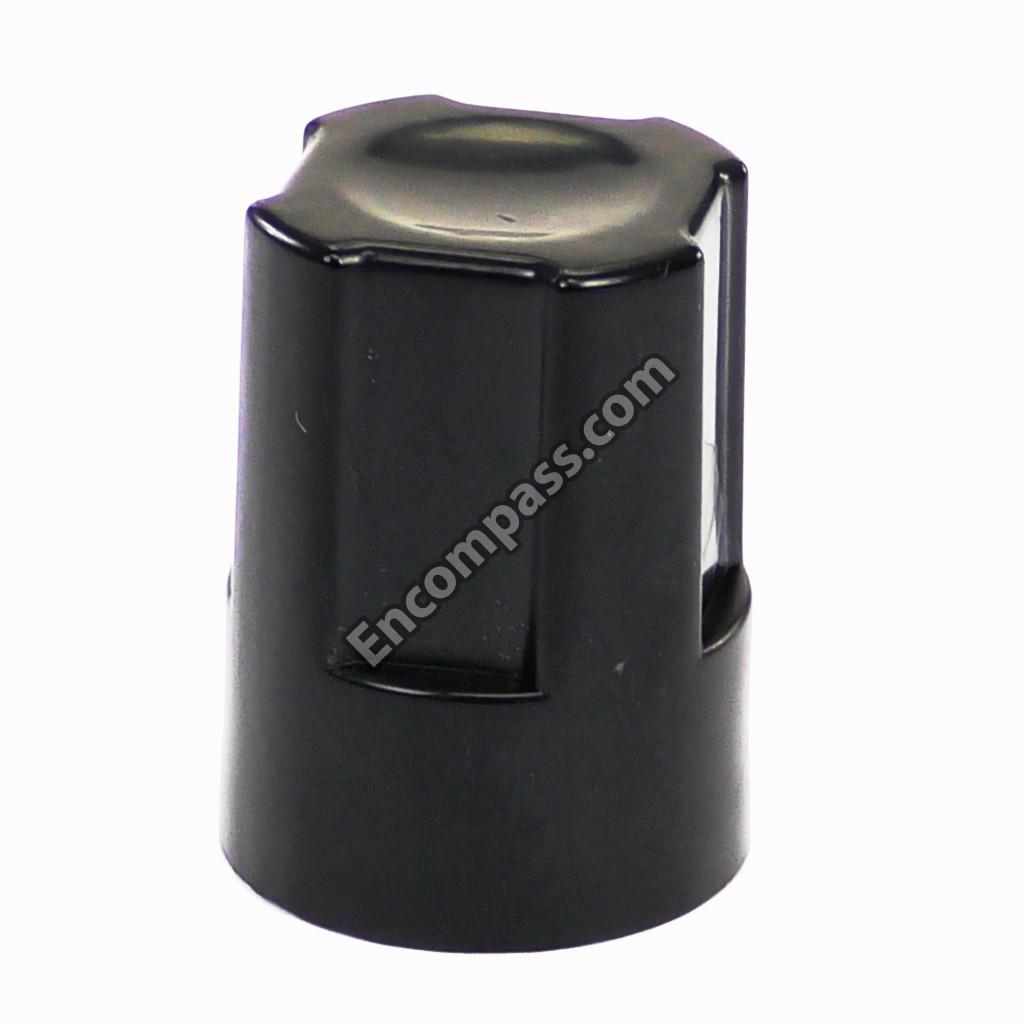

12600801000048 12600801000048 DRAIN STOPPER
12600801000036 12600801000036 DRAIN STOPPER
12120600004045 12120600004045 E-BOX COVER
12120600005863 12120600005863 ELECTRONIC CONTROL BOX SUBASSEMBLY
17220600001884 17220600001884 ELECTRONIC CONTROL BOX SUBASSEMBLY
15820600000897 15820600000897 EVAPORATOR ASSEMBLY

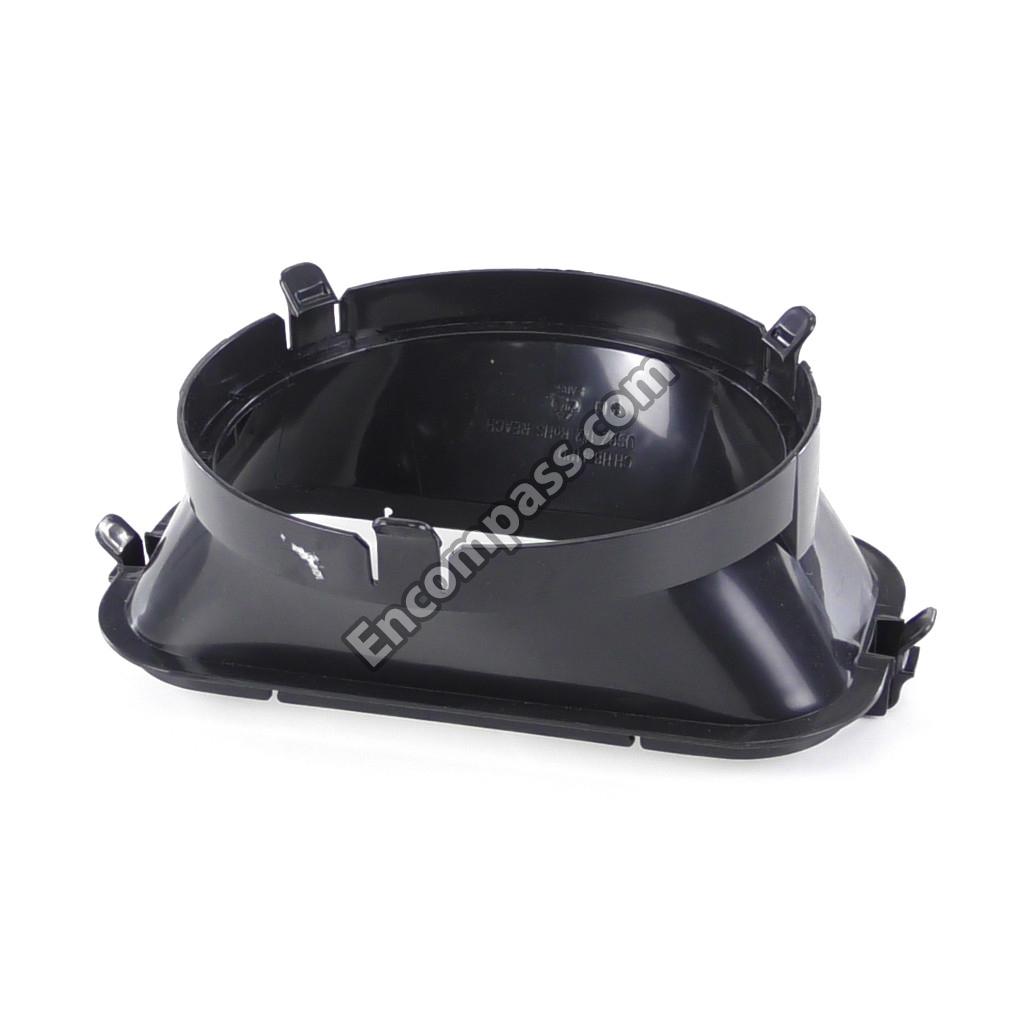

12120600005627 12120600005627 EXHAUST FIXED JOINT COMPONENT SUBASSEMBLY

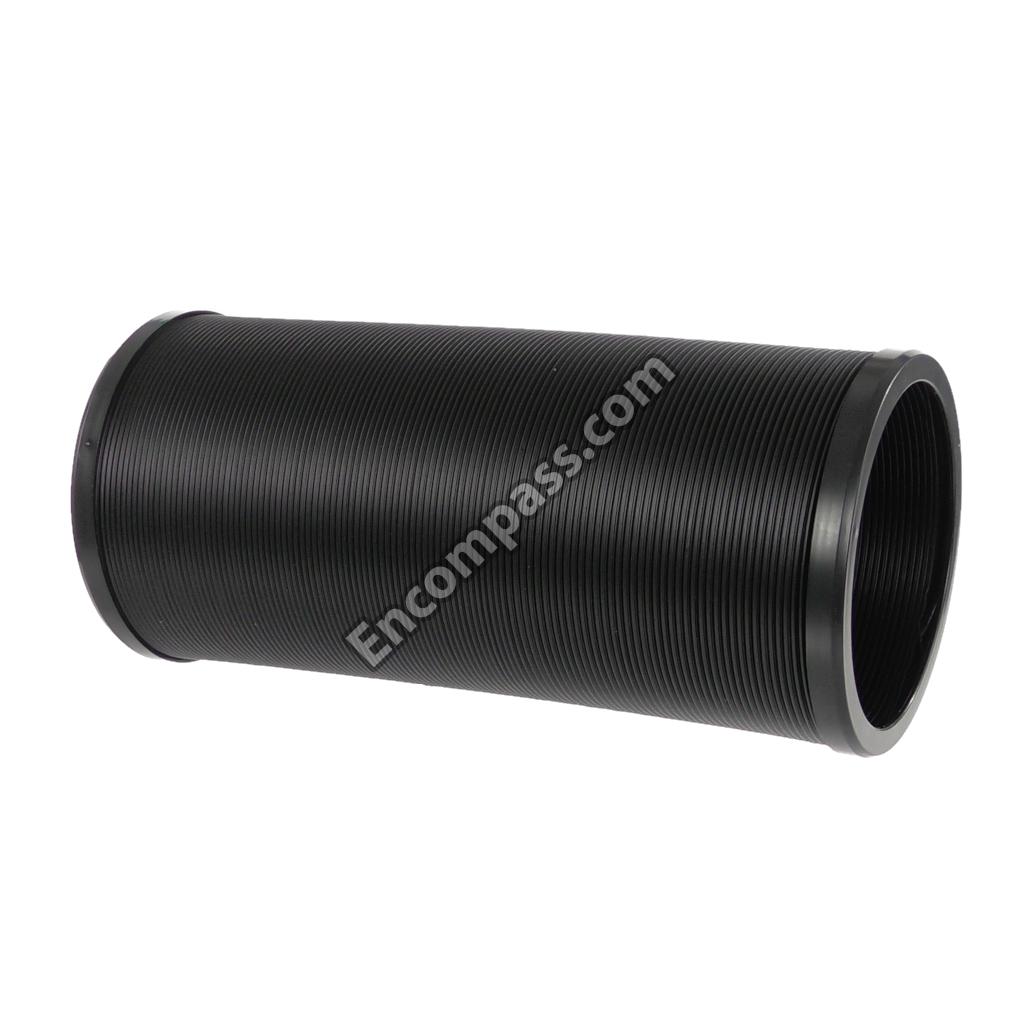

12120600A12677 12120600A12677 EXHAUST HOSE SUBASSEMBLY
11103010017215 11103010017215 FIXED SPEED ROTARY COMPRESSOR
12120600A18197 12120600A18197 FRONT PANEL
12120600A23738 12120600A23738 FRONT PANEL ASSEMBLY
12120600000004 12120600000004 GEAR WHEEL

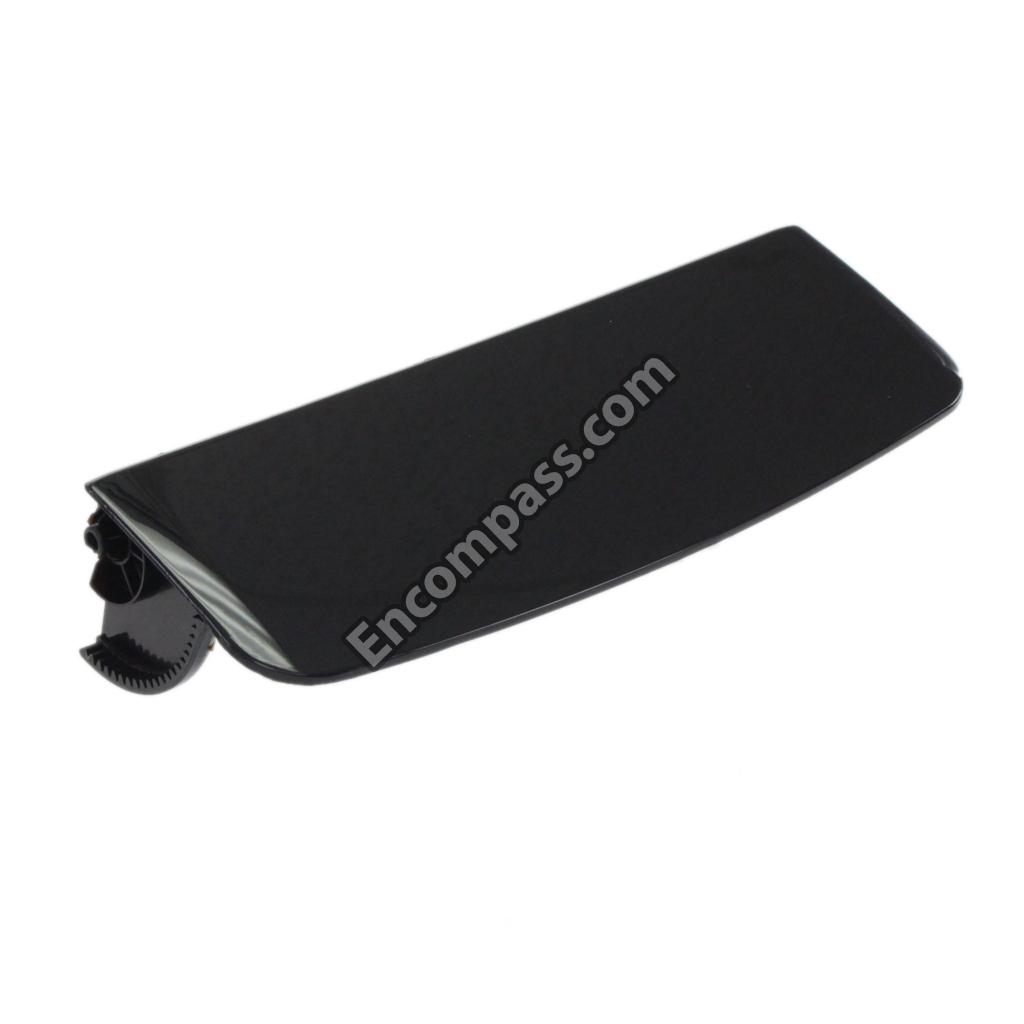

12122000A65689 12122000A65689 HORIZONTAL LOUVER
12120600A18193 12120600A18193 INDOOR AIR INLET GRILLE
12100204000257 12100204000257 INSIDE FILTE

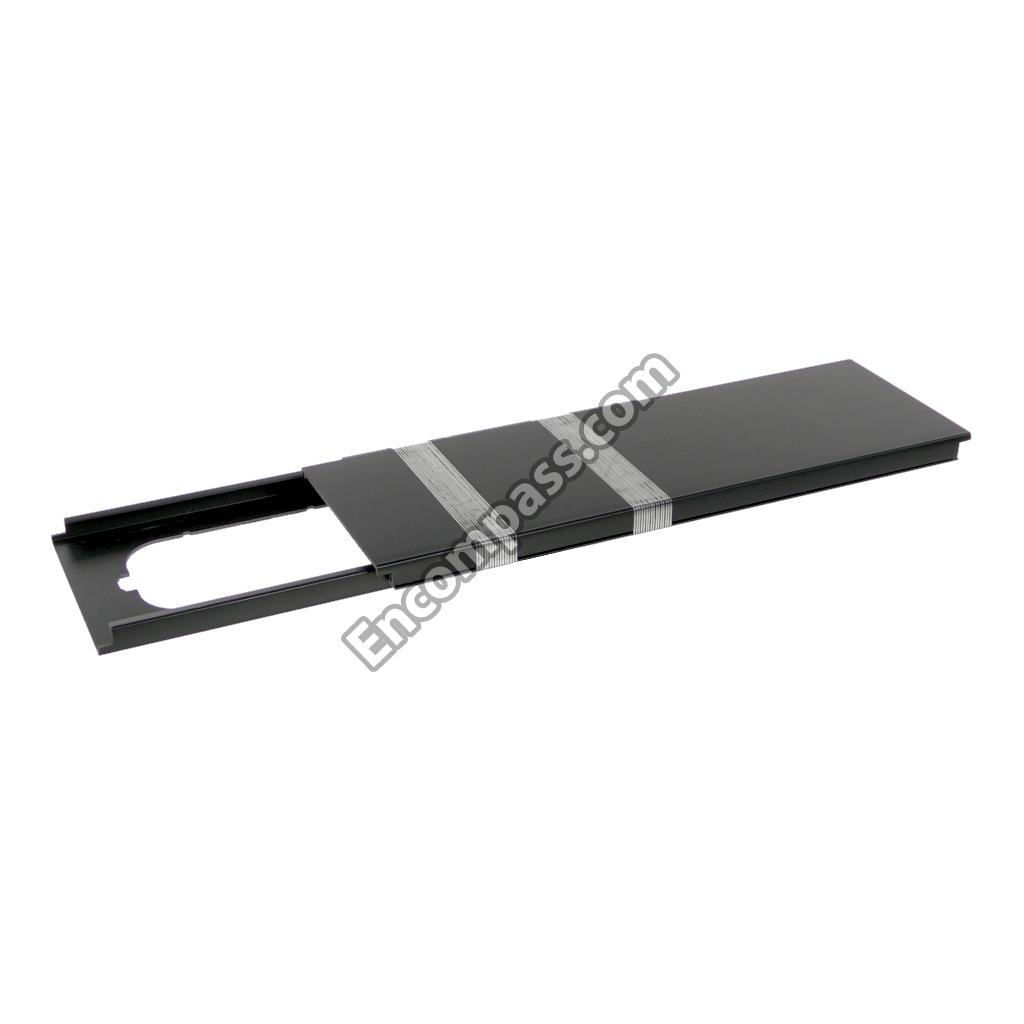

12020600A00261 12020600A00261 INSTALLTION KIT SUBASSEMBLY(PORTABLE AIR CONDITIONER)
11203103000067 11203103000067 LINEAR TRANSFORMER

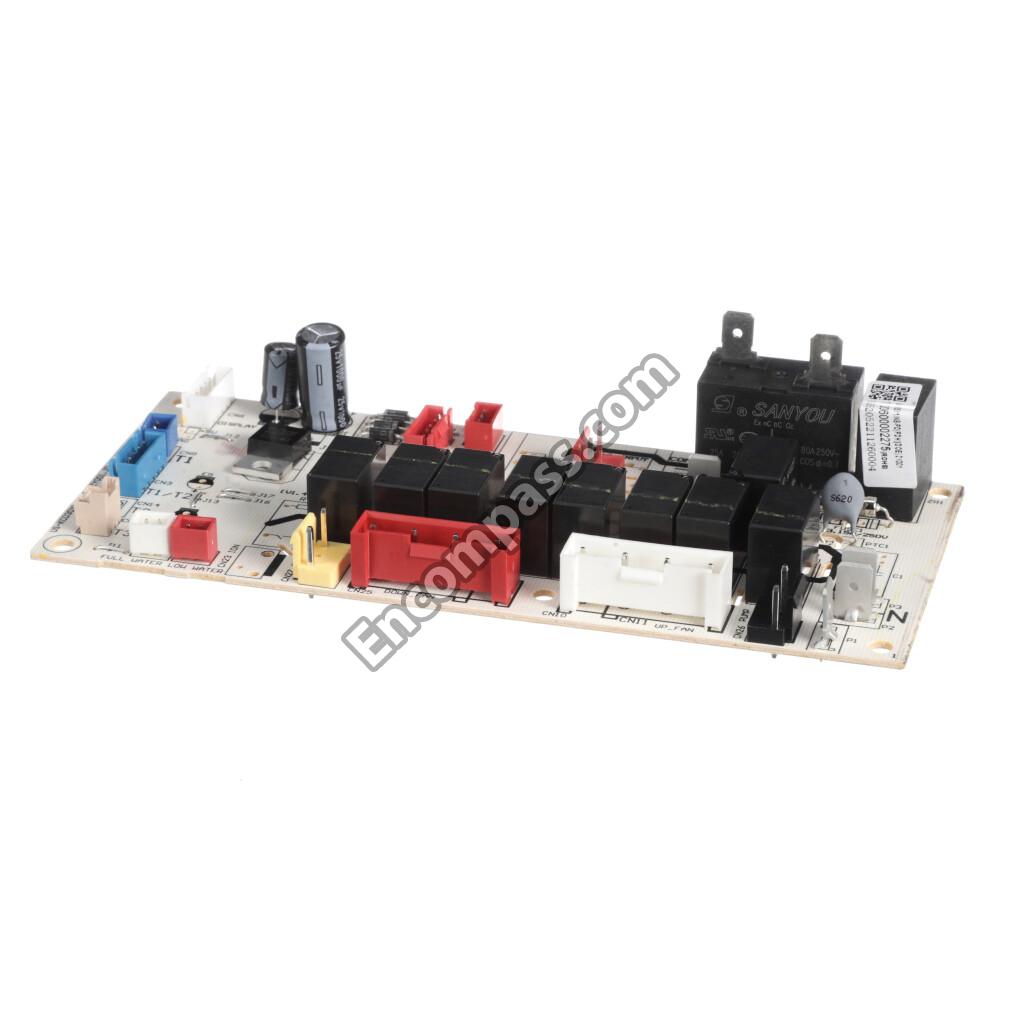

17120600002275 17120600002275 MAIN CONTROL BOARD SUBASSEMBLY
12120600A18195 12120600A18195 MIDDLE PANEL SUBASSEMBLY
12120600005626 12120600005626 MIDDLE PARTITION BOARD ASSEMBLY
17400802000014 17400802000014 MOTOR SUBASSEMBLY
17400802000233 17400802000233 MOTOR SUBASSEMBLY

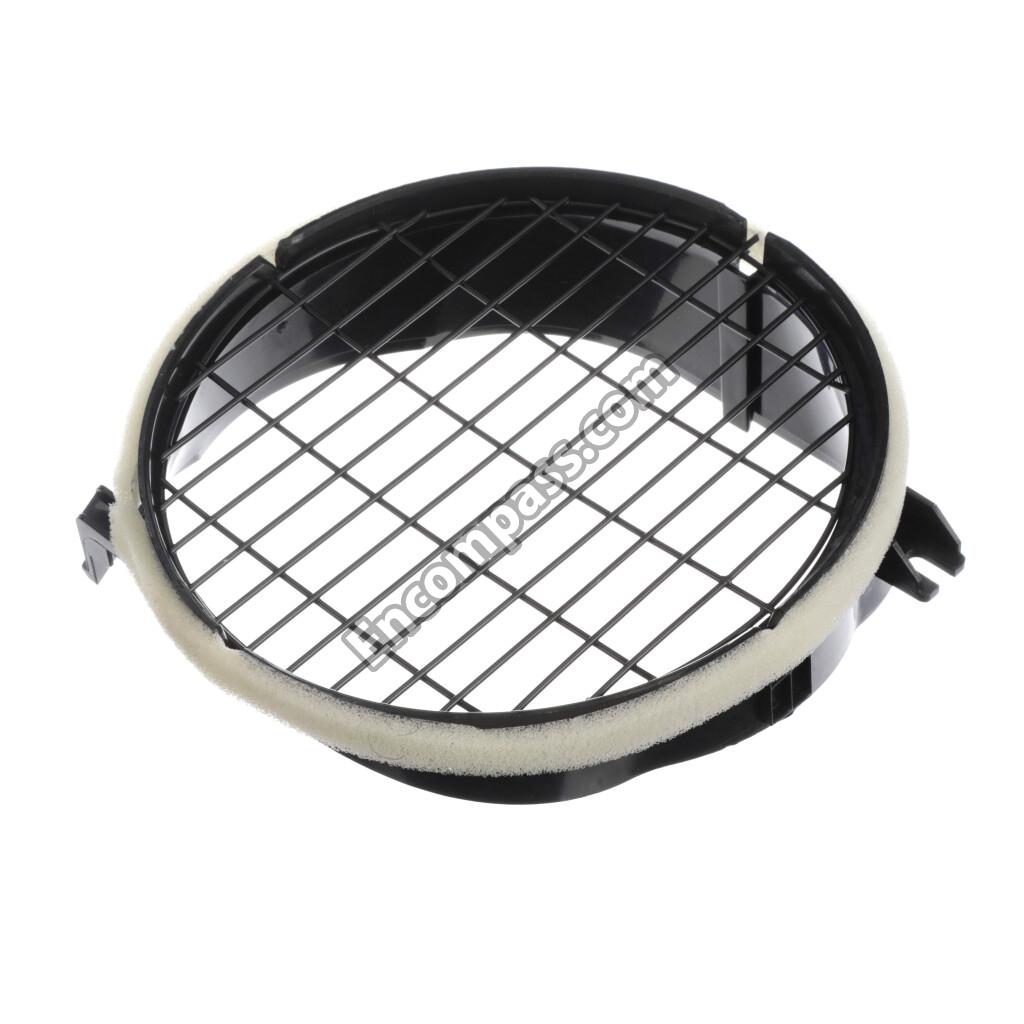

12220600001002 12220600001002 OUTDOOR AIR INLET GRILLE
12120600A18190 12120600A18190 OUTSIDE INLET AIR FRAME UNIT
12120600A18189 12120600A18189 OUTSIDE INLET AIR FRAME UNIT ASSEMBLY
12120600005625 12120600005625 PARTITION BOARD SUBASSEMBLY
11201007003442 11201007003442 PIPE TEMPERATURE SENSOR
11201007003444 11201007003444 PIPE TEMPERATURE SENSOR
17401202006809 17401202006809 POWER CORD SUBASSEMBLY OF LCDI
12120600A20440 12120600A20440 REAR PANEL
12120600A18816 12120600A18816 REAR PANEL ASSEMBLY
17317000A52746 17317000A52746 REMOTE CONTROLLER
11201007003425 11201007003425 ROOM TEMPERATURE SENSOR
12620600000011 12620600000011 RUBBER TUBE
11002017000545 11002017000545 SHADED-POLE MOTOR
17120600000020 17120600000020 SIGNAL RECEIVING BOARD SUBASSEMBLY
11002012034953 11002012034953 SINGLE PHASE ASYNCHRONOUS MOTOR
11002012032755 11002012032755 SINGLE PHASE ASYNCHRONOUS MOTOR
11002010000176 11002010000176 STEPPER MOTOR
12220600000464 12220600000464 SUPPORTER OF FAN MOTOR
12220600000082 12220600000082 SUPPORTING BAR
12620600000019 12620600000019 UNIVERSAL WHEEL
12120600A18188 12120600A18188 UPPER PANEL
12120600A19859 12120600A19859 UPPER PANEL SUBASSEMBLY
17400511000164 17400511000164 WATER LEVEL SWITCH
17400511000604 17400511000604 WATER LEVEL SWITCH
12120600000251 12120600000251 WATER WHEEL
12600701000008 12600701000008 WATERPROOF RUBBER RING
12600701000010 12600701000010 WATERPROOF RUBBER RING
