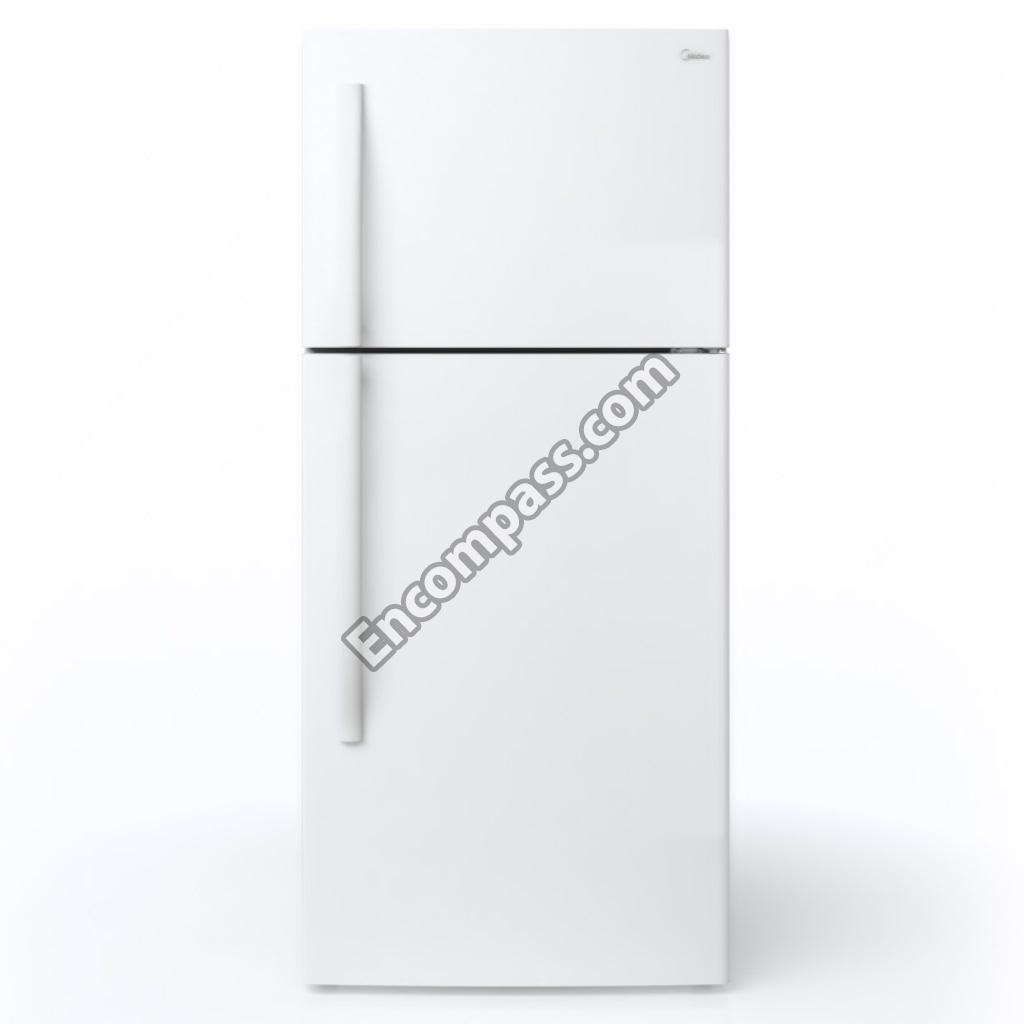

Model Image
Manufacturer

Midea

Model Number

WHD663FWEW1D

Description

Double Door

Interactive Exploded View
Exploded View

Parts List

Part Number Description

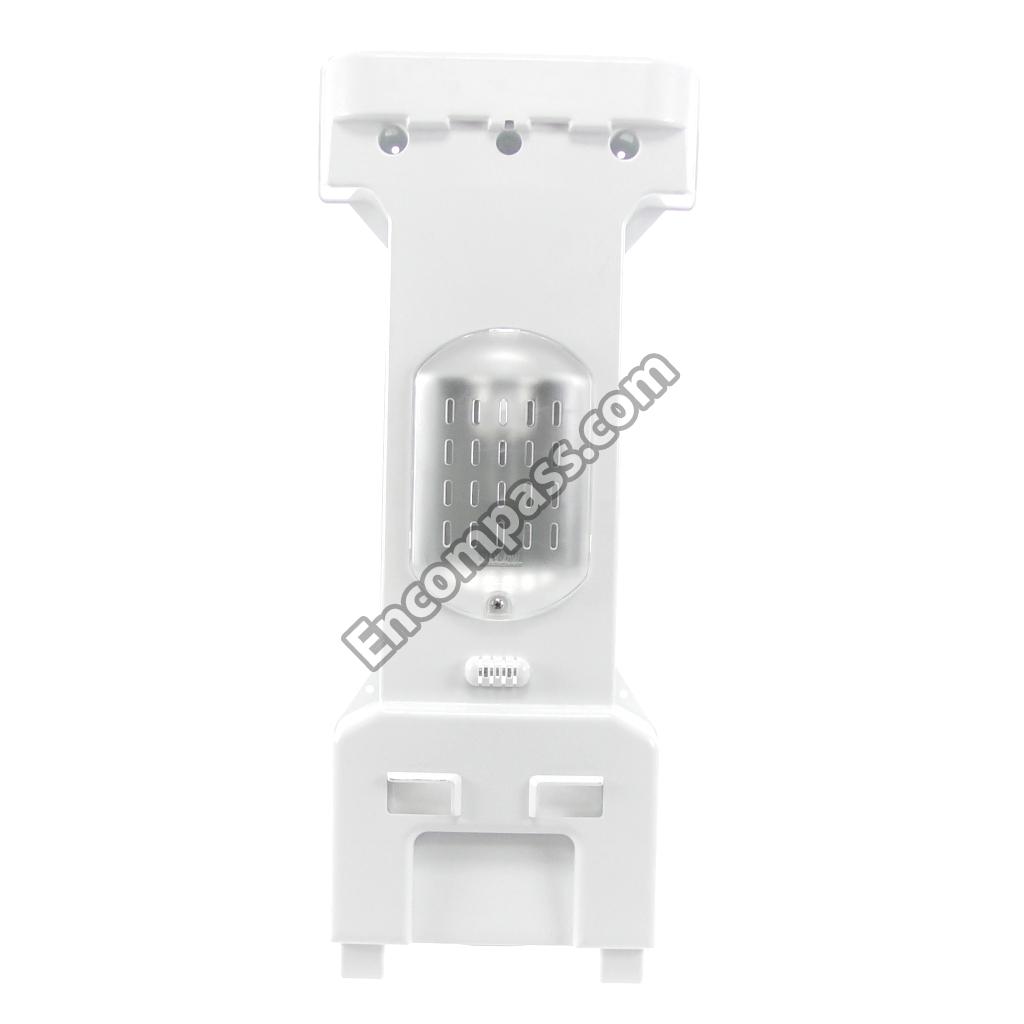

12131000013917 12131000013917 AIR DUCT ASSEMBLY OF FREEZER
12131000013920 12131000013920 AIR DUCT ASSEMBLY OF FREEZER
12131000013889 12131000013889 AIR DUCT ASSEMBLY OF REFRIGERATOR
12131000016978 12131000016978 AIR DUCT ASSEMBLY OF REFRIGERATOR

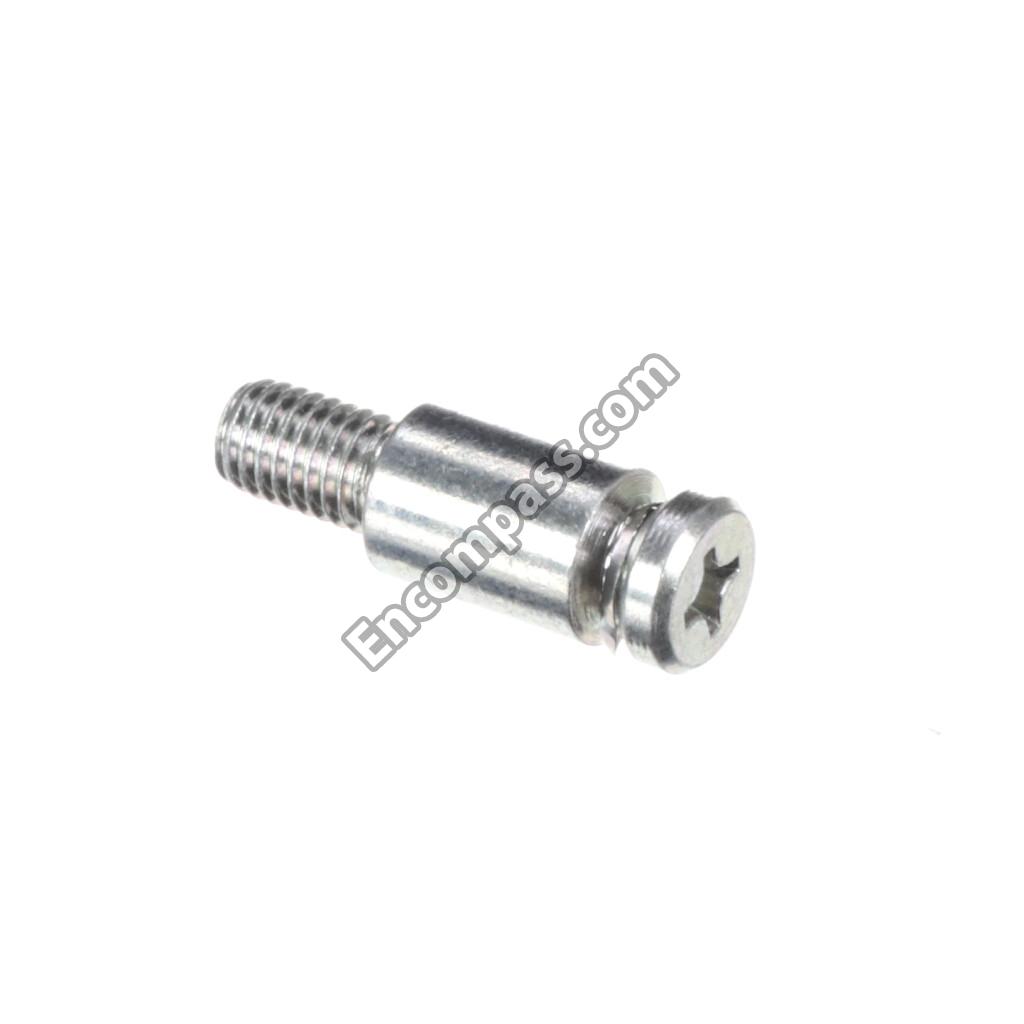

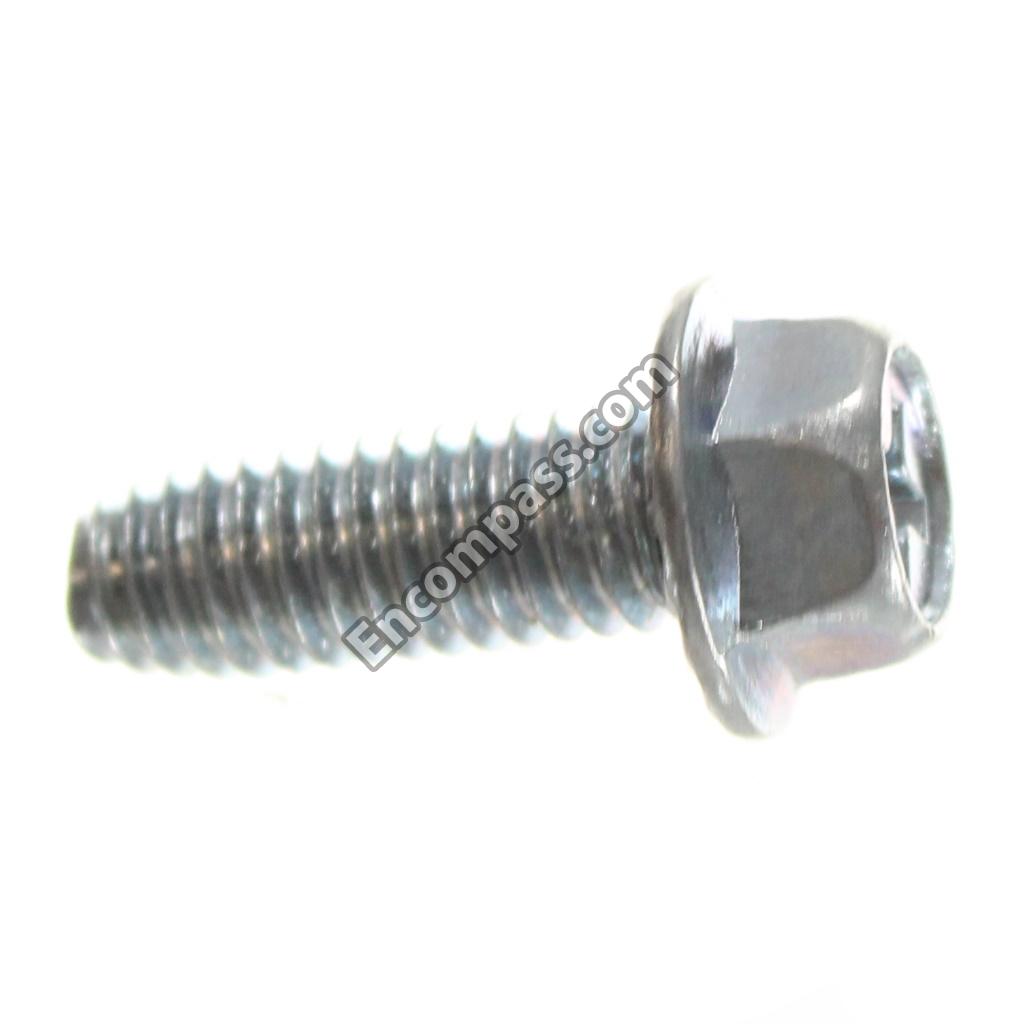

11301803000002 11301803000002 BOLT
11301803000003 11301803000003 BOLT
12131000001264 12131000001264 BOX COVER
12131000003582 12131000003582 BUTTON
12831000008587 12831000008587 CABINET ASSEMBLY
12831000008296 12831000008296 CABINET ASSEMBLY

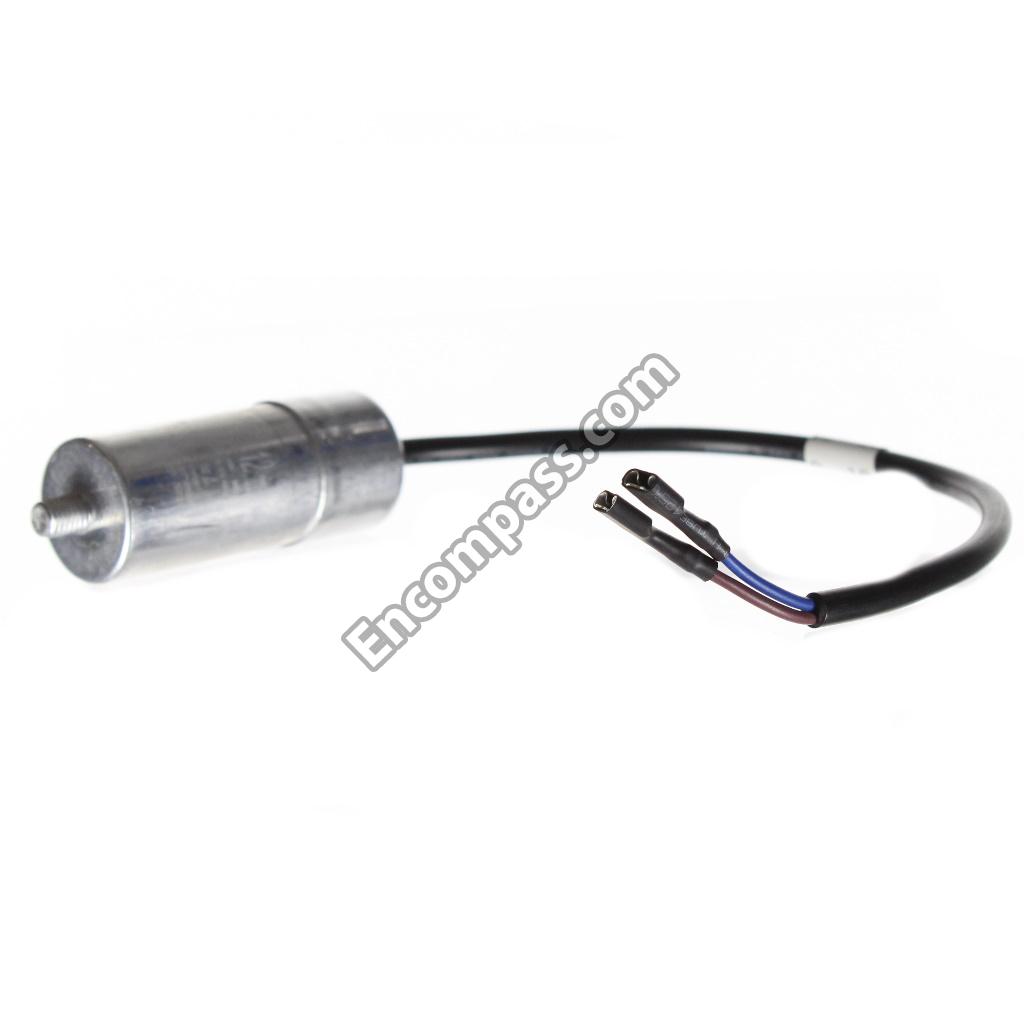

17431000001249 17431000001249 CAPACITOR
15831000000071 15831000000071 COMPONENT SUPPLYING FIN EVAPORATOR
15831000002845 15831000002845 COMPONENT SUPPLYING FIN EVAPORATOR
15531000000010 15531000000010 COMPONENT SUPPLYING PIPE CONNECTOR
15531000000641 15531000000641 COMPONENT SUPPLYING PIPE CONNECTOR
15531000000962 15531000000962 COMPONENT SUPPLYING PIPE CONNECTOR
12231000005886 12231000005886 COMPRESSOR MOUNTING PANEL ASSEMBLY

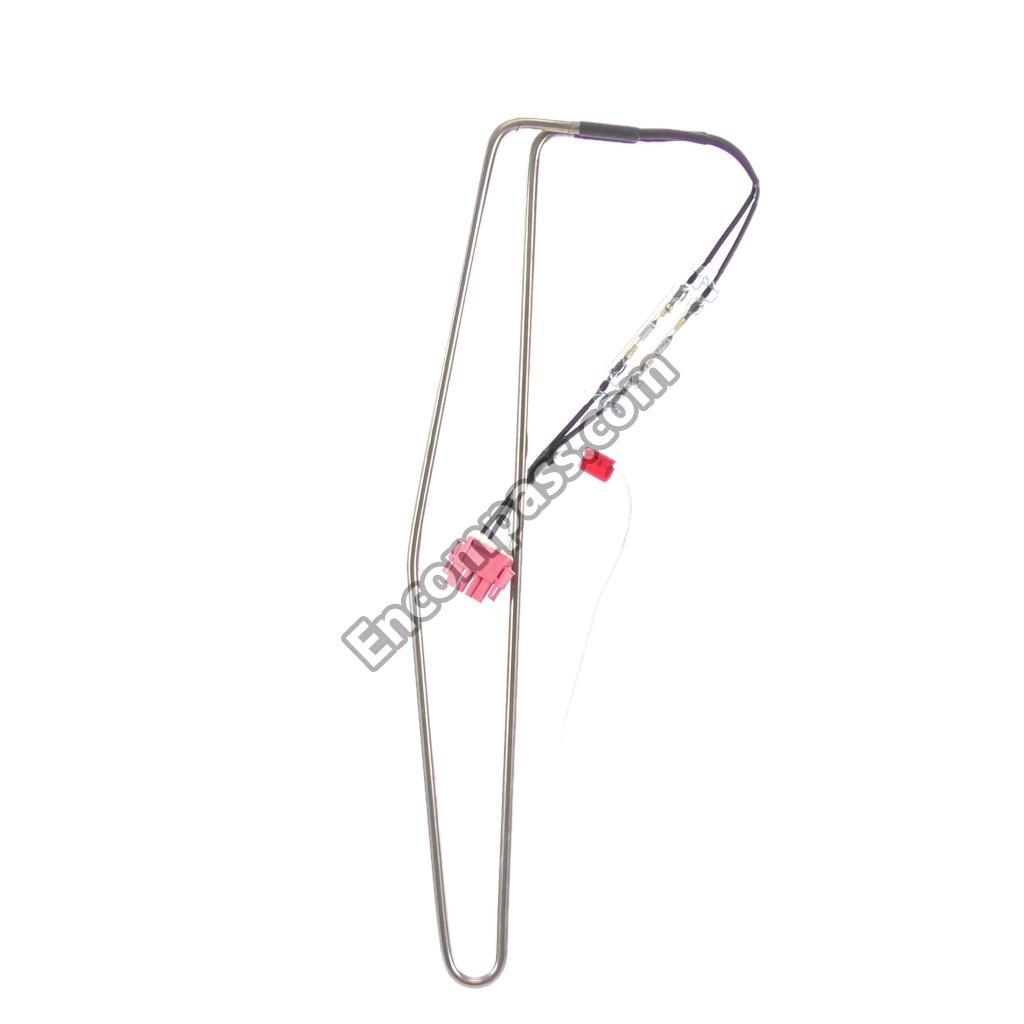

17431000001010 17431000001010 DEFROST HEATER
17431000019183 17431000019183 DEFROST HEATER
17431000001412 17431000001412 DEFROSTING THERMOSTAT ASSEMBLY

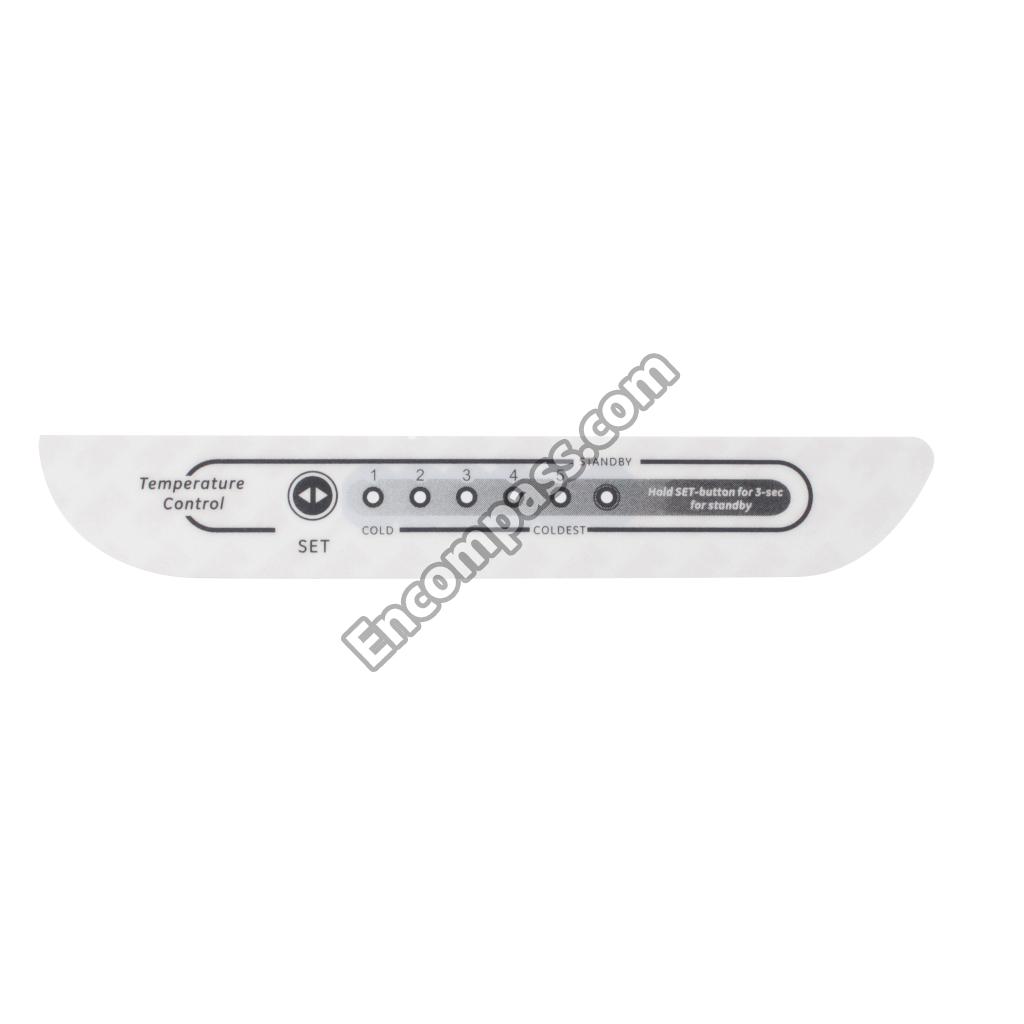

16031000000615 16031000000615 DISPLAY CONTROL PANEL SURFACE

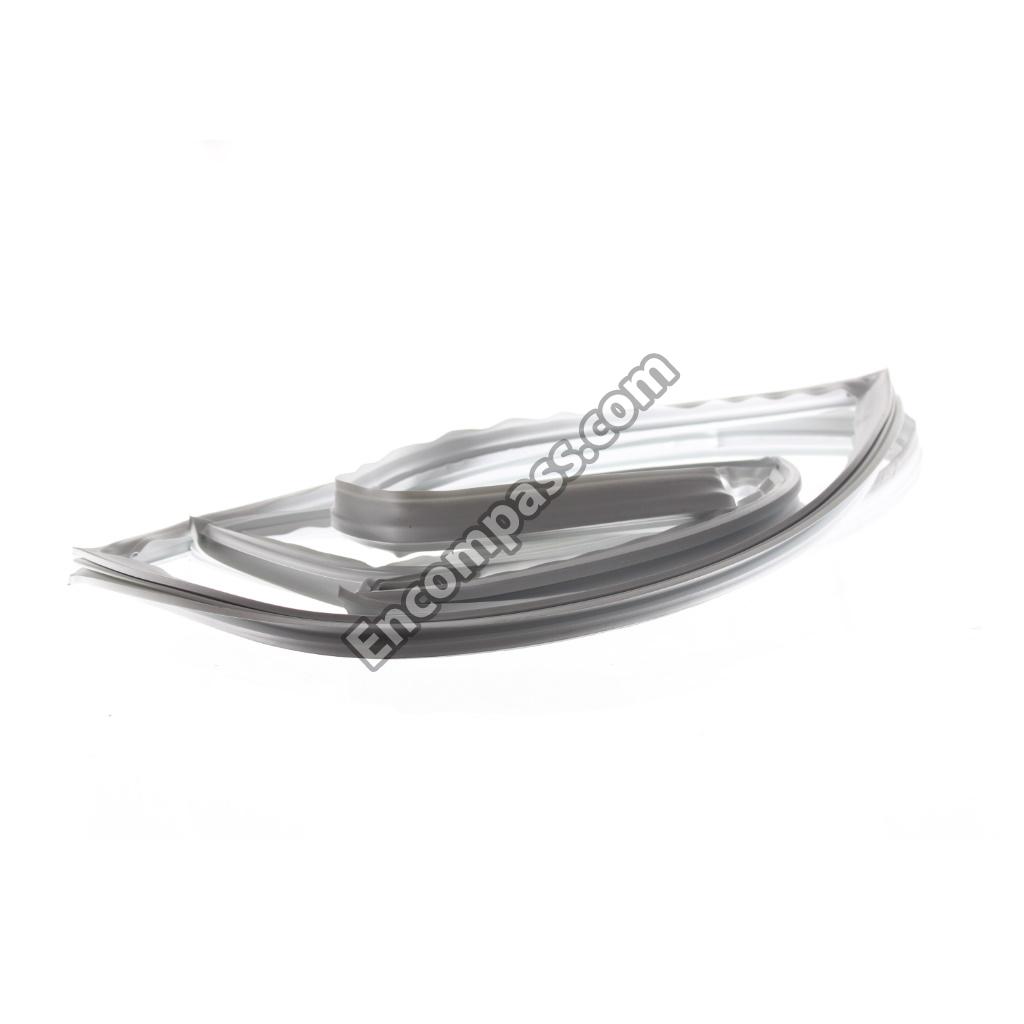

12131000016124 12131000016124 DOOR GASKET ASSEMBLY OF FREEZER
12131000016674 12131000016674 DOOR GASKET ASSEMBLY OF REFRIGERATOR

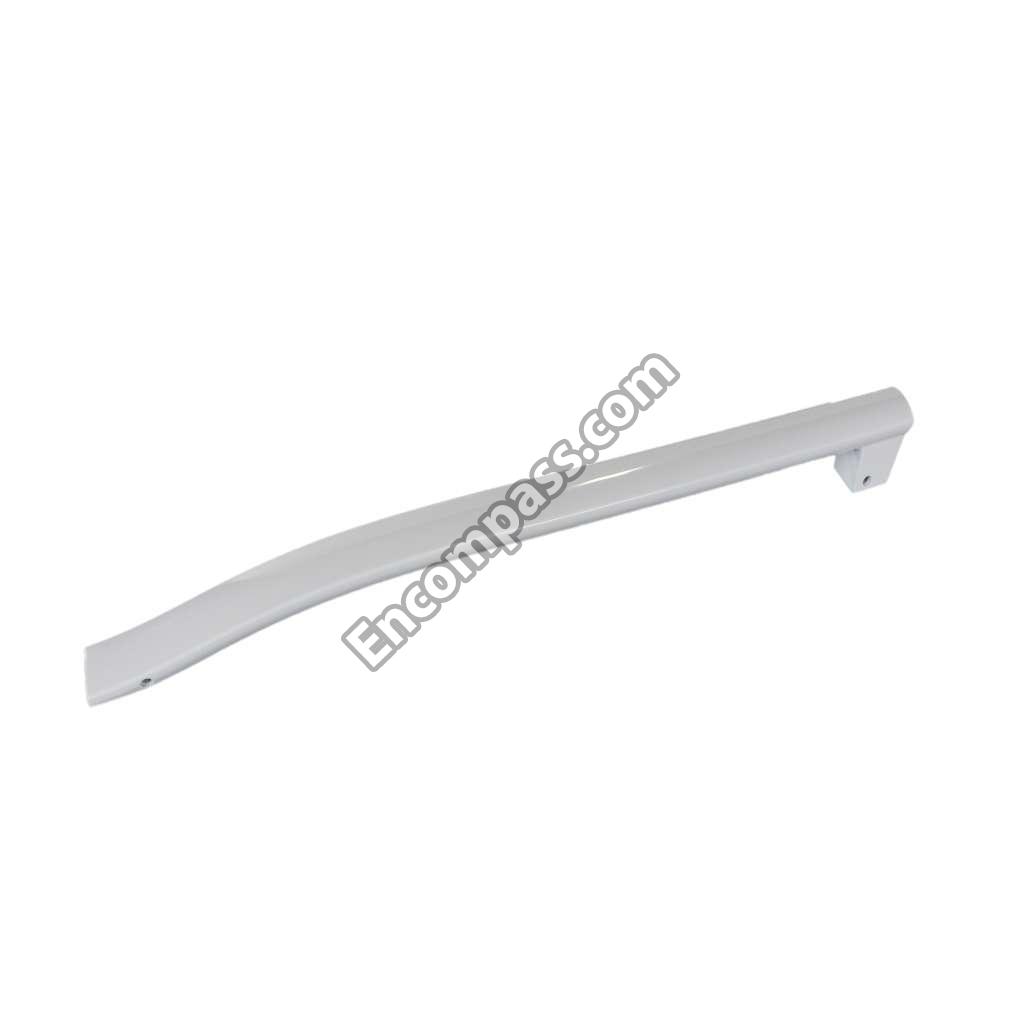

12131000000288 12131000000288 DOOR HANDLE ASSEMBLY OF FREEZER

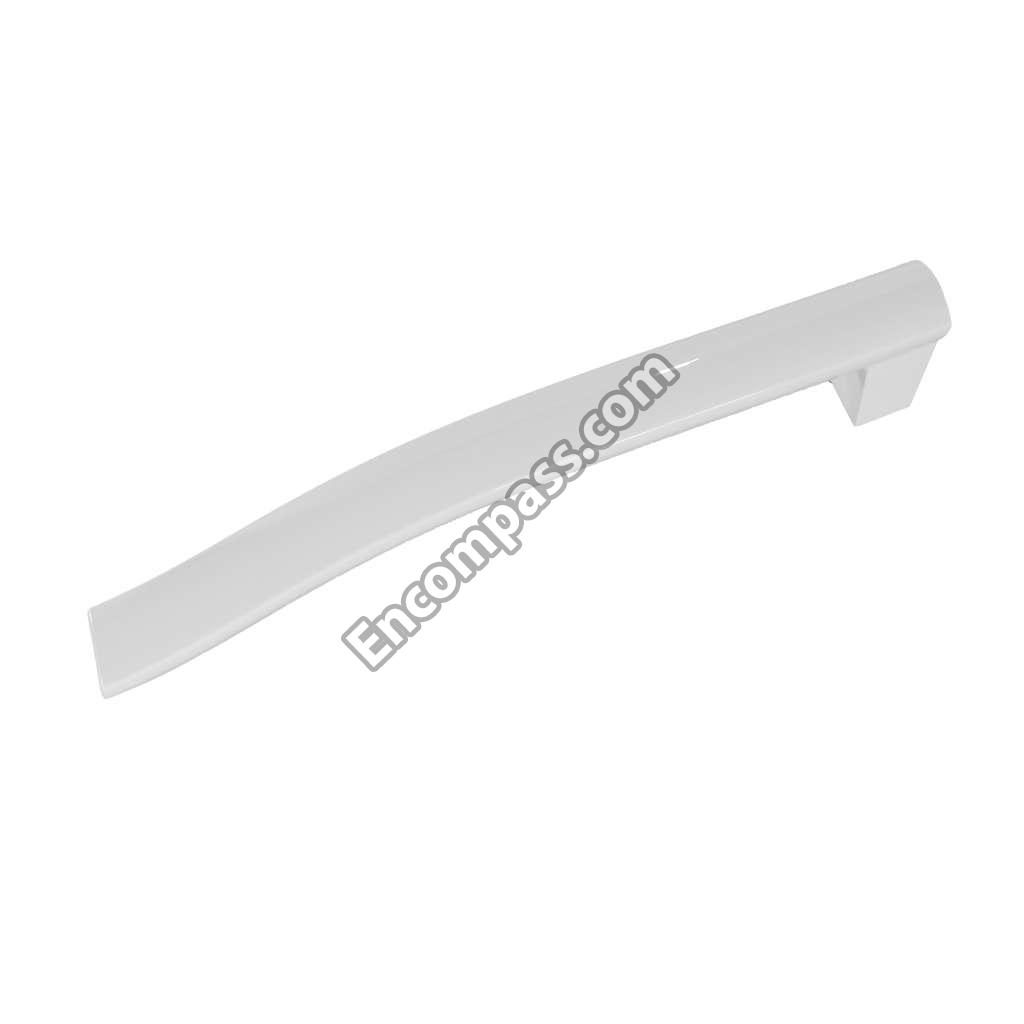

12131000002476 12131000002476 DOOR HANDLE OF FREEZER COMPARTMENT
12131000002505 12131000002505 DOOR HANDLE OF FRIDGE COMPARTMENT
12131000000282 12131000000282 DOOR HANDLES ASSEMBLY OF REFRIGERATOR
12131000003413 12131000003413 DOOR SELF-LOCKING
12131000004276 12131000004276 DRAIN TRAY
12131000004386 12131000004386 DRAIN TRAY
12231000006712 12231000006712 DRAIN TRAY
15531000000127 15531000000127 DRY FILTER

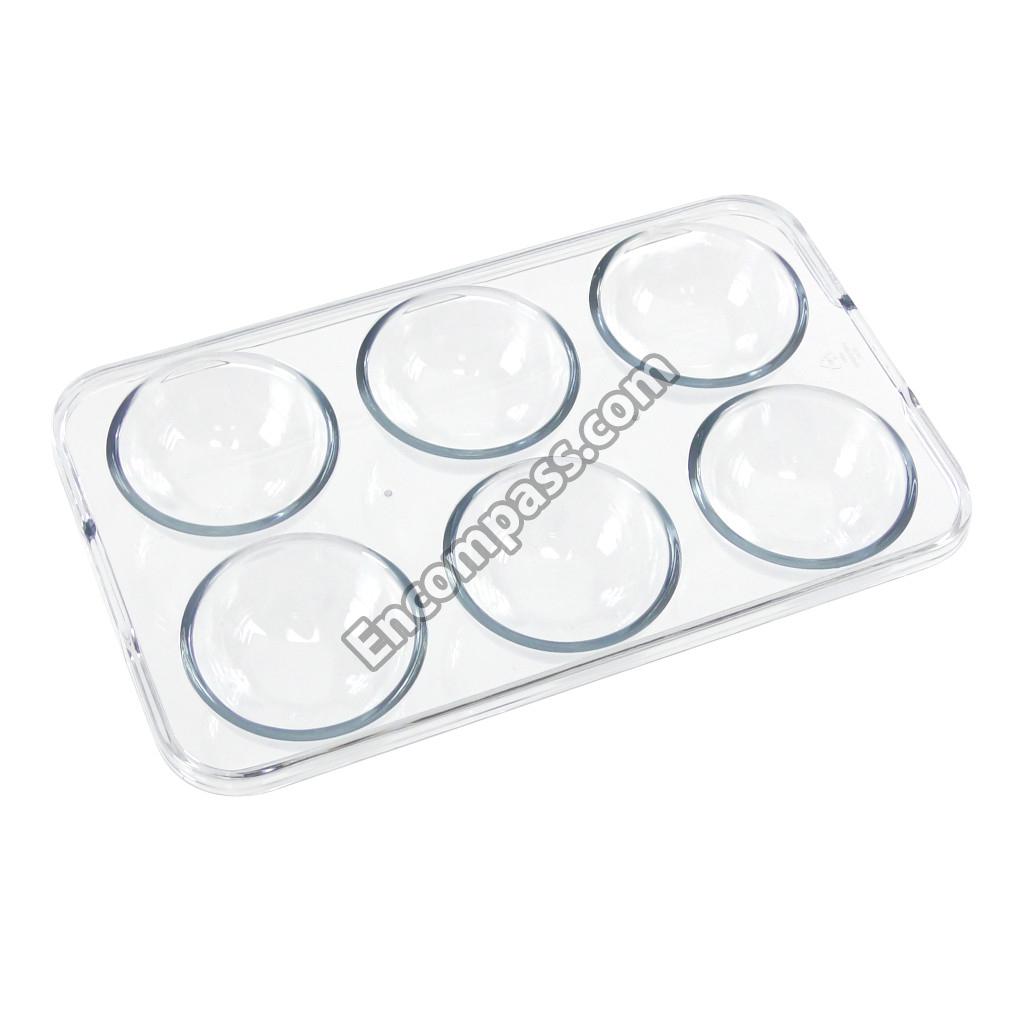

12131000018837 12131000018837 EGG TRAY
12031000001171 12031000001171 ELECTRIC APPLIANCE SHIELD
12131000013512 12131000013512 END CAP ASSEMBLY OF FREEZER
12131000012865 12131000012865 END CAP ASSEMBLY OF REFRIGERATOR
12131000005985 12131000005985 F LARGE TRAY
11002015002201 11002015002201 FAN MOTOR

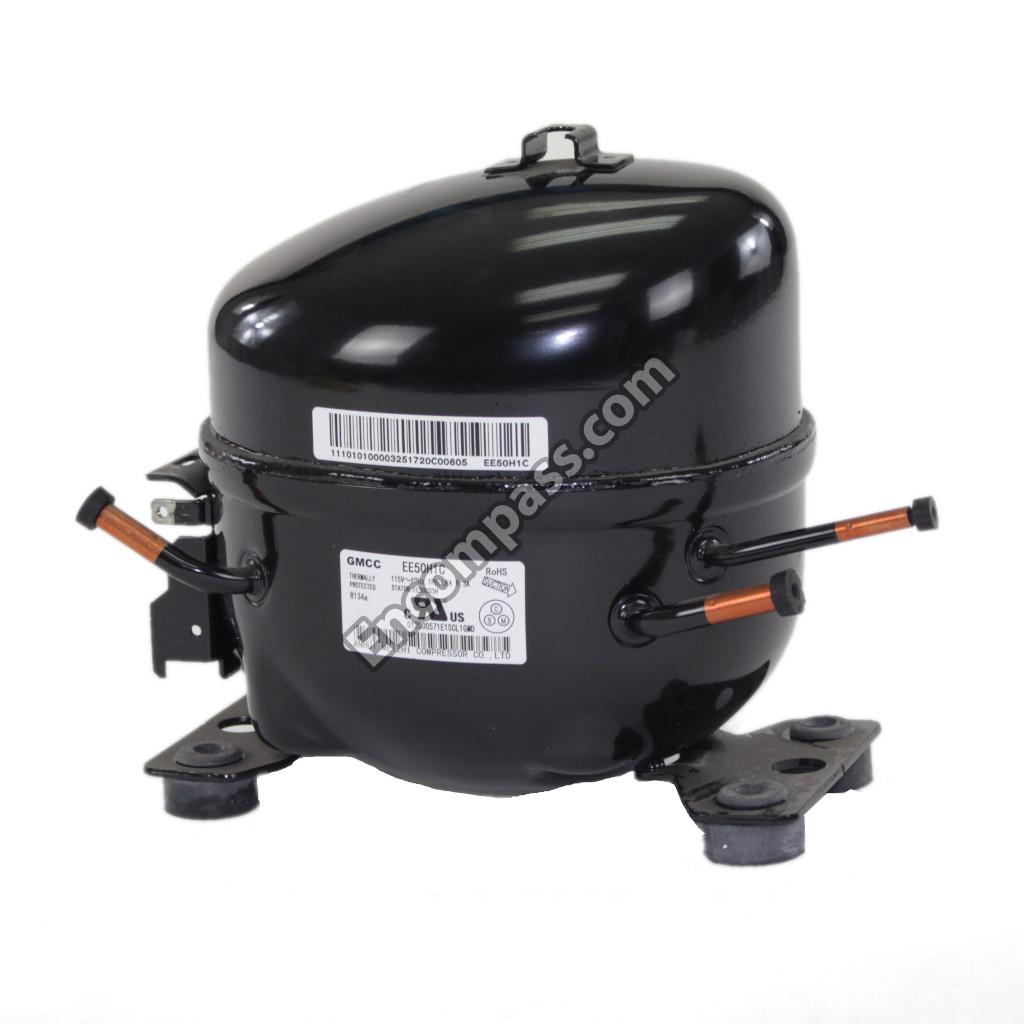

11101010000325 11101010000325 FIXED SPEED RECIPROCATING COMPRESSOR
11101010004886 11101010004886 FIXED SPEED RECIPROCATING COMPRESSOR
12831000007834 12831000007834 FREEZER DOOR ASSEMBLY

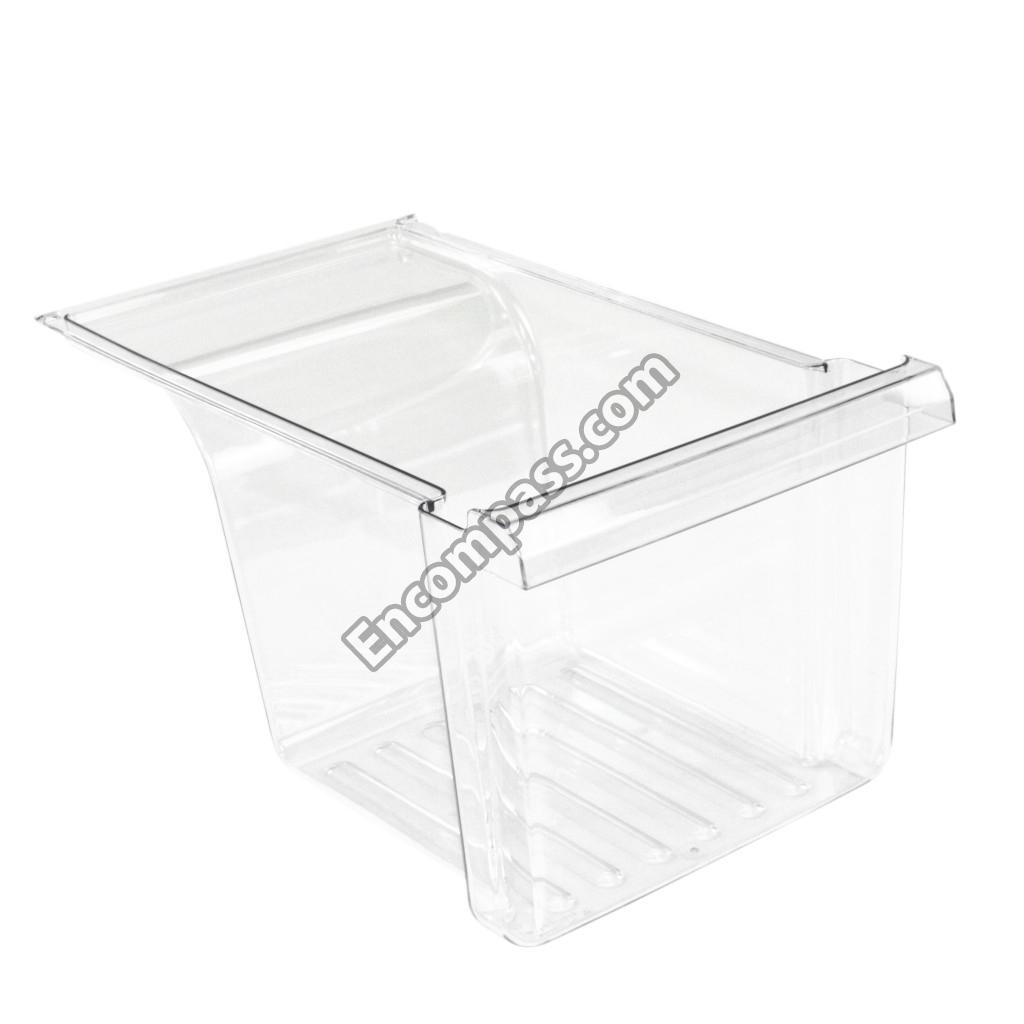

12131000000065 12131000000065 FRUITS AND VEGETABLES BOX

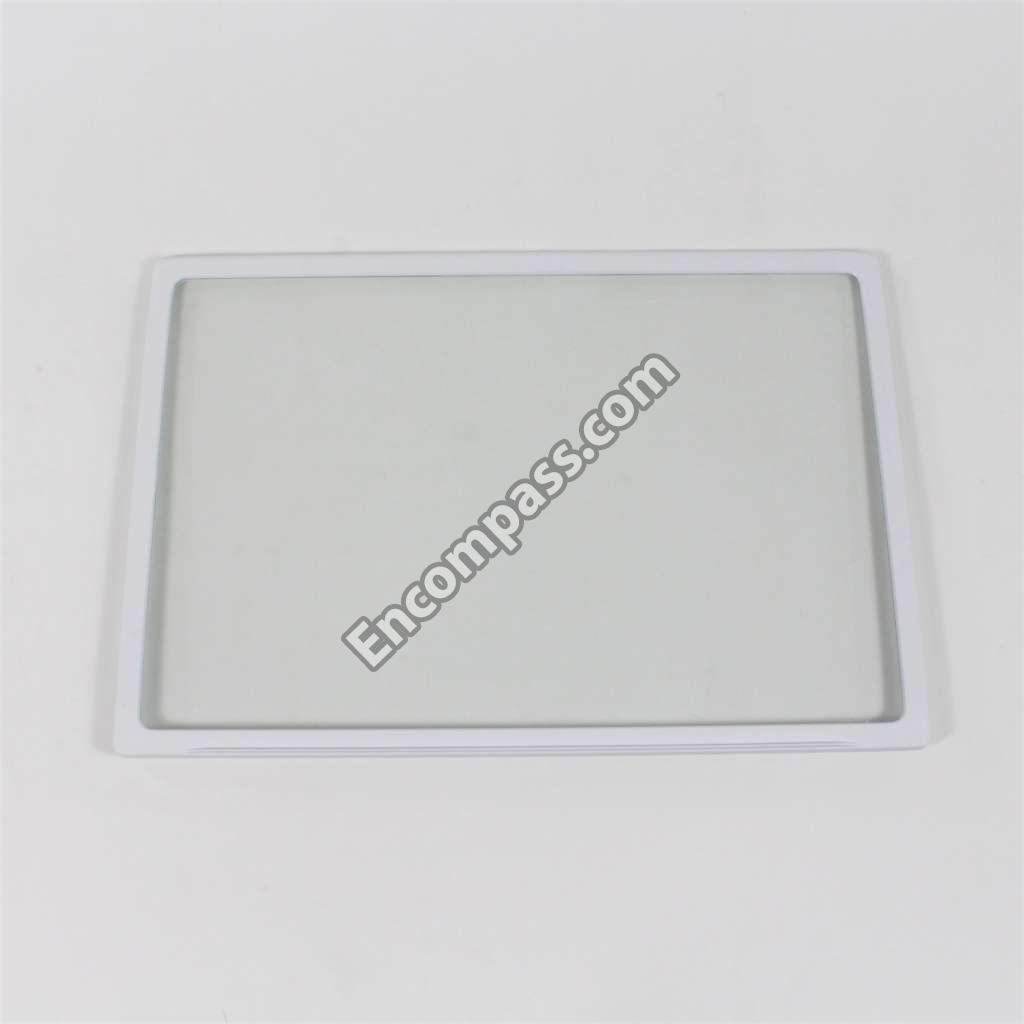

12531000001025 12531000001025 GLASS SHELF ASSEMBLY OF REFRIGERATOR

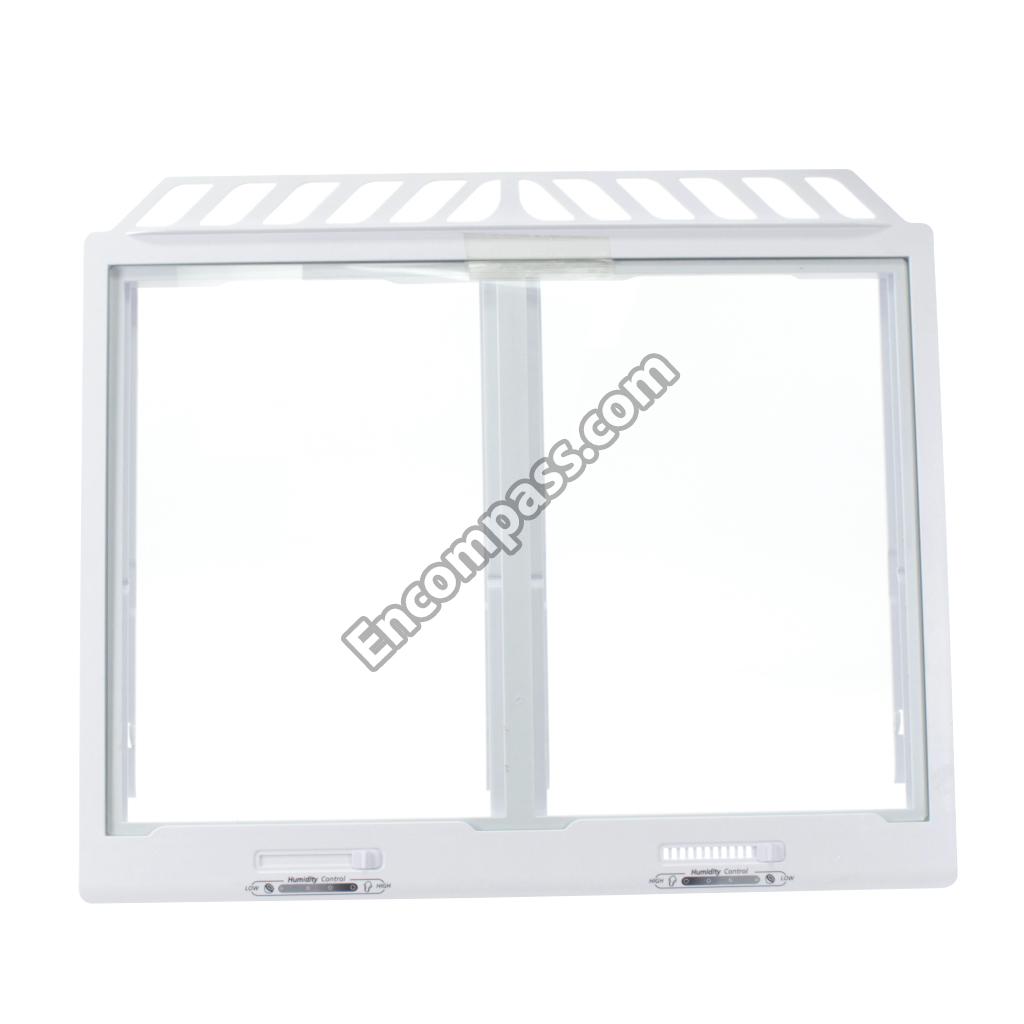

12531000001055 12531000001055 GLASS SHELF COMPONENTS OF REFRIGERATOR
12131000005146 12131000005146 HINGE COVER
12131000014610 12131000014610 HINGE COVER

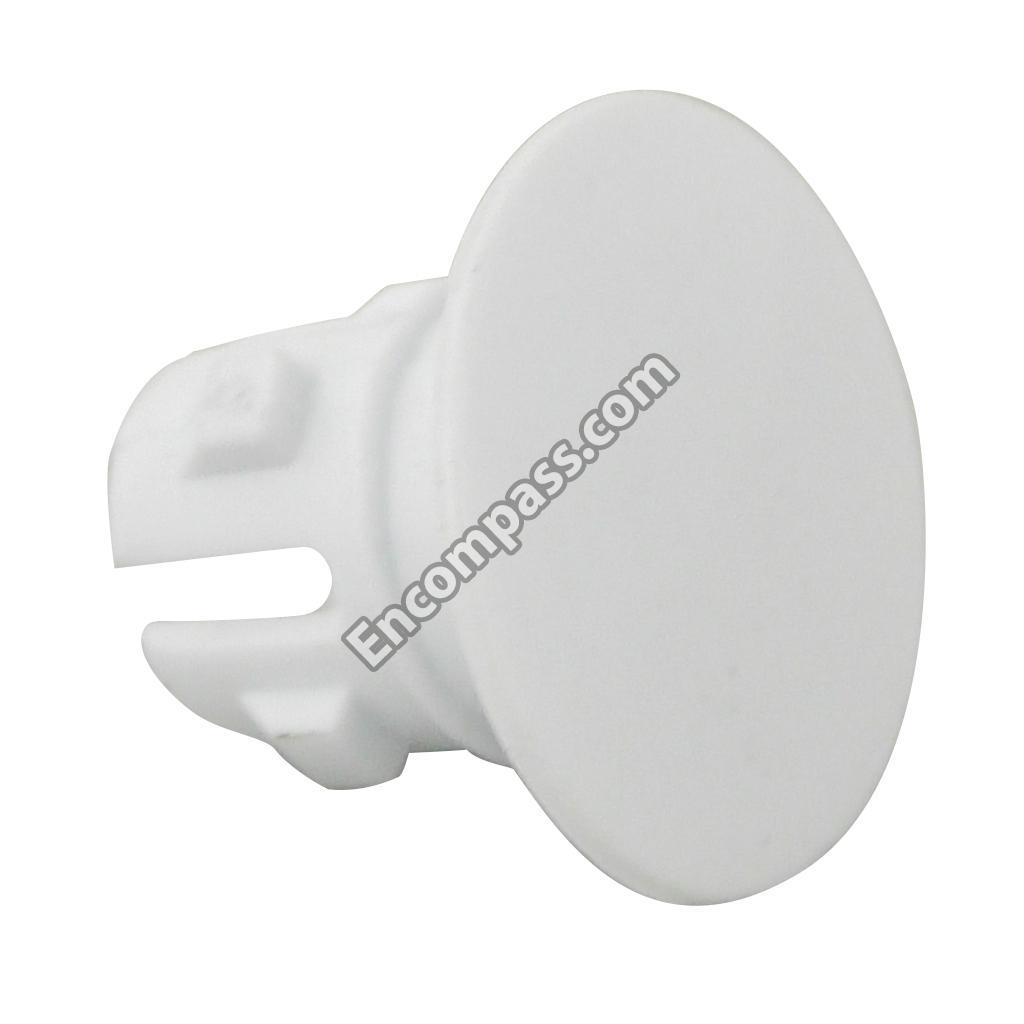

12131000000637 12131000000637 HOLE CAP

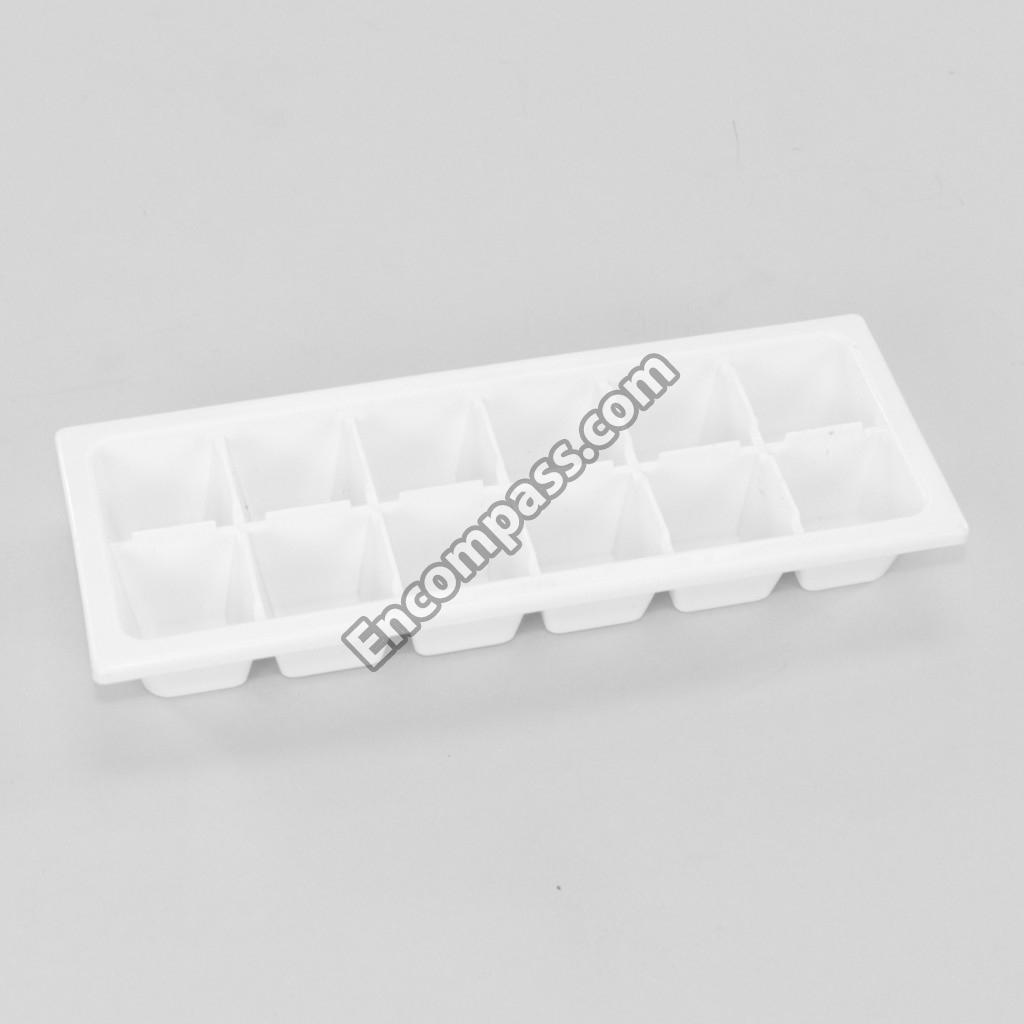

12131000000168 12131000000168 ICE BOX
17431000000025 17431000000025 INCANDESCENT LAMP
12131000009524 12131000009524 INNER DOOR GASKET
12131000010188 12131000010188 INNER DOOR GASKET

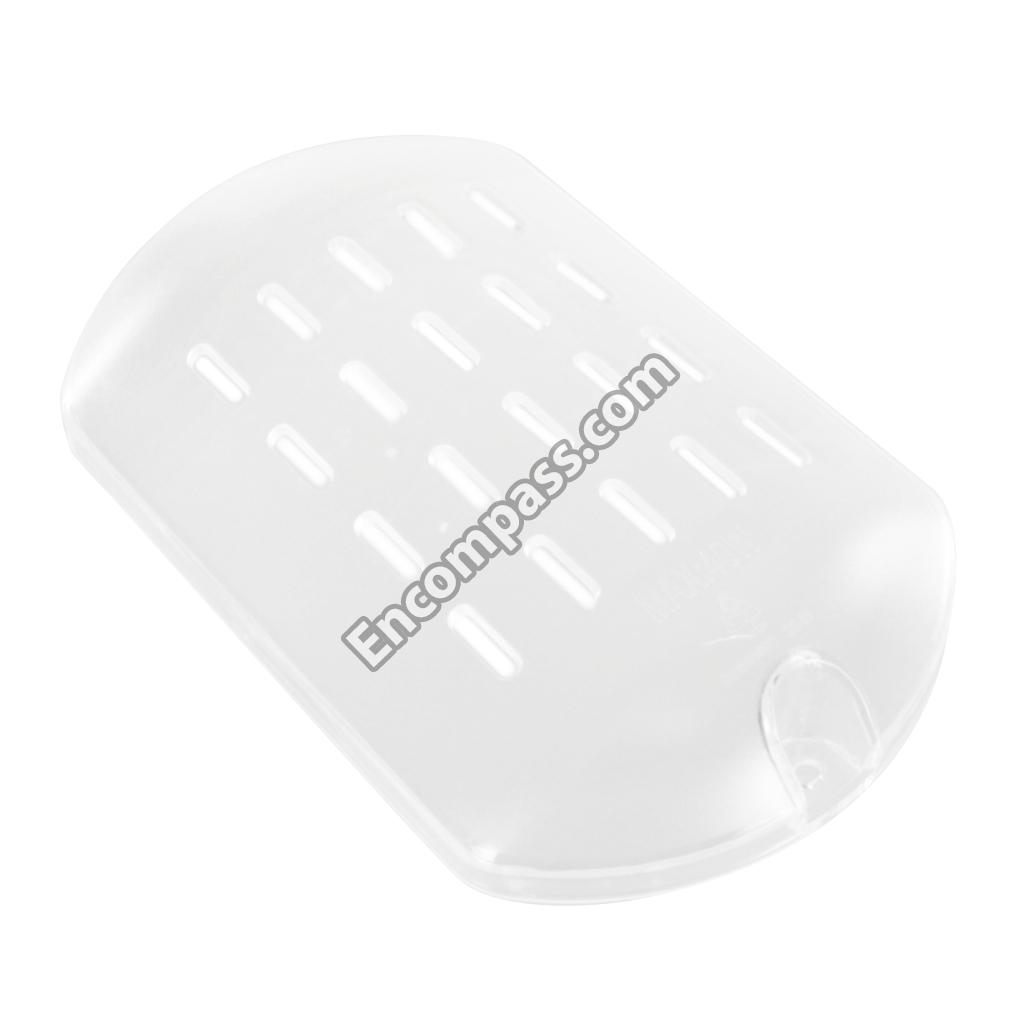

12131000005482 12131000005482 LAMP COVER

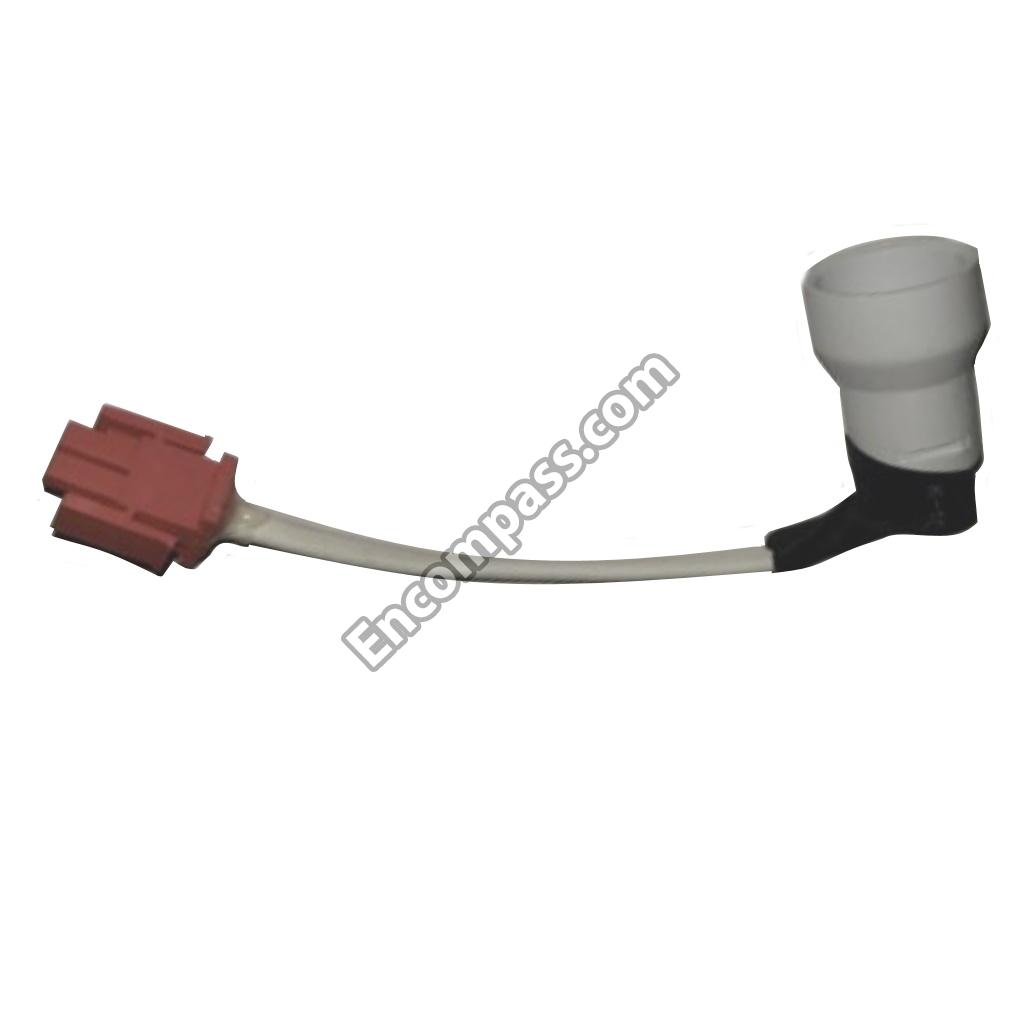

17431000000041 17431000000041 LAMP HOLDER
12131000000986 12131000000986 LEVELLING FEET
12231000007012 12231000007012 LOWER HINGE ASSEMBLY

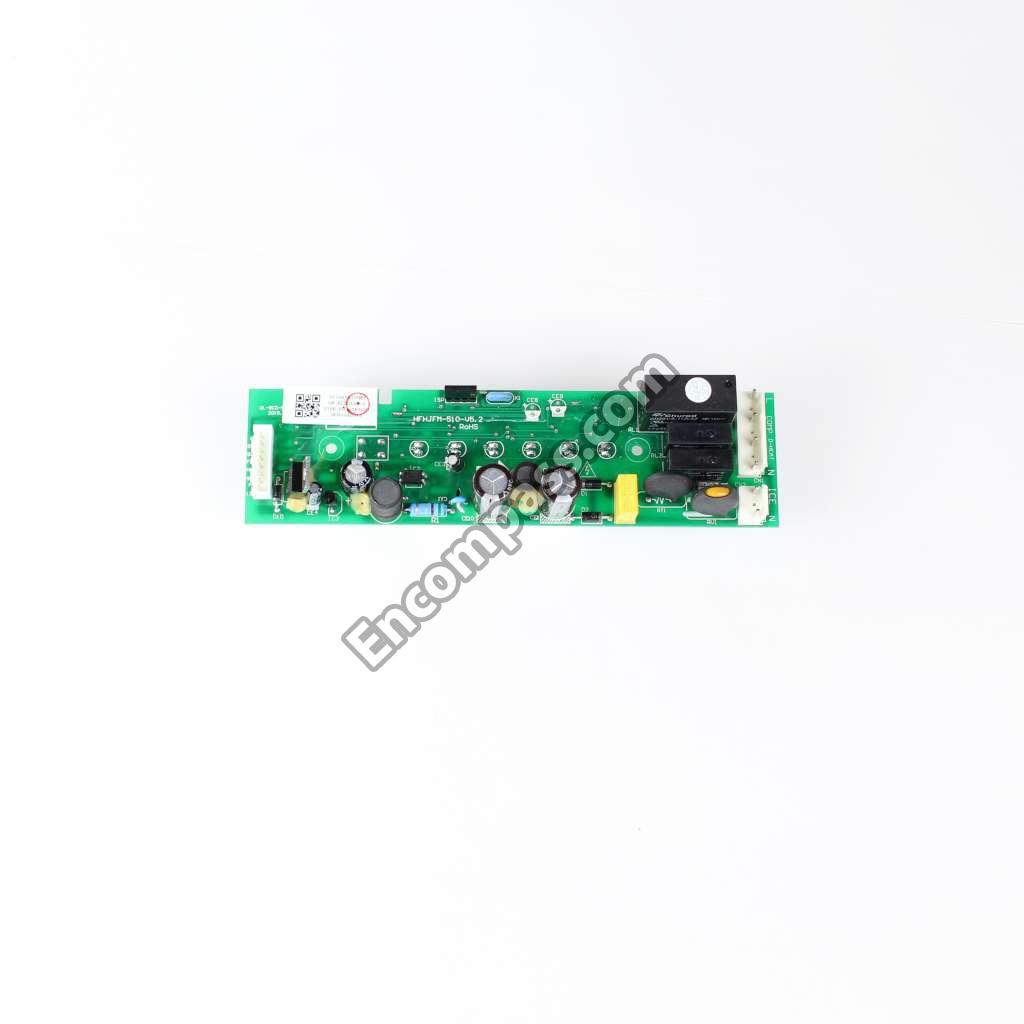

17131000000177 17131000000177 MAIN CONTROL BOARD
12131000071408 12131000071408 MAIN CONTROL BOARD MOUNTING BOX ASSEMBLY
12131000071407 12131000071407 MAIN CONTROL BOARD MOUNTING BOX ASSEMBLY
12231000007086 12231000007086 MIDDLE HINGE ASSEMBLIES
12131000001705 12131000001705 MOUNTING BOX
15831000000033 15831000000033 OBLIQUE FIN EVAPORATOR

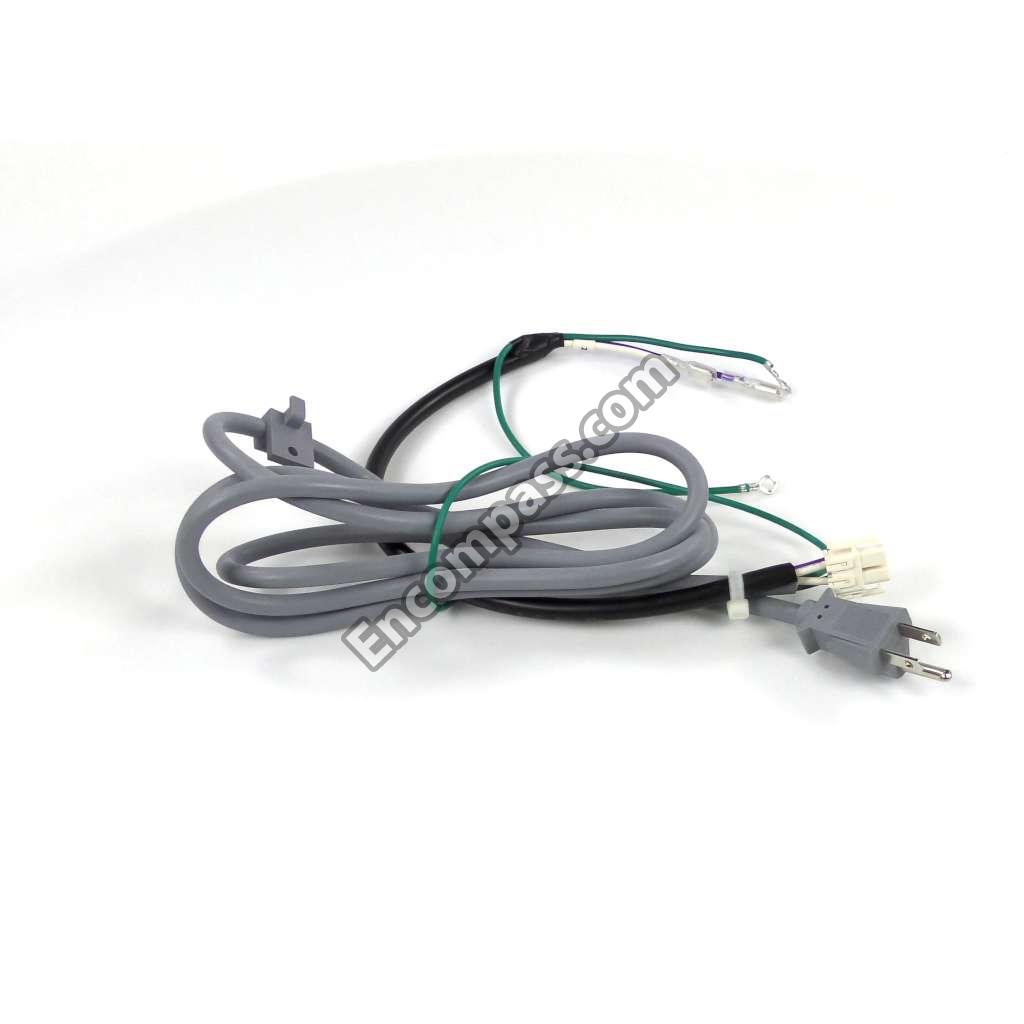

17431000000276 17431000000276 POWER CORD
15531000000065 15531000000065 PROCESSING TUBES
12031000001312 12031000001312 PROTECTOR
12131000005546 12131000005546 R LARGE TRAY
12131000005562 12131000005562 R LARGE TRAY
12131000005323 12131000005323 R SMALL TRAY
12831000006624 12831000006624 REFRIGERATOR DOOR ASSEMBLY
17431000000379 17431000000379 SECTOR-SHAPED SWITCH
17431000000392 17431000000392 SECTOR-SHAPED SWITCH
12131000006214 12131000006214 SHAFT SLEAVE
12131000006217 12131000006217 SHAFT SLEAVE
12131000006238 12131000006238 SHAFT SLEAVE
12031000001063 12031000001063 STARTER

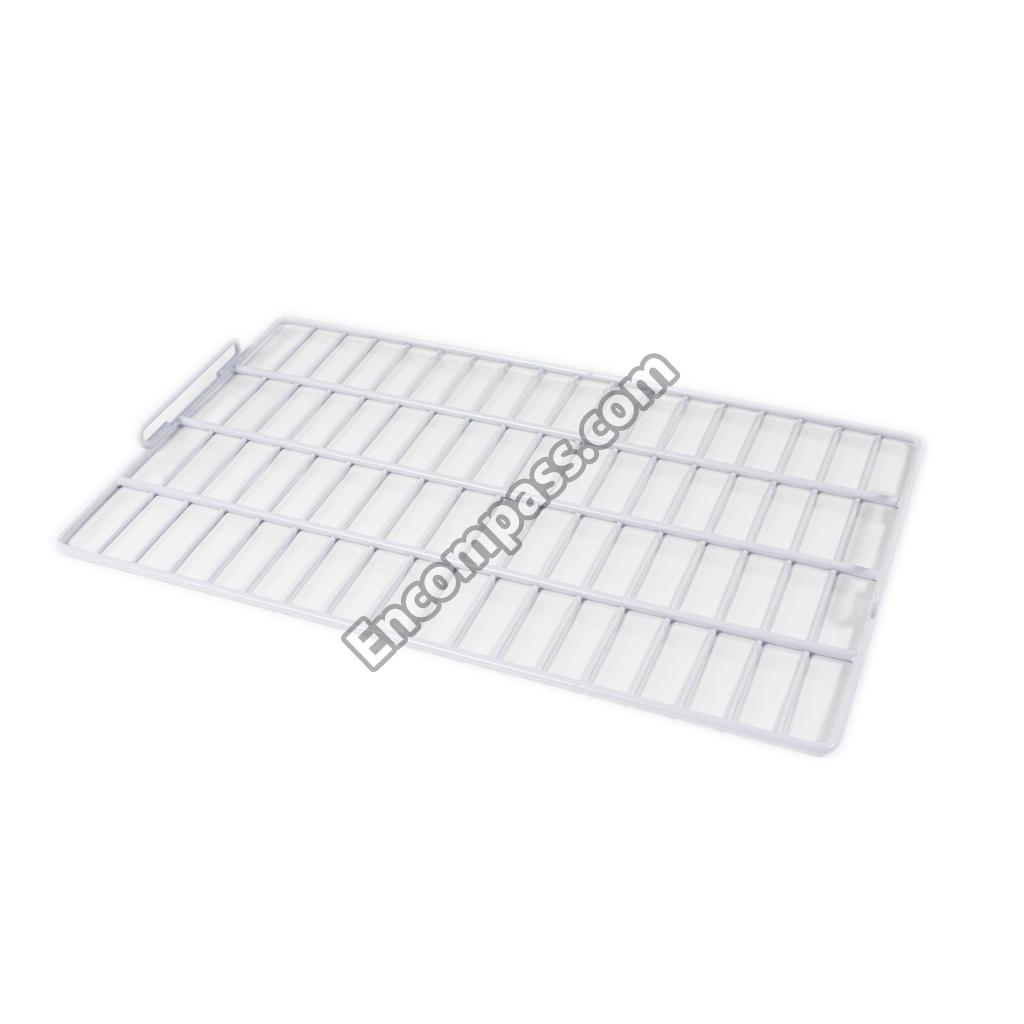

12931000000165 12931000000165 STEEL WIRE SHELF OF FREEZER
12231000006546 12231000006546 STOPPER
12231000006572 12231000006572 STOPPER
11303305000004 11303305000004 TAPPING LOCKING SCREW
11303305000045 11303305000045 TAPPING LOCKING SCREW
12231000006970 12231000006970 UPPER HINGE
15531000001621 15531000001621 VENTING CONNECTION TUBE
17431000020405 17431000020405 WIRES
