Model Image
Manufacturer

Panasonic

Model Number

AGDVX10

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
DE-A20BC DE-A20BC ADAPTER
VXA5410 VXA5410 ANGLE
VXA5409 VXA5409 ANGLE
VMP6845 VMP6845 ANGLE
VMP6844 VMP6844 ANGLE
VMP6666 VMP6666 ANGLE
VMP5464 VMP5464 ANGLE
VML3277 VML3277 ANGLE
VMC1685 VMC1685 ANGLE
VXL2732 VXL2732 ARM
VXL2471 VXL2471 ARM
VXL2470 VXL2470 ARM
VXL3027F VXL3027F ARM
VXL2466 VXL2466 ARM
VXL2462 VXL2462 ARM
VXL2461 VXL2461 ARM
VXL2456 VXL2456 ARM
VXL2455 VXL2455 ARM
VXA5612 VXA5612 ARM
VMA9753 VMA9753 ARM
VMZ2708 VMZ2708 BARRIER
VMX3107 VMX3107 BARRIER
VGQ6188 VGQ6188 BARRIER
VGQ4853 VGQ4853 BARRIER
VGQ4624 VGQ4624 BARRIER
VMZ3141 VMZ3141 BASE
VMA0H90 VMA0H90 BASE
VGQ6044 VGQ6044 BASE
VGQ6068 VGQ6068 BEAD
VDV0265 VDV0265 BELT
VGQ5992 VGQ5992 BRACKET
VXZ0441 VXZ0441 BRAKE
VXZ0322 VXZ0322 BRAKE
VXZ0321 VXZ0321 BRAKE
VXZ0319 VXZ0319 BRAKE
VXU1598 VXU1598 BUTTON
VGU8749 VGU8749 BUTTON
VGU8746 VGU8746 BUTTON
VGU7780 VGU7780 BUTTON
VGU7779 VGU7779 BUTTON
VGU7777 VGU7777 BUTTON
VGU7577 VGU7577 BUTTON
VGU7576 VGU7576 BUTTON
VGU7575 VGU7575 BUTTON
VGQ4272 VGQ4272 BUTTON
VYKS1861 VYKS1861 CABINET
VYK9888 VYK9888 CABINET
VYK9729 VYK9729 CABINET
VWK0175 VWK0175 CABLE
VWJ16E5130L0 VWJ16E5130L0 CABLE
VWJ14E5040L0 VWJ14E5040L0 CABLE
VWJ1467 VWJ1467 CABLE
VWJ1465 VWJ1465 CABLE
VWJ13E5070L0 VWJ13E5070L0 CABLE
VWJ12E5100L0 VWJ12E5100L0 CABLE
VWJ08E5070L0 VWJ08E5070L0 CABLE
VWJ07E5130L0 VWJ07E5130L0 CABLE
VWJ06E5080L0 VWJ06E5080L0 CABLE
VWJ05E5180L0 VWJ05E5180L0 CABLE
VES0928 VES0928 CABLE
VEE0P60 VEE0P60 CABLE
VEE0N39 VEE0N39 CABLE
VEE0N38 VEE0N38 CABLE
VEE0M14 VEE0M14 CABLE
VEE0M12 VEE0M12 CABLE
VEE0M11 VEE0M11 CABLE
VEE0M10 VEE0M10 CABLE
VEE0M08 VEE0M08 CABLE
VEC0984 VEC0984 CABLE

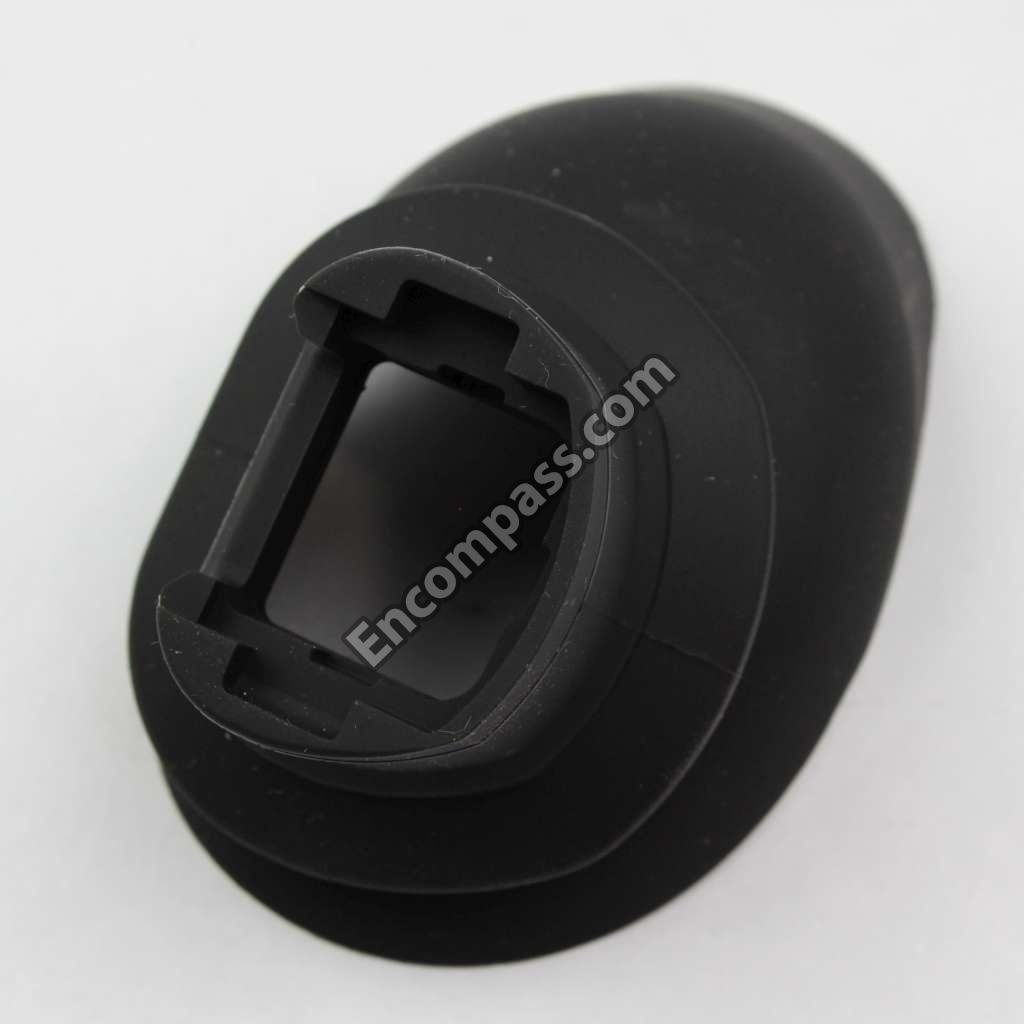

VMG1373 VMG1373 CAP
VMG1370 VMG1370 CAP
VKF3305 VKF3305 CAP
VJF1425 VJF1425 CAP
VJF1417 VJF1417 CAP
VEK8403 VEK8403 CARD
VYK9740 VYK9740 CASE
VYK0B49 VYK0B49 CASE
VYF2741 VYF2741 CASE
VSC4974 VSC4974 CASE
VSC4668 VSC4668 CASE
VSC4665 VSC4665 CASE
VSC4640 VSC4640 CASE
VMP6796 VMP6796 CASE
VMP6760 VMP6760 CASE
VMP6749 VMP6749 CASE
VMP6742 VMP6742 CASE
VMP8331 VMP8331 CASE
VMP6737 VMP6737 CASE
VMP6670 VMP6670 CASE
VMP6668 VMP6668 CASE
VMP6667 VMP6667 CASE
VMP6661 VMP6661 CASE
VMP6654 VMP6654 CASE
VMP6653 VMP6653 CASE
VMP6652 VMP6652 CASE
VMP6651 VMP6651 CASE
VMP6650 VMP6650 CASE
VMP8326 VMP8326 CASE
VMP6628 VMP6628 CASE
VMP6172 VMP6172 CASE
VMP5466 VMP5466 CASE
VKMS2518 VKMS2518 CASE
VKMS2495 VKMS2495 CASE
VKMS2489 VKMS2489 CASE
VKM5615 VKM5615 CASE
VKM5614 VKM5614 CASE
VKM5323 VKM5323 CASE
VGK2684 VGK2684 CASE
VXA5387 VXA5387 CASSETTE UP
K4ZZ04000036 K4ZZ04000036 CATCHER
VXQ1093 VXQ1093 CCD
VXY1598 VXY1598 CHASSIS
VJF0804 VJF0804 CLAMP
VJF1535 VJF1535 CLAMP
VWJ13C8045AA VWJ13C8045AA CORD
K2CB2CB00022 K2CB2CB00022 CORD
VSQ0819 VSQ0819 CORE
J0KG00000012 J0KG00000012 CORE
VLP0120 VLP0120 CORE
J0KD00000027 J0KD00000027 CORE
VYF2859 VYF2859 COVER
VYF2769 VYF2769 COVER
VYF2740 VYF2740 COVER
VSC5200 VSC5200 COVER
VSC4639 VSC4639 COVER
VMA9708 VMA9708 COVER
VGQ5995 VGQ5995 COVER
VGQ5990 VGQ5990 COVER
VGQ8424 VGQ8424 COVER
VGQ5578 VGQ5578 COVER
VGQ5577 VGQ5577 COVER
VGQ4813 VGQ4813 COVER
VGQ4811 VGQ4811 COVER
VPN5482 VPN5482 CUSHION
VPN5481 VPN5481 CUSHION
VMT1192 VMT1192 CUSHION
VEG1573 VEG1573 CYLINDER
VYQ2091 VYQ2091 FILTER
VDL1165 VDL1165 FILTER
VDW0506 VDW0506 FLANGE
VWJ16C8050AA VWJ16C8050AA FLEXIBLE CABLE
VJB29127 VJB29127 FLEXIBLE CABLE
VJB000F1 VJB000F1 FPC
VXQ0666 VXQ0666 FRAME
VXP1830 VXP1830 FRAME
VXP1829 VXP1829 FRAME
VSC4975 VSC4975 FRAME
VMP5469 VMP5469 FRAME
VMD2796 VMD2796 FRAME
VMT0906 VMT0906 GASKET
VMT1244 VMT1244 GASKET (DISCONTINUED)
VXA5407 VXA5407 GEAR
VGQ6046 VGQ6046 GEAR
VDG1032 VDG1032 GEAR
VKW2419 VKW2419 GLASS
VKW2418 VKW2418 GLASS
VMS6230 VMS6230 GUIDE
VYQ2169 VYQ2169 HOLDER
VYK9757 VYK9757 HOLDER
VYK8120 VYK8120 HOLDER
VYK7879 VYK7879 HOLDER
VXA5411 VXA5411 HOLDER
VMD4706 VMD4706 HOLDER
VGQS1014 VGQS1014 HOLDER
VGQ6037 VGQ6037 HOLDER
VGQ5993 VGQ5993 HOLDER
VGQ5575 VGQ5575 HOLDER
VGQ4598 VGQ4598 HOLDER
VFC3571 VFC3571 HOOD
VYK7875 VYK7875 HOUSING
VQT8965 VQT8965 INSTRUCT BOOK
VGU8883 VGU8883 KNOB
VGU8881 VGU8881 KNOB
VGU7776 VGU7776 KNOB
VGU7459 VGU7459 KNOB
VGQ4585 VGQ4585 KNOB
VXW0401 VXW0401 LENS
VXQ0667 VXQ0667 LENS
VXL3161 VXL3161 LEVER
VXL2454 VXL2454 LEVER
VGQ6035 VGQ6035 LEVER
VGQ5572 VGQ5572 LEVER
VGQ4494 VGQ4494 LEVER
VSQ1041 VSQ1041 MAGNET
VXA5417 VXA5417 MOTOR
VEM0641 VEM0641 MOTOR
VYQ1521 VYQ1521 NET
VGQ4631 VGQ4631 NET
XNG26E XNG26E NUT
VEK9224 VEK9224 OPTICAL UNIT
A4LBEE000001 A4LBEE000001 OPTICAL UNIT
D2ZGAZZB0004 D2ZGAZZB0004 OPTICAL UNIT
VMT1176 VMT1176 PAD
VMG1355 VMG1355 PAD
VGP5435 VGP5435 PANEL
VGL0764 VGL0764 PANEL
EDTCA22QD0 EDTCA22QD0 PANEL
VEP28244B VEP28244B PC BOARD
VEP28240D VEP28240D PC BOARD
VEP06E27A VEP06E27A PC BOARD
VEP04778A VEP04778A PC BOARD
VEP03E35D VEP03E35D PC BOARD
VEP000T9A VEP000T9A PC BOARD
VEP000T7A VEP000T7A PC BOARD
VEP000S2A VEP000S2A PC BOARD
VEP000S1A VEP000S1A PC BOARD
VEP000R6A VEP000R6A PC BOARD
VEP000R5A VEP000R5A PC BOARD
VEP000R4A VEP000R4A PC BOARD
VEP000R3A VEP000R3A PC BOARD
VEP000R0A VEP000R0A PC BOARD
VEK9259 VEK9259 PC BOARD
VEP23443A VEP23443A PCB W/COMPONENT
VEP22269B VEP22269B PCB W/COMPONENT
VEP22268A VEP22268A PCB W/COMPONENT
VEP06C24A VEP06C24A PCB W/COMPONENT
VEP05352A VEP05352A PCB W/COMPONENT
VEP04693A VEP04693A PCB W/COMPONENT
VEP04684A VEP04684A PCB W/COMPONENT
VEP02561A VEP02561A PCB W/COMPONENT
VYQ2110 VYQ2110 PLATE
VYQ2096 VYQ2096 PLATE
VXA5412 VXA5412 PLATE
VMP6171 VMP6171 PLATE
VMA9179 VMA9179 PLATE
VMA9178 VMA9178 PLATE
VGU8745 VGU8745 PLATE
VGQ6149 VGQ6149 PLATE
VGQ6096 VGQ6096 PLATE
VGQ6071 VGQ6071 PLATE
VGQ4738 VGQ4738 PLATE
VGF0879 VGF0879 PLATE
VYQ2123 VYQ2123 PROTECTOR
VDG1031 VDG1031 PULLEY
VDG1030 VDG1030 PULLEY
VVXS0034 VVXS0034 RING
VXP1871 VXP1871 RING
VMG1372 VMG1372 RING
VMG1357 VMG1357 RING
VGQ6067 VGQ6067 RING
VGQ5994 VGQ5994 RING
VXA5408 VXA5408 ROD
VXA5401 VXA5401 ROD
VMA9181 VMA9181 ROD
VMG0952 VMG0952 RUBBER
XYN3_K5 XYN3_K5 SCREW
XYN26_J6FJ XYN26_J6FJ SCREW
XYN26_C6S XYN26_C6S SCREW
XVE2A3FZ XVE2A3FZ SCREW
XTV4_8G XTV4_8G SCREW
XTV3_6GFJ XTV3_6GFJ SCREW
XTV3_6FFJK XTV3_6FFJK SCREW
XTN26_6FZ XTN26_6FZ SCREW
XTN26_4GR XTN26_4GR SCREW
XTN2_6GFJ XTN2_6GFJ SCREW
XTN2_4G XTN2_4G SCREW
XTB3_8GFX XTB3_8GFX SCREW
B3X8TTSXTB3_8FFZ B3X8TTSXTB3_8FFZ SCREW
XTB3_12JFZ XTB3_12JFZ SCREW
XTB3_10GFJK XTB3_10GFJK SCREW
XSN3_6FZ XSN3_6FZ SCREW
XQS2_AJ7FJK XQS2_AJ7FJK SCREW
XQN2_CJ8 XQN2_CJ8 SCREW
XQN2_CJ7FZ XQN2_CJ7FZ SCREW
XQN2_CJ6FZ XQN2_CJ6FZ SCREW
XQN2_CJ5 XQN2_CJ5 SCREW
XQN2_C4FJ XQN2_C4FJ SCREW
XQN2_BJ8FN XQN2_BJ8FN SCREW
XQN2_BJ5FN XQN2_BJ5FN SCREW
XQN2_BJ4FJK XQN2_BJ4FJK SCREW
XQN2_BJ4 XQN2_BJ4 SCREW
XQN2_B3FJK XQN2_B3FJK SCREW
XQN2_B35FN XQN2_B35FN SCREW
XQN2_B3 XQN2_B3 SCREW
XQN2_B25FJ XQN2_B25FJ SCREW
XQN2_AG4 XQN2_AG4 SCREW
XQN16_CJ8FJ XQN16_CJ8FJ SCREW
XQN16_CJ5 XQN16_CJ5 SCREW
XQN16_CJ3 XQN16_CJ3 SCREW
XQN16_BJ4FJK XQN16_BJ4FJK SCREW
XQN16_BJ3FJK XQN16_BJ3FJK SCREW
XQN16_B5FJK XQN16_B5FJK SCREW
XQN16_B4FN XQN16_B4FN SCREW
XQN14_BQ4FJ XQN14_BQ4FJ SCREW
XQN14_B4FZ XQN14_B4FZ SCREW
XQN14_B4 XQN14_B4 SCREW
XQN14_B35 XQN14_B35 SCREW
XQN14_B2 XQN14_B2 SCREW
XQN14_B15 XQN14_B15 SCREW
VXQ0439 VXQ0439 SCREW
VMS5604 VMS5604 SCREW
VHD1412 VHD1412 SCREW
VHD1285 VHD1285 SCREW
VHD1127 VHD1127 SCREW
VHD1105 VHD1105 SCREW
VHD1100 VHD1100 SCREW
VHD0989 VHD0989 SCREW
VHD0883 VHD0883 SCREW
VHD0882 VHD0882 SCREW
VHD0878 VHD0878 SCREW
VHD0866 VHD0866 SCREW
VGP4575 VGP4575 SCREW
XTV3_8GR XTV3_8GR SCREW (1/10)
XTV3_10GFJ XTV3_10GFJ SCREW (1/10)
XTV26_8G XTV26_8G SCREW (1/10)
XYN2_C6FJ XYN2_C6FJ SCREW / FACT. 1
VYQ1447 VYQ1447 SENSOR
VJB000F2 VJB000F2 SENSOR
VEK7716 VEK7716 SENSOR
VMS6855 VMS6855 SHAFT
VSC5154 VSC5154 SHEET
VMZ3182 VMZ3182 SHEET
VMZ3127 VMZ3127 SHEET
VMT1197 VMT1197 SHEET
VMG1070 VMG1070 SHEET
VGQ6863 VGQ6863 SHEET
VGQ6273 VGQ6273 SHEET
VGQ5633 VGQ5633 SHEET
VGQ5573 VGQ5573 SHEET
VGQ4750 VGQ4750 SHEET
VGQ4615 VGQ4615 SHEET
VGQ3457 VGQ3457 SHEET
VSC5219 VSC5219 SHIELD
VSC5205 VSC5205 SHIELD
VSC5204 VSC5204 SHIELD
VSC5198 VSC5198 SHIELD
VMP2407 VMP2407 SHOE
VSJ0114 VSJ0114 SOLENOID
VMZ3140 VMZ3140 SPACER
VMC1614 VMC1614 SPRING
VMC1576 VMC1576 SPRING
VMC1365 VMC1365 SPRING
VMC1288 VMC1288 SPRING
VMC1271 VMC1271 SPRING
VMB3469 VMB3469 SPRING
VMB3314 VMB3314 SPRING
VMB3197 VMB3197 SPRING
VMB3148 VMB3148 SPRING
VMB2791 VMB2791 SPRING
VMB2789 VMB2789 SPRING
VMB2788 VMB2788 SPRING
VMB2787 VMB2787 SPRING
VMB2786 VMB2786 SPRING
VMB2785 VMB2785 SPRING
VMB2784 VMB2784 SPRING
VMB2783 VMB2783 SPRING
VMB2782 VMB2782 SPRING
VMB2776 VMB2776 SPRING
VMB2531 VMB2531 SPRING
VFC3573 VFC3573 STRAP
VFB0219 VFB0219 STRAP
VSH0067 VSH0067 SWITCH
VXR0235 VXR0235 TABLE
VXR0355 VXR0355 TABLE
VMT1202 VMT1202 TAPE
XWE26 XWE26 WASHER
XWA26B XWA26B WASHER
VMX2504 VMX2504 WASHER
VMX2503 VMX2503 WASHER
VMX2400 VMX2400 WASHER
VMX2394 VMX2394 WASHER
VMX2028 VMX2028 WASHER
VMX2027 VMX2027 WASHER
VJF1526 VJF1526 WIRE
XSB2_5FZ XSB2_5FZ XSN2+5
XSN26_12BN XSN26_12BN XSN26+12BN
XST3_5FXS XST3_5FXS XST3+5FXS
XTB26_6GFZ XTB26_6GFZ XTB26+6G
XTN26_6JFZ XTN26_6JFZ XTN26+6JFZ
XTN26_8JFJK XTN26_8JFJK XTN26+8J
XTN3_8GFJK XTN3_8GFJK XTN3+8CFN
XUC15FX XUC15FX XUC15FY
VXA5946 VXA5946 YOKE
VMA9768 VMA9768 YOKE
